HS1488 - Medium Pressure Fittings

Equals to P/N 93-191302

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
93-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
93-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
93-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	1210-	6B	8B	10B	12B	Monel

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31

Description	Req’d per Ass’y	Base No.	1616	Material
Elbow	1	15-419037-	16	Monel
Socket	2	1212-	16B	Monel

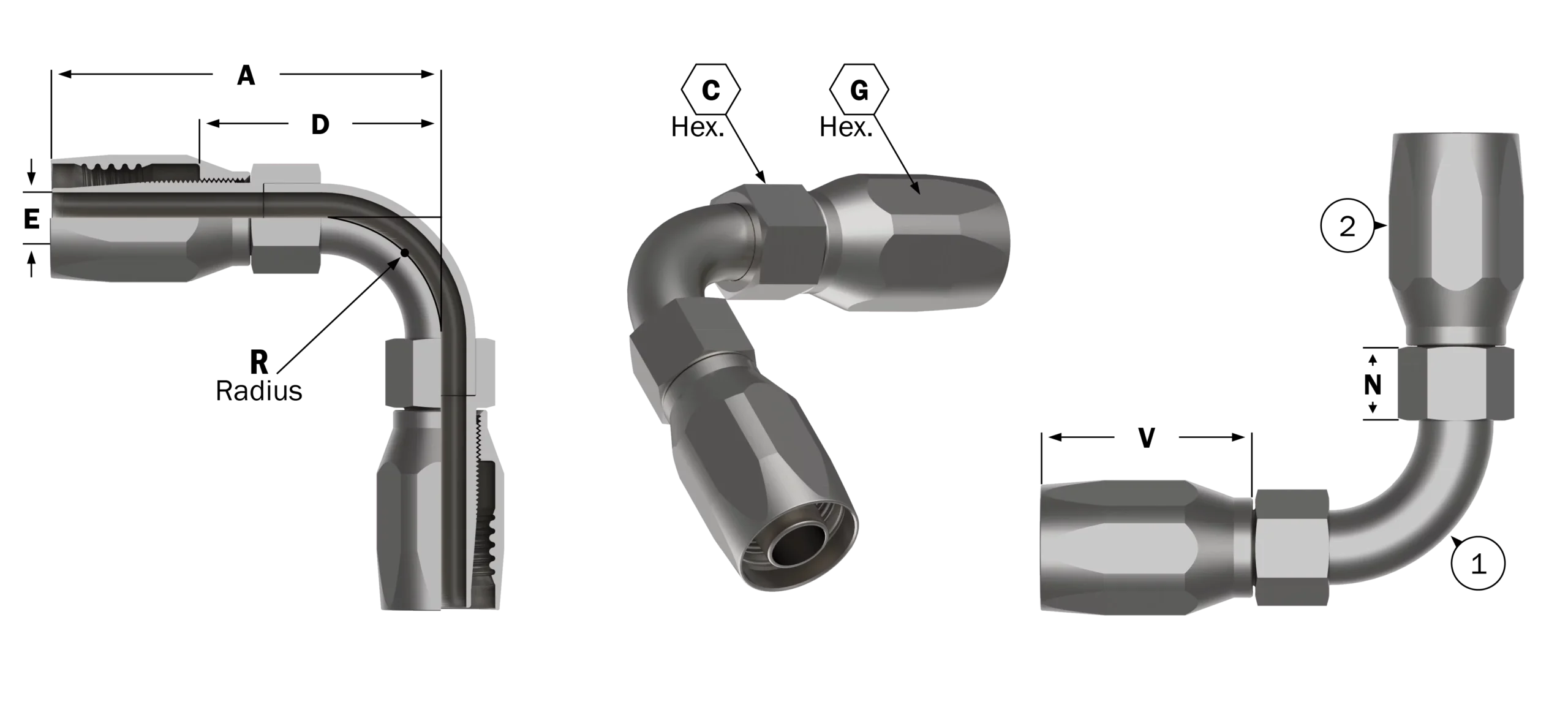

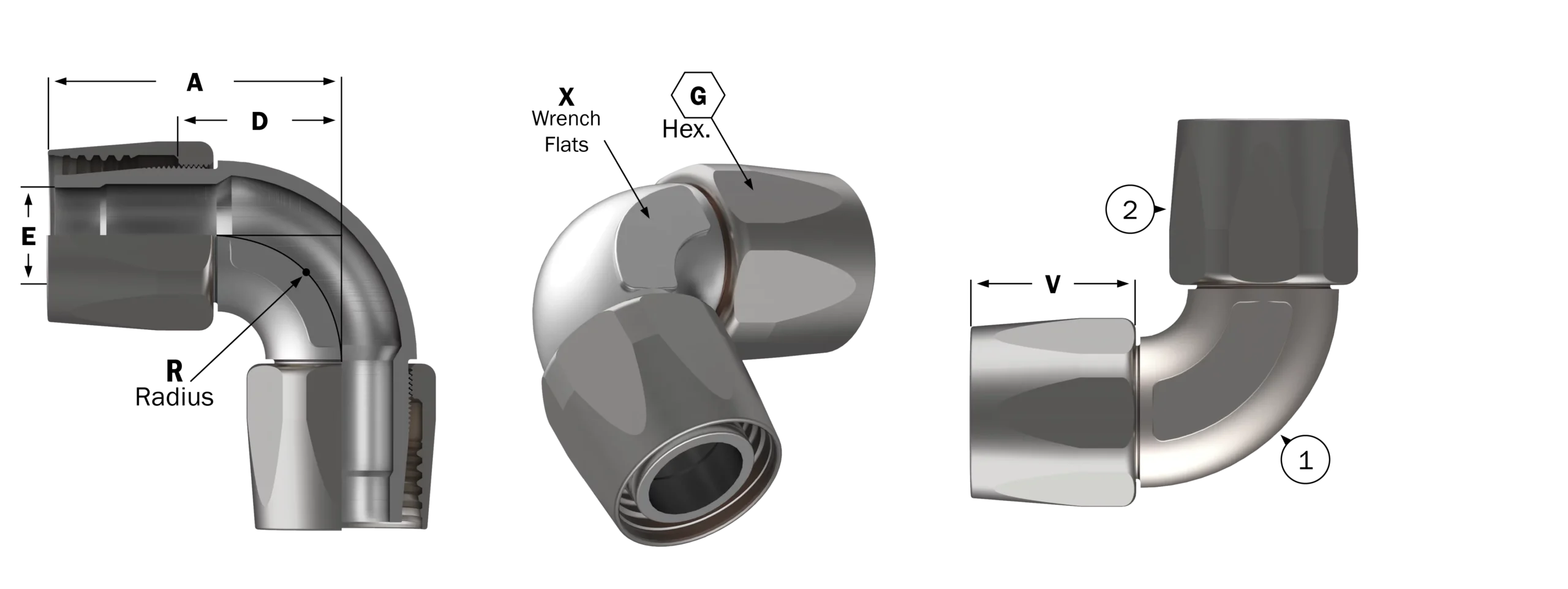

HS1488

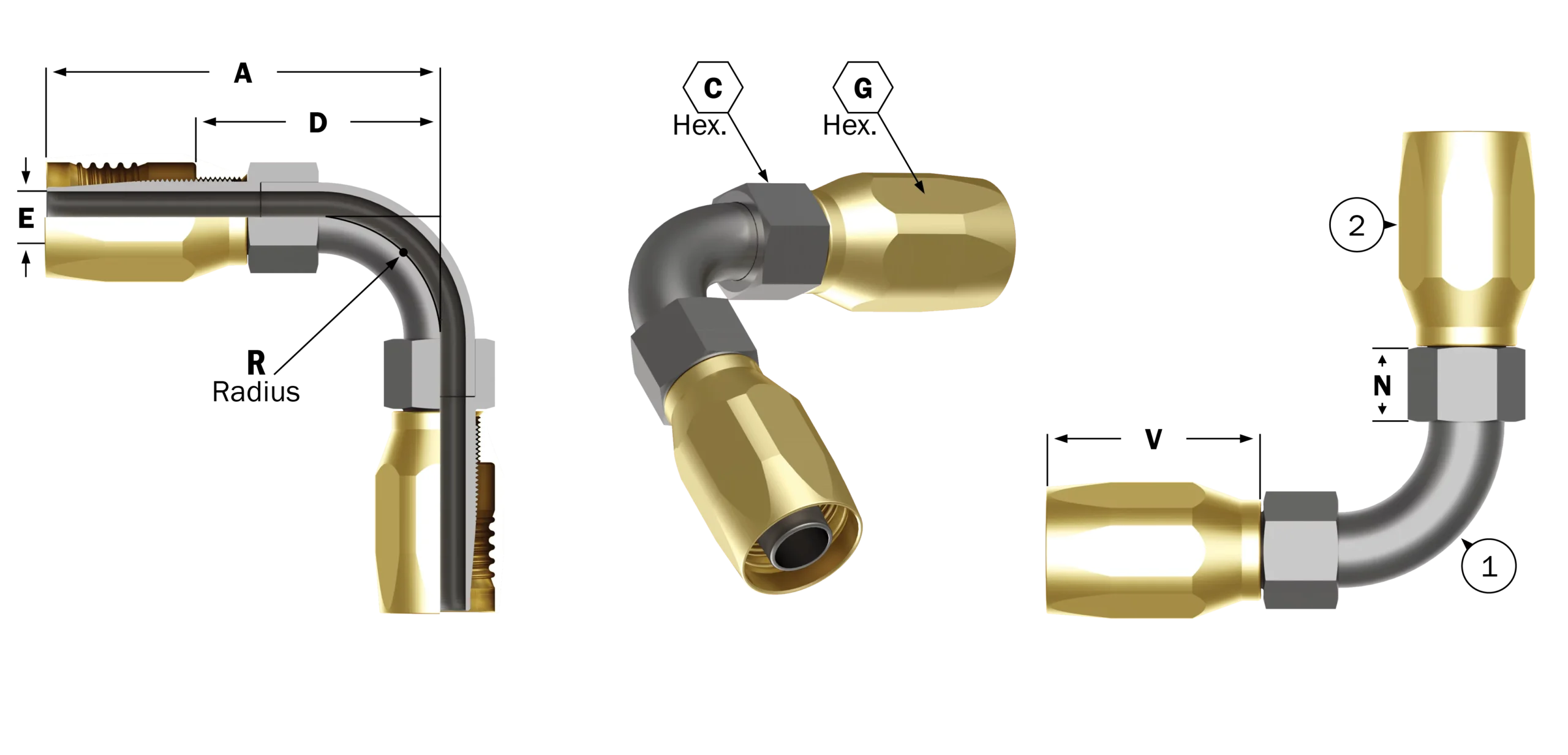

Equal to Aeroquip P/N 93-191302

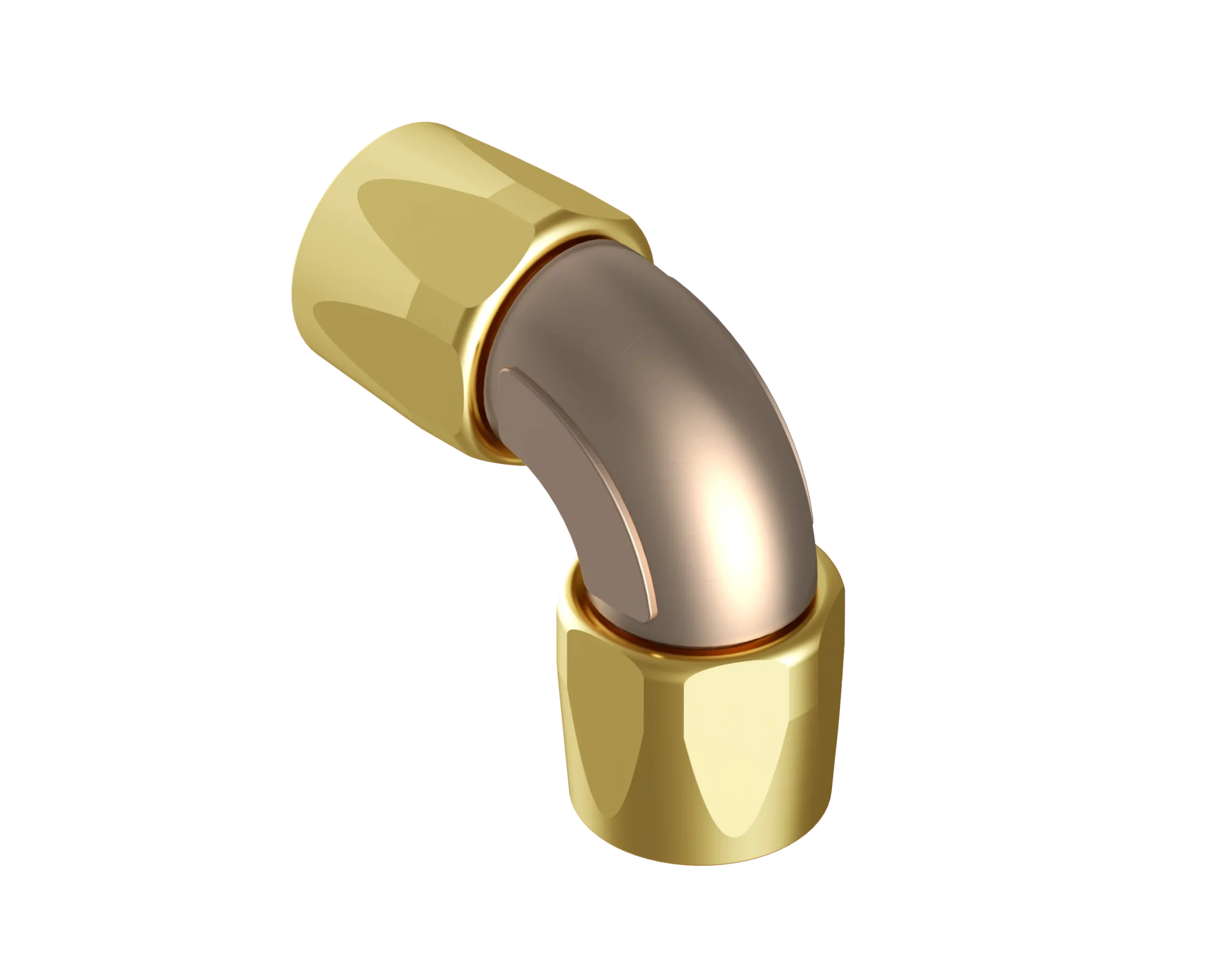

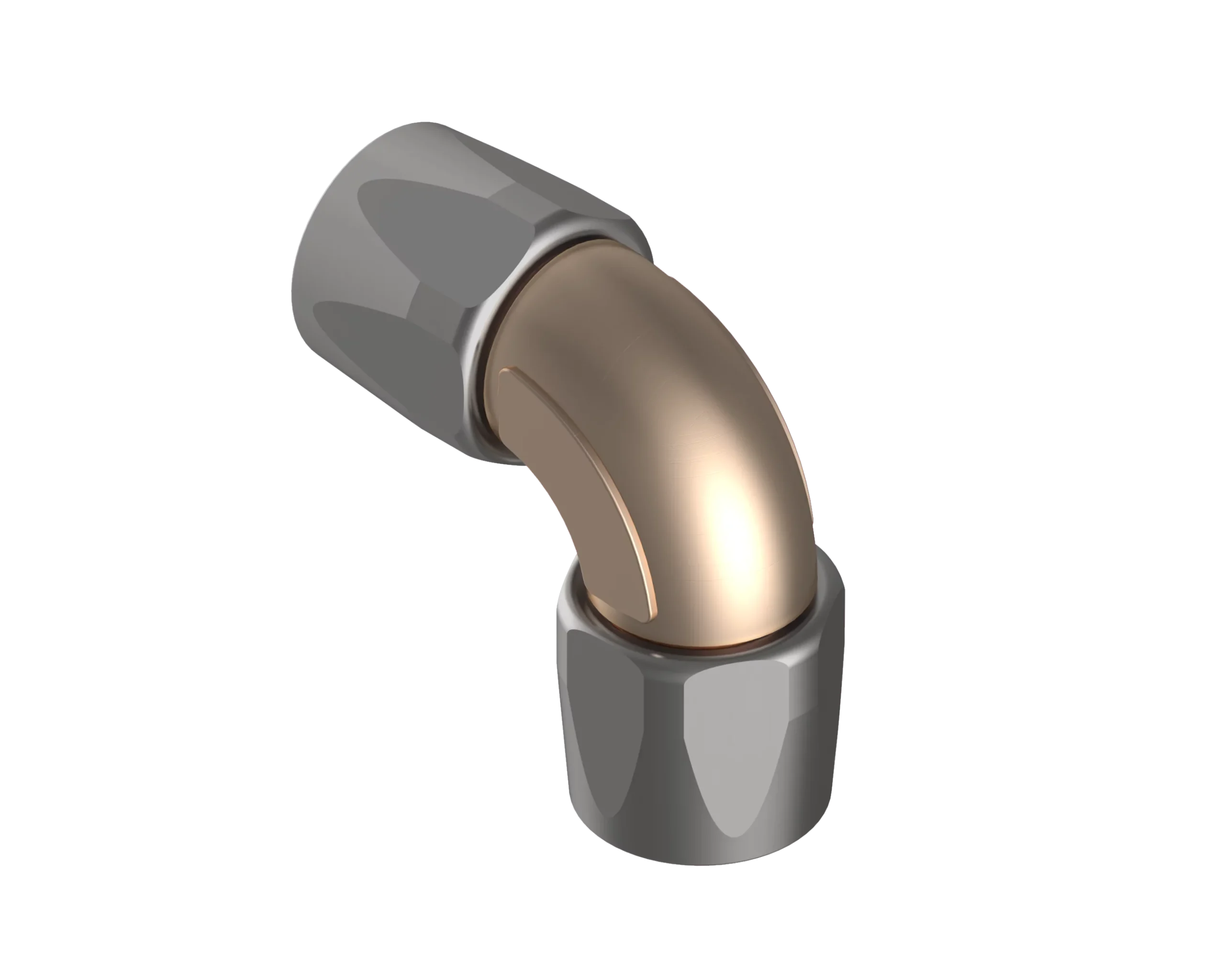

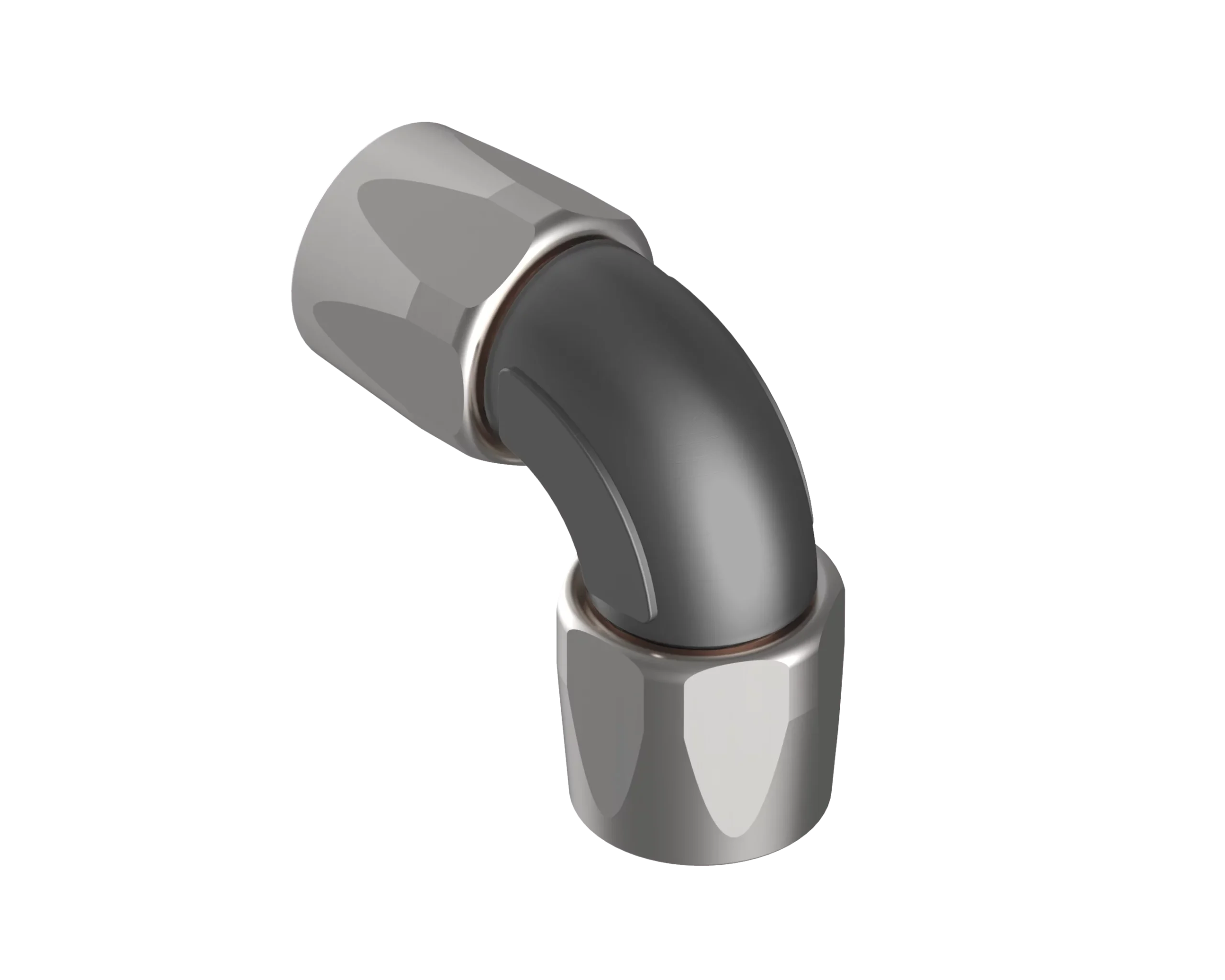

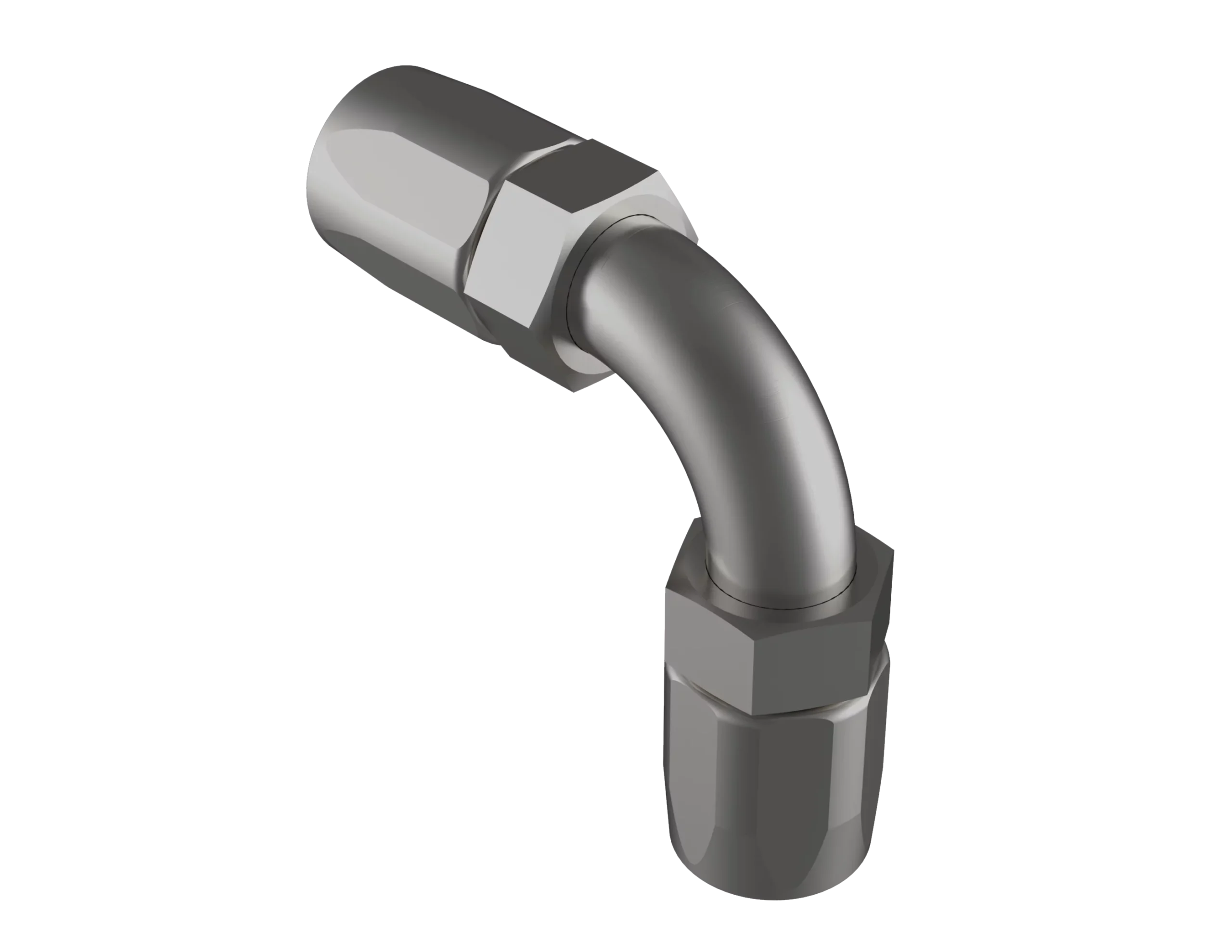

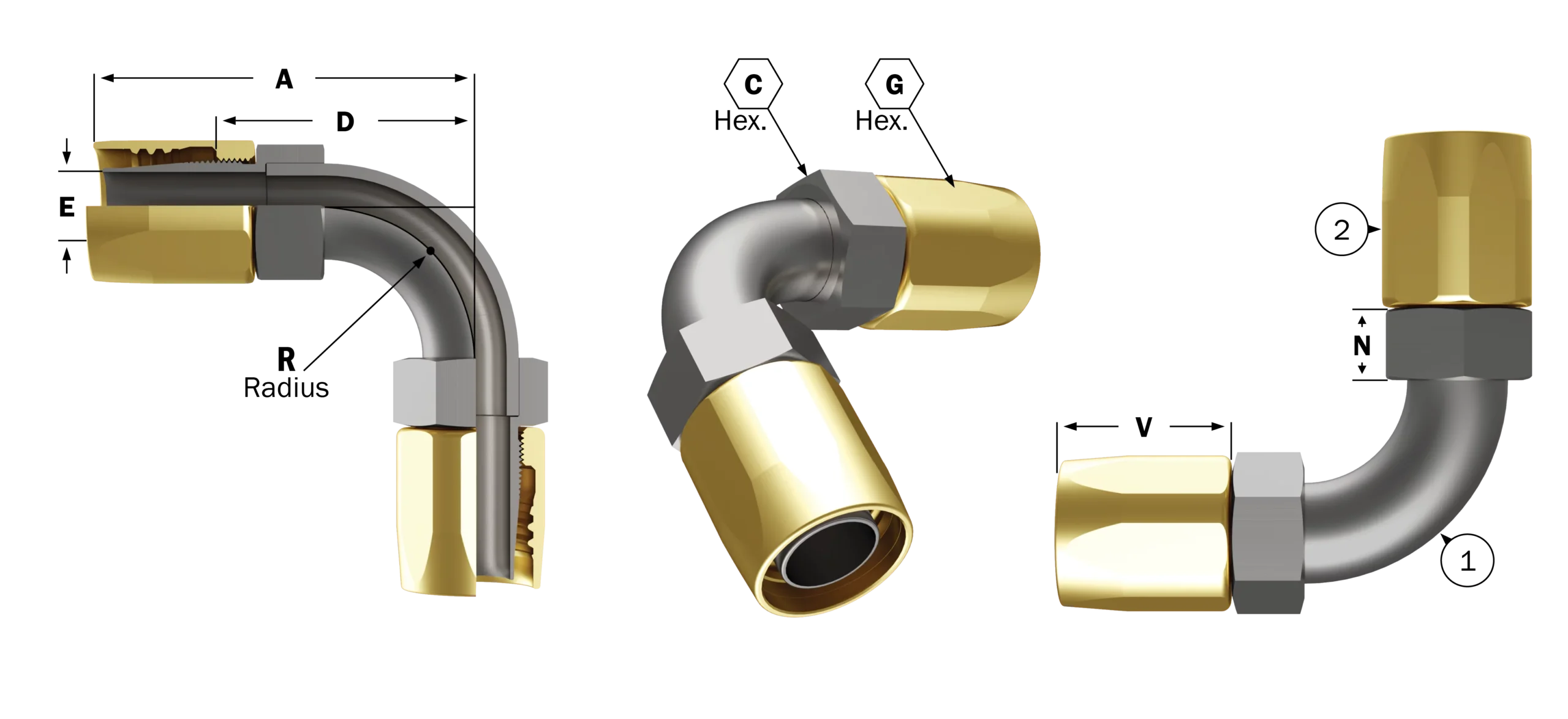

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
93-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
93-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
93-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	1210-	6B	8B	10B	12B	Monel

HS1488 Equivalent

P/N 93-191302

Hose to Hose

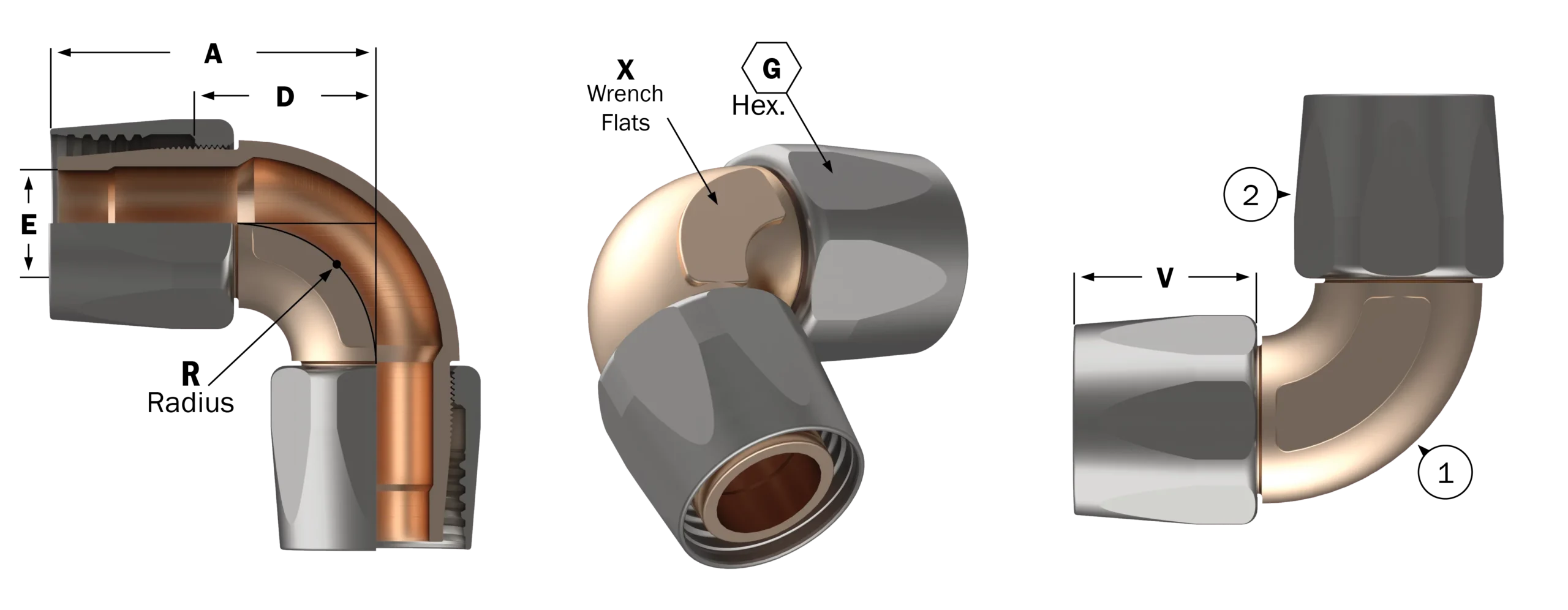

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
93-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31

Description	Req’d per Ass’y	Base No.	1616	Material
Elbow	1	15-419037-	16	Monel
Socket	2	1212-	16B	Monel

Equals to P/N 4-191302

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/5

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
4-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
4-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
4-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	4-1210-	6	8	10	12	Monel

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31
4-191302-32	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	Base No.	1616	3232	Material
Elbow	1	15-4419037-	16	32	Monel
Socket	2	4-1212-	16	32	Monel

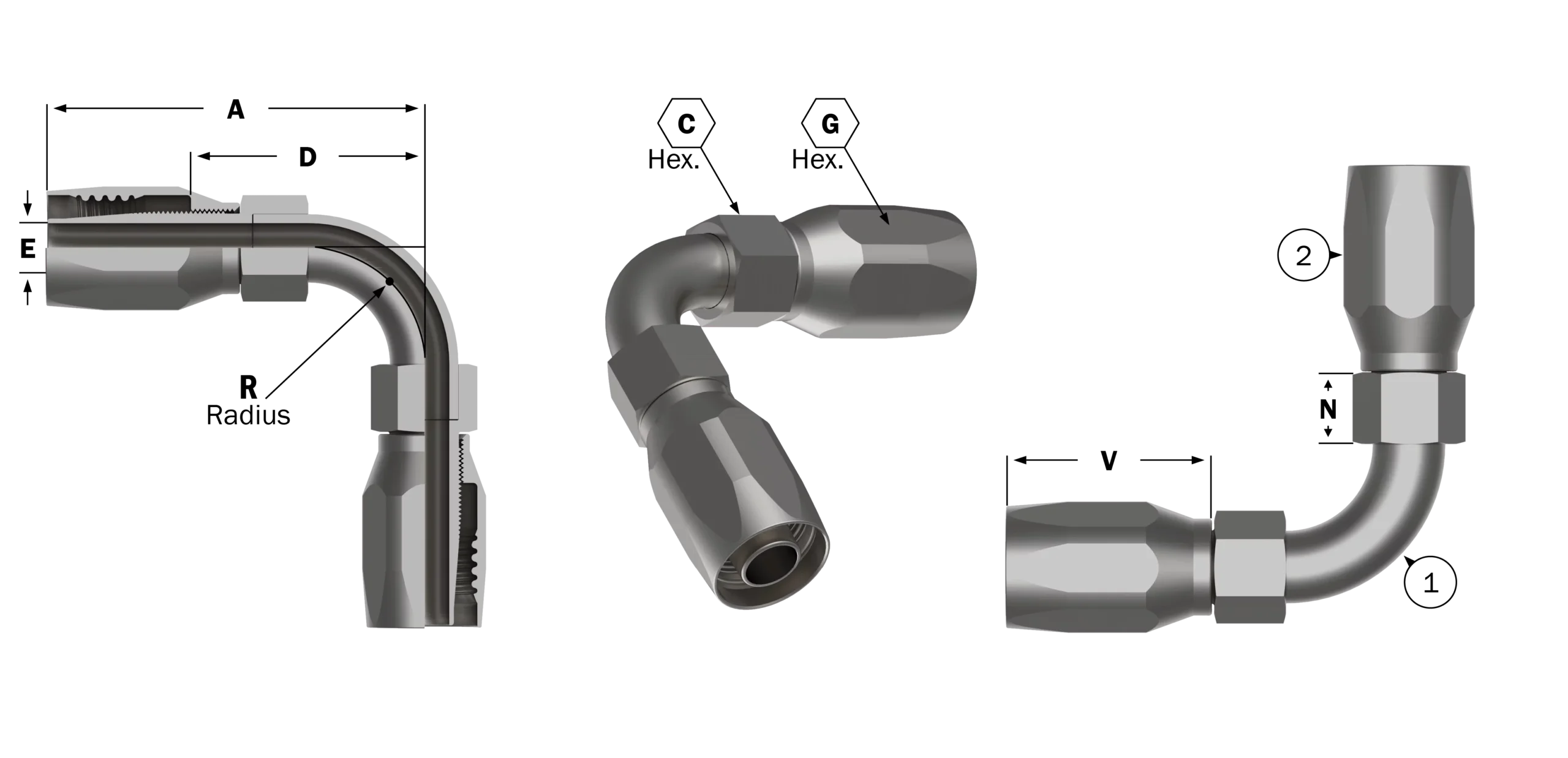

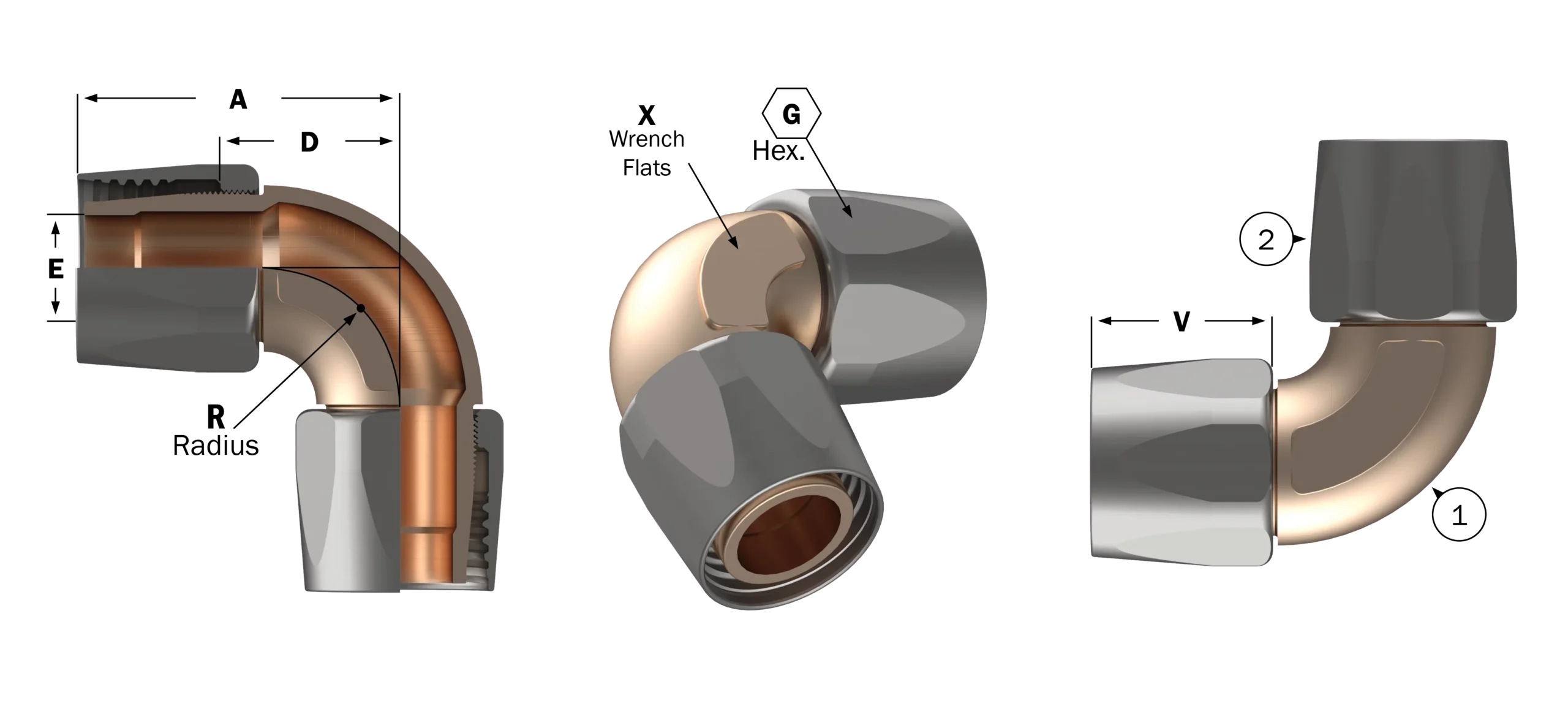

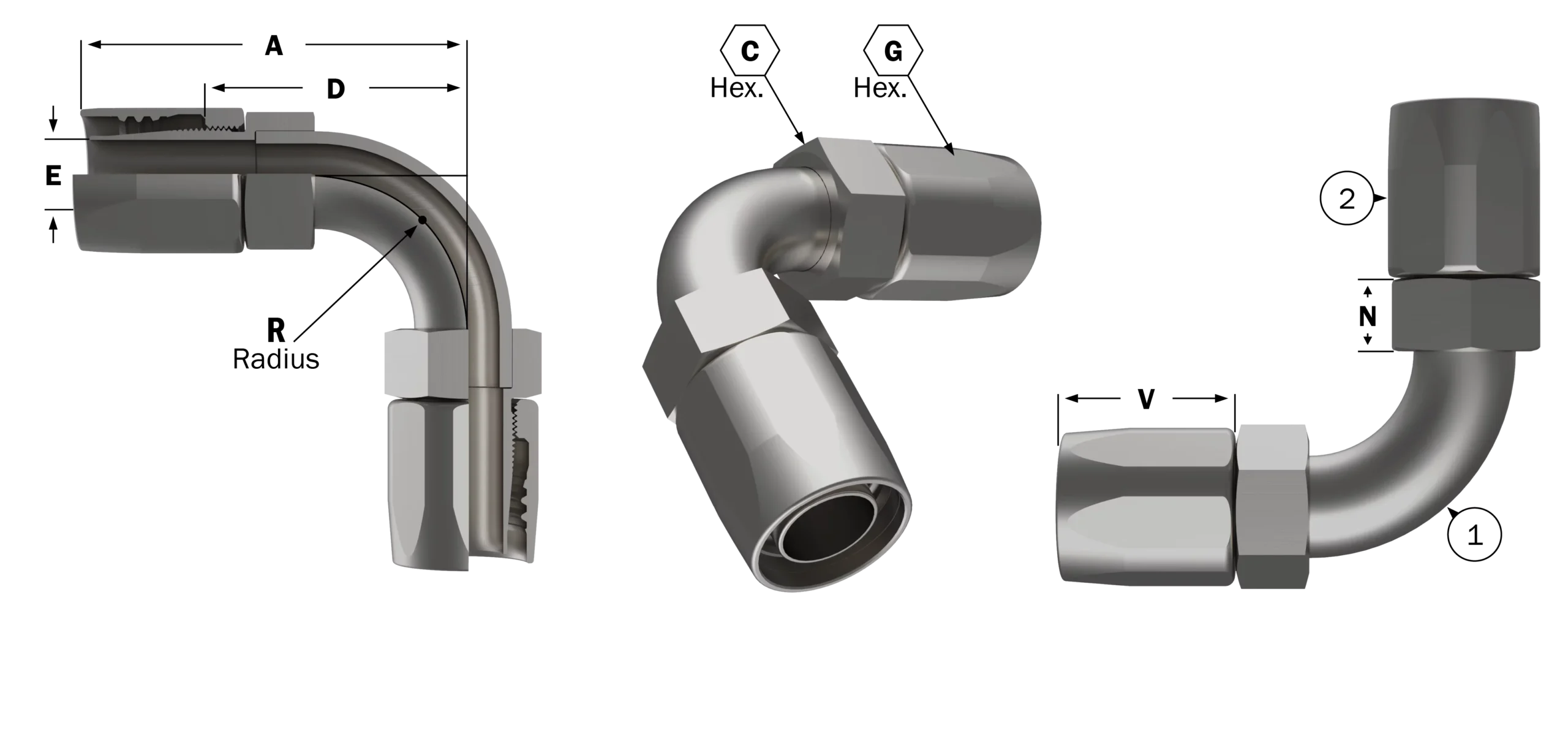

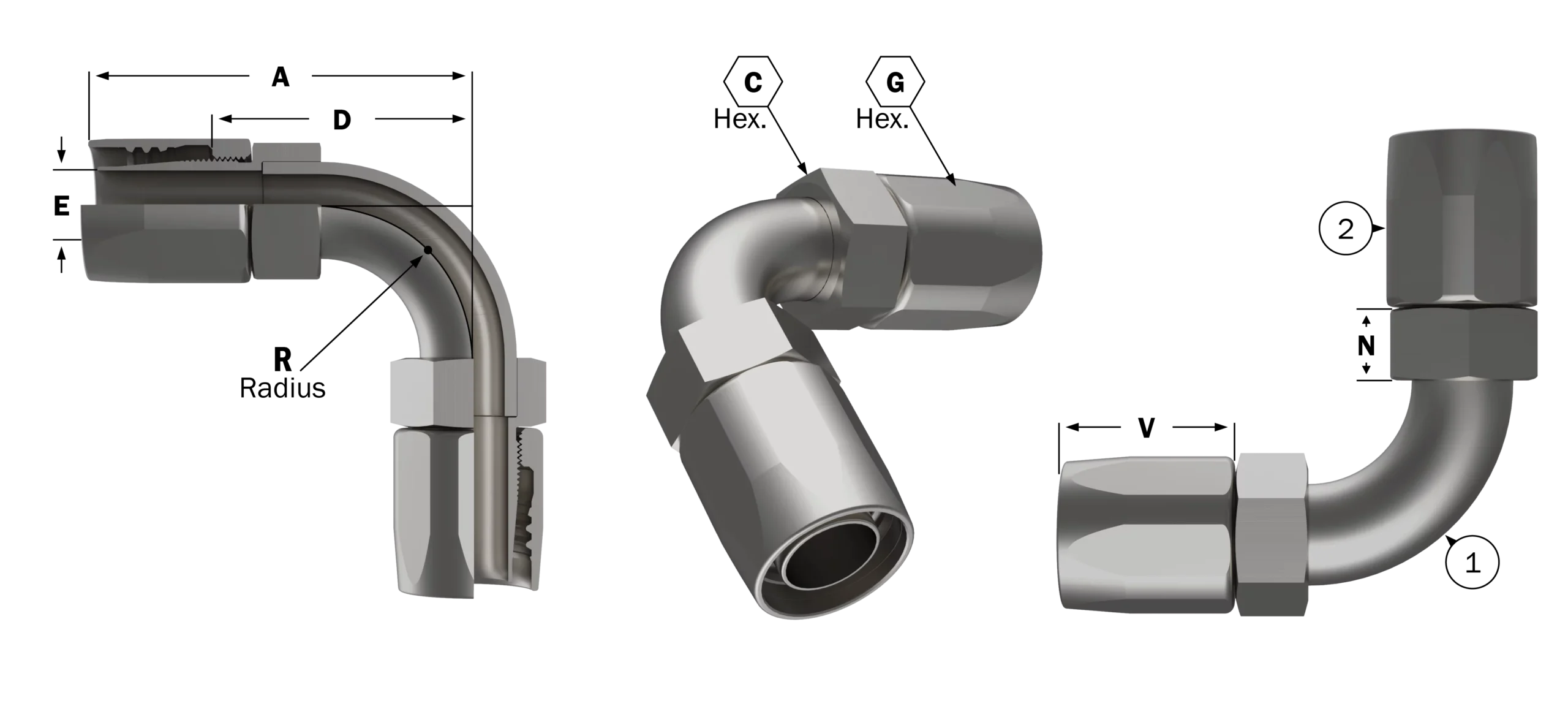

HS1488

Equal to Aeroquip P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-6	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.24
4-191302-8	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.41
4-191302-10	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.59
4-191302-12	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	Base No.	0606	0808	1010	1212	Material
Elbow	1	4-419037-	6	8	10	12	Monel
Socket	2	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
4-191302-16	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.31
4-191302-32	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	Base No.	1616	3232	Material
Elbow	1	15-4419037-	16	32	Monel
Socket	2	4-1212-	16	32	Monel

Equals to P/N FC9426-375

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/4

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type EL, Group VIII

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Desceiption	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-375	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-375	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-375	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-375	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

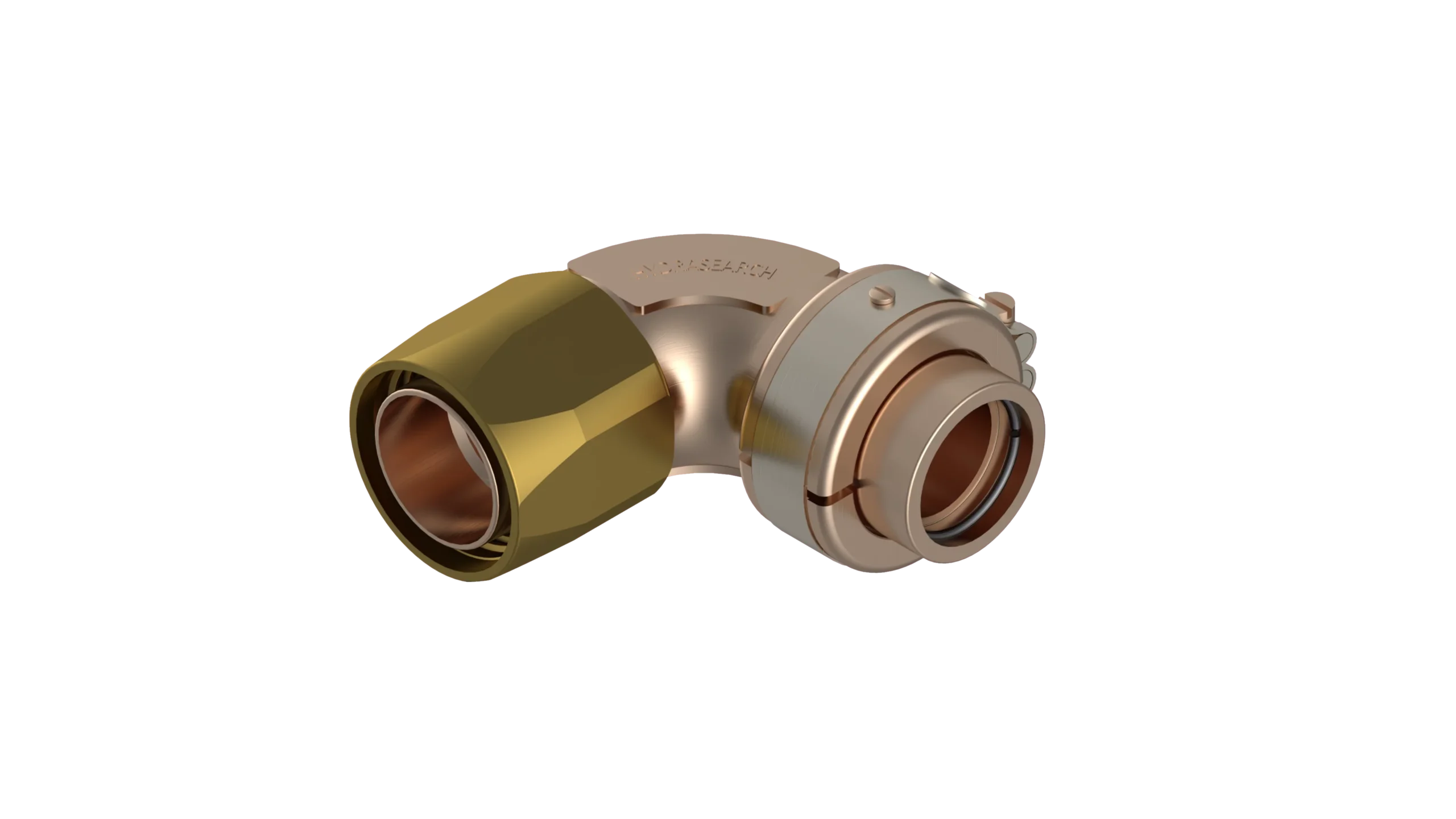

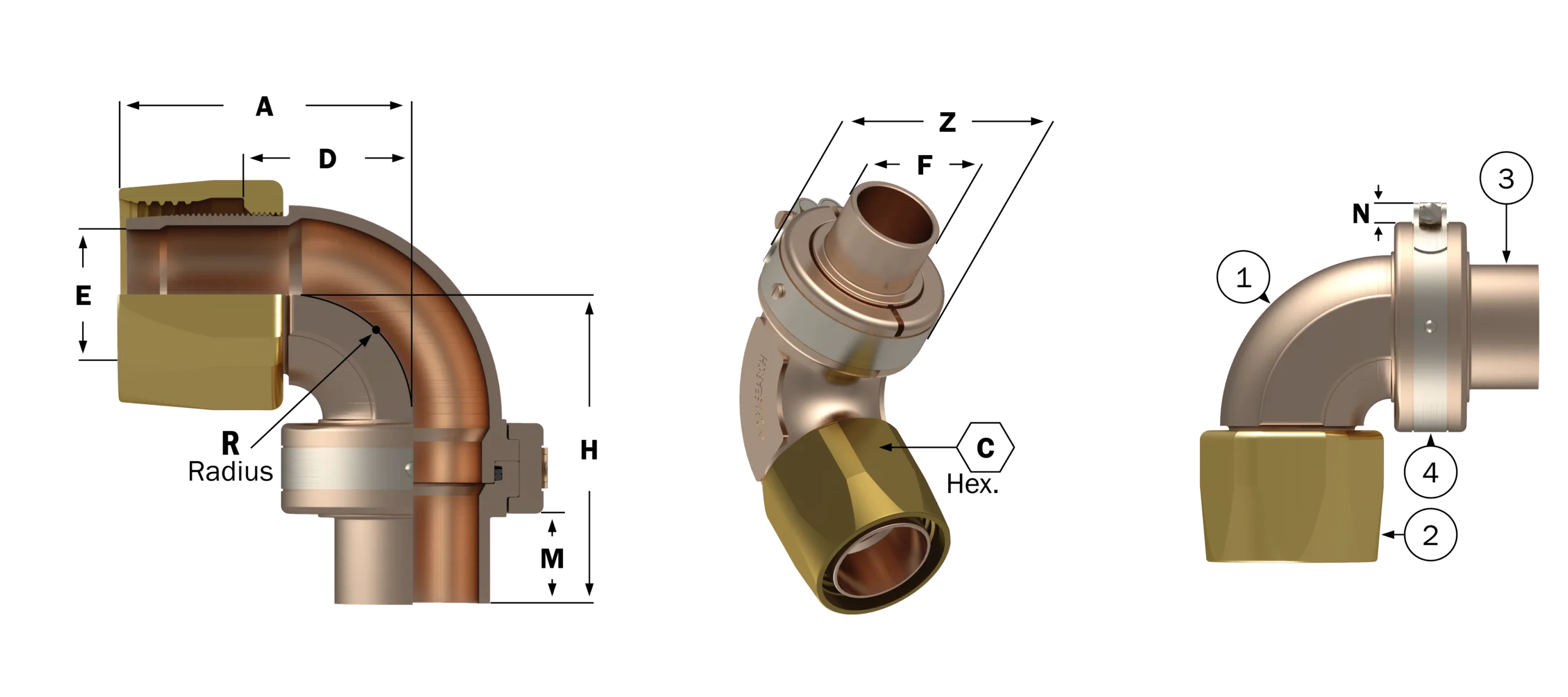

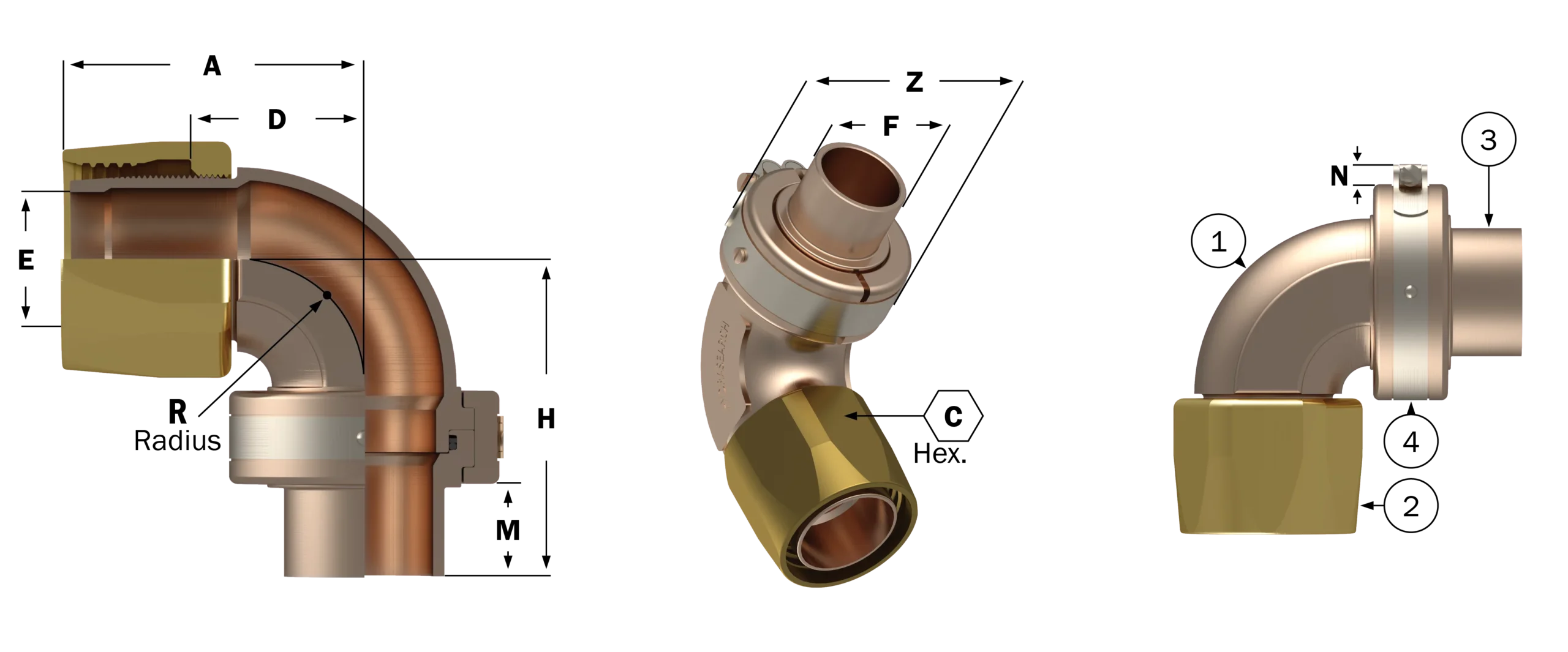

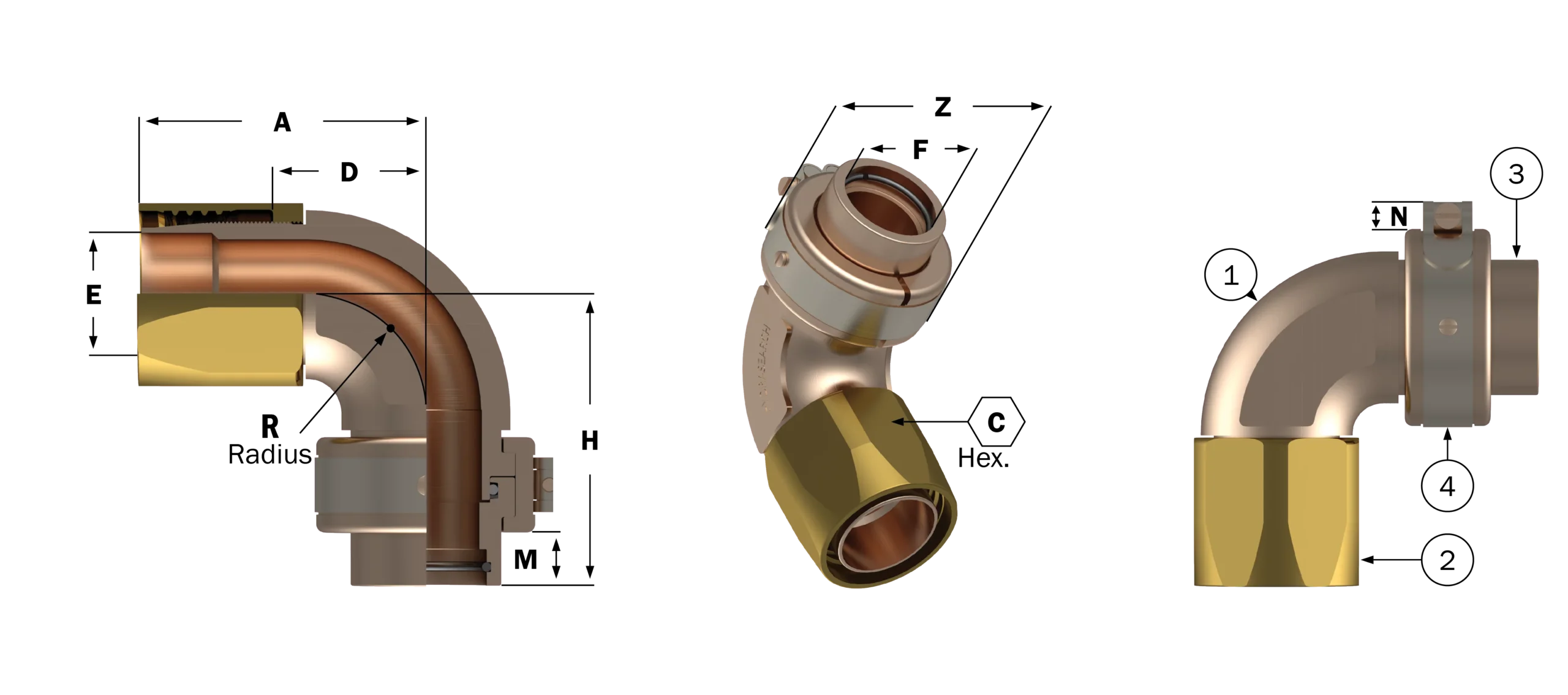

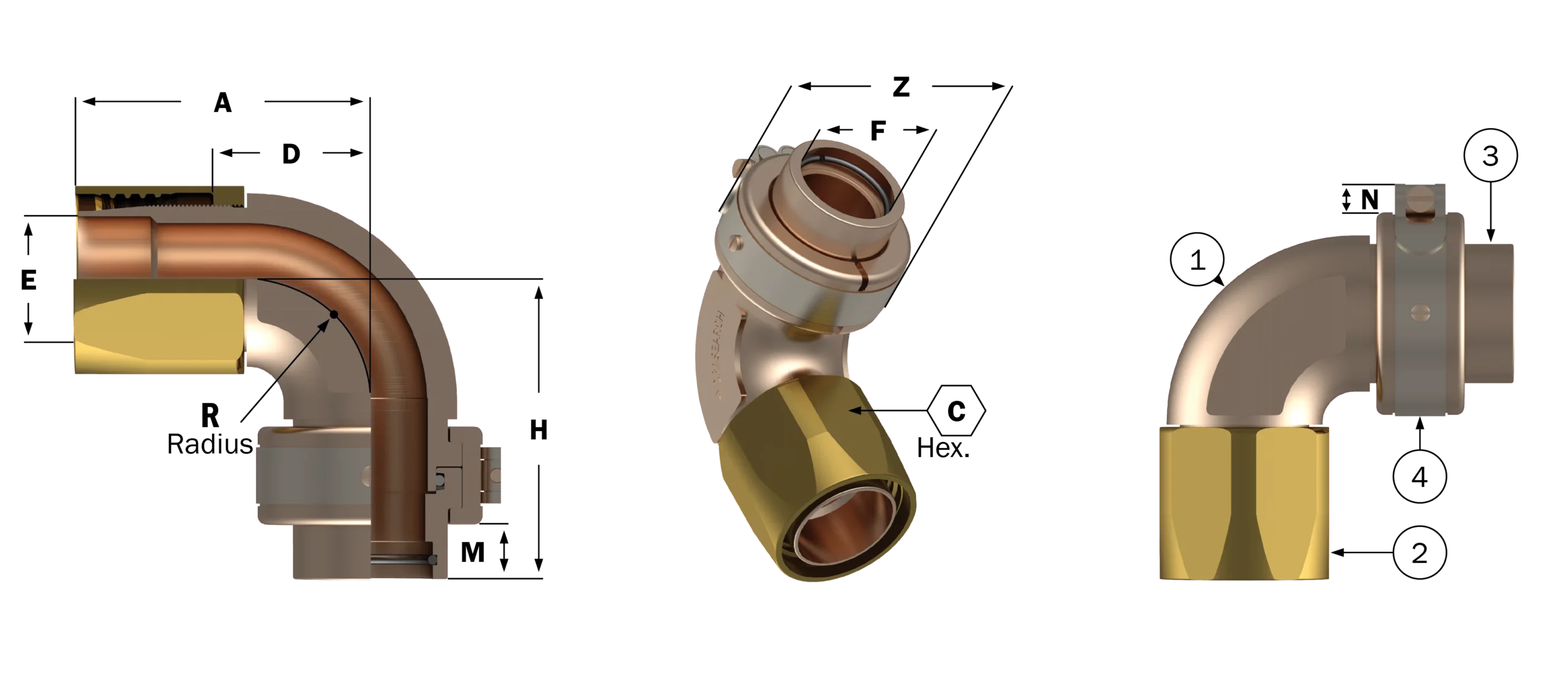

Equal to Aeroquip P/N FC9426-375

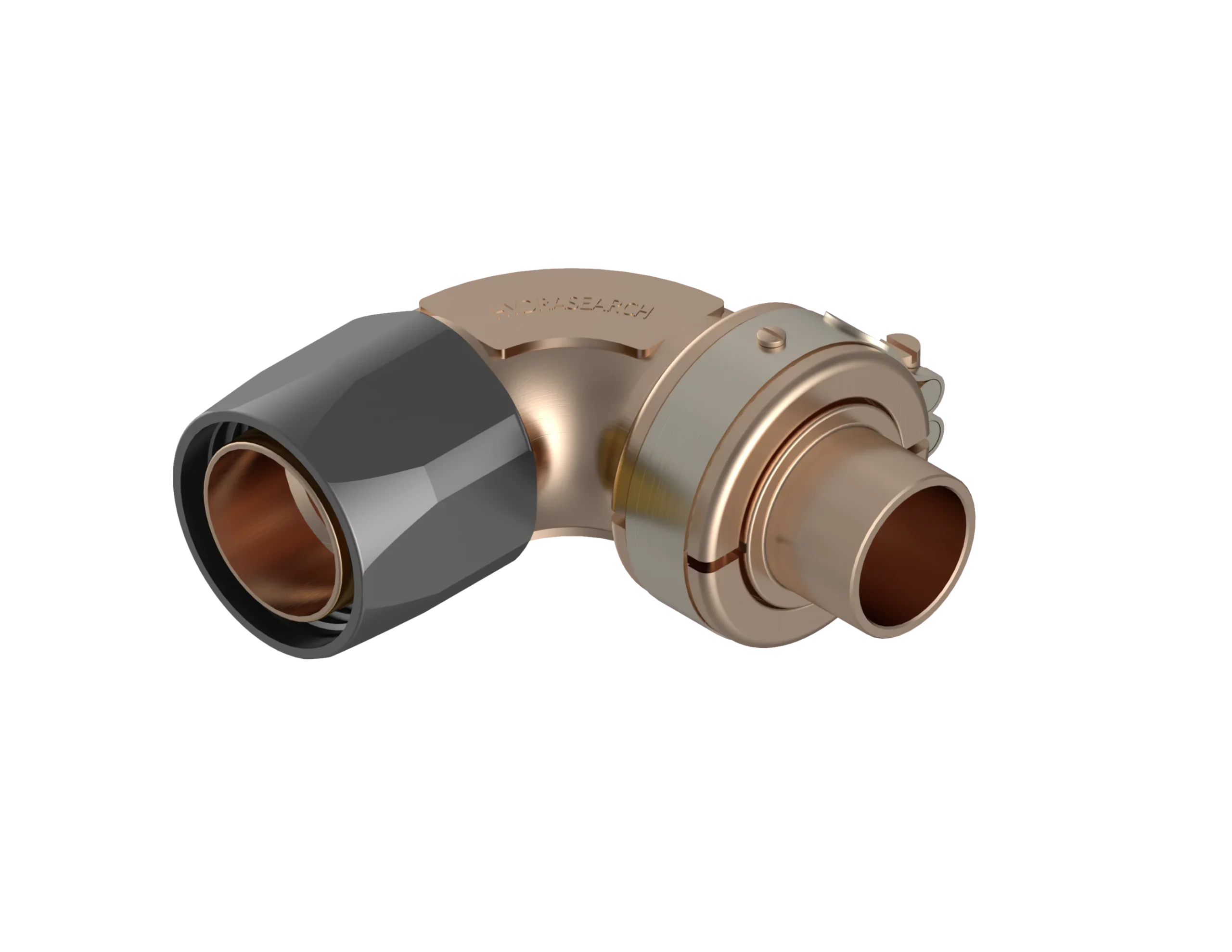

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

MIL-DTL-24787/4,

Type EL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Desceiption	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

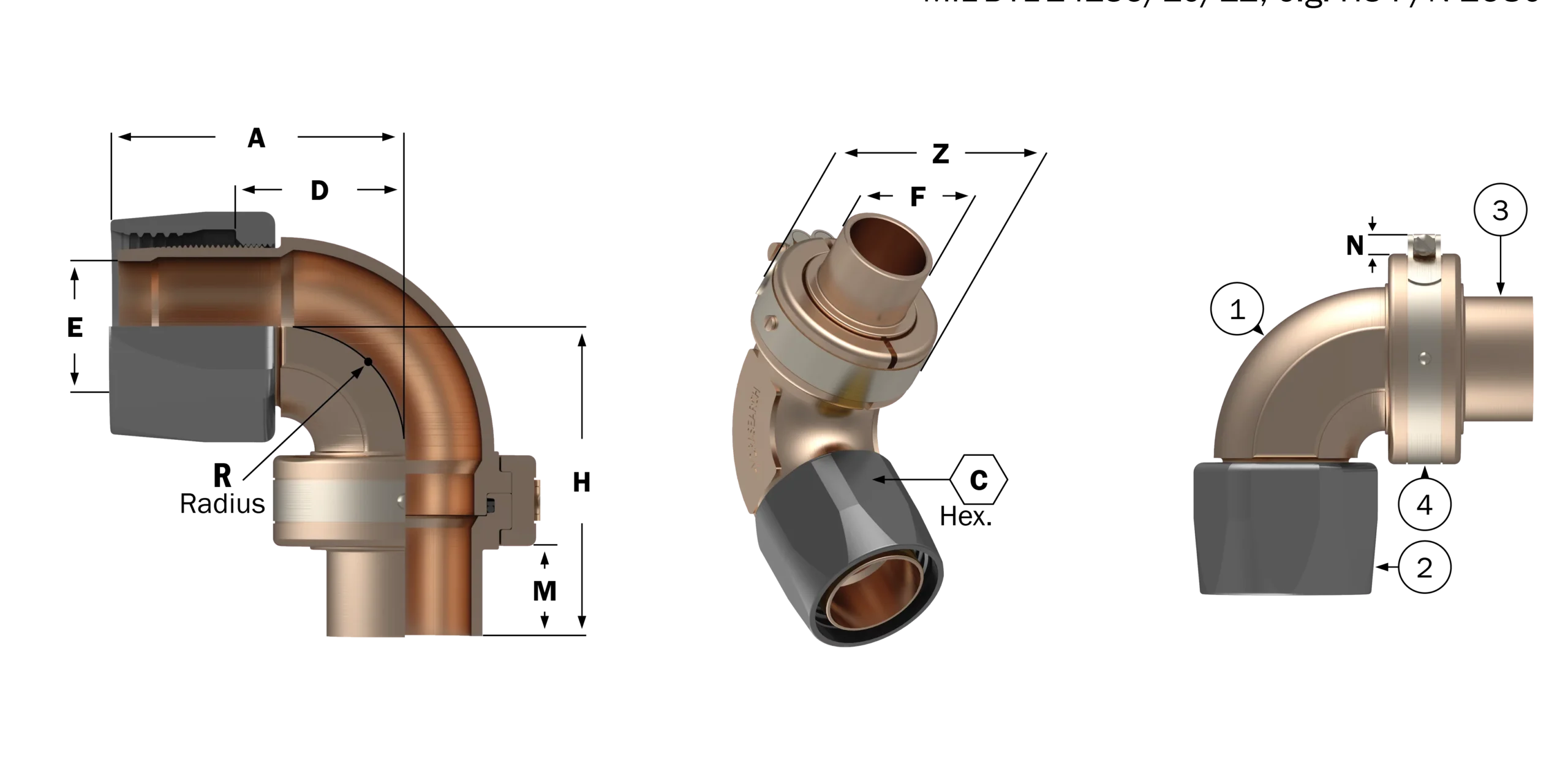

P/N FC9425-375

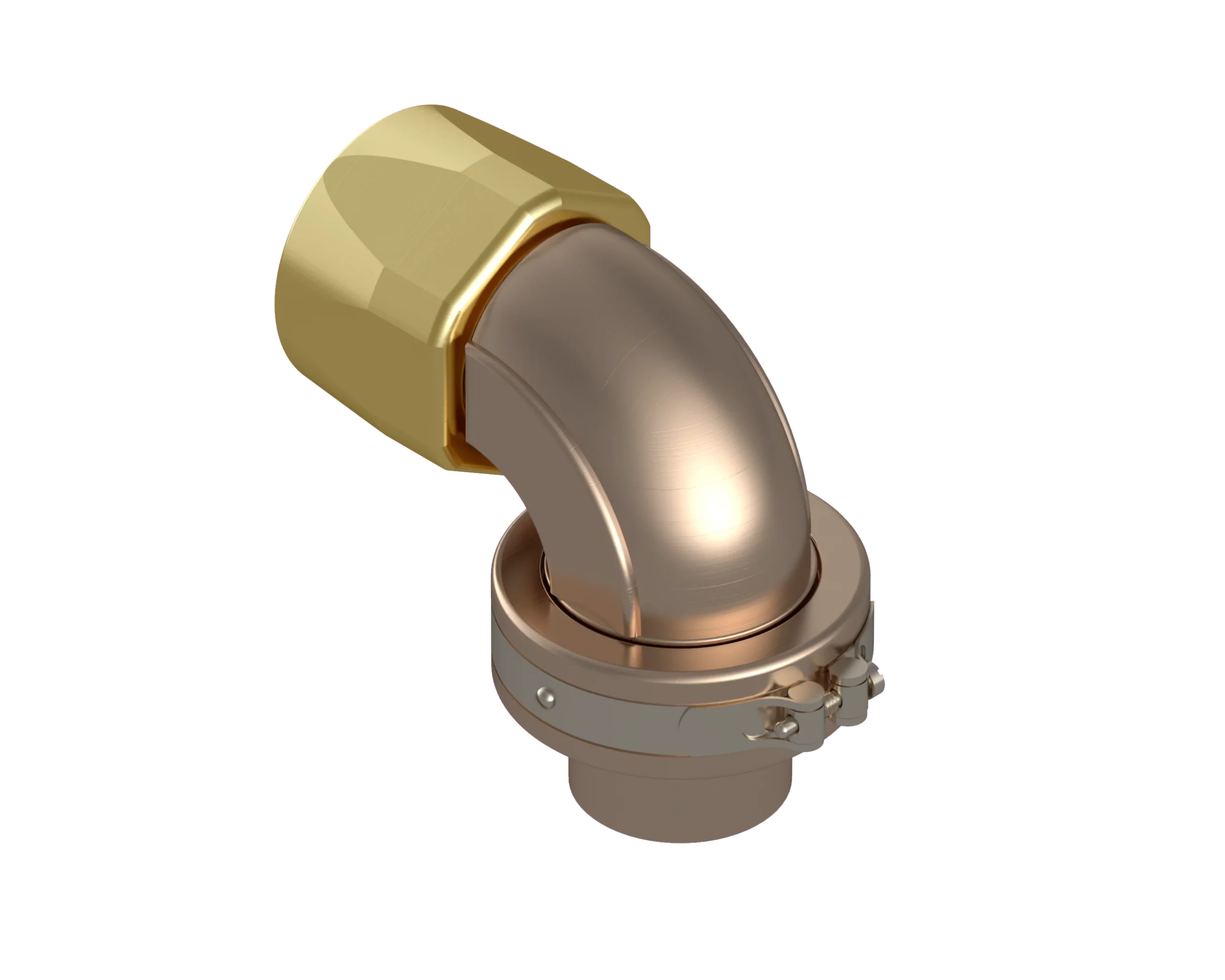

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

MIL-DTL-24787/4,

Type EL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-375	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-375	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-375	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-375	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Equals to P/N FC9424-375

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/4

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type E, Group VIII

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-375	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
FC9424-2432-375	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
FC9424-3240-375	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
FC9424-4048-375	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-375	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
FC9423-2432-375	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
FC9423-3240-375	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
FC9423-4048-375	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

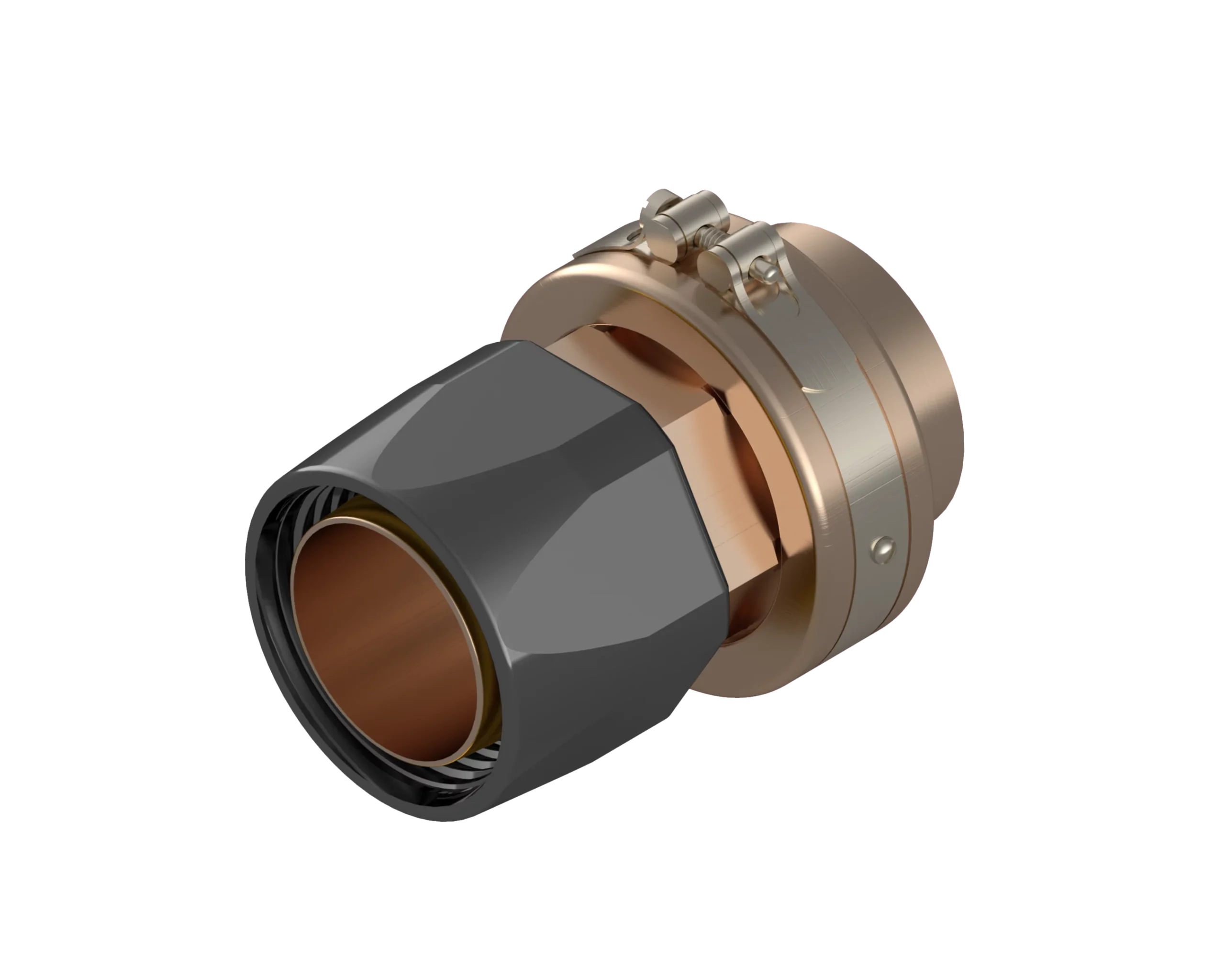

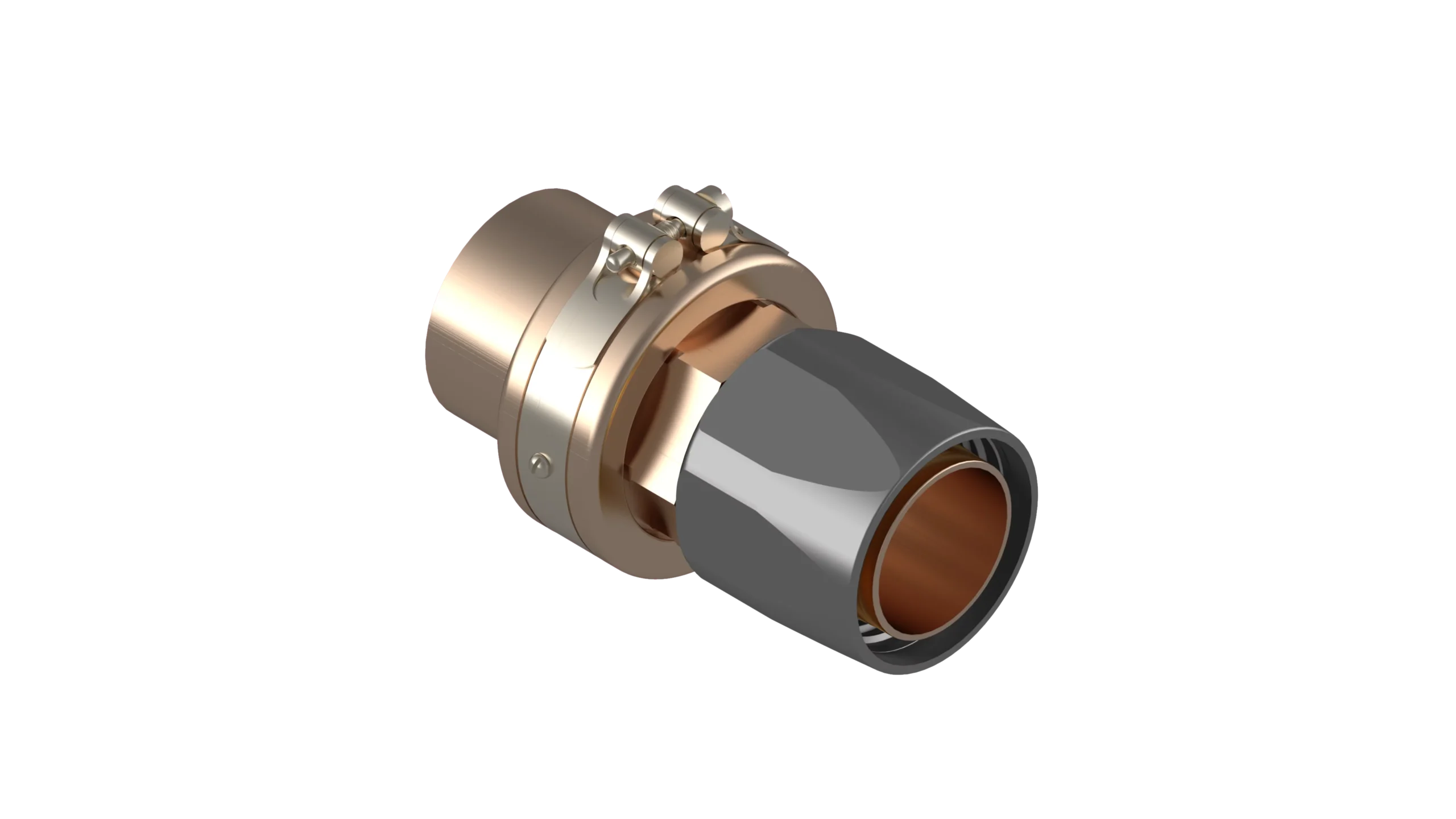

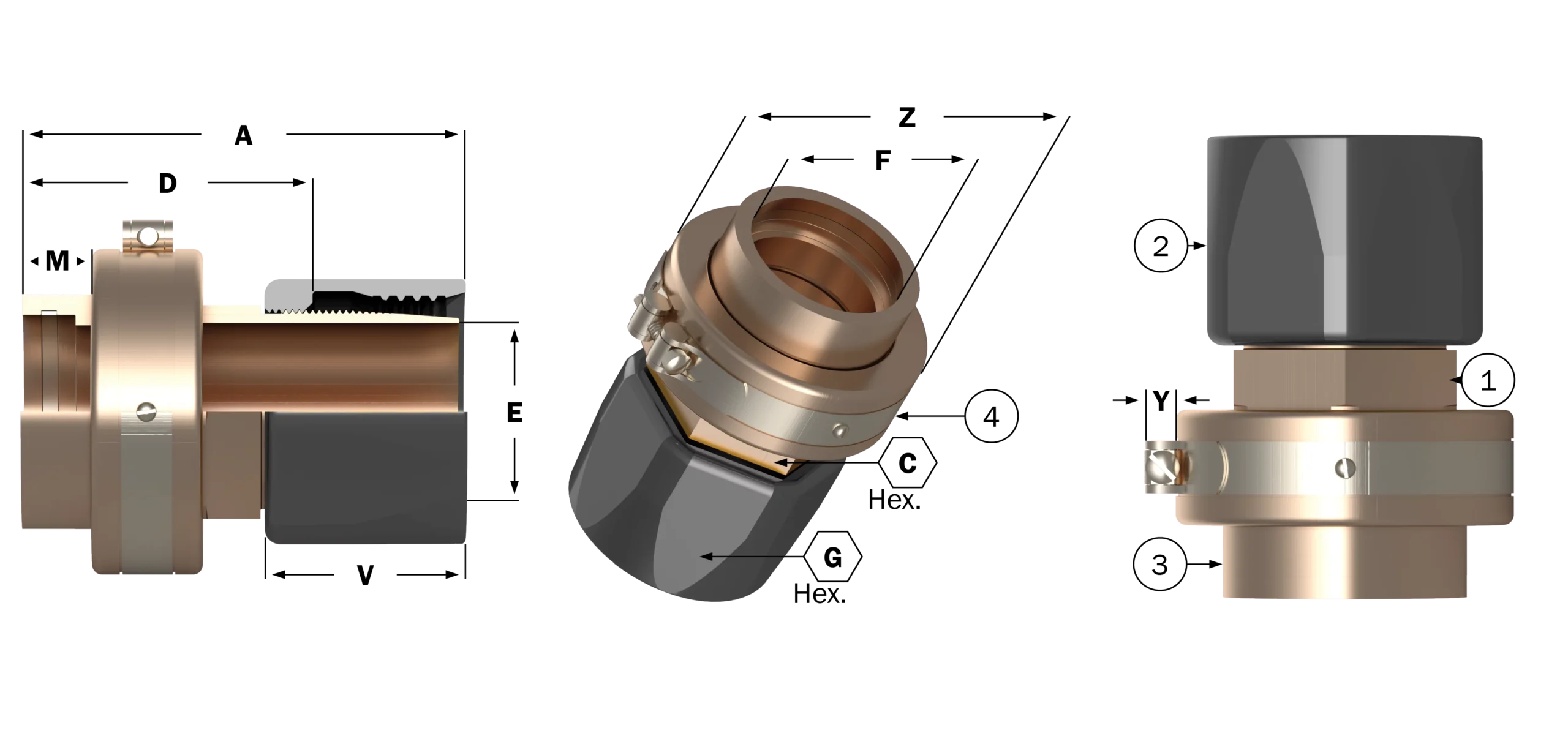

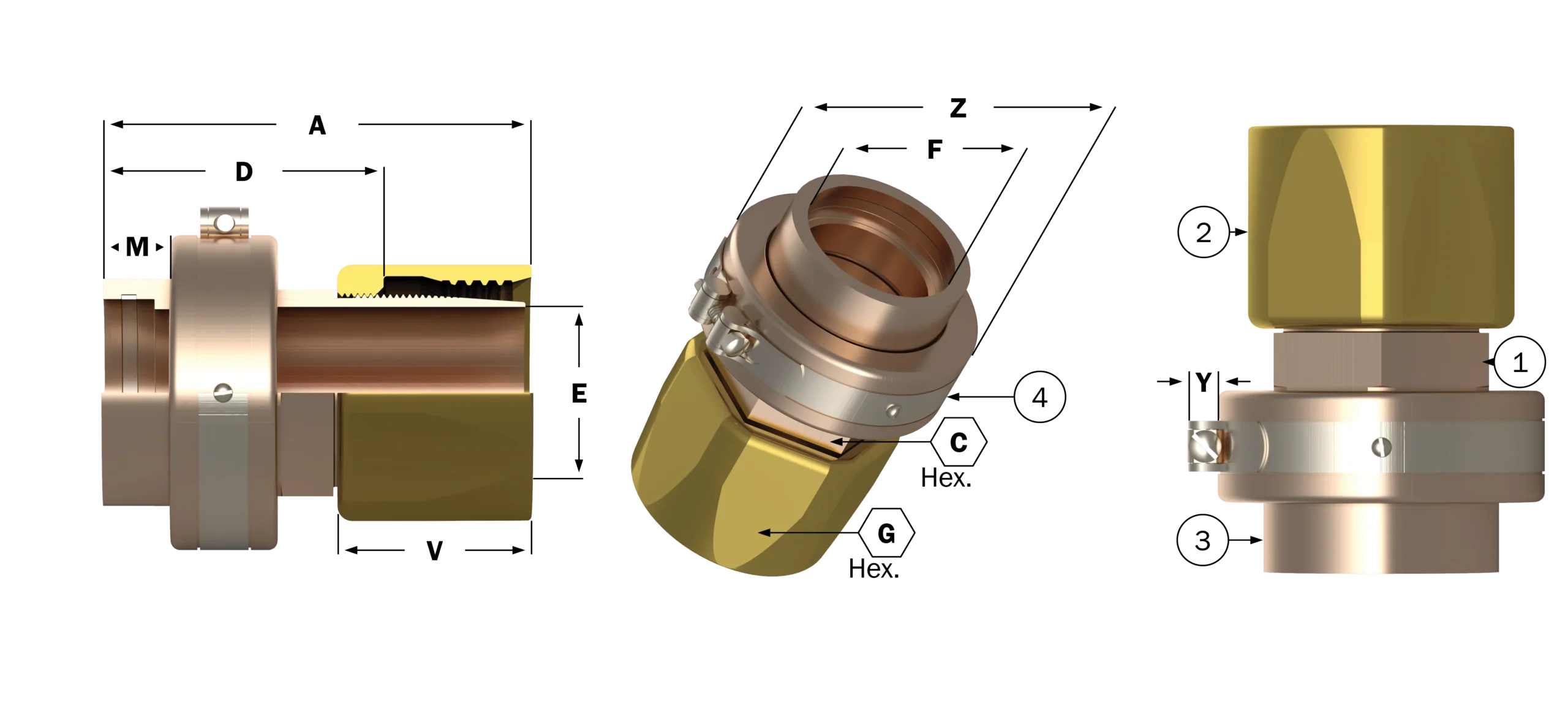

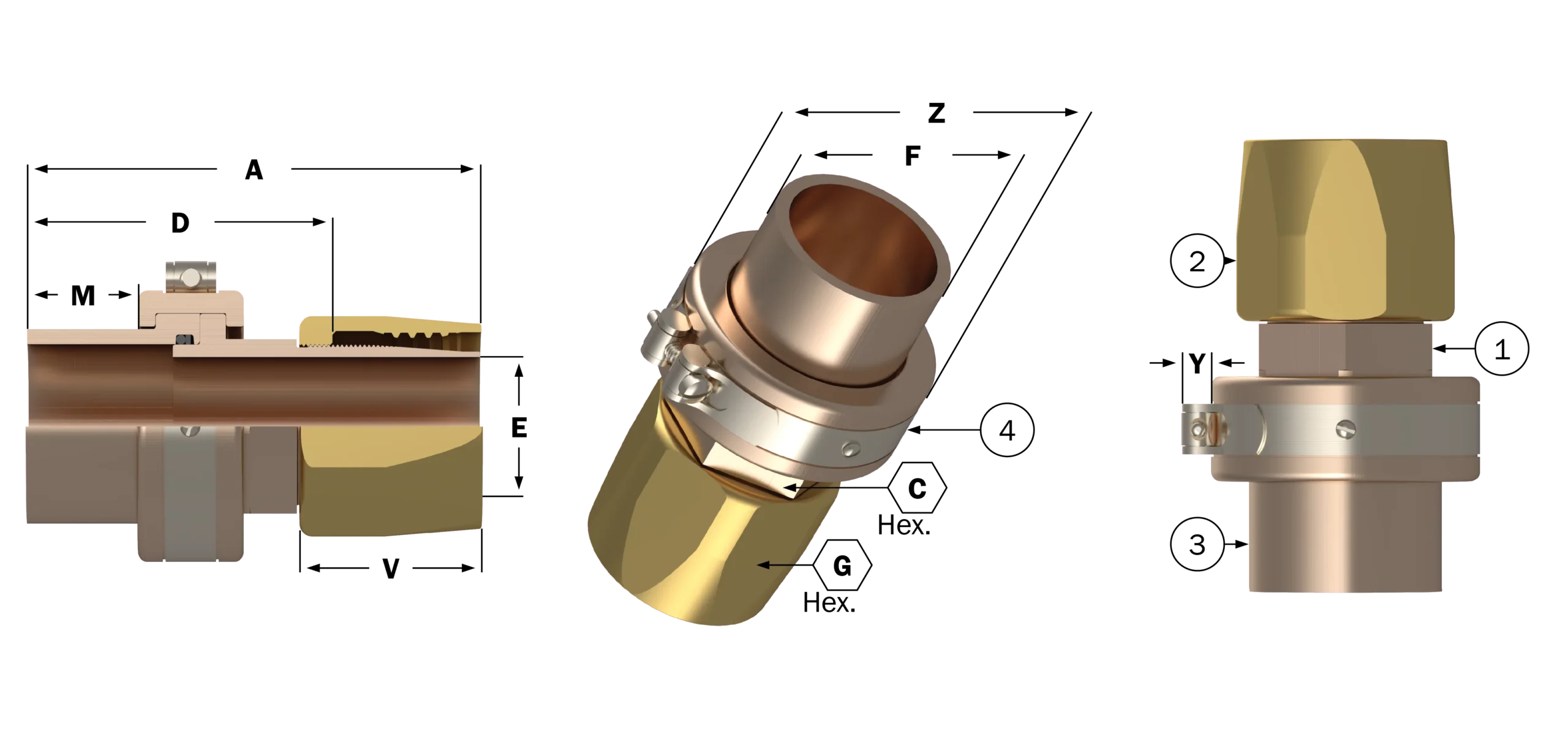

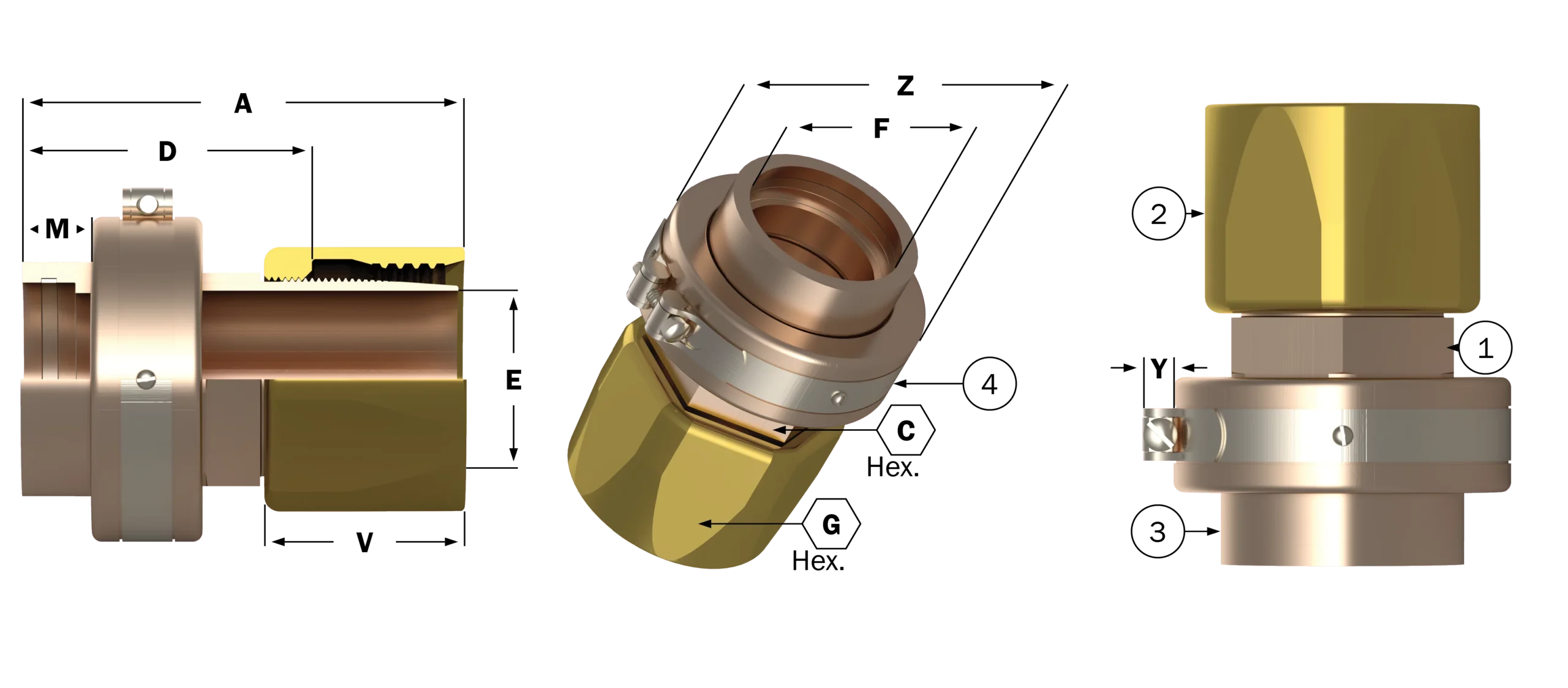

Equal to Aeroquip P/N FC9424-375

Hose to Female Sil-Braze Tailpiece

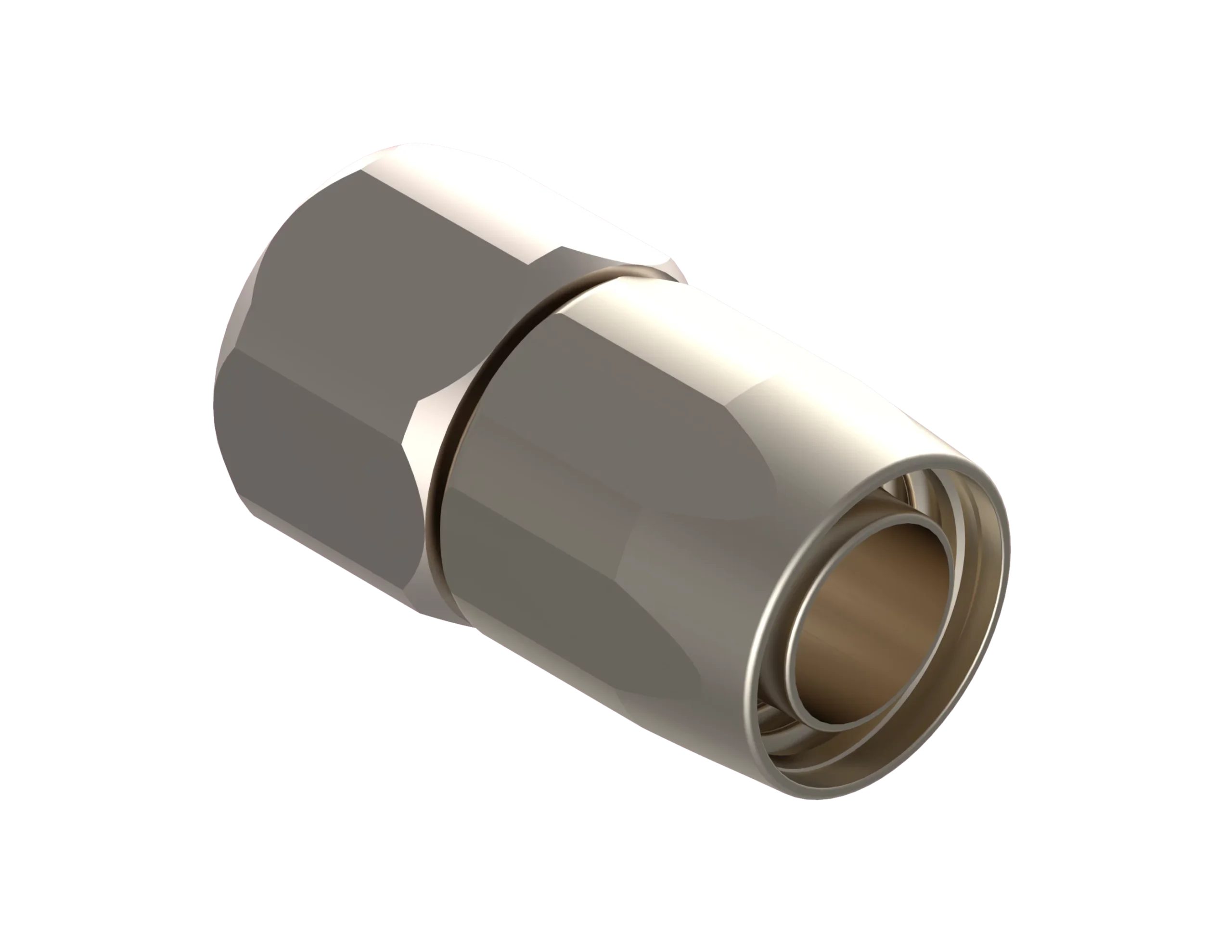

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-375	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
FC9424-2432-375	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
FC9424-3240-375	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
FC9424-4048-375	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

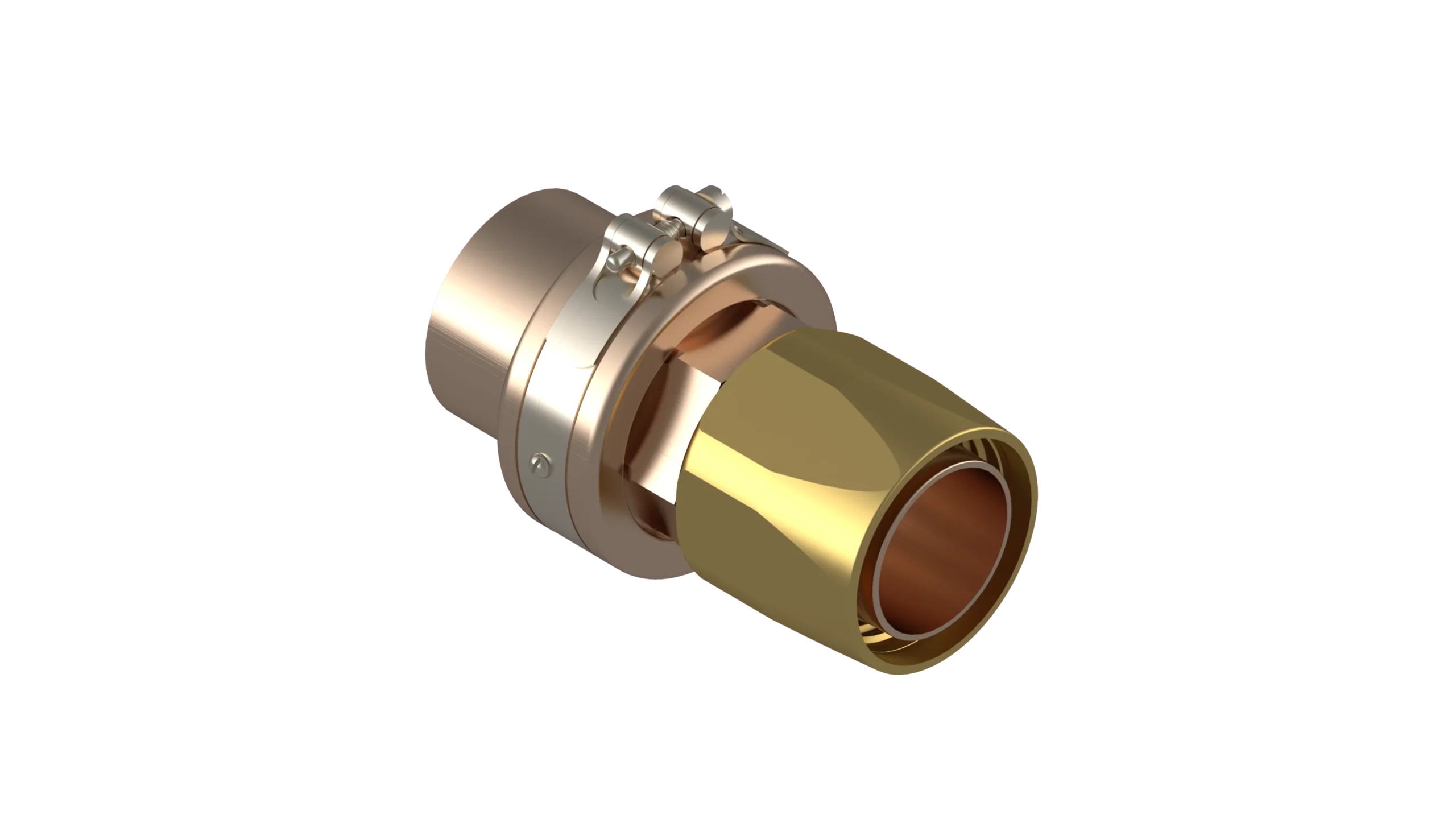

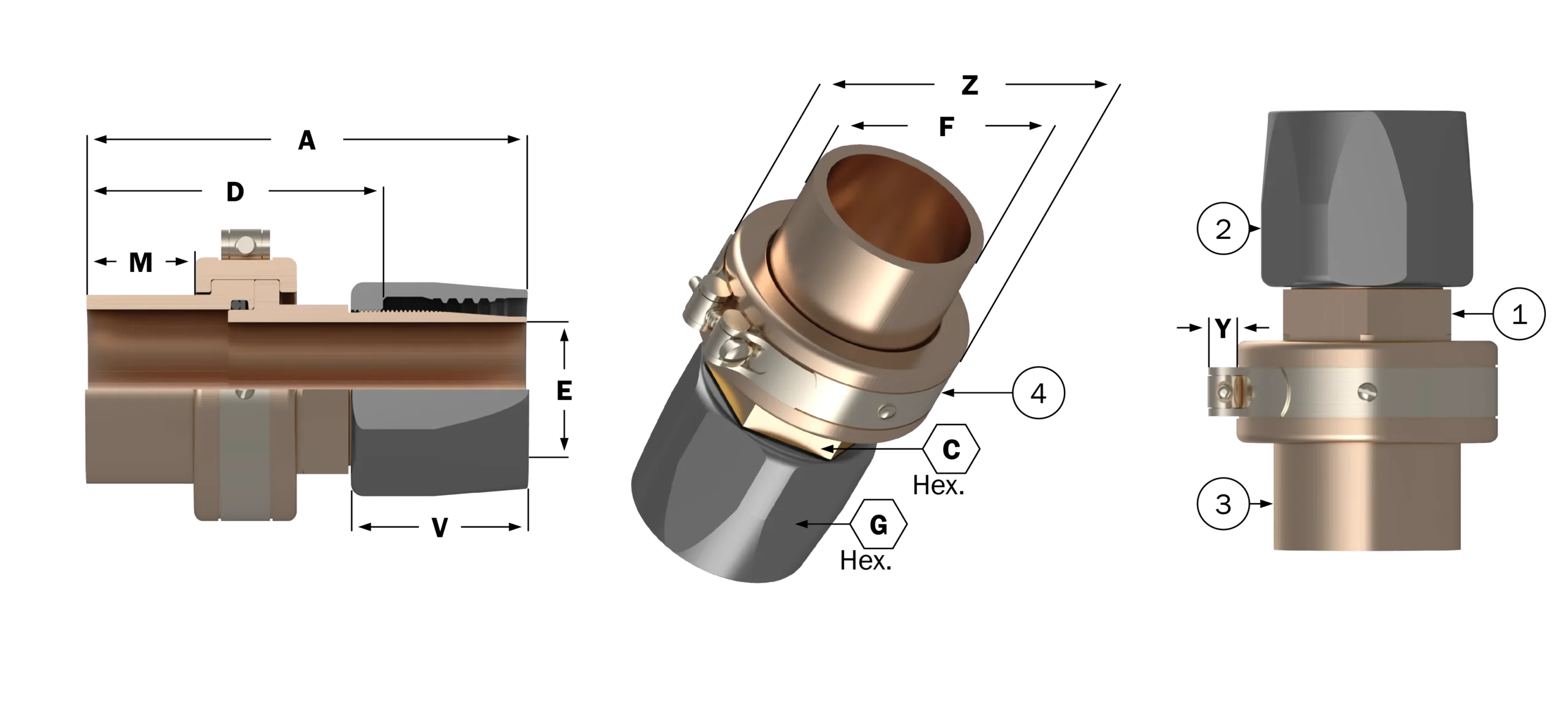

P/N FC9423-375

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-375	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
FC9423-2432-375	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
FC9423-3240-375	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
FC9423-4048-375	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Nipple	1	188-1237-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	4-1212-	32	32	40	48	Monel
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758-	1.25	1.5	2	2.5	Aluminum. Bronze

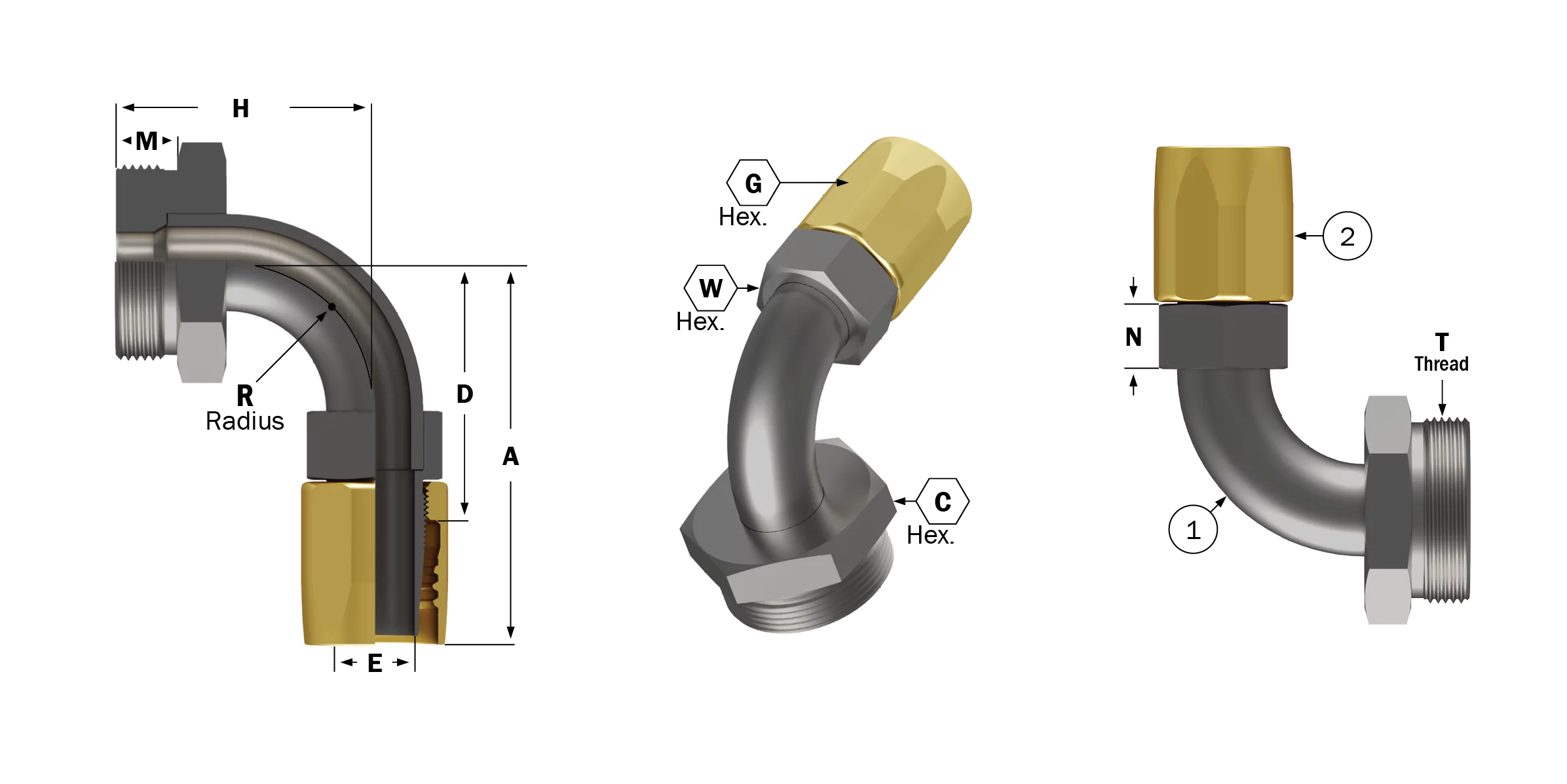

Equals to P/N 93-191301

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
93-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
93-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
93-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	1210-	6B	8B	10B	12B	Brass

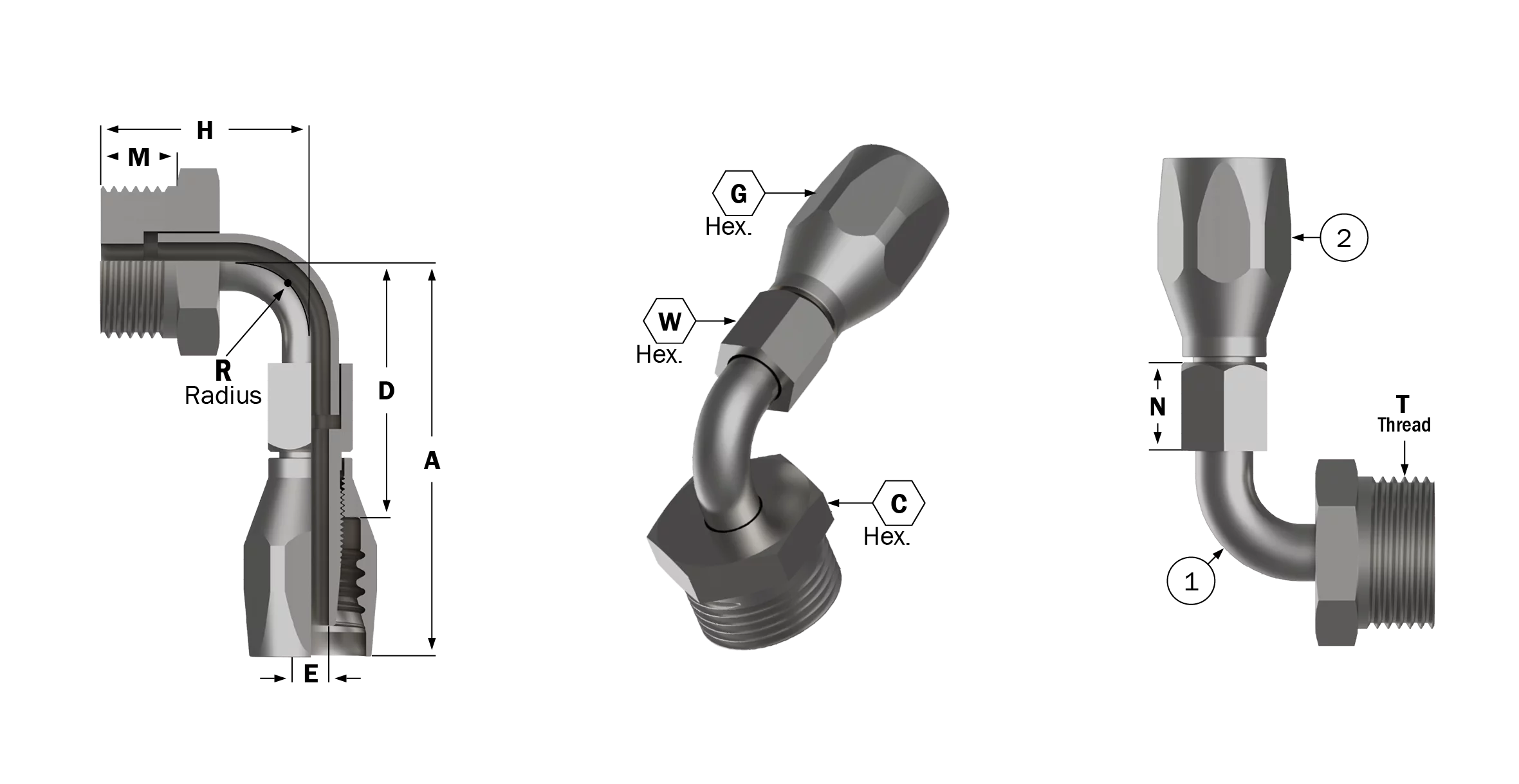

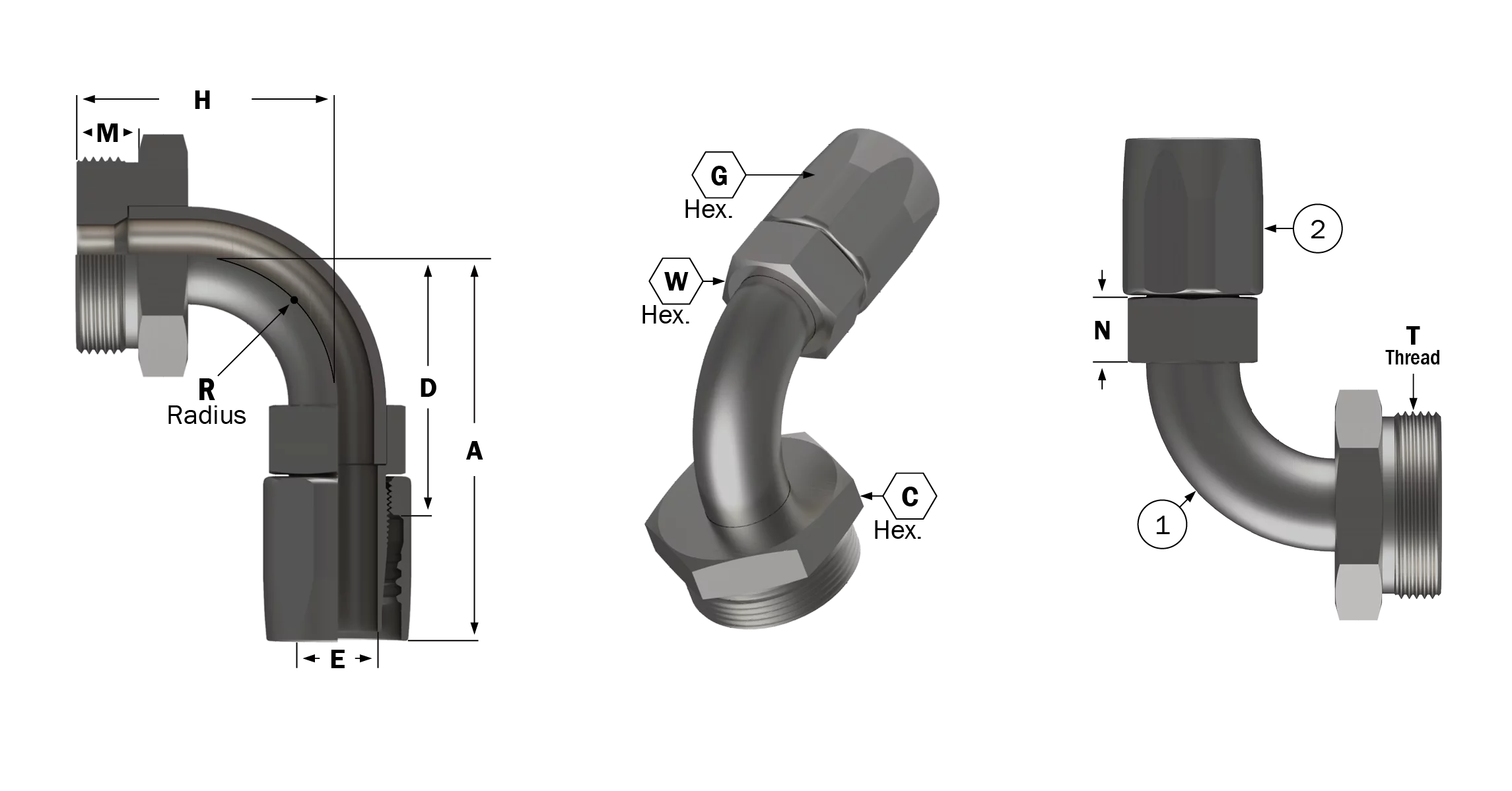

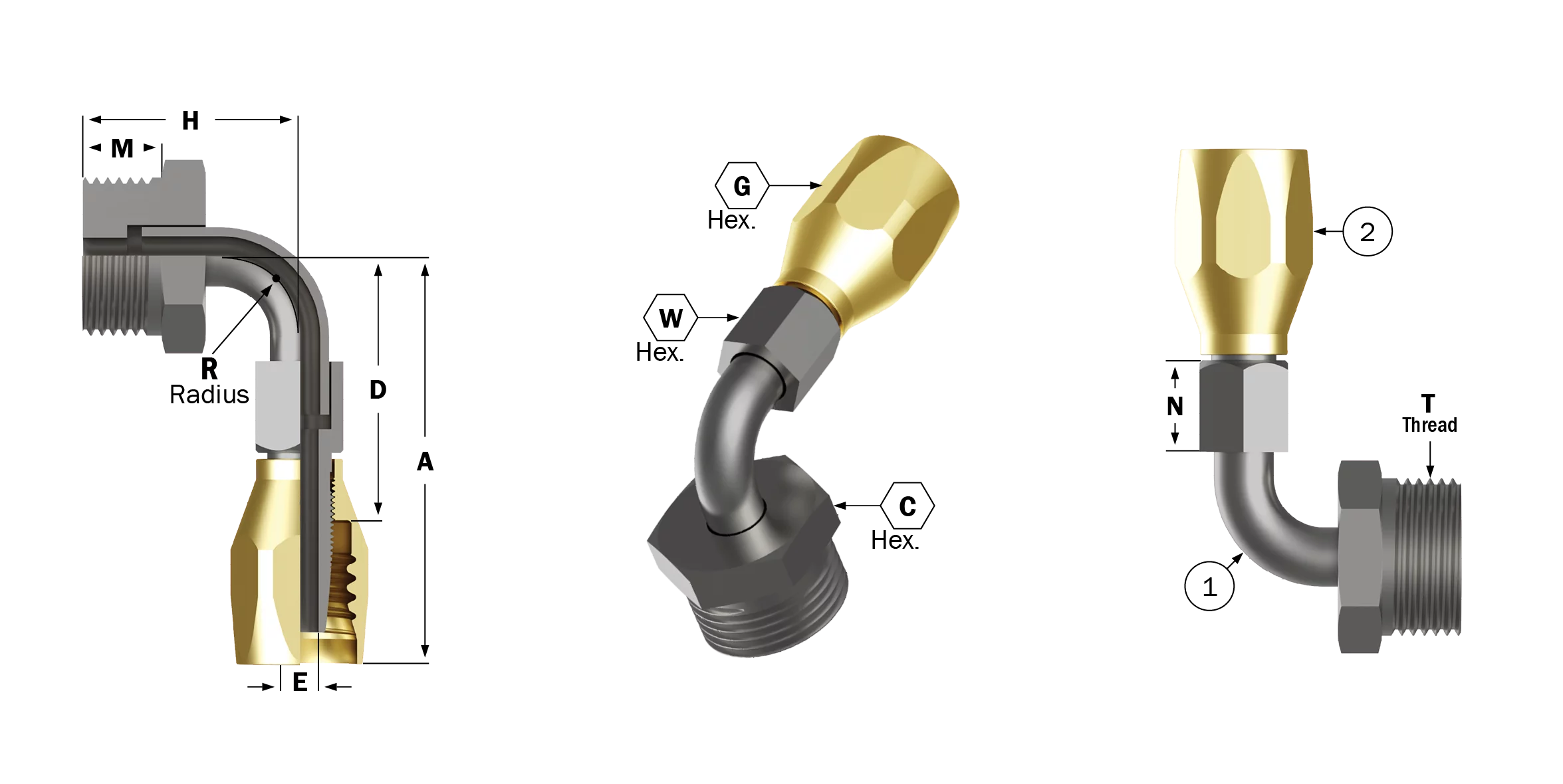

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

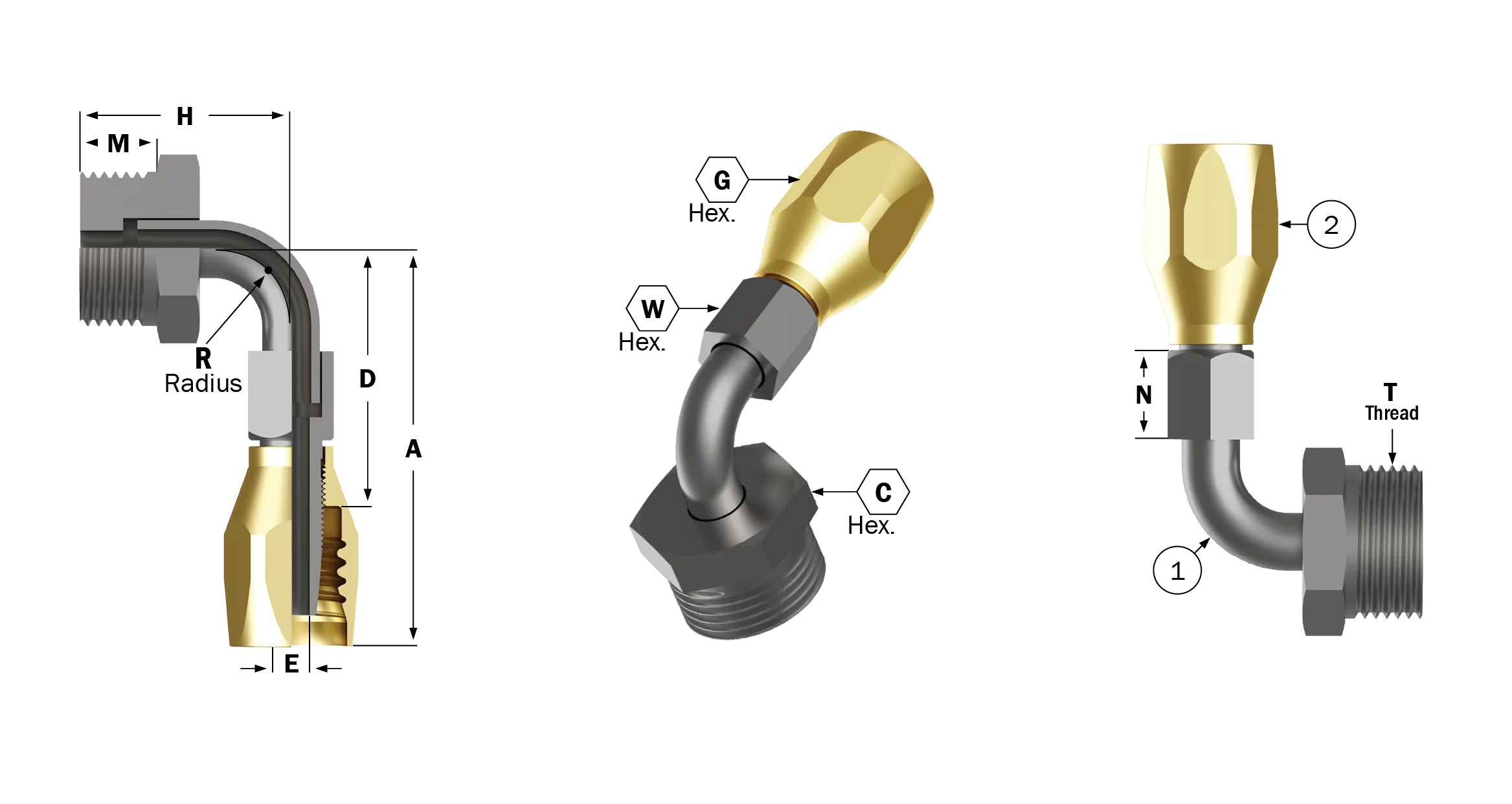

HS1488

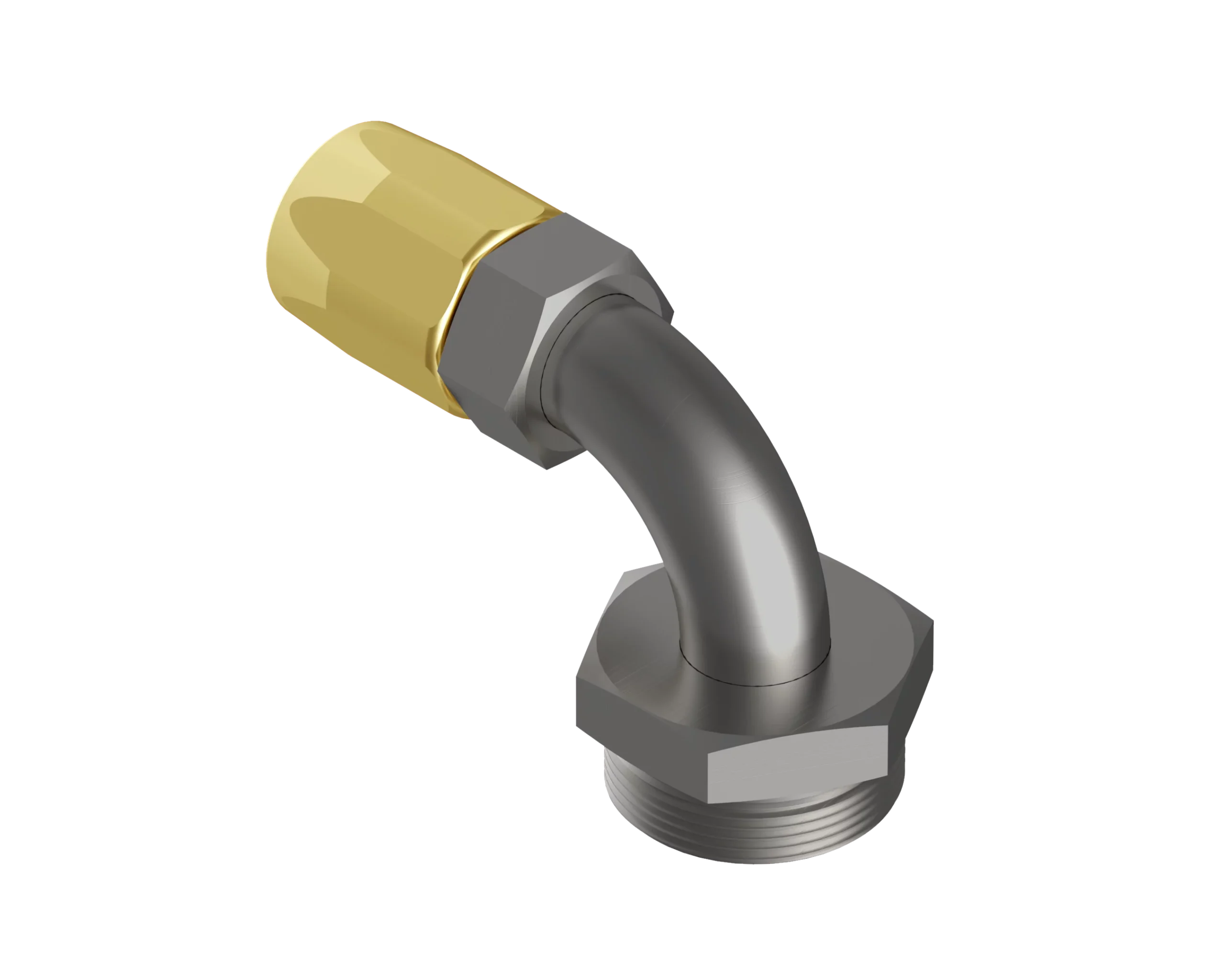

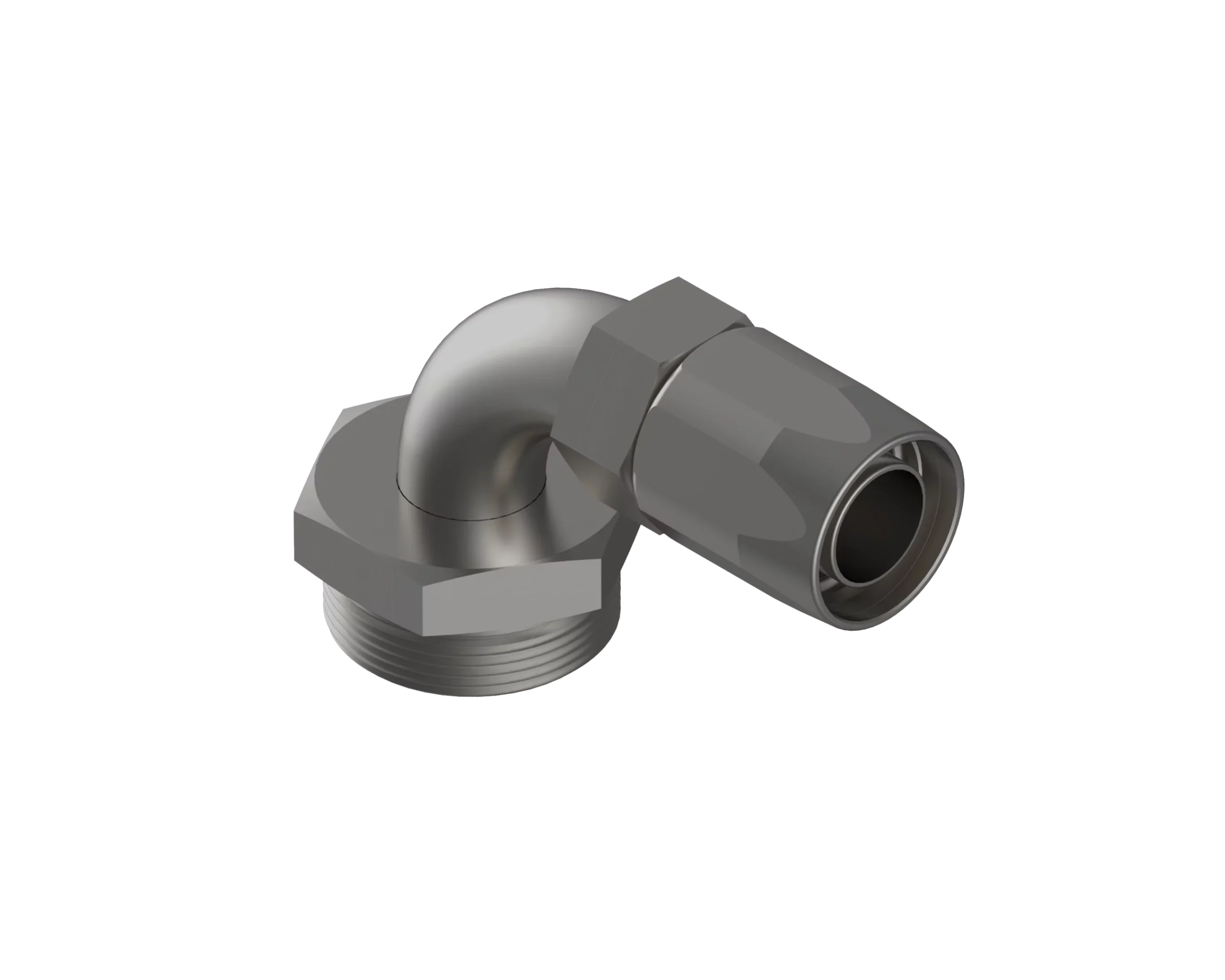

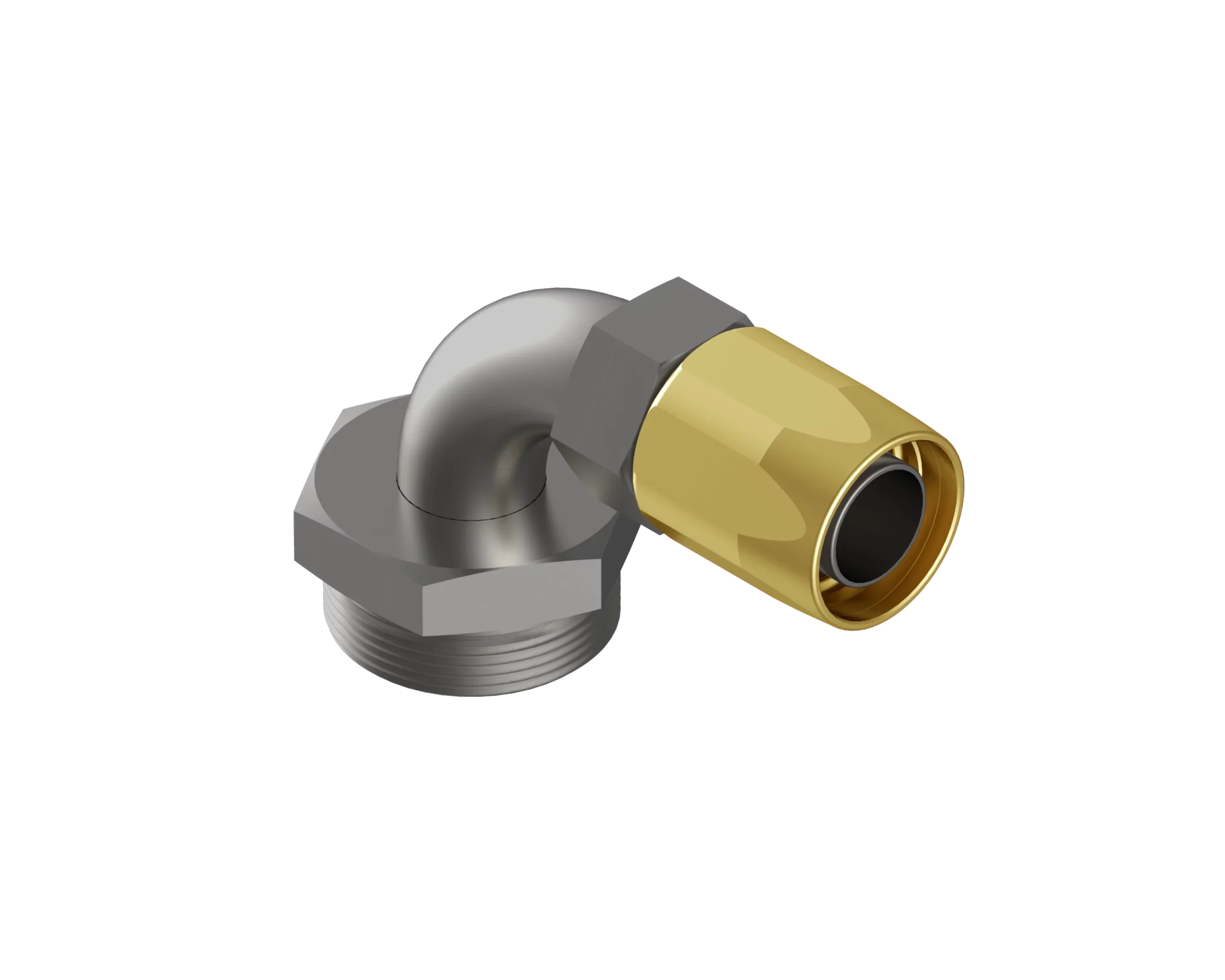

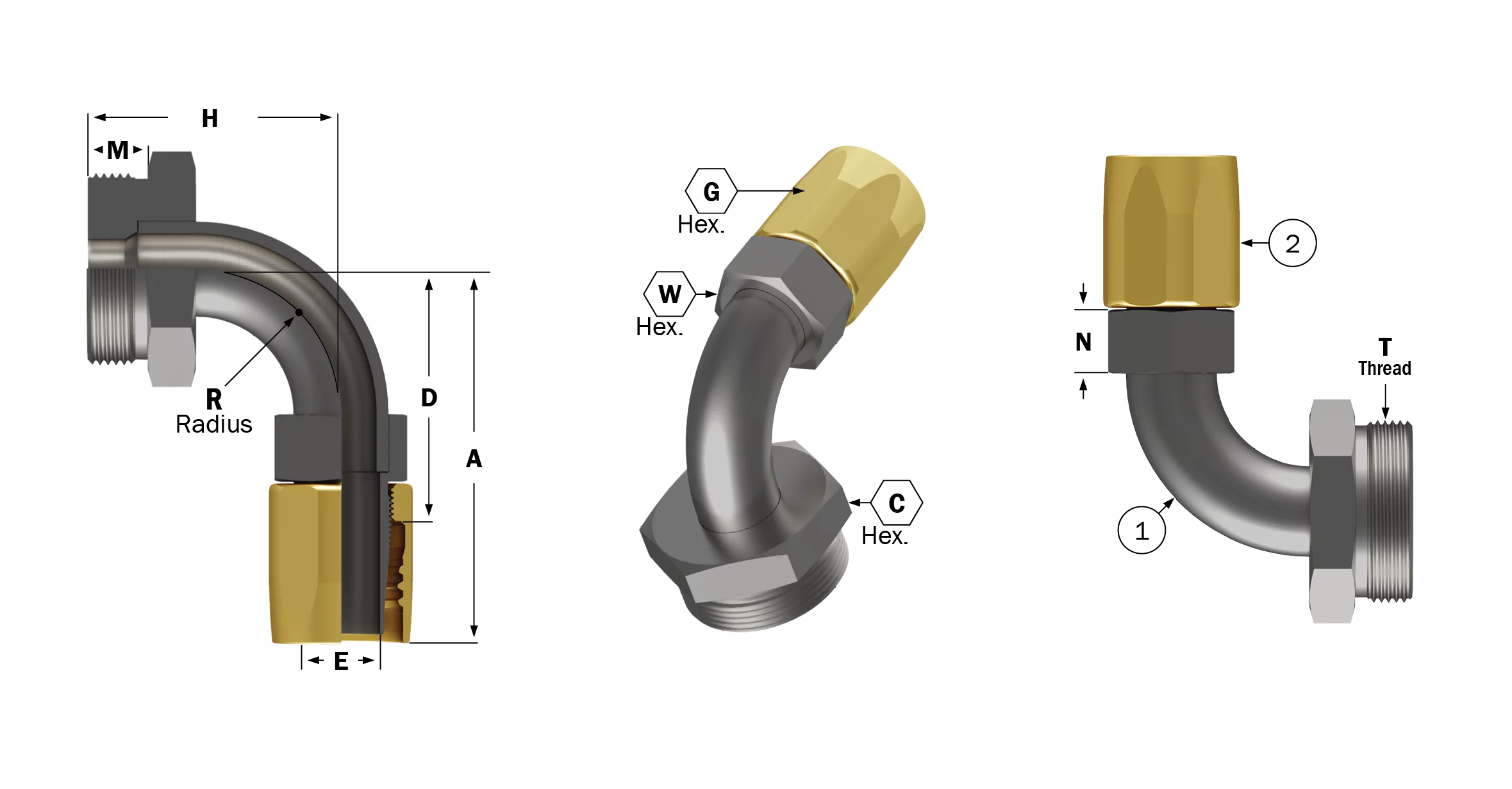

Equal to Aeroquip P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
93-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
93-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
93-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	1210-	6B	8B	10B	12B	Brass

HS1488 Equivalent

P/N 93-191301

Hose to Male “O” Ring Seal

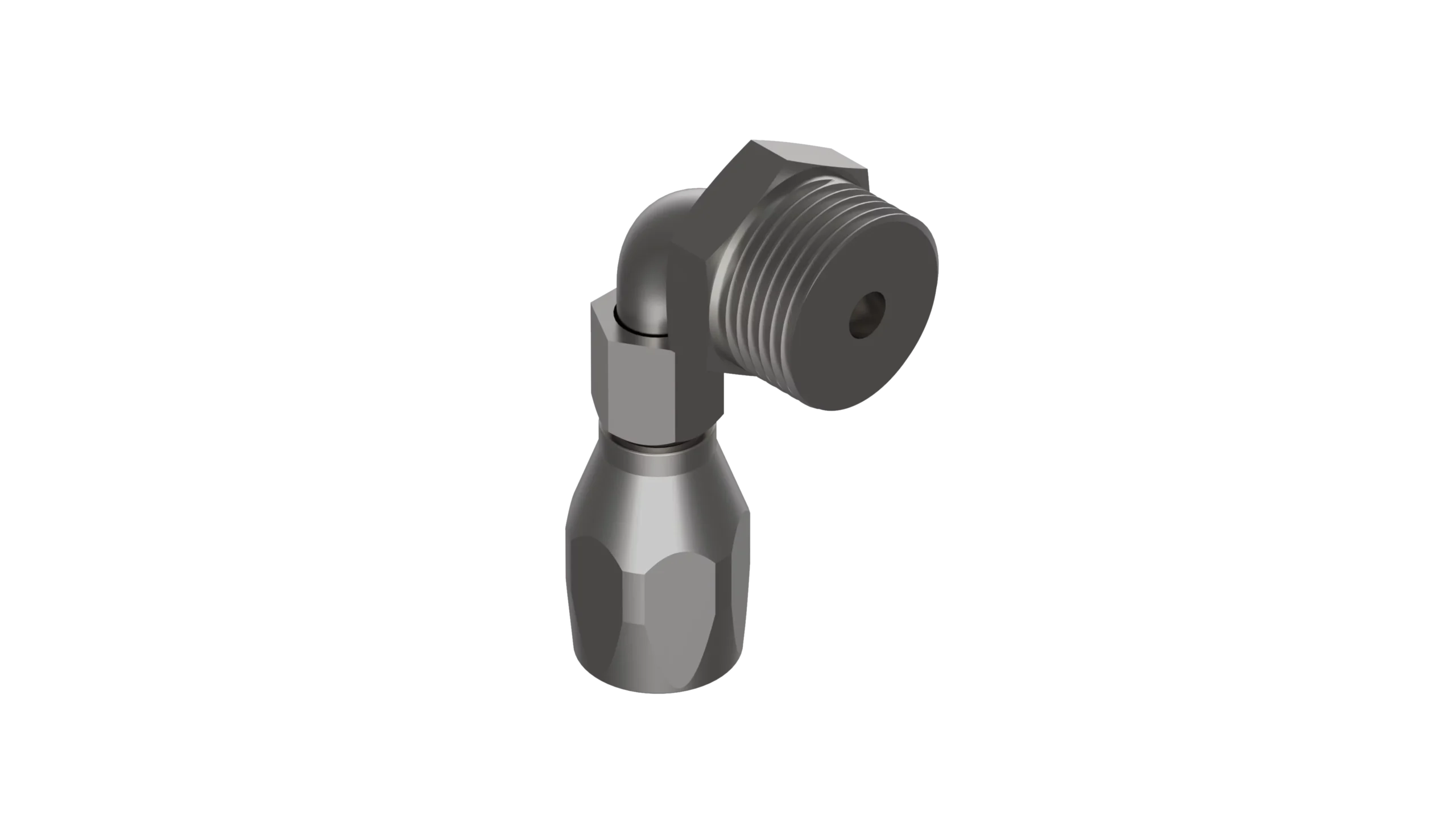

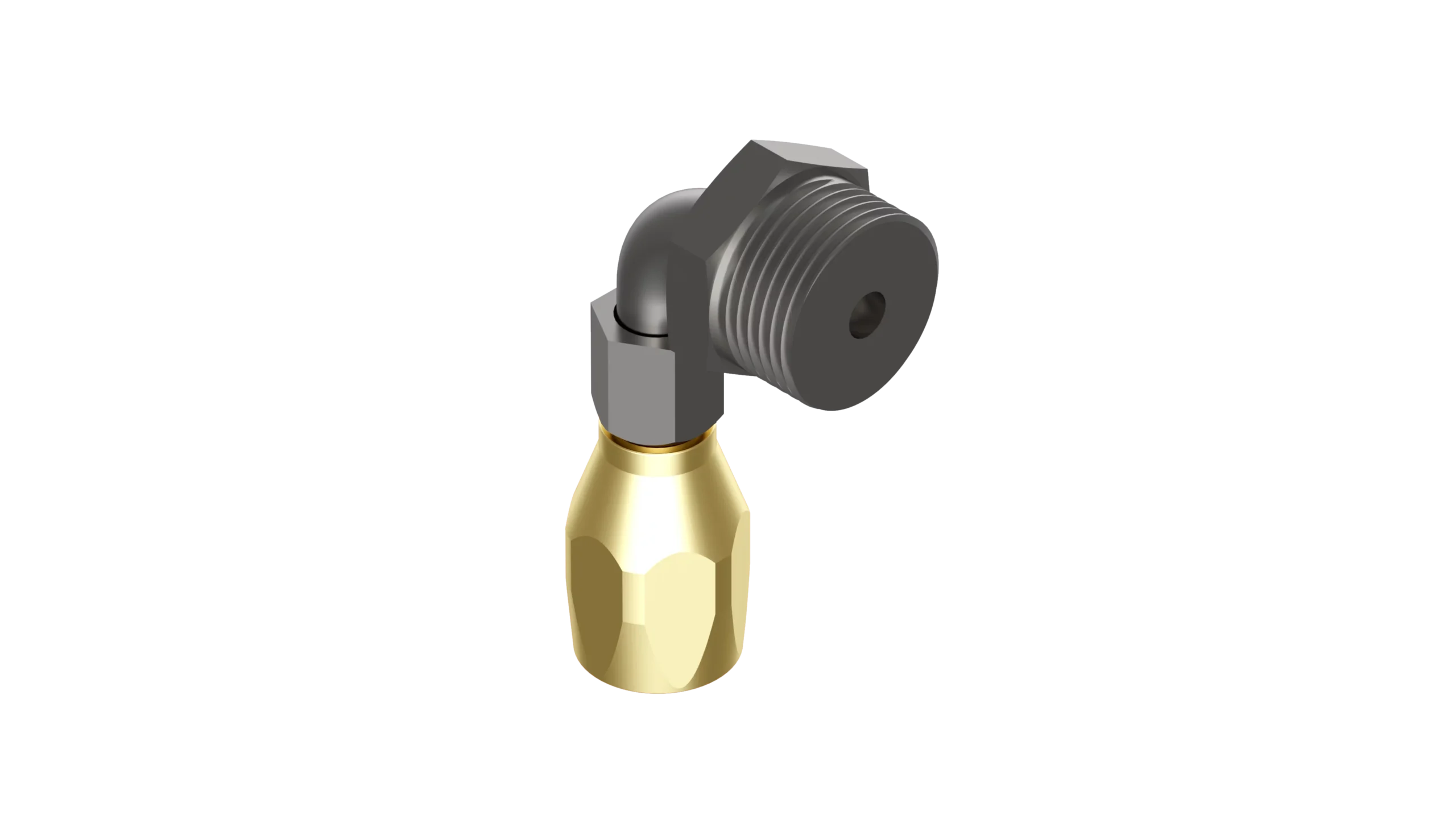

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

Equals to P/N 4-191301

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type CL, Group VIII

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
4-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
4-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
4-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
4-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-3/4-16	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.01
93-191301-1-20	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.03
93-191301-1.25-24	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	3.95
93-191301-1.5-32	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.42

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Elbow	1	4-186301-	3/4-16	1-20	1.25-24	1.5-32	Copper Nickel & Monel
Socket	1	1212-	16B	20B	24B	32B	Brass

HS1488

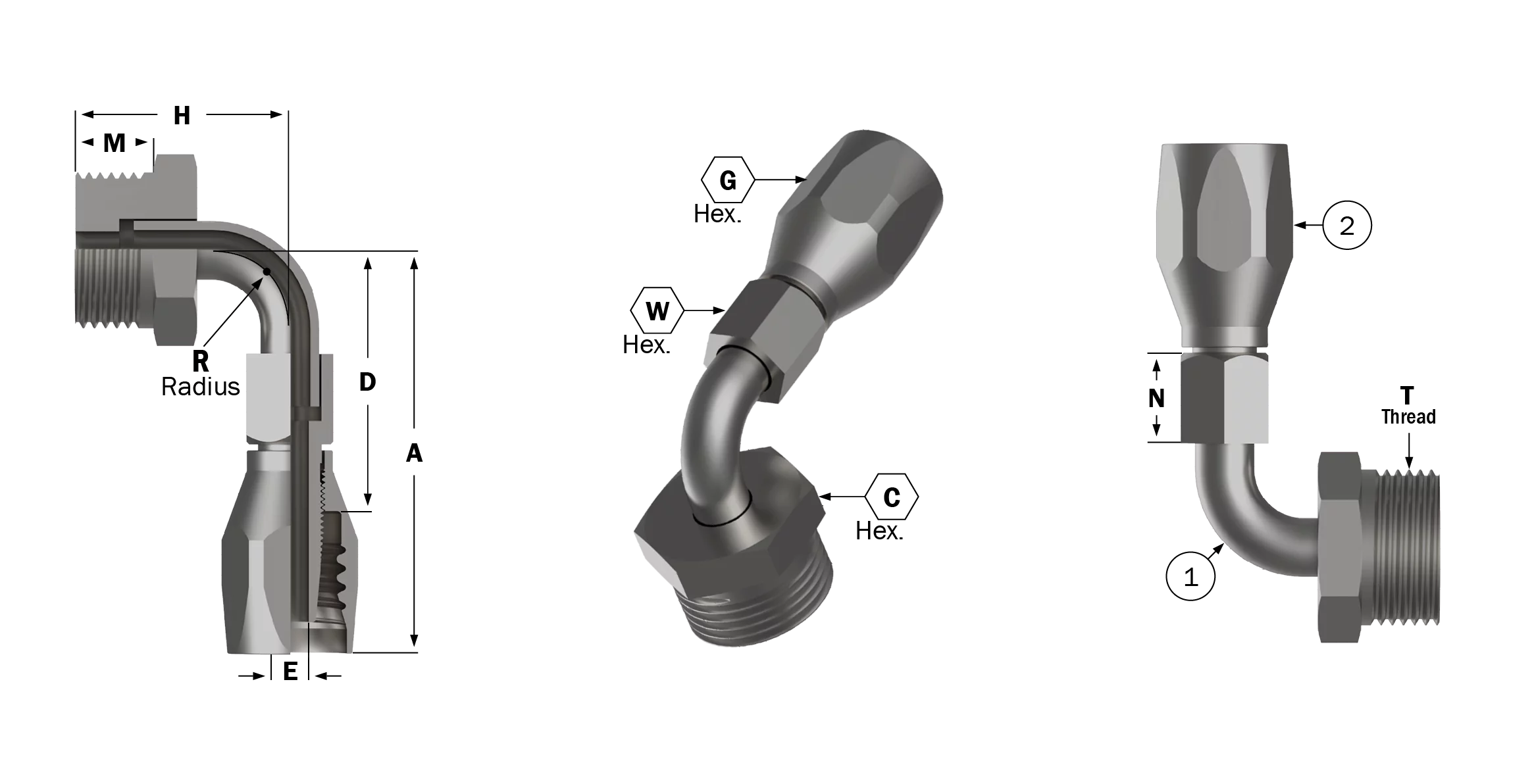

Equal to Aeroquip P/N 4-191301

Hose to Male “O” Ring Seal

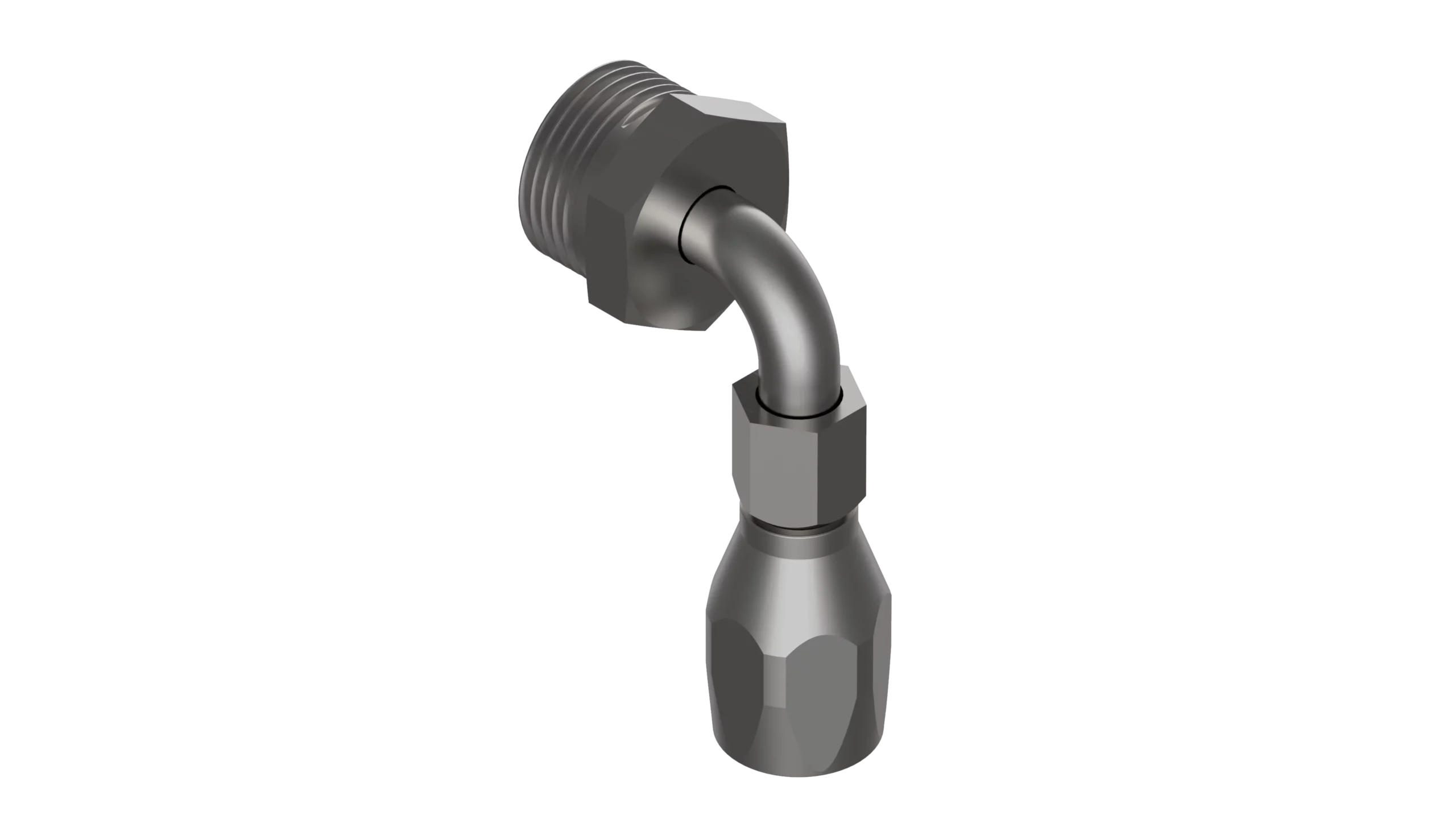

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
4-191301-1/8-6	1/8	1“-14	2.45	1.06	1.55	.24	.81	1.30	.50	.58	.50	.56	.35
4-191301-1/4-8	1/4	1-3/16”-12	3.05	1.25	1.90	.36	.94	1.68	.62	.58	.75	.75	.57
4-191301-3/8-10	3/8	1-3/8”-12	3.57	1.44	2.28	.46	1.12	1.99	.62	.70	1.00	.81	.83
4-191301-1/2-12	1/2	1-3/4”-12	4.15	1.81	2.58	.55	1.25	2.31	.62	.74	1.25	1.00	1.34

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Elbow	1	4-186301-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
93-191301-3/4-16	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.01
93-191301-1-20	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.03
93-191301-1.25-24	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	3.95
93-191301-1.5-32	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.42

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Elbow	1	4-186301-	3/4-16	1-20	1.25-24	1.5-32	Copper Nickel & Monel
Socket	1	1212-	16B	20B	24B	32B	Brass

Equals to P/N 93-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
93-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
93-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.92	.46
93-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
93-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6B	8B	10B	12B	Brass

Part Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

HS1488

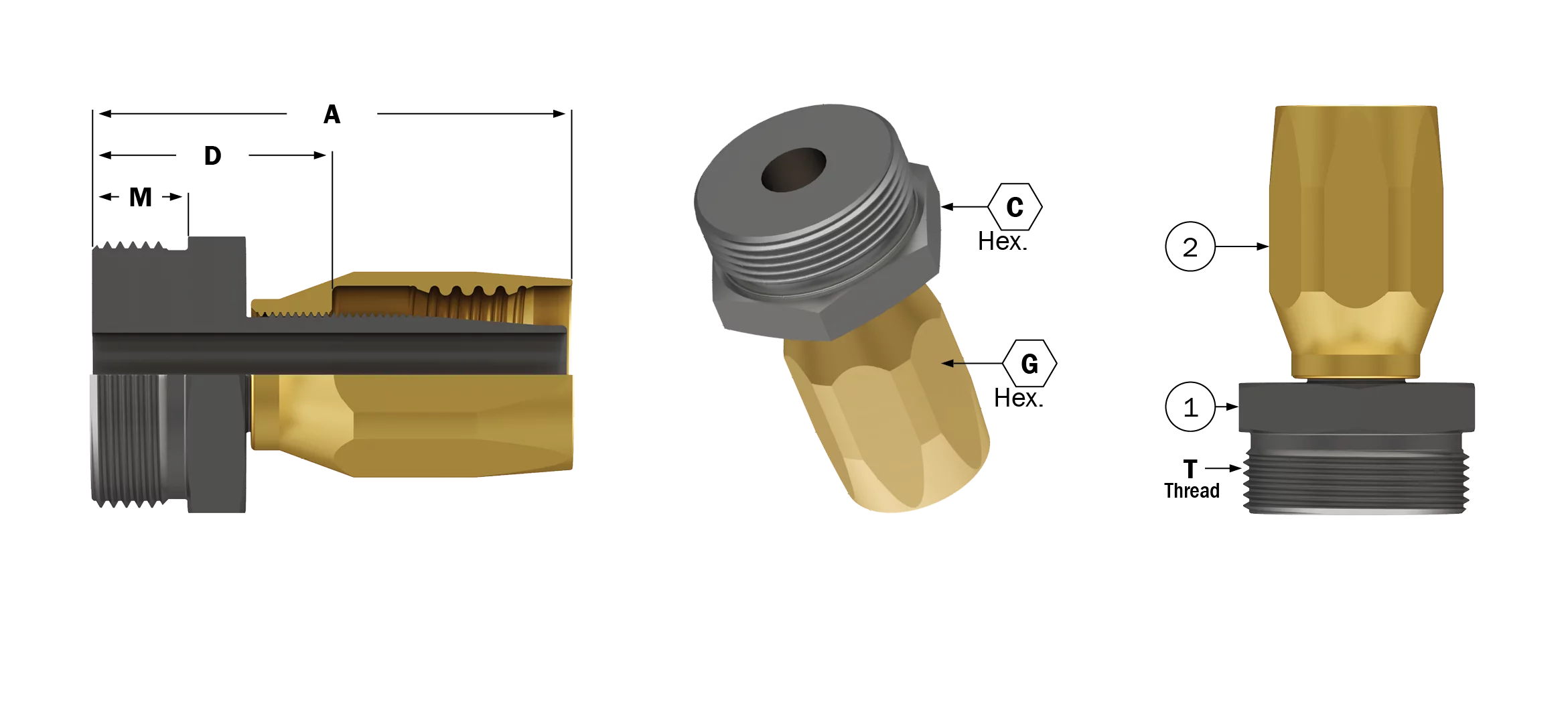

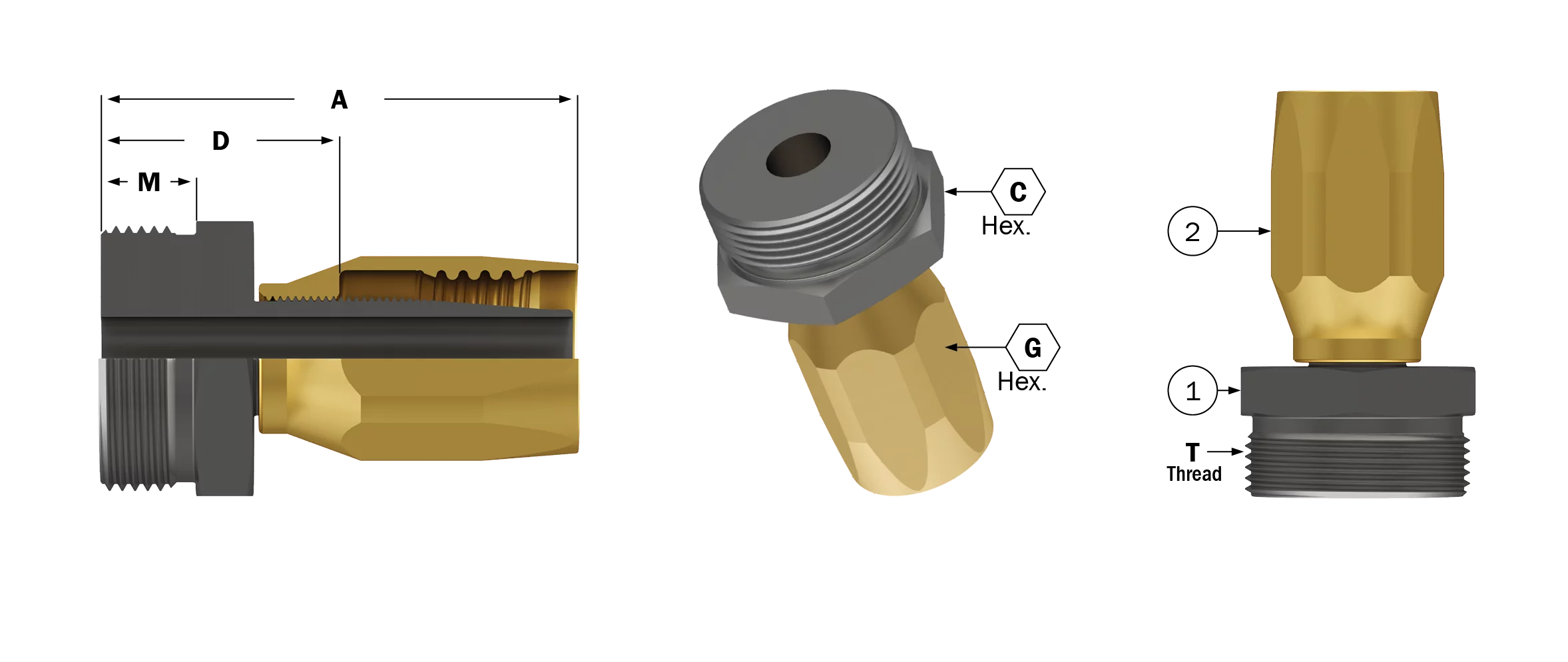

Equal to Aeroquip P/N 93-190911

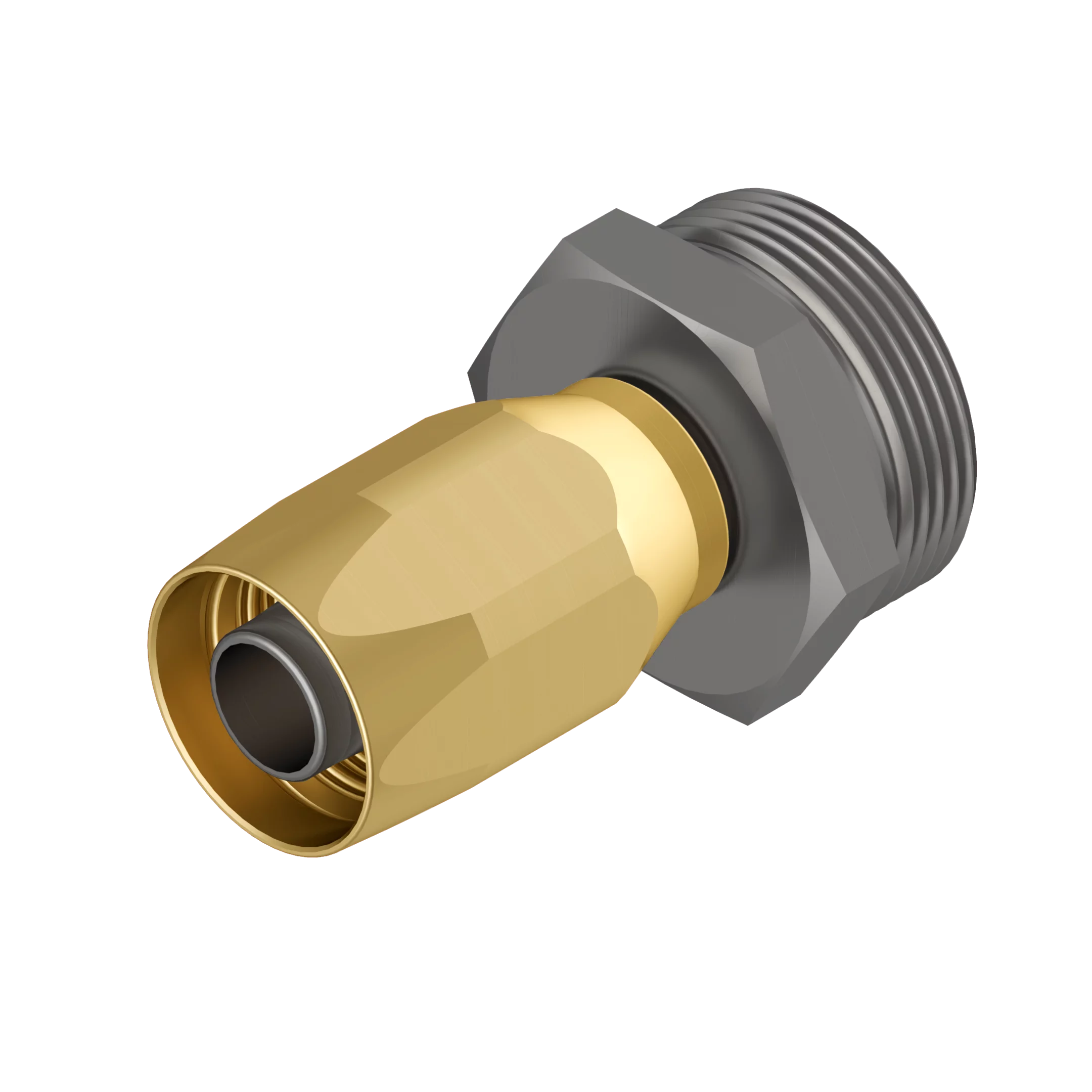

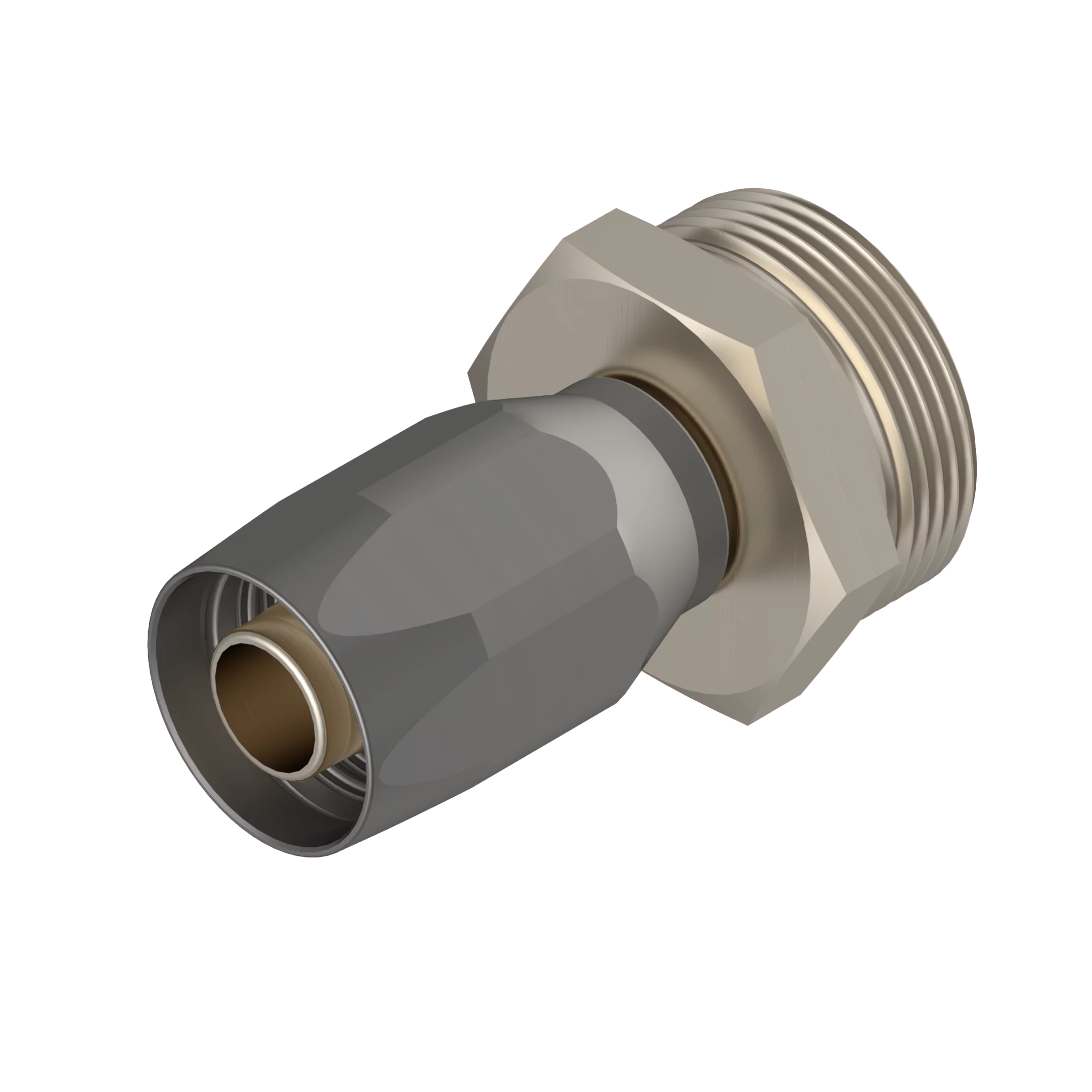

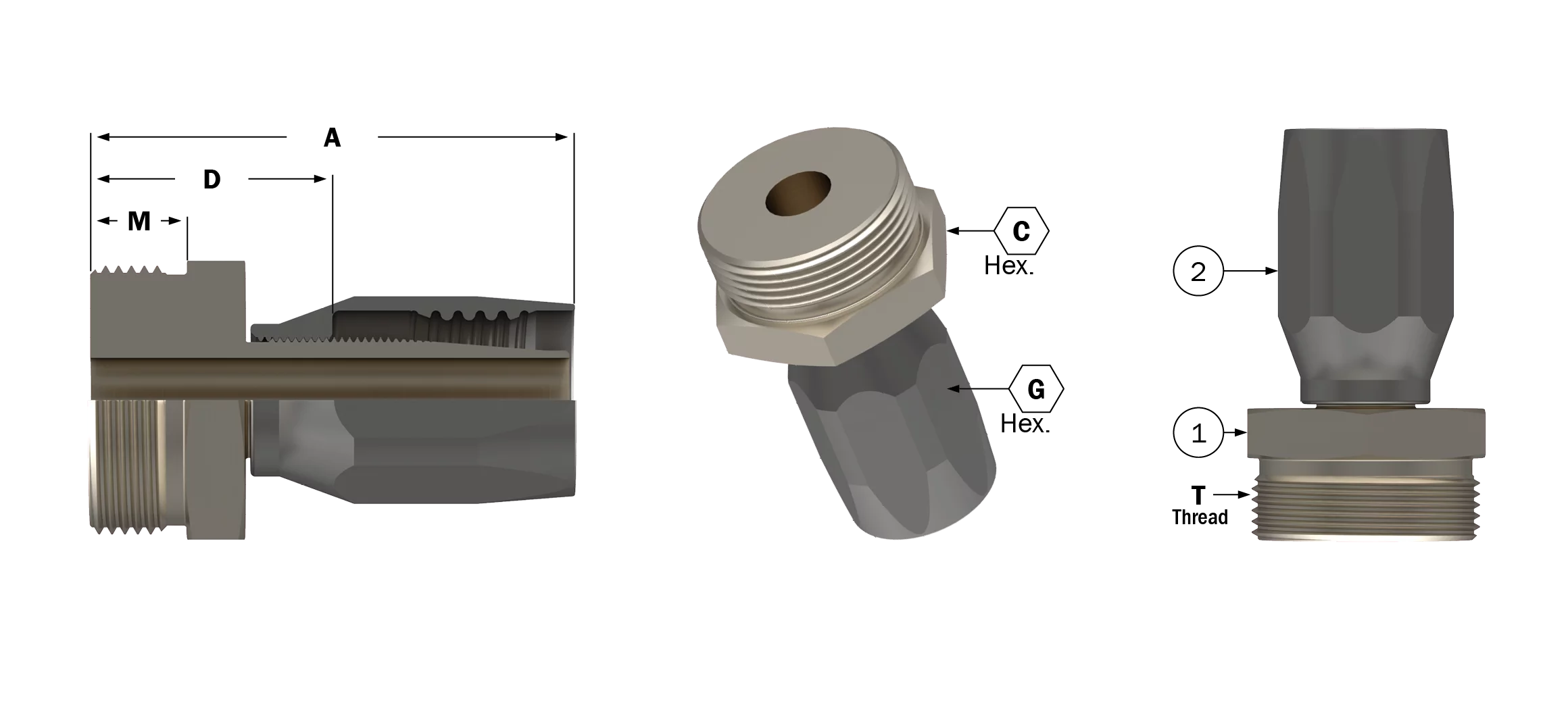

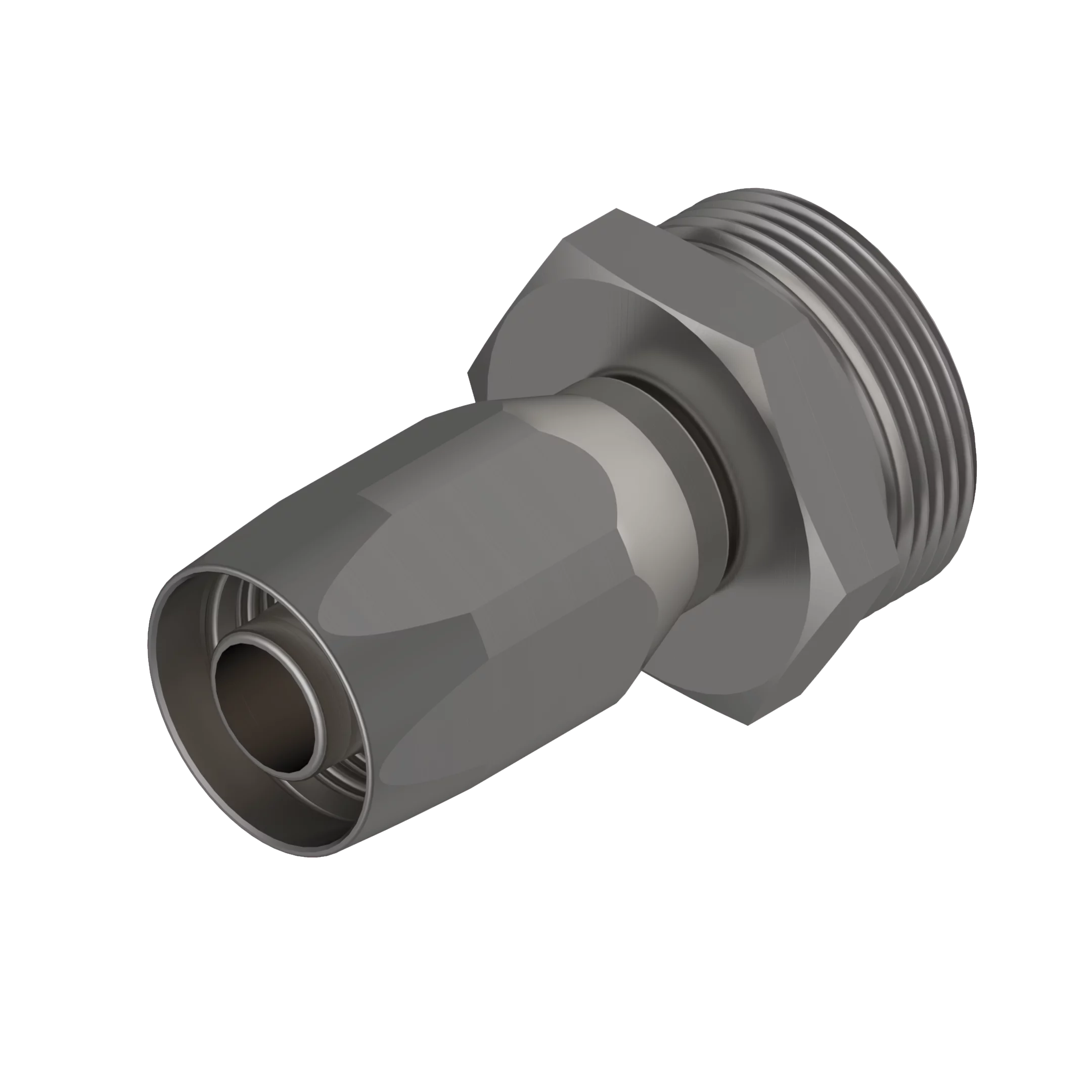

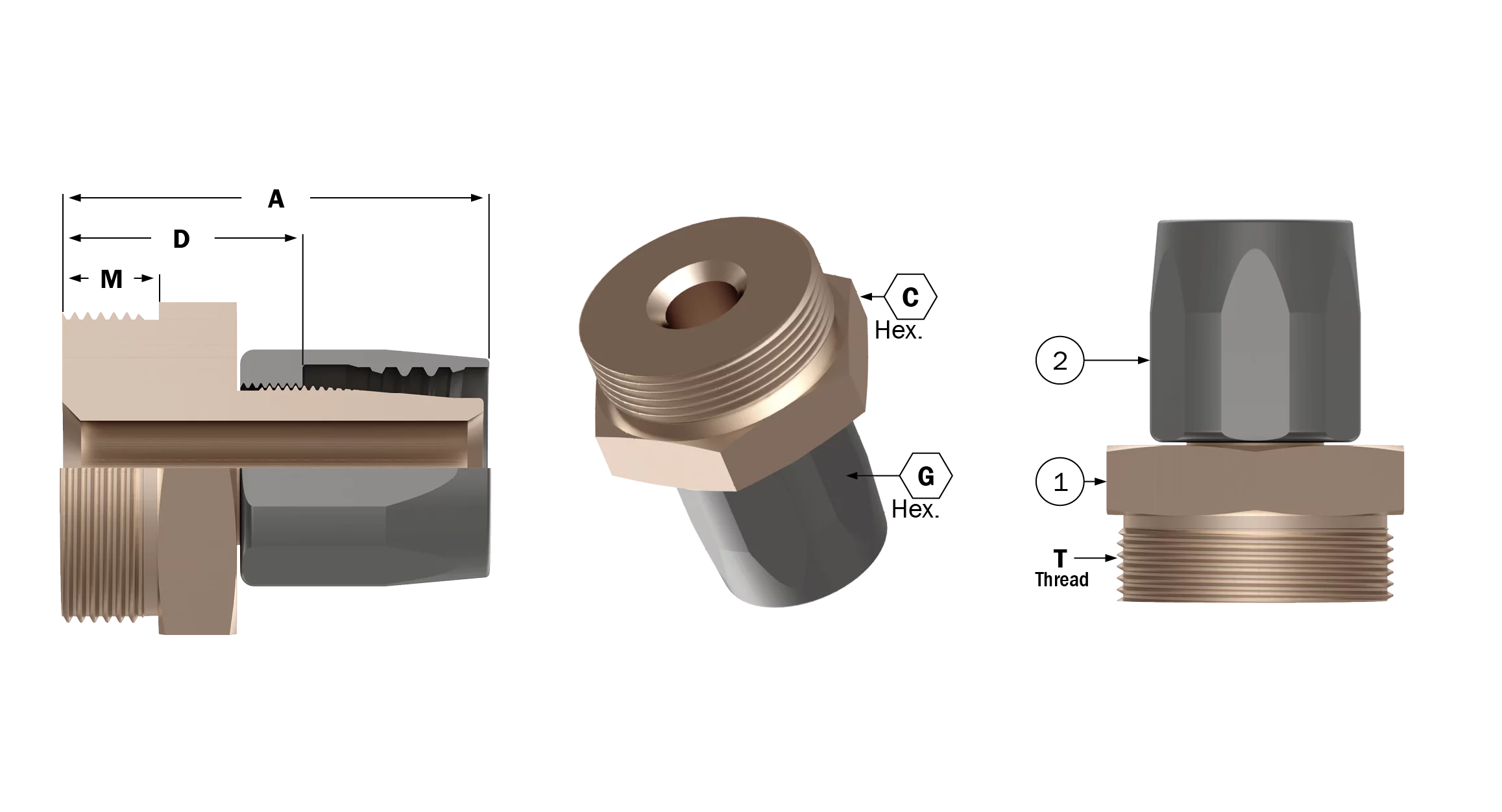

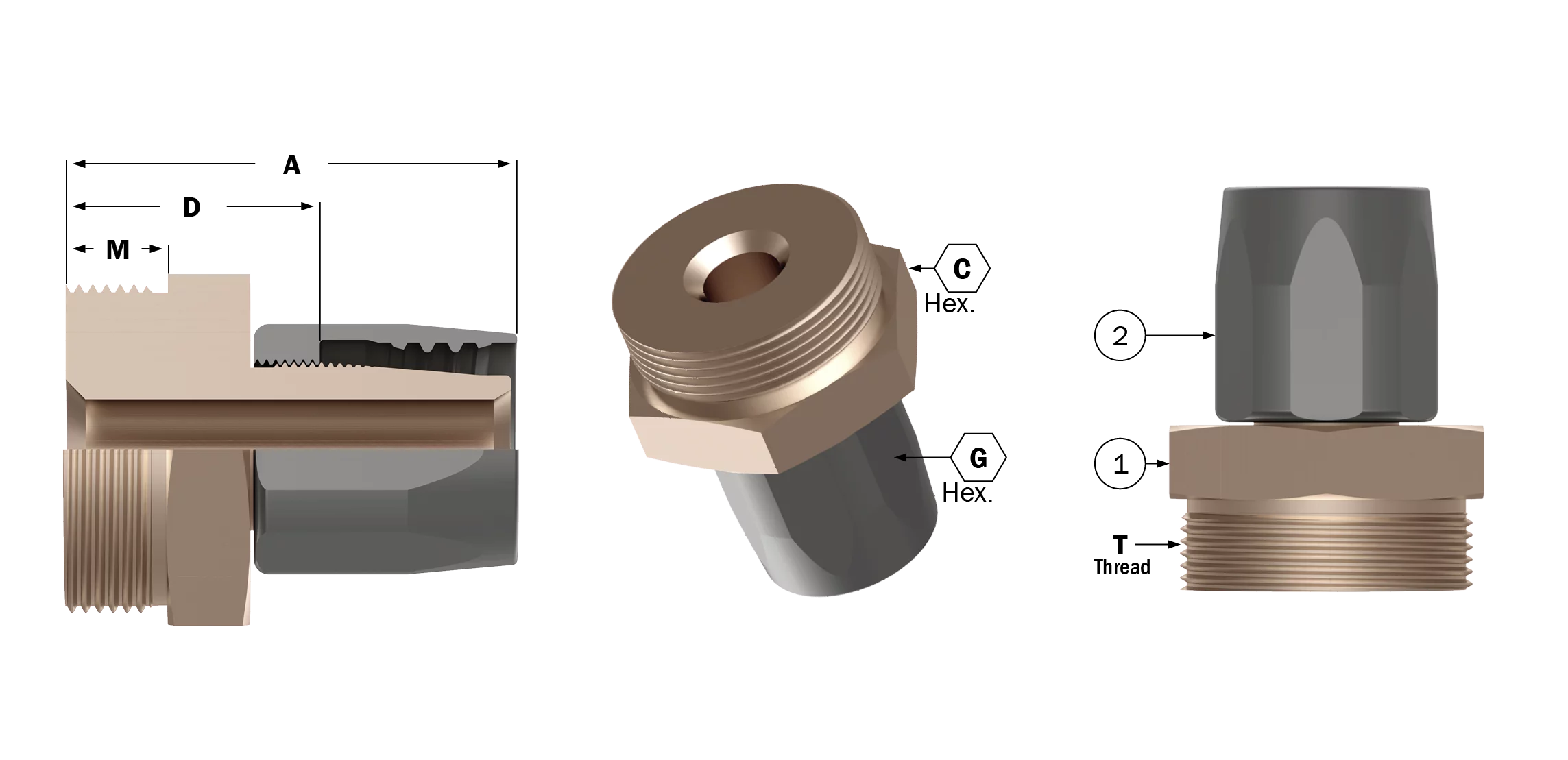

Hose to Male “O” Ring Seal

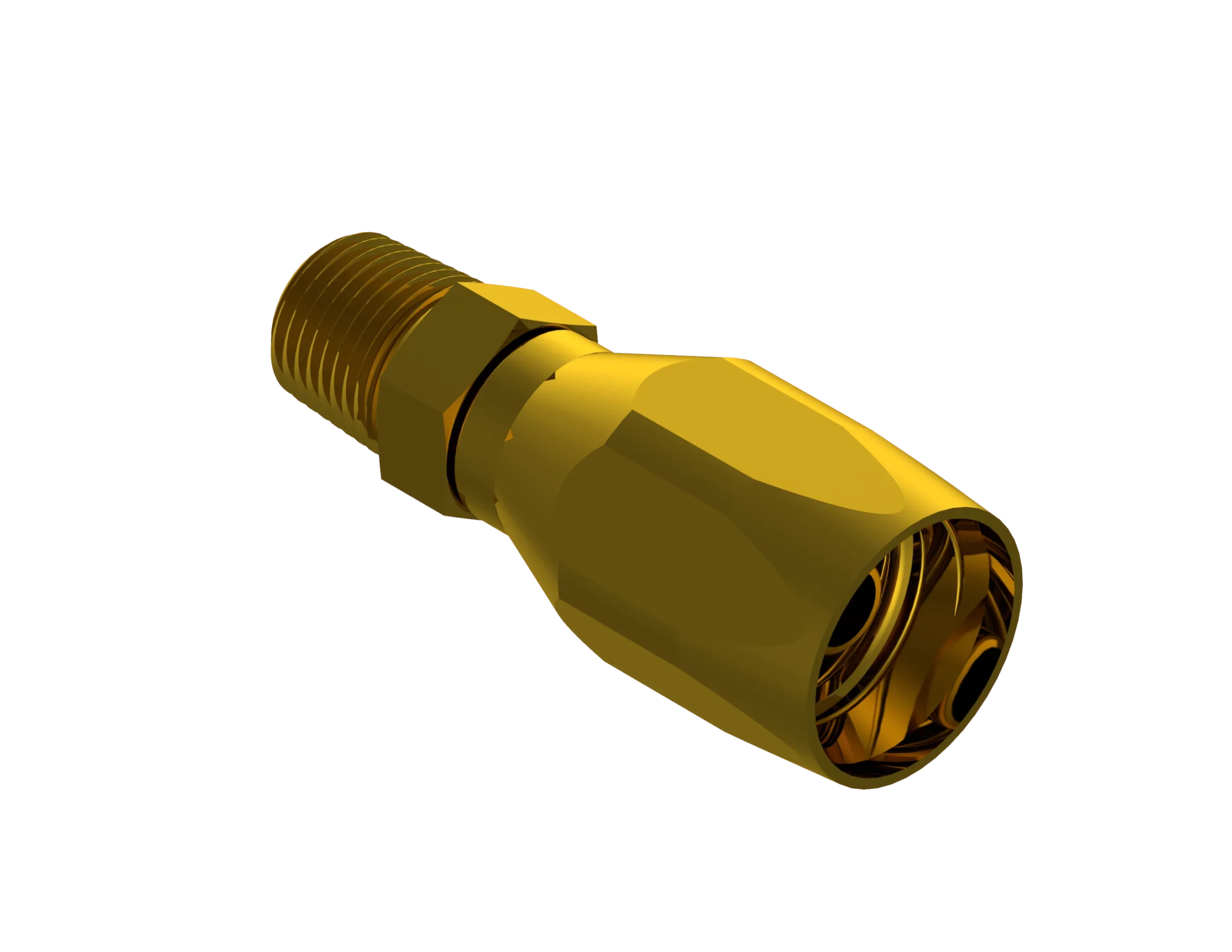

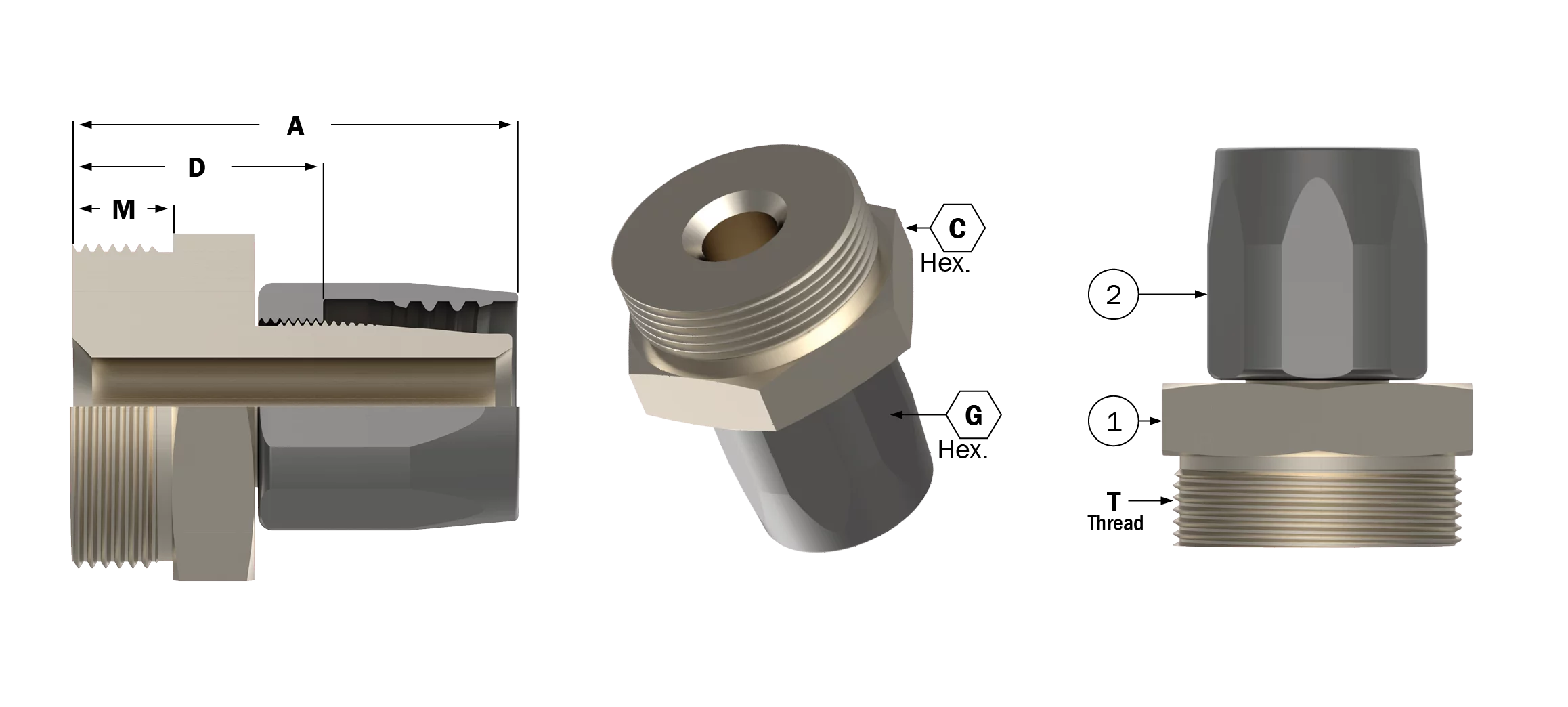

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
93-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
93-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.92	.46
93-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
93-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6B	8B	10B	12B	Brass

HS1488 Equivalent

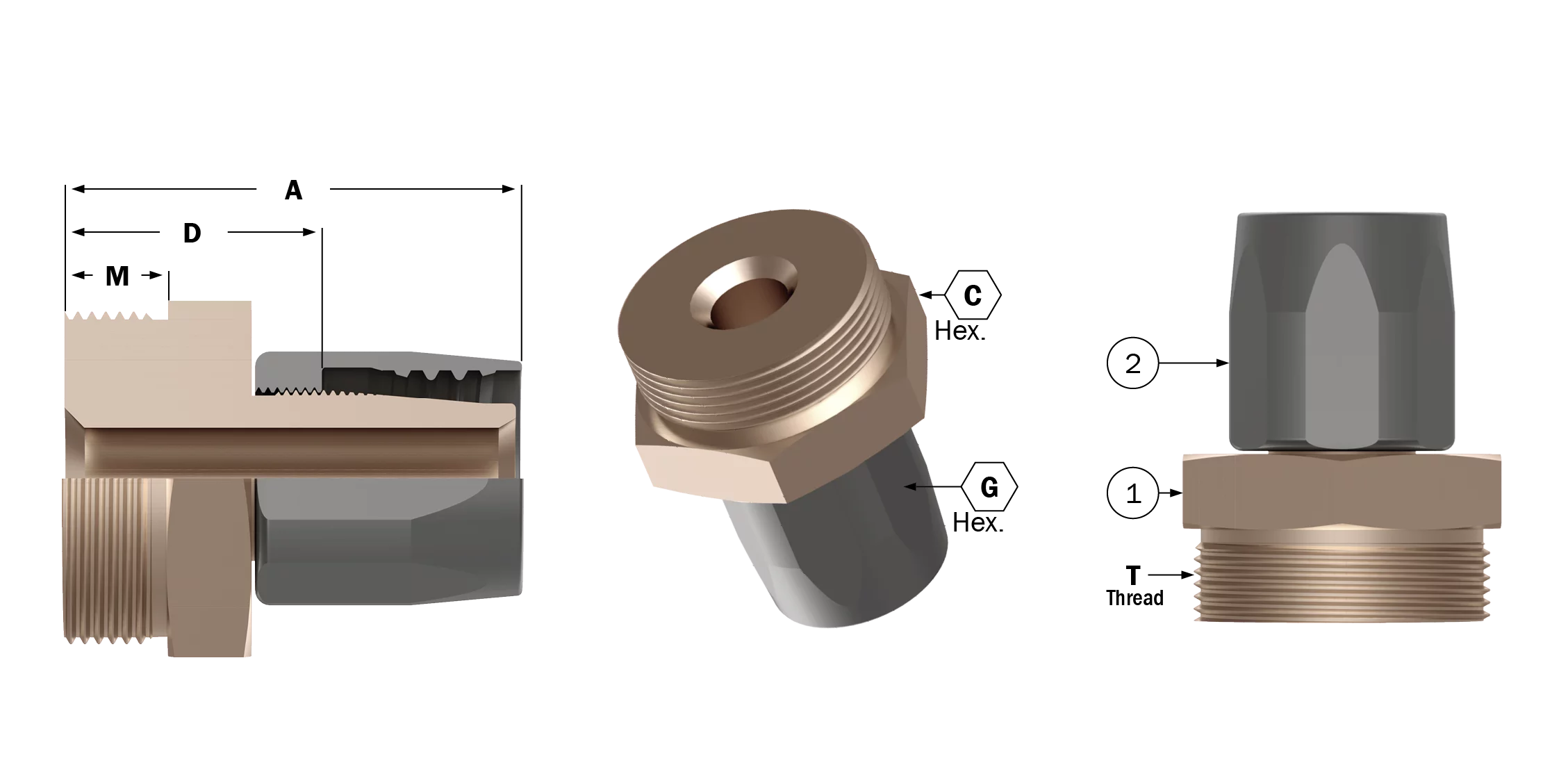

P/N 375-190911

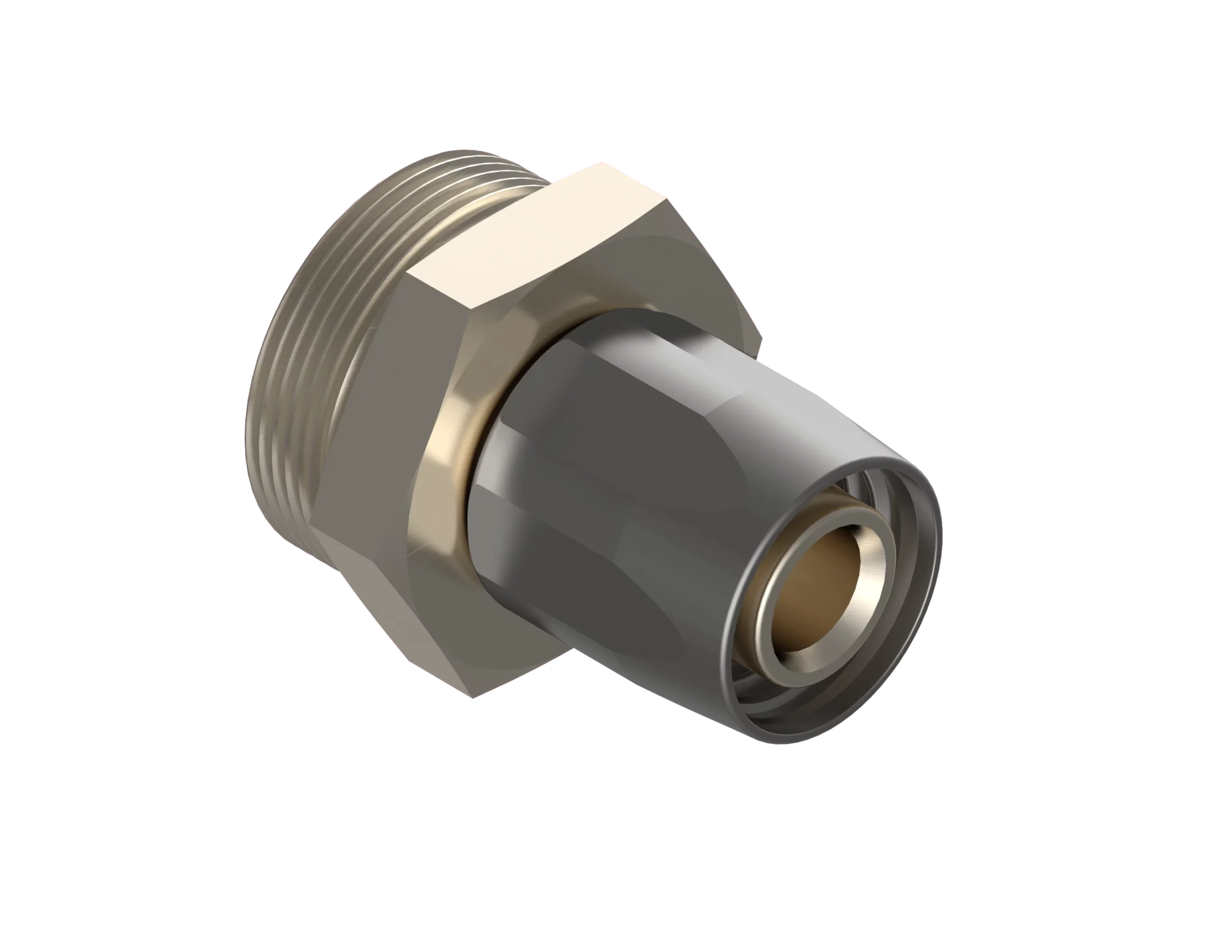

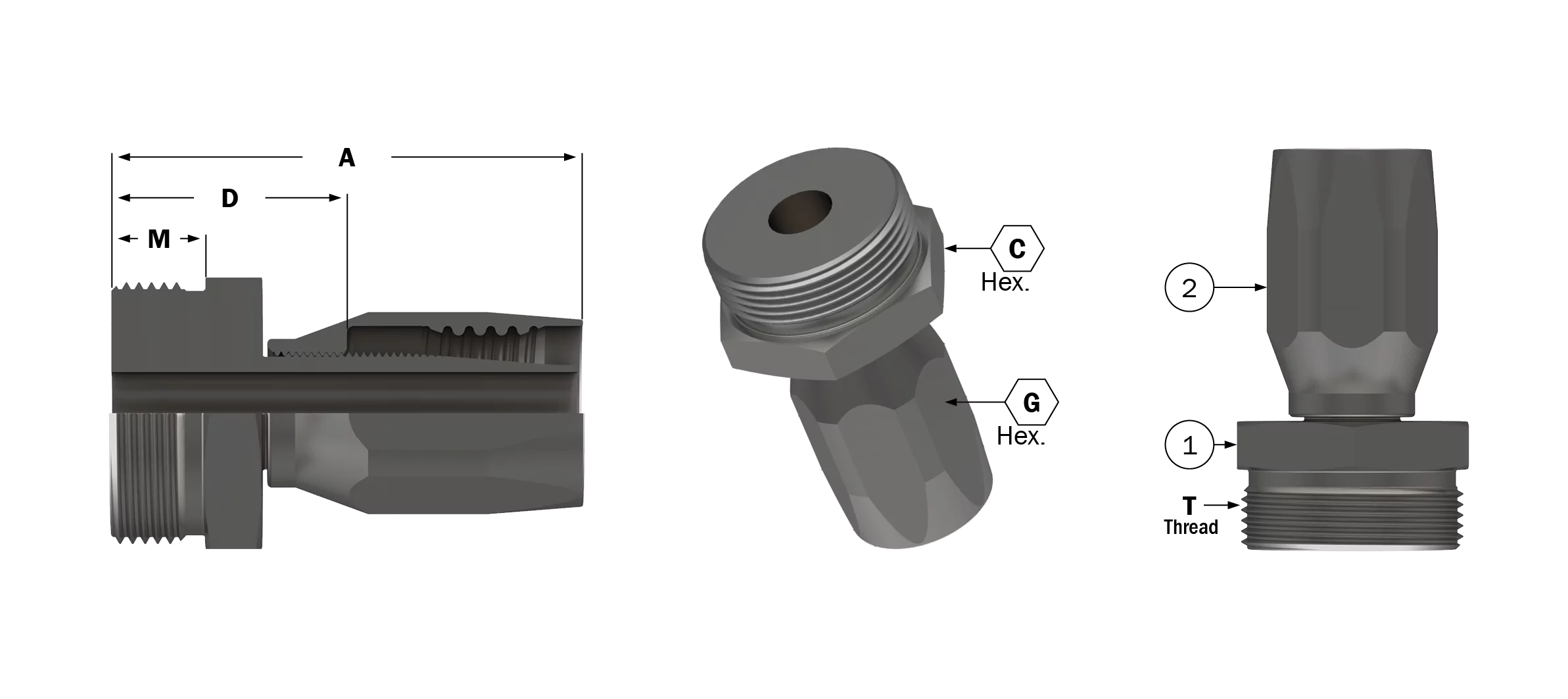

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

Equals to P/N 4-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type C, Group VIII

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
4-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
4-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.62	.46
4-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
4-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

HS1488

Equal to Aeroquip P/N 4-190911

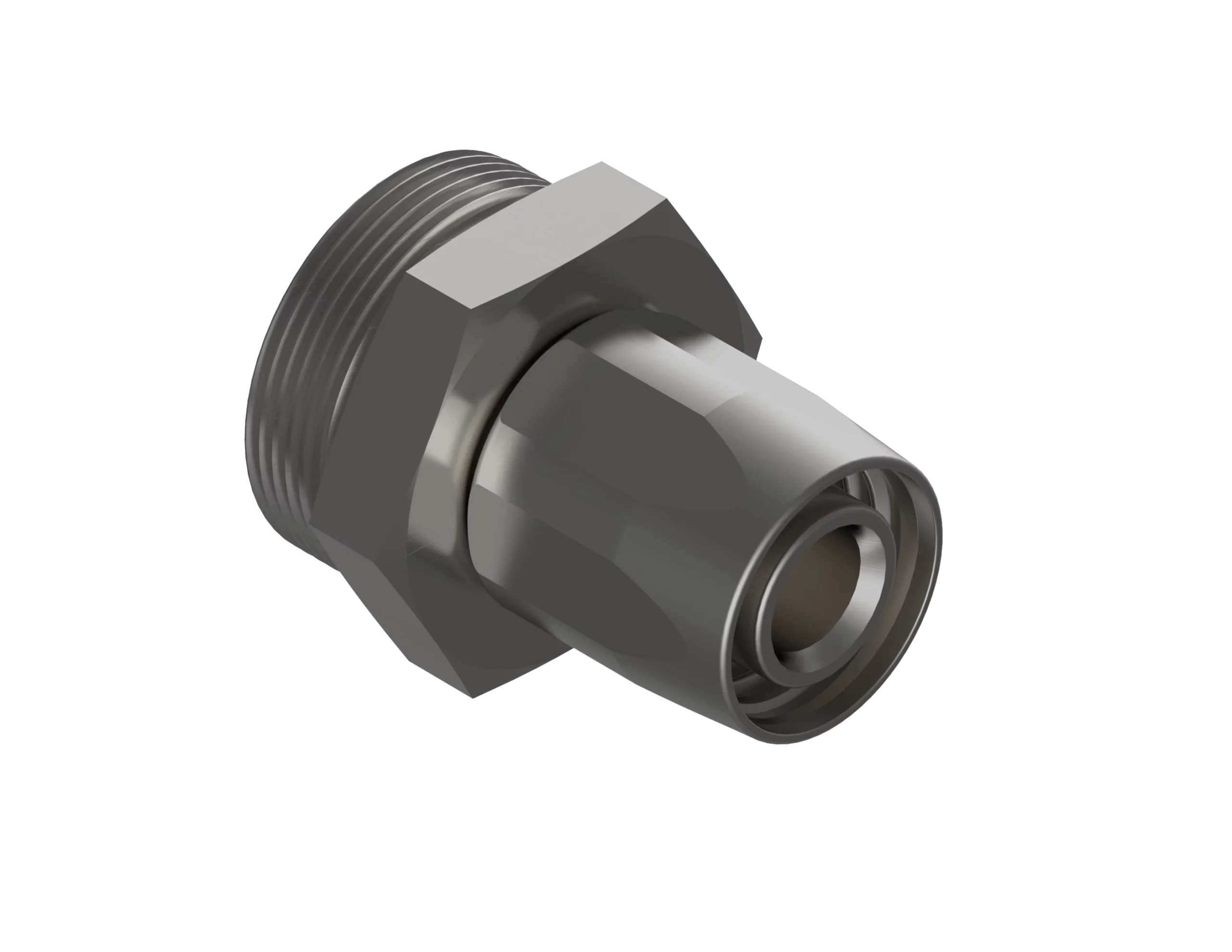

Hose to Male “O” Ring Seal

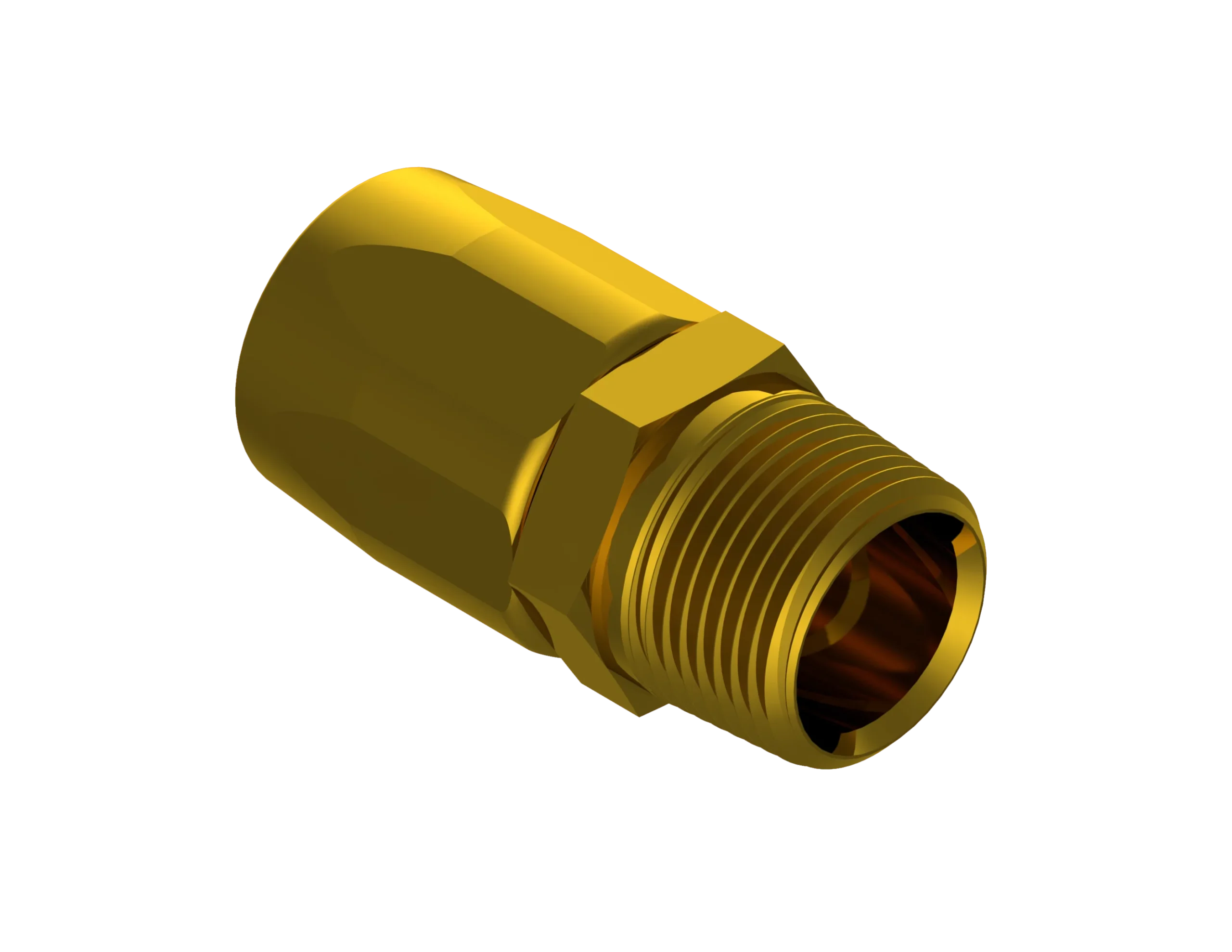

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
4-190911-1/8-6	1/8	1“-14	2.06	1.06	1.16	.81	.50	.28
4-190911-1/4-8	1/4	1-3/16”-12	2.54	1.25	1.39	.94	.62	.46
4-190911-3/8-10	3/8	1-3/8”-12	2.75	1.44	1.46	1.12	.62	.65
4-190911-1/2-12	1/2	1-3/4”-12	3.12	1.81	1.55	1.25	.62	1.03

Description	Req’d per Ass’y	Base No.	1/8-6	1/4-8	3/8-10	1/2-12	Material
Nipple	1	4-220779-	1/8-6	1/4-8	3/8-10	1/2-12	Monel
Socket	1	4-1210-	6	8	10	12	Monel

HS1488 Equivalent

P/N 375-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
375-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.54
375-190911-1-20	1	2-5/16”-12	3.14	2.38	1.77	1.75	.75	2.38
375-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	3.06
375-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.36

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	Monel

Equals to P/N 4-411

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/2

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type A, Group VIII

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-4	1/4	7/16”-20	1.75	.65	.56	1.00	.17	.62	.35	1.10	.10
4-411-5	5/16	1/2”-20	1.90	.74	.62	1.12	.23	.69	.38	1.20	.10
4-411-6	3/8	9/16”-18	2.05	.77	.69	1.15	.30	.81	.38	1.30	.20
4-411-8	1/2	3/4”-16	2.52	.95	.88	1.38	.39	.94	.43	1.65	.30
4-411-10	5/8	7/8”-14	2.80	1.00	1.00	1.51	.48	1.12	.51	1.80	.40
4-411-12	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60

Description	Req’d per Ass’y	Base No.	-4	-5	-6	-8	-10	-12	Material
Nipple	1	4-1251-	4	5	6	8	10	12	Monel
Socket	1	4-1210-	4	5	6	8	10	12	Monel
Nut	1	4-1290-	4	5	6	8	10	12	Monel

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-16	1	1-5/16”-12	2.82	.95	1.50	1.55	.82	1.44	.60	1.66	.70
4-411-20	1.25	1-5/8”-12	3.00	1.00	2.00	1.64	1.05	1.75	.64	1.75	1.30
4-411-24	1.50	1-7/8”-12	3.28	1.09	2.25	1.83	1.28	1.94	.74	1.84	1.60
4-411-32	2	2-1/2”-12	4.02	1.24	2.88	2.18	1.75	2.24	.94	2.25	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	4-1212-	16	20	24	32	Monel
Nut	1	4-1290-	16	20	24	32	Monel

HS1488

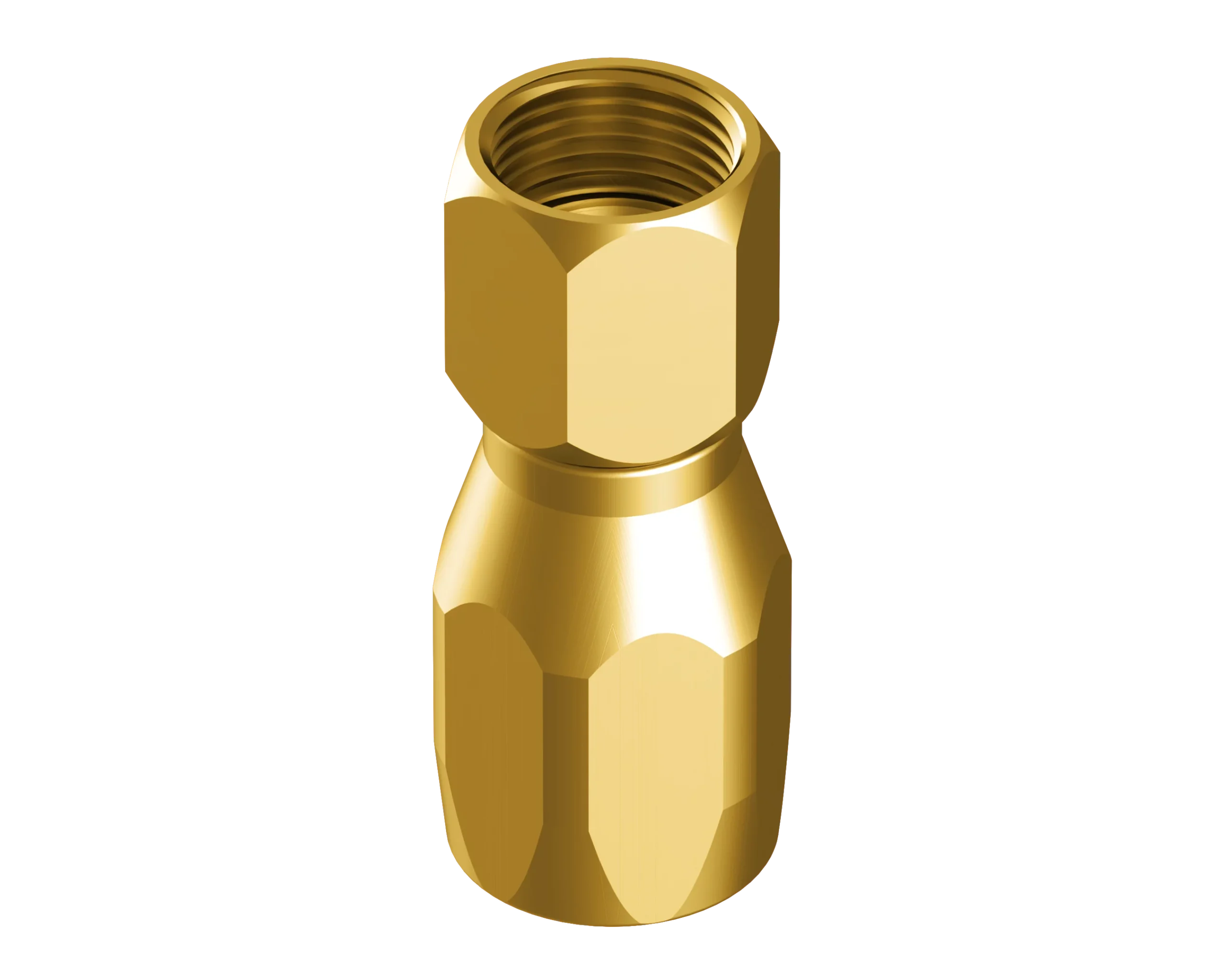

Equal to Aeroquip P/N 4-411

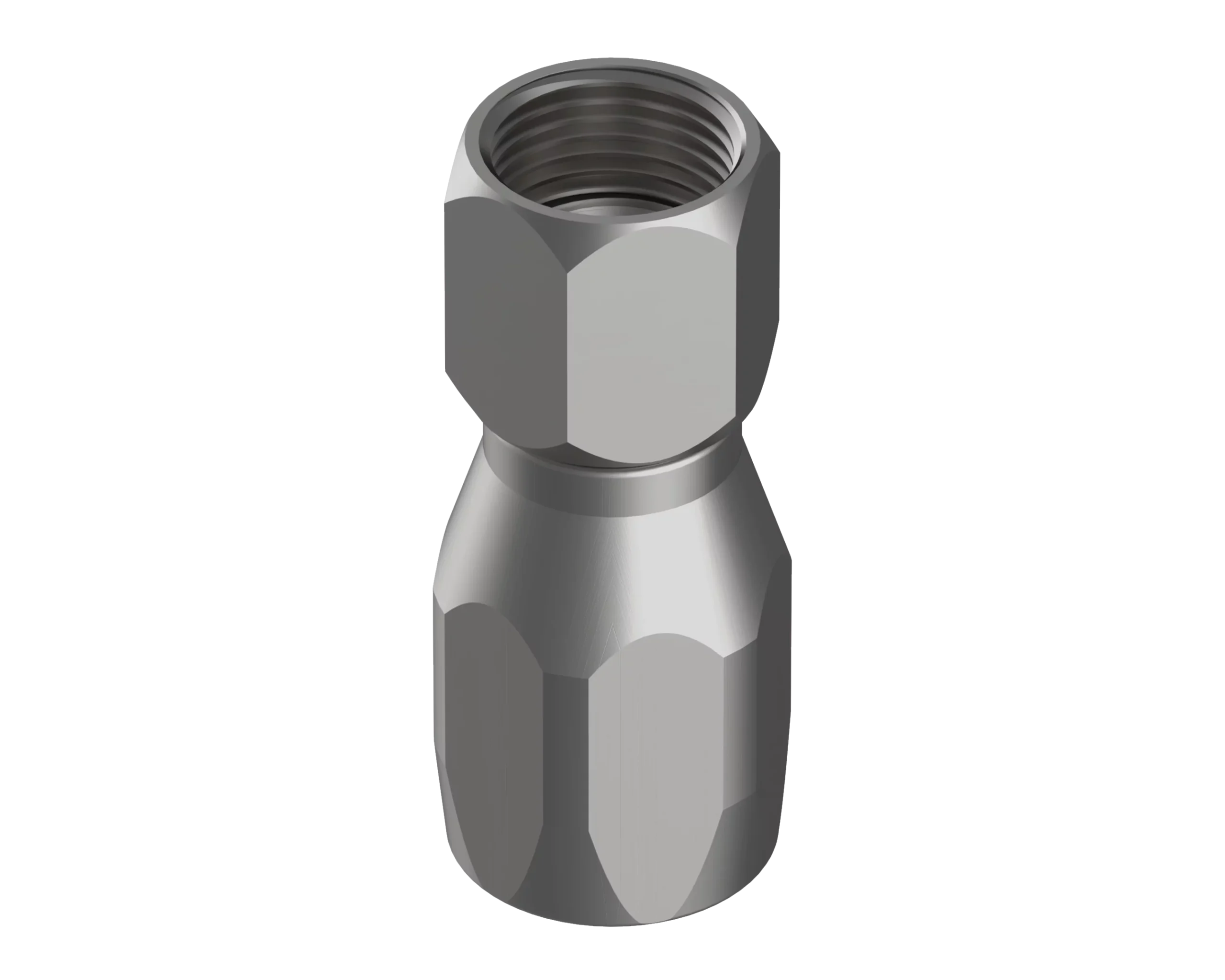

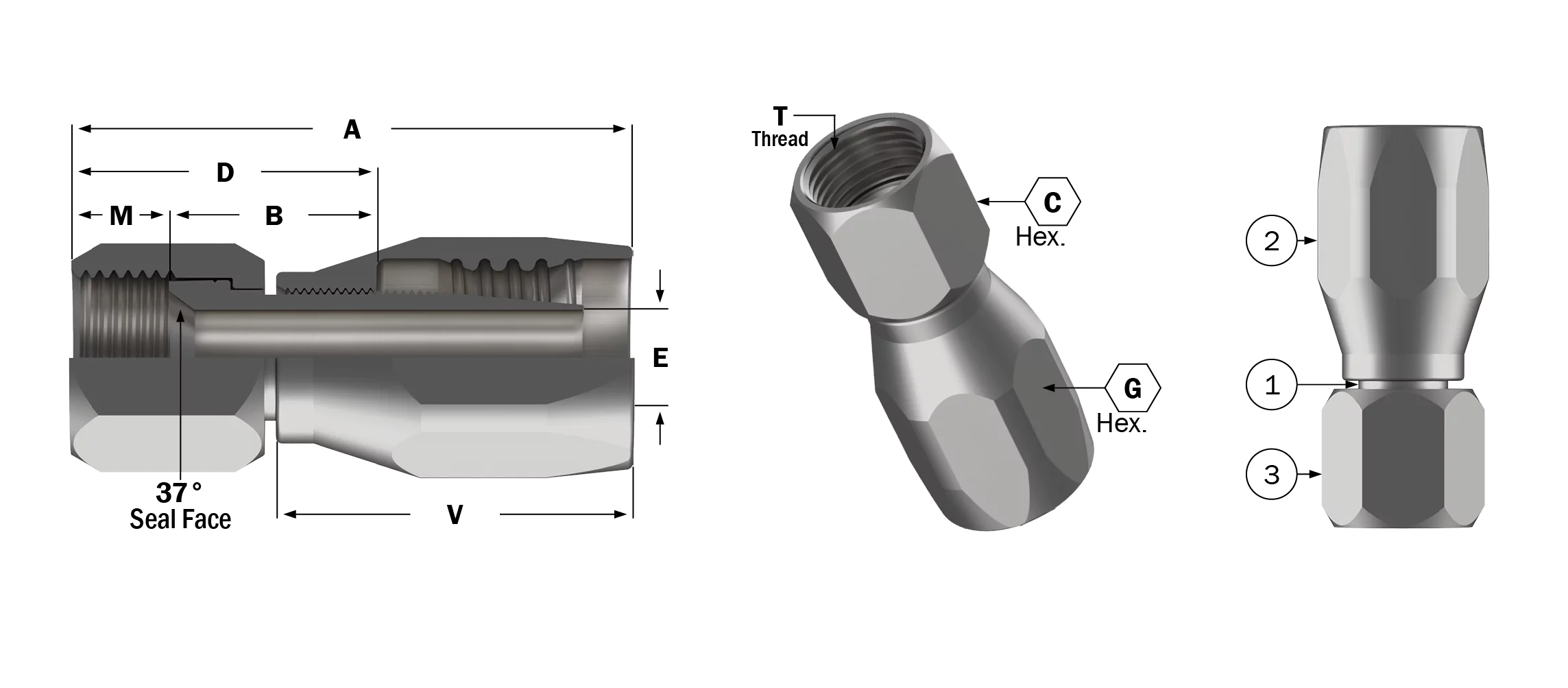

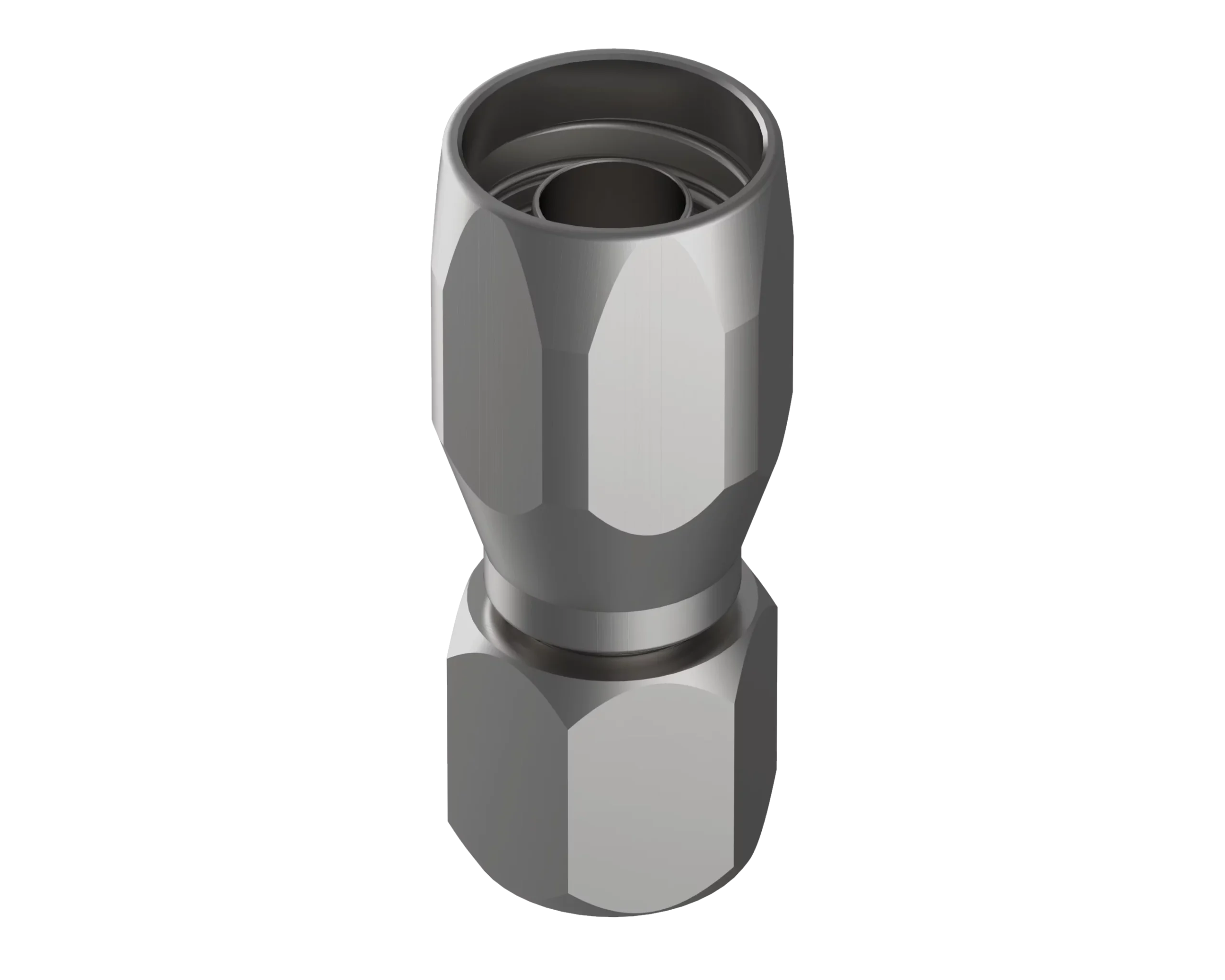

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-4	1/4	7/16”-20	1.75	.65	.56	1.00	.17	.62	.35	1.10	.10
4-411-5	5/16	1/2”-20	1.90	.74	.62	1.12	.23	.69	.38	1.20	.10
4-411-6	3/8	9/16”-18	2.05	.77	.69	1.15	.30	.81	.38	1.30	.20
4-411-8	1/2	3/4”-16	2.52	.95	.88	1.38	.39	.94	.43	1.65	.30
4-411-10	5/8	7/8”-14	2.80	1.00	1.00	1.51	.48	1.12	.51	1.80	.40
4-411-12	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60

Description	Req’d per Ass’y	Base No.	-4	-5	-6	-8	-10	-12	Material
Nipple	1	4-1251-	4	5	6	8	10	12	Monel
Socket	1	4-1210-	4	5	6	8	10	12	Monel
Nut	1	4-1290-	4	5	6	8	10	12	Monel

HS1488 Equivalent

P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-411-16	1	1-5/16”-12	2.82	.95	1.50	1.55	.82	1.44	.60	1.66	.70
4-411-20	1.25	1-5/8”-12	3.00	1.00	2.00	1.64	1.05	1.75	.64	1.75	1.30
4-411-24	1.50	1-7/8”-12	3.28	1.09	2.25	1.83	1.28	1.94	.74	1.84	1.60
4-411-32	2	2-1/2”-12	4.02	1.24	2.88	2.18	1.75	2.24	.94	2.25	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	4-1212-	16	20	24	32	Monel
Nut	1	4-1290-	16	20	24	32	Monel

Equals to P/N 412-B & 44-412

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-2-4B	1/4	1/8”-27	1.68	.55	.44	.92	.17	.62	.38	1.10	-
4-412-4-4B	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.62	.56	1.10	-
4-412-2-5B	5/16	1/8”-27	1.78	-	-	1.00	.23	-	-	-	-
4-412-4-5B	3/8	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	-
4-412-4-6B	3/8	1/4”-18	2.13	.67	.56	1.23	.30	.81	.56	1.30	-
4-412-6-6B	3/8	3/8”-18	2.13	-	-	1.23	.24	-	-	-	-
4-412-6-8B	1/2	3/8”-18	2.48	.77	.75	1.33	.39	.94	.56	1.65	-
4-412-8-10B	5/8	1/2”-14	2.88	.84	.88	1.59	.48	1.12	.75	1.80	-
4-412-12-12B	3/4	3/4-14	3.24	.92	1.06	1.67	.61	1.25	.75	2.10	-

Description	Req’d per Ass’y	Base No.	-2-4	-4-4	-2-5	-4-5	-4-6	-6-6	-6-8	-8-10	-12-12	Material
Nipple	1	4-1252-	2-4	4-4	2-5	4-5	4-6	6-6	6-8	8-10	12-12	Brass
Socket	1	4-1210-	4	4	5	5	6	6	8	10	12	Brass

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-12-16B	1	1”-11-1/2	2.80	-	-	1.53	.82	-	-	-	-
4-412-16-16B	1	1-1/4”-11-1/2	2.99	.78	1.38	1.72	.82	1.44	.94	1.66	-
4-412-20-20B	1.25	1-1/2”-11-1/2	3.23	.90	1.75	1.87	1.05	1.75	.97	1.75	-
4-412-24-24B	1.50	2”-11-1/2	3.48	1.03	2.00	2.03	1.28	1.84	1.00	1.84	-
4-412-32-32B	2	2-1/2”-8	4.05	1.17	2.44	2.20	1.75	2.25	1.03	2.25	-
44-412-40-40	2.5	2-1/2”-8	5.03	1.61	3.00	3.13	2.12	3.25	1.52	2.50	-
44-412-48-48	3	3”-8	5.09	1.61	3.88	3.19	2.69	3.88	1.58	2.50	-

Description	Req’d per Ass’y	Base No.	-12-16	-16-16	-20-20	-24-24	-32-32	Material
Nipple	1	4-1252-	12-16	16-16	20-20	24-24	32-32	Brass
Socket	1	4-1212-	16	16	20	24	32	Brass

Description	Req’d per Ass’y	Base No.	-40-40	-48-48	Material
Nipple	1	3-1252-	-40-40	-48-48	Brass
Socket	1	1212-	-40B	-48B	Brass

HS1488

Equal to Aeroquip P/N 412-B & 44-412

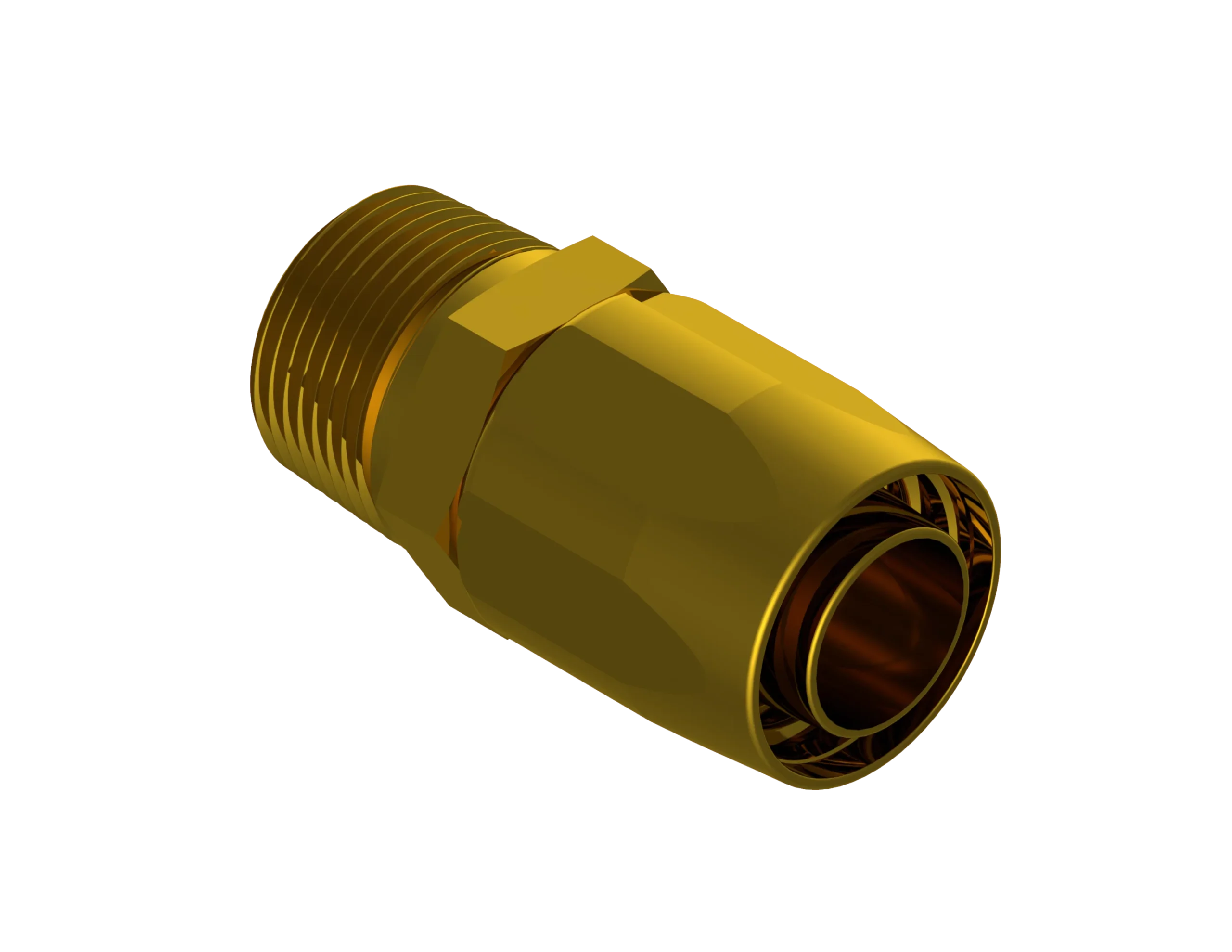

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-2-4B	1/4	1/8”-27	1.68	.55	.44	.92	.17	.62	.38	1.10	-
4-412-4-4B	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.62	.56	1.10	-
4-412-2-5B	5/16	1/8”-27	1.78	-	-	1.00	.23	-	-	-	-
4-412-4-5B	3/8	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	-
4-412-4-6B	3/8	1/4”-18	2.13	.67	.56	1.23	.30	.81	.56	1.30	-
4-412-6-6B	3/8	3/8”-18	2.13	-	-	1.23	.24	-	-	-	-
4-412-6-8B	1/2	3/8”-18	2.48	.77	.75	1.33	.39	.94	.56	1.65	-
4-412-8-10B	5/8	1/2”-14	2.88	.84	.88	1.59	.48	1.12	.75	1.80	-
4-412-12-12B	3/4	3/4-14	3.24	.92	1.06	1.67	.61	1.25	.75	2.10	-

Description	Req’d per Ass’y	Base No.	-2-4	-4-4	-2-5	-4-5	-4-6	-6-6	-6-8	-8-10	-12-12	Material
Nipple	1	4-1252-	2-4	4-4	2-5	4-5	4-6	6-6	6-8	8-10	12-12	Brass
Socket	1	4-1210-	4	4	5	5	6	6	8	10	12	Brass

HS1488 Equivalent

P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
4-412-12-16B	1	1”-11-1/2	2.80	-	-	1.53	.82	-	-	-	-
4-412-16-16B	1	1-1/4”-11-1/2	2.99	.78	1.38	1.72	.82	1.44	.94	1.66	-
4-412-20-20B	1.25	1-1/2”-11-1/2	3.23	.90	1.75	1.87	1.05	1.75	.97	1.75	-
4-412-24-24B	1.50	2”-11-1/2	3.48	1.03	2.00	2.03	1.28	1.84	1.00	1.84	-
4-412-32-32B	2	2-1/2”-8	4.05	1.17	2.44	2.20	1.75	2.25	1.03	2.25	-
44-412-40-40	2.5	2-1/2”-8	5.03	1.61	3.00	3.13	2.12	3.25	1.52	2.50	-
44-412-48-48	3	3”-8	5.09	1.61	3.88	3.19	2.69	3.88	1.58	2.50	-

Description	Req’d per Ass’y	Base No.	-12-16	-16-16	-20-20	-24-24	-32-32	Material
Nipple	1	4-1252-	12-16	16-16	20-20	24-24	32-32	Brass
Socket	1	4-1212-	16	16	20	24	32	Brass

Description	Req’d per Ass’y	Base No.	-40-40	-48-48	Material
Nipple	1	3-1252-	-40-40	-48-48	Brass
Socket	1	1212-	-40B	-48B	Brass

Equals to P/N 412-190093

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MSS1488D-1616	C19347	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MSS1488D-2020	C19348	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MSS1488D-2424	C21627	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MSS1488D-3232	C19349	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MSS1488D-4040	C19350	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	Material
Elbow	1	C19249	C19250	C21628	C19251	19252	Stainless Steel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	Monel

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
412-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
412-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
412-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
412-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
412-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	Material
Elbow	1	407-185093	16	20	24	32	40	Stainless Steel
Socket	2	4-1212-	16	20	24	32	40	Monel

HS1488

Equal to Aeroquip P/N 412-190093

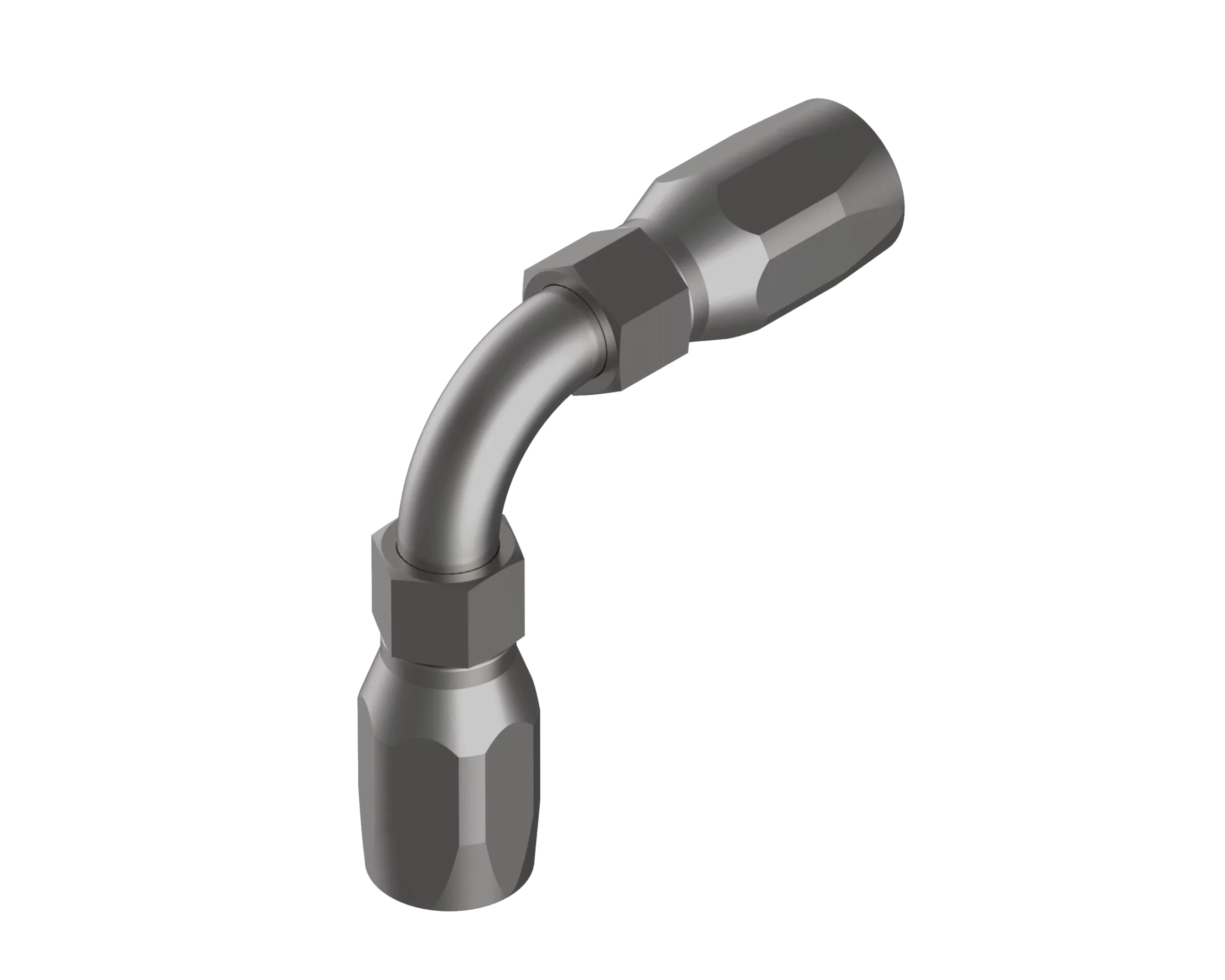

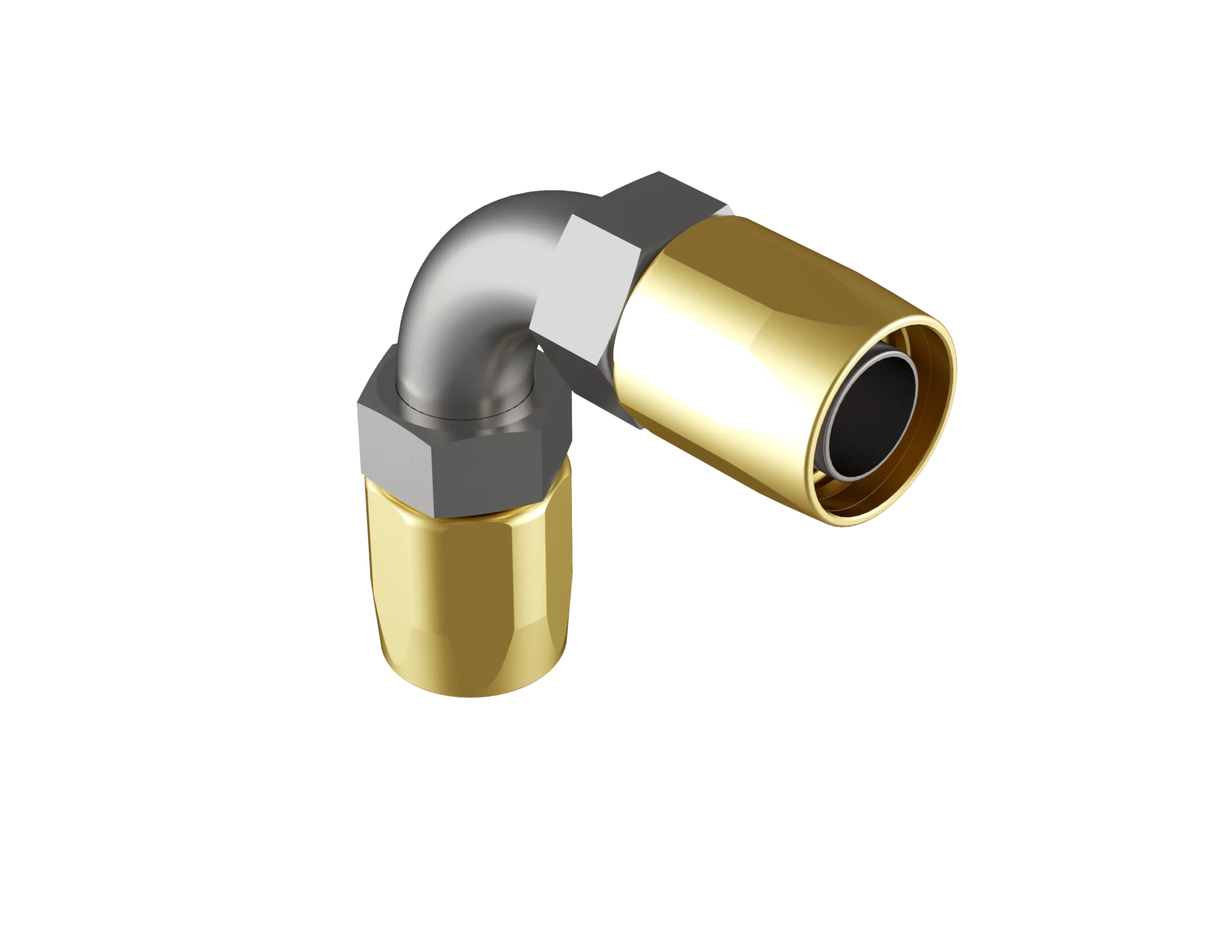

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MSS1488D-1616	C19347	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MSS1488D-2020	C19348	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MSS1488D-2424	C21627	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MSS1488D-3232	C19349	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MSS1488D-4040	C19350	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	Material
Elbow	1	C19249	C19250	C21628	C19251	19252	Stainless Steel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	Monel

HS1488 Equivalent

P/N 412-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
412-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
412-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
412-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
412-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
412-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	Material
Elbow	1	407-185093	16	20	24	32	40	Stainless Steel
Socket	2	4-1212-	16	20	24	32	40	Monel

Equals to P/N 66-190093

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-B1488D-1616	C19327	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-B1488D-2020	C19328	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-B1488D-2424	C19329	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-B1488D-3232	C19330	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-B1488D-4040	C19331	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-B1488D-4848	C19332	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
66-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
66-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
66-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
66-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
66-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
66-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20`	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	1212-	16B	20B	24B	32B	40B	48B	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190093

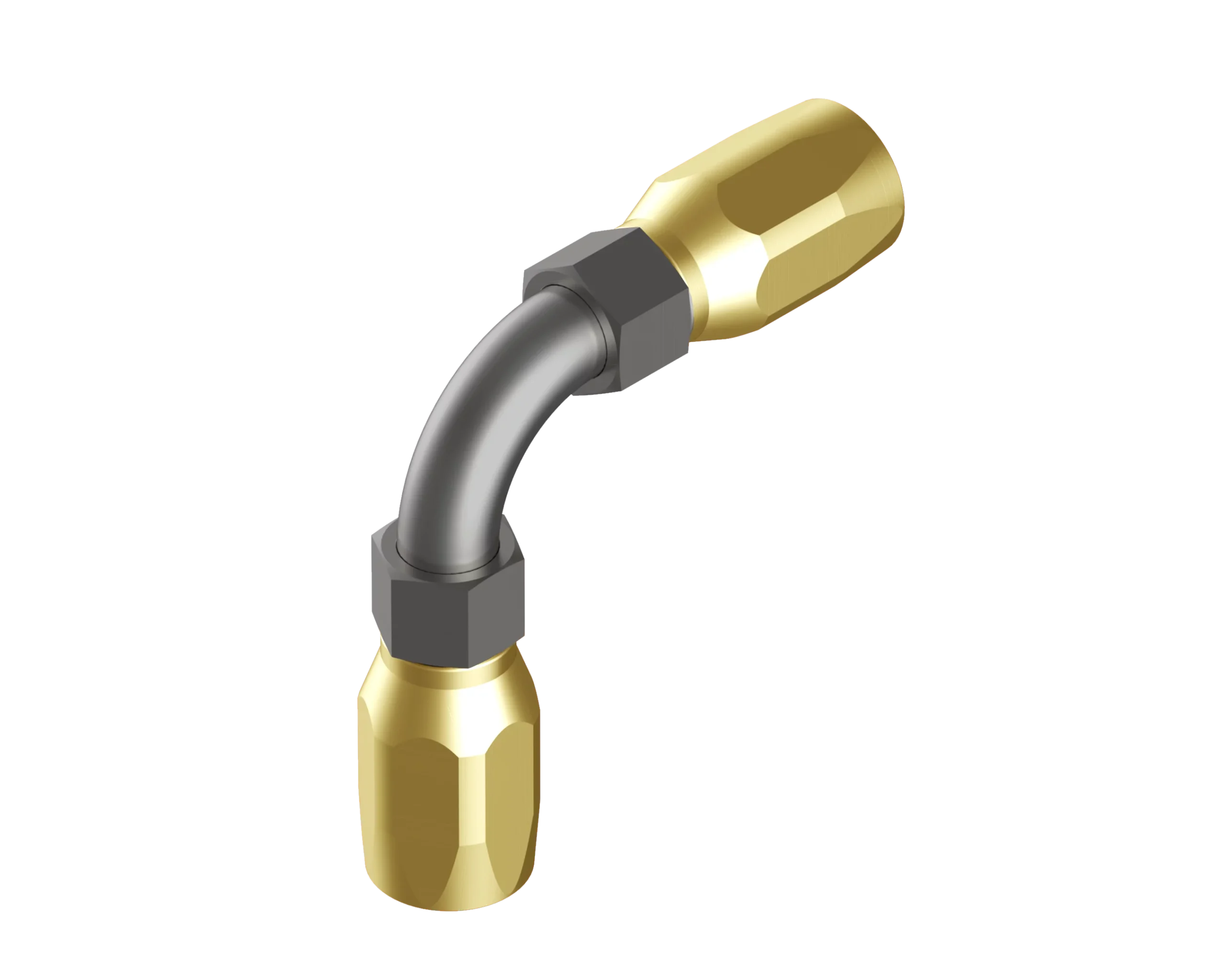

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-B1488D-1616	C19327	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-B1488D-2020	C19328	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-B1488D-2424	C19329	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-B1488D-3232	C19330	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-B1488D-4040	C19331	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-B1488D-4848	C19332	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

HS1488 Equivalent

P/N 66-190093

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
66-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
66-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
66-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
66-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
66-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
66-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20`	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	1212-	16B	20B	24B	32B	40B	48B	Aluminum. Bronze

Equals to P/N 375-190093

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/5

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MB1488D-1616	C19341	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MB1488D-2020	C19342	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MB1488D-2424	C19343	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MB1488D-3232	C19344	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MB1488D-4040	C19345	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-MB1488D-4848	C19346	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel`

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
375-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
375-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
375-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
375-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
375-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
375-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	4-1212-	16	20	24	32	40	48	Monel

HS1488

Equal to Aeroquip P/N 375-190093

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
90ELB-MB1488D-1616	C19341	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.20
90ELB-MB1488D-2020	C19342	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.80
90ELB-MB1488D-2424	C19343	1.5	3.24	1.78	1.16	1.94	1.38	1.84	1.69	2.30
90ELB-MB1488D-3232	C19344	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.20
90ELB-MB1488D-4040	C19345	2.5	4.39	2.48	2.12	3.25	1.88	2.50	2.75	5.60
90ELB-MB1488D-4848	C19346	3	4.70	2.80	2.69	3.88	2.19	2.50	3.19	10.40

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Elbow	1	C18121	C19007	C19012	C18804	C19025	C18117	Aluminum. Bronze
Socket	2	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel`

HS1488 Equivalent

P/N 375-190093

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	A	D	E	G	R	V	X	Est. Wt. (lbs.)
375-190093-16	1	2.80	1.53	.75	1.44	1.12	1.66	1.19	1.17
375-190093-20	1.25	2.98	1.62	1.00	1.75	1.22	1.75	1.44	1.79
375-190093-24	1.5	3.24	1.78	1.161	1.94	1.38	1.84	1.69	2.30
375-190093-32	2	3.89	2.05	1.69	2.44	1.62	2.25	2.25	3.25
375-190093-40	2.5	4.39	2.48	2.12	3.25	1.88	3.00	2.75	5.62
375-190093-48	3	4.70	2.80	2.69	3.88	2.19	3.50	3.19	10.35

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	-40	-48	Material
Elbow	1	188-185093-	16	20	24	32	40	48	Aluminum. Bronze
Socket	2	4-1212-	16	20	24	32	40	48	Monel

Equals to P/N 93-191302

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-0606	C19351	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-BMC1488D-0808	C19352	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-BMC1488D-1010	C19353	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-BMC1488D-1212	C19354	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-1616	C19355	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30

Description	Req’d per Ass’y	1616	Material
Elbow	1	C19108	Monel
Socket	2	C18667-1	Brass

HS1488

Equal to Aeroquip P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-0606	C19351	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-BMC1488D-0808	C19352	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-BMC1488D-1010	C19353	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-BMC1488D-1212	C19354	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-BMC1488D-1616	C19355	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30

Description	Req’d per Ass’y	1616	Material
Elbow	1	C19108	Monel
Socket	2	C18667-1	Brass

Equals to P/N 4-191302

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/5

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type D, Group VIII

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-0606	C19356	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-1488D-0808	C19357	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-1488D-1010	C19358	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-1488D-1212	C19359	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-1616	C19360	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30
90ELB-1488D-2020	C19692	1.25	4.27	1.62	2.91	1.05	1.75	.70	1.75	1.25	1.75	1.80
90ELB-1488D-2424	C19693	1.50	4.65	1.81	3.19	1.28	1.94	.74	2.00	1.50	1.84	2.30
90ELB-1488D-3232	C19691	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Elbow	1	C19108	C19109	C19110	C19111	Monel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-191302

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-0606	C19356	3/8	2.45	.56	1.55	.24	.81	.58	.50	.38	1.30	.20
90ELB-1488D-0808	C19357	1/2	3.05	.75	1.90	.36	.94	.58	.75	.50	1.65	.40
90ELB-1488D-1010	C19358	5/8	3.57	.81	2.28	.46	1.12	.70	1.00	.62	1.80	.60
90ELB-1488D-1212	C19359	3/4	4.15	1.00	2.58	.55	1.25	.74	1.25	.75	2.10	.90

Description	Req’d per Ass’y	0606	0808	1010	1212	Material
Elbow	1	C19104	C19105	C19106	C19107	Monel
Socket	2	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	S	V	Est. Wt. (lbs.)
90ELB-1488D-1616	C19360	1	3.93	1.38	2.66	.82	1.44	.70	1.50	1.00	1.66	1.30
90ELB-1488D-2020	C19692	1.25	4.27	1.62	2.91	1.05	1.75	.70	1.75	1.25	1.75	1.80
90ELB-1488D-2424	C19693	1.50	4.65	1.81	3.19	1.28	1.94	.74	2.00	1.50	1.84	2.30
90ELB-1488D-3232	C19691	2	5.68	2.38	3.84	1.75	2.44	.86	2.50	2.00	2.25	3.20

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Elbow	1	C19108	C19109	C19110	C19111	Monel
Socket	2	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N FC9425-66

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELM-2032	C19425	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
90ELB-B1488ELM-2432	C19426	1.5	3.59	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
90ELB-B1488ELM-3240	C19427	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
90ELB-B1488ELM-4048	C19428	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9425-66

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELM-2032	C19425	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
90ELB-B1488ELM-2432	C19426	1.5	3.59	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
90ELB-B1488ELM-3240	C19427	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
90ELB-B1488ELM-4048	C19428	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

P/N FC9425-66

Hose to Male Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9425-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	4.18	1.12	.39	1.62	3.00	-
FC9425-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	4.30	1.25	.39	1.62	3.31	-
FC9425-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.76	1.31	.39	1.88	4.00	-
FC9425-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.71	1.12	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1212-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5002-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Equals to P/N FC9426-66

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELF-2032	C19429	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
90ELB-B1488ELF-2432	C19430	1.5	3.59	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
90ELB-B1488ELF-3240	C19431	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
90ELB-B1488ELF-4048	C19432	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1221-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9426-66

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
90ELB-B1488ELF-2032	C19429	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
90ELB-B1488ELF-2432	C19430	1.5	3.59	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
90ELB-B1488ELF-3240	C19431	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
90ELB-B1488ELF-4048	C19432	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Elbow	1	C19196	C19197	C19198	C19199	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18087	C18079	Aluminum. Bronze

HS1488 Equivalent

P/N FC9426-66

Hose to Female Sil-Braze Tailpiece

Elbow - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	H	M	N	R	Z	Est. Wt. (lbs.)
FC9426-2032-66	1.25	3.89	2.44	2.05	1.69	1.66	3.71	.50	.39	1.62	3.00	-
FC9426-2432-66	1.5	3.89	2.44	2.05	1.69	1.90	3.80	.62	.39	1.62	3.31	-
FC9426-3240-66	2	4.39	3.25	2.48	2.12	2.38	4.23	.66	.39	1.88	4.00	-
FC9426-4048-66	2.5	4.61	3.88	2.70	2.69	2.88	4.52	.78	.39	2.09	4.42	-

Description	Req’d per Ass’y	Base No.	2032	2432	3240	4048	Material
Elbow	1	188-185249-	1.25-32	1.5-32	2-40	2.5-48	Aluminum. Bronze
Socket	1	1221-	32B	32B	40B	48B	Brass
Tailpiece	1	FF5001-188	20	24	32	40	Aluminum. Bronze
Split Clamp	1	900758	1.25	1.5	2	2.5	Aluminum. Bronze

Equals to P/N FC9423-66

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EM-2032	C19421	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
EF-B1488EM-2432	C19422	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
EF-B1488EM-3232	-	2	5.91	2.62	4.07	1.69	2.38	3.25	1.31	2.25	.39	3.25	-
EF-B1488EM-3240	C19423	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
EF-B1488EM-4048	C19424	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3232	3240	4048	Material
Nipple	1	C19188	C19189	-	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	-	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	-	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	-	C18078	C18079	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-66	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5002-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9423-66

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EM-2032	C19421	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-
EF-B1488EM-2432	C19422	1.5	5.53	2.12	3.69	1.75	1.90	2.44	1.25	2.25	.39	3.31	-
EF-B1488EM-3232	-	2	5.91	2.62	4.07	1.69	2.38	3.25	1.31	2.25	.39	3.25	-
EF-B1488EM-3240	C19423	2	5.97	2.62	4.07	2.21	2.38	3.25	1.31	2.50	.39	4.00	-
EF-B1488EM-4048	C19424	2.5	5.94	3.25	4.04	2.73	2.88	3.88	1.12	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3232	3240	4048	Material
Nipple	1	C19188	C19189	-	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	-	C18822	C17901	Brass
Tailpiece	1	C19192	C18285	-	C18088	C18089	Aluminum. Bronze
Split Clamp	1	C18160	C18294	-	C18078	C18079	Aluminum. Bronze

HS1488 Equivalent

P/N FC9423-66

Hose to Male Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9423-2032-66	1.25	5.44	2.12	3.60	1.53	1.66	2.44	1.12	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5002-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

Equals to P/N FC9424-44

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EF-2032	C19417	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
EF-B1488EF-2432	C19418	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
EF-B1488EF-3240	C19419	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
EF-B1488EF-4048	C19420	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Nipple	1	C19188	C19189	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18078	C18097	Aluminum. Bronze

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-44	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5001-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N FC9424-44

Hose to Female Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
EF-B1488EF-2032	C19417	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-
EF-B1488EF-2432	C19418	1.5	5.03	2.12	3.19	1.75	1.90	2.44	.62	2.25	.39	3.31	-
EF-B1488EF-3240	C19419	2	5.44	2.62	3.54	2.21	2.38	3.25	.66	2.50	.39	4.00	-
EF-B1488EF-4048	C19420	2.5	5.76	3.25	3.85	2.73	2.88	3.88	.78	2.50	.39	4.42	-

Description	Req’d per Ass’y	2032	2432	3240	4048	Material
Nipple	1	C19188	C19189	C19190	C19191	Aluminum. Bronze
Socket	1	C18811	C18811	C18822	C17901	Brass
Tailpiece	1	C19193	C19194	C18083	C18084	Aluminum. Bronze
Split Clamp	1	C18160	C18294	C18078	C18097	Aluminum. Bronze

HS1488 Equivalent

P/N FC9424-44

Hose to Female Sil-Braze Tailpiece

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	A	C	D	E	F	G	M	V	Y	Z	Est. Wt. (lbs.)
FC9424-2032-44	1.25	4.98	2.12	3.13	1.53	1.66	1.44	.50	2.25	.39	3.00	-

Description	Req’d per Ass’y	Base No.	2032	Material
Nipple	1	188-185249-	2032	Aluminum. Bronze
Socket	1	4-1212-	32B	Brass
Tailpiece	1	FF5001-188	20	Aluminum. Bronze
Split Clamp	1	900758	1.25	Aluminum. Bronze

Equals to P/N 66-190124

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL5-0816	C19389	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	-	1.80
90EF-B1488FL5-1220	C19390	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	-	3.60
90EF-B1488FL5-1624	C19391	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.42	-	3.20
90EF-B1488FL5-2032	C19392	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	-	4.50
90EF-B1488FL5-2432	C19393	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	-	5.20
90EF-B1488FL5-3232	C19394	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
90EF-B1488FL5-3240	C19395	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
90EF-B1488FL5-4040	C19396	2.5	4	4.39	3.25	2.48	3.50	7.00	5.50	.75	.48	-	9.70
90EF-B1488FL5-4048	C19397	2.5	4	4.61	3.88	2.70	4.00	7.00	5.50	.75	.48	-	12.50
90EF-B1488FL5-4848	C19398	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18867

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190124-8-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
66-190124-12-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.62
66-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
66-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.38
66-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.02
66-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
66-190124-32-40	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
66-190124-48-48	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description	Req’d per Ass’y	Base No. 8-16	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Material
Elbow	1	188-185029-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	32B	32B	40B	48B	Brass
Flange	1	188-74021-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze

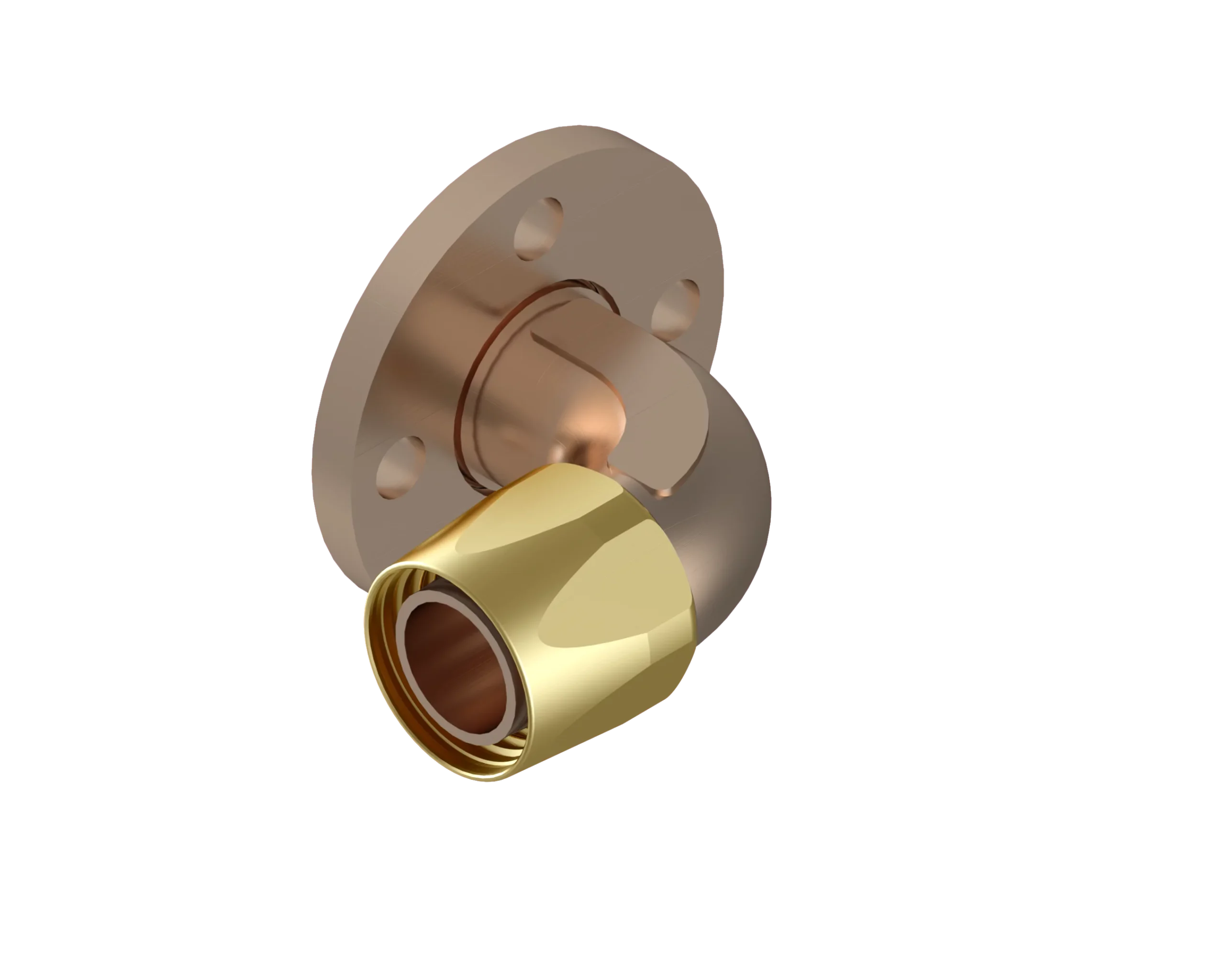

HS1488

Equal to Aeroquip P/N 66-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL5-0816	C19389	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	-	1.80
90EF-B1488FL5-1220	C19390	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	-	3.60
90EF-B1488FL5-1624	C19391	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.42	-	3.20
90EF-B1488FL5-2032	C19392	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	-	4.50
90EF-B1488FL5-2432	C19393	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	-	5.20
90EF-B1488FL5-3232	C19394	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
90EF-B1488FL5-3240	C19395	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
90EF-B1488FL5-4040	C19396	2.5	4	4.39	3.25	2.48	3.50	7.00	5.50	.75	.48	-	9.70
90EF-B1488FL5-4048	C19397	2.5	4	4.61	3.88	2.70	4.00	7.00	5.50	.75	.48	-	12.50
90EF-B1488FL5-4848	C19398	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18867

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190124-8-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
66-190124-12-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.62
66-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
66-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.38
66-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.02
66-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	-	5.90
66-190124-32-40	2	4	4.39	3.25	2.48	3.50	6.00	4.75	.75	.42	-	8.20
66-190124-48-48	3	4	4.61	3.88	2.70	4.00	7.50	6.00	.75	.48	-	13.50

Description	Req’d per Ass’y	Base No. 8-16	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Material
Elbow	1	188-185029-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	32B	32B	40B	48B	Brass
Flange	1	188-74021-	8-16	12-20	16-24	20-32	24-32	32-32	32-40	48-48	Aluminum. Bronze

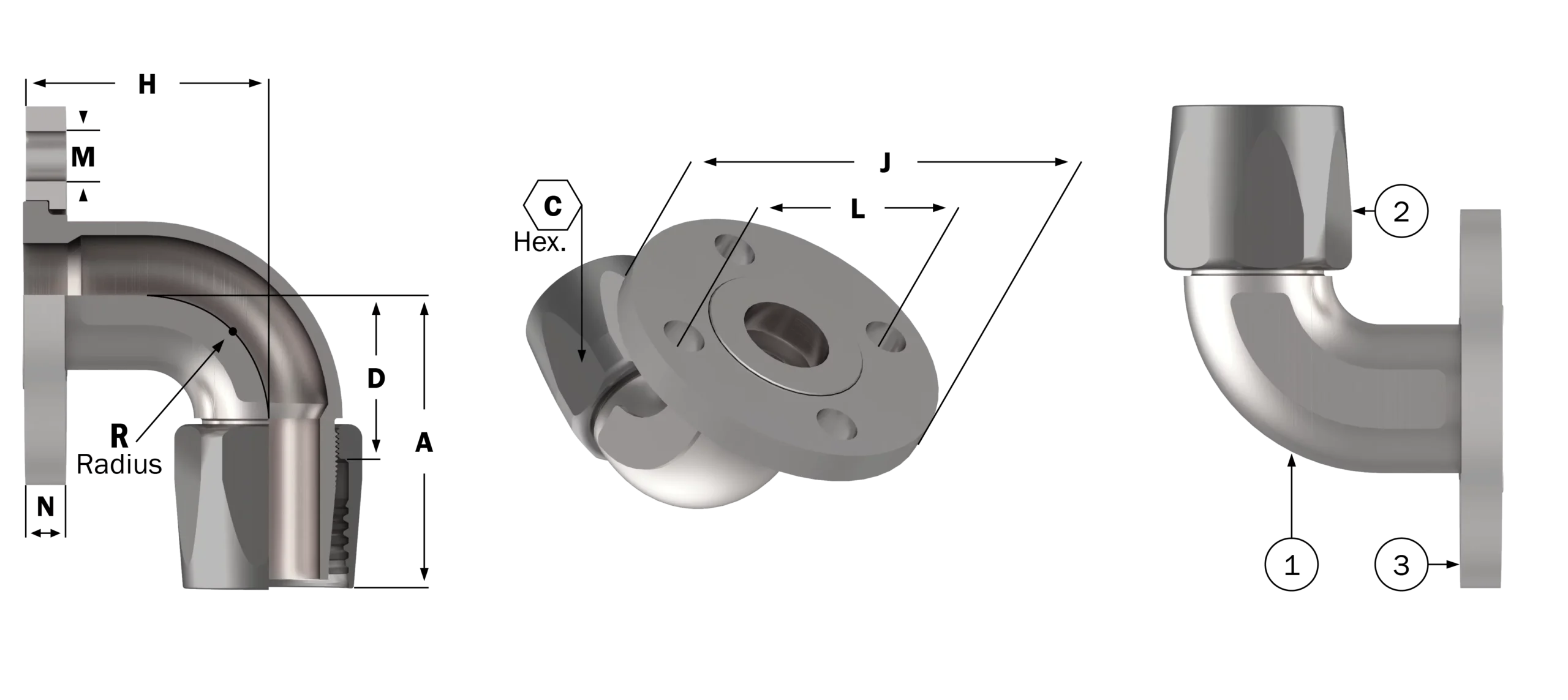

Equals to P/N 412-190124

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MSS1488FL5-1220	-	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.22	3.60
90EF-MSS1488FL5-2032	-	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MSS1488FL5-2432	-	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MSS1488FL5-3232	-	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	1220	2032	2432	3232	Material
Elbow	1	C21511	C19246	C19247	C19248	Stainless Steel
Socket	1	C18703-2	C18662	C18662	C18662	Monel
Flange	1	C19241	C19242	C19243	C19244	Stainless Steel

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
412-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
412-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
412-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
412-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base No.	16-24	20-32	24-32	32-32	Material
Elbow	1	407-185029-	16-24	20-32	24-32	32-32	Stainless Steel
Socket	1	4-1212-	24	32	32	32	Monel
Flange	1	407-74021-	16-24	20-32	24-32	32-32	Stainless Steel

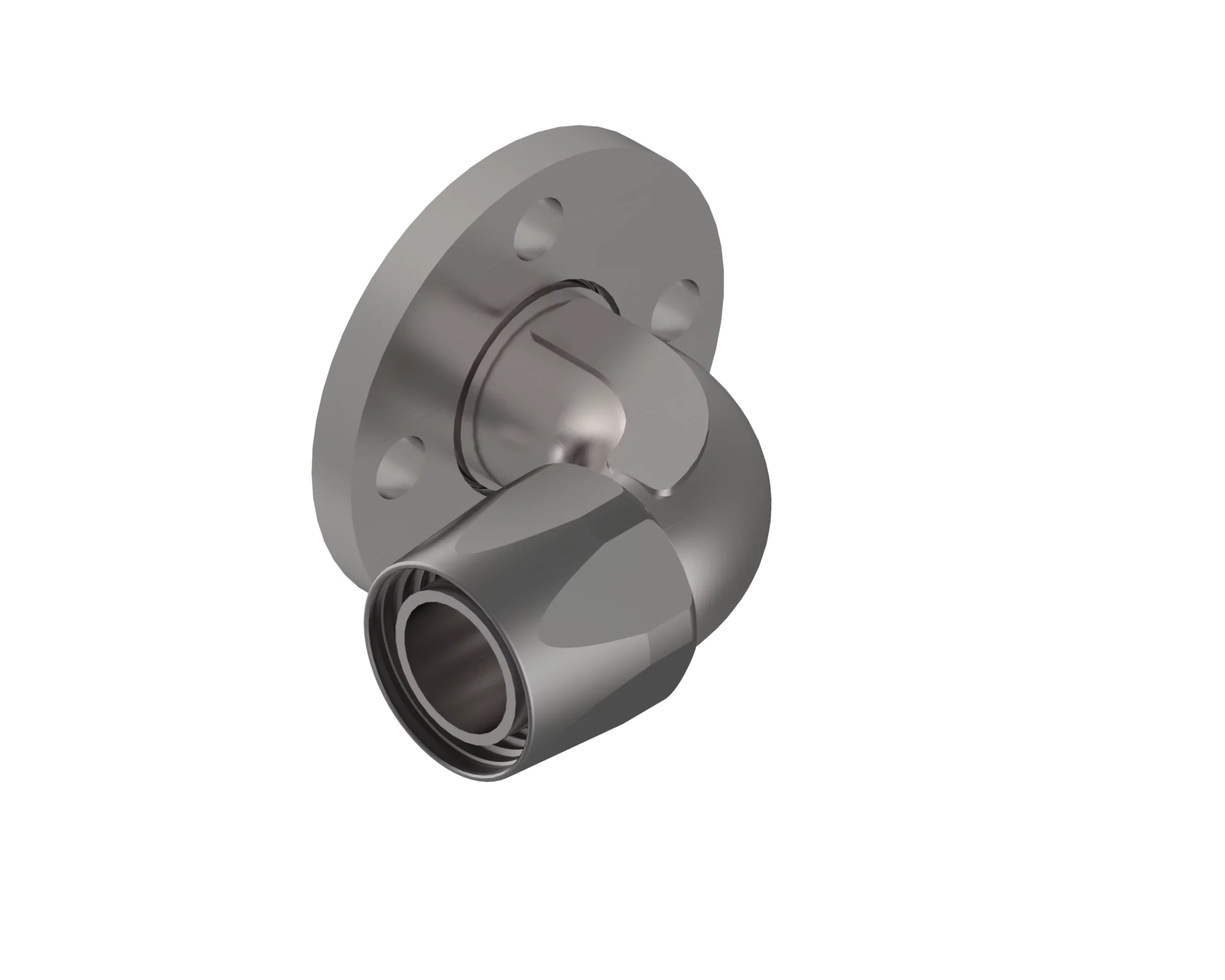

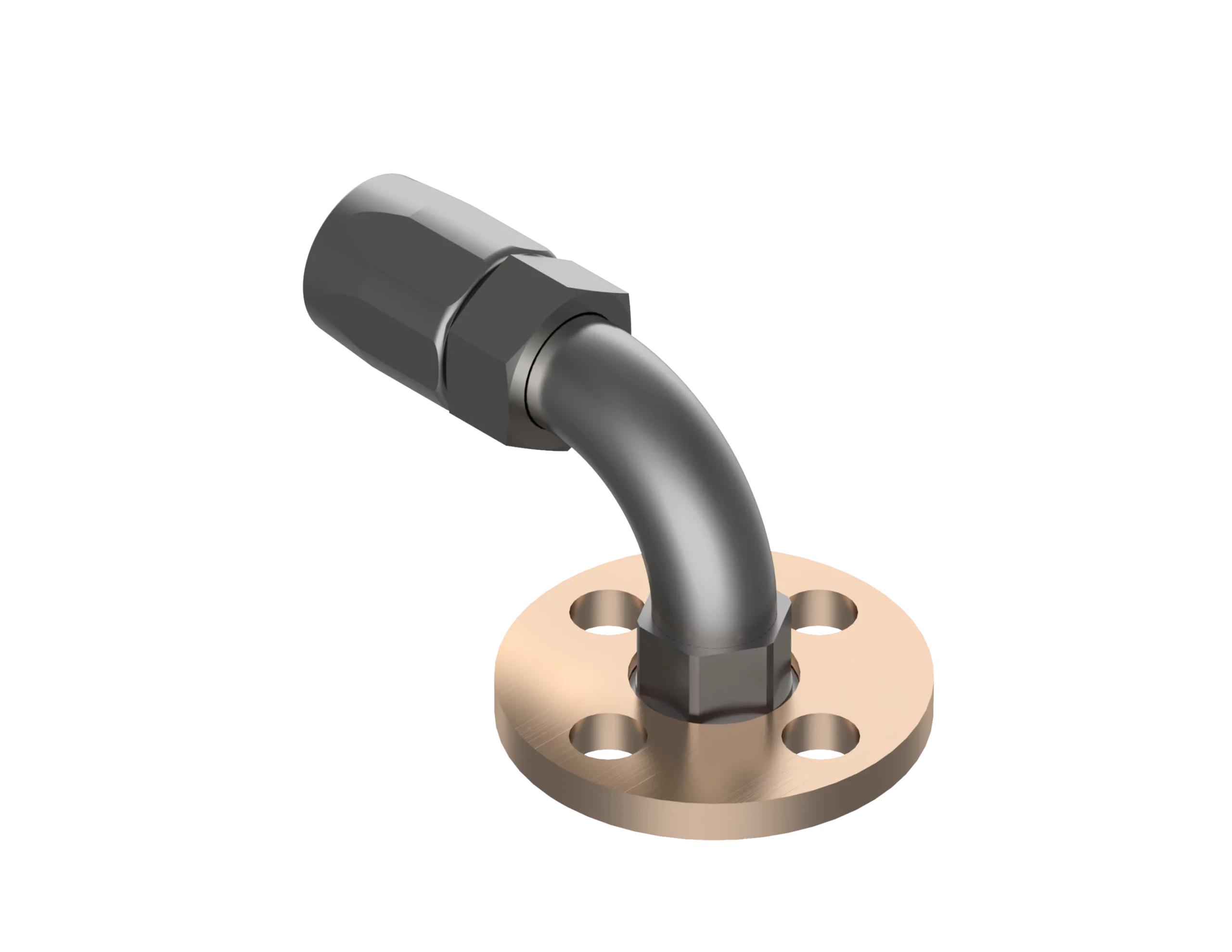

HS1488

Equal to Aeroquip P/N 412-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MSS1488FL5-1220	-	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.22	3.60
90EF-MSS1488FL5-2032	-	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MSS1488FL5-2432	-	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MSS1488FL5-3232	-	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	1220	2032	2432	3232	Material
Elbow	1	C21511	C19246	C19247	C19248	Stainless Steel
Socket	1	C18703-2	C18662	C18662	C18662	Monel
Flange	1	C19241	C19242	C19243	C19244	Stainless Steel

HS1488 Equivalent

P/N 412-190124

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
412-190124-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.19
412-190124-20-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
412-190124-24-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
412-190124-32-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base No.	16-24	20-32	24-32	32-32	Material
Elbow	1	407-185029-	16-24	20-32	24-32	32-32	Stainless Steel
Socket	1	4-1212-	24	32	32	32	Monel
Flange	1	407-74021-	16-24	20-32	24-32	32-32	Stainless Steel

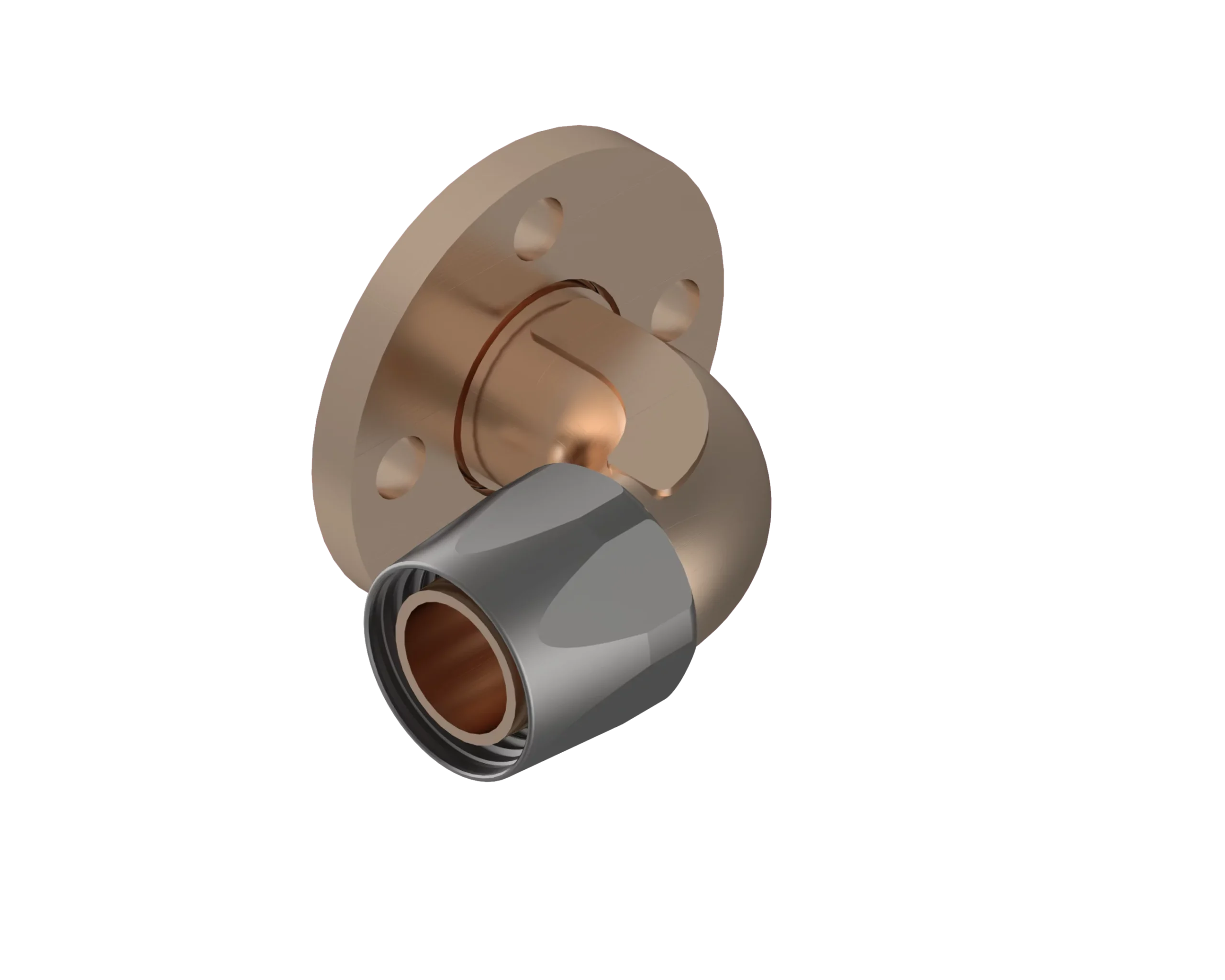

Equals to P/N 375-190124

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL5-0816	C19399	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	1.12	1.80
90EF-MB1488FL5-1220	C19400	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.12	3.60
90EF-MB1488FL5-1624	C19401	1	4	3.30	2.00	1.85	2.75	4.25	3.12	.62	.42	1.38	3.20
90EF-MB1488FL5-2032	C19402	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MB1488FL5-2432	C19403	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MB1488FL5-3232	C19404	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	Material
Elbow	1	C19035	C19037	C19087	C19102	C19092	C19092	Aluminum. Bronze
Socket	1	C18867-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
375-190124-1/2-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
375-190124-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.36
375-190124-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.22
375-190124-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
375-190124-1.5-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
375-190124-2-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	32	32	Monel
Flange	1	188-74021-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 375-190124

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL5-0816	C19399	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.36	1.12	1.80
90EF-MB1488FL5-1220	C19400	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.42	1.12	3.60
90EF-MB1488FL5-1624	C19401	1	4	3.30	2.00	1.85	2.75	4.25	3.12	.62	.42	1.38	3.20
90EF-MB1488FL5-2032	C19402	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.42	1.62	4.50
90EF-MB1488FL5-2432	C19403	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.42	1.62	5.20
90EF-MB1488FL5-3232	C19404	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.42	1.62	6.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	Material
Elbow	1	C19035	C19037	C19087	C19102	C19092	C19092	Aluminum. Bronze
Socket	1	C18867-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488 Equivalent

P/N 375-190124

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
375-190124-1/2-16	1/2	4	2.80	1.44	1.53	2.38	3.50	2.38	.62	.38	1.12	1.17
375-190124-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.88	2.75	.62	.44	1.22	3.36
375-190124-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.62	.44	1.38	3.22
375-190124-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.62	3.50	.62	.44	1.62	4.50
375-190124-1.5-32	1.5	4	3.89	2.44	2.05	3.06	5.00	3.88	.62	.44	1.62	5.15
375-190124-2-32	2	4	3.89	2.44	2.05	3.06	6.00	4.75	.75	.44	1.62	-

Description	Req’d per Ass’y	Base	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	16	20	24	32	32	32	Monel
Flange	1	188-74021-	1/2-16	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

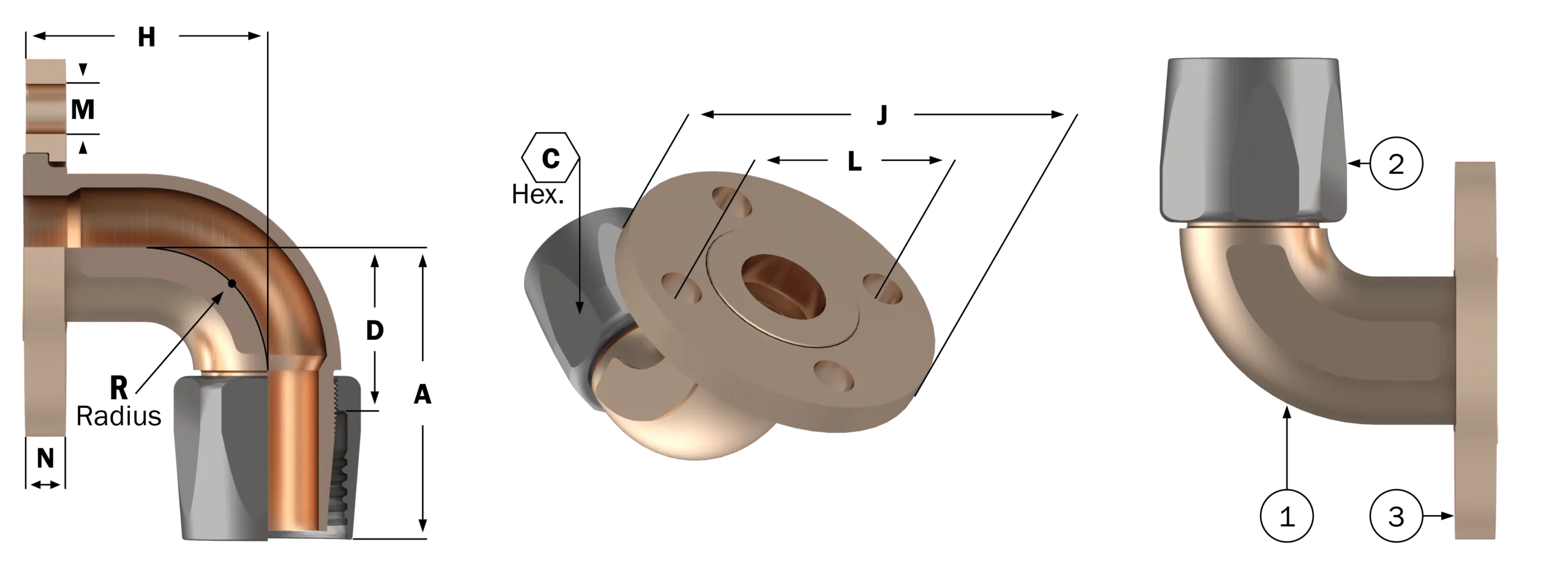

Equals to P/N 66-190103

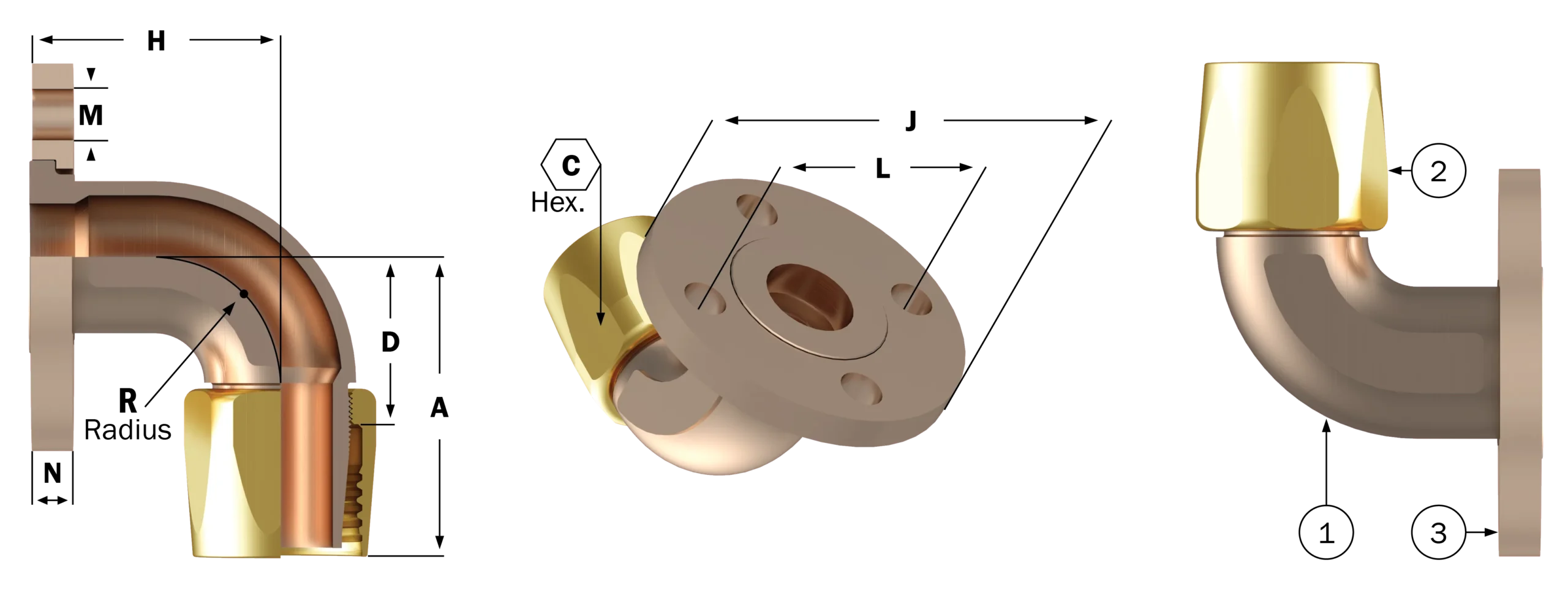

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL4-0816	-	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.12	1.80
90EF-MB1488FL4-1216	-	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	-	3.00
90EF-MB1488FL4-1616	-	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	-	3.10
90EF-MB1488FL4-1220	C21146	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.12	3.60
90EF-MB1488FL4-1624	C21540	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.38	3.20
90EF-MB1488FL4-2032	C22698	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
90EF-MB1488FL4-2432	C20900	1.5	6	3.89	2.50	2.05	3.06	506	3.94	.56	.44	1.62	5.20
90EF-MB1488FL4-3232	C21555	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	1.62	5.90
90EF-MB1488FL4-3240	-	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20
90EF-MB1488FL4-4040	-	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	-	9.70
90EF-MB1488FL4-4048	-	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	-	12.50
90EF-MB1488FL4-4848	-	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	-	13.50

Description

Req’d per Ass’y

0816

1216

1616

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-2

C18703-2

C18990-2

C18662

Monel

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-12-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.22	3.60
66-190103-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.38	3.20
66-190103-20-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
66-190103-24-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	1.62	5.20
66-190103-32-40	2	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20	-

Description	Req’d per Ass’y	Base No.	12-20	16-24	20-32	24-32	32-40	Material
Elbow	1	188-185029-	12-20	16-24	20-32	24-32	32-40	Brass
Socket	1	1212-	20B	24B	32B	32B	40B	Brass
Flange	1	188-180005-	12-20	16-24	20-32	24-32	32-40	Aluminum. Bronze

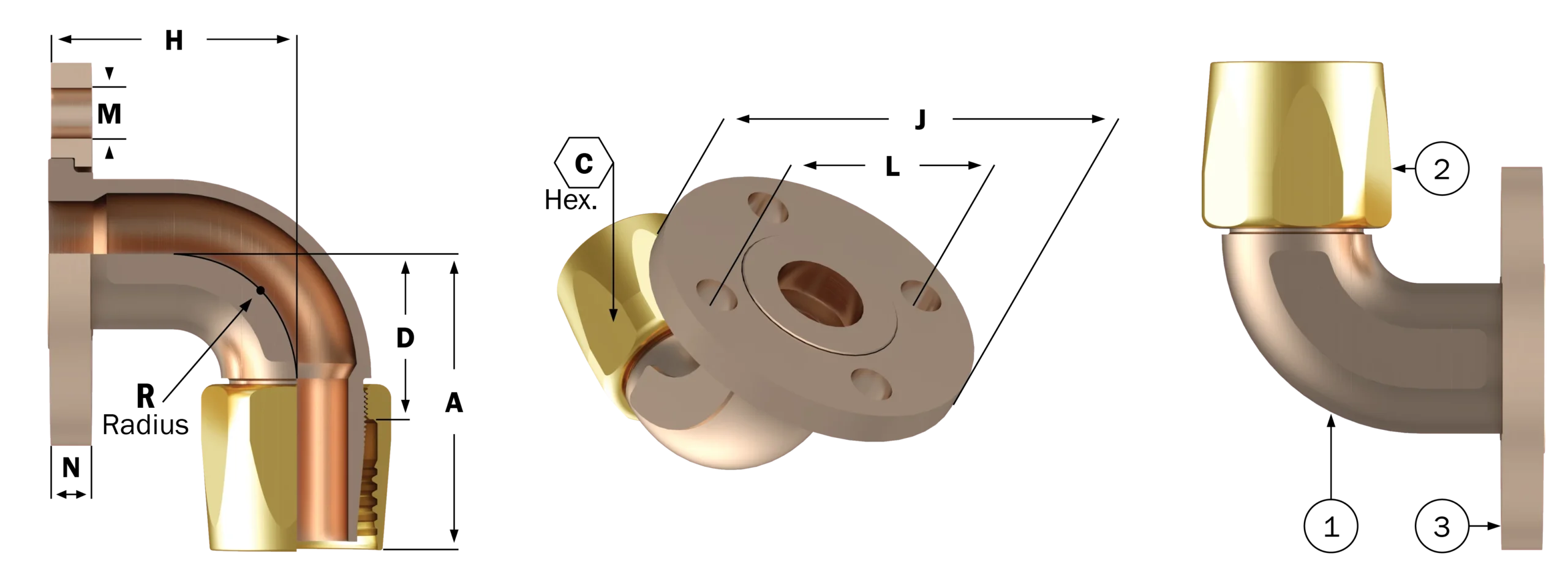

HS1488

Equal to Aeroquip P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-MB1488FL4-0816	-	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.12	1.80
90EF-MB1488FL4-1216	-	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	-	3.00
90EF-MB1488FL4-1616	-	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	-	3.10
90EF-MB1488FL4-1220	C21146	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.12	3.60
90EF-MB1488FL4-1624	C21540	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.38	3.20
90EF-MB1488FL4-2032	C22698	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
90EF-MB1488FL4-2432	C20900	1.5	6	3.89	2.50	2.05	3.06	506	3.94	.56	.44	1.62	5.20
90EF-MB1488FL4-3232	C21555	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	1.62	5.90
90EF-MB1488FL4-3240	-	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20
90EF-MB1488FL4-4040	-	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	-	9.70
90EF-MB1488FL4-4048	-	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	-	12.50
90EF-MB1488FL4-4848	-	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	-	13.50

Description

Req’d per Ass’y

0816

1216

1616

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-2

C18703-2

C18990-2

C18662

Monel

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-12-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.22	3.60
66-190103-16-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.38	3.20
66-190103-20-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	1.62	4.50
66-190103-24-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	1.62	5.20
66-190103-32-40	2	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	-	8.20	-

Description	Req’d per Ass’y	Base No.	12-20	16-24	20-32	24-32	32-40	Material
Elbow	1	188-185029-	12-20	16-24	20-32	24-32	32-40	Brass
Socket	1	1212-	20B	24B	32B	32B	40B	Brass
Flange	1	188-180005-	12-20	16-24	20-32	24-32	32-40	Aluminum. Bronze

Equals to P/N 66-190103

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL4-0816	C19405	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
90EF-B1488FL4-1216	C19406	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
90EF-B1488FL4-1616	C19408	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	1.25	3.10
90EF-B1488FL4-1220	C19407	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
90EF-B1488FL4-1624	C19409	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.81	3.20
90EF-B1488FL4-2032	C19410	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
90EF-B1488FL4-2432	C19411	1.5	6	3.89	2.50	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
90EF-B1488FL4-3232	C19412	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	2.44	5.90
90EF-B1488FL4-3240	C19413	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	3.00	8.20
90EF-B1488FL4-4040	C19414	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	3.00	9.70
90EF-B1488FL4-4048	C19415	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	3.50	12.50
90EF-B1488FL4-4848	C19416	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	3.50	13.50

Description

Req’d per Ass’y

0816

1216

1220

1616

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-1/2-16	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
66-190103-3/4-16	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
66-190103-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
66-190103-1-16	1	4	2.80	1.44	1.53	2.38	4.25	3.12	.56	.44	1.25	3.10
66-190103-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.81	3.20
66-190103-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
66-190103-1.5-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
66-190103-2-32	2	6	3.89	2.44	2.05	3.06	5.06	4.44	.56	.44	2.44	5.90

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	1212-	16B	16B	20B	16B	24B	32B	32B	32B	Brass
Flange	1	188-180005-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-B1488FL4-0816	C19405	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
90EF-B1488FL4-1216	C19406	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
90EF-B1488FL4-1616	C19408	1	4	2.80	1.44	1.53	2.38	4.25	3.13	.56	.44	1.25	3.10
90EF-B1488FL4-1220	C19407	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
90EF-B1488FL4-1624	C19409	1	4	3.24	1.94	1.78	2.75	4.25	3.13	.56	.44	1.81	3.20
90EF-B1488FL4-2032	C19410	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
90EF-B1488FL4-2432	C19411	1.5	6	3.89	2.50	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
90EF-B1488FL4-3232	C19412	2	6	3.89	2.50	2.05	3.06	5.56	4.44	.56	.44	2.44	5.90
90EF-B1488FL4-3240	C19413	2	6	4.39	3.25	2.48	3.50	5.56	4.44	.56	.44	3.00	8.20
90EF-B1488FL4-4040	C19414	2.5	6	4.39	3.25	2.48	3.50	6.13	5.00	.56	.50	3.00	9.70
90EF-B1488FL4-4048	C19415	2.5	6	4.61	3.88	2.70	4.00	6.13	5.00	.56	.50	3.50	12.50
90EF-B1488FL4-4848	C19416	3	6	4.61	3.88	2.70	4.00	6.63	5.50	.56	.50	3.50	13.50

Description

Req’d per Ass’y

0816

1216

1220

1616

1624

2032

2432

3232

3240

4040

4048

4848

Material

Elbow

C19035

C19037

C19087

C19102

C19092

C19103

C19130

C18114

Aluminum. Bronze

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Brass

Flange

C18817

C18816

C18815

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190103

Hose to Flange

End Fitting - 90°

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
66-190103-1/2-16	1/2	3	2.80	1.44	1.53	2.38	3.56	2.44	.56	.38	1.25	1.80
66-190103-3/4-16	3/4	4	2.80	1.44	1.53	2.38	3.81	2.69	.56	.44	1.25	3.00
66-190103-3/4-20	3/4	4	2.98	1.75	1.62	2.56	3.81	2.69	.56	.44	1.62	3.60
66-190103-1-16	1	4	2.80	1.44	1.53	2.38	4.25	3.12	.56	.44	1.25	3.10
66-190103-1-24	1	4	3.24	1.94	1.78	2.75	4.25	3.12	.56	.44	1.81	3.20
66-190103-1.25-32	1.25	4	3.89	2.44	2.05	3.06	4.50	3.38	.56	.44	2.44	4.50
66-190103-1.5-32	1.5	6	3.89	2.44	2.05	3.06	5.06	3.94	.56	.44	2.44	5.20
66-190103-2-32	2	6	3.89	2.44	2.05	3.06	5.06	4.44	.56	.44	2.44	5.90

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Material
Elbow	1	188-185029-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	1212-	16B	16B	20B	16B	24B	32B	32B	32B	Brass
Flange	1	188-180005-	1/2-16	1/2-16	3/4-20	1-16	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class V, 150lb Flange per A.N.S.I B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19570	1/2	4	3.93	1.44	2.66	1.38	2.62	3.50	2.38	.62	.36	1.50	2.40
90EF-1488B2-1216	C19571	3/4	4	3.93	1.44	2.66	1.38	2.62	3.88	2.75	.62	.42	1.50	3.00
90EF-1488B2-1616	C19572	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.12	.62	.42	1.50	3.20
90EF-1488B2-1220	C19573	3/4	4	4.27	1.75	2.91	1.62	2.87	3.88	2.75	.62	.42	1.75	3.00
90EF-1488B2-1624	C19574	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.12	.62	.42	2.00	3.50
90EF-1488B2-2032	C19575	1.25	4	5.68	2.44	3.84	2.25	3.74	4.62	3.50	.62	.42	2.50	4.20
90EF-1488B2-2432	C19576	1.5	4	5.68	2.44	3.84	2.25	3.74	5.00	3.88	.62	.42	2.50	4.70
90EF-1488B2-3232	C19577	2	4	5.68	2.44	3.84	2.69	3.74	5.00	4.75	.75	.42	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18801	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class V, 150lb

Flange per A.N.S.I B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19570	1/2	4	3.93	1.44	2.66	1.38	2.62	3.50	2.38	.62	.36	1.50	2.40
90EF-1488B2-1216	C19571	3/4	4	3.93	1.44	2.66	1.38	2.62	3.88	2.75	.62	.42	1.50	3.00
90EF-1488B2-1616	C19572	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.12	.62	.42	1.50	3.20
90EF-1488B2-1220	C19573	3/4	4	4.27	1.75	2.91	1.62	2.87	3.88	2.75	.62	.42	1.75	3.00
90EF-1488B2-1624	C19574	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.12	.62	.42	2.00	3.50
90EF-1488B2-2032	C19575	1.25	4	5.68	2.44	3.84	2.25	3.74	4.62	3.50	.62	.42	2.50	4.20
90EF-1488B2-2432	C19576	1.5	4	5.68	2.44	3.84	2.25	3.74	5.00	3.88	.62	.42	2.50	4.70
90EF-1488B2-3232	C19577	2	4	5.68	2.44	3.84	2.69	3.74	5.00	4.75	.75	.42	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18801	C18800	C18799	C18798	C18797	C18796	Aluminum. Bronze

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19586	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B2-1216	C19587	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B2-1616	C19588	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B2-1220	C19589	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B2-2032	C19591	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B2-2432	C19592	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.94	.56	.81	2.50	4.70
90EF-1488B2-1624	C19590	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19179	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B3-0816	C19578	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.38	1.50	2.40
90EF-1488B3-1216	C19579	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.44	1.50	3.00
90EF-1488B3-1616	C19580	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.44	1.50	3.20
90EF-1488B3-1220	C19581	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.44	1.75	3.00
90EF-1488B3-1624	C19582	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.44	2.00	3.50
90EF-1488B3-2032	C19583	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.44	2.50	4.20
90EF-1488B3-2432	C19584	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.44	2.50	4.70
90EF-1488B3-3232	C19585	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.44	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18815	C18814	C18813	C18812	C18810	C18809	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B2-0816	C19586	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B2-1216	C19587	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B2-1616	C19588	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B2-1220	C19589	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B2-2032	C19591	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B2-2432	C19592	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.94	.56	.81	2.50	4.70
90EF-1488B2-1624	C19590	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19179	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B3-0816	C19578	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.38	1.50	2.40
90EF-1488B3-1216	C19579	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.44	1.50	3.00
90EF-1488B3-1616	C19580	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.44	1.50	3.20
90EF-1488B3-1220	C19581	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.44	1.75	3.00
90EF-1488B3-1624	C19582	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.44	2.00	3.50
90EF-1488B3-2032	C19583	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.44	2.50	4.20
90EF-1488B3-2432	C19584	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.44	2.50	4.70
90EF-1488B3-3232	C19585	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.44	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18815	C18814	C18813	C18812	C18810	C18809	Aluminum. Bronze

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type FL, Group VIII, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B1-0816	C19602	1/2	4	3.93	1.44	1.66	1.38	2.62	4.00	2.88	.56	.69	1.50	2.40
90EF-1488B1-1216	C19603	3/4	4	3.93	1.44	2.66	1.38	2.62	4.31	3.19	.56	.69	1.50	3.00
90EF-1488B1-1616	C19604	1	5	3.93	1.44	2.66	1.38	2.62	5.06	3.75	.69	.75	1.50	3.20
90EF-1488B1-1220	C19605	3/4	4	4.27	1.75	2.91	1.62	2.87	4.31	3.19	.56	.69	1.75	3.00
90EF-1488B1-1624	C19606	1	5	4.65	1.94	3.19	2.12	3.06	5.06	3.75	.69	.75	2.00	3.50
90EF-1488B1-2032	C19607	1.25	5	5.68	2.44	3.84	2.25	3.74	5.38	4.06	.69	.81	2.50	4.20
90EF-1488B1-2432	C19608	1.5	6	5.68	2.44	3.84	2.25	3.74	5.94	4.63	.69	.81	2.50	4.70
90EF-1488B1-3232	C19609	2	7	5.68	2.44	3.84	2.69	3.74	6.50	5.19	.69	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Socket	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19516	C19517	C19518	C19519	C19520	C19521	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B5-0816	C19494	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B5-1216	C19595	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B5-1616	C19596	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B5-1220	C19597	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B5-1624	C19598	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50
90EF-1488B5-2032	C19599	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B5-2432	C19600	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.81	2.50	4.70
90EF-1488B5-3232	C19601	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C1862	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19529	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B1-0816	C19602	1/2	4	3.93	1.44	1.66	1.38	2.62	4.00	2.88	.56	.69	1.50	2.40
90EF-1488B1-1216	C19603	3/4	4	3.93	1.44	2.66	1.38	2.62	4.31	3.19	.56	.69	1.50	3.00
90EF-1488B1-1616	C19604	1	5	3.93	1.44	2.66	1.38	2.62	5.06	3.75	.69	.75	1.50	3.20
90EF-1488B1-1220	C19605	3/4	4	4.27	1.75	2.91	1.62	2.87	4.31	3.19	.56	.69	1.75	3.00
90EF-1488B1-1624	C19606	1	5	4.65	1.94	3.19	2.12	3.06	5.06	3.75	.69	.75	2.00	3.50
90EF-1488B1-2032	C19607	1.25	5	5.68	2.44	3.84	2.25	3.74	5.38	4.06	.69	.81	2.50	4.20
90EF-1488B1-2432	C19608	1.5	6	5.68	2.44	3.84	2.25	3.74	5.94	4.63	.69	.81	2.50	4.70
90EF-1488B1-3232	C19609	2	7	5.68	2.44	3.84	2.69	3.74	6.50	5.19	.69	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Socket	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19516	C19517	C19518	C19519	C19520	C19521	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group VIII, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	C	D	G	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1488B5-0816	C19494	1/2	3	3.93	1.44	2.66	1.38	2.62	3.56	2.44	.56	.69	1.50	2.40
90EF-1488B5-1216	C19595	3/4	4	3.93	1.44	2.66	1.38	2.62	3.81	2.69	.56	.69	1.50	3.00
90EF-1488B5-1616	C19596	1	4	3.93	1.44	2.66	1.38	2.62	4.25	3.13	.56	.75	1.50	3.20
90EF-1488B5-1220	C19597	3/4	4	4.27	1.75	2.91	1.62	2.87	3.81	2.69	.56	.69	1.75	3.00
90EF-1488B5-1624	C19598	1	4	4.65	1.94	3.19	2.12	3.06	4.25	3.13	.56	.75	2.00	3.50
90EF-1488B5-2032	C19599	1.25	4	5.68	2.44	3.84	2.25	3.74	4.50	3.38	.56	.81	2.50	4.20
90EF-1488B5-2432	C19600	1.5	6	5.68	2.44	3.84	2.25	3.74	5.06	3.98	.56	.81	2.50	4.70
90EF-1488B5-3232	C19601	2	6	5.68	2.44	3.84	2.69	3.74	5.56	4.44	.56	.81	2.50	5.70

Description	Req’d per Ass’y	0816	1216	1616	1220	1624	2032	2432	3232	Material
Elbow	1	C19094	C19095	C19096	C19097	C19098	C19099	C19100	C19101	Monel/Cop- per-Nickel
Socket	1	C18667-2	C18667-2	C18667-2	C18703-2	C18990-2	C1862	C18662	C18662	Monel
Flange	1	C19522	C19523	C19524	C19525	C19526	C19527	C19528	C19529	Aluminum. Bronze

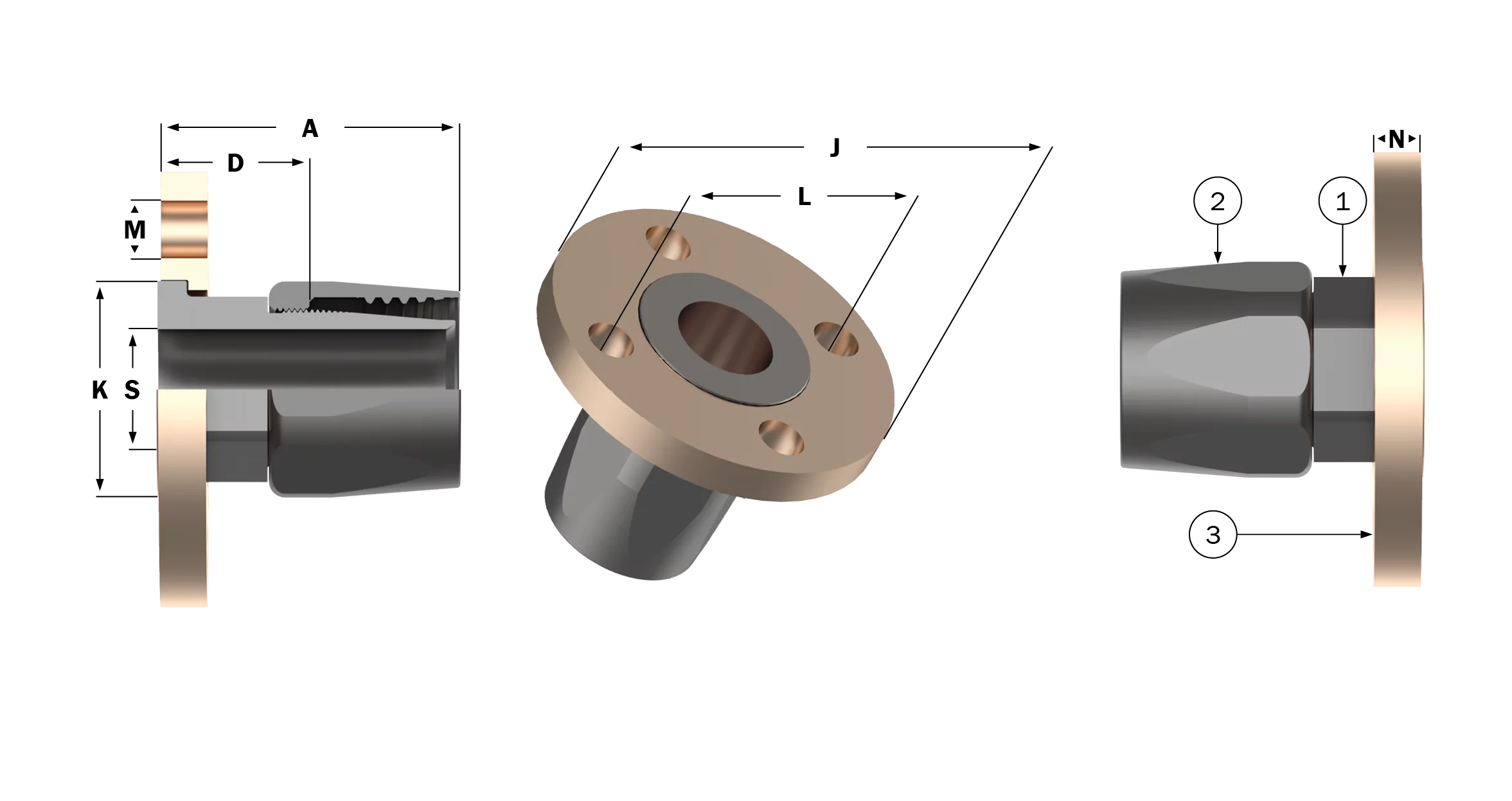

Equals to P/N 66-190109

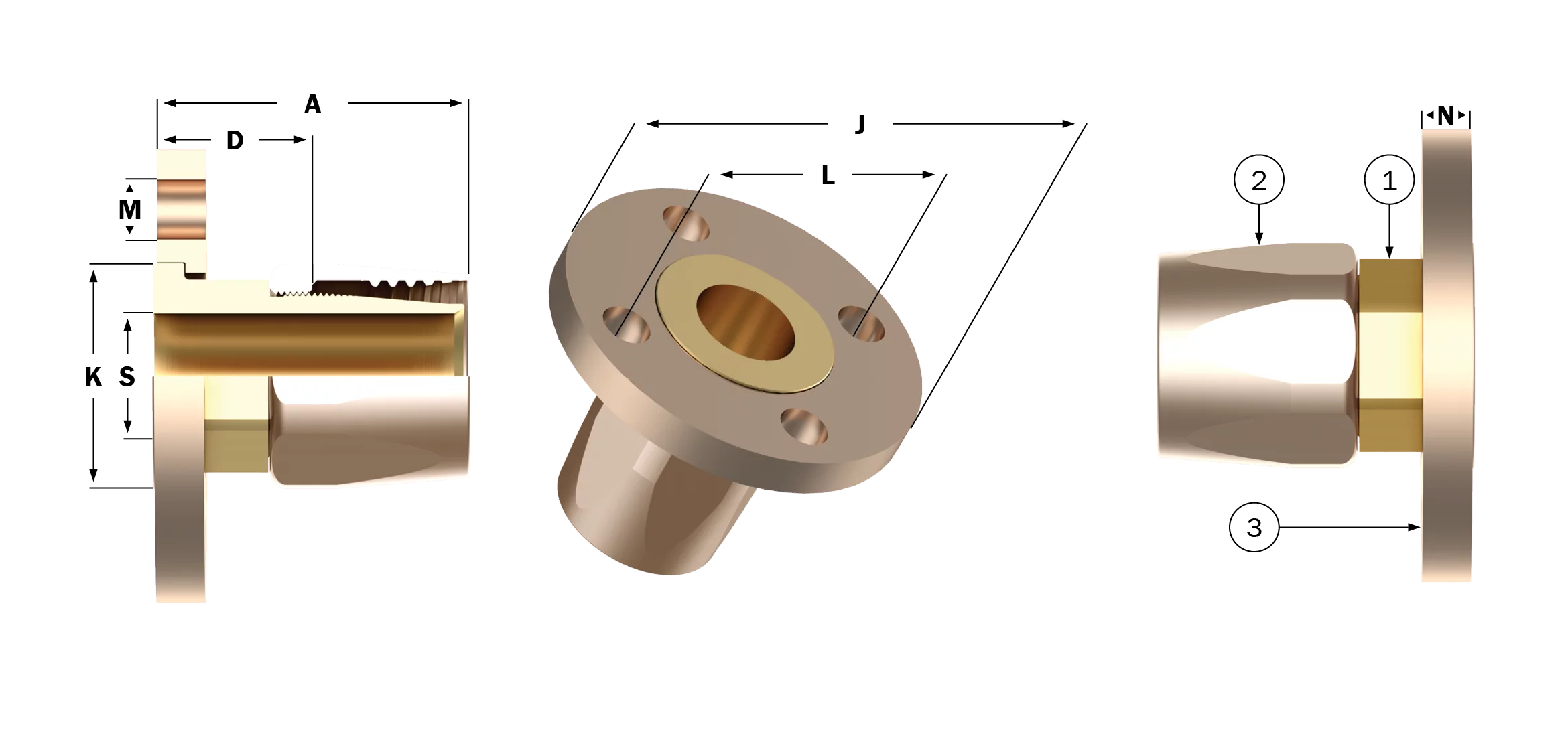

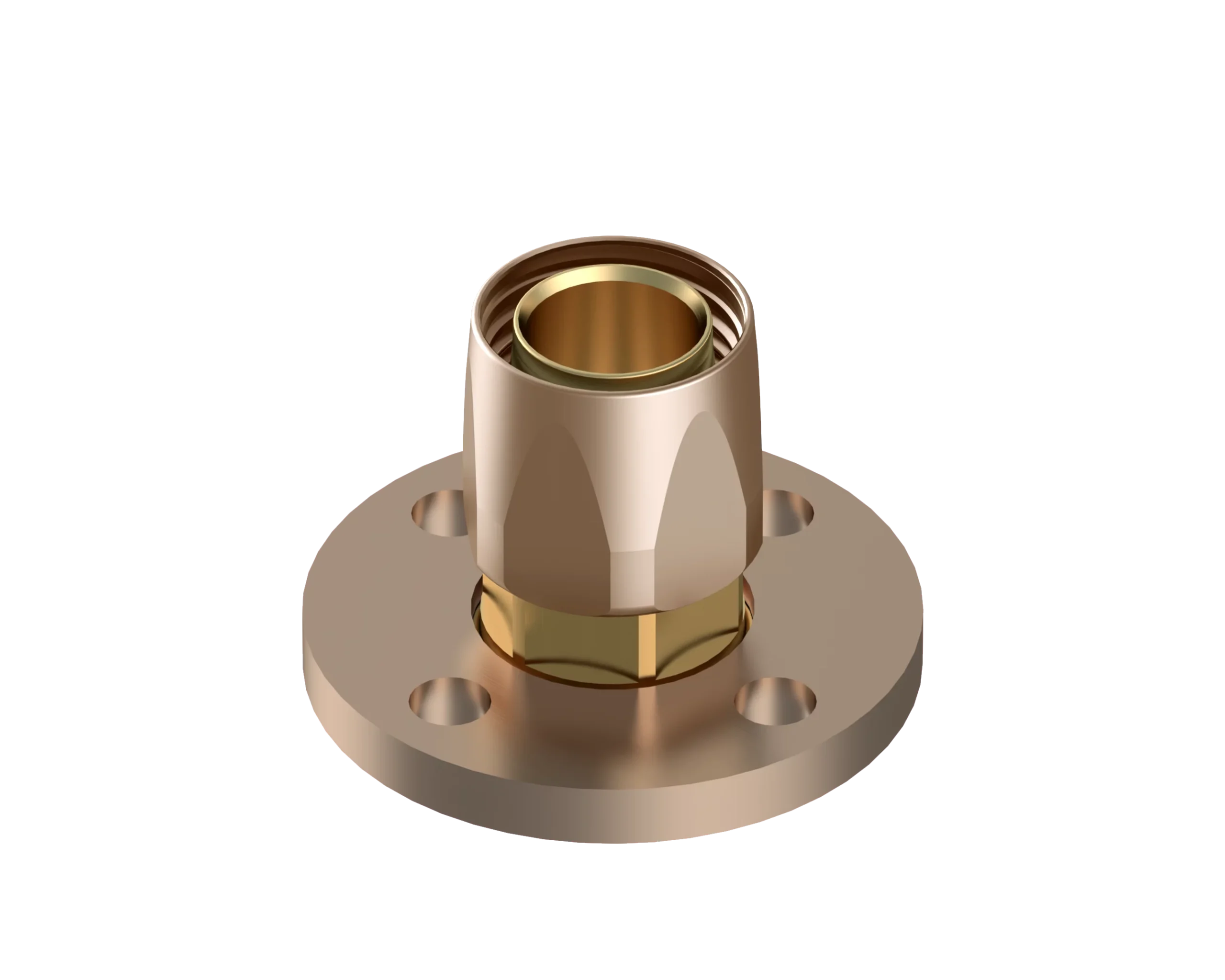

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F5-0816	C19367	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-B1488F5-1220	C19368	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-B1488F5-1624	C19369	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-B1488F5-2032	C19370	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-B1488F5-2432	C19371	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-B1488F5-3232	C19372	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-B1488F5-3240	C19373	2	4	3.88	1.97	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-B1488F5-4040	C19374	2.50	4	3.89	1.98	7.00	3.28	5.50	.75	.48	2.24	8.50
EF-B1488F5-4048	C19375	2.50	4	3.89	1.98	7.00	3.78	5.50	.75	.48	2.71	8.80
EF-B1488F5-4848	C20899	3	4	3.89	1.98	7.50	3.78	6.00	.75	.48	2.71	8.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	4	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	4	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	4	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	4	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	4	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	4	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Material

Nipple

66-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

66-74021-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F5-0816	C19367	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-B1488F5-1220	C19368	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-B1488F5-1624	C19369	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-B1488F5-2032	C19370	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-B1488F5-2432	C19371	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-B1488F5-3232	C19372	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-B1488F5-3240	C19373	2	4	3.88	1.97	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-B1488F5-4040	C19374	2.50	4	3.89	1.98	7.00	3.28	5.50	.75	.48	2.24	8.50
EF-B1488F5-4048	C19375	2.50	4	3.89	1.98	7.00	3.78	5.50	.75	.48	2.71	8.80
EF-B1488F5-4848	C20899	3	4	3.89	1.98	7.50	3.78	6.00	.75	.48	2.71	8.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18803

C18800

C18799

C18798

C18797

C18796

C17966

C17968

C17969

C17970

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	4	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	4	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	4	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	4	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	4	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	4	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Material

Nipple

66-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

66-74021-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

Aluminum. Bronze

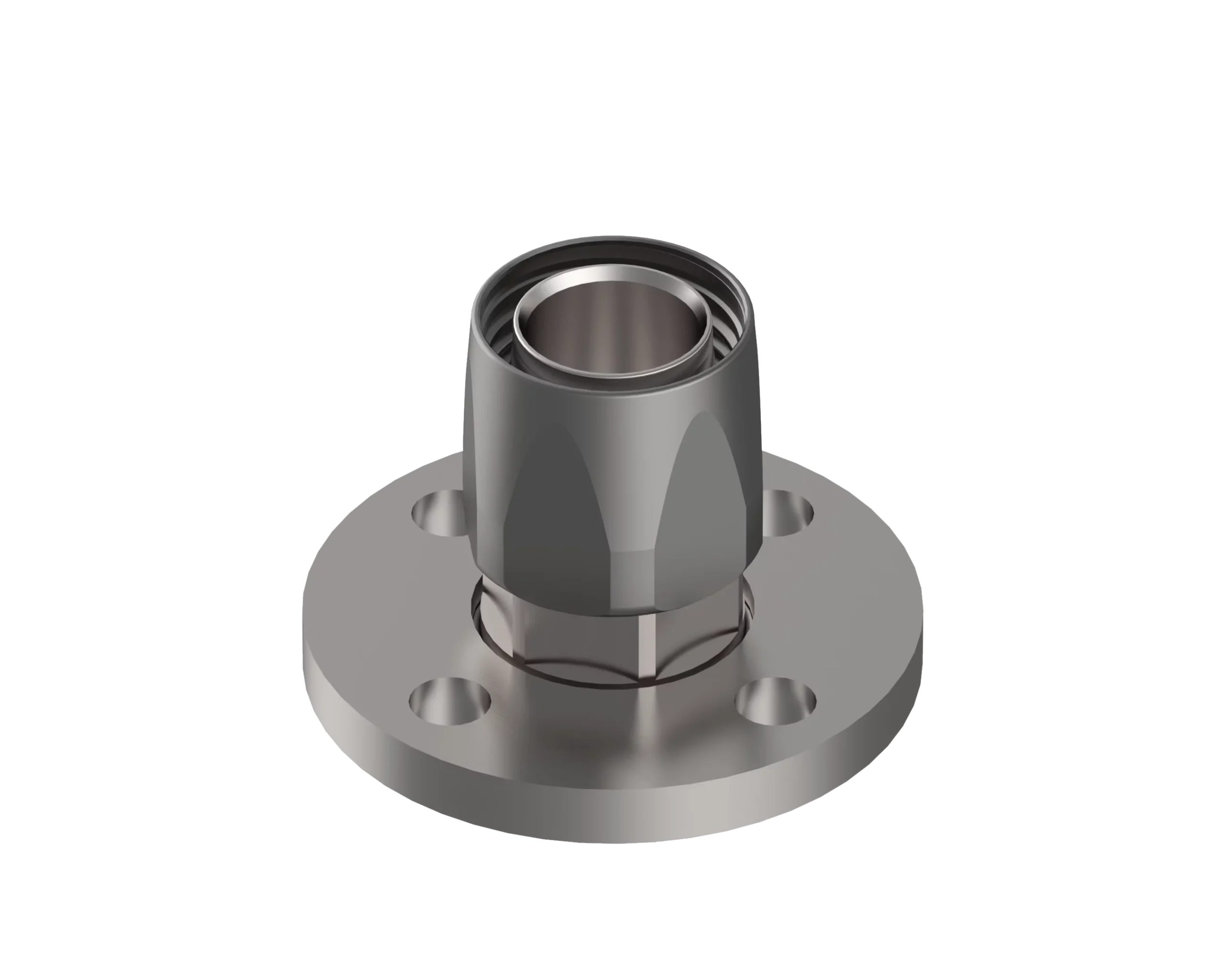

Equals to P/N 412-190109

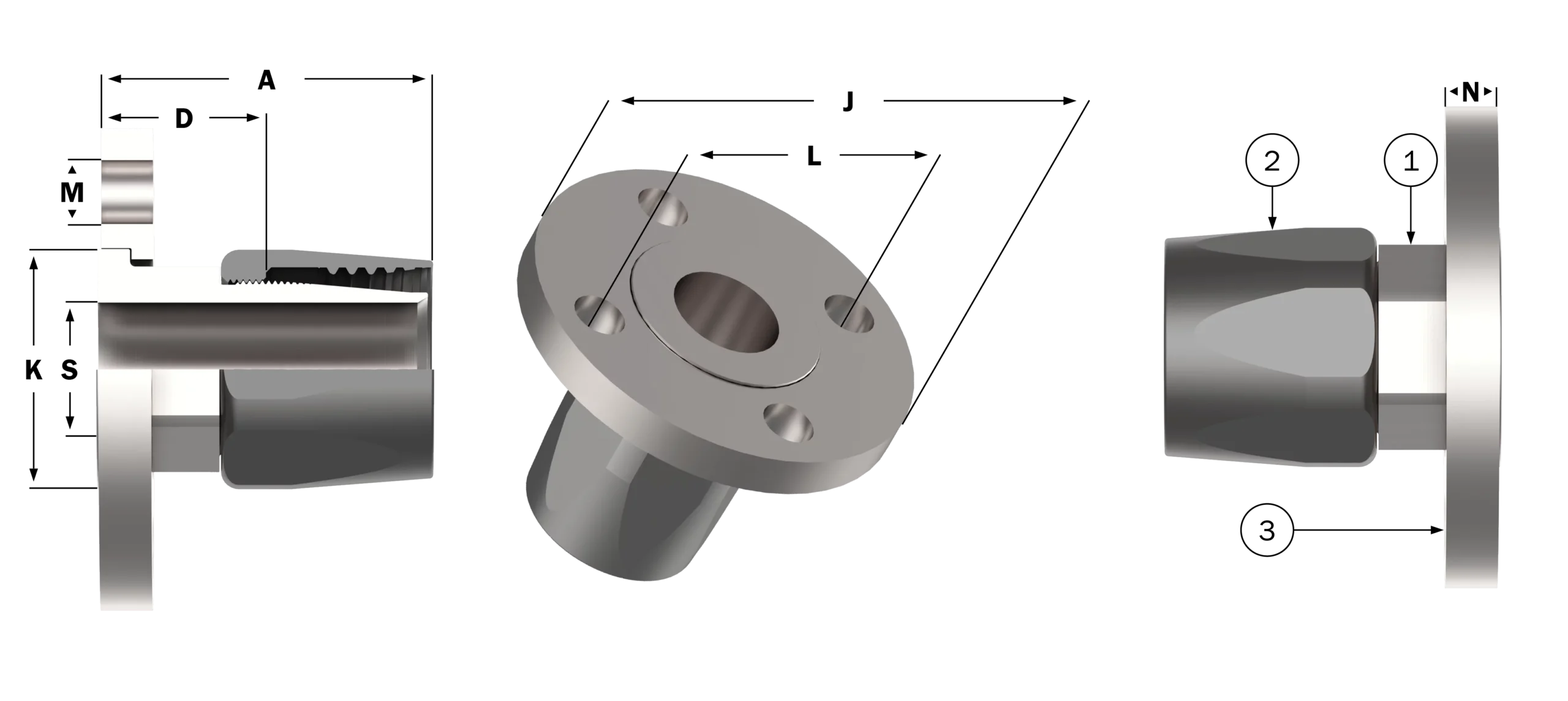

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MSS1488F5-0816	C19361	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MSS1488F5-1220	C19362	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MSS1488F5-1624	C19669	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MSS1488F5-2032	C19363	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MSS1488F5-2432	C19364	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MSS1488F5-3232	C19365	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MSS1488F5-3240	C19366	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	Material
Nipple	1	C19235-1	C19236-1	C18020-1	C19237-1	C19238	C19238	C19239-1	Stainless Steel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	Monel
Flange	1	C19240	C19241	C18799-1	C19242	C19243	C19244	C19245	Stainless Steel

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
412-190109-1/2-16	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.38	.71	1.68
412-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	1.75
412-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	2.25
412-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	2.25
412-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	2.25
412-190109-2-40	2	4	3.89	1.98	6.00	3.28	4.75	.75	.44	2.24	2.50

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Material
Nipple	1	407-185109-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel
Socket	1	4-1212-	16	20	32	32	32	40	Monel
Flange	1	407-74021-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel

HS1488

Equal to Aeroquip P/N 412-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MSS1488F5-0816	C19361	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MSS1488F5-1220	C19362	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MSS1488F5-1624	C19669	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MSS1488F5-2032	C19363	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MSS1488F5-2432	C19364	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MSS1488F5-3232	C19365	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MSS1488F5-3240	C19366	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	Material
Nipple	1	C19235-1	C19236-1	C18020-1	C19237-1	C19238	C19238	C19239-1	Stainless Steel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	Monel
Flange	1	C19240	C19241	C18799-1	C19242	C19243	C19244	C19245	Stainless Steel

HS1488 Equivalent

P/N 412-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
412-190109-1/2-16	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.38	.71	1.68
412-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	1.75
412-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	2.25
412-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	2.25
412-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	2.25
412-190109-2-40	2	4	3.89	1.98	6.00	3.28	4.75	.75	.44	2.24	2.50

Description	Req’d per Ass’y	Base No.	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Material
Nipple	1	407-185109-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel
Socket	1	4-1212-	16	20	32	32	32	40	Monel
Flange	1	407-74021-	1/2-16	3/4-20	1.25-32	1.5-32	2-32	2-40	Stainless Steel

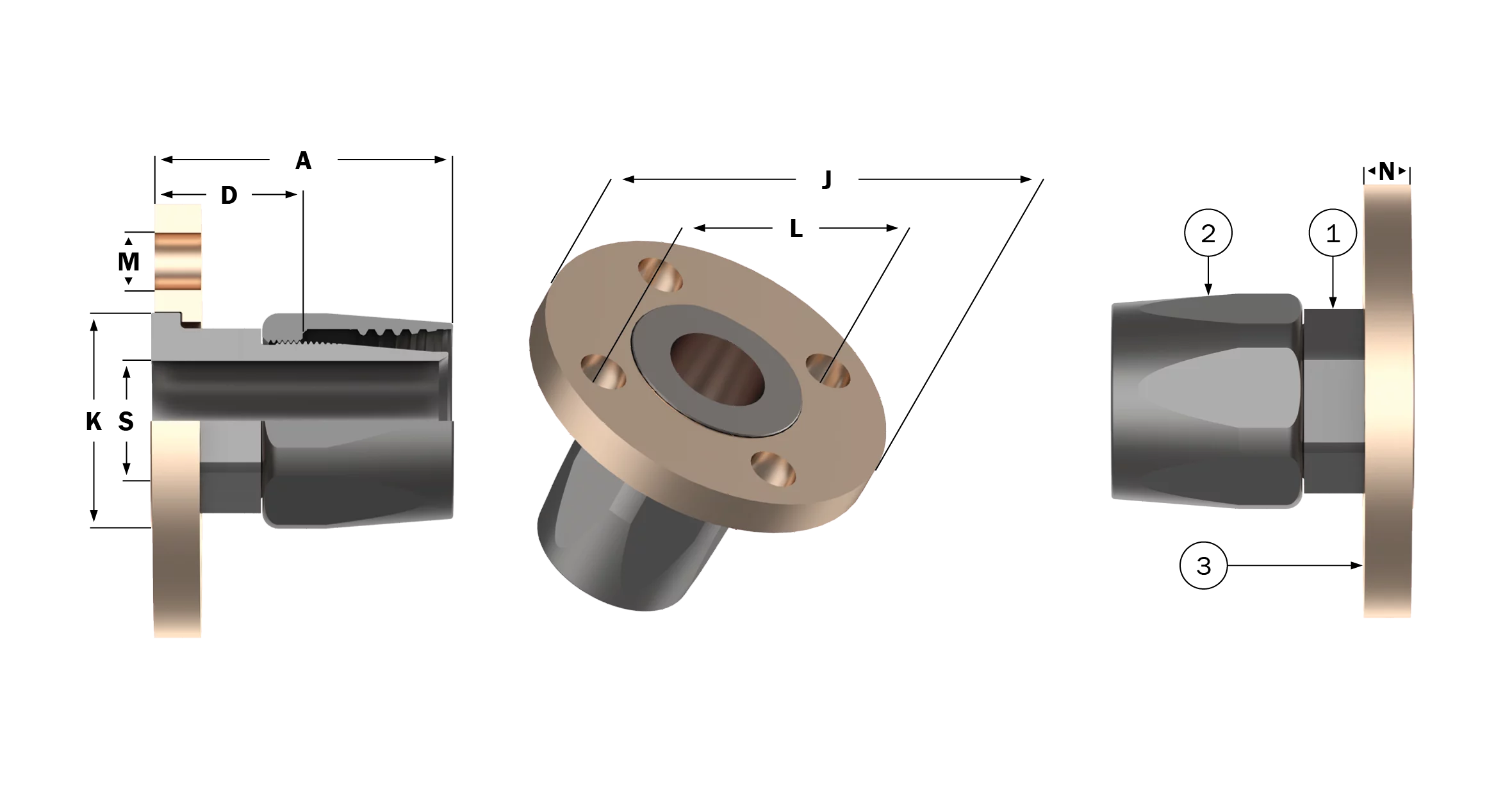

Equals to P/N 375-190109

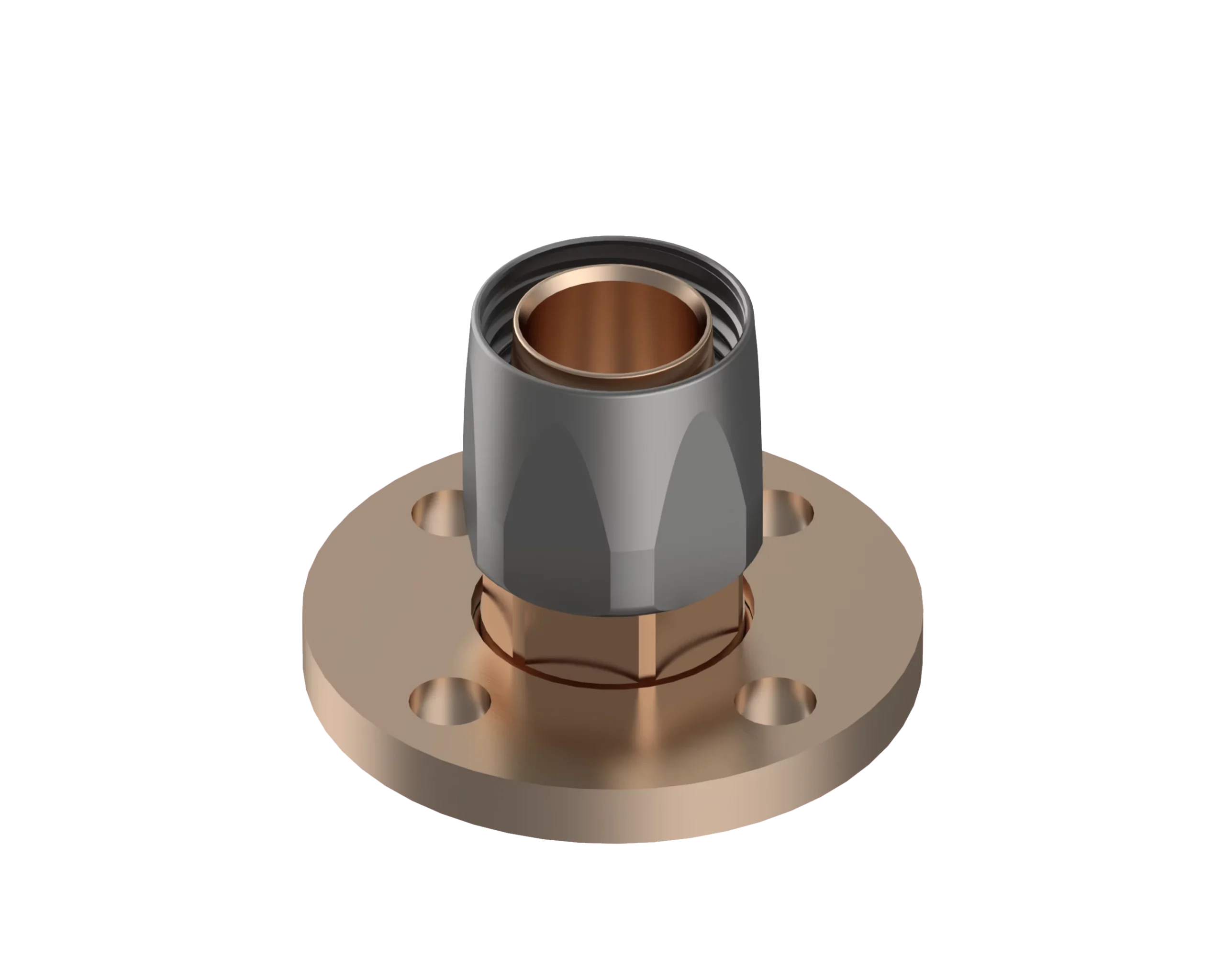

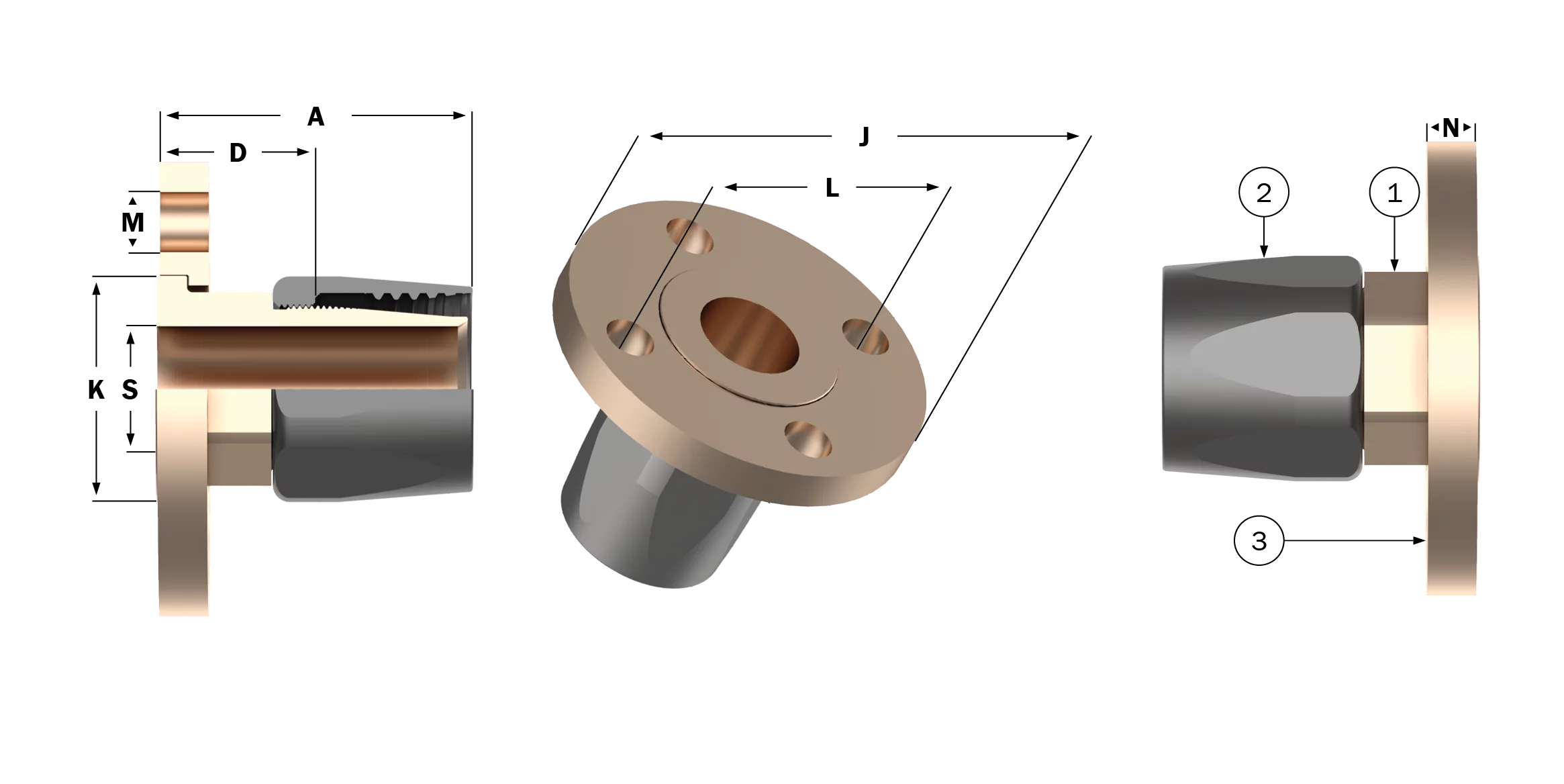

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MB1488F5-0816	C21535	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MB1488F5-1220	C19433	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MB1488F5-1624	C19434	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MB1488F5-2032	C19435	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MB1488F5-2432	C19436	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MB1488F5-3232	C19437	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MB1488F5-3240	C21254	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-MB1488F5-4040	C21569	2.5	4	3.89	1.98	7.00	3.28	5.50	.75	.50	2.24	7.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	4040	Material
Nipple	1	C18018	C18019	C18020	C19155	C18808	C18808	C19170	C21572	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	C18991	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	C17966	C17968	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
375-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	3.22
375-190109-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.62	.44	1.18	2.41
375-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	3.28
375-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	3.92
375-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	5.38

Description	Req’d per Ass’y	Base No.	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Nipple	1	188-185109-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	20	24	32	32	32	Monel
Flange	1	188-74021-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 375-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-MB1488F5-0816	C21535	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.40
EF-MB1488F5-1220	C19433	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.20
EF-MB1488F5-1624	C19434	1	4	2.92	1.47	4.25	2.12	3.12	.62	.42	1.18	2.40
EF-MB1488F5-2032	C19435	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.30
EF-MB1488F5-2432	C19436	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.81	3.90
EF-MB1488F5-3232	C19437	2	4	3.51	1.66	6.00	2.74	4.75	.75	.42	1.77	5.40
EF-MB1488F5-3240	C21254	2	4	3.88	1.978	6.00	3.28	4.75	.75	.42	2.24	6.30
EF-MB1488F5-4040	C21569	2.5	4	3.89	1.98	7.00	3.28	5.50	.75	.50	2.24	7.00

Description	Req’d per Ass’y	0816	1220	1624	2032	2432	3232	3240	4040	Material
Nipple	1	C18018	C18019	C18020	C19155	C18808	C18808	C19170	C21572	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18662	C18662	C18991	C18991	Monel
Flange	1	C18803	C18800	C18799	C18798	C18797	C18796	C17966	C17968	Aluminum. Bronze

HS1488 Equivalent

P/N 375-190109

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
375-190109-3/4-20	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.44	.92	3.22
375-190109-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.62	.44	1.18	2.41
375-190109-1.25-32	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.44	1.53	3.28
375-190109-1.5-32	1.5	4	3.51	1.66	5.00	2.74	3.88	.62	.44	1.77	3.92
375-190109-2-32	2	4	3.51	1.66	6.00	2.74	4.75	.75	.44	1.77	5.38

Description	Req’d per Ass’y	Base No.	3/4-20	1-24	1.25-32	1.5-32	2-32	Material
Nipple	1	188-185109-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze
Socket	1	4-1212-	20	24	32	32	32	Monel
Flange	1	188-74021-	3/4-20	1-24	1.25-32	1.5-32	2-32	Aluminum. Bronze

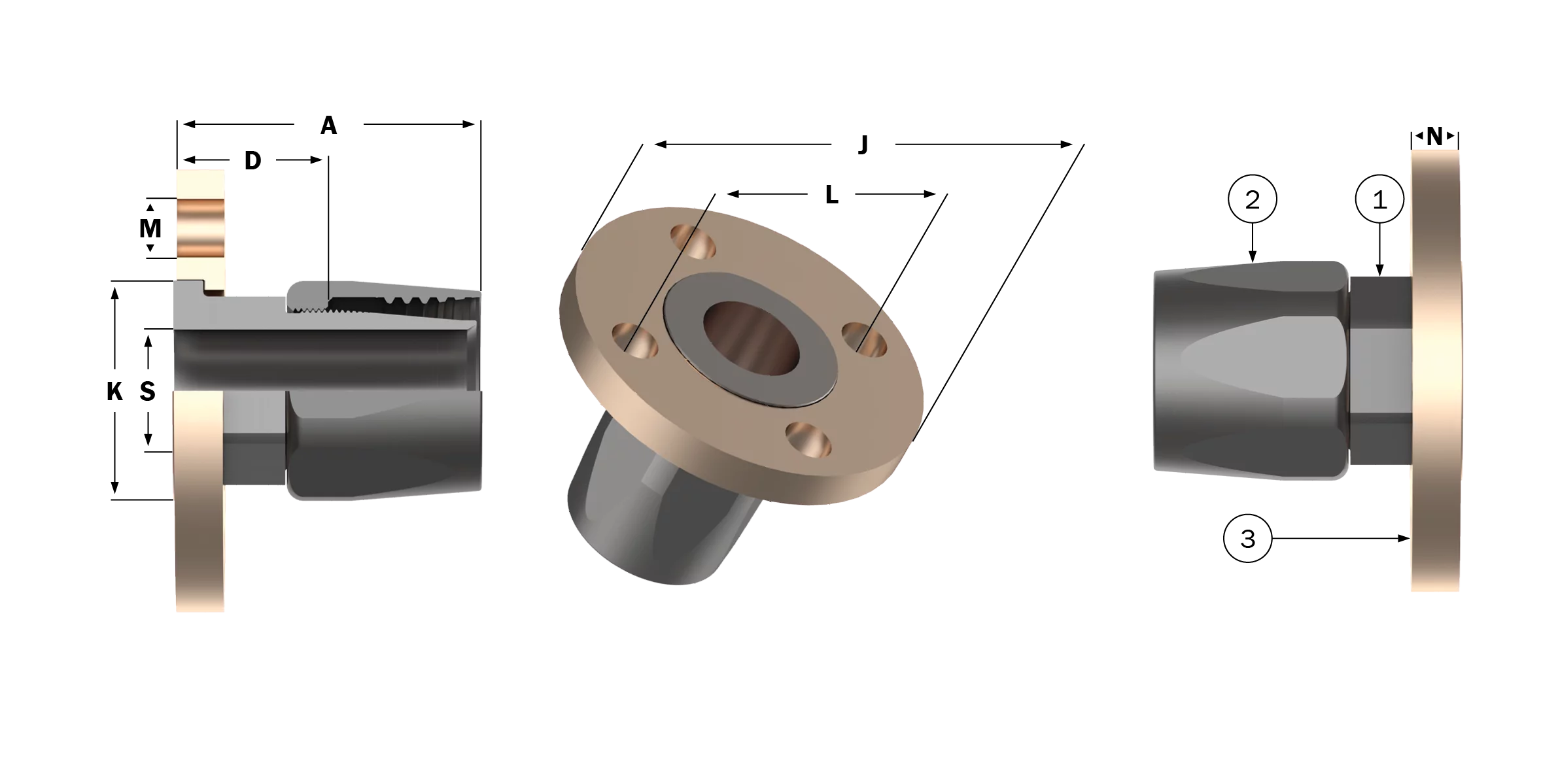

Equals to P/N 66-190016

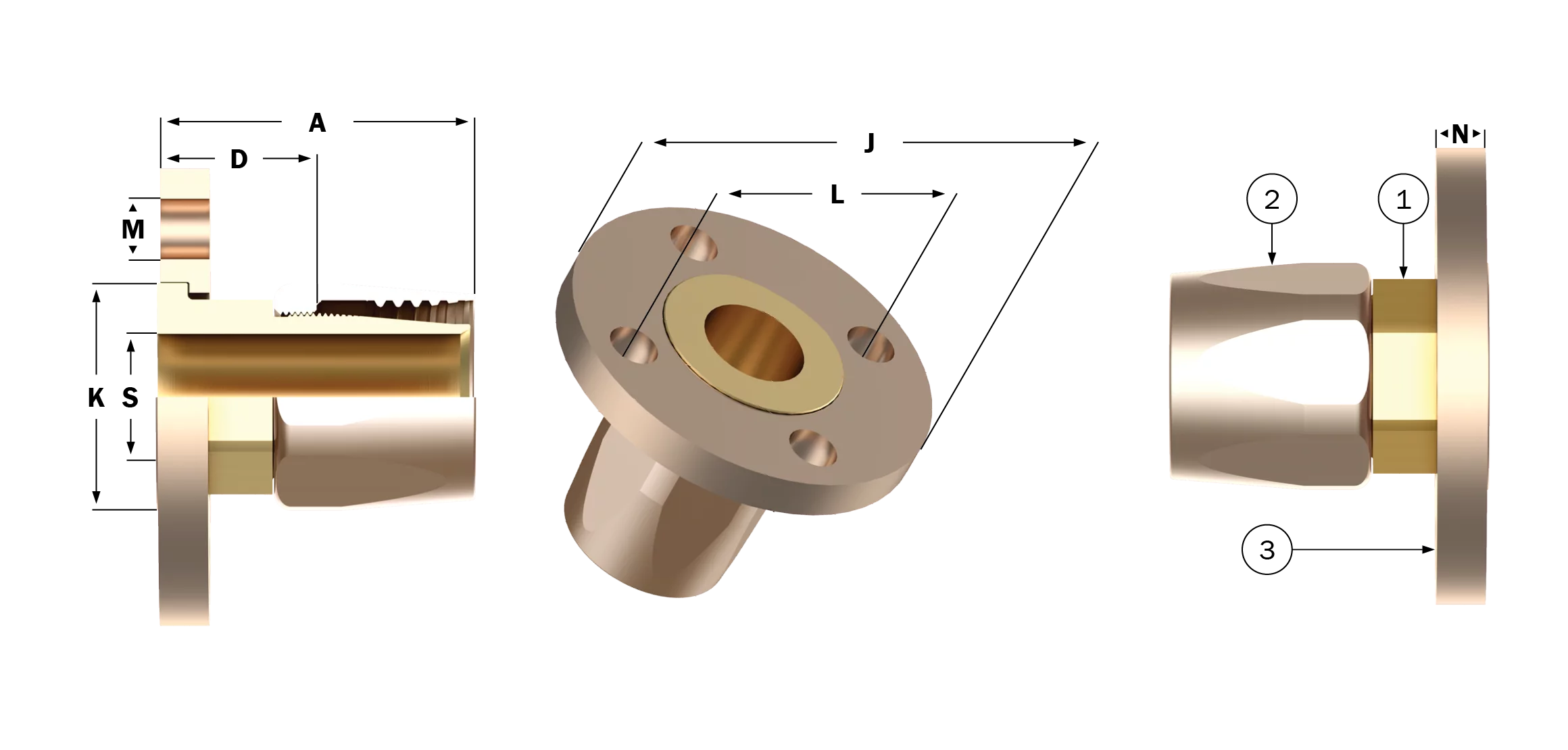

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F4-0816	C19376	1/2	3	2.72	1.52	3.56	1.50	2.44	.56	.38	.71	1.50
EF-B1488F4-1220	C19377	3/4	4	2.87	1.52	3.81	1.84	2.69	.56	.44	.92	2.10
EF-B1488F4-1624	C19378	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	2.50
EF-B1488F4-2032	C19379	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.10
EF-B1488F4-2432	C19380	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.60
EF-B1488F4-3232	C19381	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.70
EF-B1488F4-3240	C19382	2	6	3.88	1.97	5.56	3.28	4.44	.56	.44	2.24	5.80
EF-B1488F4-4040	C19383	2.50	6	3.89	1.98	6.13	3.28	5.00	.56	.50	2.24	6.90
EF-B1488F4-4048	C19384	2.50	6	3.89	1.98	6.13	3.78	5.00	.56	.50	2.71	7.40
EF-B1488F4-4848	C19385	3	8	3.89	1.98	6.63	4.50	5.50	.56	.50	3.31	7.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18817

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	6	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	6	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	6	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42
66-190016-3-48	3	8	3.89	1.98	6.62	4.50	5.00	.56	.50	3.31	7.87

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Material

Nipple

188-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

188-180005-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Aluminum. Bronze

HS1488

Equal to Aeroquip P/N 66-190016

Hose to Flange

End Fitting - Straight

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-B1488F4-0816	C19376	1/2	3	2.72	1.52	3.56	1.50	2.44	.56	.38	.71	1.50
EF-B1488F4-1220	C19377	3/4	4	2.87	1.52	3.81	1.84	2.69	.56	.44	.92	2.10
EF-B1488F4-1624	C19378	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	2.50
EF-B1488F4-2032	C19379	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.10
EF-B1488F4-2432	C19380	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.60
EF-B1488F4-3232	C19381	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.70
EF-B1488F4-3240	C19382	2	6	3.88	1.97	5.56	3.28	4.44	.56	.44	2.24	5.80
EF-B1488F4-4040	C19383	2.50	6	3.89	1.98	6.13	3.28	5.00	.56	.50	2.24	6.90
EF-B1488F4-4048	C19384	2.50	6	3.89	1.98	6.13	3.78	5.00	.56	.50	2.71	7.40
EF-B1488F4-4848	C19385	3	8	3.89	1.98	6.63	4.50	5.50	.56	.50	3.31	7.90

Description

Req’d per Ass’y

0816

1220

1624

2032

2432

3232

3240

4040

4048

4848

Material

Nipple

C18018

C18019

C18020

C19155

C18808

C19170

C17893

C19173

Brass

Socket

C18667-1

C18703-1

C18990-1

C18811

C18822

C17901

Aluminum. Bronze

Flange

C18817

C18814

C18813

C18812

C18810

C18809

C17925

C17929

C17931

C17933

Aluminum. Bronze

HS1488 Equivalent

P/N 66-190016

Hose to Flange

End Fitting - Straight

150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
66-190016-1/2-16	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.38	.71	1.52
66-190016-3/4-20	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.44	.92	2.07
66-190016-1-24	1	4	2.92	1.47	4.25	2.12	3.12	.56	.44	1.18	2.45
66-190016-1.25-32	1.25	4	3.51	1.66	4.50	2.74	3.38	.56	.44	1.53	3.14
66-190016-1.5-32	1.5	6	3.51	1.66	5.06	2.74	3.94	.56	.44	1.77	3.64
66-190016-2-32	2	6	3.51	1.66	5.56	2.74	4.44	.56	.44	1.77	4.69
66-190016-2-40	2	6	3.89	1.98	5.56	3.28	4.44	.56	.44	2.24	5.75
66-190016-2.5-40	2.5	6	3.89	1.98	6.12	3.28	5.00	.56	.50	2.24	6.85
66-190016-2.5-48	2.5	6	3.89	1.98	6.12	3.78	5.00	.56	.50	2.71	7.42
66-190016-3-48	3	8	3.89	1.98	6.62	4.50	5.00	.56	.50	3.31	7.87

Description

Req’d per Ass’y

Base No.

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Material

Nipple

188-185109-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Brass

Socket

1212-

16B

20B

24B

32B

40B

48B

Aluminum. Bronze

Flange

188-180005-

1/2-16

3/4-20

1-24

1.25-32

1.5-32

2-32

2-40

2.5-40

2.5-48

3-48

Aluminum. Bronze

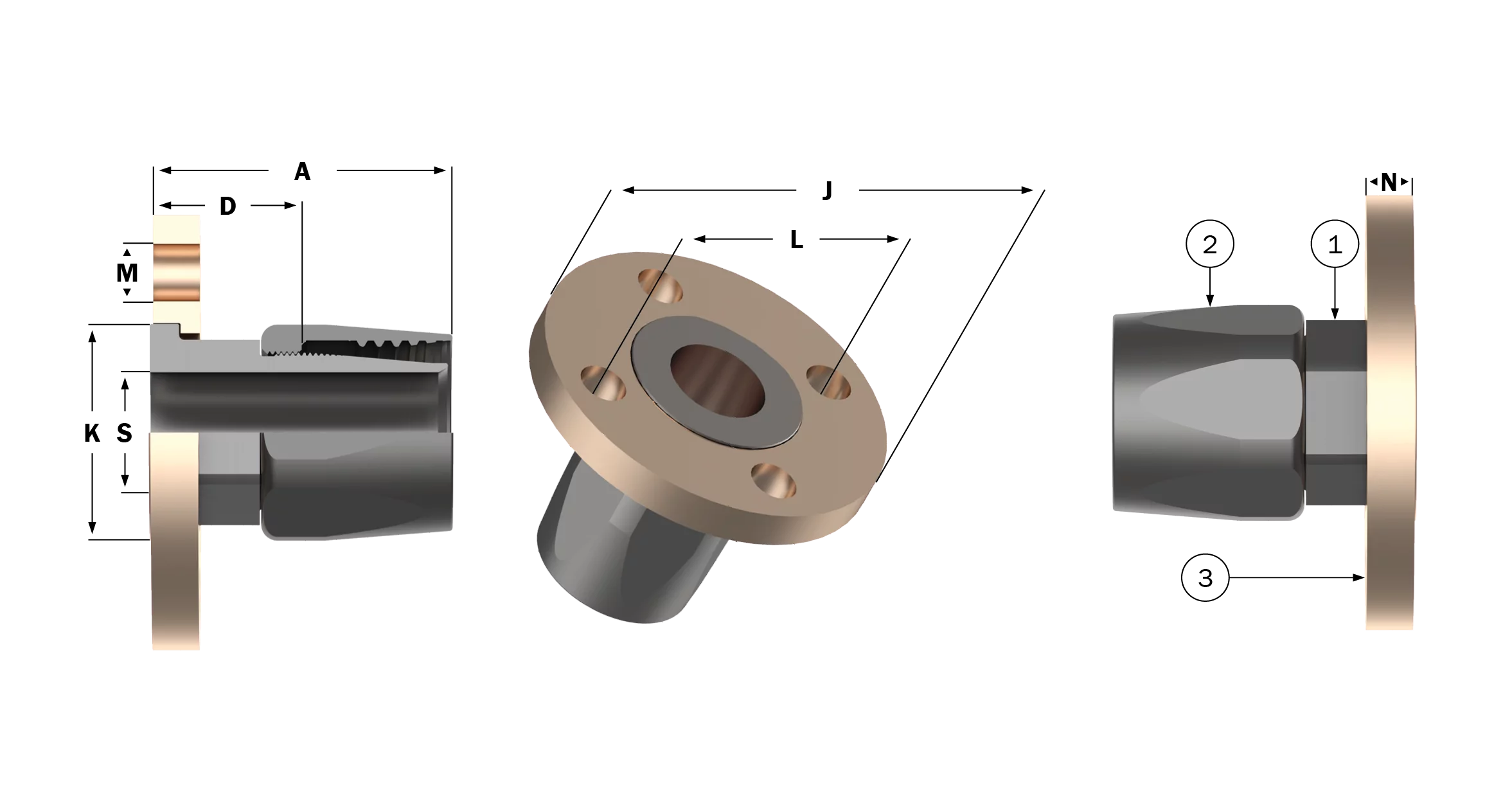

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A4-0816	C19530	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.50
EF-1488A4-1216	C19531	3/4	4	2.80	1.53	3.88	1.50	2.75	.62	.42	.71	2.10
EF-1488A4-1220	C19533	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.30
EF-1488A4-1616	C19532	1	4	2.72	1.52	4.25	1.50	3.13	.63	.42	.71	2.50
EF-1488A4-1624	C19534	1	4	2.91	1.46	4.25	2.12	3.13	.63	.42	1.18	2.70
EF-1488A4-2032	C19536	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.10
EF-1488A4-2432	C19536	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.77	3.60
EF-1488A4-3232	C19537	2	4	3.49	1.65	6.00	2.75	4.75	.75	.42	1.69	4.70

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19043	19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18800	C18801	C18799	C18798	C18797	C18796	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A4-0816	C19530	1/2	4	2.80	1.53	3.50	1.50	2.38	.62	.36	.71	1.50
EF-1488A4-1216	C19531	3/4	4	2.80	1.53	3.88	1.50	2.75	.62	.42	.71	2.10
EF-1488A4-1220	C19533	3/4	4	2.89	1.53	3.88	1.84	2.75	.62	.42	.92	2.30
EF-1488A4-1616	C19532	1	4	2.72	1.52	4.25	1.50	3.13	.63	.42	.71	2.50
EF-1488A4-1624	C19534	1	4	2.91	1.46	4.25	2.12	3.13	.63	.42	1.18	2.70
EF-1488A4-2032	C19536	1.25	4	3.51	1.66	4.62	2.74	3.50	.62	.42	1.53	3.10
EF-1488A4-2432	C19536	1.50	4	3.51	1.66	5.00	2.74	3.88	.62	.42	1.77	3.60
EF-1488A4-3232	C19537	2	4	3.49	1.65	6.00	2.75	4.75	.75	.42	1.69	4.70

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19043	19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18803	C18802	C18800	C18801	C18799	C18798	C18797	C18796	Aluminum. Bronze

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A2-0816	C19538	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.69	.71	1.70
EF-1488A2-1216	C19539	3/4	4	2.80	1.53	3.81	1.50	2.69	.56	.69	.71	2.30
EF-1488A2-1220	C19541	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.69	.92	2.30
EF-1488A2-1616	C19540	1	5	2.80	1.53	4.25	1.50	3.13	.56	.75	.71	2.50
EF-1488A2-1624	C19542	1	5	2.92	1.47	4.25	2.12	3.13	.56	.75	1.18	2.80
EF-1488A2-2032	C19543	1.25	5	3.51	1.66	4.50	2.74	3.38	.56	.81	1.53	3.40
EF-1488A2-2432	C19544	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.81	1.77	3.90
EF-1488A2-3232	C19545	2	7	3.49	1.65	5.56	2.75	4.44	.69	.81	2.30	5.00

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19179	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A3-0816	C19546	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.38	.71	1.90
EF-1488A3-1216	C19547	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.44	.71	2.50
EF-1488A3-1220	C19549	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.44	.92	2.50
EF-1488A3-1616	C19548	1	4	2.80	1.53	5.06	1.50	3.75	.56	.44	.71	2.70
EF-1488A3-1624	C19550	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	3.00
EF-1488A3-2032	C19551	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.44	1.53	3.70
EF-1488A3-2432	C19552	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.44	1.77	4.20
EF-1488A3-3232	C19553	2	6	3.50	1.65	6.50	2.75	5.19	.69	.44	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18814	C18815	C18813	C18812	C18810	C18810	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A2-0816	C19538	1/2	3	2.80	1.53	3.56	1.50	2.44	.56	.69	.71	1.70
EF-1488A2-1216	C19539	3/4	4	2.80	1.53	3.81	1.50	2.69	.56	.69	.71	2.30
EF-1488A2-1220	C19541	3/4	4	2.89	1.53	3.81	1.84	2.69	.56	.69	.92	2.30
EF-1488A2-1616	C19540	1	5	2.80	1.53	4.25	1.50	3.13	.56	.75	.71	2.50
EF-1488A2-1624	C19542	1	5	2.92	1.47	4.25	2.12	3.13	.56	.75	1.18	2.80
EF-1488A2-2032	C19543	1.25	5	3.51	1.66	4.50	2.74	3.38	.56	.81	1.53	3.40
EF-1488A2-2432	C19544	1.50	6	3.51	1.66	5.06	2.74	3.94	.56	.81	1.77	3.90
EF-1488A2-3232	C19545	2	7	3.49	1.65	5.56	2.75	4.44	.69	.81	2.30	5.00

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19179	Aluminum. Bronze

HS1488 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A3-0816	C19546	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.38	.71	1.90
EF-1488A3-1216	C19547	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.44	.71	2.50
EF-1488A3-1220	C19549	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.44	.92	2.50
EF-1488A3-1616	C19548	1	4	2.80	1.53	5.06	1.50	3.75	.56	.44	.71	2.70
EF-1488A3-1624	C19550	1	4	2.91	1.46	4.25	2.12	3.13	.56	.44	1.18	3.00
EF-1488A3-2032	C19551	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.44	1.53	3.70
EF-1488A3-2432	C19552	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.44	1.77	4.20
EF-1488A3-3232	C19553	2	6	3.50	1.65	6.50	2.75	5.19	.69	.44	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C18817	C18816	C18814	C18815	C18813	C18812	C18810	C18810	Aluminum. Bronze

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/1

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type F, Group VIII, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A1-0816	C19562	1/2	4	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A1-1216	C19563	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A1-1220	C19565	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A1-1616	C19564	1	5	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A1-1624	C19566	1	5	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A1-2032	C19567	1.25	5	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A1-2432	C19568	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A1-3232	C19569	2	7	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19517	C19516	C19518	C19519	C19520	C19521	Aluminum. Bronze

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A5-0816	C19554	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A5-1216	C19555	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A5-1220	C19557	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A5-1616	C19556	1	4	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A5-1624	C19558	1	4	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A5-2032	C19559	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A5-2432	C19560	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A5-3232	C19561	2	6	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19529	Aluminum. Bronze

HS1488

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A1-0816	C19562	1/2	4	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A1-1216	C19563	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A1-1220	C19565	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A1-1616	C19564	1	5	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A1-1624	C19566	1	5	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A1-2032	C19567	1.25	5	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A1-2432	C19568	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A1-3232	C19569	2	7	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19514	C19515	C19517	C19516	C19518	C19519	C19520	C19521	Aluminum. Bronze

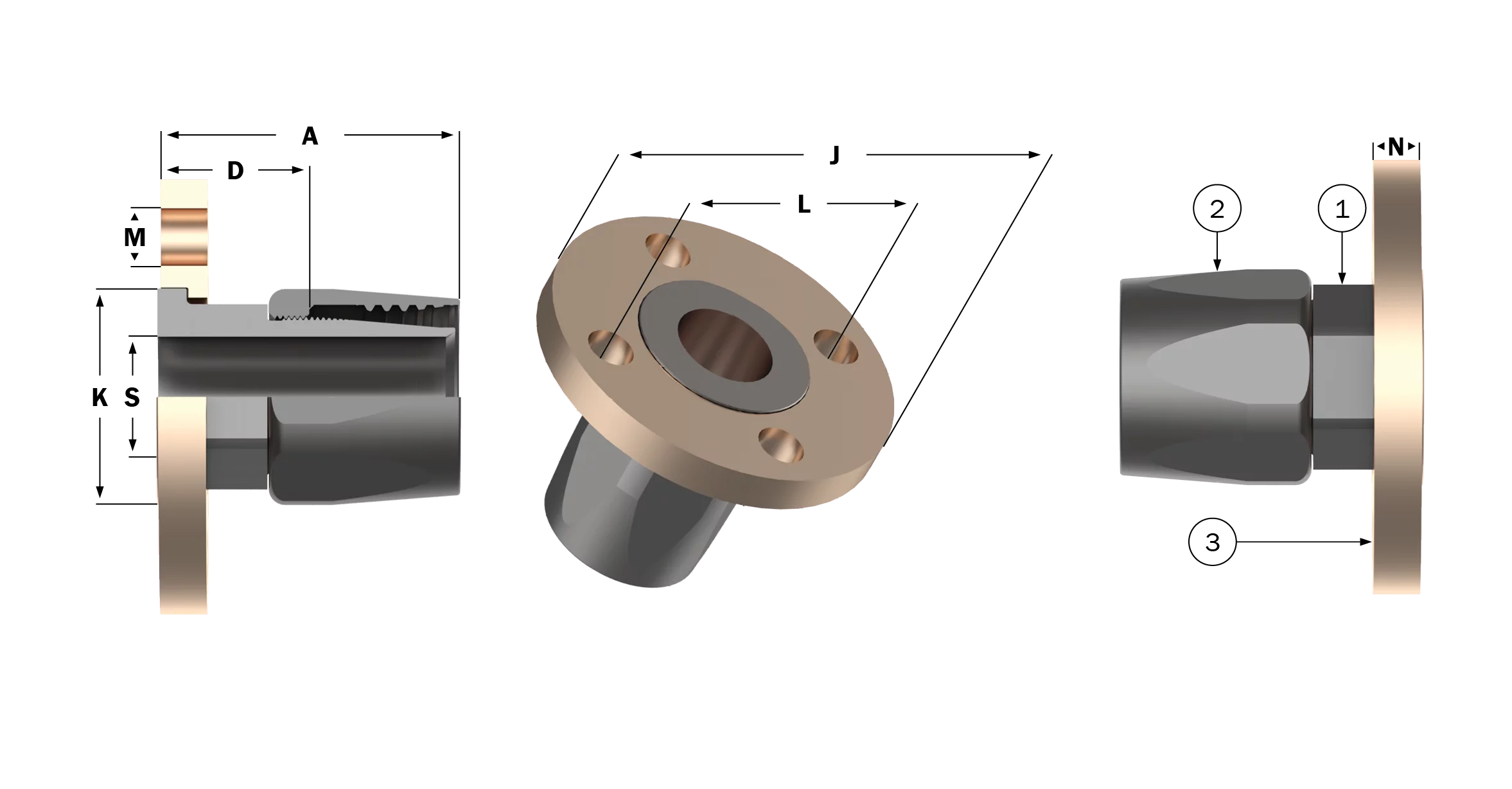

HS1488 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group VIII, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1488A5-0816	C19554	1/2	3	2.80	1.53	4.00	1.50	2.88	.56	.69	.71	1.90
EF-1488A5-1216	C19555	3/4	4	2.80	1.53	4.31	1.50	3.19	.56	.69	.71	2.50
EF-1488A5-1220	C19557	3/4	4	2.89	1.53	4.31	1.84	3.19	.56	.69	.92	2.50
EF-1488A5-1616	C19556	1	4	2.80	1.53	5.06	1.50	3.75	.69	.75	.71	2.70
EF-1488A5-1624	C19558	1	4	2.91	1.46	4.25	2.12	3.13	.56	.75	1.18	3.00
EF-1488A5-2032	C19559	1.25	4	3.49	1.65	4.50	2.75	3.38	.56	.81	1.53	3.70
EF-1488A5-2432	C19560	1.50	6	3.51	1.66	5.94	2.74	4.63	.69	.81	1.77	4.20
EF-1488A5-3232	C19561	2	6	3.50	1.65	6.50	2.75	5.19	.69	.81	1.69	5.20

Description	Req’d per Ass’y	0816	1216	1220	1616	1624	2032	2432	3232	Material
Nipple	1	C19235-2	C19235-2	C19236-2	C19235-2	C19043	C19237-2	C19046	C19046	Monel
Socket	1	C18667-2	C18667-2	C18703-2	C18667-2	C18990-2	C18662	C18662	C18662	Monel
Flange	1	C19522	C19523	C19525	C19524	C19526	C19527	C19528	C19529	Aluminum. Bronze

Equals to P/N 93-191301

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BM1488CL-0206	C19333	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-BM1488CL-0408	C19334	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-BM1488CL-0610	C19335	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-BM1488CL-0812	C19336	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

HS1488

Equal to Aeroquip P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BM1488CL-0206	C19333	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-BM1488CL-0408	C19334	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-BM1488CL-0610	C19335	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-BM1488CL-0812	C19336	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 93-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-BMC1488CL-1216	C19337	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-BMC1488CL-1620	C19338	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-BMC1488CL-2024	C19339	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-BMC1488CL-2432	C19340	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

Equals to P/N 4-191301

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type CL, Group VIII

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-0206	C19311	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-1488CL-0408	C19312	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-1488CL-0610	C19313	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-1488CL-0812	C19314	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-1216	C19315	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-1488CL-1620	C19316	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-1488CL-2024	C19317	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-1488CL-2432	C19318	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-0206	C19311	1/8	1“-14	2.57	1.06	1.66	.24	.81	1.28	.50	.58	.50	.56	.40
90EF-1488CL-0408	C19312	1/4	1-3/16”-12	2.92	1.25	1.89	.34	.94	1.68	.62	.58	.75	.75	.60
90EF-1488CL-0610	C19313	3/8	1-3/8”-12	3.62	1.44	2.32	.46	1.12	2.00	.62	.70	1.00	.81	.80
90EF-1488CL-0812	C19314	1/2	1-3/4”-12	4.07	1.81	2.59	.50	1.25	2.31	.32	.74	1.25	1.00	1.30

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Elbow	1	C19027	C19028	C19029	C19030	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 4-191301

Hose to Male “O” Ring Seal

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	E	G	H	M	N	R	W	Est. Wt. (lbs.)
90EF-1488CL-1216	C19315	3/4	2”-12	3.93	2.12	2.66	.82	1.44	2.68	.62	.70	1.50	1.38	2.00
90EF-1488CL-1620	C19316	1	2-5/16”-12	4.27	2.38	2.91	1.05	1.75	3.17	.75	.70	1.75	1.62	3.00
90EF-1488CL-2024	C19317	1.25	2-3/4”-12	4.65	2.88	3.19	1.28	1.94	3.42	.75	.74	2.00	1.81	4.00
90EF-1488CL-2432	C19318	1.50	3-1/16”-12	5.68	3.12	3.84	1.75	2.44	4.05	.88	.86	2.50	2.38	5.40

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Elbow	1	C19031	C19032	C19033	C19034	Copper Nickel & Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N 411-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-0610	C19304	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MSS1488C-0812	C19305	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0610	0812	Material
Nipple	1	C19016-2	C19017-2	Stainless Steel
Socket	1	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-1216	C19306	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MSS1488C-1620	-	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40

Description	Req’d per Ass’y	1216	1620	Material
Nipple	1	C19256-2	C19019-2	Stainless Steel
Socket	1	C18667-2	C18703-2	Monel

HS1488

Equal to Aeroquip P/N 411-190911

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-0610	C19304	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MSS1488C-0812	C19305	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0610	0812	Material
Nipple	1	C19016-2	C19017-2	Stainless Steel
Socket	1	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 411-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MSS1488C-1216	C19306	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MSS1488C-1620	-	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40

Description	Req’d per Ass’y	1216	1620	Material
Nipple	1	C19256-2	C19019-2	Stainless Steel
Socket	1	C18667-2	C18703-2	Monel

Equals to P/N 93-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-0206	C19231	1/8	1“-14	2.05	1.06	1.14	.81	.50	.30
EF-MB1488C-0408	C19232	1/4	1-3/16”-12	2.41	1.25	1.36	.94	.62	.50
EF-MB1488C-0610	C19233	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MB1488C-0812	C19234	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	C19017-1	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-1216	C19323	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MB1488C-1620	C19324	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-MB1488C-2024	C19325	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-MB1488C-2432	C19326	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 93-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-0206	C19231	1/8	1“-14	2.05	1.06	1.14	.81	.50	.30
EF-MB1488C-0408	C19232	1/4	1-3/16”-12	2.41	1.25	1.36	.94	.62	.50
EF-MB1488C-0610	C19233	3/8	1-3/8”-12	2.73	1.44	1.43	1.12	.62	.60
EF-MB1488C-0812	C19234	1/2	1-3/4”-12	3.02	1.80	1.54	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	C19017-1	Monel
Socket	1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 375-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:ynthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-MB1488C-1216	C19323	3/4	2”-12	2.72	2.12	1.52	1.44	.62	1.50
EF-MB1488C-1620	C19324	1	1-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-MB1488C-2024	C19325	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-MB1488C-2432	C19326	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

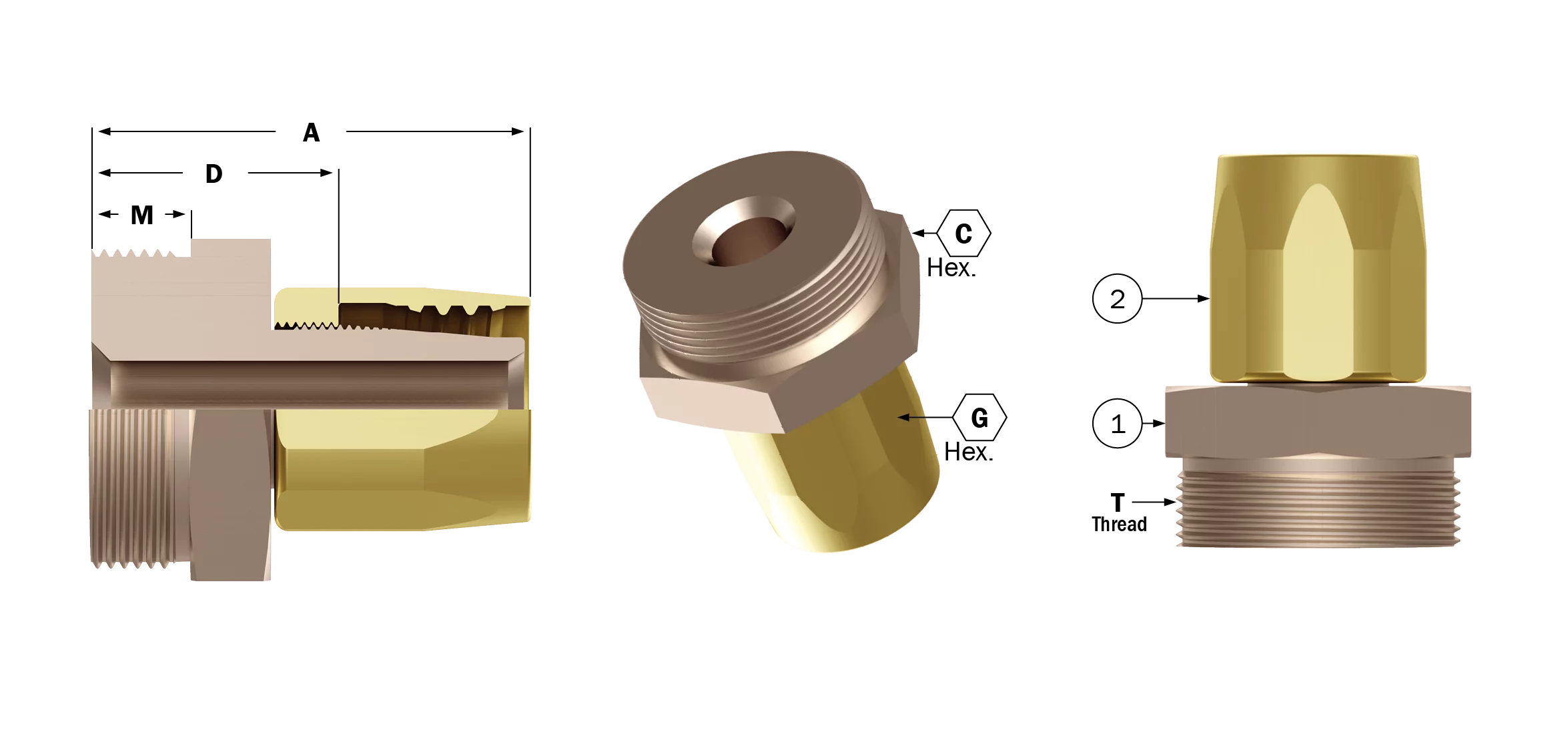

Equals to P/N 66-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-B1488C-1216	C19307	3/4	2”-12	2.72	2.13	1.52	1.44	.62	1.60
EF-B1488C-1620	C19308	1	2-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-B1488C-2024	C19309	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-B1488C-2432	C19310	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description Req’d per	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
66-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.52
66-190911-1-20	1	2-5/16”-12	3.14	2.38	1.17	1.75	.75	2.35
66-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	2.91
66-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.10

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	Brass

HS1488

Equal to Aeroquip P/N 66-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-3A	A	C	D	G	M	Est. Wt. (lbs.)
EF-B1488C-1216	C19307	3/4	2”-12	2.72	2.13	1.52	1.44	.62	1.60
EF-B1488C-1620	C19308	1	2-5/16”-12	3.12	2.38	1.76	1.75	.75	2.40
EF-B1488C-2024	C19309	1.25	2-3/4”-12	3.22	2.88	1.77	2.00	.75	2.90
EF-B1488C-2432	C19310	1.50	3-1/16”-12	3.78	3.12	2.04	2.50	.88	4.10

Description Req’d per	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19256-1	C19257	C19258	C19259	Aluminum. Bronze
Socket	1	C18667-1	C18703-1	C18990-1	C18811	Brass

HS1488 Equivalent

P/N 66-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	IPS Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
66-190911-3/4-16	3/4	2”-12	2.80	2.12	1.53	1.44	.62	1.52
66-190911-1-20	1	2-5/16”-12	3.14	2.38	1.17	1.75	.75	2.35
66-190911-1.25-24	1.25	2-3/4”-12	3.23	2.88	1.78	1.94	.75	2.91
66-190911-1.5-32	1.50	3-1/16”-12	3.89	3.12	2.05	2.44	.88	4.10

Description	Req’d per Ass’y	Base No.	3/4-16	1-20	1.25-24	1.5-32	Material
Nipple	1	188-220779-	3/4-16	1-20	1.25-24	1.5-32	Aluminum. Bronze
Socket	1	1212-	16B	20B	24B	32B	Brass

Equals to P/N 4-190911

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/3

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type C, Group VIII

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-0206	C19319	1/8	1“-14	2.05	1.06	1.00	.81	.50	.30
EF-1488C-0408	C19320	1/4	1-3/16”-12	2.39	1.25	1.12	.94	.62	.50
EF-1488C-0610	C19321	3/8	1-3/8”-12	2.73	1.44	1.15	1.12	.62	.60
EF-1488C-0812	C19322	1/2	1-3/4”-12	3.02	1.80	1.38	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	-	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-1216	C19719	3/4	2”-12	2.72	2.13	-	1.44	.62	1.50
EF-1488C-1620	-	1	1-5/16”-12	3.12	2.38	-	1.75	.75	-
EF-1488C-2024	C19721	1.25	2-3/4”-12	3.22	3.00	-	2.00	.75	2.90
EF-1488C-2432	-	1.50	3-1/16”-12	3.88	3.12	-	2.50	.88	-

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19018	C19019	C19020	C19021	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

HS1488

Equal to Aeroquip P/N 4-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-0206	C19319	1/8	1“-14	2.05	1.06	1.00	.81	.50	.30
EF-1488C-0408	C19320	1/4	1-3/16”-12	2.39	1.25	1.12	.94	.62	.50
EF-1488C-0610	C19321	3/8	1-3/8”-12	2.73	1.44	1.15	1.12	.62	.60
EF-1488C-0812	C19322	1/2	1-3/4”-12	3.02	1.80	1.38	1.25	.62	1.00

Description	Req’d per Ass’y	0206	0408	0610	0812	Material
Nipple	1	C19014	C19015	C19016-1	-	Monel
Socket	1	C18986-2	C18648-2	C18987-2	C18988-2	Monel

HS1488 Equivalent

P/N 4-190911

Hose to Male “O” Ring Seal

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	I.P.S. Size	T Thread CL-2A	A	C	D	G	M	Est. Wt. (lbs.)
EF-1488C-1216	C19719	3/4	2”-12	2.72	2.13	-	1.44	.62	1.50
EF-1488C-1620	-	1	1-5/16”-12	3.12	2.38	-	1.75	.75	-
EF-1488C-2024	C19721	1.25	2-3/4”-12	3.22	3.00	-	2.00	.75	2.90
EF-1488C-2432	-	1.50	3-1/16”-12	3.88	3.12	-	2.50	.88	-

Description	Req’d per Ass’y	1216	1620	2024	2432	Material
Nipple	1	C19018	C19019	C19020	C19021	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	Monel

Equals to P/N 10-411 & 259-411

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-0404	C19261	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-SS1488A-0604	C20674	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-SS1488A-0505	C19262	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-SS1488A-0606	C19263	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-SS1488A-0808	C19264	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-SS1488A-1008	C20675	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-SS1488A-1010	C19269	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-SS1488A-1210	C20676	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-SS1488A-1212	C19270	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.50
EF-SS1488A-1612	C20677	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-3

B18979-3

B18980-3

C18647-3

B18981-3

B18982-3

Stainless Steel

Socket

C18984-3

C18985-3

C18986-3

C18648-3

C18987-3

C18988-3

Stainless Steel

Nut

B18972-3

B18973-3

B18974-3

B18778-3

B18975-3

B18976-3

Stainless Steel

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-1616	C19271	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-SS1488A-2020	C19272	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-SS1488A-2424	C19282	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-SS1488A-3232	C19283	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Nipple	1	B18668-3	B18675-3	C18983-3	C18654-3	Stainless Steel
Socket	1	C18667-3	C18703-3	C18990-3	C19132	Stainless Steel
Nut	1	B18673-3	C18677-3	C18977-3	C18650-3	Stainless Steel

HS1488

Equal to Aeroquip P/N 10-411 & 259-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-0404	C19261	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-SS1488A-0604	C20674	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-SS1488A-0505	C19262	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-SS1488A-0606	C19263	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-SS1488A-0808	C19264	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-SS1488A-1008	C20675	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-SS1488A-1010	C19269	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-SS1488A-1210	C20676	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-SS1488A-1212	C19270	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.50
EF-SS1488A-1612	C20677	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-3

B18979-3

B18980-3

C18647-3

B18981-3

B18982-3

Stainless Steel

Socket

C18984-3

C18985-3

C18986-3

C18648-3

C18987-3

C18988-3

Stainless Steel

Nut

B18972-3

B18973-3

B18974-3

B18778-3

B18975-3

B18976-3

Stainless Steel

HS1488 Equivalent

P/N 10-411 & 259-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-SS1488A-1616	C19271	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-SS1488A-2020	C19272	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-SS1488A-2424	C19282	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-SS1488A-3232	C19283	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60

Description	Req’d per Ass’y	1616	2020	2424	3232	Material
Nipple	1	B18668-3	B18675-3	C18983-3	C18654-3	Stainless Steel
Socket	1	C18667-3	C18703-3	C18990-3	C19132	Stainless Steel
Nut	1	B18673-3	C18677-3	C18977-3	C18650-3	Stainless Steel

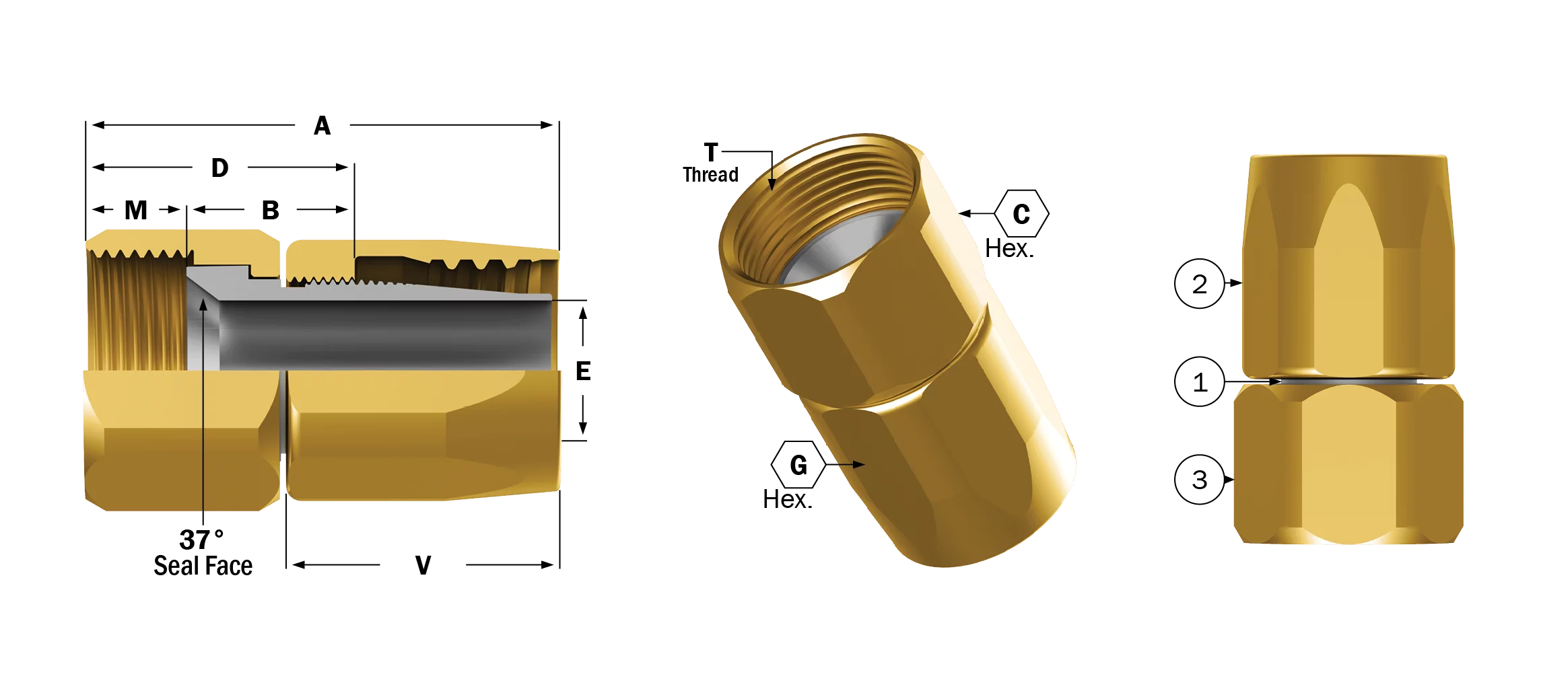

Equals to P/N 23-411

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-MB1488A-1212	C19289	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60
EF-MB1488A-1616	C19290	1	1-5/16”-12	2.73	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-MB1488A-2020	C19291	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-MB1488A-2424	C19292	1.50	1-7/8”-12	3.42	1.23	1.25	1.97	1.28	2.00	.74	1.85	1.50
EF-MB1488A-3232	C19293	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.70

Description	Req’d per Ass’y	1212	1616	2020	2424	3232	Material
Nipple	1	B18982-2	B18668-2	B18675-2	C18983-2	C18654-2	Monel
Socket	1	C18988-1	C18667-1	C18703-1	C18990-1	C18811	Brass
Nut	1	B18976-1	B18673-1	C18677-1	C18977-1	C18650-1	Brass

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
23-411-16	1	1-5/16”-12	-	-	-	-	-	-	-	-	.70
23-411-20	1.25	1-5/8”-12	-	-	-	-	-	-	-	-	1.30
23-411-24	1.50	1-7/8”-12	-	-	-	-	-	-	-	-	1.60
23-411-32	2	2-1/2”-12	-	-	-	-	-	-	-	-	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	-	16	20	24	32	Brass
Nut	1	-	16	20	24	32	Brass

HS1488

Equal to Aeroquip P/N 23-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-MB1488A-1212	C19289	3/4	1-1/16”-12	3.15	1.01	1.25	1.58	.61	1.25	.57	2.10	.60
EF-MB1488A-1616	C19290	1	1-5/16”-12	2.73	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-MB1488A-2020	C19291	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-MB1488A-2424	C19292	1.50	1-7/8”-12	3.42	1.23	1.25	1.97	1.28	2.00	.74	1.85	1.50
EF-MB1488A-3232	C19293	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.70

Description	Req’d per Ass’y	1212	1616	2020	2424	3232	Material
Nipple	1	B18982-2	B18668-2	B18675-2	C18983-2	C18654-2	Monel
Socket	1	C18988-1	C18667-1	C18703-1	C18990-1	C18811	Brass
Nut	1	B18976-1	B18673-1	C18677-1	C18977-1	C18650-1	Brass

HS1488 Equivalent

P/N 23-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
23-411-16	1	1-5/16”-12	-	-	-	-	-	-	-	-	.70
23-411-20	1.25	1-5/8”-12	-	-	-	-	-	-	-	-	1.30
23-411-24	1.50	1-7/8”-12	-	-	-	-	-	-	-	-	1.60
23-411-32	2	2-1/2”-12	-	-	-	-	-	-	-	-	2.60

Description	Req’d per Ass’y	Base No.	-16	-20	-24	-32	Material
Nipple	1	4-1251-	16	20	24	32	Monel
Socket	1	-	16	20	24	32	Brass
Nut	1	-	16	20	24	32	Brass

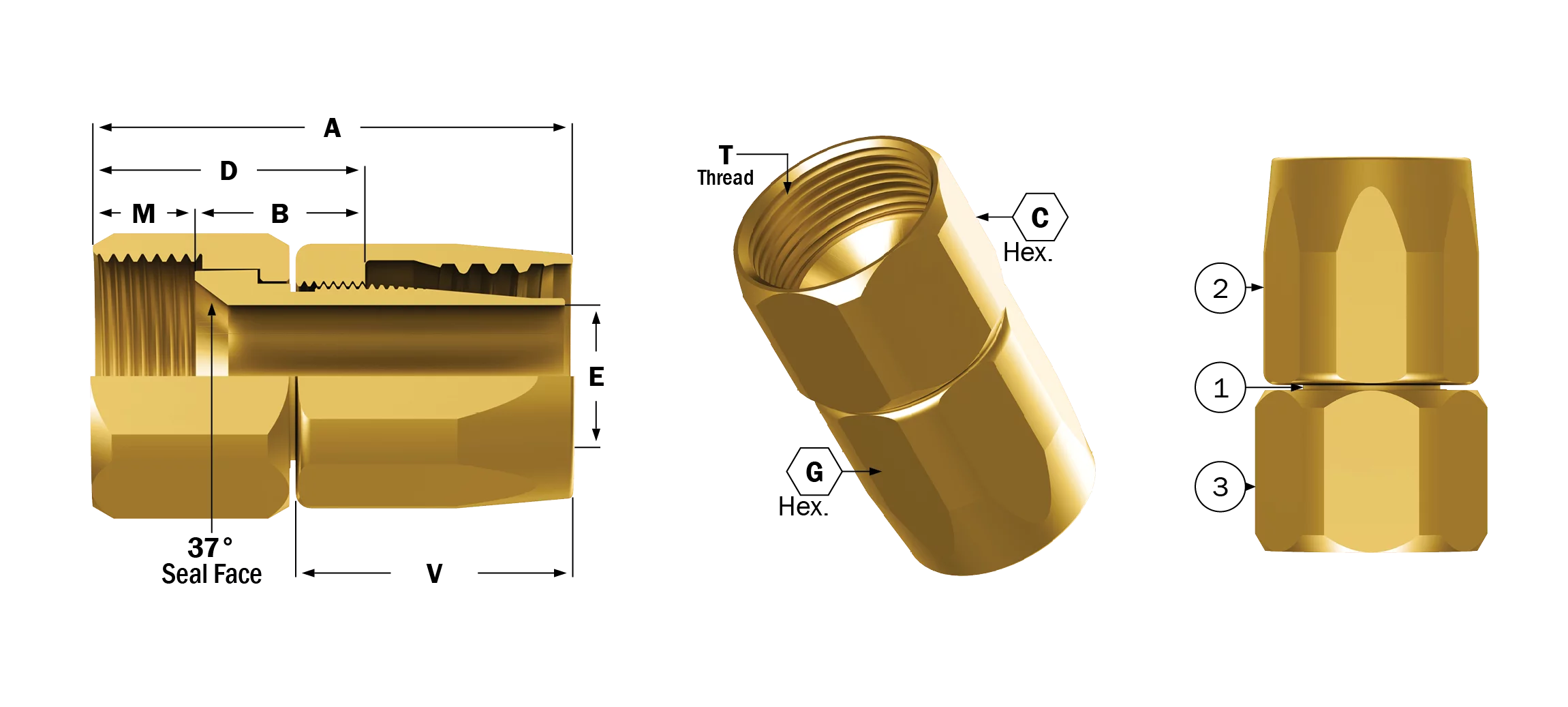

Equals to P/N 411-B & 44-411

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-0404	C19207	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-B1488A-0604	C20670	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-B1488A-0505	C19208	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-B1488A-0606	C19209	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-B1488A-0808	C19210	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-B1488A-1008	C20671	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-B1488A-1010	C19211	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-B1488A-1210	C20672	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-B1488A-1212	C19212	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.10	.50
EF-B1488A-1612	C20673	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-1

B18979-1

B18980-1

C18647-1

B18981-1

B18982-1

Brass

Socket

C18984-1

C18985-1

C18986-1

C18648-1

C18987-1

C18988-1

Brass

Nut

B18972-1

B18973-1

B18974-1

B18778-1

B18975-1

B18976-1

Brass

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-1616	C19213	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-B1488A-2020	C19214	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-B1488A-2424	C19215	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-B1488A-3232	C19216	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-B1488A-4040	C19217	2.50	3”-12	4.37	1.71	3.38	2.15	2.21	3.25	.79	2.50	4.50
EF-B1488A-4848	C19218	3	3-1/2”-12	4.28	1.51	4.00	2.38	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-1	B18675-1	C18983-1	C18654-1	C18995-1	C18996	Brass
Socket	1	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass
Nut	1	B18673-1	C18677-1	C18977-1	C18650-1	C18997-1	-	Brass

HS1488

Equal to Aeroquip P/N 411-B & 44-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-0404	C19207	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-B1488A-0604	C20670	1/4	9/16”-18	1.85	.65	.69	1.00	.17	.62	.38	1.10	.10
EF-B1488A-0505	C19208	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-B1488A-0606	C19209	3/8	9/16”-18	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-B1488A-0808	C19210	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-B1488A-1008	C20671	1/2	7/8”-14	2.65	.95	1.00	1.50	.39	.94	.51	1.65	.30
EF-B1488A-1010	C19211	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-B1488A-1210	C20672	5/8	1-1/16”-12	2.85	1.00	1.25	1.56	.48	1.12	.57	1.80	.40
EF-B1488A-1212	C19212	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.10	.50
EF-B1488A-1612	C20673	3/4	1-5/16”-12	3.26	1.01	1.50	1.69	.61	1.25	.60	2.10	.50

Description

Req’d per Ass’y

0404

0604

0505

0606

0808

1008

1010

1210

1212

1612

Material

Nipple

B18978-1

B18979-1

B18980-1

C18647-1

B18981-1

B18982-1

Brass

Socket

C18984-1

C18985-1

C18986-1

C18648-1

C18987-1

C18988-1

Brass

Nut

B18972-1

B18973-1

B18974-1

B18778-1

B18975-1

B18976-1

Brass

HS1488 Equivalent

P/N 411-B & 44-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488A-1616	C19213	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.60	1.60	.70
EF-B1488A-2020	C19214	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-B1488A-2424	C19215	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-B1488A-3232	C19216	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-B1488A-4040	C19217	2.50	3”-12	4.37	1.71	3.38	2.15	2.21	3.25	.79	2.50	4.50
EF-B1488A-4848	C19218	3	3-1/2”-12	4.28	1.51	4.00	2.38	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-1	B18675-1	C18983-1	C18654-1	C18995-1	C18996	Brass
Socket	1	C18667-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass
Nut	1	B18673-1	C18677-1	C18977-1	C18650-1	C18997-1	-	Brass

Equals to P/N 4-411

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

MIL-DTL-24787/2

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Type A, Group VIII

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-0404	C19219	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-1488A-0505	C19220	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-1488A-0606	C19221	3/8	9/16”-48	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-1488A-0808	C19222	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-1488A-1010	C19223	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-1488A-1212	C19224	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.60

Description	Req’d per Ass’y	0404	0505	0606	0808	1010	1212	Material
Nipple	1	B18978-2	B18979-2	B18980-2	C18647-2	B18981-2	B18982-2	Monel
Socket	1	C18984-2	C18985-2	C18986-2	C18648-2	C18987-2	C18988-2	Monel
Nut	1	B18972-2	B18973-2	B18974-2	B18778-2	B18975-2	B18976-2	Monel

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-1616	C19225	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.63	1.60	.70
EF-1488A-2020	C19226	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-1488A-2424	C19227	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-1488A-3232	C19228	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-1488A-4040	C19229	2.50	3”-12	4.37	1.71	3.38	2.50	2.21	3.13	.79	2.50	4.50
EF-1488A-4848	C19230	3	3-1/2”-12	4.50	1.73	4.00	2.60	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-2	B18675-2	C18983-2	C18654-2	C18995-2	C18996	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel
Nut	1	B18673-2	C18677-2	C18977-2	C18650	C18997-2	C18998-2	Monel

HS1488

Equal to Aeroquip P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-0404	C19219	1/4	7/16”-20	1.82	.85	.56	1.20	.17	.63	.35	1.10	.10
EF-1488A-0505	C19220	5/16	1/2”-20	2.00	1.01	.63	1.39	.23	.69	.38	1.20	.10
EF-1488A-0606	C19221	3/8	9/16”-48	2.15	1.01	.69	1.39	.30	.81	.38	1.30	.20
EF-1488A-0808	C19222	1/2	3/4”-16	2.49	1.09	.88	1.51	.38	.94	.42	1.52	.30
EF-1488A-1010	C19223	5/8	7/8”-14	2.90	1.09	1.00	1.60	.48	1.12	.51	1.80	.40
EF-1488A-1212	C19224	3/4	1-1/16”-12	3.17	1.11	1.25	1.68	.60	1.25	.57	2.02	.60

Description	Req’d per Ass’y	0404	0505	0606	0808	1010	1212	Material
Nipple	1	B18978-2	B18979-2	B18980-2	C18647-2	B18981-2	B18982-2	Monel
Socket	1	C18984-2	C18985-2	C18986-2	C18648-2	C18987-2	C18988-2	Monel
Nut	1	B18972-2	B18973-2	B18974-2	B18778-2	B18975-2	B18976-2	Monel

HS1488 Equivalent

P/N 4-411

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group VIII

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-1488A-1616	C19225	1	1-5/16”-12	2.87	1.09	1.50	1.69	.82	1.44	.63	1.60	.70
EF-1488A-2020	C19226	1.25	1-5/8”-12	3.13	1.16	2.00	1.81	1.05	1.75	.65	1.75	1.30
EF-1488A-2424	C19227	1.50	1-7/8”-12	3.42	1.23	2.25	1.97	1.28	2.00	.74	1.85	1.60
EF-1488A-3232	C19228	2	2-1/2”-12	4.12	1.42	3.00	2.33	1.75	2.50	.91	2.25	2.60
EF-1488A-4040	C19229	2.50	3”-12	4.37	1.71	3.38	2.50	2.21	3.13	.79	2.50	4.50
EF-1488A-4848	C19230	3	3-1/2”-12	4.50	1.73	4.00	2.60	2.80	3.88	.87	2.50	6.20

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	B18668-2	B18675-2	C18983-2	C18654-2	C18995-2	C18996	Monel
Socket	1	C18667-2	C18703-2	C18990-2	C18662	C18991	C18992	Monel
Nut	1	B18673-2	C18677-2	C18977-2	C18650	C18997-2	C18998-2	Monel

Equals to P/N 412B & 44-412

Defense - Marine Hose & Fitting - Fittings - HS1488 - Medium Pressure Fittings

Use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-0204	C19142	1/4	1/8”-27	1.68	.55	.44	.93	.17	.63	.38	1.10	.08
EF-B1488MP-0404	C20761	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.63	.56	1.10	.09
EF-B1488MP-0405	C19143	5/16	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	.11
EF-B1488MP-0406	C19144	3/8	1/4”-18	2.14	.67	.56	1.23	.30	.30	.56	1.30	.16
EF-B1488MP-0608	C19145	1/2	3/8”-18	1.51	.77	.75	1.33	.36	.94	.56	1.51	.23
EF-B1488MP-0810	C19146	5/8	1/2”-14	2.89	.84	.88	1.59	.48	1.12	.75	1.80	.39
EF-B1488MP-1212	C19147	3/4	3/4”-14	3.15	.91	1.06	1.66	.61	1.25	.75	2.02	.50

Description	Req’d per Ass’y	0204	0404	0405	0406	0608	0810	1212	Material
Nipple	1	B19064	B20759	B19065	B19066	C19067	C19068	C19069	Brass
Socket	1	C18984-1	C18984-1	C18985-1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-1616	C19148	1	1”-11-1/2	2.92	.78	1.38	1.72	.93	1.44	.94	1.60	.62
EF-B1488MP-2020	C19149	1.25	1-1/4”-11-1/2	3.22	.83	1.75	1.86	1.05	1.75	1.03	1.75	1.10
EF-B1488MP-2424	C19150	1.50	1-1/2”-11-1/2	3.49	1.04	2.00	2.04	1.28	2.00	1.00	1.85	1.30
EF-B1488MP-3232	C19151	2	2”-11-1/2	4.03	1.16	2.50	2.19	1.75	2.50	1.03	2.25	2.30
EF-B1488MP-4040	C19152	2.50	2-1/2”-8	5.04	1.61	3.00	3.13	2.12	3.25	1.52	2.50	4.60
EF-B1488MP-4848	C19153	3	3”-8	5.10	1.58	3.88	3.16	2.69	3.88	1.58	2.47	7.30

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	C19070	C18028	C18027	C18026	-	-	Brass
Nipple	1	-	-	-	-	C19156	C19171	Aluminum. Bronze
Socket	1	C18867-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

HS1488

Equal to Aeroquip P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-0204	C19142	1/4	1/8”-27	1.68	.55	.44	.93	.17	.63	.38	1.10	.08
EF-B1488MP-0404	C20761	1/4	1/4”-18	1.86	.55	.56	1.11	.17	.63	.56	1.10	.09
EF-B1488MP-0405	C19143	5/16	1/4”-18	1.96	.62	.56	1.18	.23	.69	.56	1.20	.11
EF-B1488MP-0406	C19144	3/8	1/4”-18	2.14	.67	.56	1.23	.30	.30	.56	1.30	.16
EF-B1488MP-0608	C19145	1/2	3/8”-18	1.51	.77	.75	1.33	.36	.94	.56	1.51	.23
EF-B1488MP-0810	C19146	5/8	1/2”-14	2.89	.84	.88	1.59	.48	1.12	.75	1.80	.39
EF-B1488MP-1212	C19147	3/4	3/4”-14	3.15	.91	1.06	1.66	.61	1.25	.75	2.02	.50

Description	Req’d per Ass’y	0204	0404	0405	0406	0608	0810	1212	Material
Nipple	1	B19064	B20759	B19065	B19066	C19067	C19068	C19069	Brass
Socket	1	C18984-1	C18984-1	C18985-1	C18986-1	C18648-1	C18987-1	C18988-1	Brass

HS1488 Equivalent

P/N 412B & 44-412

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Part Number	Drawing Number	Hose Size	T Thread CL-2A	A	B	C	D	E	G	M	V	Est. Wt. (lbs.)
EF-B1488MP-1616	C19148	1	1”-11-1/2	2.92	.78	1.38	1.72	.93	1.44	.94	1.60	.62
EF-B1488MP-2020	C19149	1.25	1-1/4”-11-1/2	3.22	.83	1.75	1.86	1.05	1.75	1.03	1.75	1.10
EF-B1488MP-2424	C19150	1.50	1-1/2”-11-1/2	3.49	1.04	2.00	2.04	1.28	2.00	1.00	1.85	1.30
EF-B1488MP-3232	C19151	2	2”-11-1/2	4.03	1.16	2.50	2.19	1.75	2.50	1.03	2.25	2.30
EF-B1488MP-4040	C19152	2.50	2-1/2”-8	5.04	1.61	3.00	3.13	2.12	3.25	1.52	2.50	4.60
EF-B1488MP-4848	C19153	3	3”-8	5.10	1.58	3.88	3.16	2.69	3.88	1.58	2.47	7.30

Description	Req’d per Ass’y	1616	2020	2424	3232	4040	4848	Material
Nipple	1	C19070	C18028	C18027	C18026	-	-	Brass
Nipple	1	-	-	-	-	C19156	C19171	Aluminum. Bronze
Socket	1	C18867-1	C18703-1	C18990-1	C18811	C18822	C17901	Brass

Fittings

Hose

Hose Assemblies

Hose Protectants

Adapters – Marine Hose & Fittings

Fittings

Marine Hose & Assemblies

Split Clamps Sil-Braze Tailpieces and Accessories

Test Fittings

6000 Series Fittings Couplings & Union Assemblies

8100 Series Fittings "O"-Rings & Sil-Braze Rings

8300 Series Fittings "O"-Rings & Sil-Braze Rings

9000 Series Fittings

Hose End Fittings & Adapters

Valves & Accessories

Valves Instrumentation & Adapters

Adapters

Caps & Plugs

Clamps

Coupling

End Fittings

Highline Products

Hooks

Hoses & Assemblies

Lines

Links

Litters

Messenger

Miscellaneous

Pigs

Probes

Receivers

Riding Lines

Saddles

Slings

Straps

Stress Wires

Strongbacks

Surfs

Swivels

Tools

Trolleys

HS449 Fittings

HS1600 Fittings

HS1489 Fittings

HS1488 Medium Pressure Fittings

ER512 Series Large Bore Hoses

HS1546 Large Bore Hose

Air Pipe Heads

Coupling & Shafting Accessories

Deck Drains

Deck Hardware

Drivetrain

Exhaust Fittings

Hose & Clamps

International Shore Connections

Inverted Vent Check Valves

Miscellaneous Hardware

Pipe Caps

Plumbing & Fittings

Sounding Tubes

Steering Hardware

Strainers

Suction Bell mouths

Thru Hulls

Valves

Literature

Distributor Portal

Supplier Information

News

HS1488 - Medium Pressure Fittings

HS1488

HS1488

Equal to Aeroquip P/N 93-191302

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

HS1488 Equivalent

P/N 93-191302

Hose to Hose
