HS1489 - High Pressure

HS1489

Equals to P/N FC7183-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/5

Use with the following hose:HS133

Type D, Group XI

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-1616	C18920	1	4.67	2.62	.81	1.50	2.44	1.62	3.75	6.00
90ELB-1489D-2020	C18921	1.25	5.45	3.15	1.05	1.75	2.81	2.00	4.00	9.30
90ELB-1489D-2424	C18922	1.50	5.94	3.41	1.30	2.00	3.00	2.25	4.42	13.00
90ELB-1489D-3232	C18923	2	7.38	4.66	1.75	2.50	3.81	2.75	5.04	20.00

Description	Req’d per Ass’y	1616	2020	2424	3232	Mat’l
Elbow	1	C18863	C18865	C18867	C18869	Monel
Segment	4	D18747-1	D18748-1	D18750-1	D8704-1	Monel
Bolt	8	B18746	B18746	B18755	B18718	Monel

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-1616-4	1	4.76	2.85	.75	1.50	2.42	1.62	4.02	6.00
FC7183-2424-4	1.50	5.96	3.66	1.28	2.00	3.01	2.25	4.69	13.00
FC7183-3232-4	2	7.60	4.52	1.75	2.50	3.88	2.75	5.65	20.00

Description	Req’d per Ass’y	Base No.	1616	2424	3232	Mat’l
Elbow	1	FC6183-	1616-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-24-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	08-28-4	09-36-4	Monel

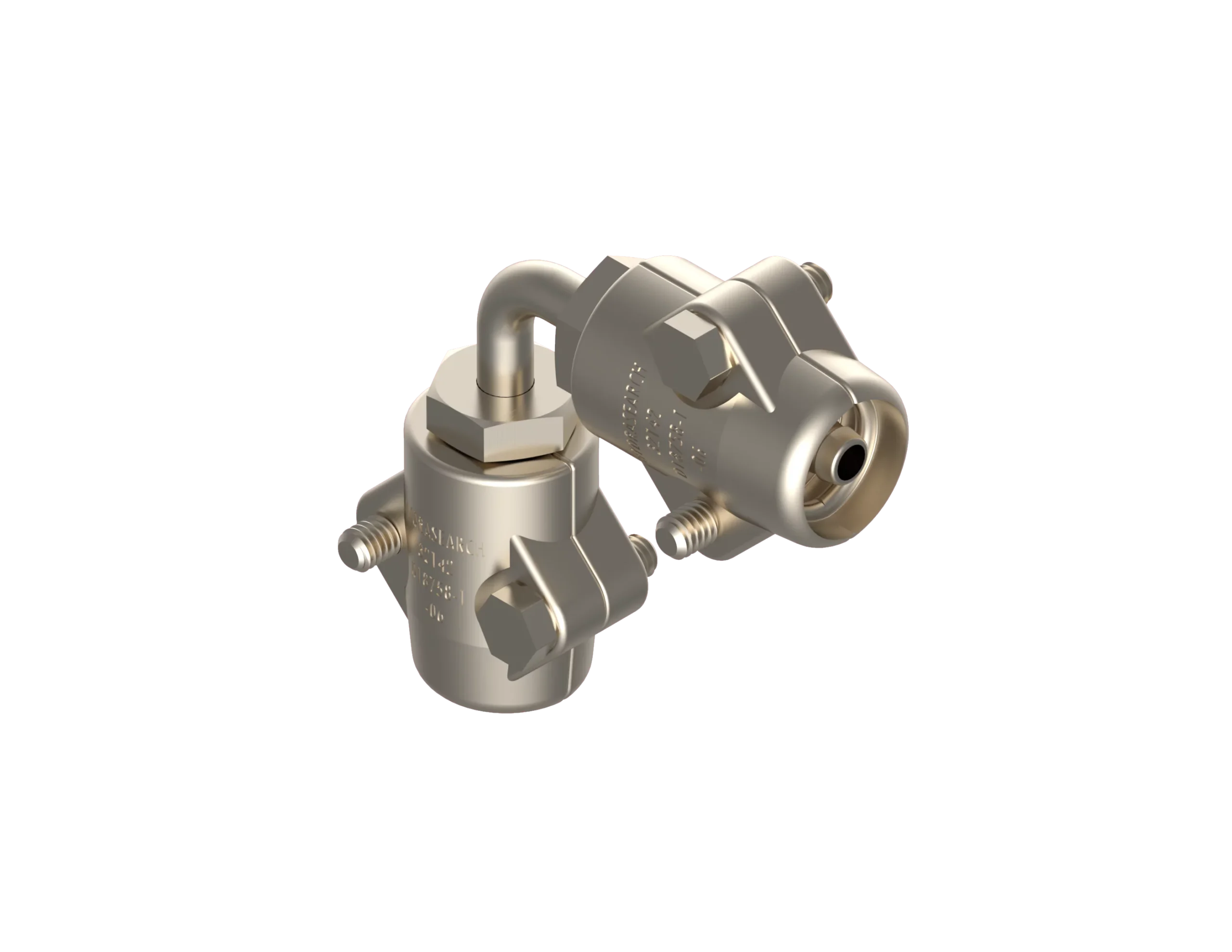

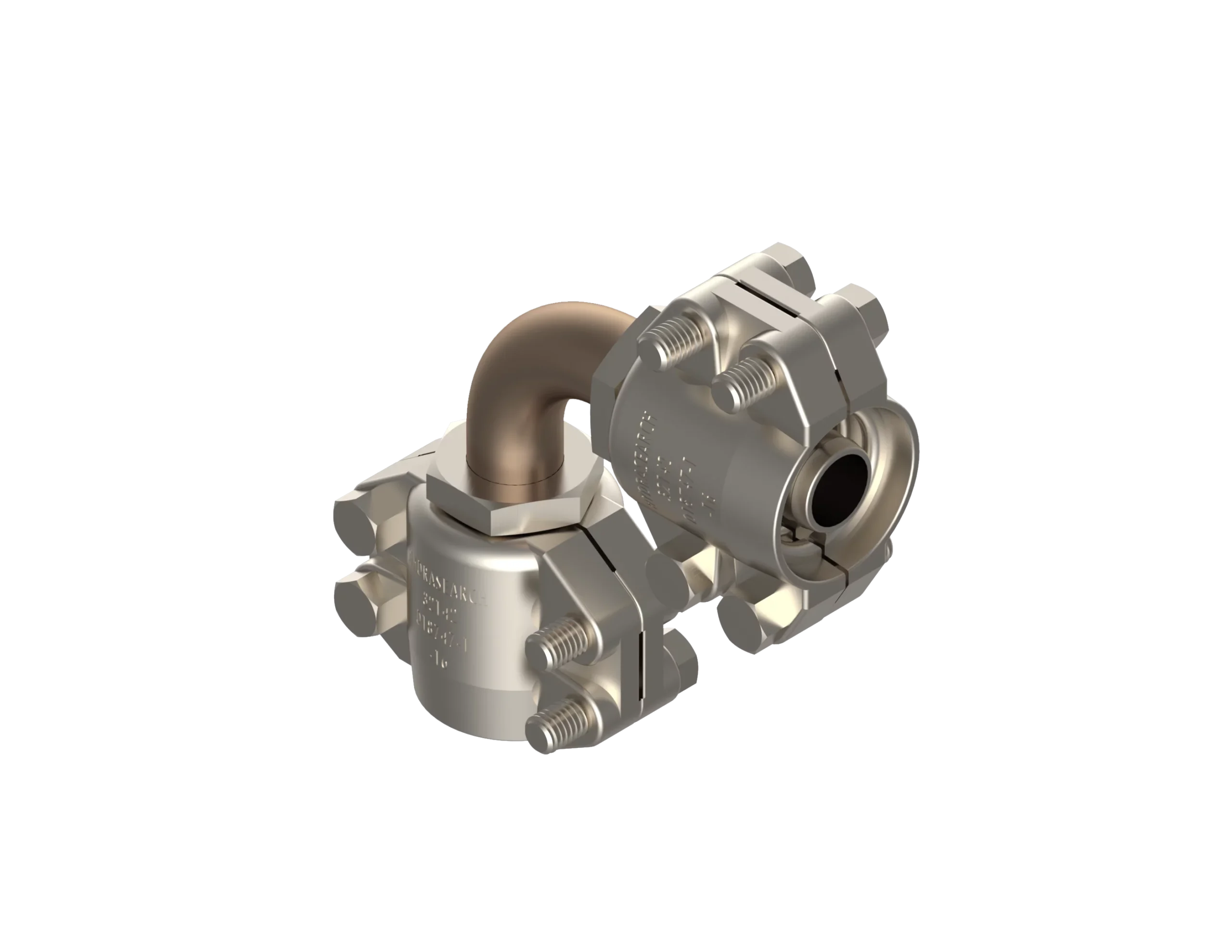

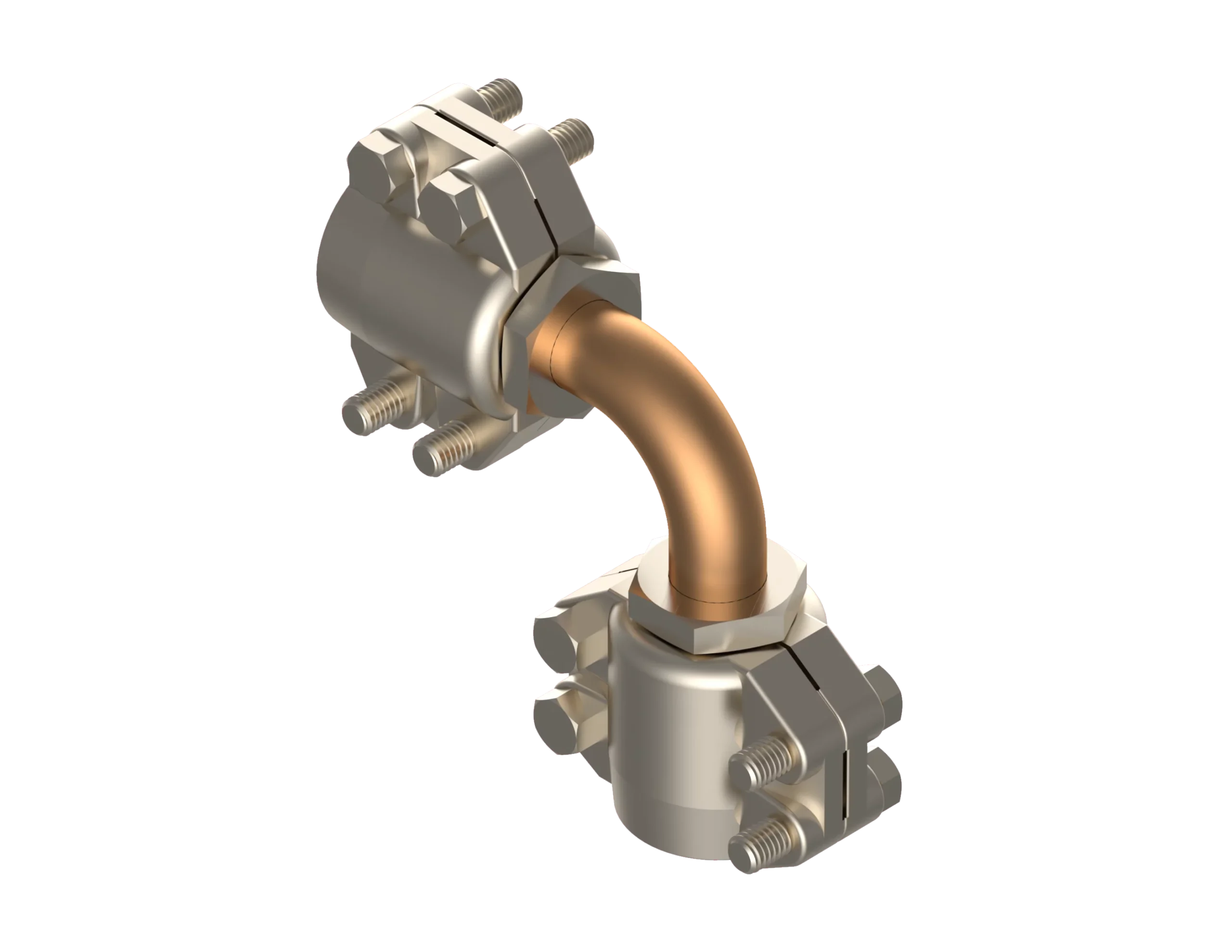

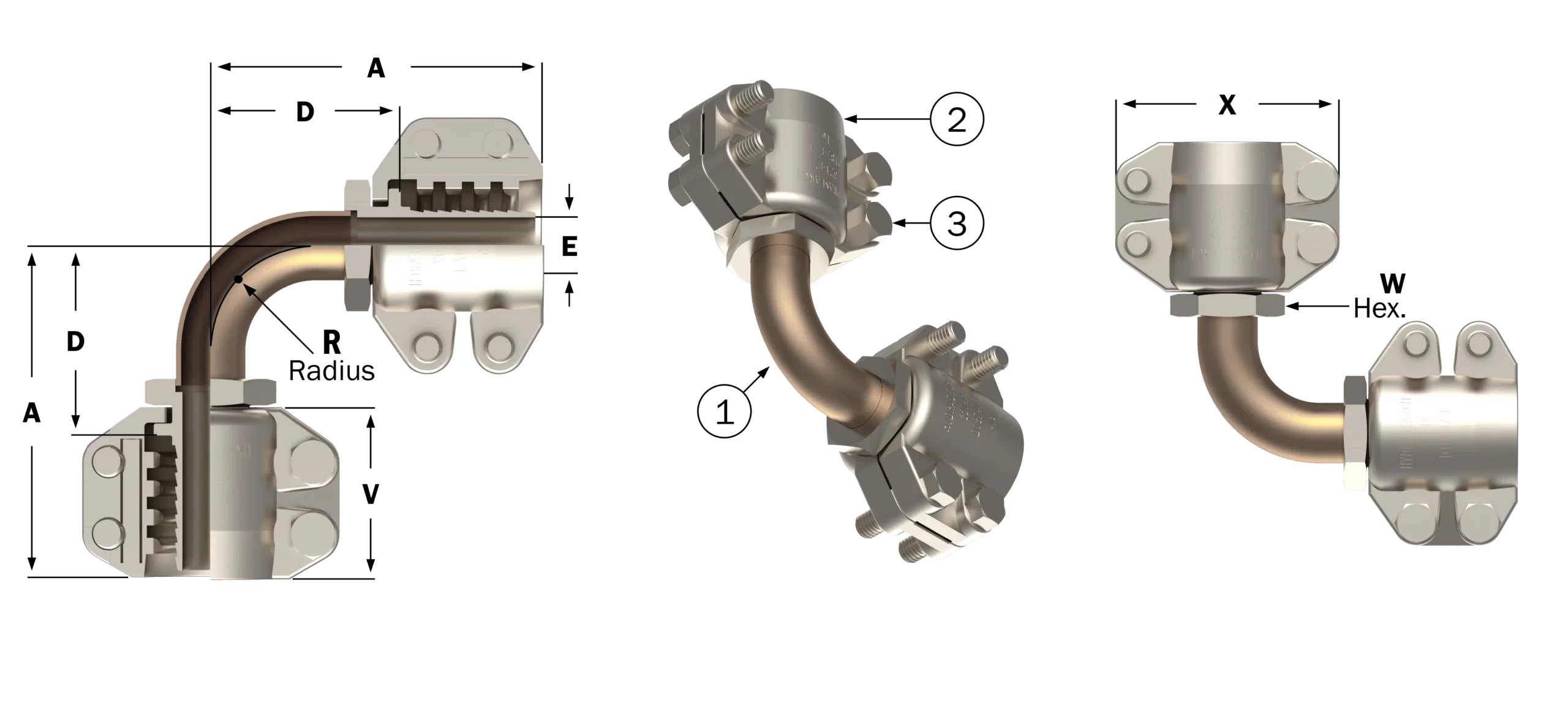

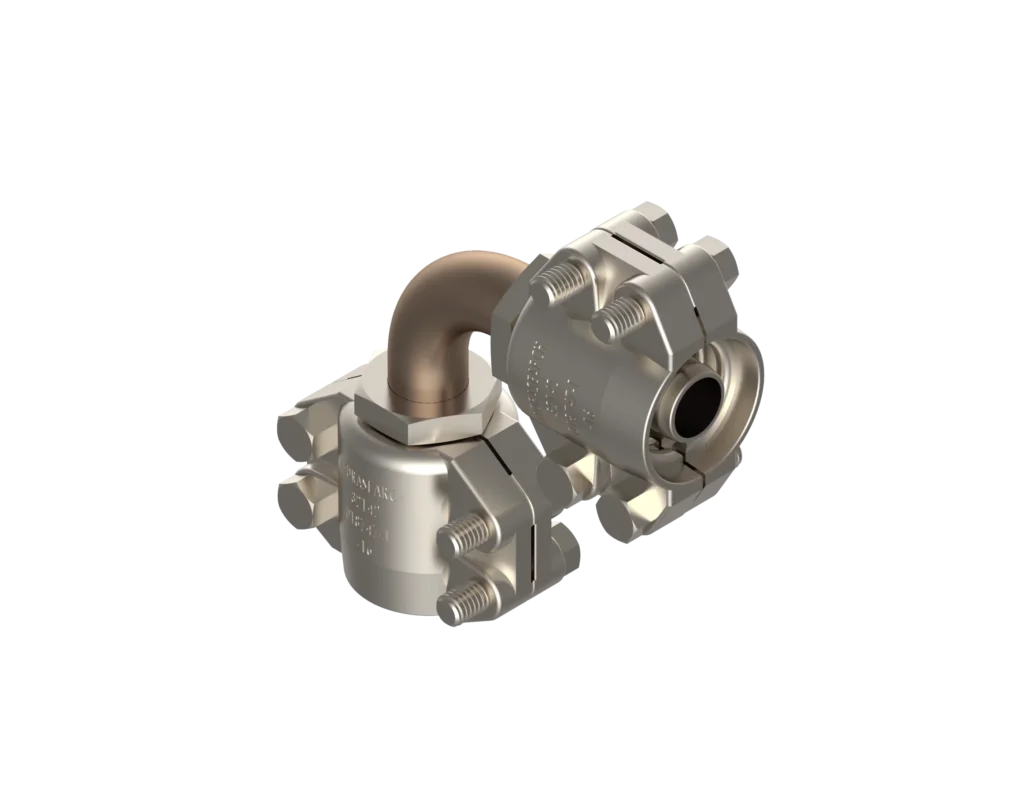

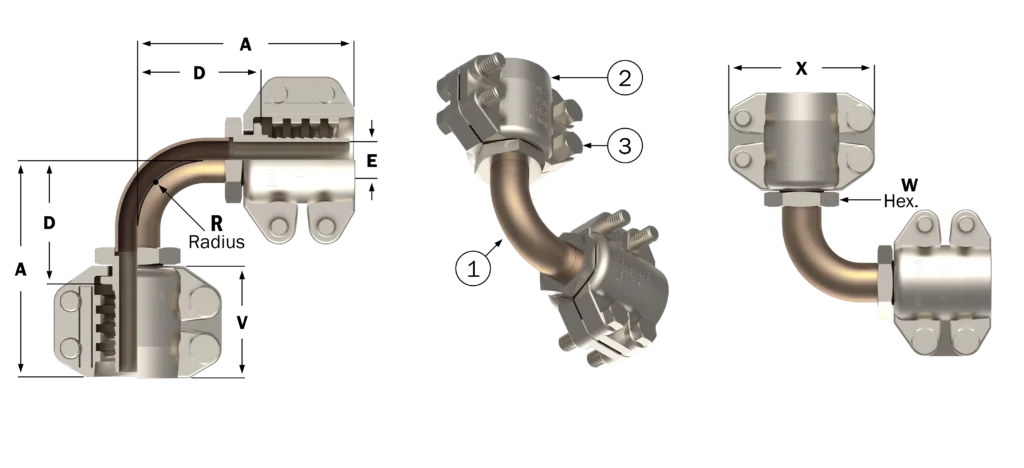

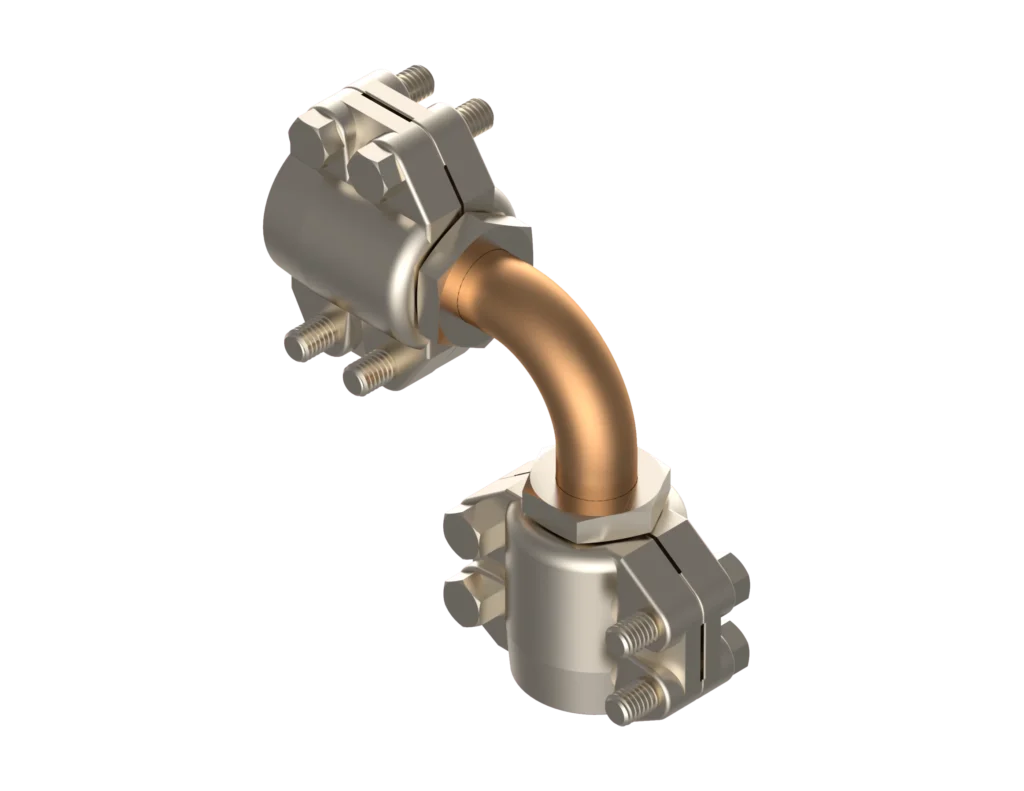

HS1489

Equal to Aeroquip P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-1616	C18920	1	4.67	2.62	.81	1.50	2.44	1.62	3.75	6.00
90ELB-1489D-2020	C18921	1.25	5.45	3.15	1.05	1.75	2.81	2.00	4.00	9.30
90ELB-1489D-2424	C18922	1.50	5.94	3.41	1.30	2.00	3.00	2.25	4.42	13.00
90ELB-1489D-3232	C18923	2	7.38	4.66	1.75	2.50	3.81	2.75	5.04	20.00

Description	Req’d per Ass’y	1616	2020	2424	3232	Mat’l
Elbow	1	C18863	C18865	C18867	C18869	Monel
Segment	4	D18747-1	D18748-1	D18750-1	D8704-1	Monel
Bolt	8	B18746	B18746	B18755	B18718	Monel

plug

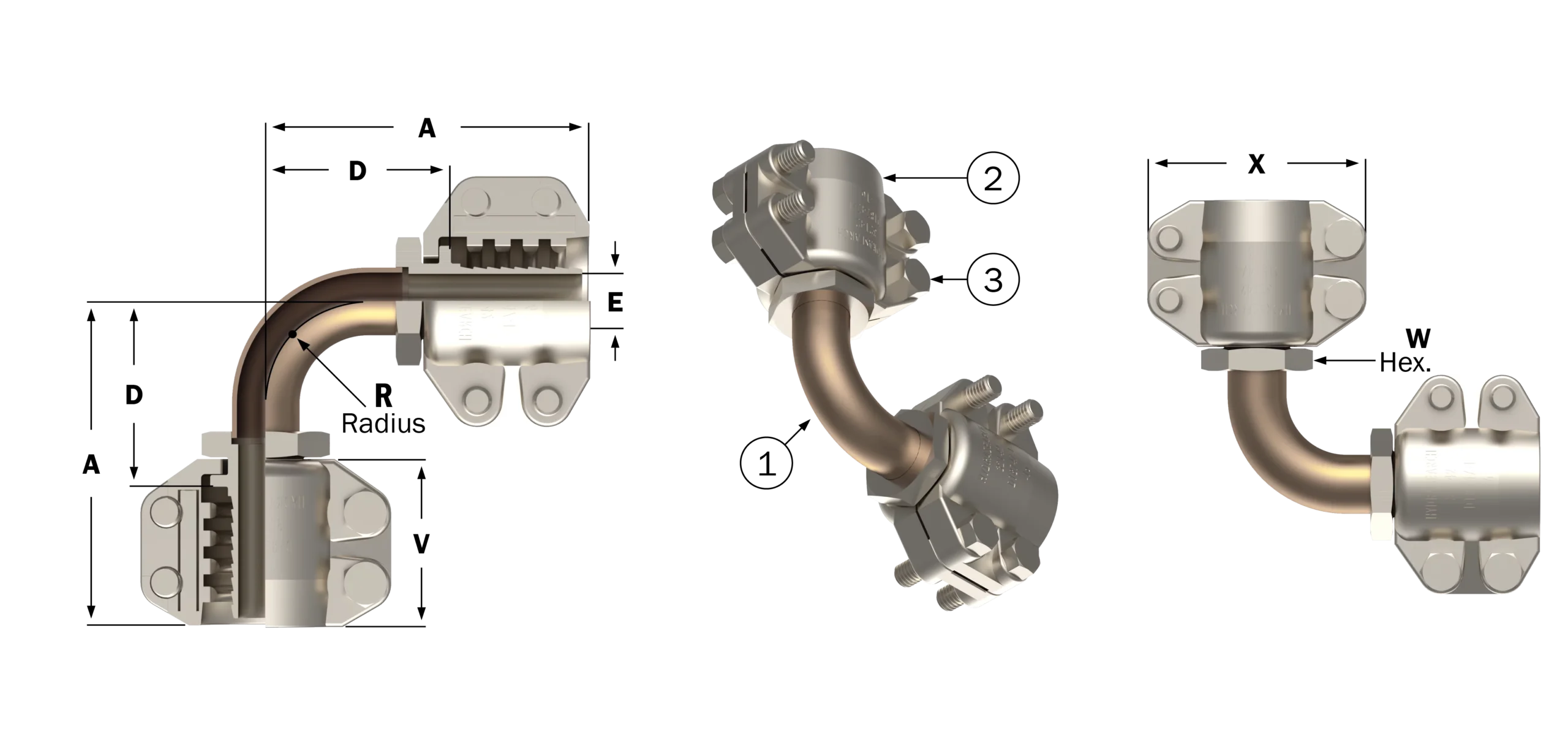

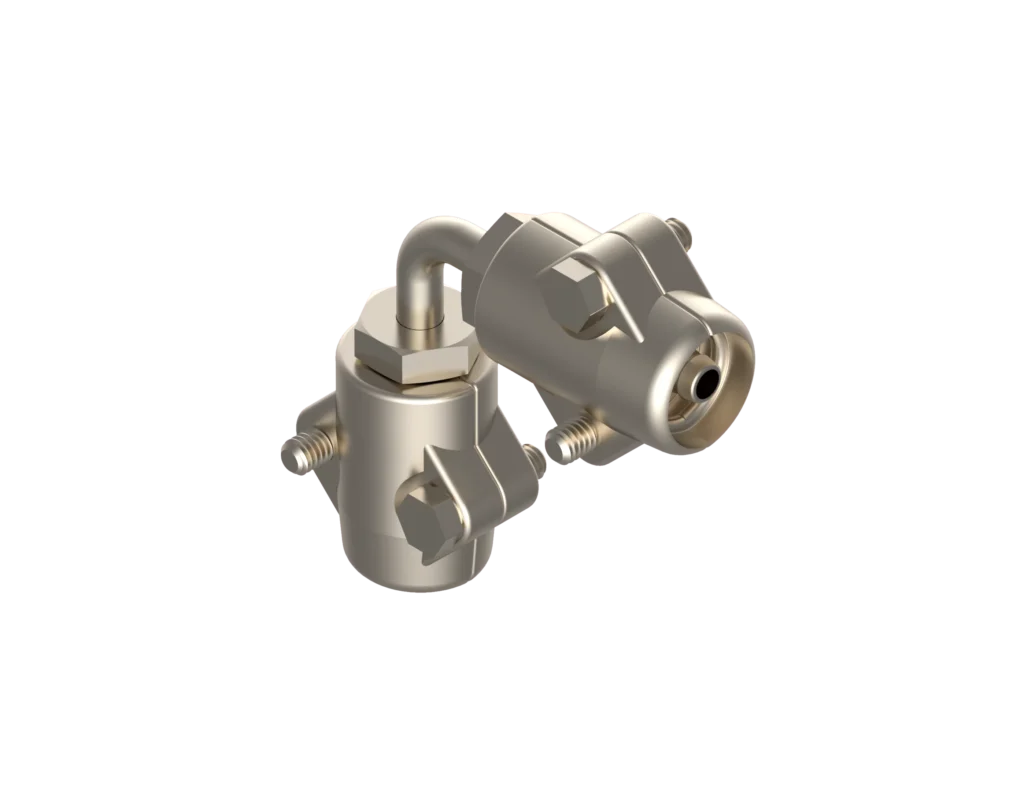

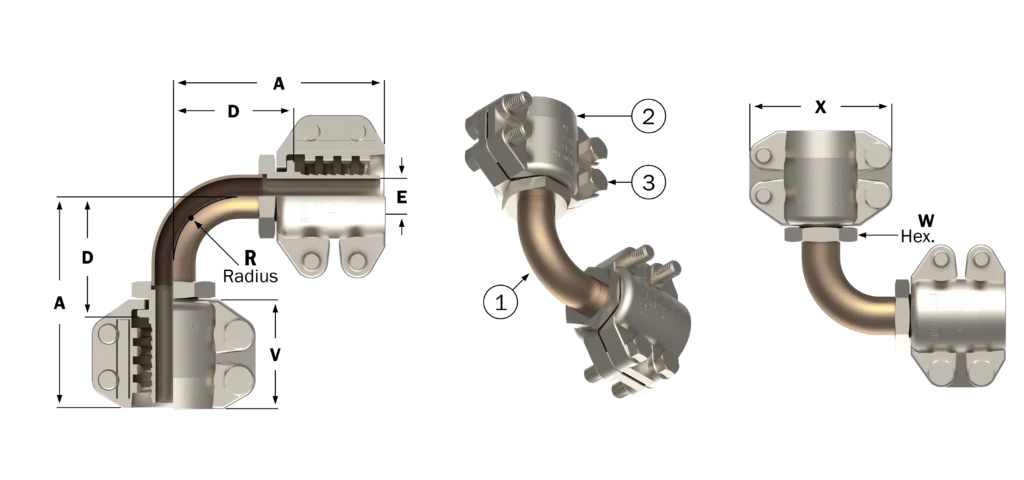

HS1489 Equivalent

P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose: HS133

plug

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-1616-4	1	4.76	2.85	.75	1.50	2.42	1.62	4.02	6.00
FC7183-2424-4	1.50	5.96	3.66	1.28	2.00	3.01	2.25	4.69	13.00
FC7183-3232-4	2	7.60	4.52	1.75	2.50	3.88	2.75	5.65	20.00

Description	Req’d per Ass’y	Base No.	1616	2424	3232	Mat’l
Elbow	1	FC6183-	1616-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-24-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	08-28-4	09-36-4	Monel

Equals to P/N FC7183-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/5

Use with the following hose:HS133

Type D, Group XI

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-0606	C18917	3/8	3.20	1.48	.26	.50	2.02	.94	2.00	1.20
90ELB-1489D-0808	C18918	1/2	3.47	1.65	.39	.75	2.08	1.00	2.40	2.40
90ELB-1489D-1212	C18919	3/4	4.50	2.45	.61	1.25	2.43	1.38	2.93	3.70

Description	Req’d per Ass’y	0606	0808	1212	Mat’l
Elbow	1	C18857	C18859	C18861	Monel
Segment	4	D18758-1	C18640-1	D18743-1	Monel
Bolt	4	B18759	B18640	B18745	Monel

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-0606-4	3/8	3.20	1.58	.24	.50	2.00	.94	2.34	1.20
FC7183-1212-4	3/4	4.51	2.61	.56	1.25	2.42	1.38	3.27	3.70

Description	Req’d per Ass’y	Base No.	0606	1212	Mat’l
Elbow	1	FC6183-	0606-4	1212-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

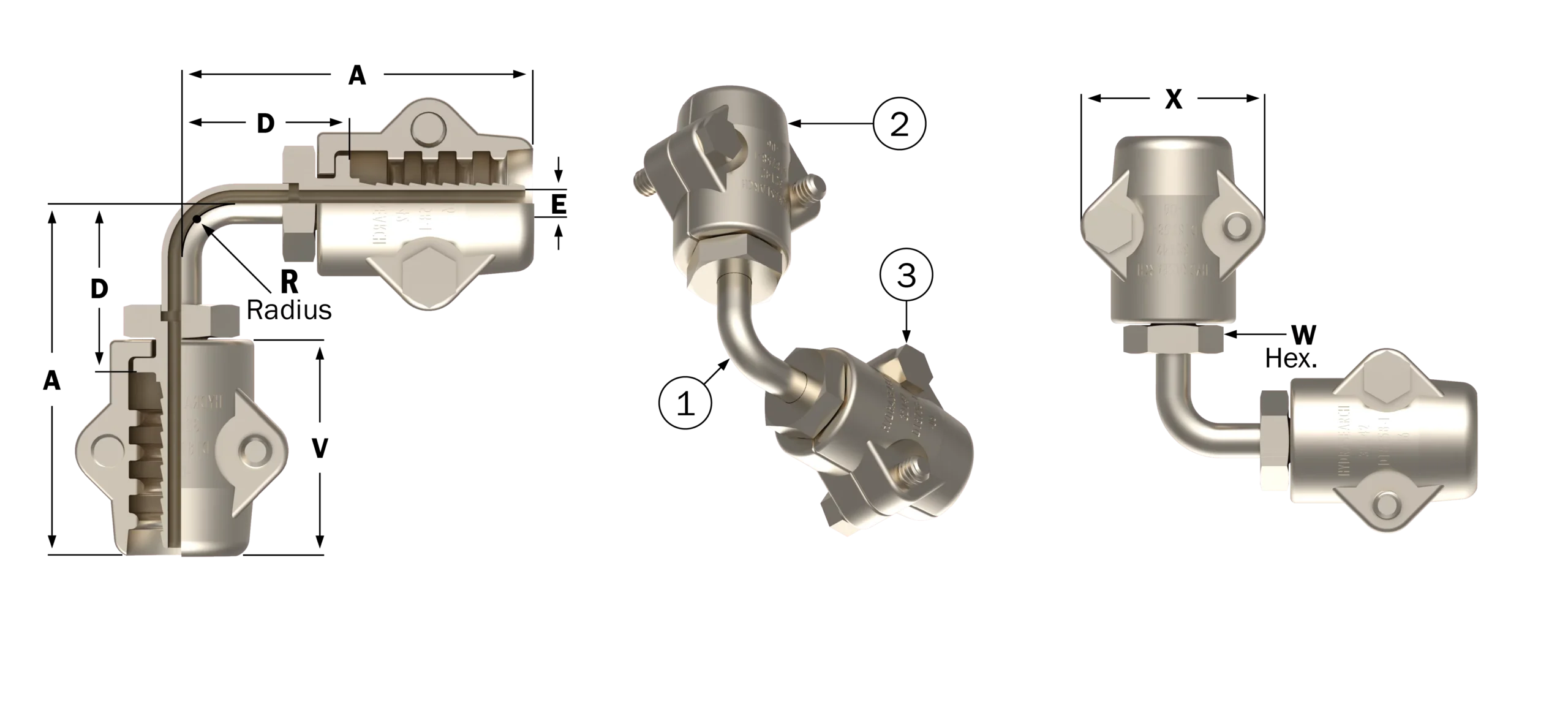

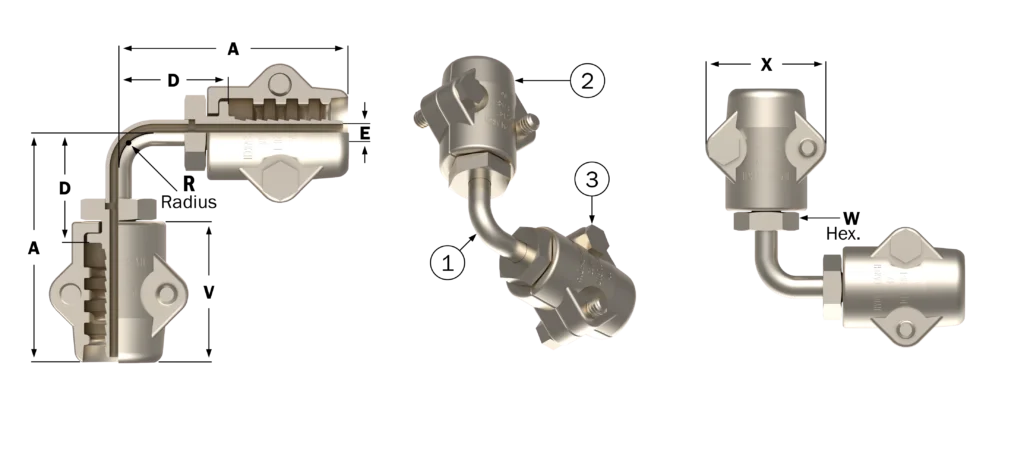

HS1489

Equal to Aeroquip P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
90ELB-1489D-0606	C18917	3/8	3.20	1.48	.26	.50	2.02	.94	2.00	1.20
90ELB-1489D-0808	C18918	1/2	3.47	1.65	.39	.75	2.08	1.00	2.40	2.40
90ELB-1489D-1212	C18919	3/4	4.50	2.45	.61	1.25	2.43	1.38	2.93	3.70

Description	Req’d per Ass’y	0606	0808	1212	Mat’l
Elbow	1	C18857	C18859	C18861	Monel
Segment	4	D18758-1	C18640-1	D18743-1	Monel
Bolt	4	B18759	B18640	B18745	Monel

plug

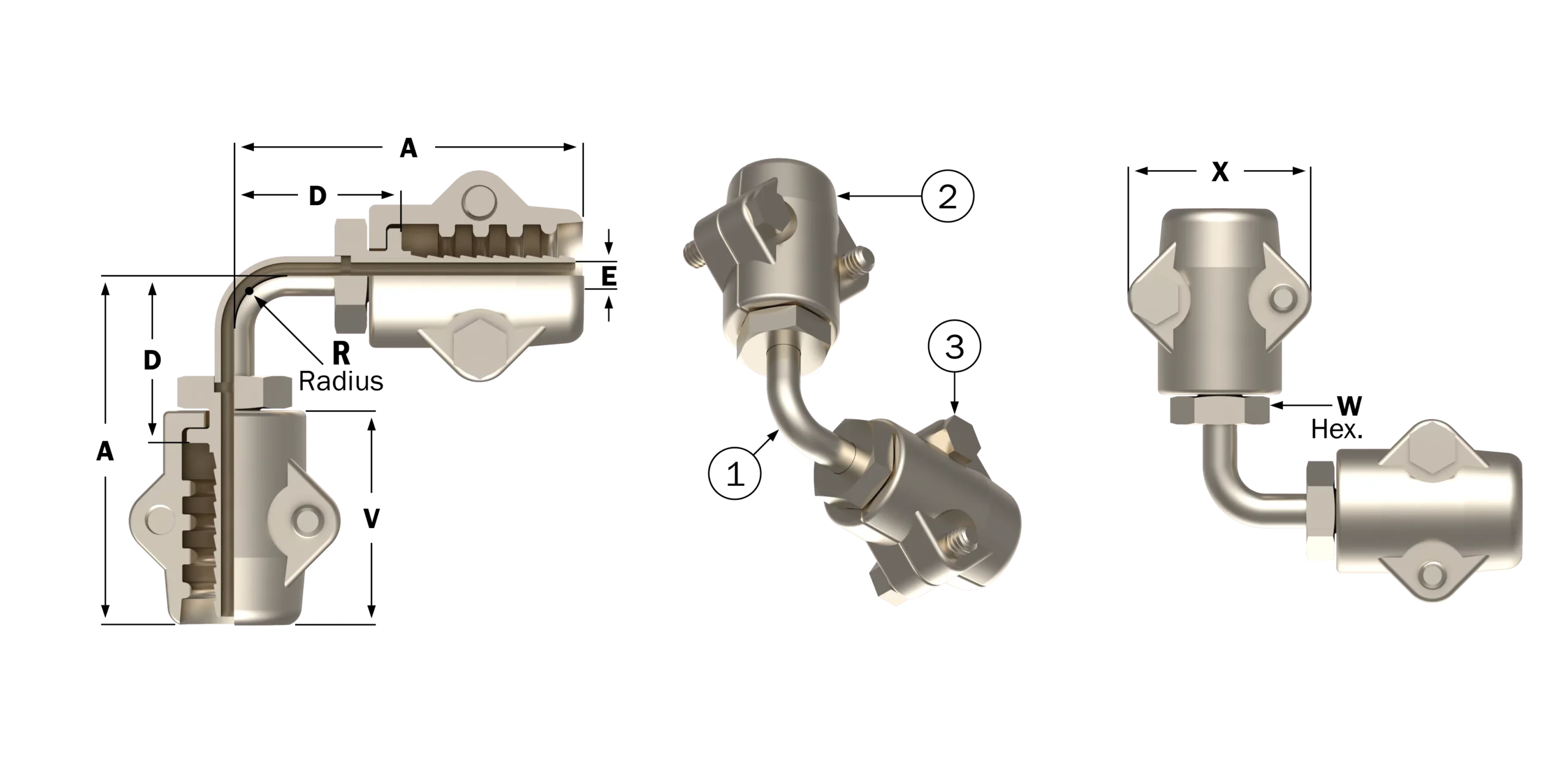

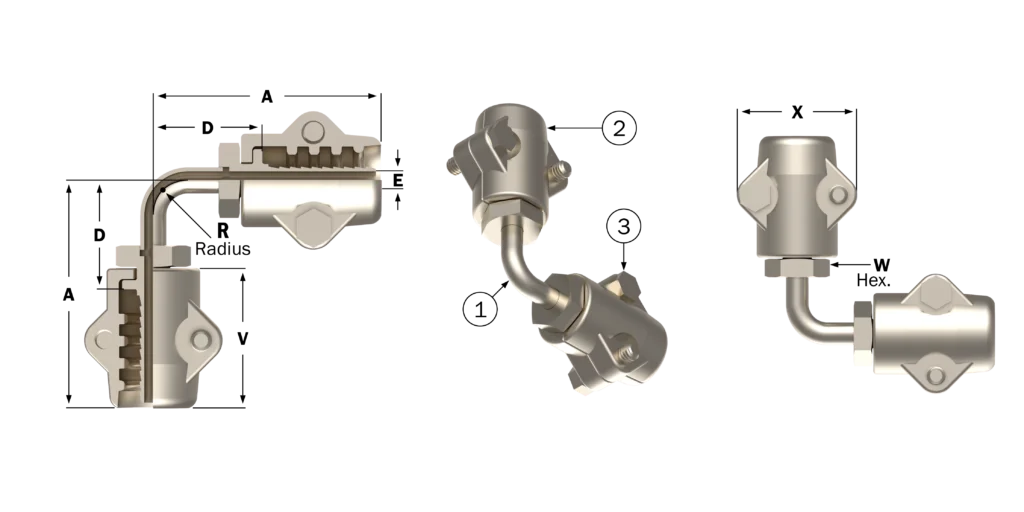

HS1489 Equivalent

P/N FC7183-4

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	A	D	E	R	V	W	X	Est. Wt. (lbs.)
FC7183-0606-4	3/8	3.20	1.58	.24	.50	2.00	.94	2.34	1.20
FC7183-1212-4	3/4	4.51	2.61	.56	1.25	2.42	1.38	3.27	3.70

Description	Req’d per Ass’y	Base No.	0606	1212	Mat’l
Elbow	1	FC6183-	0606-4	1212-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

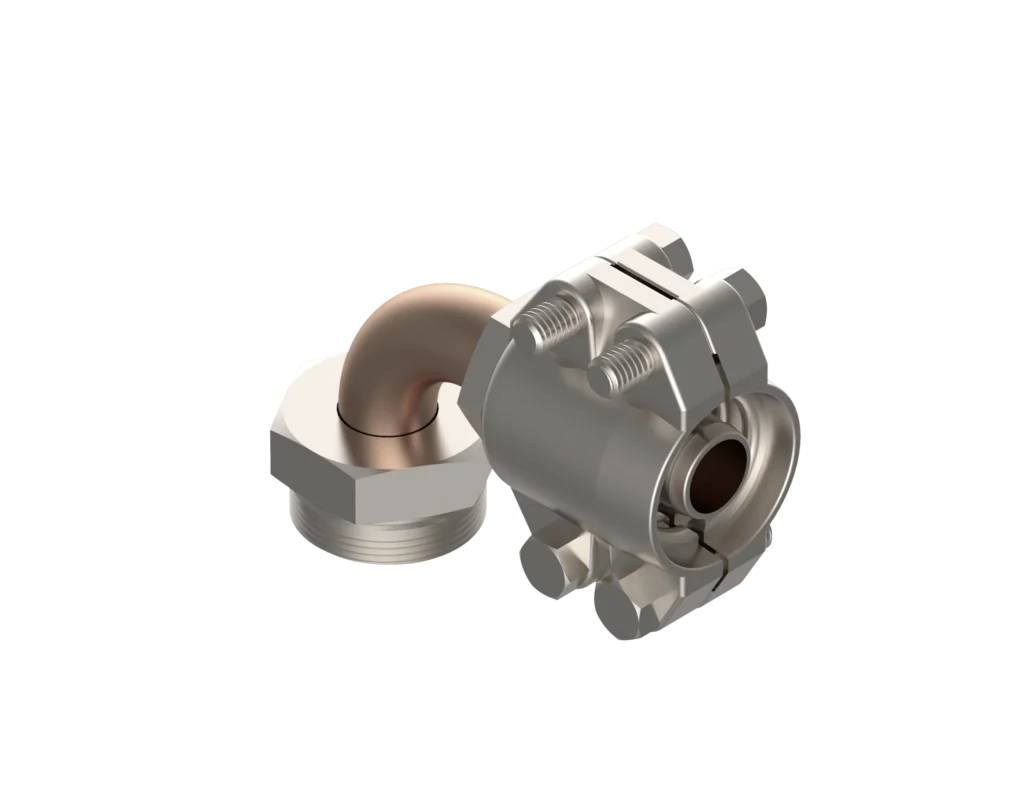

Equals to P/N FC7182-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/3

Use with the following hose:HS133

Type CL, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-1216	C18900	3/4	2”-12	4.67	2.12	2.62	.81	2.68	.62	1.50	2.44	1.63	3.75	4.50
90EF-1489CL-1616	C18901	1	2-5/16”-12	4.67	2.38	2.62	.81	2.87	.75	1.50	2.44	1.63	3.75	5.00
90EF-1489CL-1620	C18902	1	2-5/16”-12	5.45	2.38	3.15	1.05	3.17	.75	1.75	2.81	2.00	4.00	6.50
90EF-1489CL-2020	C18903	1.25	2-3/4”-12	5.45	3.00	3.15	1.05	3.30	.75	1.75	2.81	2.00	4.00	10.00
90EF-1489CL-2024	C18904	1.25	2-3/4”-12	5.94	3.00	3.41	1.30	3.42	.75	2.00	3.00	2.25	4.42	11.00
90EF-1489CL-2424	C18905	1.50	3-1/16”-12	5.94	3.13	3.41	1.30	3.66	.88	2.00	3.00	2.25	4.42	12.00
90EF-1489CL-2432	C18906	1.50	3-1/16”-12	7.38	3.12	4.08	1.75	4.05	.88	2.50	3.81	2.75	5.04	13.30
90EF-1489CL-3232	C18907	2	3-3/4”-12	7.38	3.88	4.08	1.75	4.15	.88	2.50	3.81	2.75	5.04	15.00

Description	Req’d per Ass’y	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Elbow	1	C19447	C19448	C19449	C19450	C19458	C19451	C19452	C19453	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D8750-1	D18750-1	D18704-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18755	B18718	B18718	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-1616-4	1	2-5/16”-12	4.67	2.38	2.85	.75	2.92	.75	1.50	2.42	1.62	4.02	5.00
FC7182-1620-4	1	2-5/16”-12	5.50	2.38	3.40	.81	3.17	.75	1.75	2.80	2.00	4.31	6.50
FC7182-2020-4	1.25	2-3/4”-12	5.50	2.88	3.40	1.03	3.17	.75	1.75	2.80	2.00	4.31	10.00
FC7182-2424-4	1.50	3-1/16”-12	5.96	3.12	3.66	1.28	3.55	.88	2.00	3.01	2.25	4.69	12.00
FC7182-2432-4	1.50	3-1/16”-12	7.60	3.12	4.52	1.39	4.05	.88	2.50	3.88	2.75	5.65	13.30
FC7182-3232-4	2	3-3/4”-12	7.60	3.88	4.52	1.75	4.05	.88	2.50	3.88	2.75	5.65	15.00

Description	Req’d per Ass’y	Base No.	1616	1620	2020	2424	2432	3232	Mat’l
Elbow	1	FC6182-	1616-4	1620-4	2020-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	09-36-4	Monel

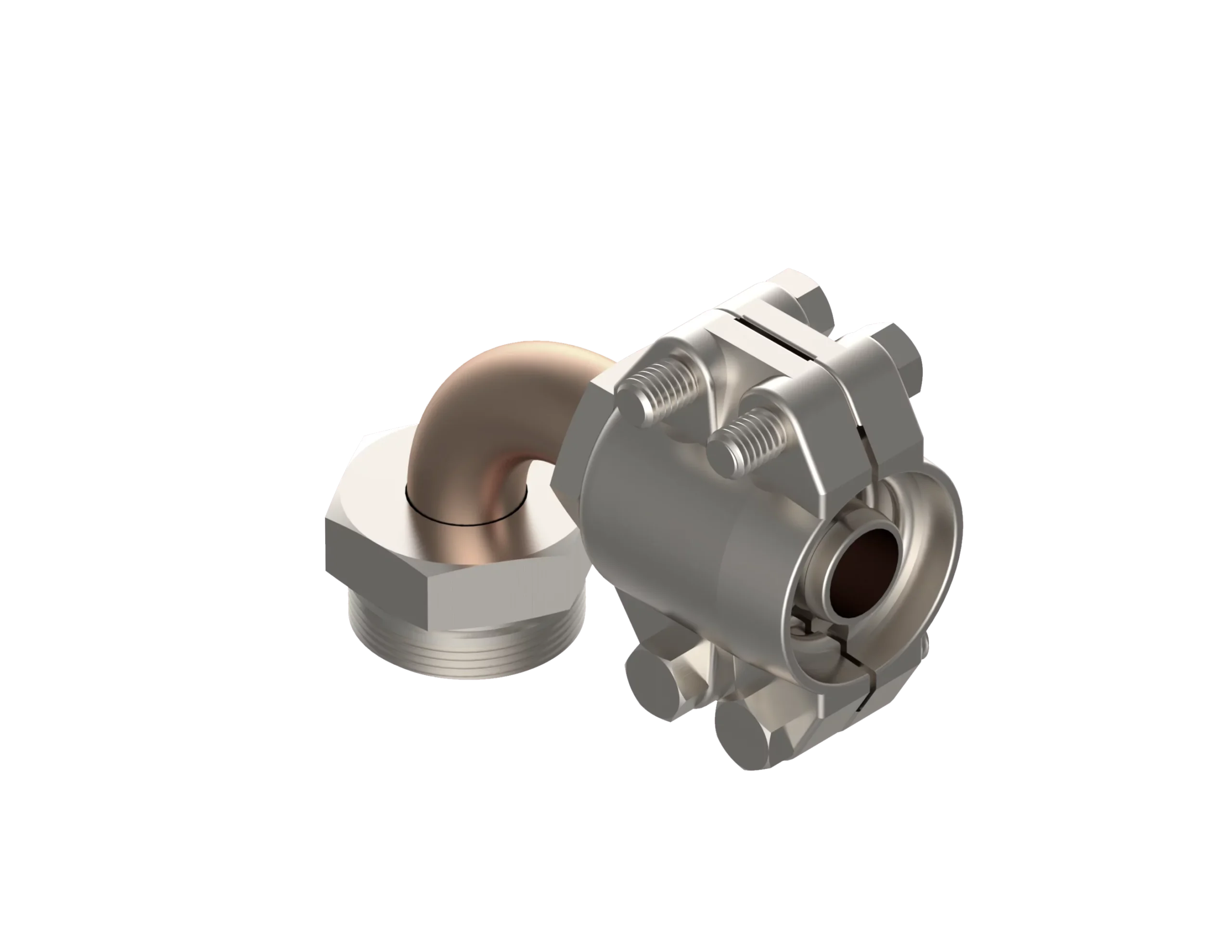

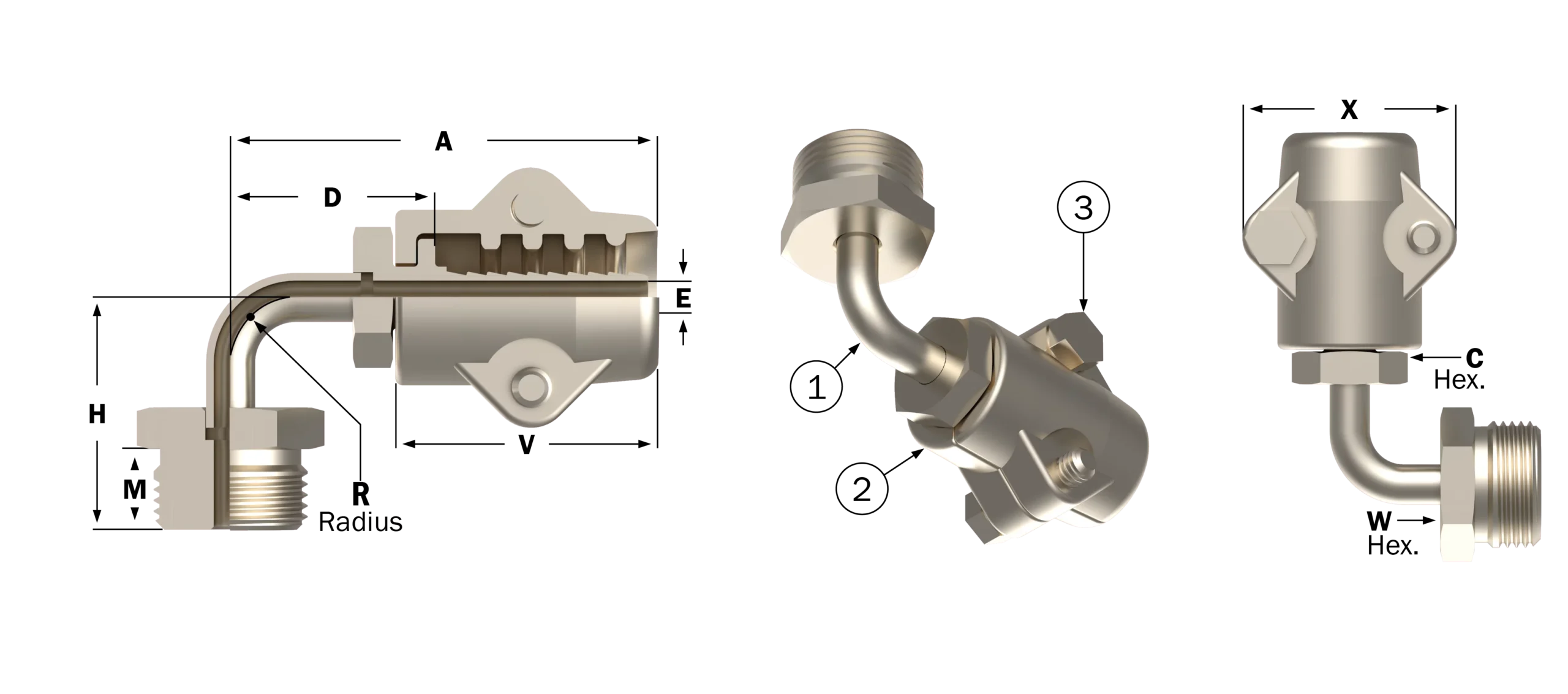

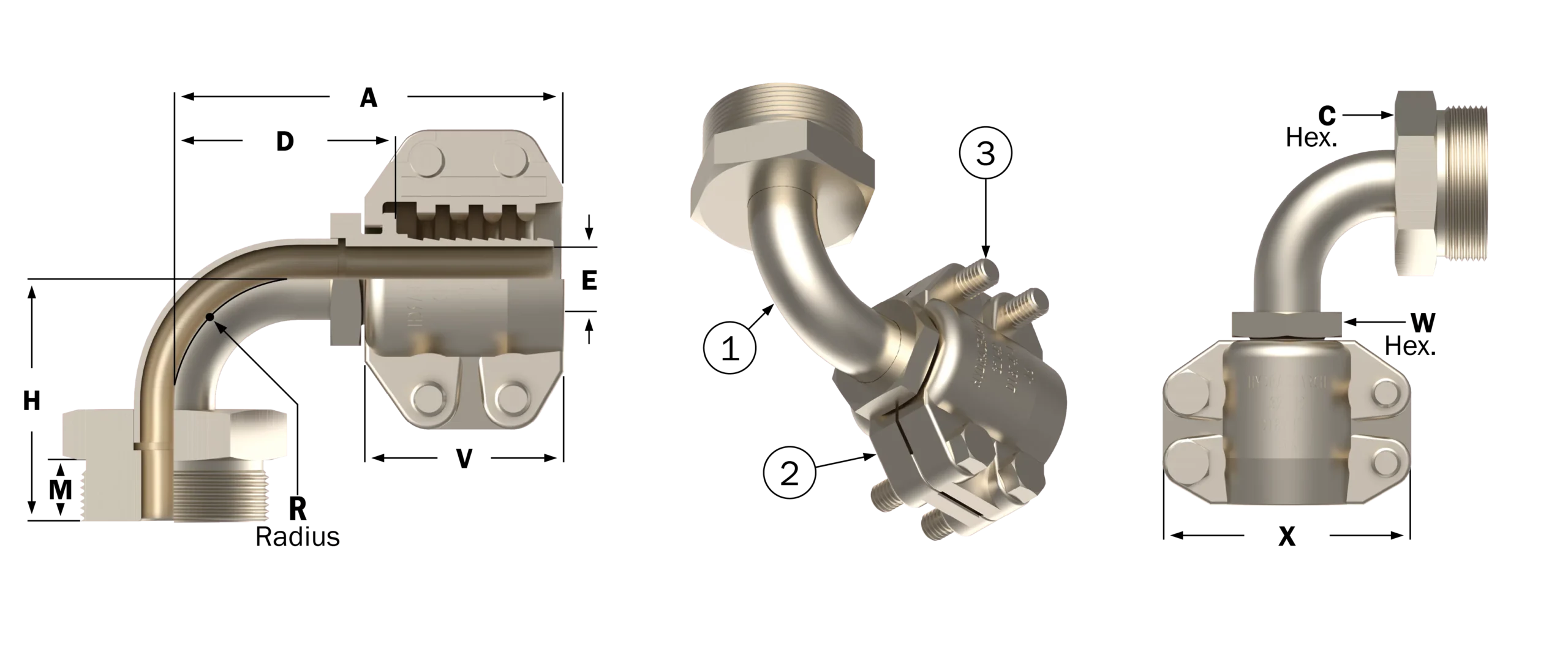

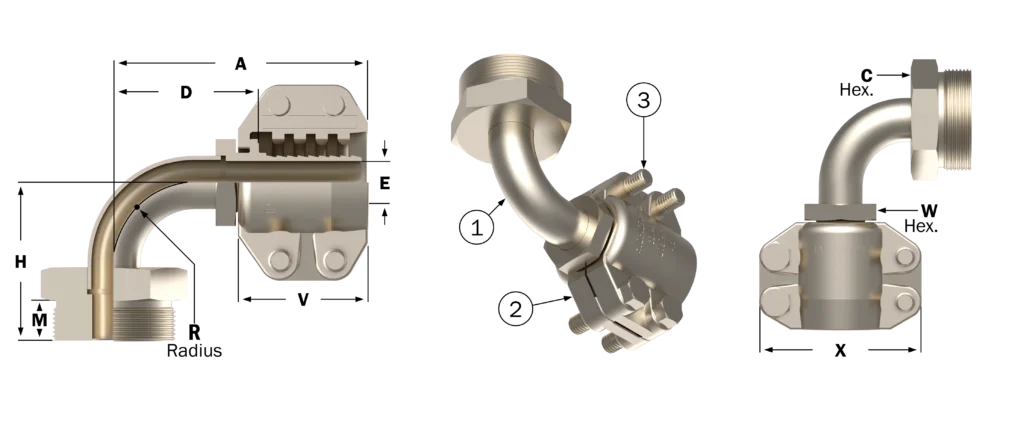

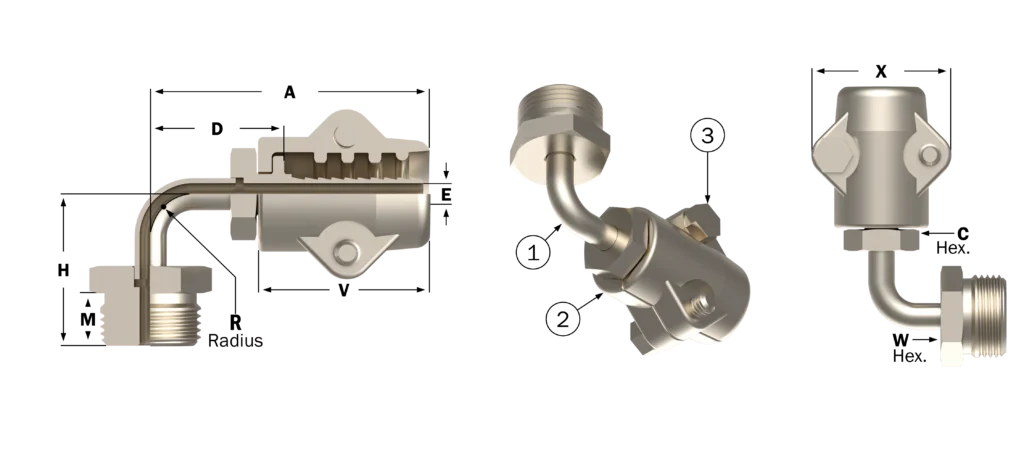

HS1489

Equal to Aeroquip P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-1216	C18900	3/4	2”-12	4.67	2.12	2.62	.81	2.68	.62	1.50	2.44	1.63	3.75	4.50
90EF-1489CL-1616	C18901	1	2-5/16”-12	4.67	2.38	2.62	.81	2.87	.75	1.50	2.44	1.63	3.75	5.00
90EF-1489CL-1620	C18902	1	2-5/16”-12	5.45	2.38	3.15	1.05	3.17	.75	1.75	2.81	2.00	4.00	6.50
90EF-1489CL-2020	C18903	1.25	2-3/4”-12	5.45	3.00	3.15	1.05	3.30	.75	1.75	2.81	2.00	4.00	10.00
90EF-1489CL-2024	C18904	1.25	2-3/4”-12	5.94	3.00	3.41	1.30	3.42	.75	2.00	3.00	2.25	4.42	11.00
90EF-1489CL-2424	C18905	1.50	3-1/16”-12	5.94	3.13	3.41	1.30	3.66	.88	2.00	3.00	2.25	4.42	12.00
90EF-1489CL-2432	C18906	1.50	3-1/16”-12	7.38	3.12	4.08	1.75	4.05	.88	2.50	3.81	2.75	5.04	13.30
90EF-1489CL-3232	C18907	2	3-3/4”-12	7.38	3.88	4.08	1.75	4.15	.88	2.50	3.81	2.75	5.04	15.00

Description	Req’d per Ass’y	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Elbow	1	C19447	C19448	C19449	C19450	C19458	C19451	C19452	C19453	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D8750-1	D18750-1	D18704-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18755	B18718	B18718	Monel

plug

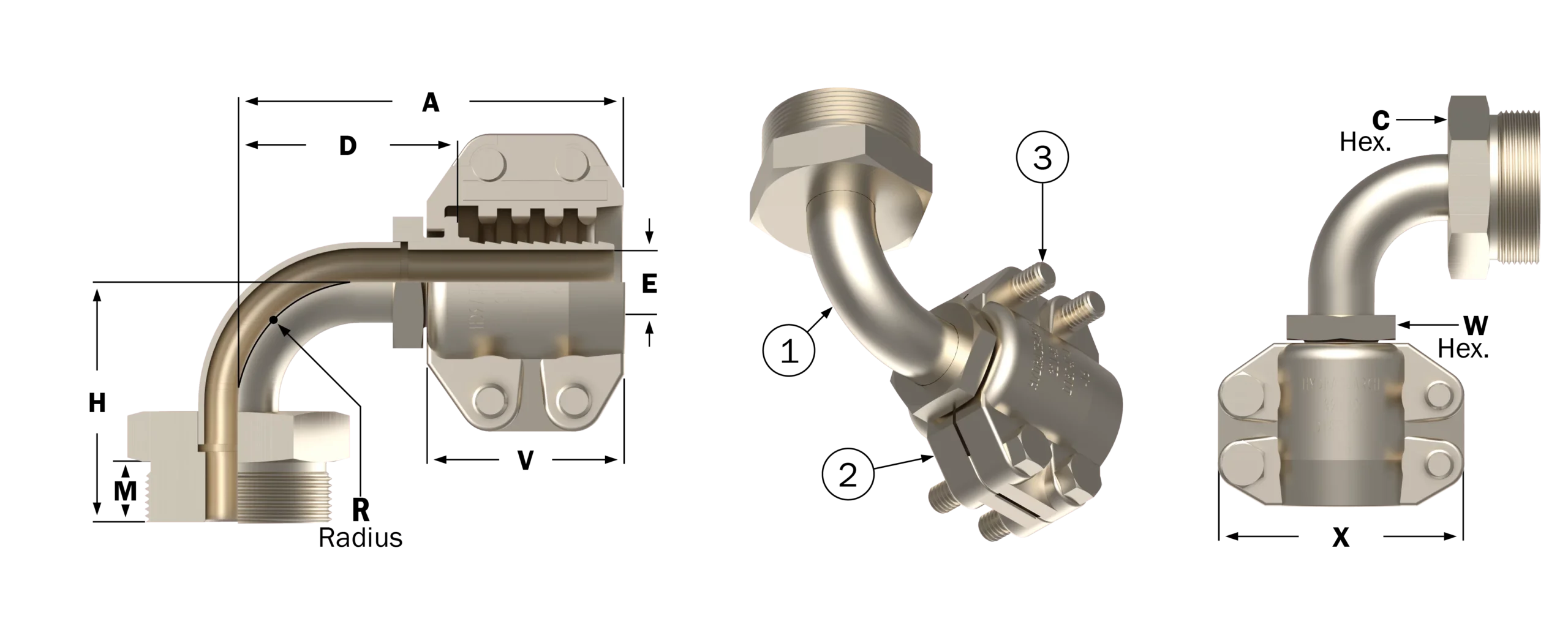

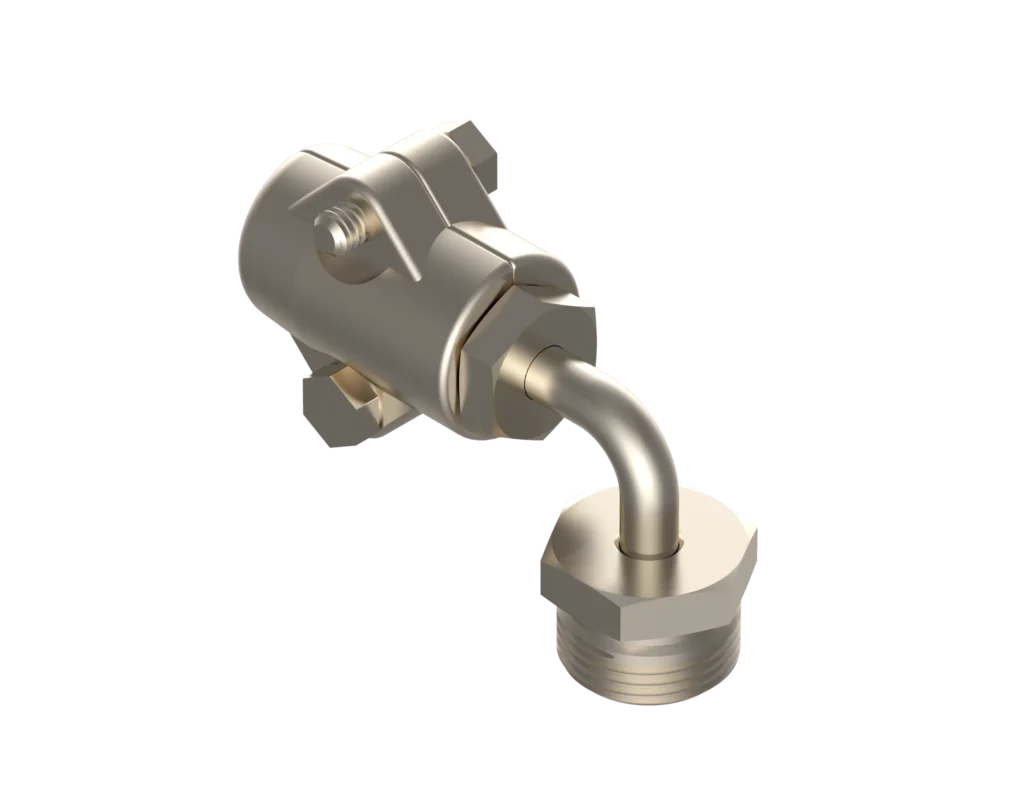

HS1489 Equivalent

P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-1616-4	1	2-5/16”-12	4.67	2.38	2.85	.75	2.92	.75	1.50	2.42	1.62	4.02	5.00
FC7182-1620-4	1	2-5/16”-12	5.50	2.38	3.40	.81	3.17	.75	1.75	2.80	2.00	4.31	6.50
FC7182-2020-4	1.25	2-3/4”-12	5.50	2.88	3.40	1.03	3.17	.75	1.75	2.80	2.00	4.31	10.00
FC7182-2424-4	1.50	3-1/16”-12	5.96	3.12	3.66	1.28	3.55	.88	2.00	3.01	2.25	4.69	12.00
FC7182-2432-4	1.50	3-1/16”-12	7.60	3.12	4.52	1.39	4.05	.88	2.50	3.88	2.75	5.65	13.30
FC7182-3232-4	2	3-3/4”-12	7.60	3.88	4.52	1.75	4.05	.88	2.50	3.88	2.75	5.65	15.00

Description	Req’d per Ass’y	Base No.	1616	1620	2020	2424	2432	3232	Mat’l
Elbow	1	FC6182-	1616-4	1620-4	2020-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	2	FF9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	09-36-4	Monel

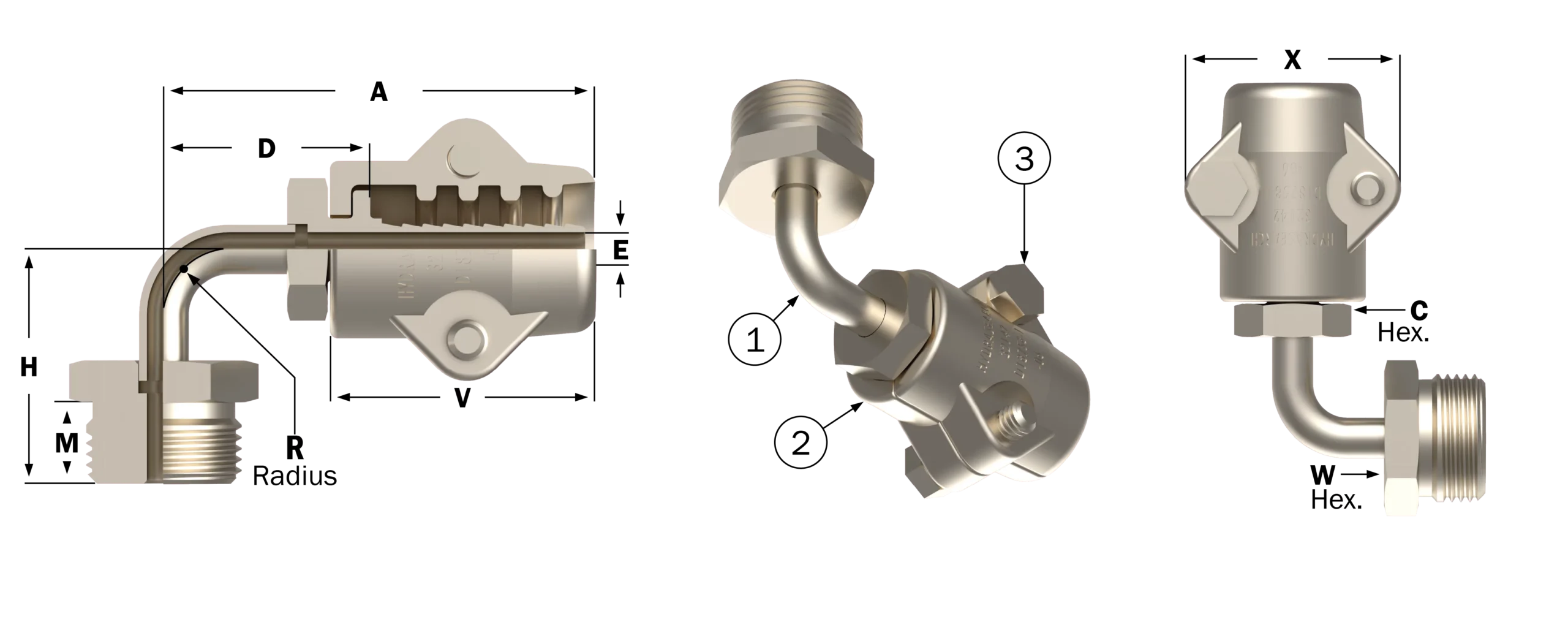

Equals to P/N FC7182-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/3

Use with the following hose: HS133

Type CL, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-0406	C18896	1/4	1-3/16”-12	3.20	1.25	1.48	.26	1.69	.62	.50	2.02	.94	2.00	1.50
90EF-1489CL-0408	C18897	1/4	1-3/16”-12	3.47	1.25	1.65	.39	1.68	.62	.75	2.08	1.00	2.40	2.00
90EF-1489CL-0608	c18898	3/8	1-3/8”-12	3.47	1.44	1.65	.39	1.91	.62	.75	2.08	1.00	2.40	2.30
90EF-1489CL-0812	C18899	1/2	1-3/4”-12	4.48	1.81	1.82	.61	2.31	.62	1.25	2.43	1.38	2.93	2.60

Description	Req’d per Ass’y	0406	0408	0608	0812	Mat’l
Elbow	1	C19443	C19444	C19445	C19446	Monel
Segment	2	D18758-1	C18640-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18645	B8745	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-0406-4	1/4	1-3/16”-12	3.20	.94	1.58	.24	1.43	.62	.50	2.00	1.25	2.34	1.50
FC7182-0812-4	1/2	1-3/4”-12	4.51	1.31	2.61	.56	2.31	.62	1.25	2.42	1.81	3.27	2.60

Description	Req’d per Ass’y	Base No.	0406	0812	Mat’l
Elbow	1	FC6182-	0406-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

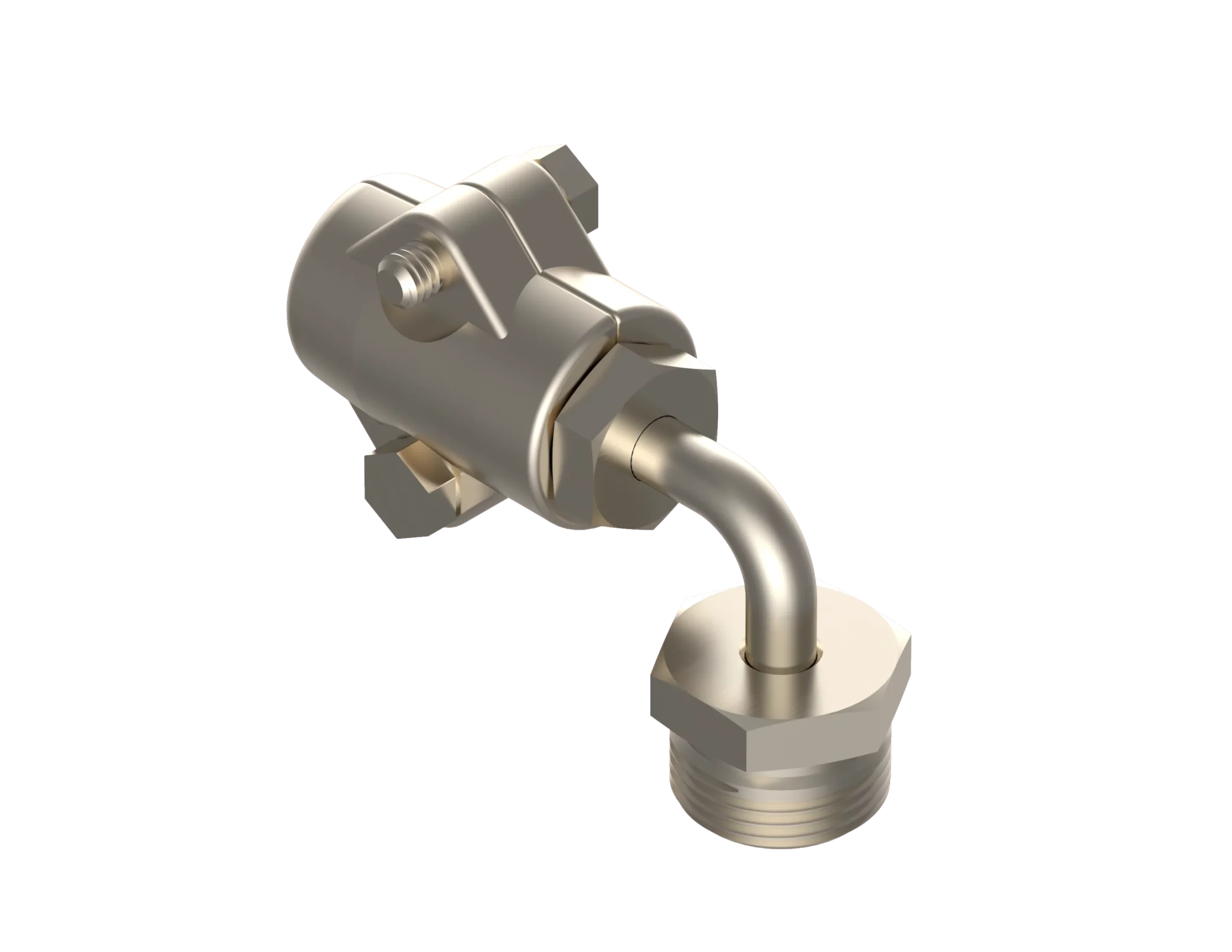

HS1489

Equal to Aeroquip P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose: HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
90EF-1489CL-0406	C18896	1/4	1-3/16”-12	3.20	1.25	1.48	.26	1.69	.62	.50	2.02	.94	2.00	1.50
90EF-1489CL-0408	C18897	1/4	1-3/16”-12	3.47	1.25	1.65	.39	1.68	.62	.75	2.08	1.00	2.40	2.00
90EF-1489CL-0608	c18898	3/8	1-3/8”-12	3.47	1.44	1.65	.39	1.91	.62	.75	2.08	1.00	2.40	2.30
90EF-1489CL-0812	C18899	1/2	1-3/4”-12	4.48	1.81	1.82	.61	2.31	.62	1.25	2.43	1.38	2.93	2.60

Description	Req’d per Ass’y	0406	0408	0608	0812	Mat’l
Elbow	1	C19443	C19444	C19445	C19446	Monel
Segment	2	D18758-1	C18640-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18645	B8745	Monel

plug

HS1489 Equivalent

P/N FC7182-4

Male “O” Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	Thread CL-3A	A	C	D	E	H	M	R	V	W	X	Est. Wt. (lbs.)
FC7182-0406-4	1/4	1-3/16”-12	3.20	.94	1.58	.24	1.43	.62	.50	2.00	1.25	2.34	1.50
FC7182-0812-4	1/2	1-3/4”-12	4.51	1.31	2.61	.56	2.31	.62	1.25	2.42	1.81	3.27	2.60

Description	Req’d per Ass’y	Base No.	0406	0812	Mat’l
Elbow	1	FC6182-	0406-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	07-24-4	Monel

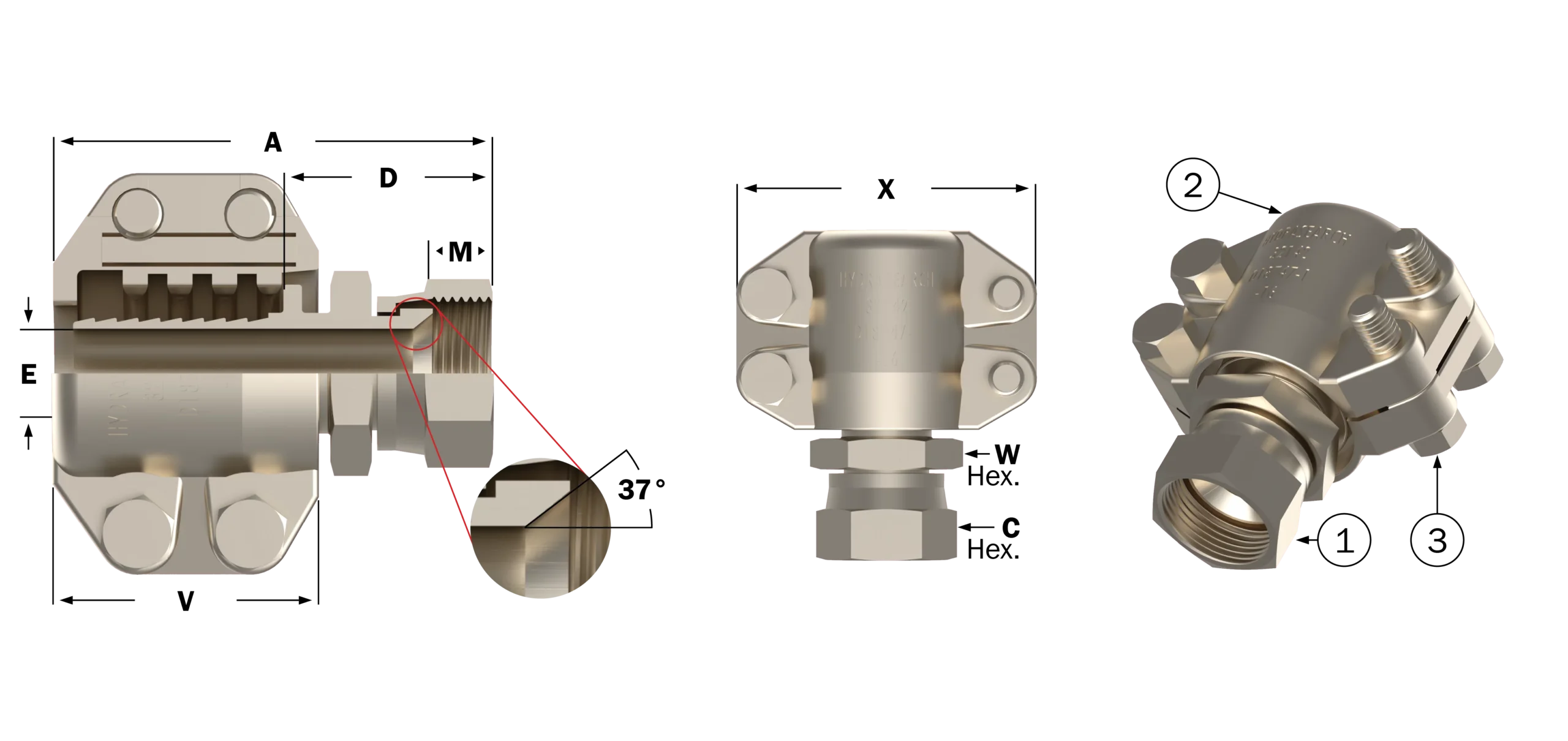

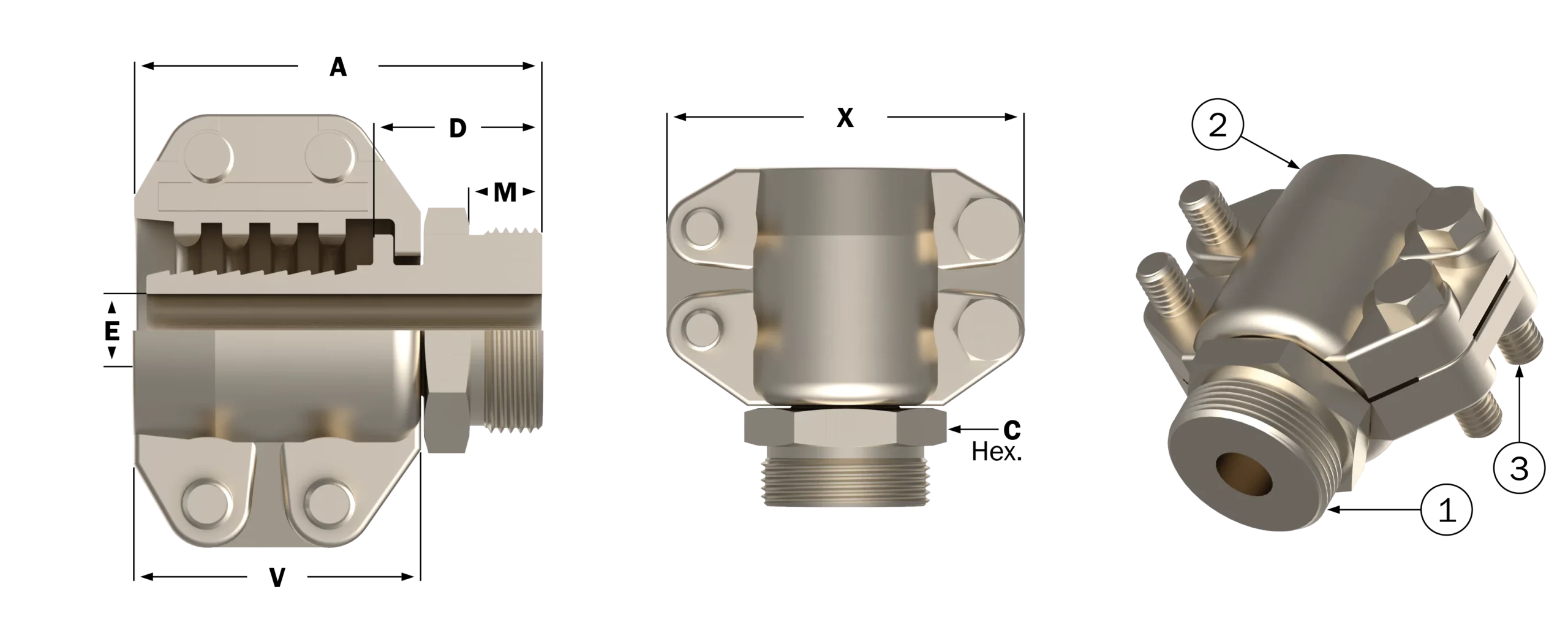

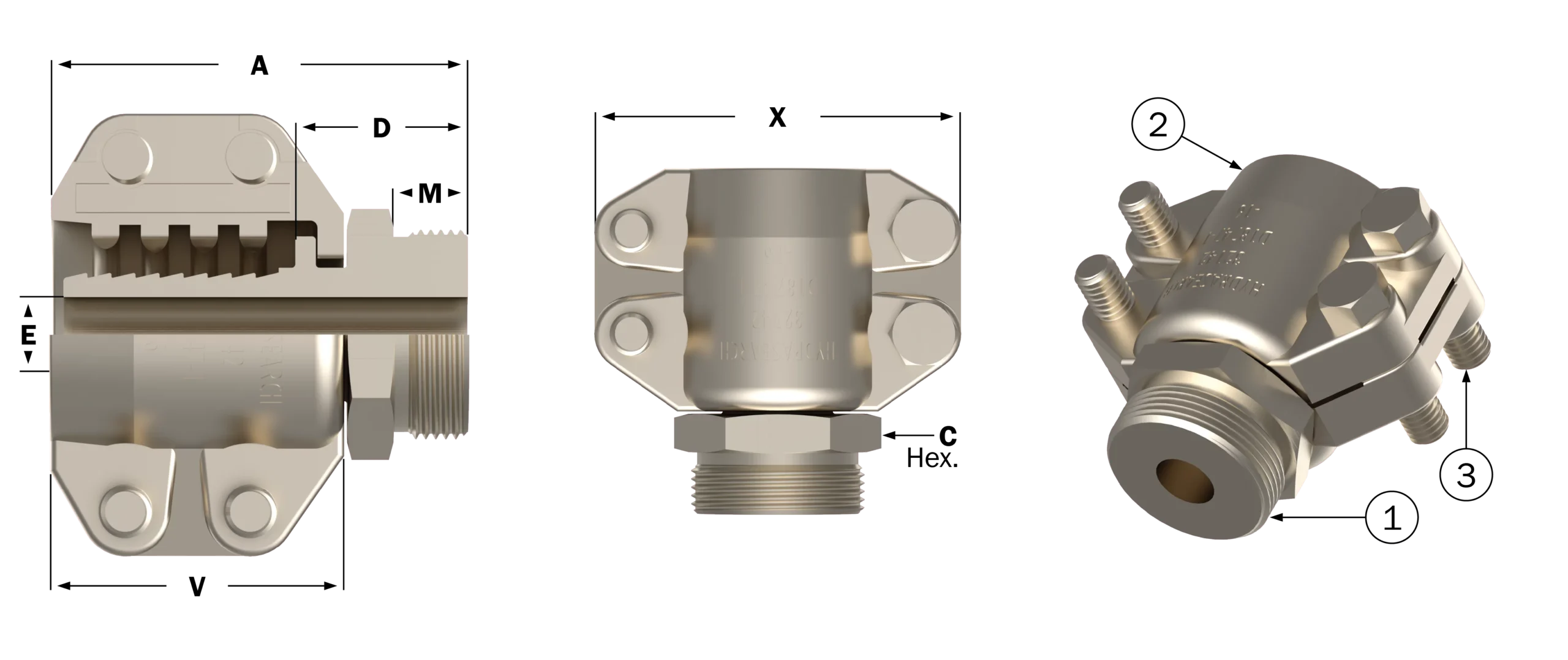

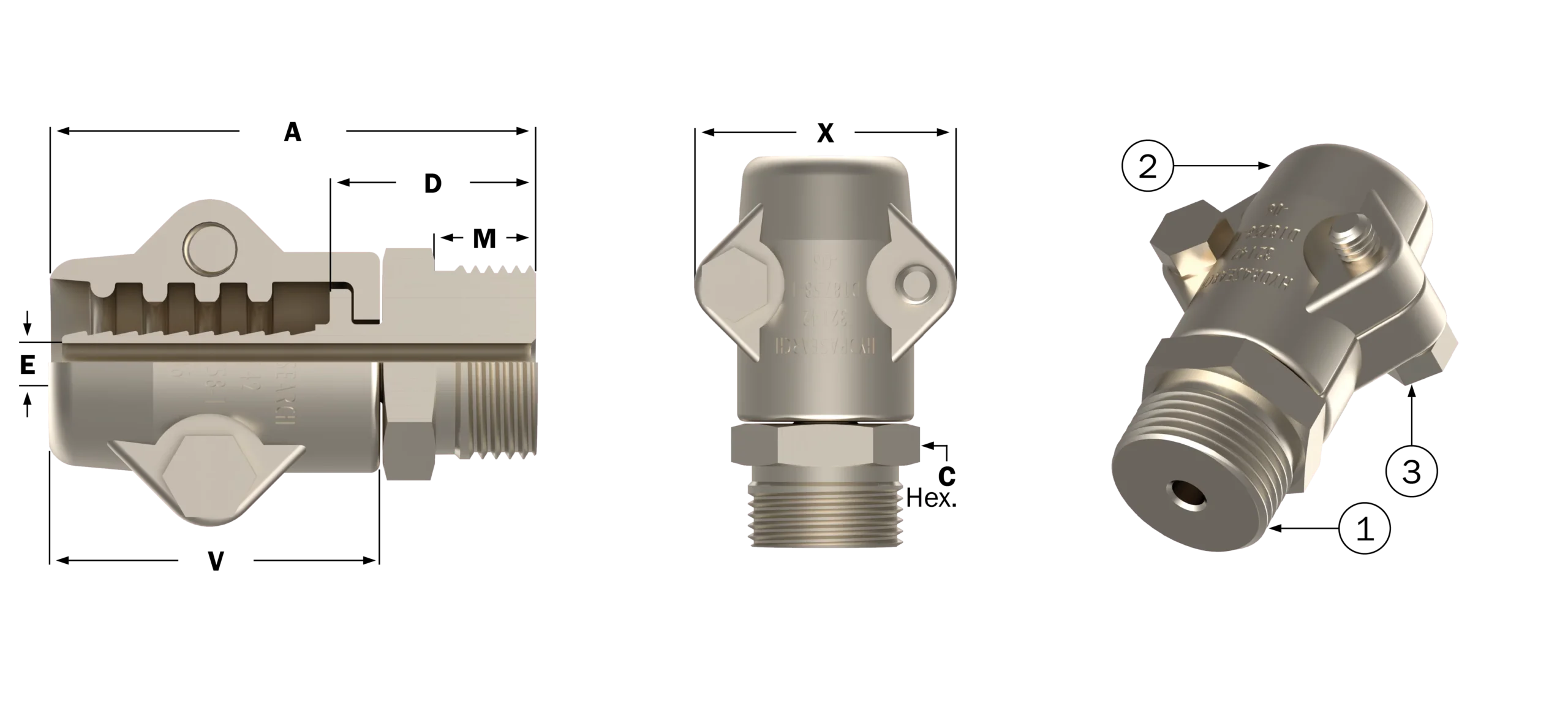

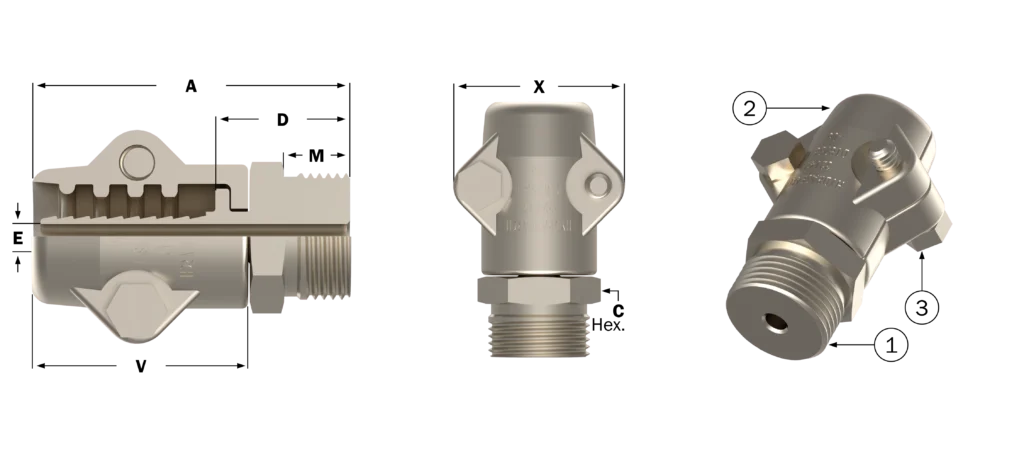

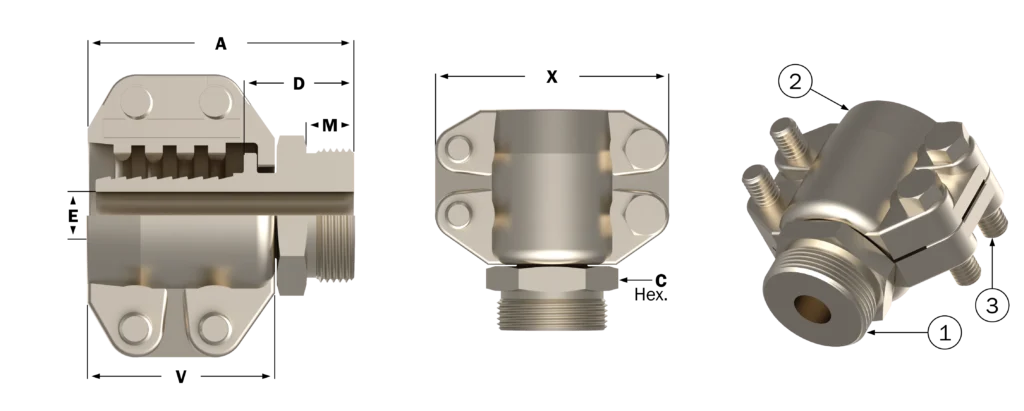

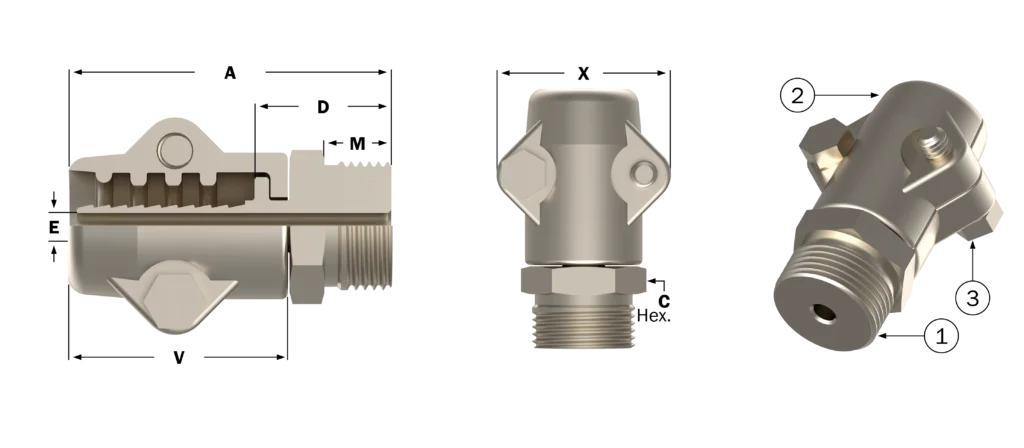

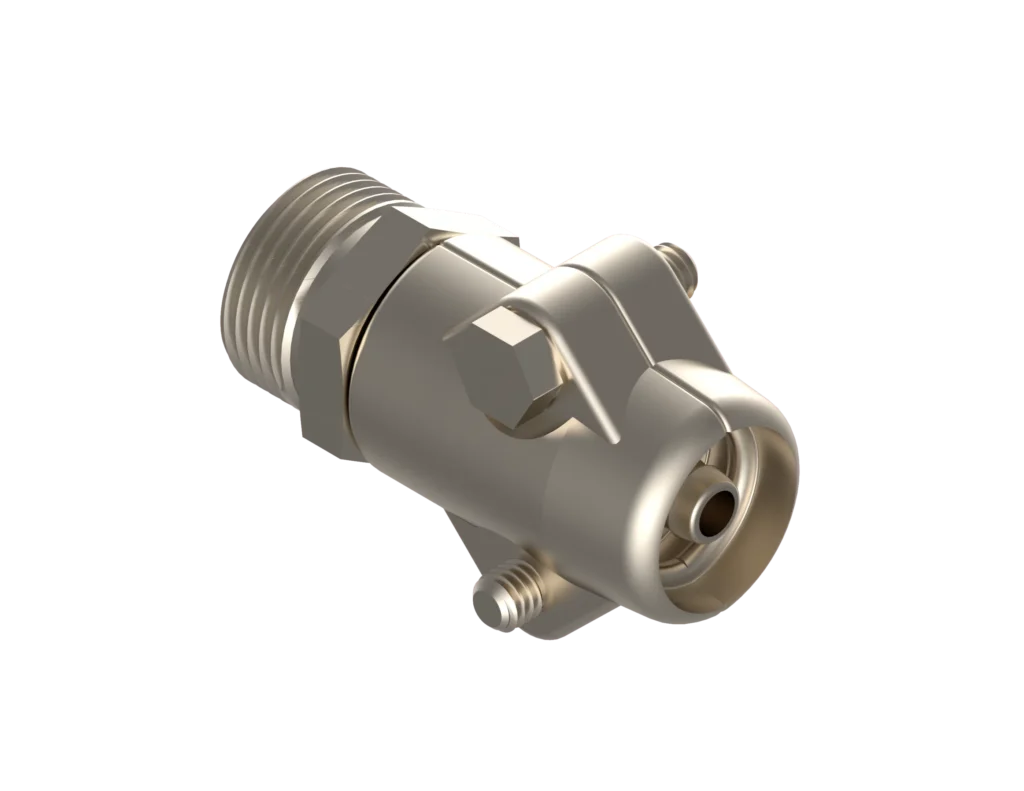

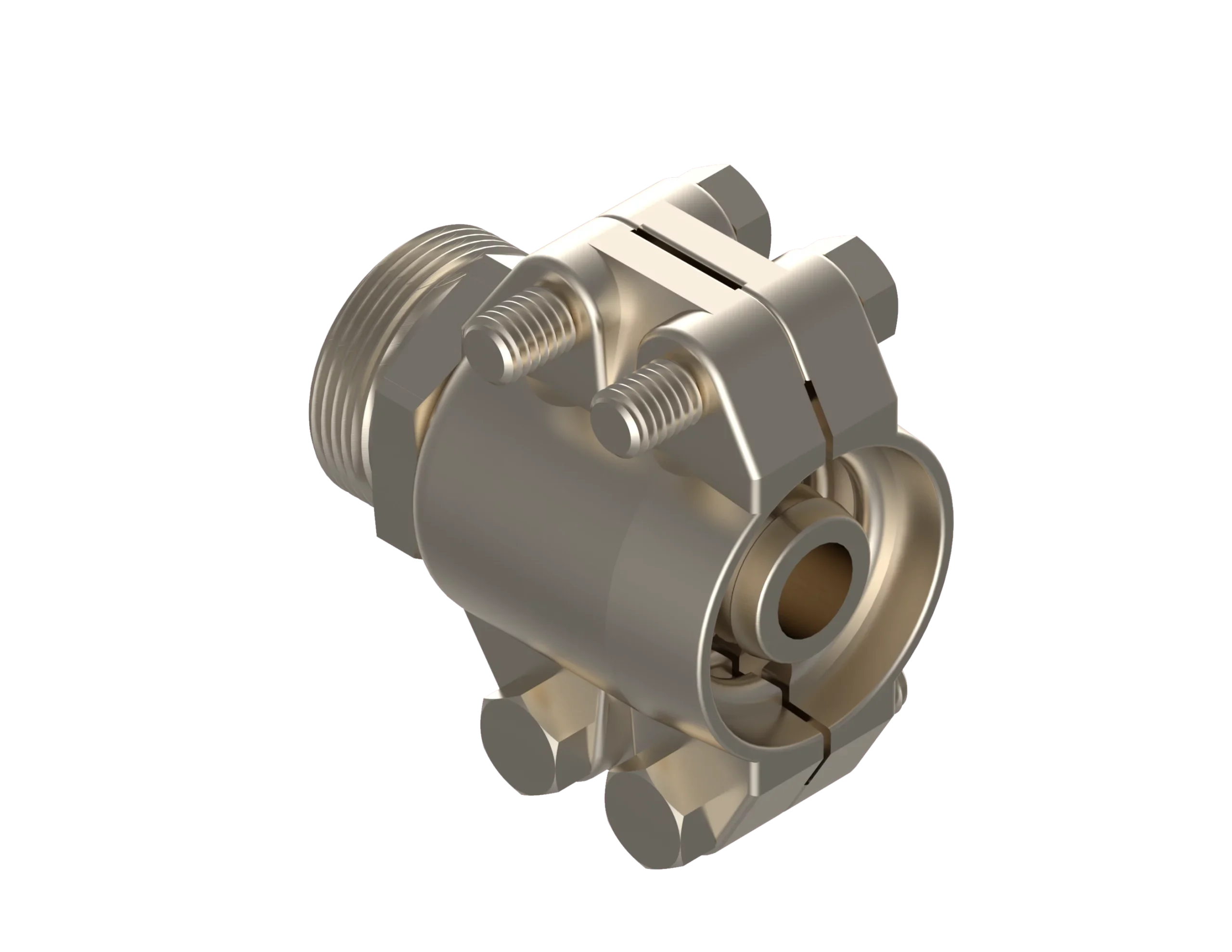

Equals to P/N FC7180-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/3

Use with the following hose:HS133

Type C, Group XI

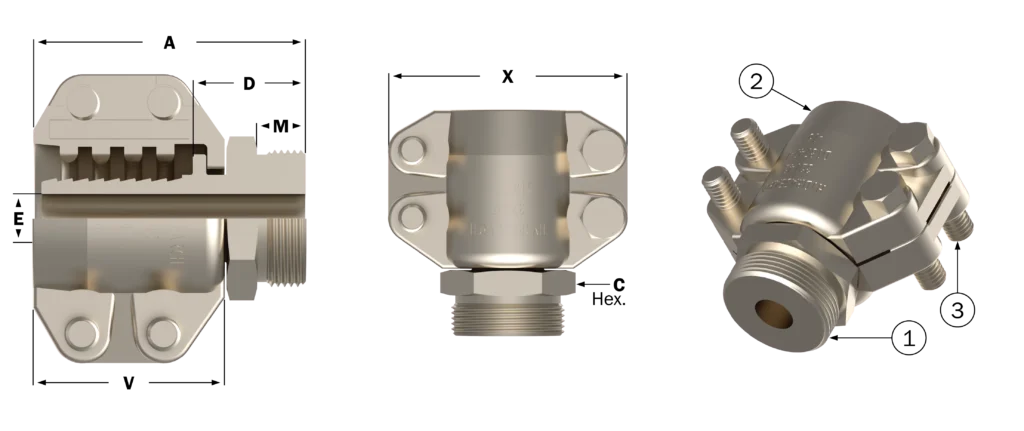

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0816	C18957	1/2	1-3/4”-12	3.49	1.81	1.44	.620	.62	2.44	3.75	3.80
EF-1489C-1216	C18847	3/4	2”-12	3.74	2.12	1.69	.620	.62	2.44	3.75	3.80
EF-1489C-1616	C18959	1	2-5/16”-12	3.85	2.38	1.80	.81	.75	2.44	3.75	4.30
EF-1489C-1620	C18960	1	2-5/16”-12	4.21	2.38	1.91	1.05	.75	2.81	4.00	5.40
EF-1489C-2016	C18961	1.25	2-3/4”-12	3.89	3.00	1.93	.81	.75	2.44	3.75	5.60
EF-1489C-2020	C18962	1.25	2-3/4”-12	4.34	3.00	2.04	1.06	.75	2.81	4.00	6.00
EF-1489C-2024	C18963	1.25	2-3/4”-12	4.41	3.00	1.88	1.31	.75	3.00	4.42	7.50
EF-1489C-2424	C18964	1.50	3-1/16”-12	4.67	3.12	2.14	1.31	.88	3.00	4.42	8.00
EF-1489C-2432	C18965	1.50	3-1/16”-12	5.36	3.12	2.06	1.39	.88	3.81	5.04	11.40
EF-1489C-3232	C18966	2	3-3/4”-12	5.36	3.88	2.06	1.75	.88	3.81	5.04	12.80

Description

Req’d per Ass’y

0816

1216

1616

1620

2016

2020

2024

2424

2432

3232

Mat’l

Nipple

1

C18877

C18847

C18848

C18849

C18878

C18850

C18851

C18852

C18853

C18854

Monel

Segment

2

D18747-1

D18747-1

D18747-1

D18748-1

D18747-1

D18748-1

D18750-1

D18750-1

D18704-1

D18704-1

Monel

Bolt

4

B18746

B18746

B18746

B18746

B18746

B18746

B18755

B18755

B18718

B18718

Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-1216-4	3/4	2”-12	3.60	2.12	1.69	.62	.62	2.42	4.02	3.80
FC7180-1616-4	1	2-5/16”-12	3.84	2.38	1.93	.81	.75	2.42	4.02	4.30
FC7180-1620-4	1	2-5/16”-12	4.20	2.38	2.11	.81	.75	2.80	4.31	5.40
FC7180-2020-4	1.25	2-3/4”-12	4.34	2.88	2.24	1.05	.75	2.80	4.31	6.00
FC7180-2024-4	1.25	2-3/4”-12	4.42	2.88	2.12	1.30	.75	3.01	4.69	7.50
FC7180-2424-4	1.50	3-1/16”-12	4.68	1.30	2.38	1.30	.88	3.01	4.69	8.00
FC7180-2432-4	1.50	3-1/16”-12	5.56	3.12	2.48	1.39	.88	3.88	5.65	11.40
FC7180-3232-4	2	3-3/4”-12	5.56	3.88	2.48	1.75	.88	3.88	5.65	12.80

Description	Req’d per Ass’y	Base No.	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Nipple	1	FC2074-	1216-4	1616-4	1620-4	2020-4	2024-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-16-4	1-20-4	1-20-4	1-24-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	4	FF9032-	07-28-4	07-28-4	07-28-4	07-28-4	08-28-4	08-24-4	09-36-4	09-36-4	Monel

HS1489

Equal to Aeroquip P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0816	C18957	1/2	1-3/4”-12	3.49	1.81	1.44	.620	.62	2.44	3.75	3.80
EF-1489C-1216	C18847	3/4	2”-12	3.74	2.12	1.69	.620	.62	2.44	3.75	3.80
EF-1489C-1616	C18959	1	2-5/16”-12	3.85	2.38	1.80	.81	.75	2.44	3.75	4.30
EF-1489C-1620	C18960	1	2-5/16”-12	4.21	2.38	1.91	1.05	.75	2.81	4.00	5.40
EF-1489C-2016	C18961	1.25	2-3/4”-12	3.89	3.00	1.93	.81	.75	2.44	3.75	5.60
EF-1489C-2020	C18962	1.25	2-3/4”-12	4.34	3.00	2.04	1.06	.75	2.81	4.00	6.00
EF-1489C-2024	C18963	1.25	2-3/4”-12	4.41	3.00	1.88	1.31	.75	3.00	4.42	7.50
EF-1489C-2424	C18964	1.50	3-1/16”-12	4.67	3.12	2.14	1.31	.88	3.00	4.42	8.00
EF-1489C-2432	C18965	1.50	3-1/16”-12	5.36	3.12	2.06	1.39	.88	3.81	5.04	11.40
EF-1489C-3232	C18966	2	3-3/4”-12	5.36	3.88	2.06	1.75	.88	3.81	5.04	12.80

Description

Req’d per Ass’y

0816

1216

1616

1620

2016

2020

2024

2424

2432

3232

Mat’l

Nipple

1

C18877

C18847

C18848

C18849

C18878

C18850

C18851

C18852

C18853

C18854

Monel

Segment

2

D18747-1

D18747-1

D18747-1

D18748-1

D18747-1

D18748-1

D18750-1

D18750-1

D18704-1

D18704-1

Monel

Bolt

4

B18746

B18746

B18746

B18746

B18746

B18746

B18755

B18755

B18718

B18718

Monel

plug

HS1489 Equivalent

P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-1216-4	3/4	2”-12	3.60	2.12	1.69	.62	.62	2.42	4.02	3.80
FC7180-1616-4	1	2-5/16”-12	3.84	2.38	1.93	.81	.75	2.42	4.02	4.30
FC7180-1620-4	1	2-5/16”-12	4.20	2.38	2.11	.81	.75	2.80	4.31	5.40
FC7180-2020-4	1.25	2-3/4”-12	4.34	2.88	2.24	1.05	.75	2.80	4.31	6.00
FC7180-2024-4	1.25	2-3/4”-12	4.42	2.88	2.12	1.30	.75	3.01	4.69	7.50
FC7180-2424-4	1.50	3-1/16”-12	4.68	1.30	2.38	1.30	.88	3.01	4.69	8.00
FC7180-2432-4	1.50	3-1/16”-12	5.56	3.12	2.48	1.39	.88	3.88	5.65	11.40
FC7180-3232-4	2	3-3/4”-12	5.56	3.88	2.48	1.75	.88	3.88	5.65	12.80

Description	Req’d per Ass’y	Base No.	1216	1616	1620	2020	2024	2424	2432	3232	Mat’l
Nipple	1	FC2074-	1216-4	1616-4	1620-4	2020-4	2024-4	2424-4	2432-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-16-4	1-20-4	1-20-4	1-24-4	1-24-4	1-32-4	1-32-4	Monel
Bolt	4	FF9032-	07-28-4	07-28-4	07-28-4	07-28-4	08-28-4	08-24-4	09-36-4	09-36-4	Monel

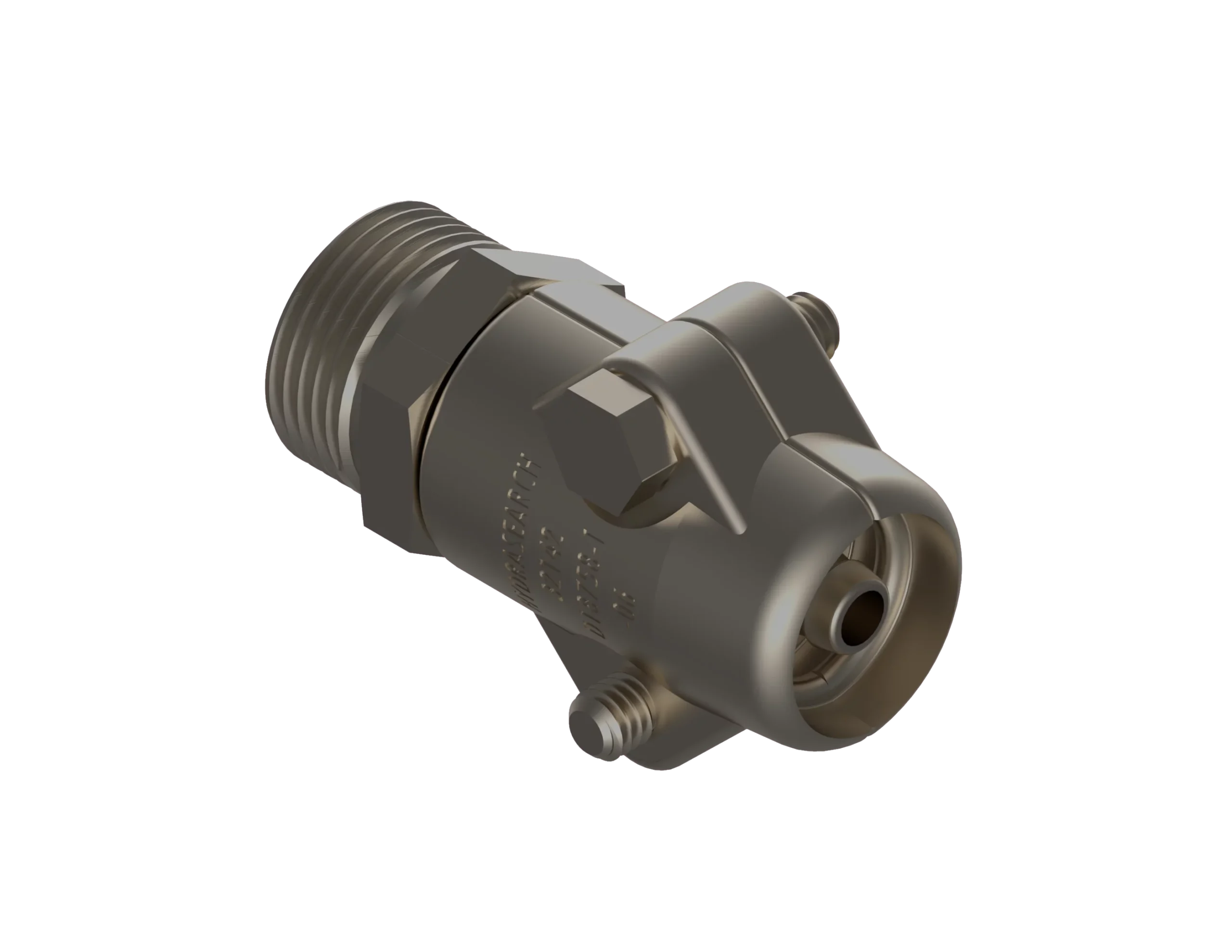

Equals to P/N FC7180-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/3

Use with the following hose:HS133

Type C, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0406	C18950	1/4	1-3/16”-12	2.99	1.25	1.26	.25	.62	2.02	2.00	1.00
EF-1489C-0408	C18951	1/4	1-3/16”-12	3.10	1.25	1.28	.31	.62	2.08	2.40	1.30
EF-1489C-0606	C18952	3/8	1-3/8”-12	2.90	1.44	1.28	.26	.62	2.00	2.34	1.30
EF-1489C-0608	C18953	3/8	1-3/8”-12	3.10	1.44	1.28	.380	.62	2.08	2.40	1.40
EF-1489C-0612	C18954	3/8	1-3/8”-12	3.48	1.44	1.58	.50	.62	2.42	3.27	1.60
EF-1489C-0808	C18955	1/2	1-3/4”-12	3.15	1.81	1.44	3.80	.62	2.08	2.40	1.70
EF-1489C-0812	C18956	1/2	1-3/4”-12	3.62	1.81	1.58	.50	.62	2.43	2.93	2.20

Description	Req’d per Ass’y	0406	0408	0606	0608	0612	0808	0812	Mat’l
Nipple	1	C18842	C18843	C18875	C18844	C18876	C18845	C18846	Monel
Segment	2	C18758-1	C18640-1	D18758-1	C18640-1	D18743-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18749	B18645	D18745	B18645	B18745	Monel

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-0406-4	1/4	1-3/16”-12	2.90	1.25	1.28	.26	.62	2.00	2.34	1.00
FC7180-0408-4	1/4	1-3/16”-12	3.02	1.25	1.30	.31	.62	2.10	2.66	1.30
FC7180-0608-4	3/8	1-3/8”-12	3.08	1.44	1.36	.39	.62	2.10	2.66	1.40
FC7180-0808-4	1/2	1-3/4”-12	3.14	1.81	1.32	.39	.62	2.10	2.66	1.70
FC7180-0812-4	1/2	1-3/4”-12	3.48	1.81	1.58	.50	.62	2.42	3.27	2.20

Description	Req’d per Ass’y	Base No.	0406	0408	0608	0808	0812	Mat’l
Nipple	1	FC2074-	0406-4	0408-4	0608-4	0808-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	Monel

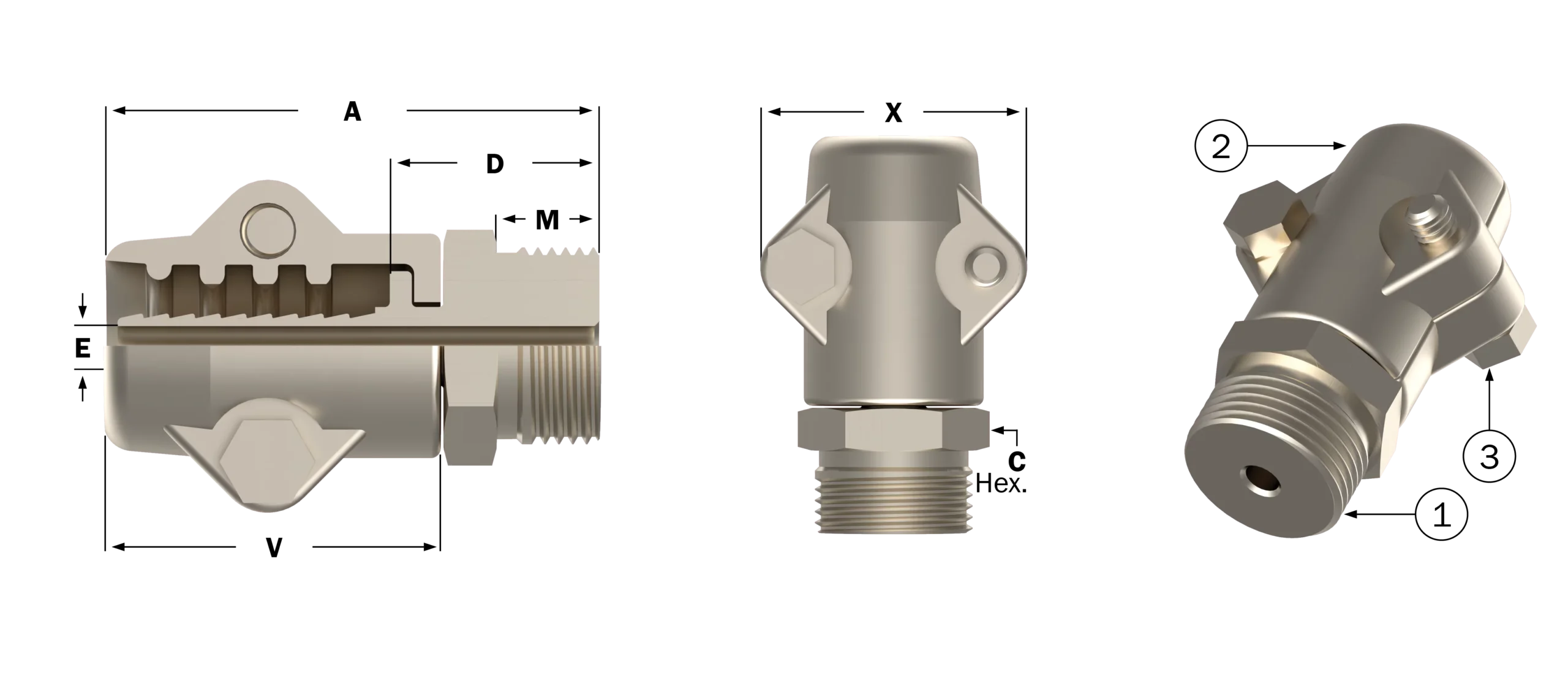

HS1489

Equal to Aeroquip P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	X	Est. Wt. (lbs.)
EF-1489C-0406	C18950	1/4	1-3/16”-12	2.99	1.25	1.26	.25	.62	2.02	2.00	1.00
EF-1489C-0408	C18951	1/4	1-3/16”-12	3.10	1.25	1.28	.31	.62	2.08	2.40	1.30
EF-1489C-0606	C18952	3/8	1-3/8”-12	2.90	1.44	1.28	.26	.62	2.00	2.34	1.30
EF-1489C-0608	C18953	3/8	1-3/8”-12	3.10	1.44	1.28	.380	.62	2.08	2.40	1.40
EF-1489C-0612	C18954	3/8	1-3/8”-12	3.48	1.44	1.58	.50	.62	2.42	3.27	1.60
EF-1489C-0808	C18955	1/2	1-3/4”-12	3.15	1.81	1.44	3.80	.62	2.08	2.40	1.70
EF-1489C-0812	C18956	1/2	1-3/4”-12	3.62	1.81	1.58	.50	.62	2.43	2.93	2.20

Description	Req’d per Ass’y	0406	0408	0606	0608	0612	0808	0812	Mat’l
Nipple	1	C18842	C18843	C18875	C18844	C18876	C18845	C18846	Monel
Segment	2	C18758-1	C18640-1	D18758-1	C18640-1	D18743-1	C18640-1	D18743-1	Monel
Bolt	2	B18759	B18645	B18749	B18645	D18745	B18645	B18745	Monel

plug

HS1489 Equivalent

P/N FC7180-4

Male “O” Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group XI

For use with the following hose: HS133

plug

Part Number	IPS Size	Thread CL-3A	A	C	D	E	M	V	X	Est. Wt. (lbs.)
FC7180-0406-4	1/4	1-3/16”-12	2.90	1.25	1.28	.26	.62	2.00	2.34	1.00
FC7180-0408-4	1/4	1-3/16”-12	3.02	1.25	1.30	.31	.62	2.10	2.66	1.30
FC7180-0608-4	3/8	1-3/8”-12	3.08	1.44	1.36	.39	.62	2.10	2.66	1.40
FC7180-0808-4	1/2	1-3/4”-12	3.14	1.81	1.32	.39	.62	2.10	2.66	1.70
FC7180-0812-4	1/2	1-3/4”-12	3.48	1.81	1.58	.50	.62	2.42	3.27	2.20

Description	Req’d per Ass’y	Base No.	0406	0408	0608	0808	0812	Mat’l
Nipple	1	FC2074-	0406-4	0408-4	0608-4	0808-4	0812-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	Monel

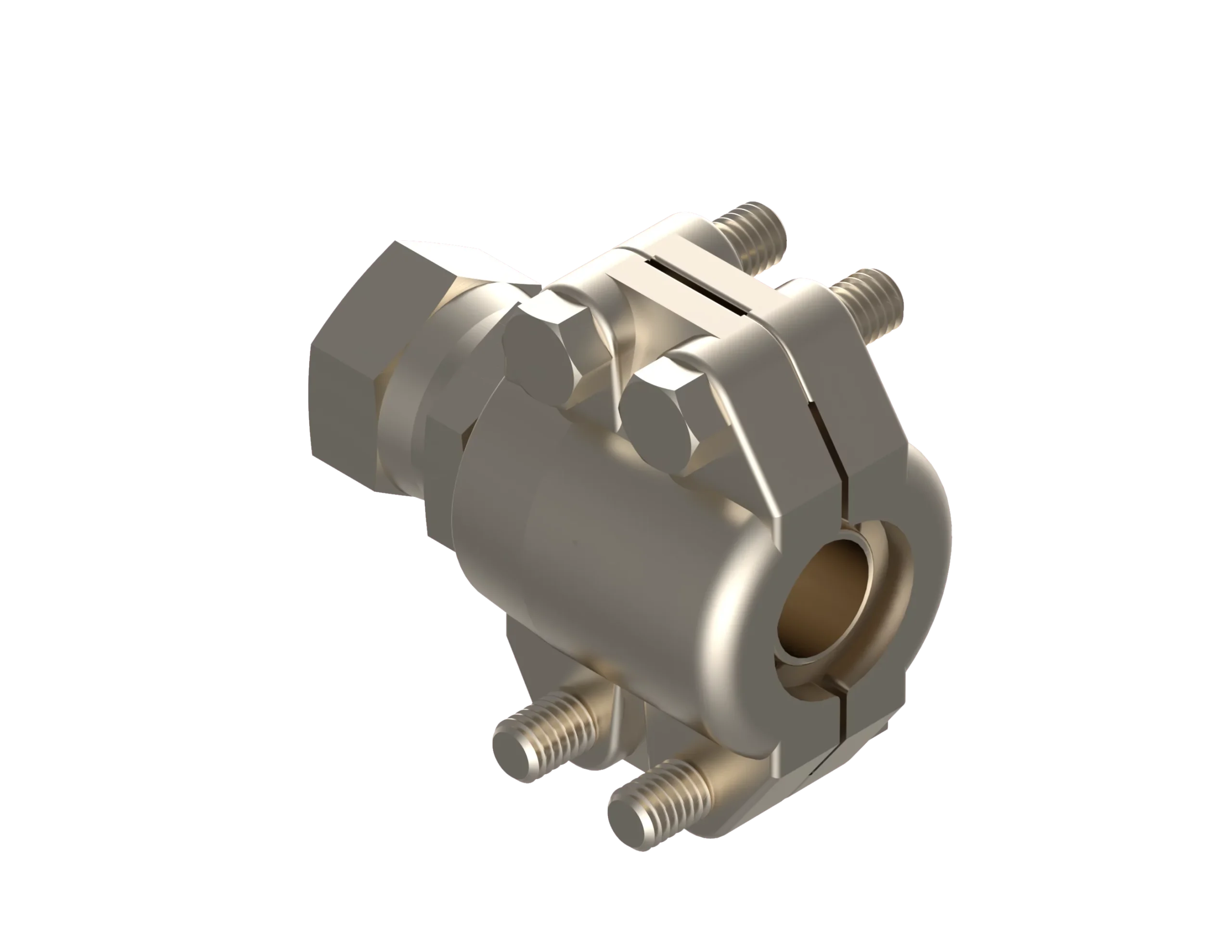

Equals to P/N FC7100-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/2

Use with the following hose:HS133

Type A, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-1616	C18938	1	1-5/16”-12	3.97	1.50	1.92	.82	.55	2.44	1.63	3.75	2.00
EF-1489A-2016	C18939	1	1-5/8”-12	4.02	2.00	1.97	.82	.54	2.44	1.62	3.75	2.50
EF-1489A-2020	C18940	1.25	1-5/8”-12	4.62	2.00	2.29	1.05	.54	2.81	2.00	4.00	2.80
EF-1489A-2420	C18941	1.25	1-7/8”-12	5.00	2.25	2.67	1.05	.67	2.81	2.25	4.00	3.30
EF-1489A-2424	C18942	1.50	1-7/8”-12	5.19	2.25	2.69	1.30	.67	3.00	2.25	4.42	4.50
EF-1489A-3232	C18943	2	2-1/2”-12	6.19	3.00	2.89	1.75	.86	3.81	3.00	5.04	6.30

Description	Req’d per Ass’y	1616	2016	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	C18890	C18891	C18892	C18893	C18894	C18895	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D18750-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18718	Monel

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-1616-4	1	1-5/16”-12	4.05	1.50	2.14	.82	.60	2.42	1.62	4.02	2.00
FC7100-2020-4	1.25	1-5/8”-12	4.62	2.00	2.53	1.05	.64	2.80	2.00	4.31	2.80
FC7100-2420-4	1.25	1-7/8”-12	4.89	2.25	2.80	1.05	.74	2.80	2.25	4.31	3.30
FC7100-2424-4	1.50	1-7/8”-12	5.10	2.25	2.60	1.30	.74	3.01	2.25	4.69	4.50
FC7100-3232-4	2	2-1/2”-12	6.37	2.88	3.29	1.75	.93	3.88	2.88	5.65	6.30

Description	Req’d per Ass’y	Base No.	1616	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	FC6100-	1616-4	2020-4	2420-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	Monel
Bolt	4	FC9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	Monel

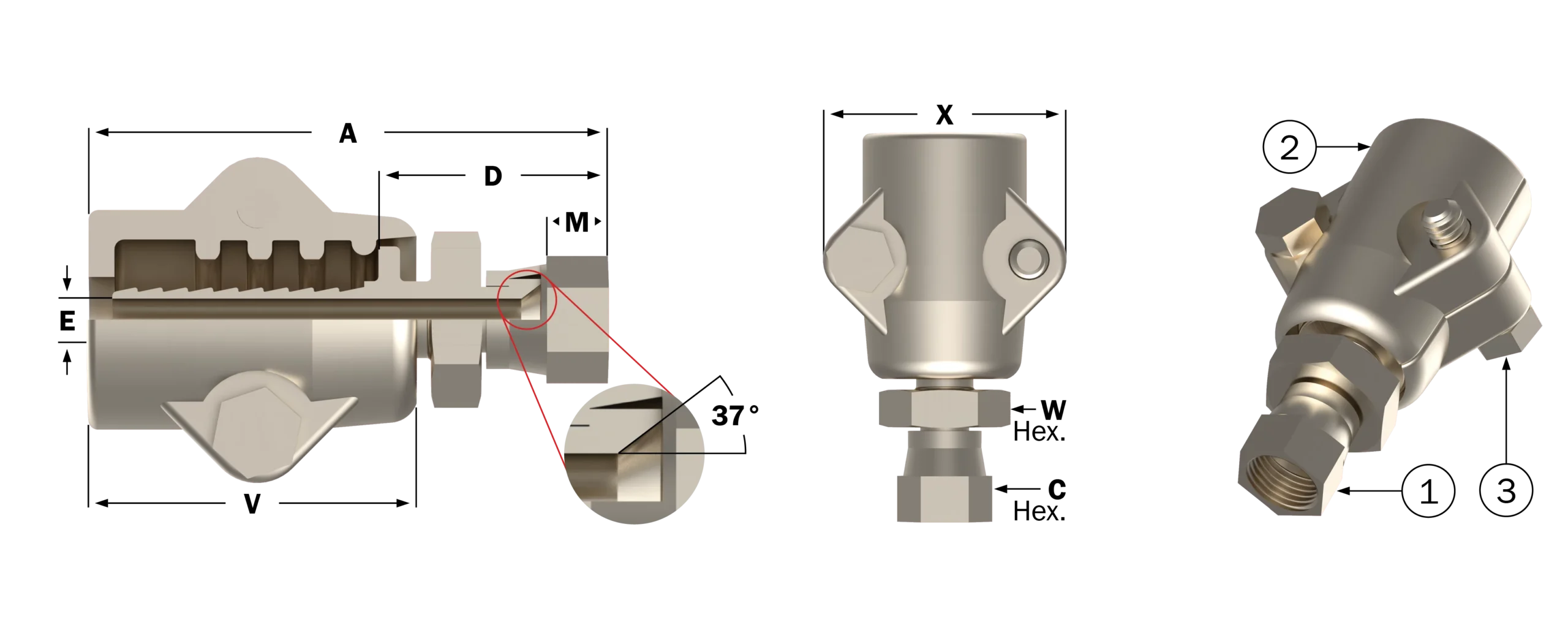

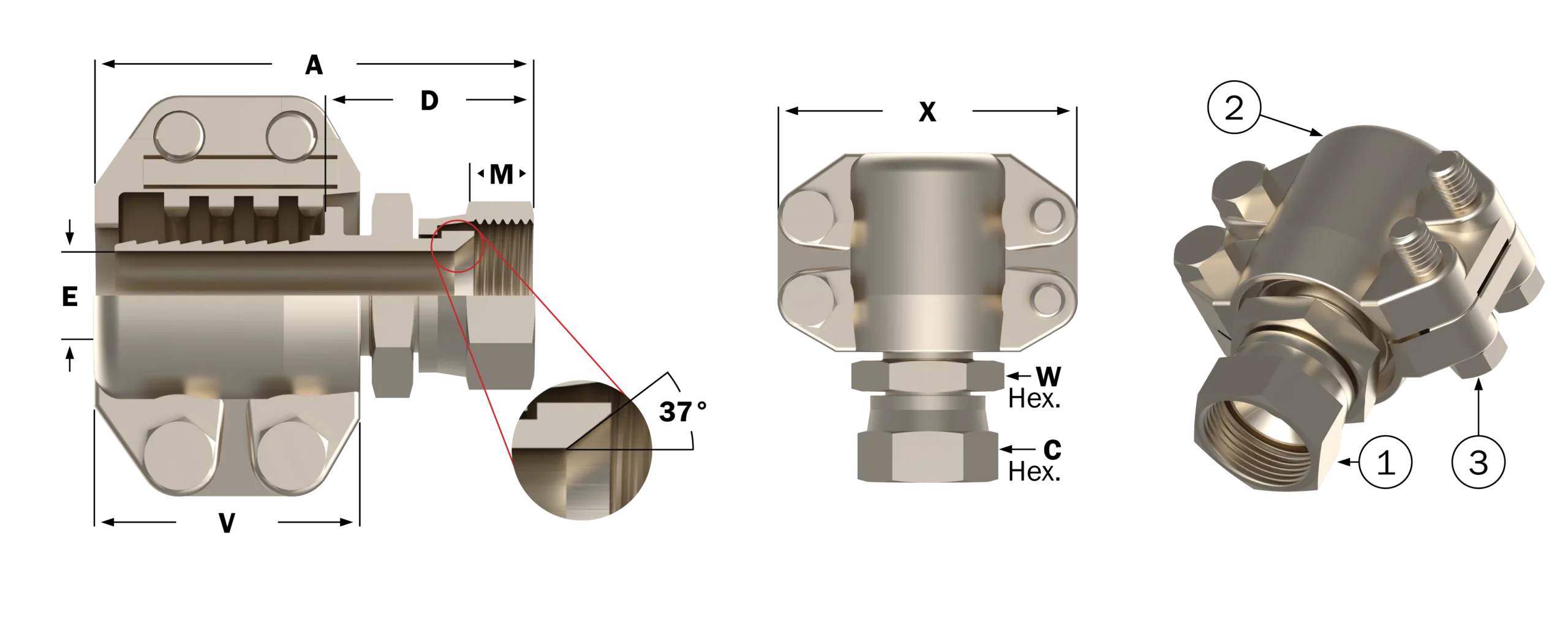

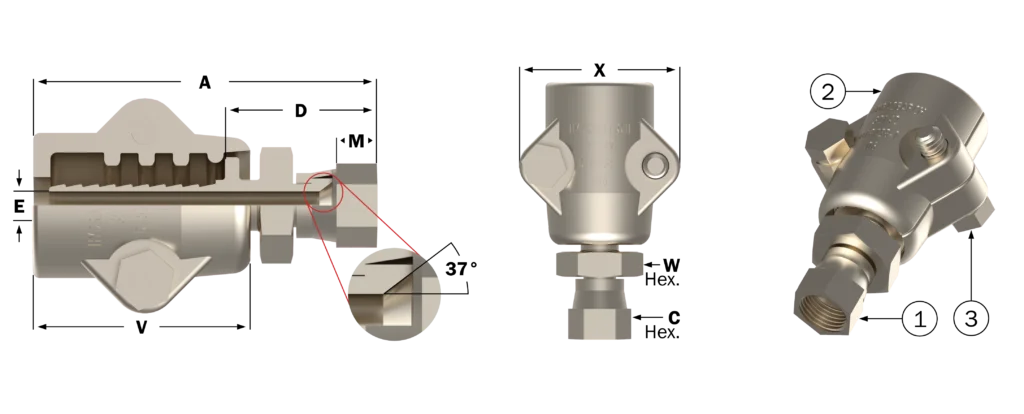

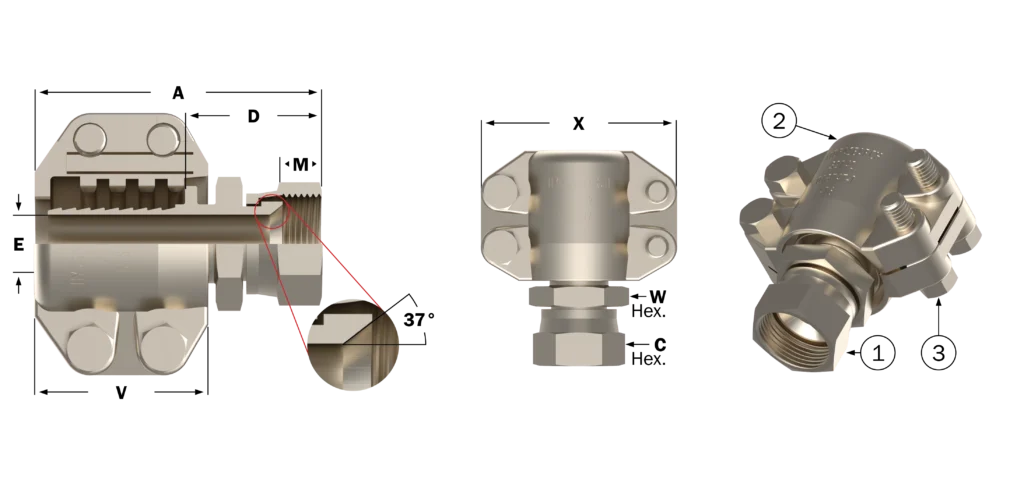

HS1489

Equal to Aeroquip P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-1616	C18938	1	1-5/16”-12	3.97	1.50	1.92	.82	.55	2.44	1.63	3.75	2.00
EF-1489A-2016	C18939	1	1-5/8”-12	4.02	2.00	1.97	.82	.54	2.44	1.62	3.75	2.50
EF-1489A-2020	C18940	1.25	1-5/8”-12	4.62	2.00	2.29	1.05	.54	2.81	2.00	4.00	2.80
EF-1489A-2420	C18941	1.25	1-7/8”-12	5.00	2.25	2.67	1.05	.67	2.81	2.25	4.00	3.30
EF-1489A-2424	C18942	1.50	1-7/8”-12	5.19	2.25	2.69	1.30	.67	3.00	2.25	4.42	4.50
EF-1489A-3232	C18943	2	2-1/2”-12	6.19	3.00	2.89	1.75	.86	3.81	3.00	5.04	6.30

Description	Req’d per Ass’y	1616	2016	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	C18890	C18891	C18892	C18893	C18894	C18895	Monel
Segment	2	D18747-1	D18747-1	D18748-1	D18748-1	D18750-1	D18704-1	Monel
Bolt	4	B18746	B18746	B18746	B18746	B18755	B18718	Monel

plug

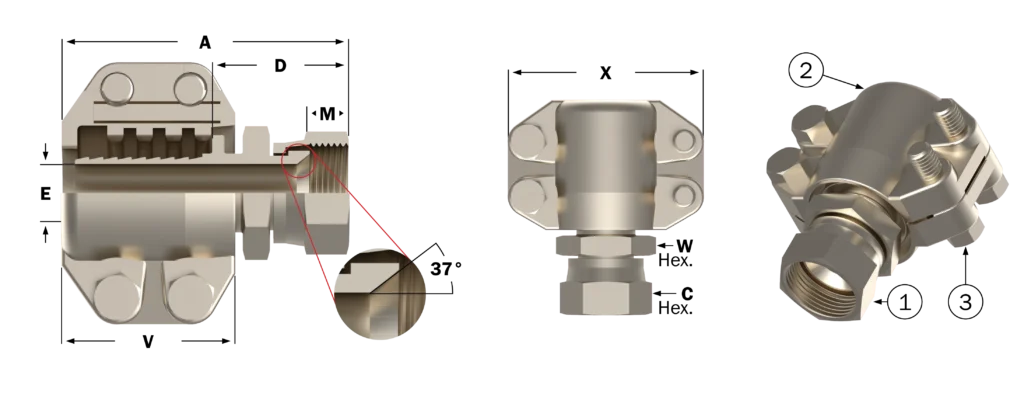

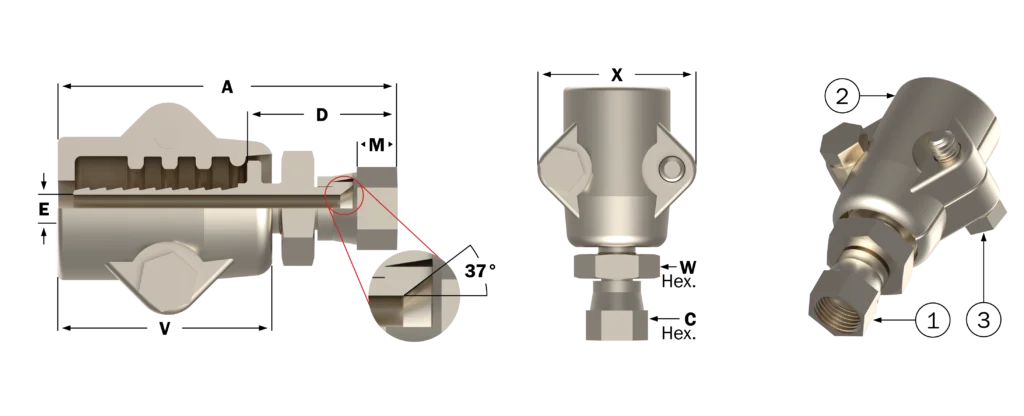

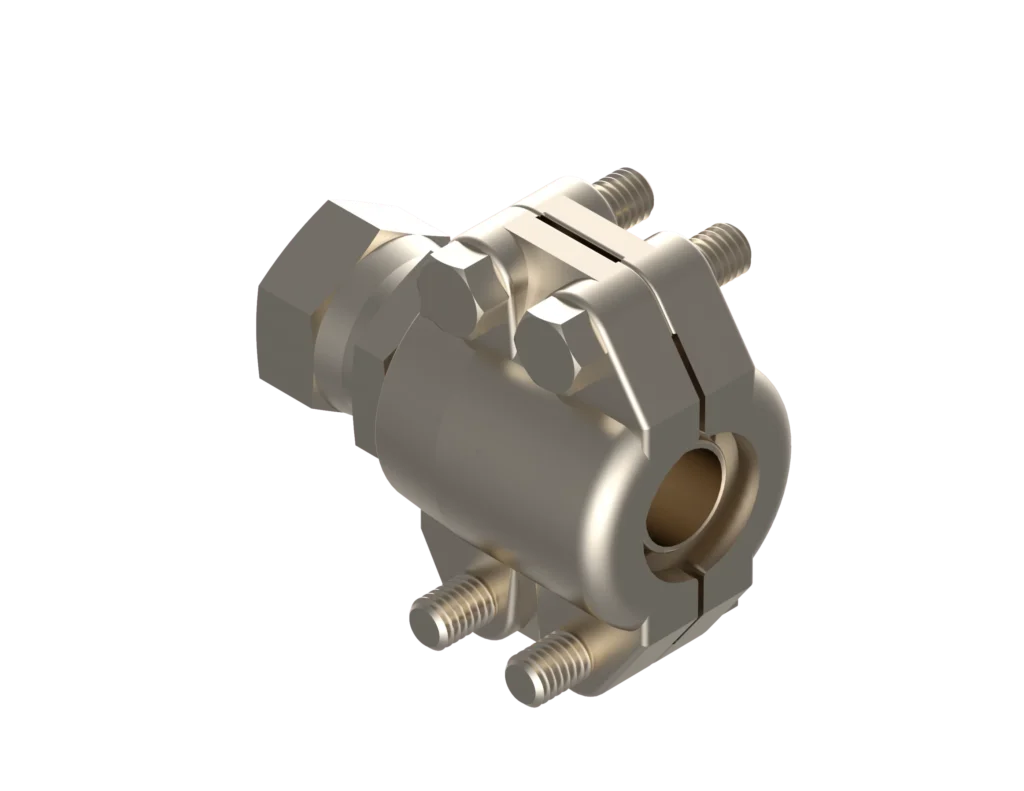

HS1489 Equivalent

P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-1616-4	1	1-5/16”-12	4.05	1.50	2.14	.82	.60	2.42	1.62	4.02	2.00
FC7100-2020-4	1.25	1-5/8”-12	4.62	2.00	2.53	1.05	.64	2.80	2.00	4.31	2.80
FC7100-2420-4	1.25	1-7/8”-12	4.89	2.25	2.80	1.05	.74	2.80	2.25	4.31	3.30
FC7100-2424-4	1.50	1-7/8”-12	5.10	2.25	2.60	1.30	.74	3.01	2.25	4.69	4.50
FC7100-3232-4	2	2-1/2”-12	6.37	2.88	3.29	1.75	.93	3.88	2.88	5.65	6.30

Description	Req’d per Ass’y	Base No.	1616	2020	2420	2424	3232	Mat’l
Nipple Ass'y	1	FC6100-	1616-4	2020-4	2420-4	2424-4	3232-4	Monel
Segment	2	FC2057-	1-16-4	1-20-4	1-20-4	1-24-4	1-32-4	Monel
Bolt	4	FC9032-	07-28-4	07-28-4	07-28-4	08-28-4	09-36-4	Monel

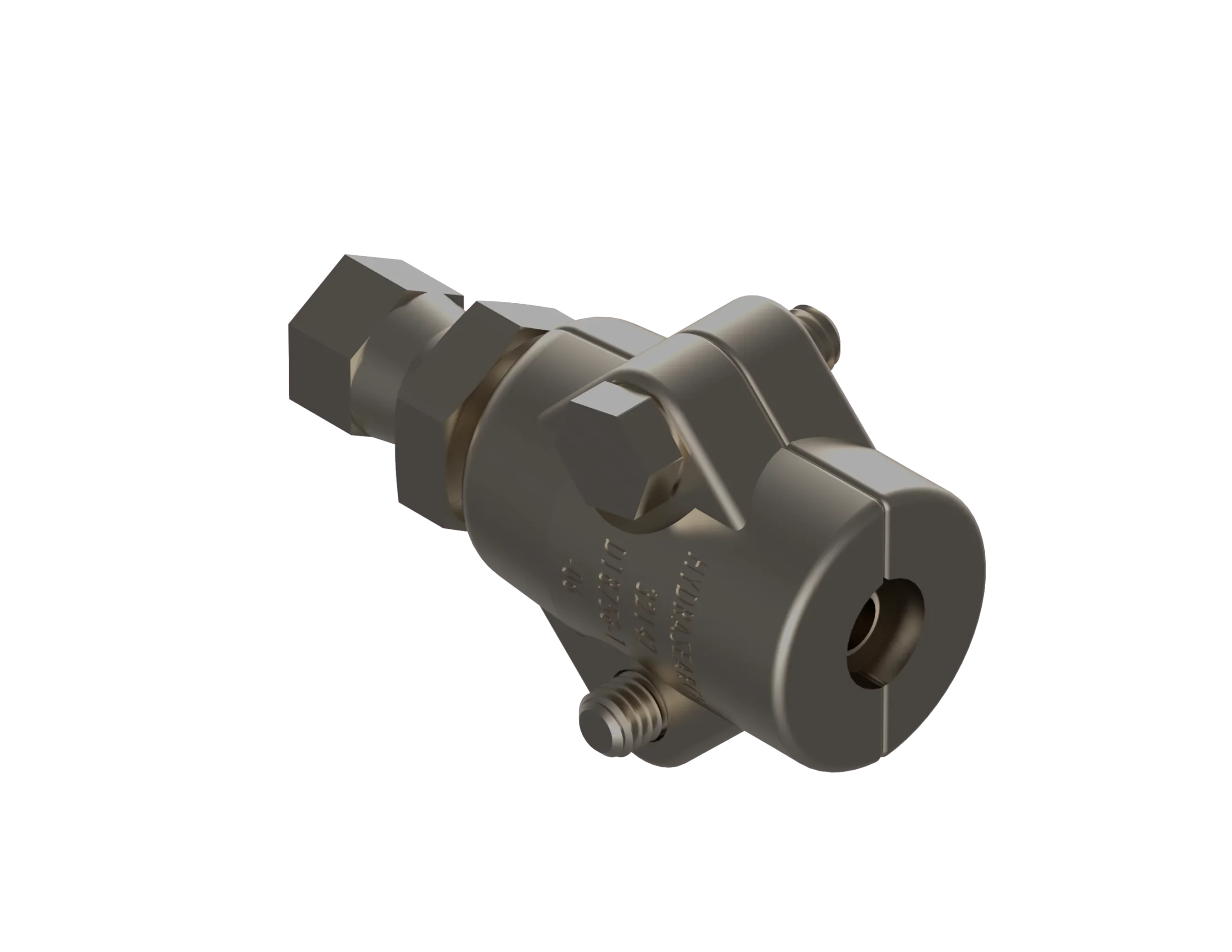

Equals to P/N FC7100-4

Defense - Marine Hose & Fitting - Fittings - HS1489 - High Pressure

MIL-DTL-24787/2

Use with the following hose:HS133

Type A, Group XI

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-0606	C18930	3/8	9/16”-18	3.06	.69	1.33	.26	.33	2.02	.94	2.00	.80
EF-1489A-0808	C18932	1/2	3/4”-16	3.34	.88	1.52	.39	.40	2.08	1.00	2.40	1.10
EF-1489A-1008	C18933	1/2	7/8”-14	3.41	1.00	1.58	.39	.50	2.08	1.00	2.40	1.20
EF-1489A-1208	C18934	1/2	1-1/16”-12	3.56	1.25	1.74	.39	.47	2.08	1.25	2.40	1.50
EF-1489A-1212	C18935	3/4	1-1/16”-12	3.86	1.25	1.81	.61	.47	2.43	1.25	2.93	1.70
EF-1489A-1412	C18936	3/4	1-3/16”-12	3.85	1.50	1.95	.61	.57	2.42	1.25	3.27	1.80
EF-1489A-1612	C18937	3/4	1-5/16”-12	3.97	1.50	1.93	.61	.55	2.43	1.63	2.93	1.90

Description	Req’d per Ass’y	0606	0806	0808	1008	1208	1212	1412	1612	Mat’l
Nipple Ass'y	1	C18882	C18883	C18884	C18885	C18886	C18887	C18888	C18889	Monel
Segment	2	D18758-1	D18758-1	D18640-1	D18640-1	D18640-1	D18743-1	D18743-1	D18743-1	Monel
Bolt	2	B18759	B18759	B18645	B18645	B18645	B18745	B18745	B18745	Monel

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-0606-4	3/8	9/16”-18	3.10	.69	1.48	.26	.40	2.00	.94	2.34	.80
FC7100-0808-4	1/2	3/4”-16	3.31	.88	1.59	.39	.44	2.10	1.00	2.66	1.10
FC7100-1008-4	1/2	7/8”-14	3.42	1.00	1.70	.39	.52	2.10	1.00	2.66	1.20
FC7100-1208-4	1/2	1-1/16”-12	3.52	1.25	1.80	.39	.57	2.10	1.25	2.66	1.50
FC7100-1212-4	3/4	1-1/16”-12	3.85	1.25	1.95	.61	.57	2.42	1.31	3.27	1.70
FC7100-1612-4	3/4	1-1/16”-12	4.05	1.50	2.15	.61	.60	2.42	1.62	3.27	1.90

Description	Req’d per Ass’y	Base No.	0606	0808	1008	1208	1212	1612	Mat’l
Nipple Ass'y	1	FC6100-	0606-4	0808-4	1008-4	1208-4	1212-4	1612-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	07-24-4	Monel

HS1489

Equal to Aeroquip P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

plug

plug

Part Number	Drawing Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
EF-1489A-0606	C18930	3/8	9/16”-18	3.06	.69	1.33	.26	.33	2.02	.94	2.00	.80
EF-1489A-0808	C18932	1/2	3/4”-16	3.34	.88	1.52	.39	.40	2.08	1.00	2.40	1.10
EF-1489A-1008	C18933	1/2	7/8”-14	3.41	1.00	1.58	.39	.50	2.08	1.00	2.40	1.20
EF-1489A-1208	C18934	1/2	1-1/16”-12	3.56	1.25	1.74	.39	.47	2.08	1.25	2.40	1.50
EF-1489A-1212	C18935	3/4	1-1/16”-12	3.86	1.25	1.81	.61	.47	2.43	1.25	2.93	1.70
EF-1489A-1412	C18936	3/4	1-3/16”-12	3.85	1.50	1.95	.61	.57	2.42	1.25	3.27	1.80
EF-1489A-1612	C18937	3/4	1-5/16”-12	3.97	1.50	1.93	.61	.55	2.43	1.63	2.93	1.90

Description	Req’d per Ass’y	0606	0806	0808	1008	1208	1212	1412	1612	Mat’l
Nipple Ass'y	1	C18882	C18883	C18884	C18885	C18886	C18887	C18888	C18889	Monel
Segment	2	D18758-1	D18758-1	D18640-1	D18640-1	D18640-1	D18743-1	D18743-1	D18743-1	Monel
Bolt	2	B18759	B18759	B18645	B18645	B18645	B18745	B18745	B18745	Monel

plug

HS1489 Equivalent

P/N FC7100-4

S.A.E. 37° Flare Swivel to Hose

J.I.C. End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group XI

For use with the following hose:HS133

plug

Part Number	IPS Size	Thread CL-2B	A	C	D	E	M	V	W	X	Est. Wt. (lbs.)
FC7100-0606-4	3/8	9/16”-18	3.10	.69	1.48	.26	.40	2.00	.94	2.34	.80
FC7100-0808-4	1/2	3/4”-16	3.31	.88	1.59	.39	.44	2.10	1.00	2.66	1.10
FC7100-1008-4	1/2	7/8”-14	3.42	1.00	1.70	.39	.52	2.10	1.00	2.66	1.20
FC7100-1208-4	1/2	1-1/16”-12	3.52	1.25	1.80	.39	.57	2.10	1.25	2.66	1.50
FC7100-1212-4	3/4	1-1/16”-12	3.85	1.25	1.95	.61	.57	2.42	1.31	3.27	1.70
FC7100-1612-4	3/4	1-1/16”-12	4.05	1.50	2.15	.61	.60	2.42	1.62	3.27	1.90

Description	Req’d per Ass’y	Base No.	0606	0808	1008	1208	1212	1612	Mat’l
Nipple Ass'y	1	FC6100-	0606-4	0808-4	1008-4	1208-4	1212-4	1612-4	Monel
Segment	2	FC2057-	1-06-4	1-08-4	1-08-4	1-08-4	1-12-4	1-12-4	Monel
Bolt	2	FF9032-	05-18-4	06-20-4	06-20-4	06-20-4	07-24-4	07-24-4	Monel
