HS1600 - High Pressure

Equals to P/N 41-191305

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	V	Est. Wt. (lbs.)
90ELB-SM1600D-0606	C20529	3/8	3.11	.69	1.63	.31	1.00	.62	.50	1.92	.76
90ELB-SM1600D-0808	C20530	1/2	3.44	.81	1.93	.39	1.12	.62	.75	2.01	1.12
90ELB-SM1600D-1212	C20531	3/4	4.52	1.06	2.65	.61	1.50	.74	1.25	2.47	2.03
90ELB-SM1600D-1616	C20532	1	5.25	1.38	3.20	.82	1.81	.74	1.50	2.95	3.77
90ELB-SM1600D-2020	C20533	1.25	6.09	1.62	3.78	1.05	2.25	.86	1.75	3.42	6.31
90ELB-SM1600D-2424	C20534	1.5	6.32	1.88	4.09	1.28	2.50	.86	2.00	3.34	7.85
90ELB-SM1600D-3232	C20535	2	7.38	2.50	4.94	1.75	3.00	1.12	2.50	3.70	11.43

Description	Req’d per Ass’y	0606	0808	1212	1616	2020	2424	3232	Material
Elbow	1	C19851	C19852	C19853	C20244	C19854	C19855	C19856	Monel
Socket	2	C19795-2	C19680-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	Steel

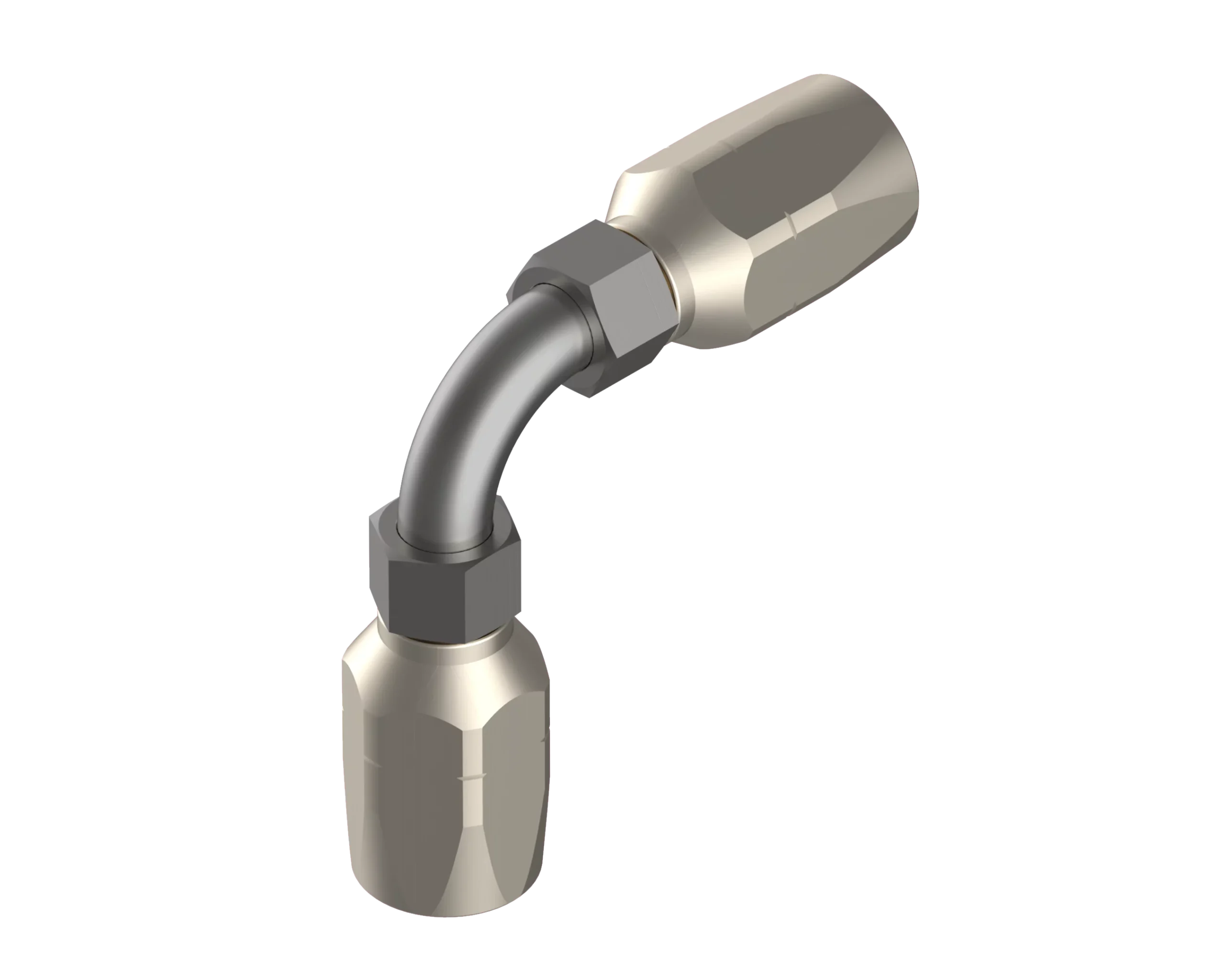

HS1600

Equal to Aeroquip P/N 41-191305

Hose to Hose

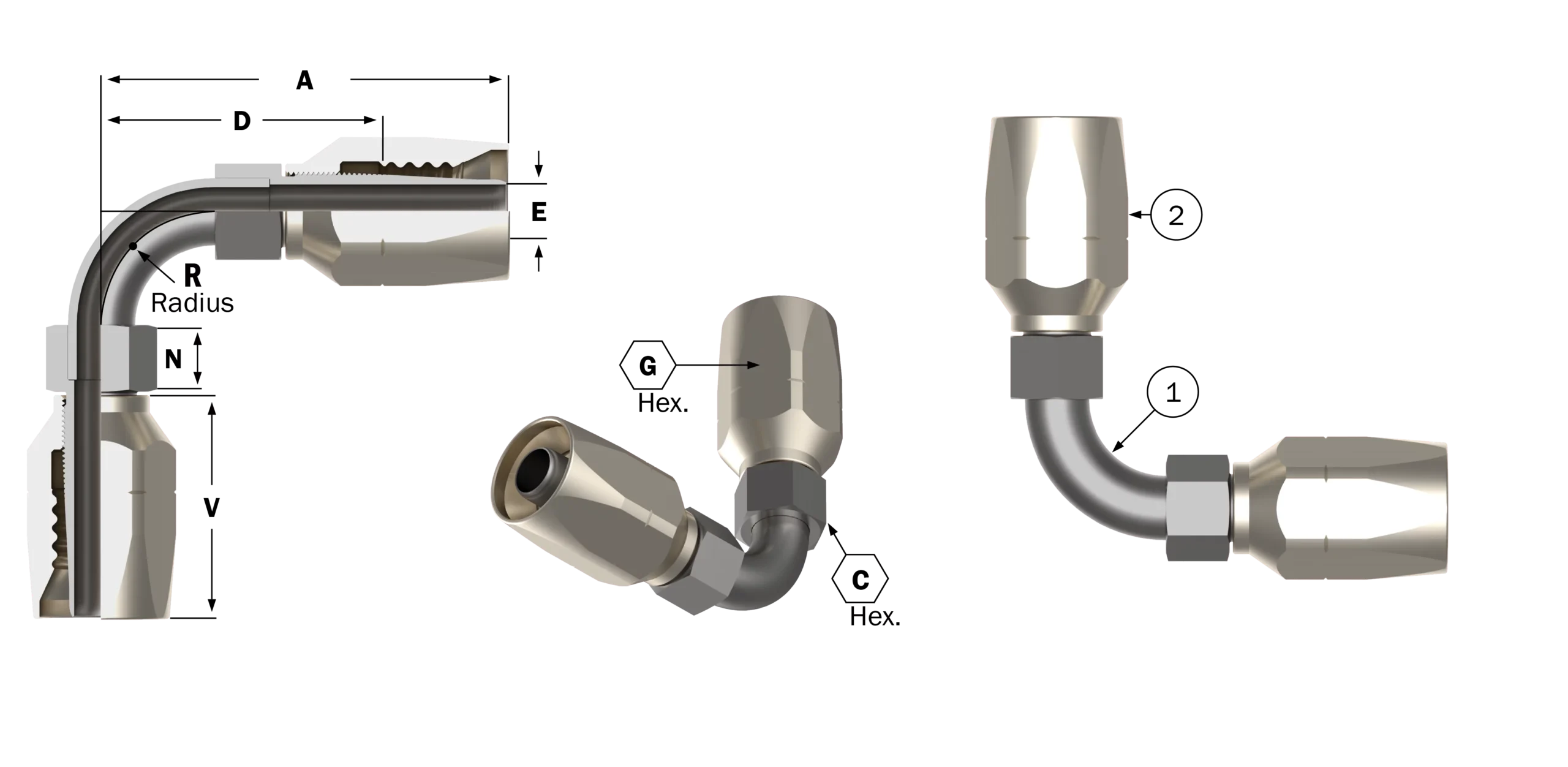

Elbow - 90° Dogleg

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	A	C	D	E	G	N	R	V	Est. Wt. (lbs.)
90ELB-SM1600D-0606	C20529	3/8	3.11	.69	1.63	.31	1.00	.62	.50	1.92	.76
90ELB-SM1600D-0808	C20530	1/2	3.44	.81	1.93	.39	1.12	.62	.75	2.01	1.12
90ELB-SM1600D-1212	C20531	3/4	4.52	1.06	2.65	.61	1.50	.74	1.25	2.47	2.03
90ELB-SM1600D-1616	C20532	1	5.25	1.38	3.20	.82	1.81	.74	1.50	2.95	3.77
90ELB-SM1600D-2020	C20533	1.25	6.09	1.62	3.78	1.05	2.25	.86	1.75	3.42	6.31
90ELB-SM1600D-2424	C20534	1.5	6.32	1.88	4.09	1.28	2.50	.86	2.00	3.34	7.85
90ELB-SM1600D-3232	C20535	2	7.38	2.50	4.94	1.75	3.00	1.12	2.50	3.70	11.43

Description	Req’d per Ass’y	0606	0808	1212	1616	2020	2424	3232	Material
Elbow	1	C19851	C19852	C19853	C20244	C19854	C19855	C19856	Monel
Socket	2	C19795-2	C19680-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	Steel

Equals to P/N 41-191304

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-SM1600CL-0406	C20519	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-SM1600CL-0608	C20520	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-SM1600CL-0812	C20521	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-SM1600CL-1216	C20522	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-SM1600CL-1616	C20523	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-SM1600CL-1620	C20524	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-SM1600CL-2020	C20525	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-SM1600CL-2024	c20526	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-SM1600CL-2432	C20527	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-SM1600CL-3232	C20528	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-2	C19680-2	C19797-2	C19700-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-2	C19798-2	C19799-2	C19694-2	C19694-2	Steel

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
41-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
41-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
41-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
41-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
41-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
41-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
41-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
41-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2.32	Material
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

HS1600

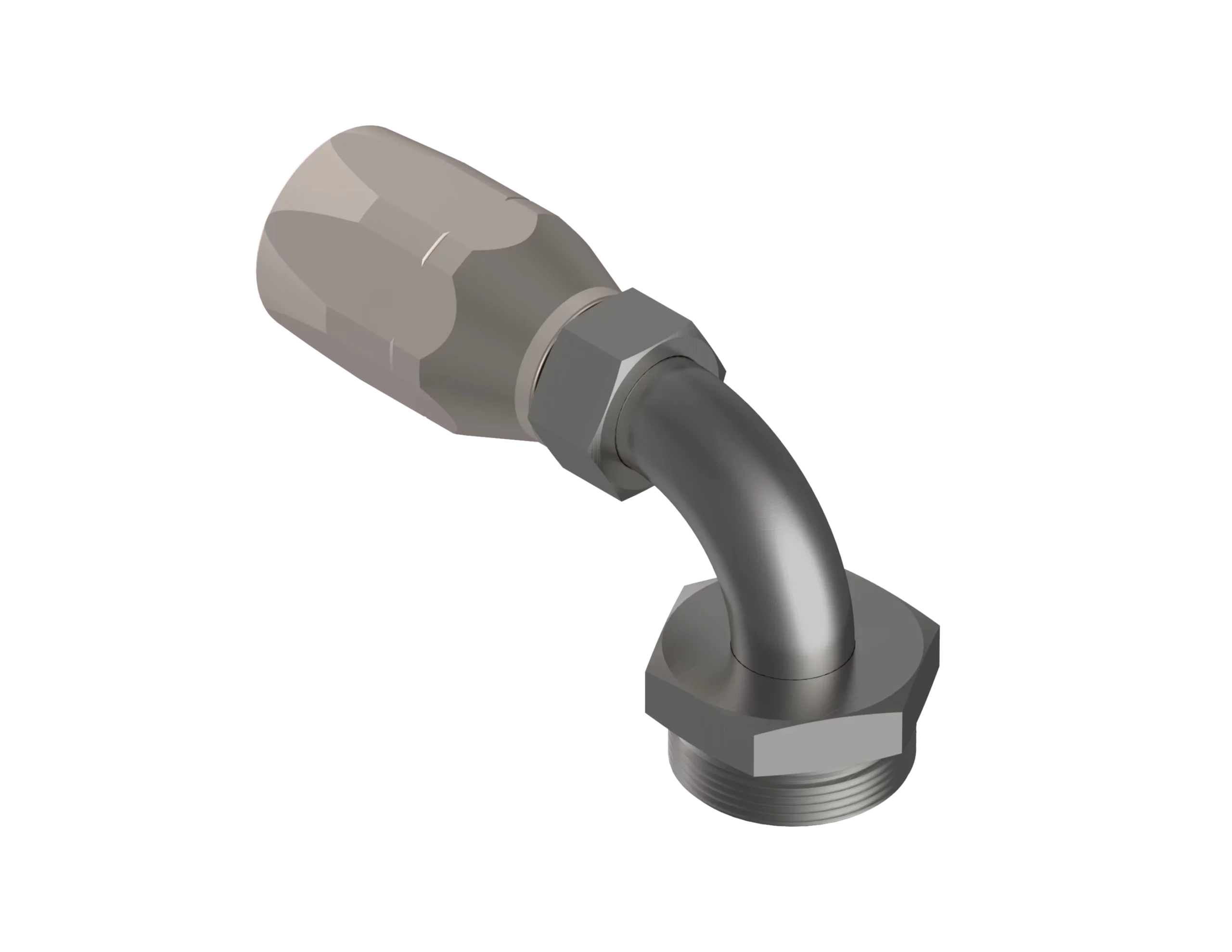

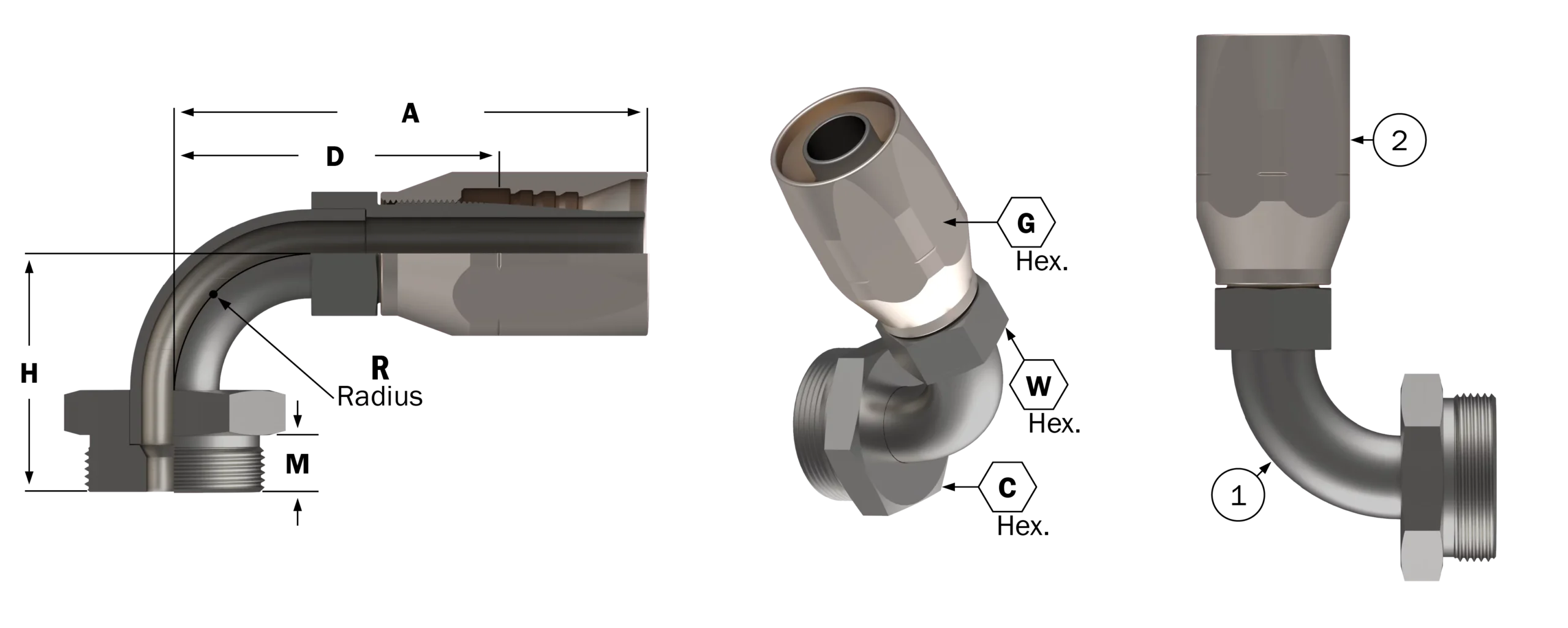

Equal to Aeroquip P/N 41-191304

Male O-Ring Seal to Hose

End Fitting - 90°

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-SM1600CL-0406	C20519	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-SM1600CL-0608	C20520	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-SM1600CL-0812	C20521	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-SM1600CL-1216	C20522	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-SM1600CL-1616	C20523	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-SM1600CL-1620	C20524	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-SM1600CL-2020	C20525	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-SM1600CL-2024	c20526	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-SM1600CL-2432	C20527	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-SM1600CL-3232	C20528	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-2	C19680-2	C19797-2	C19700-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-2	C19798-2	C19799-2	C19694-2	C19694-2	Steel

HS1600 Equivalent

P/N 41-191304

Male O-Ring Seal to Hose

End Fitting - 90°

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
41-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
41-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
41-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
41-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
41-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
41-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
41-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
41-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
41-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2.32	Material
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

Equals to P/N 4-191304

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

MIL-DTL-24787/3

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type CL, Group I

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-1600CL-0406	C20051	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-1600CL-0608	C20052	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-1600CL-0812	C20053	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-1600CL-1216	C20054	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-1600CL-1616	C20055	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-1600CL-1620	C20056	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-1600CL-2020	C20057	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-1600CL-2024	C20058	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-1600CL-2432	C20059	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-1600CL-3232	C20060	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-1	C19680-1	C19797-1	C19700-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
4-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
4-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
4-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
4-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
4-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
4-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
4-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
4-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2-32	Mat’l
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	4-4010-4-4013-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel Monel

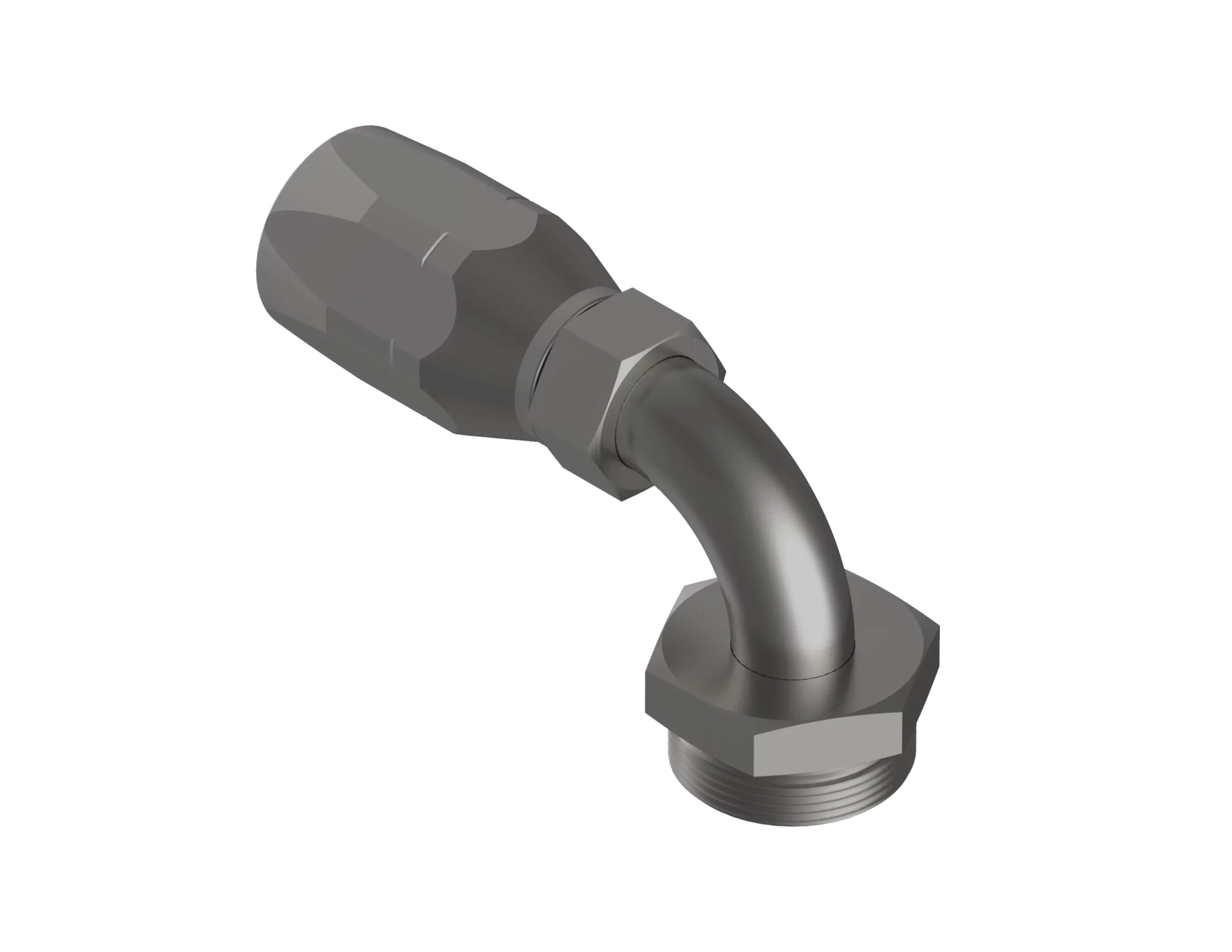

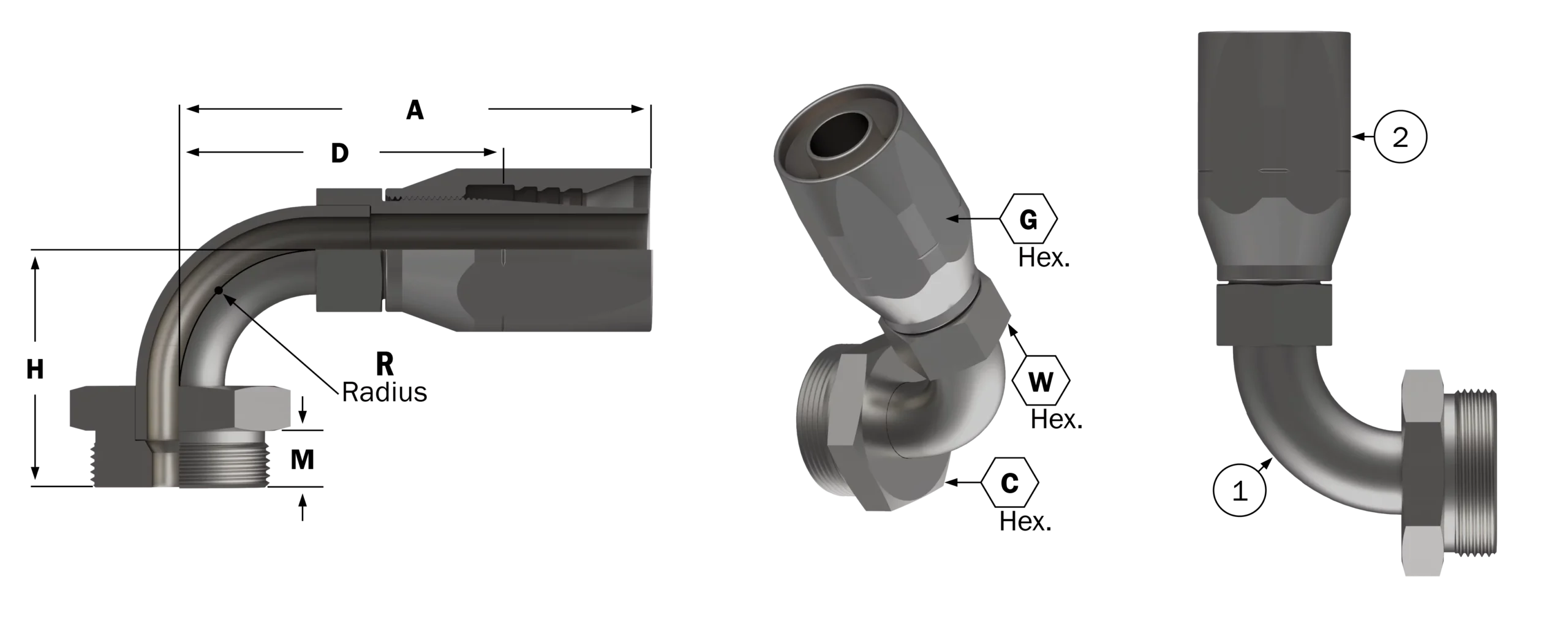

HS1600

Equal to Aeroquip P/N 4-191304

Male O-Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
90EF-1600CL-0406	C20051	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.81	.62
90EF-1600CL-0608	C20052	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
90EF-1600CL-0812	C20053	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.20	1.71
90EF-1600CL-1216	C20054	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.44	2.87
90EF-1600CL-1616	C20055	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.44	3.44
90EF-1600CL-1620	C20056	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
90EF-1600CL-2020	C20057	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.77	1.75	1.62	5.03
90EF-1600CL-2024	C20058	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
90EF-1600CL-2432	C20059	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
90EF-1600CL-3232	C20060	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.05	.88	2.50	2.50	10.64

Desc.	Req’d per Ass’y	0406	0608	0812	1216	1616	Mat’l
Elbow	1	C19910	C19911	C19912	C19914	C19915	Monel
Socket	1	C19795-1	C19680-1	C19797-1	C19700-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1620	2020	2024	2432	3232	Mat’l
Elbow	1	C19916	C19917	C19918	C19919	C19920	Monel
Socket	1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-191304

Male O-Ring Seal to Hose

End Fitting - 90°

MIL-DTL-24787/3,

Type CL, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	I.P.S. Size	Thread CL-3A	A	C	D	G	H	M	R	W	Est. Wt. (lbs.)
4-191304-1/4-6	1/4	1-3/16”-12	3.11	1.25	1.63	1.00	1.43	.62	.50	.69	.62
4-191304-3/8-8	3/8	1-3/8”-12	3.44	1.44	1.93	1.12	1.74	.62	.75	.81	.92
4-191304-1/2-12	1/2	1-3/4”-12	4.52	1.81	2.65	1.50	2.31	.62	1.25	1.06	1.71
4-191304-3/4-16	3/4	2”-12	5.25	2.12	3.20	1.81	2.68	.62	1.50	1.38	2.87
4-191304-1-16	1	2-5/16”-12	5.25	2.38	3.20	1.81	2.92	.75	1.50	1.38	3.44
4-191304-1-20	1	2-5/16”-12	6.10	2.38	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-20	1.25	2-3/4”-12	6.10	2.88	3.78	2.25	3.17	.75	1.75	1.62	5.03
4-191304-1.25-24	1.25	2-3/4”-12	6.32	2.88	4.09	2.50	3.42	.75	2.00	1.88	6.02
4-191304-1.5-32	1.5	3-1/16”-12	7.38	3.12	4.94	3.00	4.05	.88	2.50	2.50	8.49
4-191304-2-32	2	3-3/4”-12	7.38	3.88	4.94	3.00	4.88	1.12	2.50	4.05	10.64

Description	Req’d per Ass’y	Base No.	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-20	1.25-24	1.5-32	2-32	Mat’l
Elbow	1	4-419037-15-419037-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel CUNI
Socket	1	4-4010-4-4013-	6-	8-	12-	-16	-16	20-	20-	24-	32-	32-	Monel Monel

Equals to P/N 4-190909

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

MIL-DTL-24787/3

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type C, Group I

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600C-0204	C20061	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-1600C-0406	C20062	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-1600C-0606	C20063	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-1600C-0608	C20064	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-1600C-0812	C20065	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-1600C-1216	C20066	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-1600C-1616	C20067	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-1600C-2016	C20068	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-1600C-1620	C20069	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-1600C-2020	C20070	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-1600C-2024	C20071	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-1600C-2432	C20072	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-1600C-3232	C20073	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-1	C19795-1	C19795-1	C19680-1	C19797-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-1	C19700-1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
4-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
4-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
4-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
4-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
4-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
4-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
4-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
4-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
4-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	12-	-16	-16	20-	24-	32-	32-	Monel

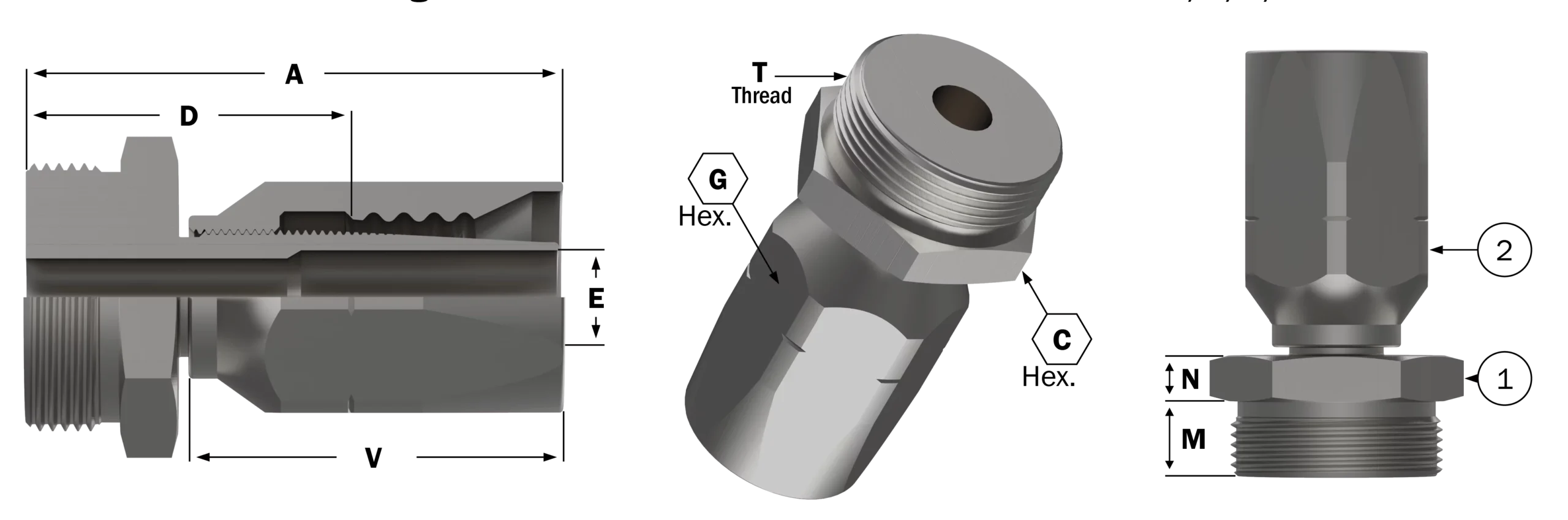

HS1600

Equal to Aeroquip P/N 4-190909

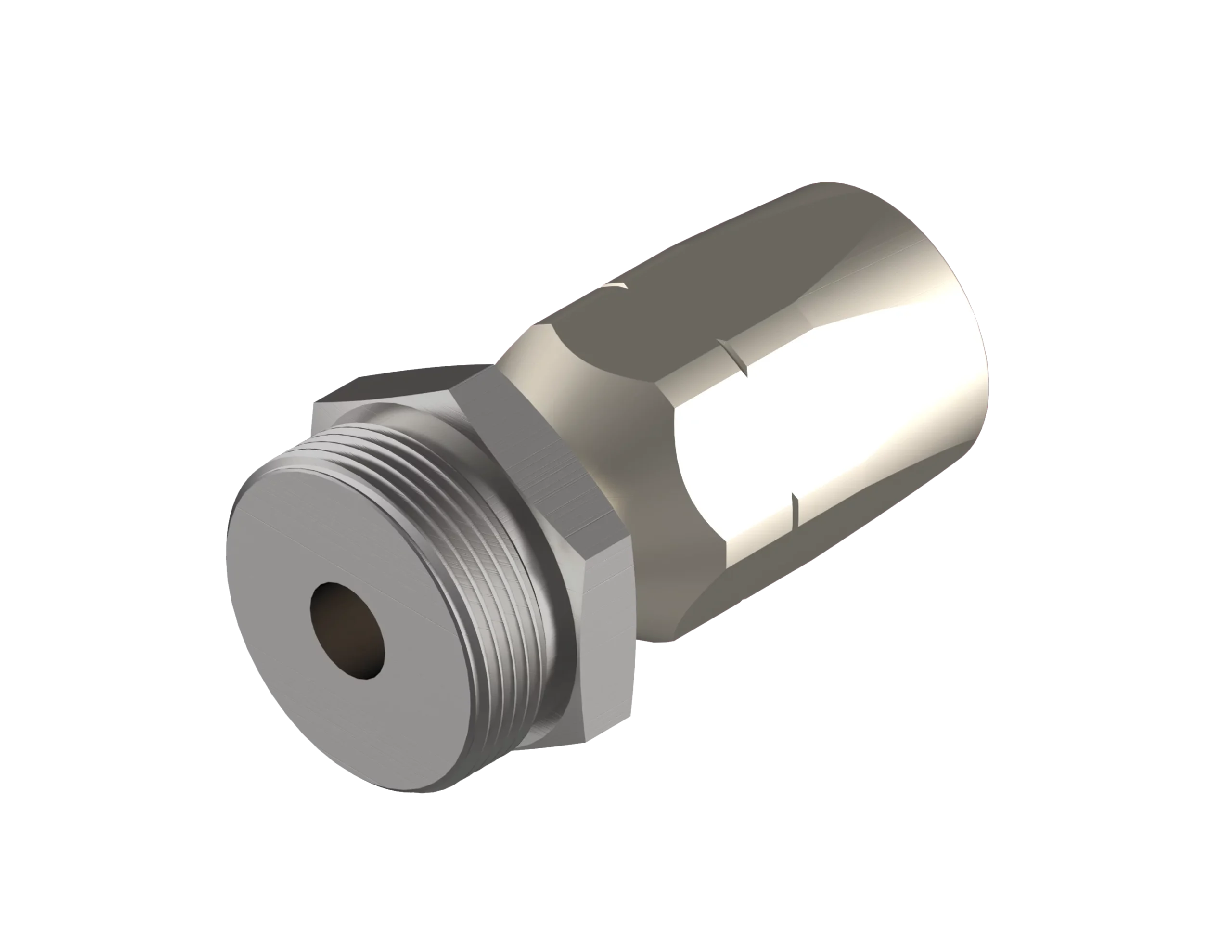

Male O-Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600C-0204	C20061	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-1600C-0406	C20062	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-1600C-0606	C20063	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-1600C-0608	C20064	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-1600C-0812	C20065	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-1600C-1216	C20066	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-1600C-1616	C20067	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-1600C-2016	C20068	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-1600C-1620	C20069	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-1600C-2020	C20070	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-1600C-2024	C20071	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-1600C-2432	C20072	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-1600C-3232	C20073	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-1	C19795-1	C19795-1	C19680-1	C19797-1	C19700-1	Monel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-1	C19700-1	C19798-1	C19798-1	C19799-1	C19694-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-190909

Male O-Ring Seal to Hose

End Fitting - Straight

MIL-DTL-24787/3,

Type C, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
4-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
4-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
4-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
4-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
4-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
4-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
4-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
4-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
4-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	12-	-16	-16	20-	24-	32-	32-	Monel

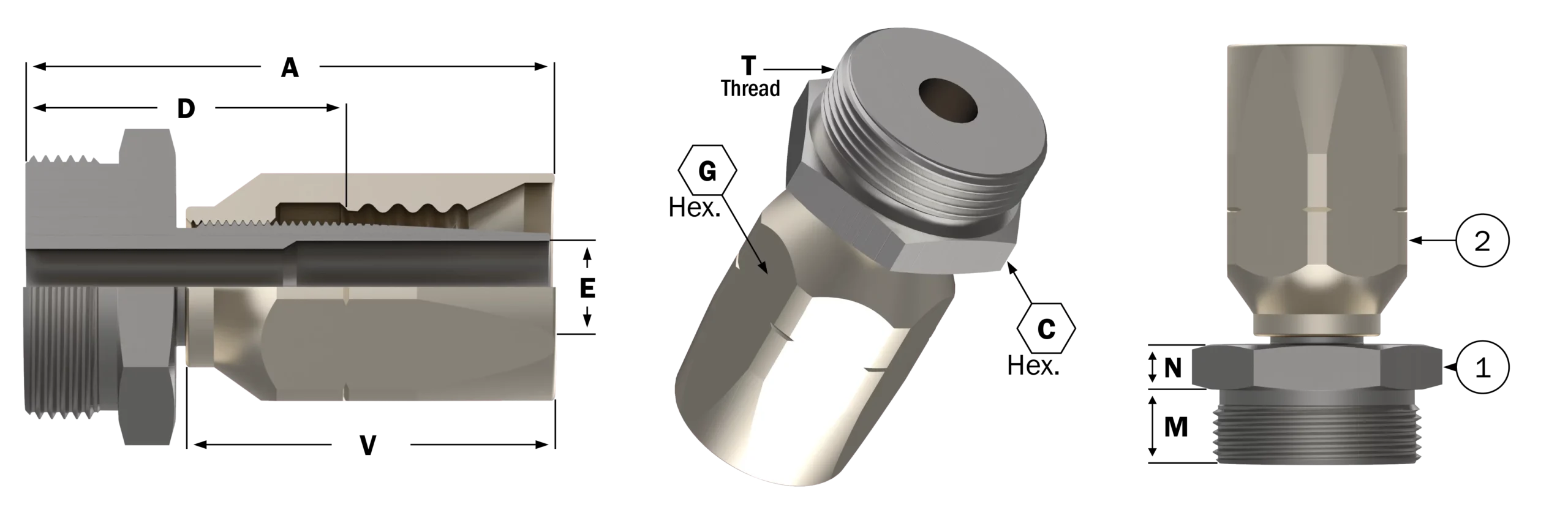

Equals to P/N 41-190909

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600C-0204	C20506	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-SM1600C-0406	C20507	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-SM1600C-0606	C20508	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-SM1600C-0608	C20509	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-SM1600C-0812	C20510	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-SM1600C-1216	C20511	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-SM1600C-1616	C20512	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-SM1600C-2016	C20513	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-SM1600C-1620	C20514	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-SM1600C-2020	C20515	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-SM1600C-2024	C20516	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-SM1600C-2432	C20517	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-SM1600C-3232	C20518	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-2	C19795-2	C19795-2	C19680-2	C19797-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-2	C19700-2	C19798-2	C19798-2	C19799-2	C19694-2	C19694-1	Steel

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
41-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
41-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
41-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
41-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
41-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
41-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
41-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
41-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
41-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

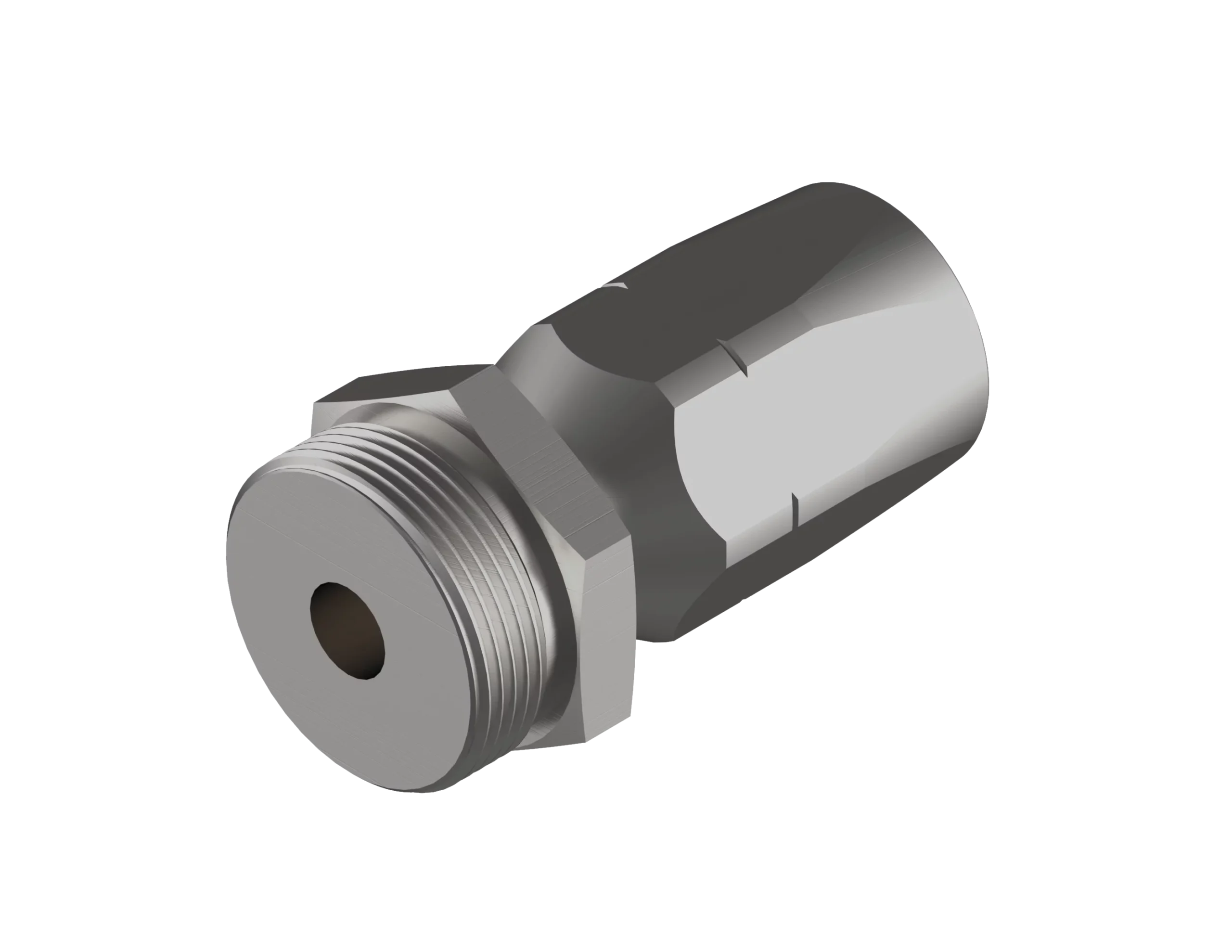

HS1600

Equal to Aeroquip P/N 41-190909

Male O-Ring Seal to Hose

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600C-0204	C20506	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
EF-SM1600C-0406	C20507	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.25	.62	.25	1.92	.54
EF-SM1600C-0606	C20508	3/8	1-3/8”-12	2.96	1.44	1.45	.31	1.25	.62	.31	1.92	.62
EF-SM1600C-0608	C20509	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.50	.62	.31	2.01	.76
EF-SM1600C-0812	C20510	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.75	.62	.38	2.47	1.47
EF-SM1600C-1216	C20511	3/4	2”-12	4.09	2.12	2.04	.62	2.25	.62	.50	2.95	2.34
EF-SM1600C-1616	C20512	1	2-5/16”-12	4.34	2.38	2.28	.82	2.25	.75	.62	2.95	2.81
EF-SM1600C-2016	C20513	1.25	2-3/4”-12	4.34	2.88	2.28	.82	2.25	.75	.62	2.95	3.56
EF-SM1600C-1620	C20514	1	2-5/16”-12	4.80	2.38	2.48	.81	2.75	.75	.62	3.42	4.03
EF-SM1600C-2020	C20515	1.25	2-3/4”-12	4.80	2.88	2.48	.81	2.75	.75	.62	3.42	4.75
EF-SM1600C-2024	C20516	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	3.00	.75	.62	3.34	5.50
EF-SM1600C-2432	C20517	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.50	.88	.75	3.70	7.38
EF-SM1600C-3232	C20518	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.50	.88	.75	3.70	9.64

Desc.	Req’d per Ass’y	0204	0406	0606	0608	0812	1216	Mat’l
Nipple	1	C19802-1	C19803-1	C19906-1	C19804-1	C19805-1	C19807-1	Monel
Socket	1	C19794-2	C19795-2	C19795-2	C19680-2	C19797-2	C19700-2	Steel

Desc.	Req’d per Ass’y	1616	2016	1620	2020	2024	2432	3232	Mat’l
Nipple	1	C19808-1	C19908-1	C19809-1	C19909-1	C19810-1	C19811-1	C19812	Monel
Socket	1	C19700-2	C19700-2	C19798-2	C19798-2	C19799-2	C19694-2	C19694-1	Steel

HS1600 Equivalent

P/N 41-190909

Male O-Ring Seal to Hose

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-190909-1/8-4	1/8	1”-14	2.50	1.06	1.26	.17	.81	.50	.25	1.73	.38
41-190909-1/4-6	1/4	1-3/16”-12	2.82	1.25	1.34	.31	1.00	.62	.25	1.92	.59
41-190909-3/8-8	3/8	1-3/8”-12	2.96	1.44	1.45	.39	1.12	.62	.31	2.01	.86
41-190909-1/2-12	1/2	1-3/4”-12	3.49	1.81	1.62	.50	1.50	.62	.38	2.47	1.56
41-190909-3/4-16	3/4	2”-12	4.09	2.12	2.04	.62	1.81	.62	.50	2.95	2.34
41-190909-1-16	1	2-5/16”-12	4.34	2.38	2.28	.82	1.81	.75	.62	2.95	2.81
41-190909-1-20	1	2-5/16”-12	4.80	2.38	2.48	.81	2.25	.75	.62	3.42	4.03
41-190909-1.25-32	1.25	2-3/4”-12	4.72	2.88	2.48	1.21	2.50	.75	.62	3.34	5.50
41-190909-1.5-32	1.5	3-1/16”-12	5.34	3.12	2.90	1.39	3.00	.88	.75	3.70	7.38
41-190909-2-32	2	3-3/4”-12	5.34	3.88	2.90	1.75	3.00	.88	.75	3.70	9.64

Description	Req’d per Ass’y	Base No.	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Mat’l
Nipple	1	4-220643-	1/8-4	1/4-6	3/8-8	1/2-12	3/4-16	1-16	1-20	1.25-32	1.5-32	2-32	Monel
Socket	1	-	-	-	-	-	-	-	-	-	-	-	Steel

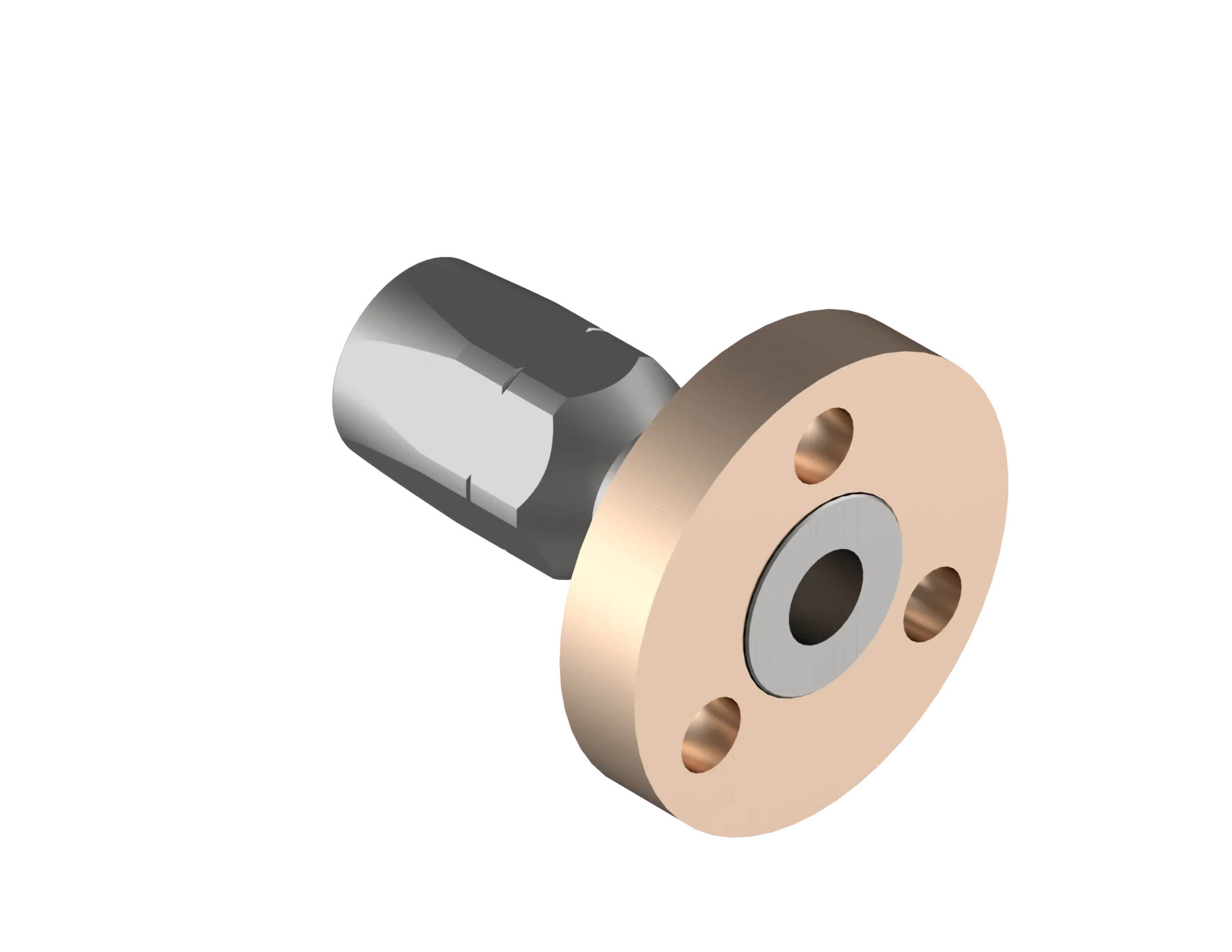

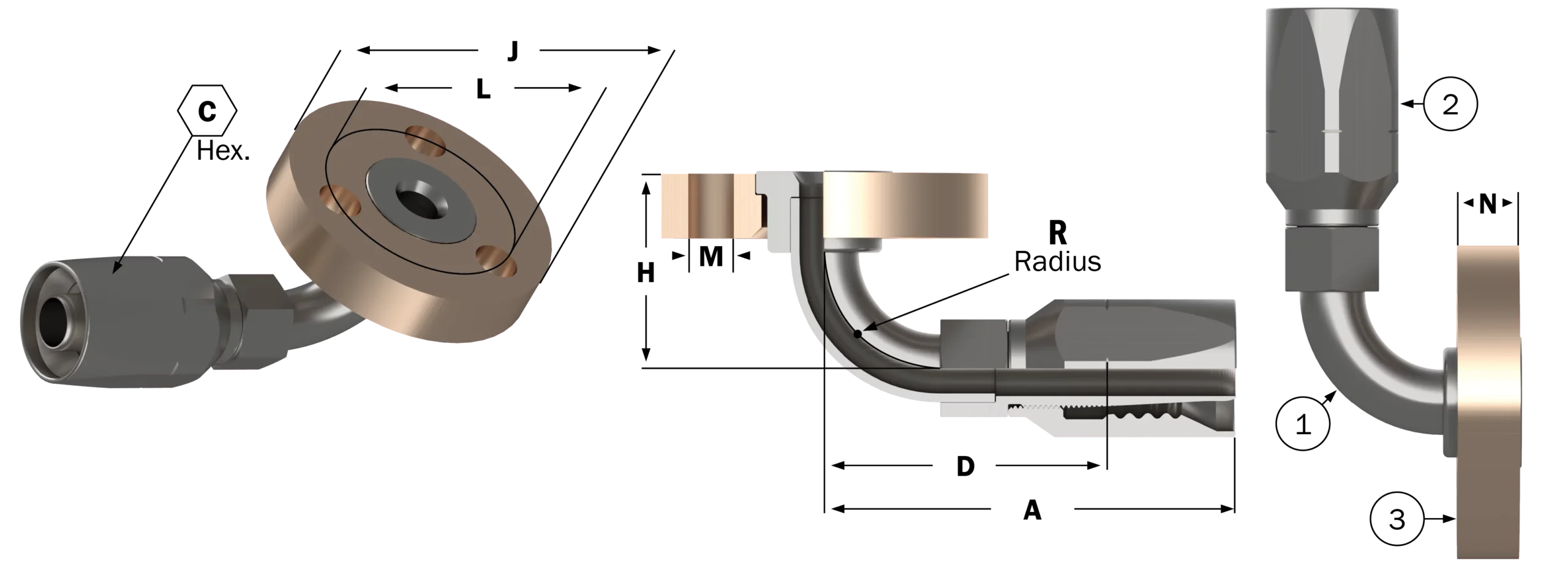

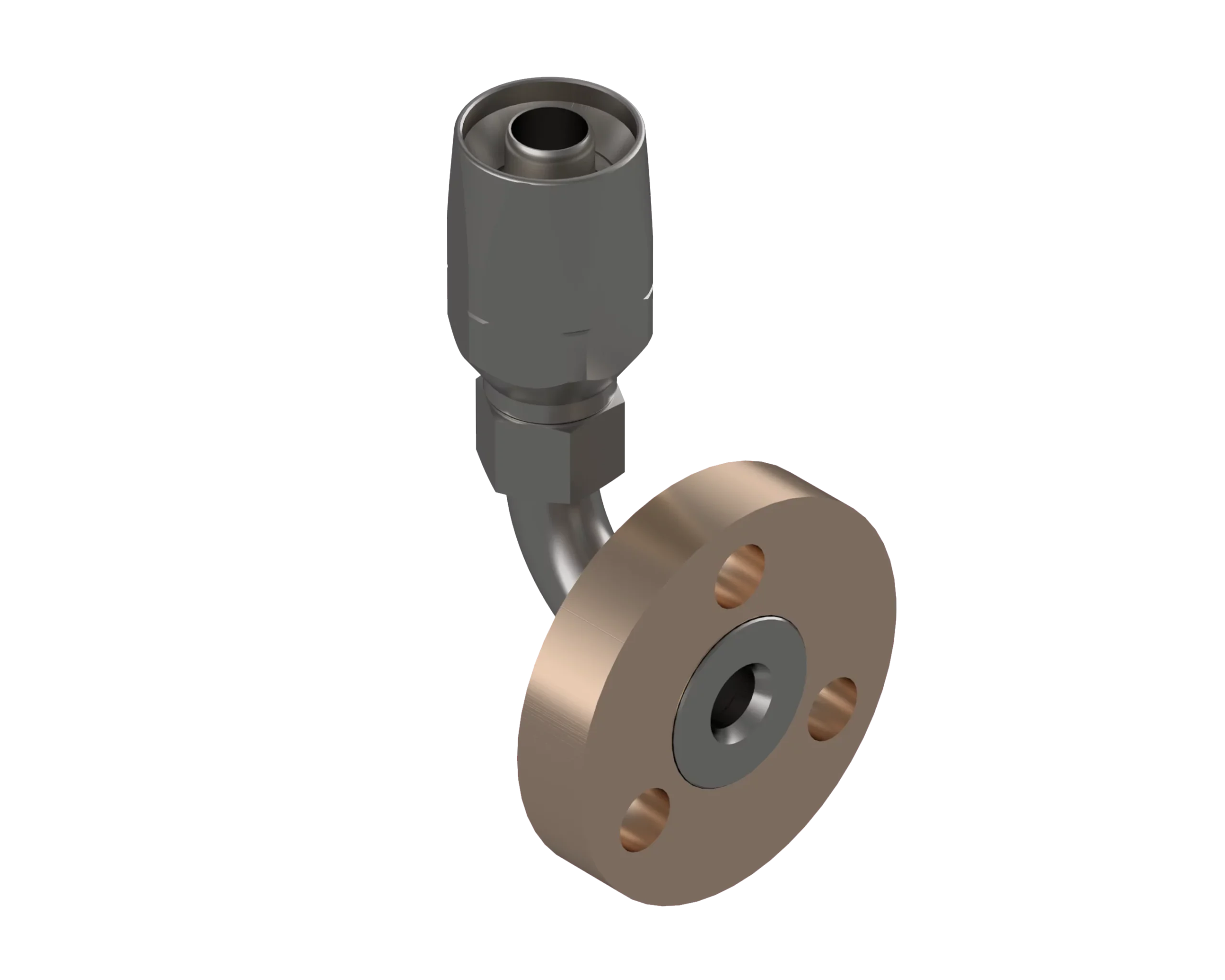

Equals to P/N FC9224-463

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

MIL-DTL-24787/1

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type FL, Group I, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1600B5-0812	C20183	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.69	1.25	2.47
90EF-1600B5-0816	C20184	1/2	3	5.25	1.81	3.20	2.19	3.56	2.44	.56	.69	1.25	2.78
90EF-1600B5-1216	C20185	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.69	1.50	2.95
90EF-1600B5-1220	C20186	3/4	4	6.10	2.25	3.78	2.49	3.81	2.69	.56	.69	1.50	3.61
90EF-1600B5-1616	C20187	1	4	2.25	1.81	3.20	2.69	4.25	3.13	.56	.75	1.75	5.00
90EF-1600B5-1620	C20188	1	4	6.10	2.25	3.78	2.69	4.25	3.13	.56	.75	1.75	5.75
90EF-1600B5-1624	C20189	1	4	6.31	2.50	4.09	2.69	4.25	3.13	.56	.75	1.75	6.00
90EF-1600B5-2024	C20190	1.25	4	6.31	2.50	4.09	3.13	4.50	3.38	.56	.81	2.00	7.00
90EF-1600B5-2032	C20191	1.25	4	7.38	3.00	4.94	3.13	4.50	3.38	.56	.81	2.00	8.25
90EF-1600B5-2432	C20192	1.5	6	7.38	3.00	4.94	3.00	5.06	3.94	.56	.81	2.50	8.75
90EF-1600B5-3232	C20193	2	6	7.38	3.00	4.94	3.35	5.06	4.44	.56	.81	2.50	10.75

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Elbow	1	C19857	C20026	C19858	C20027	C20028	C19859	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Elbow	1	C20029	C19860	C19861	C19561	C19562	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
FC9224-0812-463	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.70	1.25	2.47
FC9224-1216-463	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.70	1.50	2.95
FC9224-1620-463	1	4	6.10	2.25	3.78	2.69	4.25	3.12	.56	.77	1.75	5.75
FC9224-2024-463	1.25	4	6.32	2.50	4.09	3.13	4.50	3.38	.56	.83	2.00	7.00
FC9224-2432-463	1.5	6	7.38	3.0	4.94	3.35	5.06	3.94	.56	.83	2.50	8.75
FC9224-3232-463	2	6	7.38	6.00	4.94	3.35	5.56	4.44	.56	.83	2.50	10.75

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Elbow	1	-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

HS1600

Equal to Aeroquip P/N FC9224-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type FL, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	I.P.S. Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
90EF-1600B5-0812	C20183	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.69	1.25	2.47
90EF-1600B5-0816	C20184	1/2	3	5.25	1.81	3.20	2.19	3.56	2.44	.56	.69	1.25	2.78
90EF-1600B5-1216	C20185	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.69	1.50	2.95
90EF-1600B5-1220	C20186	3/4	4	6.10	2.25	3.78	2.49	3.81	2.69	.56	.69	1.50	3.61
90EF-1600B5-1616	C20187	1	4	2.25	1.81	3.20	2.69	4.25	3.13	.56	.75	1.75	5.00
90EF-1600B5-1620	C20188	1	4	6.10	2.25	3.78	2.69	4.25	3.13	.56	.75	1.75	5.75
90EF-1600B5-1624	C20189	1	4	6.31	2.50	4.09	2.69	4.25	3.13	.56	.75	1.75	6.00
90EF-1600B5-2024	C20190	1.25	4	6.31	2.50	4.09	3.13	4.50	3.38	.56	.81	2.00	7.00
90EF-1600B5-2032	C20191	1.25	4	7.38	3.00	4.94	3.13	4.50	3.38	.56	.81	2.00	8.25
90EF-1600B5-2432	C20192	1.5	6	7.38	3.00	4.94	3.00	5.06	3.94	.56	.81	2.50	8.75
90EF-1600B5-3232	C20193	2	6	7.38	3.00	4.94	3.35	5.06	4.44	.56	.81	2.50	10.75

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Elbow	1	C19857	C20026	C19858	C20027	C20028	C19859	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Elbow	1	C20029	C19860	C19861	C19561	C19562	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

HS1600 Equivalent

P/N FC9224-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type FL, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	No. of Bolt Holes	A	C	D	H	J	L	M	N	R	Est. Wt. (lbs.)
FC9224-0812-463	1/2	3	4.52	1.50	2.65	2.19	3.56	2.44	.56	.70	1.25	2.47
FC9224-1216-463	3/4	4	5.25	1.81	3.20	2.49	3.81	2.69	.56	.70	1.50	2.95
FC9224-1620-463	1	4	6.10	2.25	3.78	2.69	4.25	3.12	.56	.77	1.75	5.75
FC9224-2024-463	1.25	4	6.32	2.50	4.09	3.13	4.50	3.38	.56	.83	2.00	7.00
FC9224-2432-463	1.5	6	7.38	3.0	4.94	3.35	5.06	3.94	.56	.83	2.50	8.75
FC9224-3232-463	2	6	7.38	6.00	4.94	3.35	5.56	4.44	.56	.83	2.50	10.75

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Elbow	1	-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

Equals to P/N FC9056-463

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

MIL-DTL-24787/1

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type F, Group I, Class II, 150/400lb Flange per MIL-PRF-20042

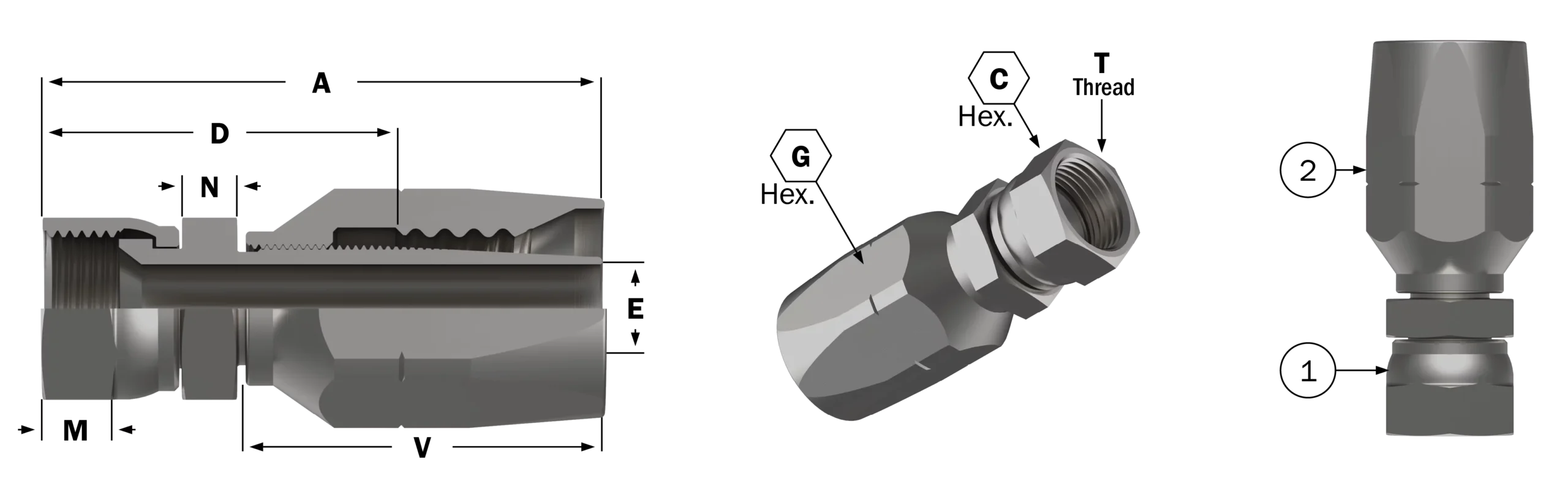

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1600A5-0812	C20128	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.69	.71	3.25
EF-1600A5-0816	C20129	1/2	3	4.34	2.29	3.56	1.50	2.44	.56	.69	.71	3.50
EF-1600A5-1216	C20130	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.69	.92	4.11
EF-1600A5-1220	C20131	3/4	4	4.81	2.49	3.81	1.84	2.69	.56	.69	.92	4.25
EF-1600A5-1616	C20132	1	4	4.34	2.29	4.25	1.50	3.13	.56	.75	1.18	4.62
EF-1600A5-1620	C20133	1	4	4.81	2.49	4.25	2.12	3.13	.56	.75	1.18	6.05
EF-1600A5-1624	C20134	1	4	4.97	2.73	4.25	2.12	3.13	.56	.75	1.18	6.50
EF-1600A5-2024	C20135	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.81	1.53	7.25
EF-1600A5-2032	C20136	1.25	4	5.33	2.89	4.50	2.74	3.38	.56	.81	1.53	8.00
EF-1600A5-2432	C20137	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.81	1.77	9.14
EF-1600A5-3232	C20138	2	6	5.33	2.89	5.06	3.28	4.44	.56	.81	1.77	11.06

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Nipple	1	C19839-1	C20022	C19840-1	C20023	C20024	C19841-1	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Nipple	1	C20025	C19842-1	C19843-1	C19843-1	C19844-1	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
FC9056-0812-463	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.70	.71	2.78
FC9056-1216-463	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.70	.92	3.61
FC9056-1620-463	1	4	4.81	2.49	4.25	2.12	3.12	.56	.77	1.18	5.55
FC9056-2024-463	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.83	1.53	6.75
FC9056-2432-463	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.83	1.77	8.64
FC9056-3232-463	2	6	5.33	2.89	5.56	3.28	4.44	.56	.83	2.24	10.56

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Nipple	1	FC3056-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

HS1600

Equal to Aeroquip P/N FC9056-463

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
EF-1600A5-0812	C20128	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.69	.71	3.25
EF-1600A5-0816	C20129	1/2	3	4.34	2.29	3.56	1.50	2.44	.56	.69	.71	3.50
EF-1600A5-1216	C20130	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.69	.92	4.11
EF-1600A5-1220	C20131	3/4	4	4.81	2.49	3.81	1.84	2.69	.56	.69	.92	4.25
EF-1600A5-1616	C20132	1	4	4.34	2.29	4.25	1.50	3.13	.56	.75	1.18	4.62
EF-1600A5-1620	C20133	1	4	4.81	2.49	4.25	2.12	3.13	.56	.75	1.18	6.05
EF-1600A5-1624	C20134	1	4	4.97	2.73	4.25	2.12	3.13	.56	.75	1.18	6.50
EF-1600A5-2024	C20135	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.81	1.53	7.25
EF-1600A5-2032	C20136	1.25	4	5.33	2.89	4.50	2.74	3.38	.56	.81	1.53	8.00
EF-1600A5-2432	C20137	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.81	1.77	9.14
EF-1600A5-3232	C20138	2	6	5.33	2.89	5.06	3.28	4.44	.56	.81	1.77	11.06

Desc.	Req’d per Ass’y	0812	0816	1216	1220	1616	1620	Mat’l
Nipple	1	C19839-1	C20022	C19840-1	C20023	C20024	C19841-1	Monel
Socket	1	C19797-1	C19700-1	C19700-1	C19798-1	C19700-1	C19798-1	Monel
Flange	1	C19522	C19522	C19525	C19525	C19526	C19526	Aluminum. Bronze

Desc.	Req’d per Ass’y	1624	2024	2032	2432	3232	Mat’l
Nipple	1	C20025	C19842-1	C19843-1	C19843-1	C19844-1	Monel
Socket	1	C19799-1	C19799-1	C19694-1	C19694-1	C19694-1	Monel
Flange	1	C19526	C19527	C19527	C19528	C17765	Aluminum. Bronze

HS1600 Equivalent

P/N FC9056-463HS1600

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group I, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	IPS Size	No. of Bolt Holes	A	D	J	K	L	M	N	S	Est. Wt. (lbs.)
FC9056-0812-463	1/2	3	3.92	2.05	3.56	1.50	2.44	.56	.70	.71	2.78
FC9056-1216-463	3/4	4	4.34	2.29	3.81	1.84	2.69	.56	.70	.92	3.61
FC9056-1620-463	1	4	4.81	2.49	4.25	2.12	3.12	.56	.77	1.18	5.55
FC9056-2024-463	1.25	4	4.97	2.73	4.50	2.74	3.38	.56	.83	1.53	6.75
FC9056-2432-463	1.5	6	5.33	2.89	5.06	2.74	3.94	.56	.83	1.77	8.64
FC9056-3232-463	2	6	5.33	2.89	5.56	3.28	4.44	.56	.83	2.24	10.56

Description	Req’d per Ass’y	Base No.	0812	1216	1620	2024	2432	3232	Material
Nipple	1	FC3056-	1612-4	2016-4	2420-4	3224-4	3232-4	4032-4	Monel
Socket	1	4-4010-4-4013-	12-	-16	20-	24-	32-	32-	Monel
Flange	1	188-74045-	1/2-16	3/4-16	1-24	1.25-32	1.5-32	2-40	Aluminum. Bronze

Equals to P/N 4-4722

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

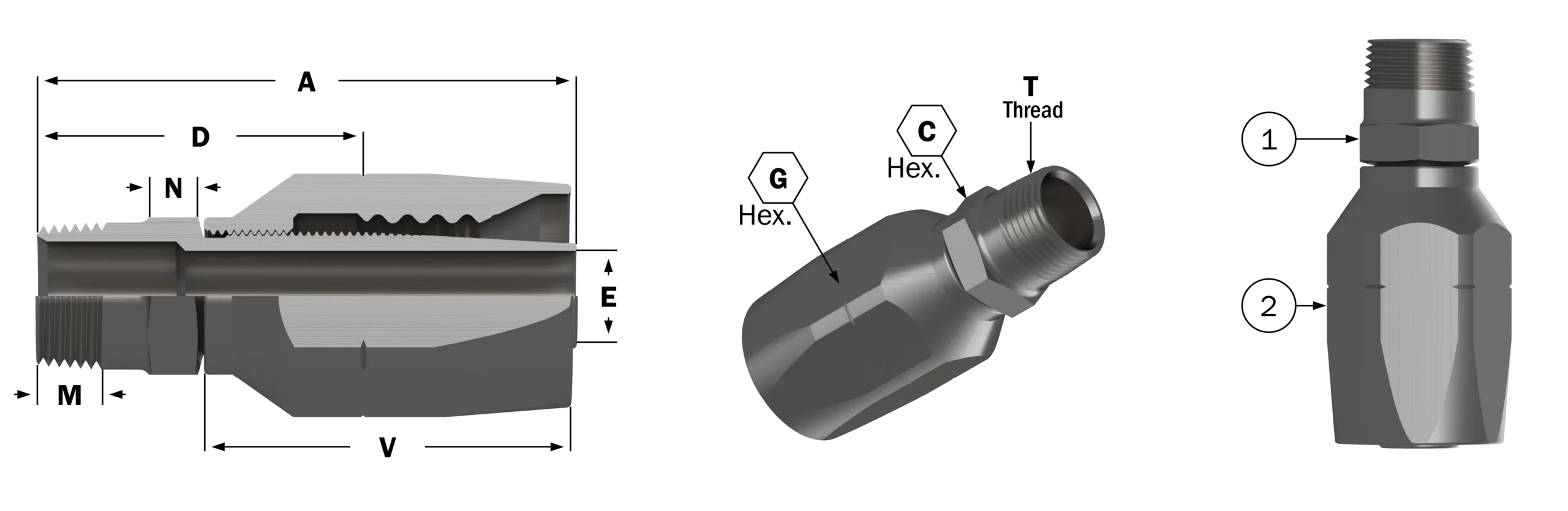

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600MP-0404	C20556	1/4	1/4”-18	2.5	.56	1.26	.17	.81	.56	.19	1.73	.26
EF-1600MP-0604	C20557	1/4	3/8”-18	2.56	.56	1.32	.17	.81	.56	.19	1.73	.31
EF-1600MP-0606	C20558	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
EF-1600MP-0608	C20559	1/2	3/8”-18	2.84	.88	1.32	.39	1.12	.56	.25	2.01	.42
EF-1600MP-0808	C20560	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
EF-1600MP-0810	C20561	5/8	1/2”-14	3.18	.94	1.63	.50	1.25	.75	.31	2.10	.62
EF-1600MP-1212	c20562	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	.75
EF-1600MP-1612	C20563	3/4	1”-11-1/2	3.92	1.06	2.06	.61	1.50	.75	.38	2.47	1.08
EF-1600MP-1616	C20564	1	1”-11-1/2	4.40	1.38	2.36	.82	1.75	.94	.50	2.95	1.79
EF-1600MP-2020	C20565	1.215	1-1/4”-11-1/2	4.90	1.75	2.59	1.05	2.25	.97	.50	3.42	2.74
EF-1600MP-2424	C20566	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
EF-1600MP-3232	C20567	2	2”-11-1/2	5.50	2.50	3.05	1.75	3.00	1.03	.75	3.70	5.21

Desc.	Req’d per Ass’y	0404	0604	0606	0608	0808	0810	Mat’l
Nipple	1	C19957-1	C20385-1	C19958-1	C20247-1	C19959-1	C19960-1	Monel
Socket	1	C19794-1	C19794-1	C19795-1	C19680-1	C19680-1	C19796-1	Monel

Desc.	Req’d per Ass’y	1212	1612	1616	2020	2424	3232	Mat’l
Nipple	1	C19961-1	C20386-1	C19962-1	C19963-1	C19964-1	C19965-1	Moel
Socket	1	C19797-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4722-4-4	1/4	1/4”-14	2.50	.56	1.27	.17	.81	.56	.19	1.73	.26
4-4722-6-6	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
4-4722-8-8	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
4-4722-8-10	5/8	1/2”-14	3.18	.94	1.62	.48	1.25	.75	.31	2.10	.57
4-4722-12-12	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	1.08
4-4722-16-16	1	1”-11-1/2	4.90	1.38	2.35	.82	1.75	.94	.50	2.95	1.79
4-4722-20-20	1.25	1-1/4”-11-1/2	4.90	1.75	2.58	1.05	2.25	.97	.50	3.42	2.74
4-4722-24-24	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
4-4722-32-32	2	2”-11-1/2	5.50	2.50	3.06	1.75	3.00	1.03	.75	3.70	5.21

Description	Req’d per Ass’y	Base No.	4-4	6-6	8-8	8-10	12	16	20	24	32	Mat’l
Nipple	1	4-4202-	4-4	6-6	8-8	8-10	12-12	16-16	20-20	24-24	32-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	10-	12-	-16	20-	24-	32-	Monel

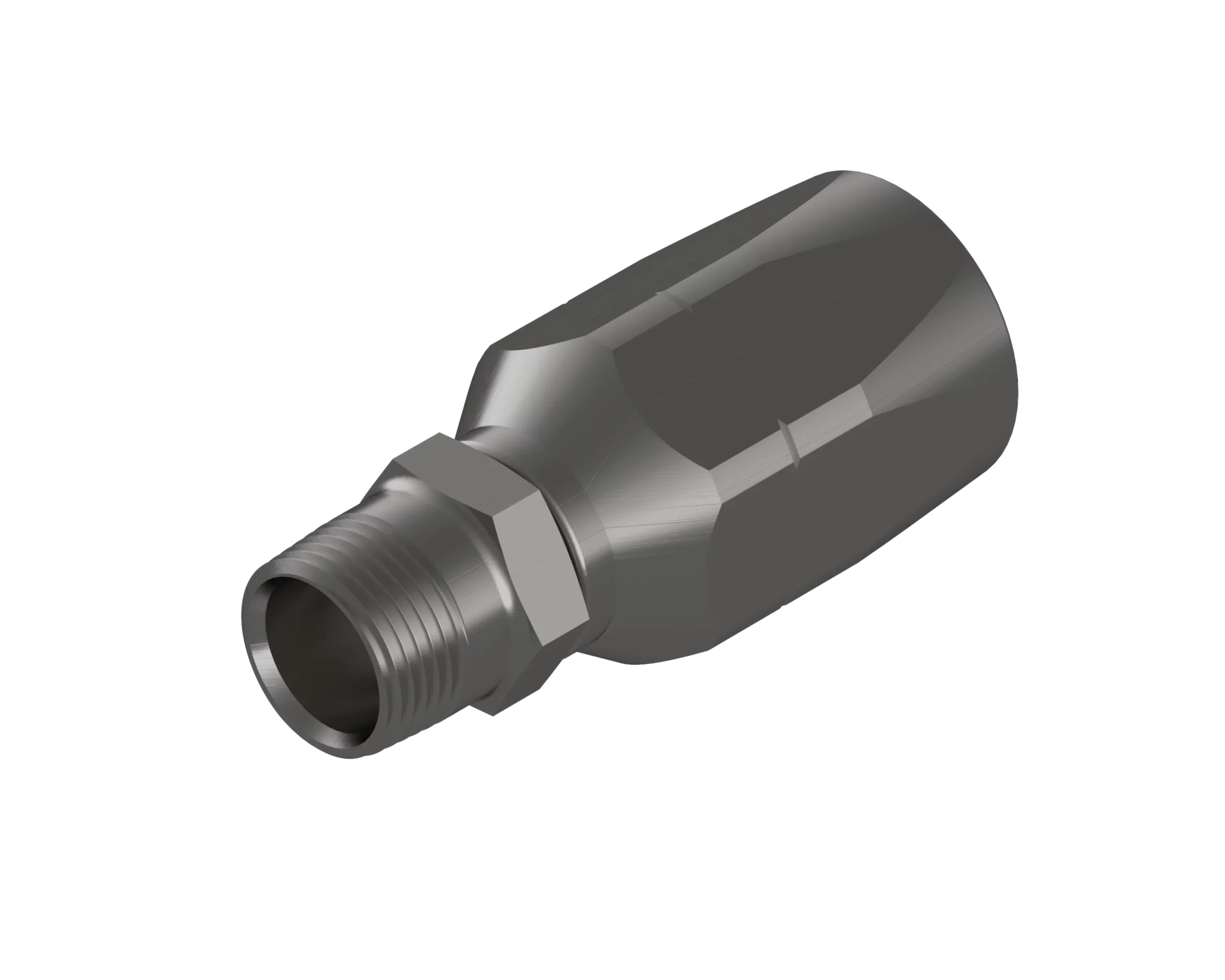

HS1600

Equal to Aeroquip P/N 4-4722

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600MP-0404	C20556	1/4	1/4”-18	2.5	.56	1.26	.17	.81	.56	.19	1.73	.26
EF-1600MP-0604	C20557	1/4	3/8”-18	2.56	.56	1.32	.17	.81	.56	.19	1.73	.31
EF-1600MP-0606	C20558	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
EF-1600MP-0608	C20559	1/2	3/8”-18	2.84	.88	1.32	.39	1.12	.56	.25	2.01	.42
EF-1600MP-0808	C20560	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
EF-1600MP-0810	C20561	5/8	1/2”-14	3.18	.94	1.63	.50	1.25	.75	.31	2.10	.62
EF-1600MP-1212	c20562	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	.75
EF-1600MP-1612	C20563	3/4	1”-11-1/2	3.92	1.06	2.06	.61	1.50	.75	.38	2.47	1.08
EF-1600MP-1616	C20564	1	1”-11-1/2	4.40	1.38	2.36	.82	1.75	.94	.50	2.95	1.79
EF-1600MP-2020	C20565	1.215	1-1/4”-11-1/2	4.90	1.75	2.59	1.05	2.25	.97	.50	3.42	2.74
EF-1600MP-2424	C20566	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
EF-1600MP-3232	C20567	2	2”-11-1/2	5.50	2.50	3.05	1.75	3.00	1.03	.75	3.70	5.21

Desc.	Req’d per Ass’y	0404	0604	0606	0608	0808	0810	Mat’l
Nipple	1	C19957-1	C20385-1	C19958-1	C20247-1	C19959-1	C19960-1	Monel
Socket	1	C19794-1	C19794-1	C19795-1	C19680-1	C19680-1	C19796-1	Monel

Desc.	Req’d per Ass’y	1212	1612	1616	2020	2424	3232	Mat’l
Nipple	1	C19961-1	C20386-1	C19962-1	C19963-1	C19964-1	C19965-1	Moel
Socket	1	C19797-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-4722

Hose to Male NPTF

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4722-4-4	1/4	1/4”-14	2.50	.56	1.27	.17	.81	.56	.19	1.73	.26
4-4722-6-6	3/8	3/8”-18	2.75	.69	1.28	.31	1.00	.56	.25	1.92	.36
4-4722-8-8	1/2	1/2”-14	3.09	.88	1.58	.39	1.12	.56	.25	2.01	.57
4-4722-8-10	5/8	1/2”-14	3.18	.94	1.62	.48	1.25	.75	.31	2.10	.57
4-4722-12-12	3/4	3/4”-14	3.61	1.06	1.74	.61	1.50	.75	.38	2.47	1.08
4-4722-16-16	1	1”-11-1/2	4.90	1.38	2.35	.82	1.75	.94	.50	2.95	1.79
4-4722-20-20	1.25	1-1/4”-11-1/2	4.90	1.75	2.58	1.05	2.25	.97	.50	3.42	2.74
4-4722-24-24	1.5	1-1/2”-11-1/2	4.98	2.00	2.74	1.28	2.50	1.00	.62	3.34	3.31
4-4722-32-32	2	2”-11-1/2	5.50	2.50	3.06	1.75	3.00	1.03	.75	3.70	5.21

Description	Req’d per Ass’y	Base No.	4-4	6-6	8-8	8-10	12	16	20	24	32	Mat’l
Nipple	1	4-4202-	4-4	6-6	8-8	8-10	12-12	16-16	20-20	24-24	32-32	Monel
Socket	1	4-4010-4-4013-	4-	6-	8-	10-	12-	-16	20-	24-	32-	Monel

Equals to P/N 259-4721

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

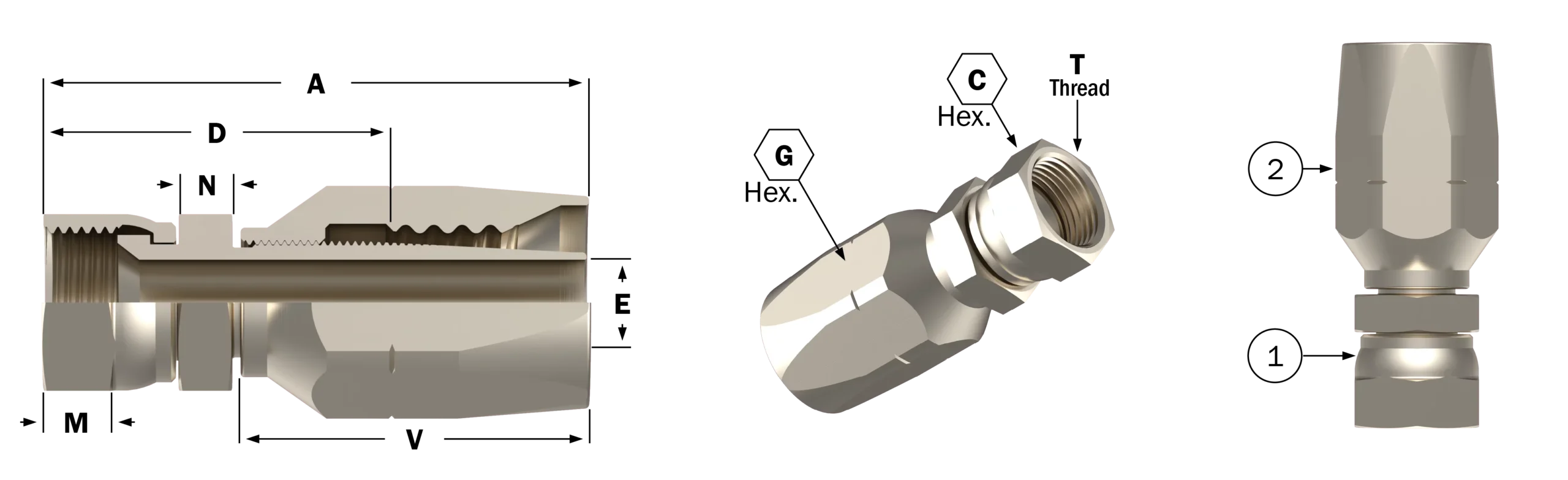

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SS1600A-0404	-	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SS1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SS1600A-0604	-	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SS1600A-0606	-	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SS1600A-0806	-	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SS1600A-0808	-	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SS1600A-1008	-	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SS1600A-1208	-	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SS1600A-1010	-	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SS1600A-1212	-	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SS1600A-1616	-	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SS1600A-2020	-	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SS1600A-2424	-	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SS1600A-3232	-	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	004	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

HS1600

Equal to Aeroquip P/N 259-4721

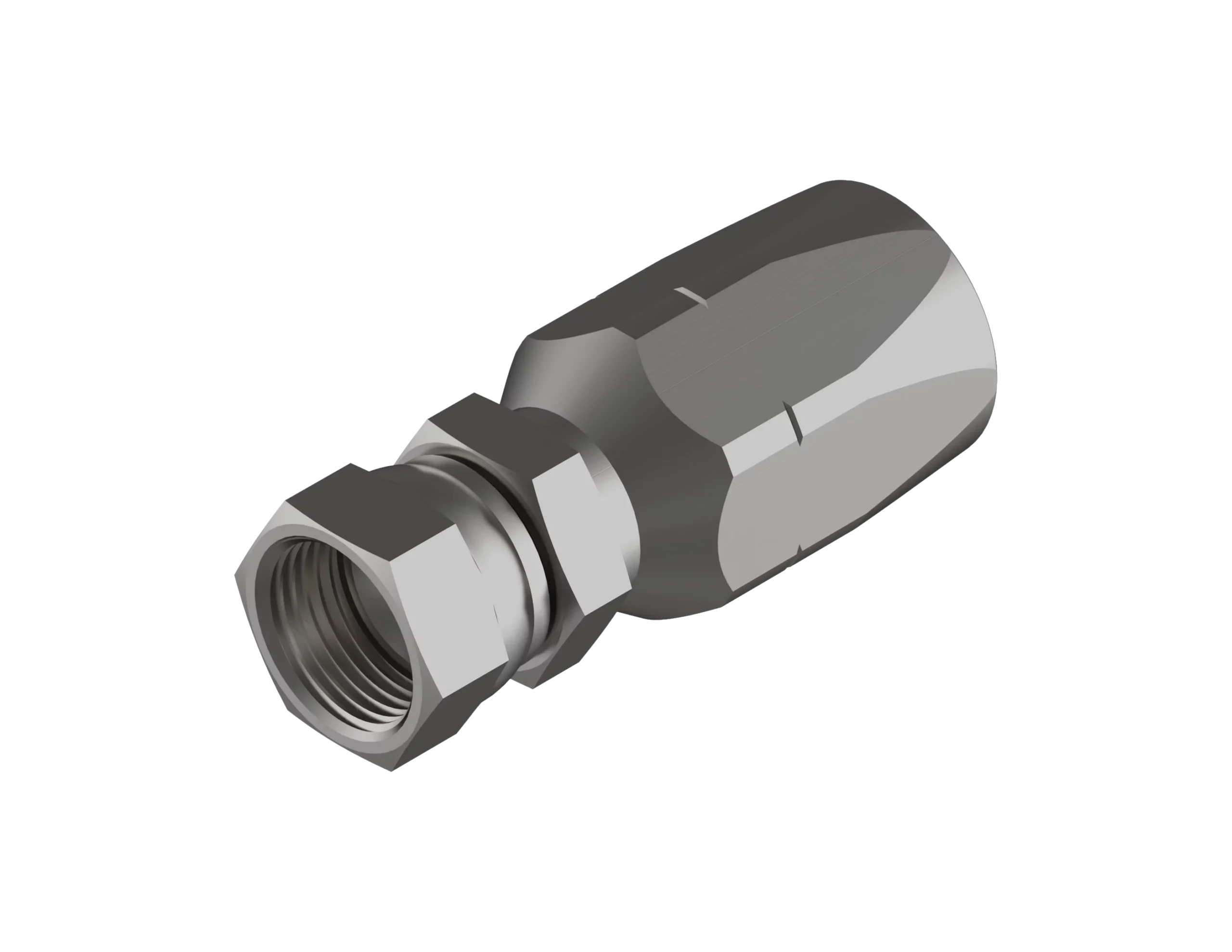

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SS1600A-0404	-	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SS1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SS1600A-0604	-	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SS1600A-0606	-	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SS1600A-0806	-	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SS1600A-0808	-	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SS1600A-1008	-	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SS1600A-1208	-	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SS1600A-1010	-	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SS1600A-1212	-	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SS1600A-1616	-	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SS1600A-2020	-	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SS1600A-2424	-	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SS1600A-3232	-	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	004	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19864	C19865	C19903	C19866	C19904	S.S
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

Equals to P/N 41-4721

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

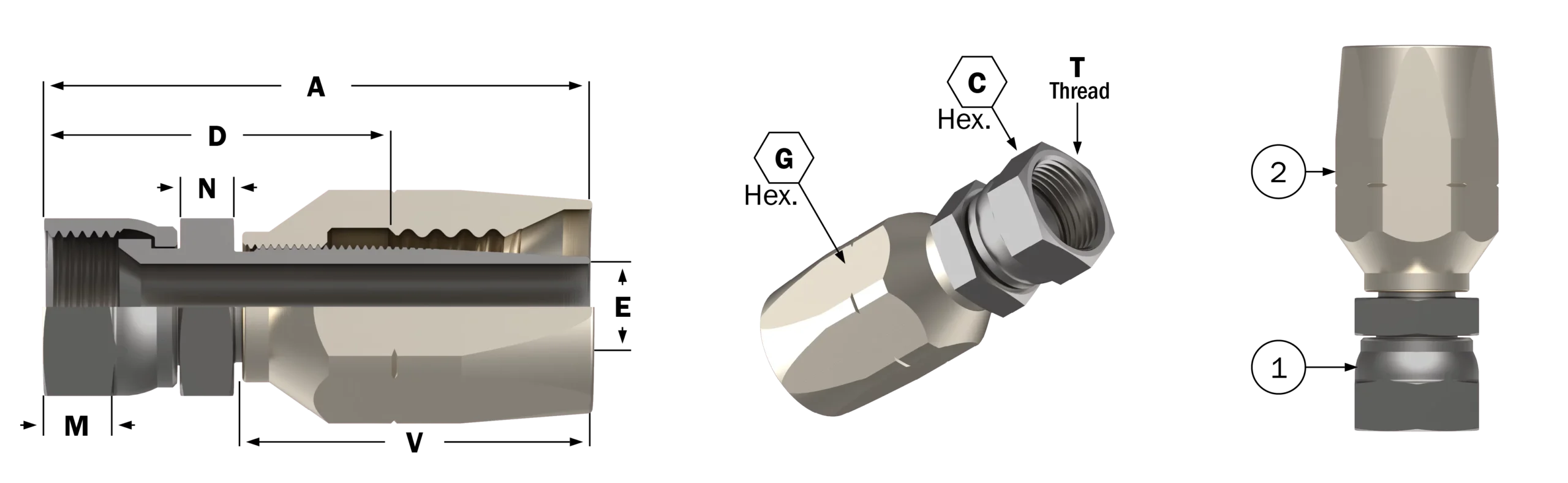

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600A-0404	C20489	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SM1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SM1600A-0604	C20491	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SM1600A-0606	C20492	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SM1600A-0806	C20493	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SM1600A-0808	c20494	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SM1600A-1008	C20495	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SM1600A-1208	C20496	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SM1600A-1010	C20440	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SM1600A-1212	C20497	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SM1600A-1616	C20500	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SM1600A-2020	C20502	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SM1600A-2424	C20504	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SM1600A-3232	C20505	2	V	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
NIpple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monel
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
41-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
41-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
41-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
41-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
41-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
41-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
41-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
41-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
41-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
41-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
41-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
41-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Steel

HS1600

Equal to Aeroquip P/N 41-4721

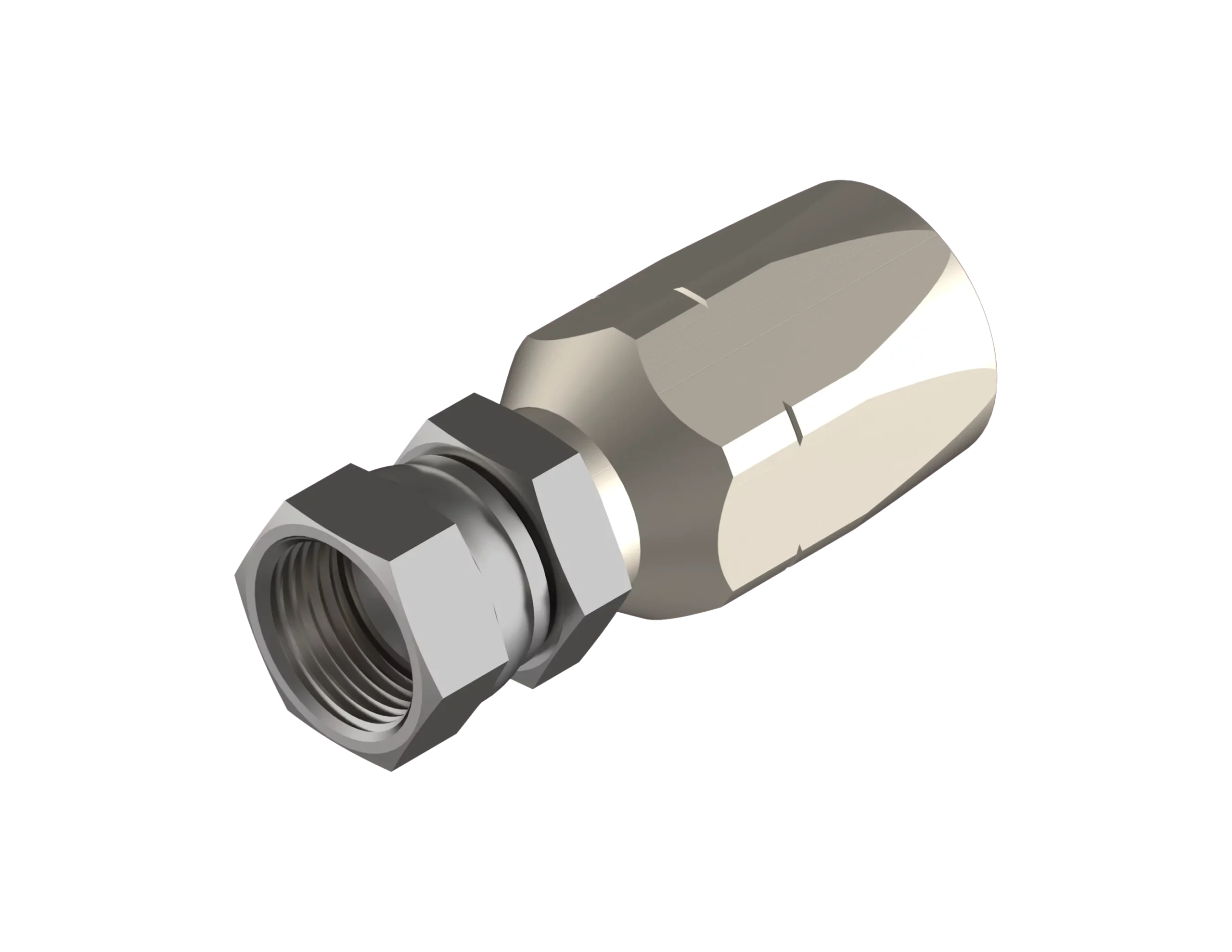

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-SM1600A-0404	C20489	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-SM1600A-0504	-	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-SM1600A-0604	C20491	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-SM1600A-0606	C20492	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-SM1600A-0806	C20493	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-SM1600A-0808	c20494	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-SM1600A-1008	C20495	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-SM1600A-1208	C20496	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-SM1600A-1010	C20440	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-SM1600A-1212	C20497	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-SM1600A-1616	C20500	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-SM1600A-2020	C20502	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-SM1600A-2424	C20504	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-SM1600A-3232	C20505	2	V	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
NIpple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monel
Socket	1	C19794-2	C19794-2	C19794-2	C19795-2	C19795-2	C19680-2	C19680-2	S.S

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-2	C19796-2	C19797-2	C19700-2	C19798-2	C19799-2	C19694-2	S.S

HS1600 Equivalent

P/N 41-4721

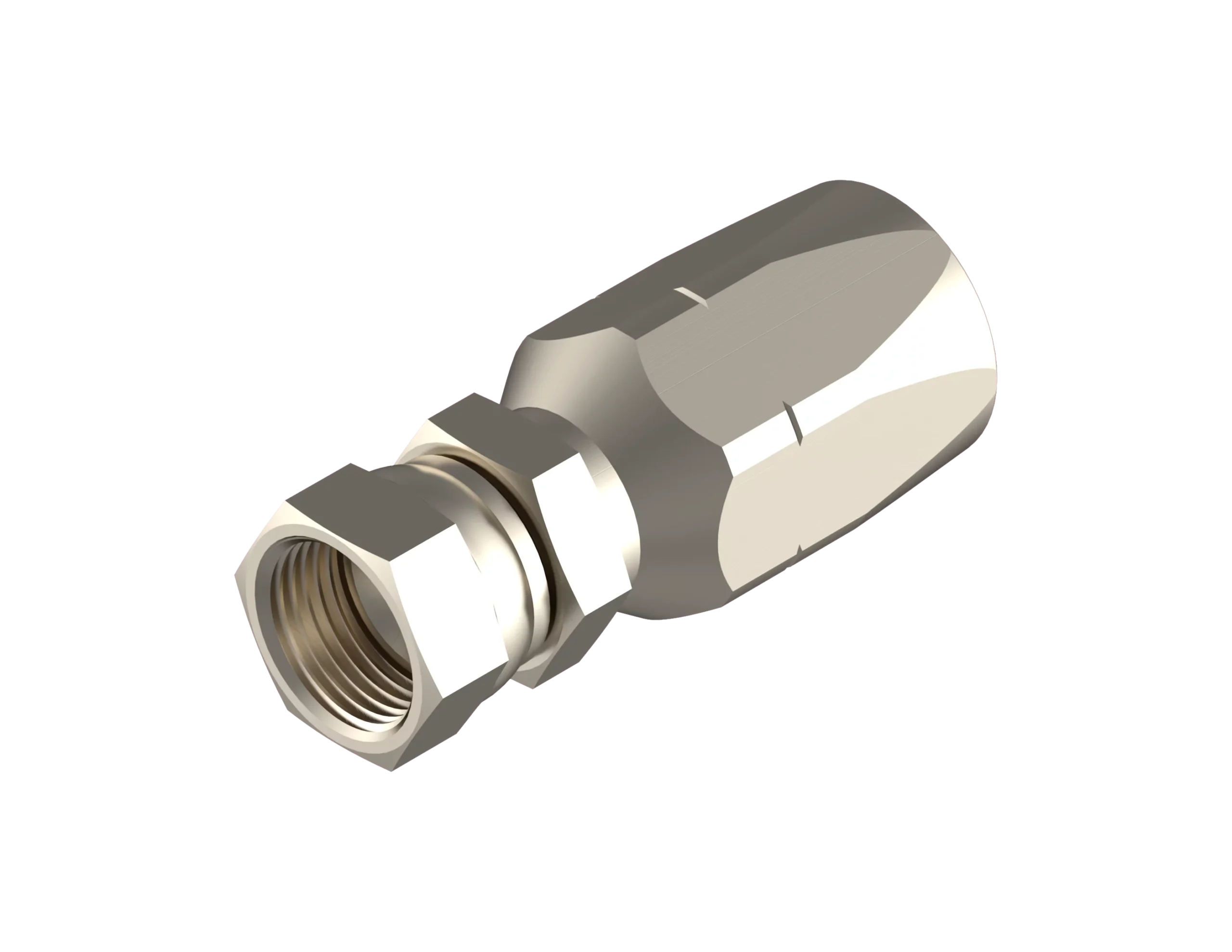

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
41-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
41-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
41-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
41-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
41-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
41-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
41-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
41-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
41-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
41-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
41-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
41-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
41-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Steel

Equals to P/N 4-4721

Defense - Marine Hose & Fitting - Fittings - HS1600 - High Pressure

MIL-DTL-24787/2

Use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Type A, Group I

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600A-0404	C20031	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-1600A-0504	C20032	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-1600A-0604	C20033	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-1600A-0606	C20034	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-1600A-0806	C20035	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-1600A-0808	C20036	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-1600A-1008	C20037	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-1600A-1208	C20038	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-1600A-1010	C20039	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-1600A-1212	C20040	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-1600A-1616	C20043	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-1600A-2020	C20045	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-1600A-2424	C20047	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-1600A-3232	C19818	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monle
Socket	1	C19794-1	C19794-1	C19794-1	C19795-1	C19795-1	C19680-1	C19680-1	Monel

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-1	C19769-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
4-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
4-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
4-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
4-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
4-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
4-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
4-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
4-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
4-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
4-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
4-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
4-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Monel

HS1600

Equal to Aeroquip P/N 4-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Drawing Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
EF-1600A-0404	C20031	1/4	7/16”-20	2.75	.56	1.41	.17	1.00	.37	.22	1.73	.22
EF-1600A-0504	C20032	1/4	1/2”-20	2.75	.63	1.49	.17	1.00	.40	.25	1.73	.26
EF-1600A-0604	C20033	1/4	9/16”-18	3.00	.69	1.56	.17	1.25	.40	.28	1.73	.35
EF-1600A-0606	C20034	3/8	9/16”-18	3.00	.69	1.51	.31	1.25	.40	.28	1.92	.40
EF-1600A-0806	C20035	3/8	3/4”-16	3.21	.88	1.64	.31	1.25	.44	.31	1.92	.47
EF-1600A-0808	C20036	1/2	3/4”-16	3.50	.88	1.68	.39	1.50	.44	.31	2.01	.53
EF-1600A-1008	C20037	1/2	7/8”-14	3.50	1.00	1.80	.39	1.50	.52	.31	2.01	.62
EF-1600A-1208	C20038	1/2	1-1/16”-12	3.50	1.25	1.90	.39	1.50	.57	.38	2.47	.75
EF-1600A-1010	C20039	5/8	7/8”-14	3.50	1.00	1.85	.50	1.50	.52	.31	2.10	.78
EF-1600A-1212	C20040	3/4	1-1/16”-12	4.00	1.25	1.99	.61	1.75	.57	.38	2.47	1.10
EF-1600A-1616	C20043	1	1-5/16”-12	4.50	1.50	2.43	.82	2.25	.60	.38	2.95	1.72
EF-1600A-2020	C20045	1.25	1-5/8”-12	5.25	2.00	2.78	1.05	2.75	.74	.38	3.42	3.38
EF-1600A-2424	C20047	1.5	1-7/8”-12	5.75	2.25	2.92	1.28	3.00	.74	.38	3.34	4.10
EF-1600A-3232	C19818	2	2-1/2”-12	6.75	2.88	3.46	1.75	3.50	.93	.50	3.70	6.27

Desc.	Req’d per Ass’y	0404	0504	0604	0606	0806	0808	1008	Mat’l
Nipple	1	C19863	C19902	C19864	C19865	C19903	C19866	C19904	Monle
Socket	1	C19794-1	C19794-1	C19794-1	C19795-1	C19795-1	C19680-1	C19680-1	Monel

Desc.	Req’d per Ass’y	1208	1010	1212	1616	2020	2424	3232	Mat’l
Nipple	1	C19905	C19867	C19868	C19847	C19869	C19870	C19871	Monel
Socket	1	C19680-1	C19769-1	C19797-1	C19700-1	C19798-1	C19799-1	C19694-1	Monel

HS1600 Equivalent

P/N 4-4721

Hose to Female J.I.C. (37°) Flare

End Fitting - Straight

MIL-DTL-24787/2,

Type A, Group I

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Part Number	Hose I.D	T Thread CL-2B	A	C	D	E	G	M	N	V	Est. Wt. (lbs.)
4-4721-4-4	1/4	7/16”-20	2.64	.56	1.41	.17	1.00	.37	.22	1.73	.24
4-4721-5-4	1/4	1/2”-20	2.72	.63	1.49	.17	1.00	.40	.25	1.73	.26
4-4721-6-4	1/4	9/16”-18	2.79	.69	1.56	.17	1.25	.40	.28	1.73	.28
4-4721-6-6	3/8	9/16”-18	2.98	.69	1.51	.31	1.25	.40	.28	1.92	.37
4-4721-8-6	3/8	3/4”-16	3.11	.88	1.64	.31	1.25	.44	.31	1.92	.44
4-4721-8-8	1/2	3/4”-16	3.20	.88	1.68	.39	1.50	.44	.31	2.01	.68
4-4721-10-8	1/2	7/8”-14	3.31	1.00	1.80	.39	1.50	.52	.31	2.01	.59
4-4721-10	5/8	7/8”-14	3.40	1.25	1.85	.50	1.50	.57	.38	2.47	.61
4-4721-12	3/4	1-1/16”-12	3.86	1.00	1.99	.61	1.50	.52	.31	2.10	1.12
4-4721-16	1	1-5/16”-12	4.48	1.25	2.43	.82	1.75	.57	.38	2.47	1.91
4-4721-20	1.25	1-5/8”-12	5.10	1.50	2.78	1.05	2.25	.60	.38	2.95	3.38
4-4721-24	1.5	1-7/8”-12	5.16	2.00	2.92	1.28	2.75	.74	.38	3.42	4.10
4-4721-32	2	2-1/2”-12	5.90	2.25	3.46	1.75	3.00	.74	.38	3.34	6.27

Description	Req’d per Ass’y	Base No.	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Mat’l
Nipple	1	4-4103-	4-4	5-4	6-4	6-6	8-6	8-8	10-8	10	12	16	20	24	32	Monel
Socket	1	4-4010-4-4013-	4-	4-	4-	6-	6-	8-	8-	10-	12-	-16	20-	24-	32-	Monel

Fittings

Hose

Hose Assemblies

Hose Protectants

Adapters – Marine Hose & Fittings

Fittings

Marine Hose & Assemblies

Split Clamps Sil-Braze Tailpieces and Accessories

Test Fittings

6000 Series Fittings Couplings & Union Assemblies

8100 Series Fittings "O"-Rings & Sil-Braze Rings

8300 Series Fittings "O"-Rings & Sil-Braze Rings

9000 Series Fittings

Hose End Fittings & Adapters

Valves & Accessories

Valves Instrumentation & Adapters

Adapters

Caps & Plugs

Clamps

Coupling

End Fittings

Highline Products

Hooks

Hoses & Assemblies

Lines

Links

Litters

Messenger

Miscellaneous

Pigs

Probes

Receivers

Riding Lines

Saddles

Slings

Straps

Stress Wires

Strongbacks

Surfs

Swivels

Tools

Trolleys

HS449 Fittings

HS1600 Fittings

HS1489 Fittings

HS1488 Medium Pressure Fittings

ER512 Series Large Bore Hoses

HS1546 Large Bore Hose

Air Pipe Heads

Coupling & Shafting Accessories

Deck Drains

Deck Hardware

Drivetrain

Exhaust Fittings

Hose & Clamps

International Shore Connections

Inverted Vent Check Valves

Miscellaneous Hardware

Pipe Caps

Plumbing & Fittings

Sounding Tubes

Steering Hardware

Strainers

Suction Bell mouths

Thru Hulls

Valves

Literature

Distributor Portal

Supplier Information

News

HS1600 - High Pressure

HS1600

HS1600

Equal to Aeroquip P/N 41-191305

Hose to Hose

Elbow - 90° Dogleg

For use with the following hose:Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

HS1600

Equal to Aeroquip P/N 41-191304

Male O-Ring Seal to Hose
