HS1546 – Large Bore Hose

Equals to P/N FC9528-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/5

Use with the following hose:HS4182 & FC132

Type D, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
90ELB-1546E-40	D18354	2.5	3.25	6.75	2.83	2.12	15.00
90ELB-1546E-48	D18353	3	3.87	7.75	3.09	2.50	23.00
90ELB-1546E-64	D18434	4	7.00	9.00	3.88	3.00	36.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	C18051	C18309	D18310	Aluminum. Bronze
Grip Segment	4	D17739-1	D17743-1	D17726-1	Aluminum. Bronze
Bolt	8	B17747-1	B17748-1	B17749-1	Monel
Nut	8	B17747-2	B17748-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
FC9528-4040-188	2.5	4.92	6.70	2.50	1.88	15.80
FC9528-4848-188	3	5.65	7.65	2.75	2.09	23.30
FC9528-6464-188	4	6.48	8.91	3.57	2.81	36.50

Description	Req’d per Ass’y	Base No.	4040	4848	6464	Material
Elbow	1	FC3479-	4040-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	4	FC3477-	40-188	48-188	64-188	Aluminum. Bronze
Bolt	8	FF9142-	0856-4	0964-4	1072-4	Monel
Nut	8	4-222048-	8	9	10	Monel

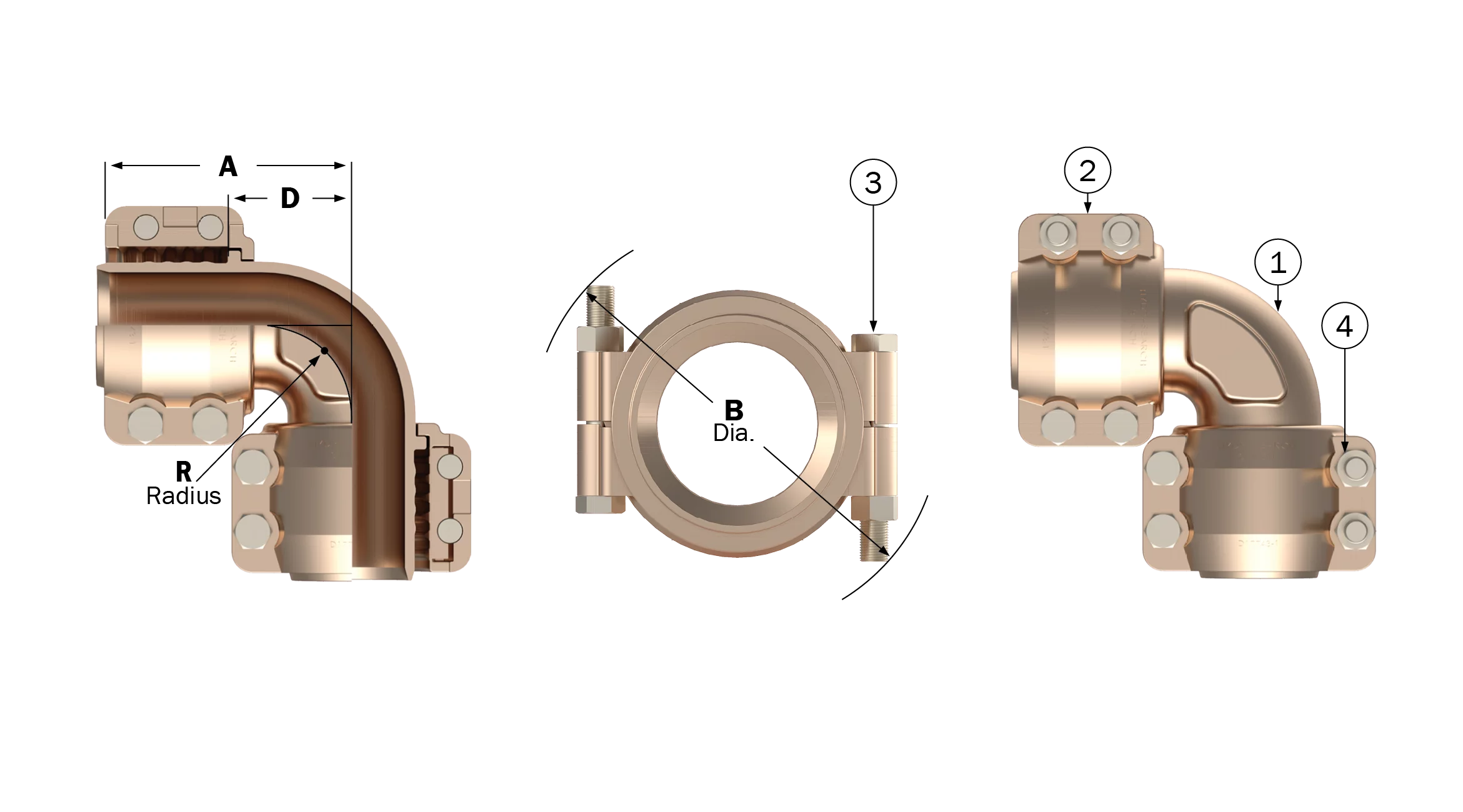

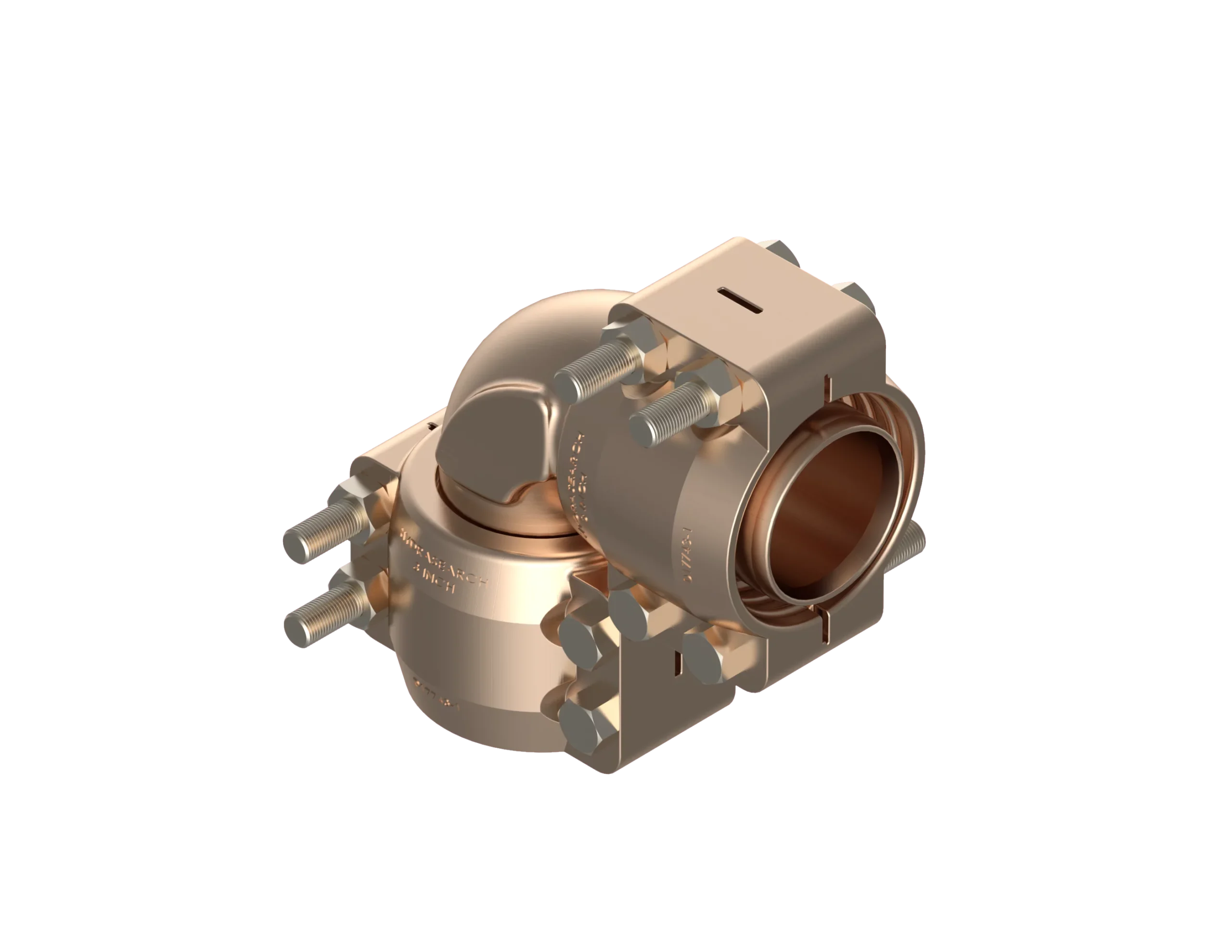

HS1546

Equal to Aeroquip P/N FC9528-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
90ELB-1546E-40	D18354	2.5	3.25	6.75	2.83	2.12	15.00
90ELB-1546E-48	D18353	3	3.87	7.75	3.09	2.50	23.00
90ELB-1546E-64	D18434	4	7.00	9.00	3.88	3.00	36.00

Description	Req’d per Ass’y	40	48	64	Material
Elbow	1	C18051	C18309	D18310	Aluminum. Bronze
Grip Segment	4	D17739-1	D17743-1	D17726-1	Aluminum. Bronze
Bolt	8	B17747-1	B17748-1	B17749-1	Monel
Nut	8	B17747-2	B17748-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9528-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group X

For use with the following hose: HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	D (Max.)	R (Nom.)	Est. Wt. (lbs.)
FC9528-4040-188	2.5	4.92	6.70	2.50	1.88	15.80
FC9528-4848-188	3	5.65	7.65	2.75	2.09	23.30
FC9528-6464-188	4	6.48	8.91	3.57	2.81	36.50

Description	Req’d per Ass’y	Base No.	4040	4848	6464	Material
Elbow	1	FC3479-	4040-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	4	FC3477-	40-188	48-188	64-188	Aluminum. Bronze
Bolt	8	FF9142-	0856-4	0964-4	1072-4	Monel
Nut	8	4-222048-	8	9	10	Monel

Equals to P/N FC9636-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/4

Use with the following hose:HS4182 & FC132

Type EL, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
90EF-1546D-2-40	C18430	2	2.00	5.22	5.25	2.84	3.245	2.500	.332	.317	3.41	1.88	10.00
90EF-1546D-2.5-48	C18431	2.5	2.35	5.60	5.72	2.83	3.745	3.000	.332	.317	3.75	2.09	13.00
90EF-1546D-3-48	D18357	3	2.35	5.60	5.72	2.83	4.370	3.625	.332	.317	3.75	2.09	16.00
90EF-1546D-3.5-64	C18432	3.5	3.40	7.00	6.78	3.91	4.928	4.125	.332	.317	3.90	2.81	25.00
90EF-1546D-4-64	C18433	4	3.40	7.00	6.78	3.91	5.428	4.625	.404	.360	3.96	2.81	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Elbow	1	C18330	C18331	C18332	D18333	D18334	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
FC9636-3240-188	2	2.06	6.70	4.92	2.50	3.24	2.50	.33	.317	3.09	1.88	9.50
FC9636-4048-188	2.5	2.51	7.65	5.75	2.85	3.74	3.00	.33	.317	3.17	2.09	12.60
FC9636-4848-188	3	2.51	7.65	6.15	3.25	4.37	3.62	.33	.317	3.20	2.09	15.70
FC9636-5664-188	3.5	3.50	8.91	6.48	3.57	4.93	4.04	.33	.317	4.04	2.81	25.10
FC9636-6464-188	4	3.50	8.91	6.48	3.57	5.43	4.62	.40	.360	4.06	2.81	26.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Elbow	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

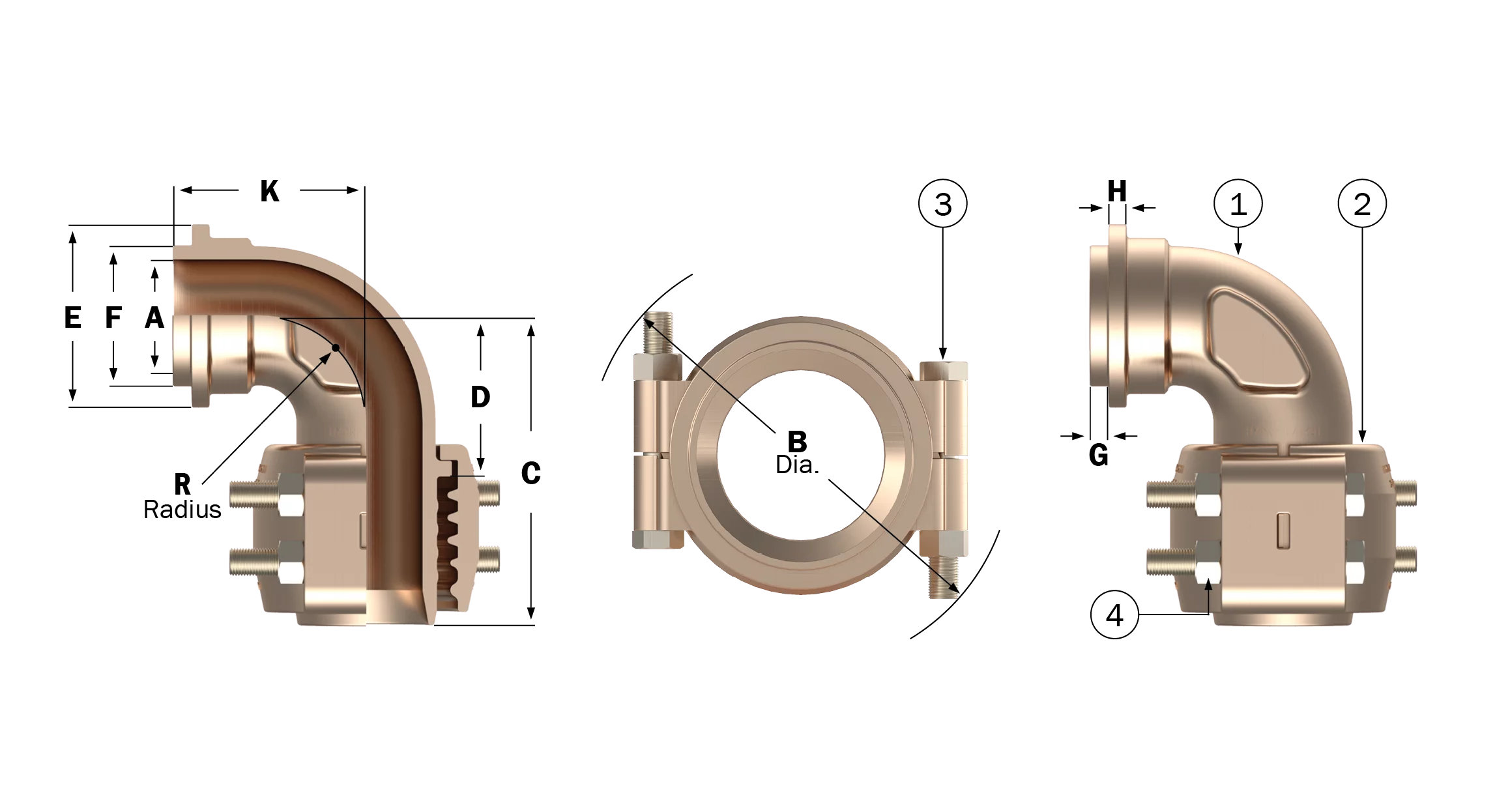

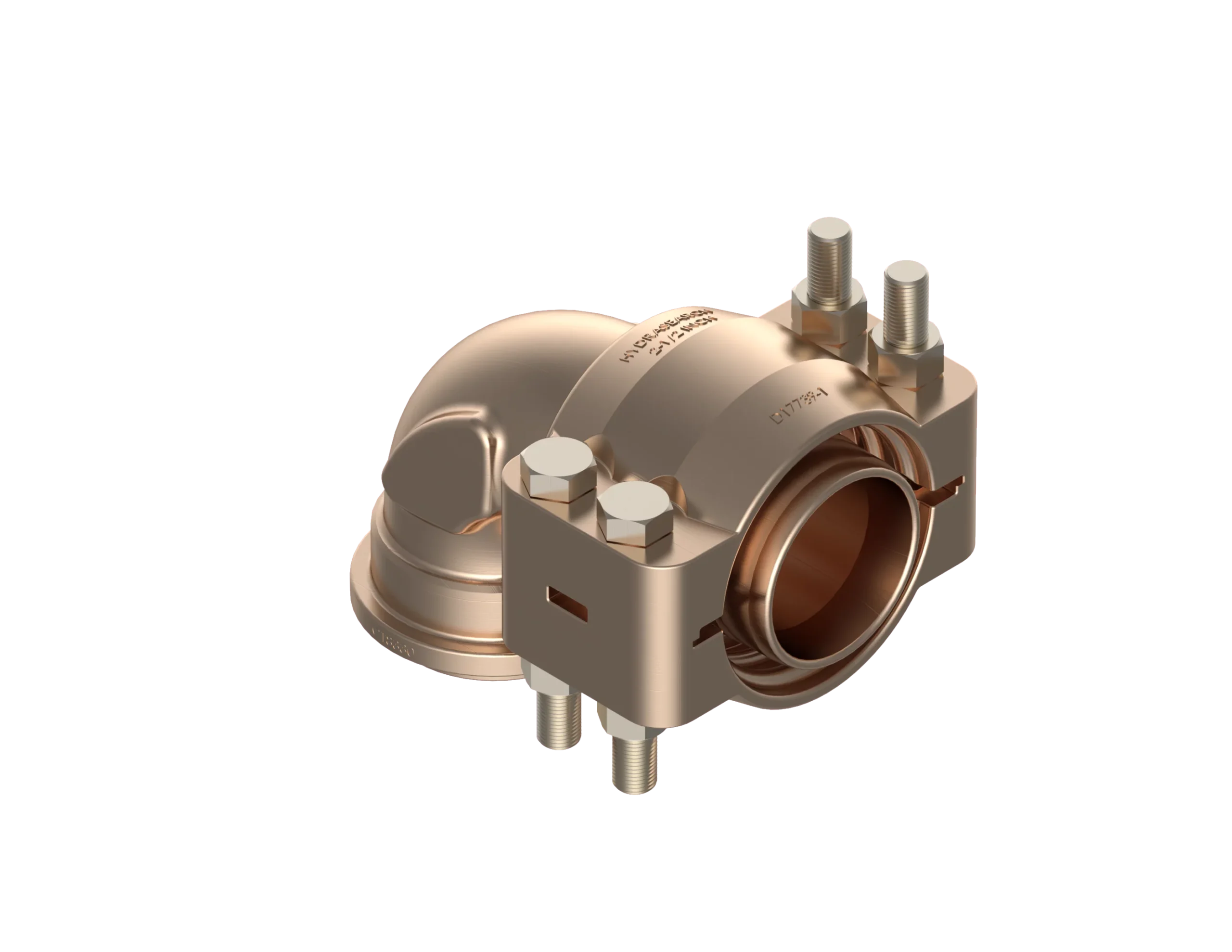

HS1546

Equal to Aeroquip P/N FC9636-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
90EF-1546D-2-40	C18430	2	2.00	5.22	5.25	2.84	3.245	2.500	.332	.317	3.41	1.88	10.00
90EF-1546D-2.5-48	C18431	2.5	2.35	5.60	5.72	2.83	3.745	3.000	.332	.317	3.75	2.09	13.00
90EF-1546D-3-48	D18357	3	2.35	5.60	5.72	2.83	4.370	3.625	.332	.317	3.75	2.09	16.00
90EF-1546D-3.5-64	C18432	3.5	3.40	7.00	6.78	3.91	4.928	4.125	.332	.317	3.90	2.81	25.00
90EF-1546D-4-64	C18433	4	3.40	7.00	6.78	3.91	5.428	4.625	.404	.360	3.96	2.81	26.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Elbow	1	C18330	C18331	C18332	D18333	D18334	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9636-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group X

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	K (Nom.)	R (Nom.)	Est. Wt. (lbs.)
FC9636-3240-188	2	2.06	6.70	4.92	2.50	3.24	2.50	.33	.317	3.09	1.88	9.50
FC9636-4048-188	2.5	2.51	7.65	5.75	2.85	3.74	3.00	.33	.317	3.17	2.09	12.60
FC9636-4848-188	3	2.51	7.65	6.15	3.25	4.37	3.62	.33	.317	3.20	2.09	15.70
FC9636-5664-188	3.5	3.50	8.91	6.48	3.57	4.93	4.04	.33	.317	4.04	2.81	25.10
FC9636-6464-188	4	3.50	8.91	6.48	3.57	5.43	4.62	.40	.360	4.06	2.81	26.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Elbow	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Equals to P/N FC9635-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/4

Use with the following hose:HS4182 & FC132

Type E, Group X

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
EF-1546C-2-40	C18356	2	2.00	4.08	6.75	1.67	3.245	2.500	.332	.317	9.00
EF-1546C-2.5-48	C18427	2.5	2.50	4.64	7.75	1.75	3.745	3.000	.332	.317	13.00
EF-1546C-3-48	C18355	3	2.50	4.59	7.75	1.70	4.370	3.625	.332	.317	13.00
EF-1546C-3.5-64	C18428	3.5	3.40	4.74	9.00	1.87	4.928	4.125	.332	.317	20.00
EF-1546C-4-64	C18429	4	3.40	4.74	9.00	1.87	5.428	4.625	.404	.360	21.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Nipple	1	C18325	C18326	C18327	C18328	C18329	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
FC9635-3240-188	2	2.06	4.02	6.70	3.00	3.24	2.50	.33	.317	8.80
FC9635-4048-188	2.5	2.51	4.59	7.65	3.50	3.74	3.00	.33	.317	12.50
FC9635-4848-188	3	2.51	4.59	7.65	3.50	4.37	3.62	.33	.317	13.00
FC9635-5664-188	3.5	3.50	4.64	8.91	3.59	4.93	4.12	.33	.317	19.50
FC9365-6464-188	4	3.50	4.75	8.91	3.59	5.43	4.62	.40	.360	20.50

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Nipple	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

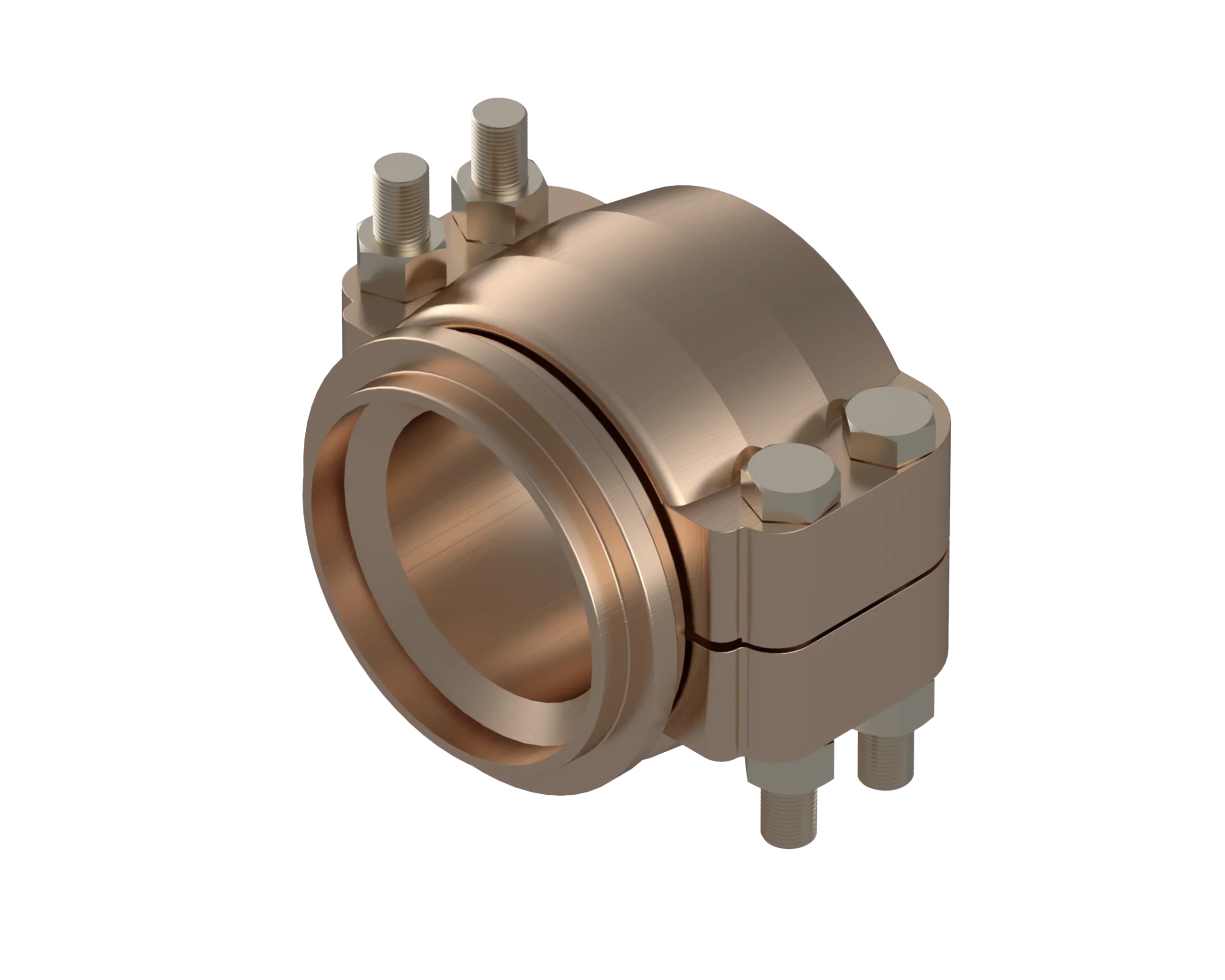

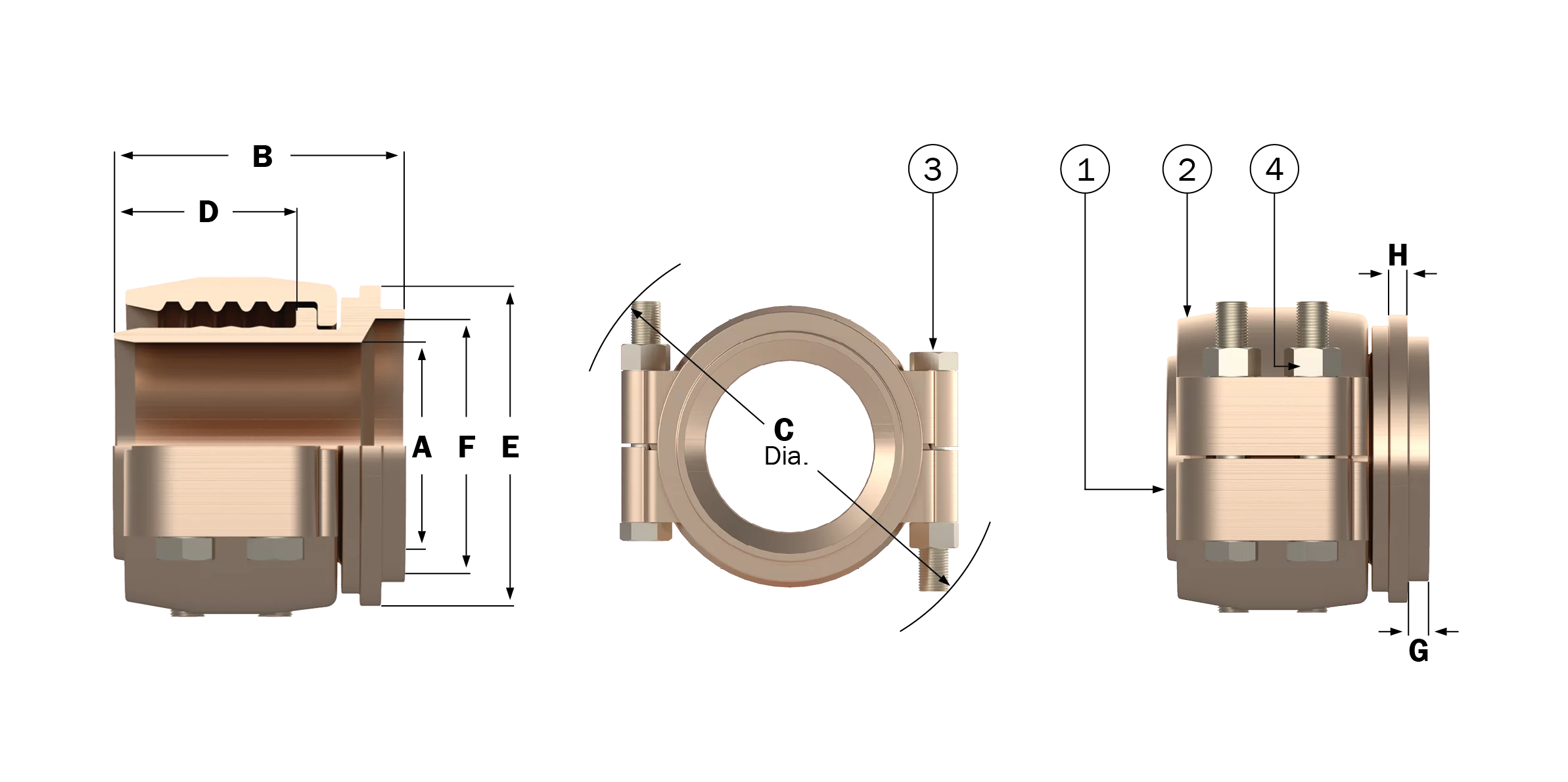

HS1546

Equal to Aeroquip P/N FC9635-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group X

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
EF-1546C-2-40	C18356	2	2.00	4.08	6.75	1.67	3.245	2.500	.332	.317	9.00
EF-1546C-2.5-48	C18427	2.5	2.50	4.64	7.75	1.75	3.745	3.000	.332	.317	13.00
EF-1546C-3-48	C18355	3	2.50	4.59	7.75	1.70	4.370	3.625	.332	.317	13.00
EF-1546C-3.5-64	C18428	3.5	3.40	4.74	9.00	1.87	4.928	4.125	.332	.317	20.00
EF-1546C-4-64	C18429	4	3.40	4.74	9.00	1.87	5.428	4.625	.404	.360	21.00

Description	Req’d per Ass’y	2-40	2.5-48	3-48	3.5-64	4-64	Material
Nipple	1	C18325	C18326	C18327	C18328	C18329	Aluminum. Bronze
Grip Segment	2	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9635-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group X

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	A (Max.)	B (Max.)	C (Max.)	D (Max.)	E ±.006	F +.006 -0.00	G +.006 -0.00	H +.006 -0.00	Est. Wt. (lbs.)
FC9635-3240-188	2	2.06	4.02	6.70	3.00	3.24	2.50	.33	.317	8.80
FC9635-4048-188	2.5	2.51	4.59	7.65	3.50	3.74	3.00	.33	.317	12.50
FC9635-4848-188	3	2.51	4.59	7.65	3.50	4.37	3.62	.33	.317	13.00
FC9635-5664-188	3.5	3.50	4.64	8.91	3.59	4.93	4.12	.33	.317	19.50
FC9365-6464-188	4	3.50	4.75	8.91	3.59	5.43	4.62	.40	.360	20.50

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Nipple	1	FC3555-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B5-2-40	C18708	2	4	.75	5.25	2.84	3.50	6.00	3.22	4.75	.42	1.88	2.24	3.70	15.00
90EF-1546B5-2.5-40	C18711	2.5	4	.75	2.25	2.84	3.50	7.00	3.22	5.50	.48	1.88	2.24	6.70	16.00
90EF-1546B5-2.5-48	C18496	2.5	4	.75	5.78	2.89	3.87	7.00	3.78	5.50	.48	2.09	2.71	7.65	19.00
90EF-1546B5-3-48	C18712	3	4	.75	5.78	2.89	4.00	7.50	4.50	6.00	.48	2.09	3.31	7.65	20.00
90EF-1546B5-3.5-64	D18713	3.5	8	.75	6.78	3.91	4.62	8.50	5.22	7.00	.48	2.81	3.81	8.91	29.00
90EF-1546B5-4-64	D18722	4	8	.75	6.78	3.91	4.62	9.00	5.28	7.50	.48	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	C17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

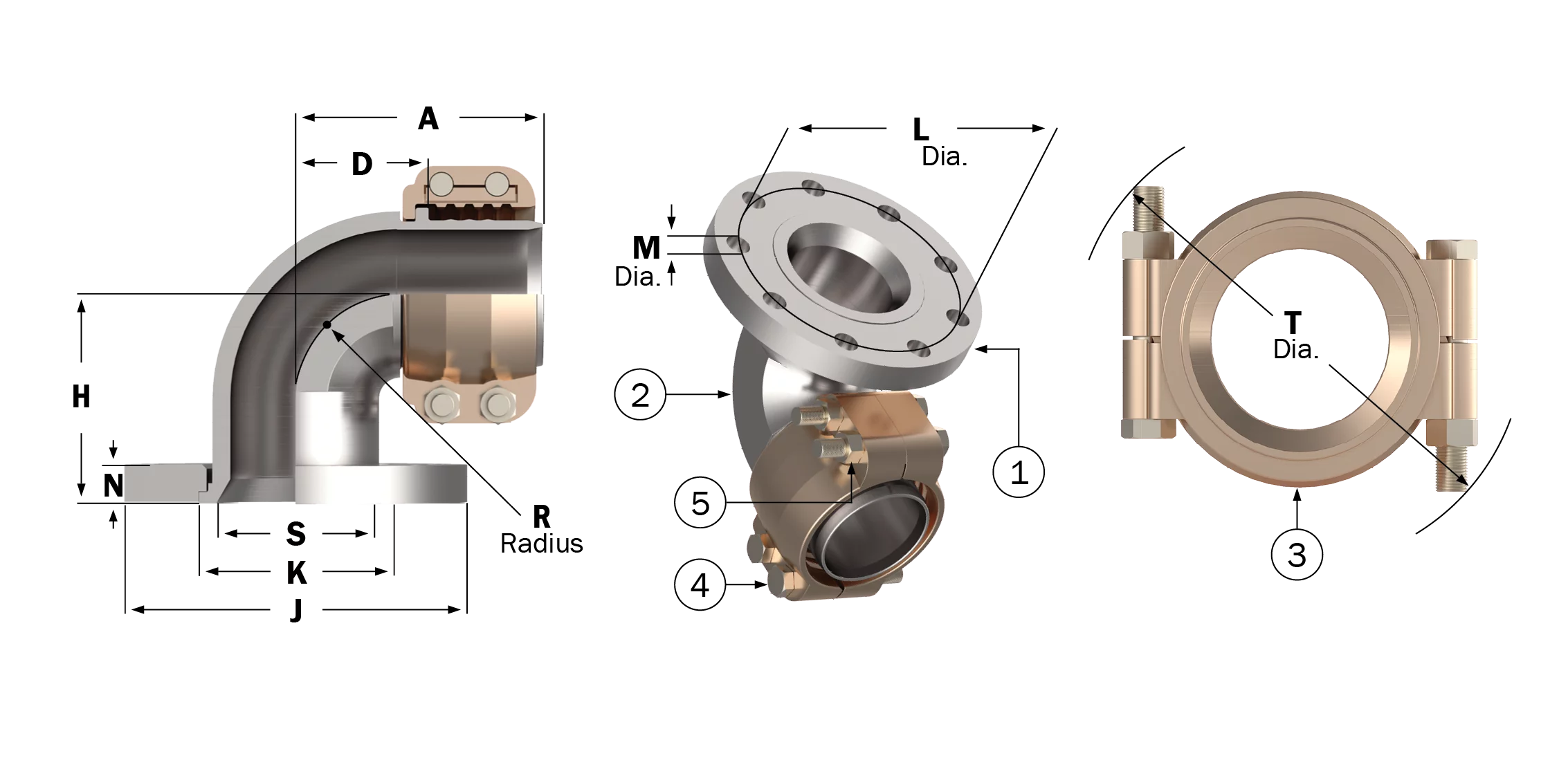

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC7554-4848-410	3	4	5.78	2.89	4.00	7.50	4.50	6.00	.75	.48	2.09	3.31	7.65	20.00
FC7554-6464-410	4	8	6.48	3.57	5.62	9.00	5.22	7.50	.75	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	Base No.	4848	6464	Material
Swivel Flange	1	407-74021-	48-48	64-64	Stainless Steel
Elbow	1	FC3558-	4848-407	6464-407	Stainless Steel
Grip Segment	2	FC3476-	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0964-4	1072-4	Monel
Nut	4	4-222048-	9	10	Monel

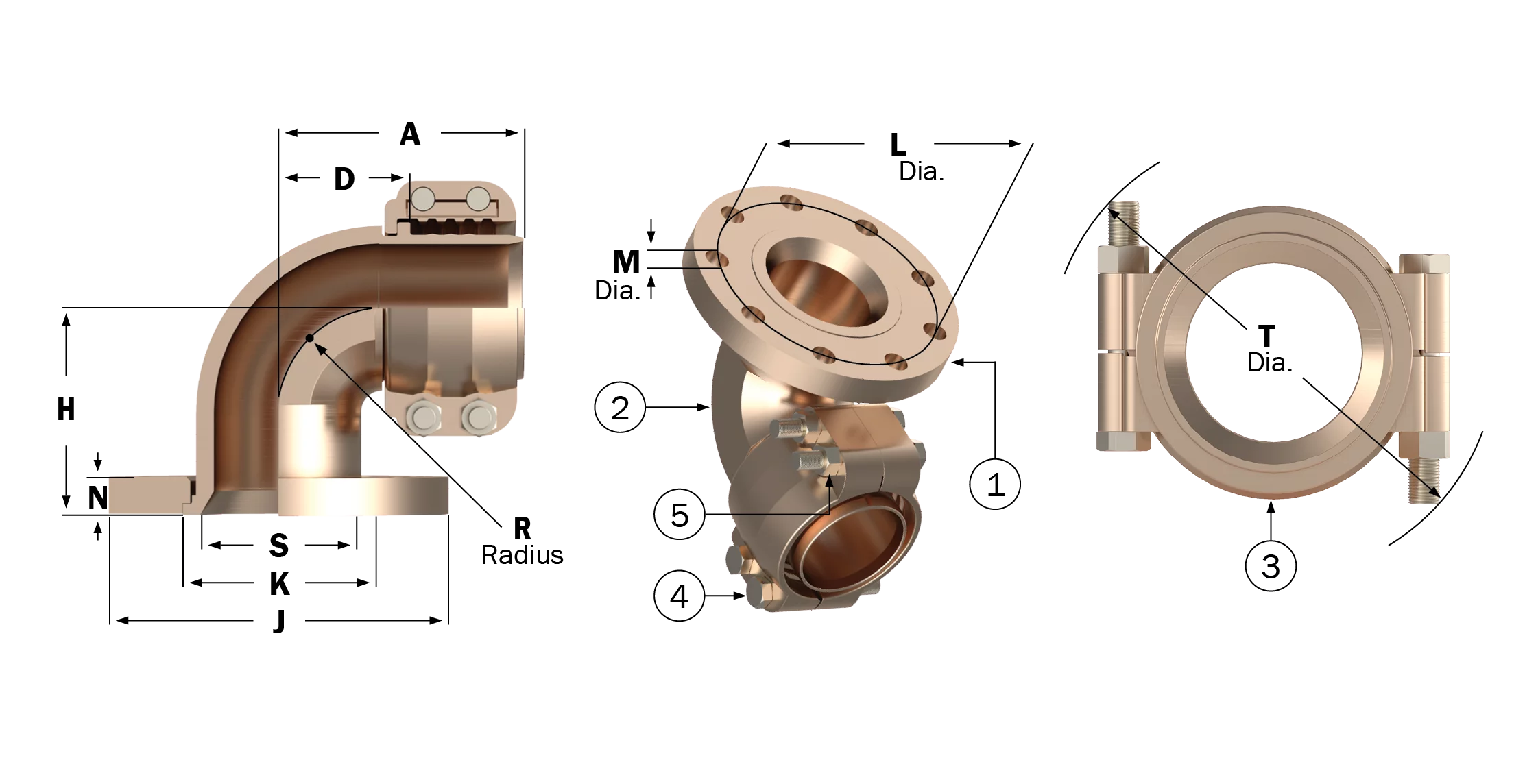

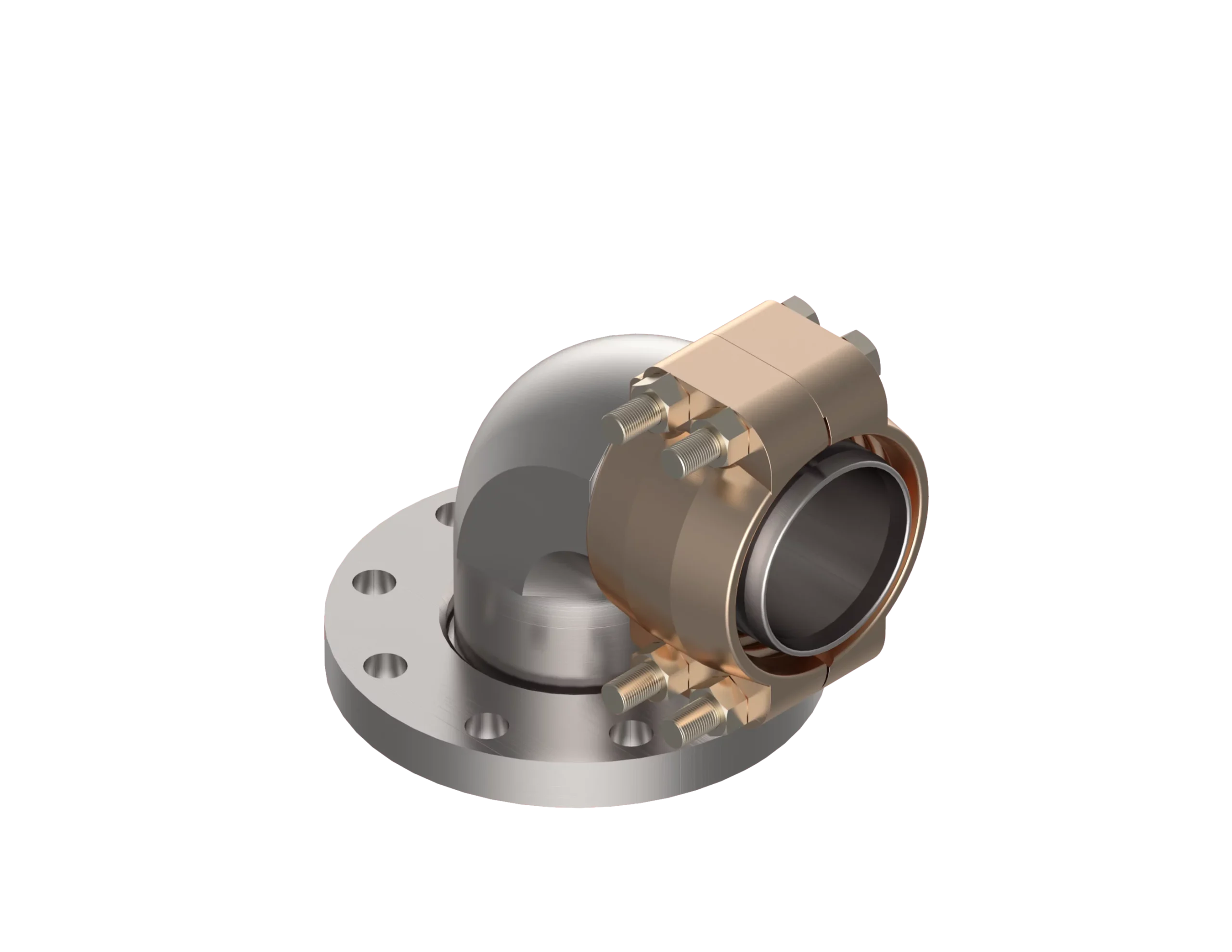

HS1546

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B5-2-40	C18708	2	4	.75	5.25	2.84	3.50	6.00	3.22	4.75	.42	1.88	2.24	3.70	15.00
90EF-1546B5-2.5-40	C18711	2.5	4	.75	2.25	2.84	3.50	7.00	3.22	5.50	.48	1.88	2.24	6.70	16.00
90EF-1546B5-2.5-48	C18496	2.5	4	.75	5.78	2.89	3.87	7.00	3.78	5.50	.48	2.09	2.71	7.65	19.00
90EF-1546B5-3-48	C18712	3	4	.75	5.78	2.89	4.00	7.50	4.50	6.00	.48	2.09	3.31	7.65	20.00
90EF-1546B5-3.5-64	D18713	3.5	8	.75	6.78	3.91	4.62	8.50	5.22	7.00	.48	2.81	3.81	8.91	29.00
90EF-1546B5-4-64	D18722	4	8	.75	6.78	3.91	4.62	9.00	5.28	7.50	.48	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	C17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC7554-410

Hose to Flange

End Fitting - 90°

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC7554-4848-410	3	4	5.78	2.89	4.00	7.50	4.50	6.00	.75	.48	2.09	3.31	7.65	20.00
FC7554-6464-410	4	8	6.48	3.57	5.62	9.00	5.22	7.50	.75	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	Base No.	4848	6464	Material
Swivel Flange	1	407-74021-	48-48	64-64	Stainless Steel
Elbow	1	FC3558-	4848-407	6464-407	Stainless Steel
Grip Segment	2	FC3476-	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0964-4	1072-4	Monel
Nut	4	4-222048-	9	10	Monel

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B4-2-40	C18709	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.44	1.88	2.24	6.70	15.00
90EF-1546B4-2.5-40	C18714	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.50	1.88	2.24	6.70	16.00
90EF-1546B4-2.5-48	C18495	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.50	2.09	2.71	7.65	19.00
90EF-1546B4-3-48	C18715	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.50	2.09	3.31	7.65	20.00
90EF-1546B4-3.5-64	D18720	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	.50	2.81	3.81	8.91	29.00
90EF-1546B4-4-64	D18723	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B4-2-40	C18709	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.44	1.88	2.24	6.70	15.00
90EF-1546B4-2.5-40	C18714	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.50	1.88	2.24	6.70	16.00
90EF-1546B4-2.5-48	C18495	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.50	2.09	2.71	7.65	19.00
90EF-1546B4-3-48	C18715	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.50	2.09	3.31	7.65	20.00
90EF-1546B4-3.5-64	D18720	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	.50	2.81	3.81	8.91	29.00
90EF-1546B4-4-64	D18723	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	.50	2.81	4.28	8.91	30.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Equals to P/N FJ9838-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B3-2-40	C18710	2	6	.69	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	17.00
90EF-1546B3-2.5-40	C18535	2.5	6	.69	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	18.00
90EF-1546B3-2.5-48	C18494	2.5	6	.69	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	21.00
90EF-1546B3-3-48	C18716	3	8	.69	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	22.00
90EF-1546B3-3.5-64	D18721	3.5	8	.69	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	31.00
90EF-1546B3-4-64	D18724	4	8	.69	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	C18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FJ9838-3240-188	2	6	5.25	2.84	3.50	5.56	3.22	4.44	.69	.81	1.88	2.24	6.70	17.00
FJ9838-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.69	.95	1.88	2.24	6.70	17.00
FJ9838-4048-188	2.5	6	5.78	2.89	3.87	6.13	3.78	5.00	.69	.94	2.09	2.71	7.65	21.00
FJ9838-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.69	.95	2.09	3.31	7.65	22.00
FJ9838-5664-188	3.5	8	6.78	3.91	4.62	7.19	5.22	6.06	.69	1.00	2.81	3.81	8.91	31.00
FJ9838-6464-188	4	8	6.78	3.91	4.62	7.69	5.28	6.56	.69	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	Base No.	4040	4848	Material
Swivel Flange	1	188-74414-	2.5-40	3-48	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4848-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	Aluminum. Bronze
Bolt	4	FF9142-	40-188	0964-4	Monel
Nut	4	4-222048-	8	9	Monel

HS1546

Equal to Aeroquip P/N FJ9838-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B3-2-40	C18710	2	6	.69	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	17.00
90EF-1546B3-2.5-40	C18535	2.5	6	.69	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	18.00
90EF-1546B3-2.5-48	C18494	2.5	6	.69	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	21.00
90EF-1546B3-3-48	C18716	3	8	.69	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	22.00
90EF-1546B3-3.5-64	D18721	3.5	8	.69	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	31.00
90EF-1546B3-4-64	D18724	4	8	.69	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	C18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FJ9838-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FJ9838-3240-188	2	6	5.25	2.84	3.50	5.56	3.22	4.44	.69	.81	1.88	2.24	6.70	17.00
FJ9838-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.69	.95	1.88	2.24	6.70	17.00
FJ9838-4048-188	2.5	6	5.78	2.89	3.87	6.13	3.78	5.00	.69	.94	2.09	2.71	7.65	21.00
FJ9838-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.69	.95	2.09	3.31	7.65	22.00
FJ9838-5664-188	3.5	8	6.78	3.91	4.62	7.19	5.22	6.06	.69	1.00	2.81	3.81	8.91	31.00
FJ9838-6464-188	4	8	6.78	3.91	4.62	7.69	5.28	6.56	.69	1.00	2.81	4.28	8.91	32.00

Description	Req’d per Ass’y	Base No.	4040	4848	Material
Swivel Flange	1	188-74414-	2.5-40	3-48	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4848-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	Aluminum. Bronze
Bolt	4	FF9142-	40-188	0964-4	Monel
Nut	4	4-222048-	8	9	Monel

Equals to P/N FC9637-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B2-2-40	C18422	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	16.00
90EF-1546B2-2.5-40	C18423	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	20.00
90EF-1546B2-2.5-48	C18424	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	20.00
90EF-1546B2-3-48	D18358	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	20.00
90EF-1546B2-3.5-64	C18425	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	32.00
90EF-1546B2-4-64	C18426	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	33.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9637-3240-188	2	6	4.92	2.50	4.00	5.56	3.28	4.44	.56	.83	1.88	2.24	6.70	15.50
FC9637-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.56	.95	2.09	2.24	6.70	19.80
FC9637-4048-188	2.5	6	5.65	2.75	4.50	6.12	3.78	5.00	.56	.95	2.09	2.71	7.65	19.80
FC9637-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.56	.95	2.09	3.31	7.65	20.30
FC9637-5664-188	3.5	8	6.48	3.57	5.62	7.19	5.22	6.06	.56	1.02	2.81	3.81	8.91	31.50
FC9637-6464-188	4	8	6.48	3.57	5.62	7.69	5.22	6.56	.56	1.02	2.81	4.28	8.91	33.40

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4040-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9637-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B2-2-40	C18422	2	6	.56	5.25	2.84	3.50	5.56	3.22	4.44	.81	1.88	2.24	6.70	16.00
90EF-1546B2-2.5-40	C18423	2.5	6	.56	5.25	2.84	3.50	6.13	3.22	5.00	.94	1.88	2.24	6.70	20.00
90EF-1546B2-2.5-48	C18424	2.5	6	.56	5.78	2.89	3.87	6.13	3.78	5.00	.94	2.09	2.71	7.65	20.00
90EF-1546B2-3-48	D18358	3	8	.56	5.78	2.89	4.00	6.63	4.50	5.50	.94	2.09	3.31	7.65	20.00
90EF-1546B2-3.5-64	C18425	3.5	8	.56	6.78	3.91	4.62	7.19	5.22	6.06	1.00	2.81	3.81	8.91	32.00
90EF-1546B2-4-64	C18426	4	8	.56	6.78	3.91	4.62	7.69	5.28	6.56	1.00	2.81	4.28	8.91	33.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9637-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9637-3240-188	2	6	4.92	2.50	4.00	5.56	3.28	4.44	.56	.83	1.88	2.24	6.70	15.50
FC9637-4040-188	2.5	6	4.92	2.50	4.00	6.12	3.28	5.00	.56	.95	2.09	2.24	6.70	19.80
FC9637-4048-188	2.5	6	5.65	2.75	4.50	6.12	3.78	5.00	.56	.95	2.09	2.71	7.65	19.80
FC9637-4848-188	3	8	5.65	2.75	4.50	6.62	4.50	5.50	.56	.95	2.09	3.31	7.65	20.30
FC9637-5664-188	3.5	8	6.48	3.57	5.62	7.19	5.22	6.06	.56	1.02	2.81	3.81	8.91	31.50
FC9637-6464-188	4	8	6.48	3.57	5.62	7.69	5.22	6.56	.56	1.02	2.81	4.28	8.91	33.40

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4040-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	10	Monel

Equals to P/N FC9638-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type FL, Group X, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B1-2-40	C18417	2	7	.69	5.25	2.84	3.50	6.50	3.22	5.18	.81	1.88	2.24	6.70	17.00
90EF-1546B1-2.5-40	C18717	2.5	8	.81	5.25	2.84	3.50	7.56	3.22	6.00	.94	1.88	2.24	6.70	18.00
90EF-1546B1-2.5-48	C18418	2.5	8	.81	5.78	2.89	3.87	7.56	3.78	6.00	.94	2.09	2.71	7.65	24.00
90EF-1546B1-3-48	C18419	3	8	.81	5.78	2.89	4.00	8.13	4.50	6.56	.94	2.09	3.31	7.65	25.00
90EF-1546B1-3.5-64	C18420	3.5	9	.81	6.78	3.91	4.62	8.69	5.22	7.13	1.00	2.81	3.81	8.91	37.00
90EF-1546B1-4-64	C18421	4	9	.81	6.78	3.91	4.62	9.25	5.28	7.69	1.00	2.81	4.28	8.91	39.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9638-3240-188	2	7	4.92	2.50	4.00	6.50	3.28	5.19	.69	.83	1.88	2.24	6.70	17.10
FC9638-4048-488	2.5	8	5.65	2.75	4.50	7.56	7.78	6.00	.81	.95	2.09	2.71	7.65	23.70
FC9638-4848-188	3	8	5.65	2.75	4.50	8.12	4.50	6.56	.81	.95	2.09	3.31	7.65	24.80
FC9638-6464-188	4	9	6.48	3.57	5.62	9.25	5.22	7.69	.81	1.02	2.81	4.28	8.91	39.30

Description	Req’d per Ass’y	Base No.	3240	4048	4848	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	Monel

HS1546

Equal to Aeroquip P/N FC9638-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-1546B1-2-40	C18417	2	7	.69	5.25	2.84	3.50	6.50	3.22	5.18	.81	1.88	2.24	6.70	17.00
90EF-1546B1-2.5-40	C18717	2.5	8	.81	5.25	2.84	3.50	7.56	3.22	6.00	.94	1.88	2.24	6.70	18.00
90EF-1546B1-2.5-48	C18418	2.5	8	.81	5.78	2.89	3.87	7.56	3.78	6.00	.94	2.09	2.71	7.65	24.00
90EF-1546B1-3-48	C18419	3	8	.81	5.78	2.89	4.00	8.13	4.50	6.56	.94	2.09	3.31	7.65	25.00
90EF-1546B1-3.5-64	C18420	3.5	9	.81	6.78	3.91	4.62	8.69	5.22	7.13	1.00	2.81	3.81	8.91	37.00
90EF-1546B1-4-64	C18421	4	9	.81	6.78	3.91	4.62	9.25	5.28	7.69	1.00	2.81	4.28	8.91	39.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Elbow	1	C18052	C18052	D18305	D18306	D18307	D18308	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9638-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	A	D	H	J	K	L	M	N	R	S	T	Est. Wt. (lbs.)
FC9638-3240-188	2	7	4.92	2.50	4.00	6.50	3.28	5.19	.69	.83	1.88	2.24	6.70	17.10
FC9638-4048-488	2.5	8	5.65	2.75	4.50	7.56	7.78	6.00	.81	.95	2.09	2.71	7.65	23.70
FC9638-4848-188	3	8	5.65	2.75	4.50	8.12	4.50	6.56	.81	.95	2.09	3.31	7.65	24.80
FC9638-6464-188	4	9	6.48	3.57	5.62	9.25	5.22	7.69	.81	1.02	2.81	4.28	8.91	39.30

Description	Req’d per Ass’y	Base No.	3240	4048	4848	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	Monel

Equals to P/N FC5048-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose: HS4182 & FC132

Type F, Group X, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A5-2-40	C18681	2	4	.75	4.37	1.96	6.00	3.28	4.75	.42	2.25	6.70	12.00
EF-1546A5-2.5-40	C18682	2.5	4	.75	4.87	2.46	7.00	3.28	5.50	.48	2.25	6.70	13.00
EF-1546A5-2.5-48	C18683	2.5	4	.75	5.44	2.55	7.00	3.78	5.50	.48	2.71	7.65	15.00
EF-1546A5-3-48	C18684	3	4	.75	4.85	1.96	7.50	4.50	6.00	.48	3.31	7.65	16.00
EF-1546A5-3.5-64	C18685	3.5	8	.75	5.24	2.37	8.50	5.22	7.00	.48	3.81	8.91	24.00
EF-1546A5-4-64	C18686	4	8	.75	5.24	2.37	9.00	5.22	7.50	.48	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Alum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Alum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Alum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5048-3240-188	2.5	4	.75	4.40	1.96	6.00	3.28	4.75	.44	2.24	6.70	12.00
FC5048-4040-188	2.5	4	.75	4.40	1.96	7.00	3.28	5.50	.50	2.24	6.70	13.00
FC5048-4048-188	2.5	4	.75	4.86	1.96	7.00	3.78	5.50	.50	2.71	7.65	15.00
FC5048-4848-188	3	4	.75	4.86	1.96	7.50	4.50	6.00	.50	3.31	7.65	16.00
FC5048-6464-188	4	8	.75	5.28	2.37	9.00	5.22	7.50	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	6464	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	Monel

HS1546

Equal to Aeroquip P/N FC5048-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose: HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A5-2-40	C18681	2	4	.75	4.37	1.96	6.00	3.28	4.75	.42	2.25	6.70	12.00
EF-1546A5-2.5-40	C18682	2.5	4	.75	4.87	2.46	7.00	3.28	5.50	.48	2.25	6.70	13.00
EF-1546A5-2.5-48	C18683	2.5	4	.75	5.44	2.55	7.00	3.78	5.50	.48	2.71	7.65	15.00
EF-1546A5-3-48	C18684	3	4	.75	4.85	1.96	7.50	4.50	6.00	.48	3.31	7.65	16.00
EF-1546A5-3.5-64	C18685	3.5	8	.75	5.24	2.37	8.50	5.22	7.00	.48	3.81	8.91	24.00
EF-1546A5-4-64	C18686	4	8	.75	5.24	2.37	9.00	5.22	7.50	.48	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17966	C17968	C17969	C17970	C17971	C17972	Alum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Alum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Alum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC5048-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5048-3240-188	2.5	4	.75	4.40	1.96	6.00	3.28	4.75	.44	2.24	6.70	12.00
FC5048-4040-188	2.5	4	.75	4.40	1.96	7.00	3.28	5.50	.50	2.24	6.70	13.00
FC5048-4048-188	2.5	4	.75	4.86	1.96	7.00	3.78	5.50	.50	2.71	7.65	15.00
FC5048-4848-188	3	4	.75	4.86	1.96	7.50	4.50	6.00	.50	3.31	7.65	16.00
FC5048-6464-188	4	8	.75	5.28	2.37	9.00	5.22	7.50	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	6464	Material
Swivel Flange	1	188-74021-	32-40	40-40	40-48	48-48	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	3240-188	4048-188	4848-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	Monel
Nut	4	4-222048-	8	8	9	9	10	Monel

Equals to P/N FC5309-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class IV, 150lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A4-2-40	C18687	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
EF-1546A4-2.5-40	C18688	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
EF-1546A4-2.5-48	C18689	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
EF-1546A4-3-48	C18690	3	8	.56	4.85	1.96	6.63	4.50	5.50	.50	3.31	7.65	16.00
EF-1546A4-3.5-64	C18691	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
EF-1546A4-4-64	C18692	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5309-3240-188	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
FC5309-4040-188	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
FC5309-4048-188	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
FC5309-4848-188	3	8	.56	4.85	1.96	6.63	4.50	5.50	50	3.31	7.65	16.00
FC5309-5664-188	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
FC5309-6464-188	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	-	-	-	-	-	-	Aluminum. Bronze
Nipple	1	-	-	-	-	-	-	Aluminum. Bronze
Grip Segment	2	FC3476-	-	-	48-188	-	-	Aluminum. Bronze
Bolt	4	FF9142-	-	-	0964-4	-	-	Monel
Nut	4	4-222048-	-	-	9	-	-	Monel

HS1546

Equal to Aeroquip P/N FC5309-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A4-2-40	C18687	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
EF-1546A4-2.5-40	C18688	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
EF-1546A4-2.5-48	C18689	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
EF-1546A4-3-48	C18690	3	8	.56	4.85	1.96	6.63	4.50	5.50	.50	3.31	7.65	16.00
EF-1546A4-3.5-64	C18691	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
EF-1546A4-4-64	C18692	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17925	C17929	C17931	C17933	C17938	C17940	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC5309-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class IV, 150lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC5309-3240-188	2	6	.56	4.37	1.96	5.56	3.28	4.44	.44	2.25	6.70	12.00
FC5309-4040-188	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.50	2.25	6.70	13.00
FC5309-4048-188	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.50	2.71	7.65	15.00
FC5309-4848-188	3	8	.56	4.85	1.96	6.63	4.50	5.50	50	3.31	7.65	16.00
FC5309-5664-188	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	.50	3.81	8.91	24.00
FC5309-6464-188	4	8	.56	5.24	2.37	7.69	5.22	6.56	.50	4.28	8.91	25.00

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	-	-	-	-	-	-	Aluminum. Bronze
Nipple	1	-	-	-	-	-	-	Aluminum. Bronze
Grip Segment	2	FC3476-	-	-	48-188	-	-	Aluminum. Bronze
Bolt	4	FF9142-	-	-	0964-4	-	-	Monel
Nut	4	4-222048-	-	-	9	-	-	Monel

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A3-2-40	C18694	2	6	.69	4.37	1.96	5.56	3.28	4.44	.81	2.25	6.70	15.00
EF-1546A3-2.5-40	C18534	2.5	6	.69	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A3-2.5-48	C18702	2.5	6	.69	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	17.00
EF-1546A3-3-48	C18533	3	8	.69	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A3-3.5-64	C18707	3.5	8	.69	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	27.00
EF-1546A3-4-64	C18376	4	8	.69	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C232042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A3-2-40	C18694	2	6	.69	4.37	1.96	5.56	3.28	4.44	.81	2.25	6.70	15.00
EF-1546A3-2.5-40	C18534	2.5	6	.69	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A3-2.5-48	C18702	2.5	6	.69	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	17.00
EF-1546A3-3-48	C18533	3	8	.69	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A3-3.5-64	C18707	3.5	8	.69	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	27.00
EF-1546A3-4-64	C18376	4	8	.69	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17812	C17307	C17813	C17309	C17815	C17310	Aluminum. Bronze
Nipple	1	C232042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Equals to P/N FC9527-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

Type F, Group X, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A2-2-40	C18352	2	6	.56	4.37	1.96	5.56	3.28	4.44	.81	2.25	3.70	15.00
EF-1546A2-2.5-40	C18695	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A2-2.5-48	C18351	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	18.00
EF-1546A2-3-48	C18350	3	8	.56	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A2-3.5-64	C18416	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	26.00
EF-1546A2-4-64	C17768	4	8	.56	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9527-3240-188	2	6	.56	4.40	1.96	5.56	3.28	4.44	.83	2.24	6.70	14.60
FC9527-4048-188	2.5	6	.56	4.86	1.96	6.12	3.78	5.00	.95	2.71	7.65	17.60
FC9527-4848-188	3	8	.56	4.86	1.96	6.62	4.50	5.50	.95	3.31	7.65	17.90
FC9527-5664-188	3.5	8	.56	5.28	2.37	7.19	5.22	6.06	1.02	3.81	8.91	25.90
FC9527-6464-188	4	8	.56	5.28	2.37	7.69	5.22	6.56	1.02	4.28	8.91	27.80

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9527-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A2-2-40	C18352	2	6	.56	4.37	1.96	5.56	3.28	4.44	.81	2.25	3.70	15.00
EF-1546A2-2.5-40	C18695	2.5	6	.56	4.87	2.46	6.13	3.28	5.00	.94	2.25	6.70	16.00
EF-1546A2-2.5-48	C18351	2.5	6	.56	5.44	2.55	6.13	3.78	5.00	.94	2.71	7.65	18.00
EF-1546A2-3-48	C18350	3	8	.56	4.85	1.96	6.63	4.50	5.50	.94	3.31	7.65	18.00
EF-1546A2-3.5-64	C18416	3.5	8	.56	5.24	2.37	7.19	5.22	6.06	1.00	3.81	8.91	26.00
EF-1546A2-4-64	C17768	4	8	.56	5.24	2.37	7.69	5.22	6.56	1.00	4.28	8.91	28.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17765	C17796	C17795	C17766	C17794	C17767	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9527-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9527-3240-188	2	6	.56	4.40	1.96	5.56	3.28	4.44	.83	2.24	6.70	14.60
FC9527-4048-188	2.5	6	.56	4.86	1.96	6.12	3.78	5.00	.95	2.71	7.65	17.60
FC9527-4848-188	3	8	.56	4.86	1.96	6.62	4.50	5.50	.95	3.31	7.65	17.90
FC9527-5664-188	3.5	8	.56	5.28	2.37	7.19	5.22	6.06	1.02	3.81	8.91	25.90
FC9527-6464-188	4	8	.56	5.28	2.37	7.69	5.22	6.56	1.02	4.28	8.91	27.80

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Equals to P/N FC9568-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - HS1546 – Large Bore Hose

MIL-DTL-24787/1

Use with the following hose:HS4182 & FC132

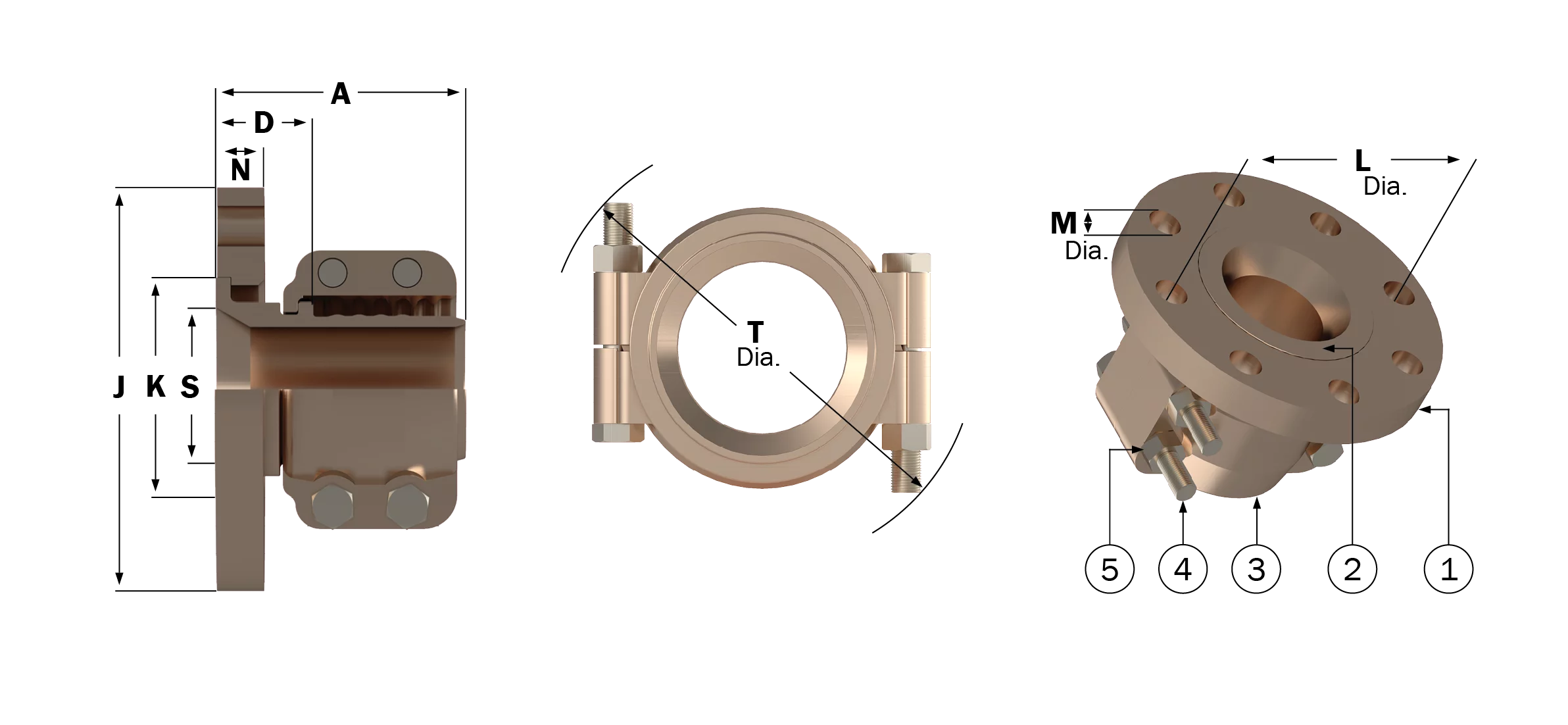

Type F, Group X, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A1-2-40	C18411	2	7	.69	4.37	1.96	6.50	3.28	5.19	.81	2.25	6.70	15.00
EF-1546A1-2.5-40	C18696	2.5	8	.81	4.87	2.46	7.56	3.28	6.00	.94	2.25	6.70	16.00
EF-1546A1-2.5-48	C18412	2.5	8	.81	5.44	2.55	7.56	3.78	6.00	.94	2.71	7.65	22.00
EF-1546A1-3-48	C18413	3	8	.81	4.85	1.96	8.13	4.50	6.56	.94	3.31	7.65	23.00
EF-1546A1-3.5-64	C18414	3.5	9	.81	5.24	2.37	8.69	5.22	7.13	1.00	3.81	8.91	31.00
EF-1546A1-4-64	C18415	4	9	.81	5.24	2.37	9.25	5.22	7.69	1.00	4.28	8.91	34.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9568-3240-188	2	7	.69	4.40	1.96	6.50	3.28	5.19	.81	2.24	6.70	15.20
FC9568-4048-188	2.5	8	.81	4.86	1.96	7.56	3.78	6.00	.94	2.71	7.65	22.40
FC9568-4848-188	3	8	.81	4.86	1.96	8.12	4.50	6.56	.94	3.31	7.65	23.20
FC9568-5664-188	3.5	9	.81	5.28	2.37	8.69	5.22	7.12	1.00	3.81	8.91	30.90
FC9568-6464-188	4	9	.81	5.28	2.37	9.25	5.22	7.69	1.00	4.28	8.91	33.70

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

HS1546

Equal to Aeroquip P/N FC9568-188

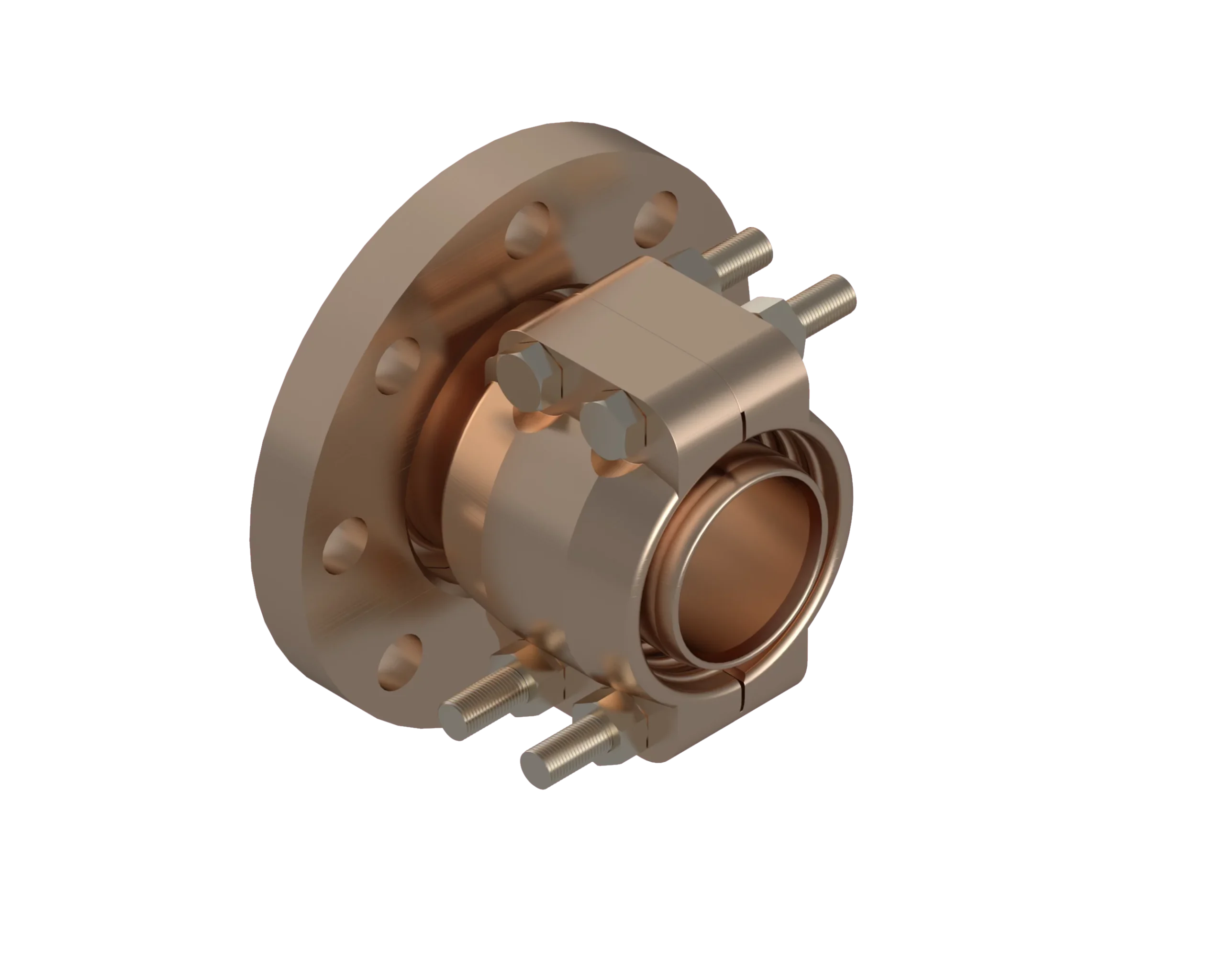

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-1546A1-2-40	C18411	2	7	.69	4.37	1.96	6.50	3.28	5.19	.81	2.25	6.70	15.00
EF-1546A1-2.5-40	C18696	2.5	8	.81	4.87	2.46	7.56	3.28	6.00	.94	2.25	6.70	16.00
EF-1546A1-2.5-48	C18412	2.5	8	.81	5.44	2.55	7.56	3.78	6.00	.94	2.71	7.65	22.00
EF-1546A1-3-48	C18413	3	8	.81	4.85	1.96	8.13	4.50	6.56	.94	3.31	7.65	23.00
EF-1546A1-3.5-64	C18414	3.5	9	.81	5.24	2.37	8.69	5.22	7.13	1.00	3.81	8.91	31.00
EF-1546A1-4-64	C18415	4	9	.81	5.24	2.37	9.25	5.22	7.69	1.00	4.28	8.91	34.00

Description	Req’d per Ass’y	2-40	2.5-40	2.5-48	3-48	3.5-64	4-64	Material
Swivel Flange	1	C17798	C17799	C17801	C17802	C17803	C17804	Aluminum. Bronze
Nipple	1	C23042-1	C17708	C17857	C17706	C17858	C17707	Aluminum. Bronze
Grip Segment	2	D17739-1	D17739-1	D17743-1	D17743-1	D17726-1	D17726-1	Aluminum. Bronze
Bolt	4	B17747-1	B17747-1	B17748-1	B17748-1	B17749-1	B17749-1	Monel
Nut	4	B17747-2	B17747-2	B17748-2	B17748-2	B17749-2	B17749-2	Monel

HS1546 Equivalent

P/N FC9568-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group X, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:HS4182 & FC132

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC9568-3240-188	2	7	.69	4.40	1.96	6.50	3.28	5.19	.81	2.24	6.70	15.20
FC9568-4048-188	2.5	8	.81	4.86	1.96	7.56	3.78	6.00	.94	2.71	7.65	22.40
FC9568-4848-188	3	8	.81	4.86	1.96	8.12	4.50	6.56	.94	3.31	7.65	23.20
FC9568-5664-188	3.5	9	.81	5.28	2.37	8.69	5.22	7.12	1.00	3.81	8.91	30.90
FC9568-6464-188	4	9	.81	5.28	2.37	9.25	5.22	7.69	1.00	4.28	8.91	33.70

Description	Req’d per Ass’y	Base No.	3240	4048	4848	5664	6464	Material
Swivel Flange	1	188-74048-	32-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Nipple	1	FC3478-	3240-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048-	8	9	9	10	10	Monel

Fittings

Hose

Hose Assemblies

Hose Protectants

Adapters – Marine Hose & Fittings

Fittings

Marine Hose & Assemblies

Split Clamps Sil-Braze Tailpieces and Accessories

Test Fittings

6000 Series Fittings Couplings & Union Assemblies

8100 Series Fittings "O"-Rings & Sil-Braze Rings

8300 Series Fittings "O"-Rings & Sil-Braze Rings

9000 Series Fittings

Hose End Fittings & Adapters

Valves & Accessories

Valves Instrumentation & Adapters

Adapters

Caps & Plugs

Clamps

Coupling

End Fittings

Highline Products

Hooks

Hoses & Assemblies

Lines

Links

Litters

Messenger

Miscellaneous

Pigs

Probes

Receivers

Riding Lines

Saddles

Slings

Straps

Stress Wires

Strongbacks

Surfs

Swivels

Tools

Trolleys

HS449 Fittings

HS1600 Fittings

HS1489 Fittings

HS1488 Medium Pressure Fittings

ER512 Series Large Bore Hoses

HS1546 Large Bore Hose

Air Pipe Heads

Coupling & Shafting Accessories

Deck Drains

Deck Hardware

Drivetrain

Exhaust Fittings

Hose & Clamps

International Shore Connections

Inverted Vent Check Valves

Miscellaneous Hardware

Pipe Caps

Plumbing & Fittings

Sounding Tubes

Steering Hardware

Strainers

Suction Bell mouths

Thru Hulls

Valves

Literature

Distributor Portal

Supplier Information

News

HS1546 – Large Bore Hose

HS1546

MIL-DTL-24787/5

HS1546

Equal to Aeroquip P/N FC9528-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group X

For use with the following hose:HS4182 & FC132
