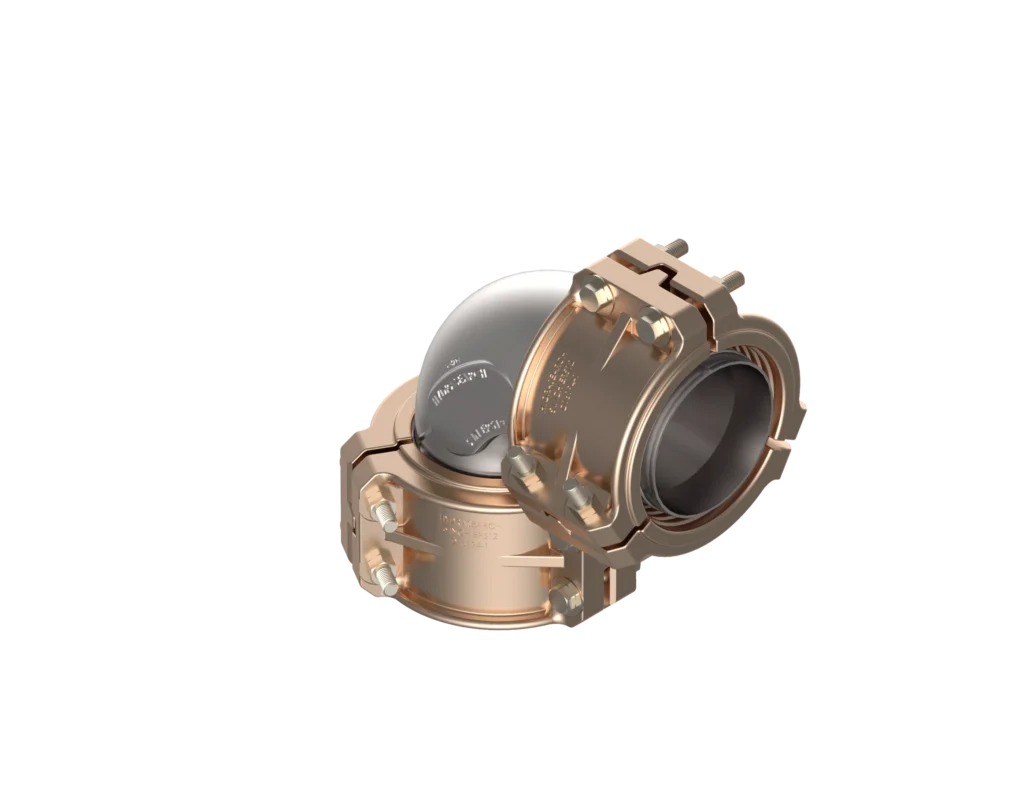

ER512 - Large Bore Hoses

ER512

Equals to P/N FC7754-410

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/5

Use with the following hose:ER512 & 2580

Type D, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512-SS	D18757	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512-SS	D17681	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512-SS	D17738	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512-SS	D18440	10	12.10	7.75	9.31	6.38	14.50	171.00

Description	Req’d per Ass’y	5"	6"	8'	10"	Material
Elbow	1	D18362	D18111	D17759	D18317	Stainless Steel
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	Monel

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-9696-410	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-410	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-410	10	11.89	7.77	9.40	6.38	16.48	171.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Elbow	1	FC2467-	9696-407	0808-407	1010-407	Stainless Steel
Grip Segment	4	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	12-88	12-100	Monel
Nut	8	FF9033-	10-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1201-4	1201-4	Monel

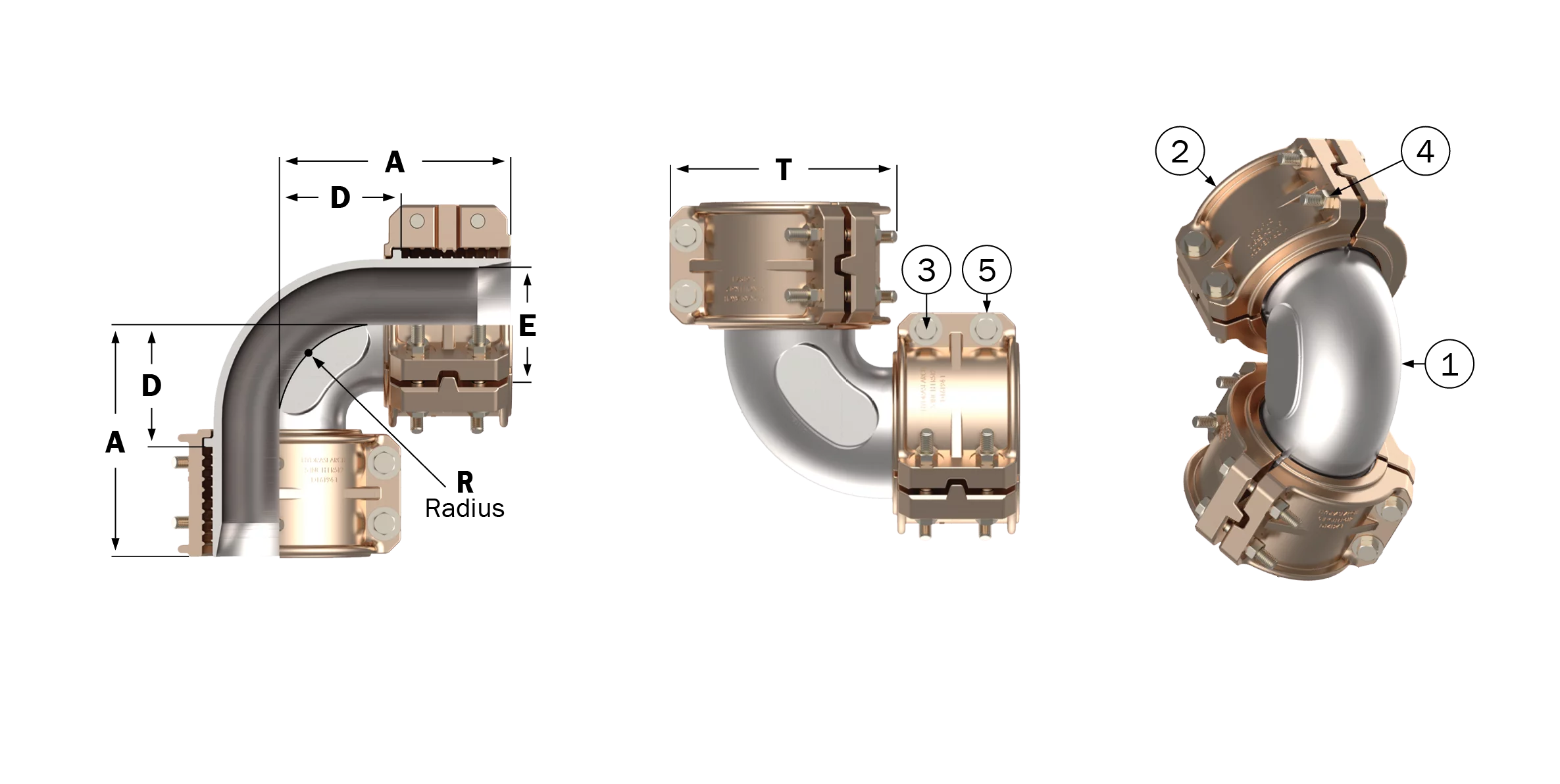

ER512

Equal to Aeroquip P/N FC7754-410

Hose to Hose

Elbow - 90 ° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512-SS	D18757	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512-SS	D17681	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512-SS	D17738	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512-SS	D18440	10	12.10	7.75	9.31	6.38	14.50	171.00

Description	Req’d per Ass’y	5"	6"	8'	10"	Material
Elbow	1	D18362	D18111	D17759	D18317	Stainless Steel
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	Monel

plug

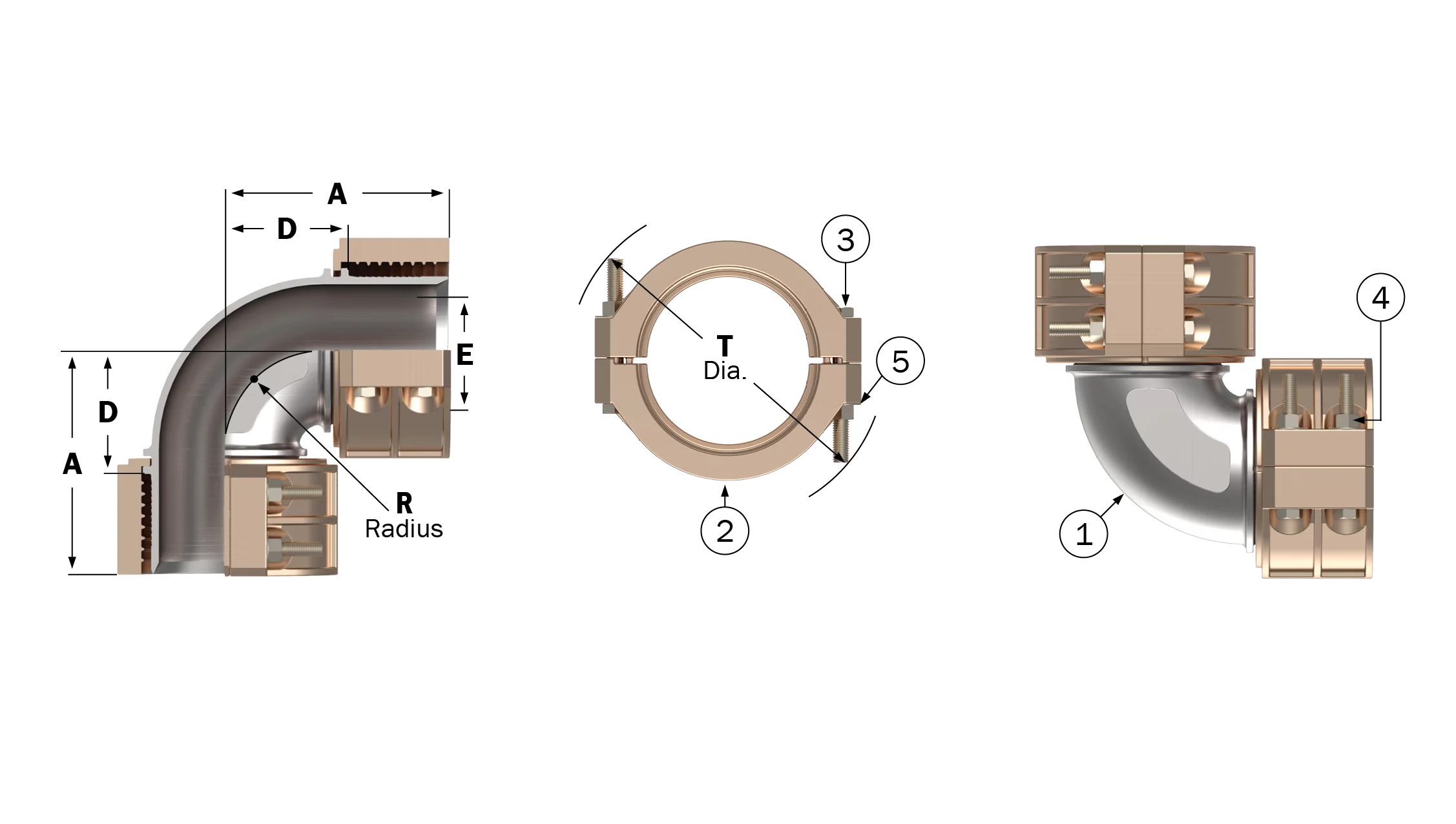

ER512 Equivalent

P/N FC7754-410

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-9696-410	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-410	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-410	10	11.89	7.77	9.40	6.38	16.48	171.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Elbow	1	FC2467-	9696-407	0808-407	1010-407	Stainless Steel
Grip Segment	4	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	12-88	12-100	Monel
Nut	8	FF9033-	10-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1201-4	1201-4	Monel

Equals to P/N FC7754-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/5

Use with the following hose: ER512 & 2580

Type D, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512	D17120	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512	D17087	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512	D17121	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512	D19748	10	12.10	7.75	9.31	6.38	14.50	171.00
90ELB-12-ER512	D19749	12	14.32	9.09	11.40	7.38	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16924	D16925	D16926	D18836	D18837	Aluminum. Bronze
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-8080-188	5	8.64	4.52	4.40	3.50	11.44	69.90
FC7754-9696-188	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-188	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-188	10	11.89	7.77	9.40	6.38	16.48	171.00
FC7754-1212-188	12	14.24	9.00	11.40	7.38	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2467-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	4	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	8	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

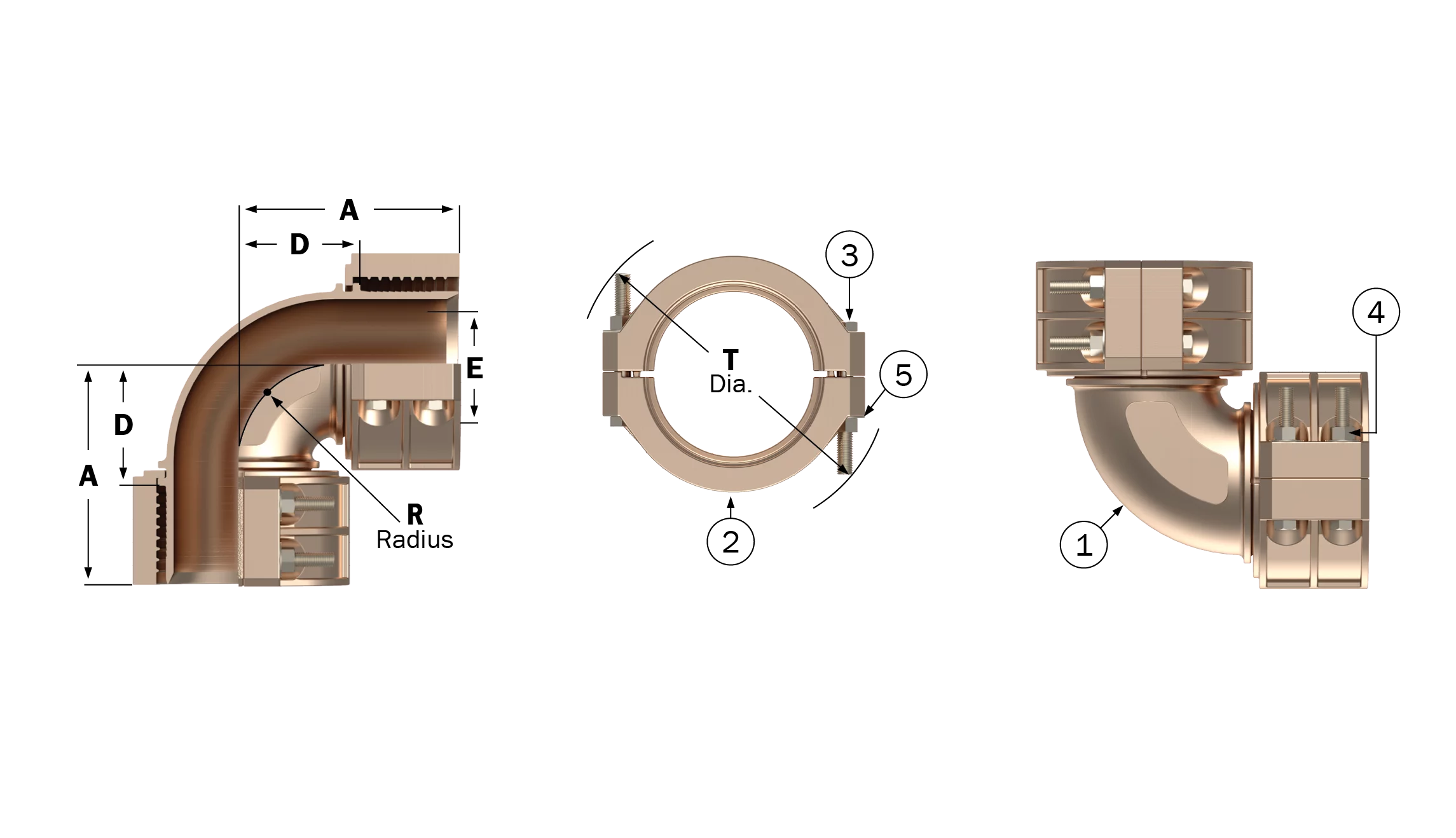

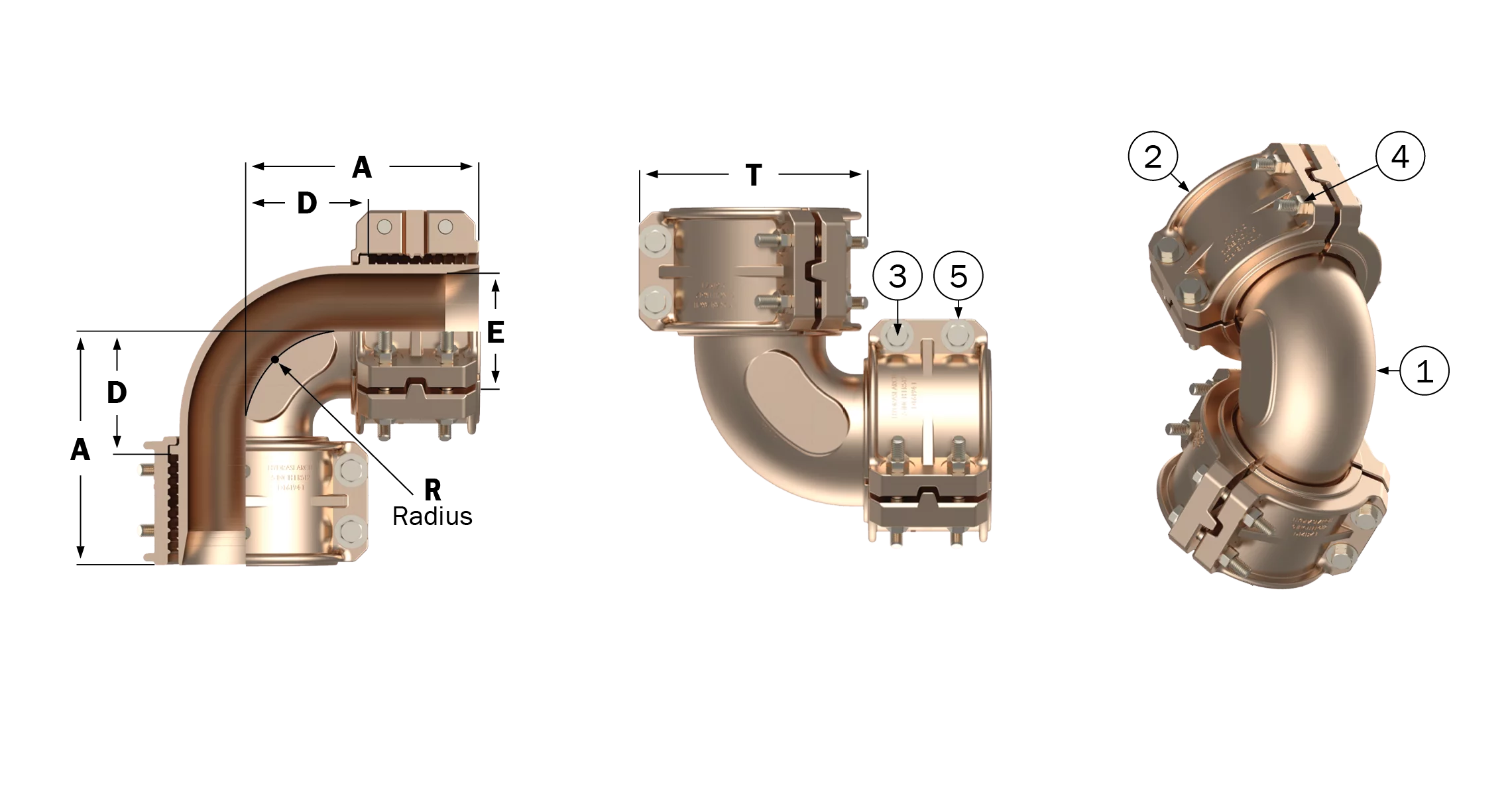

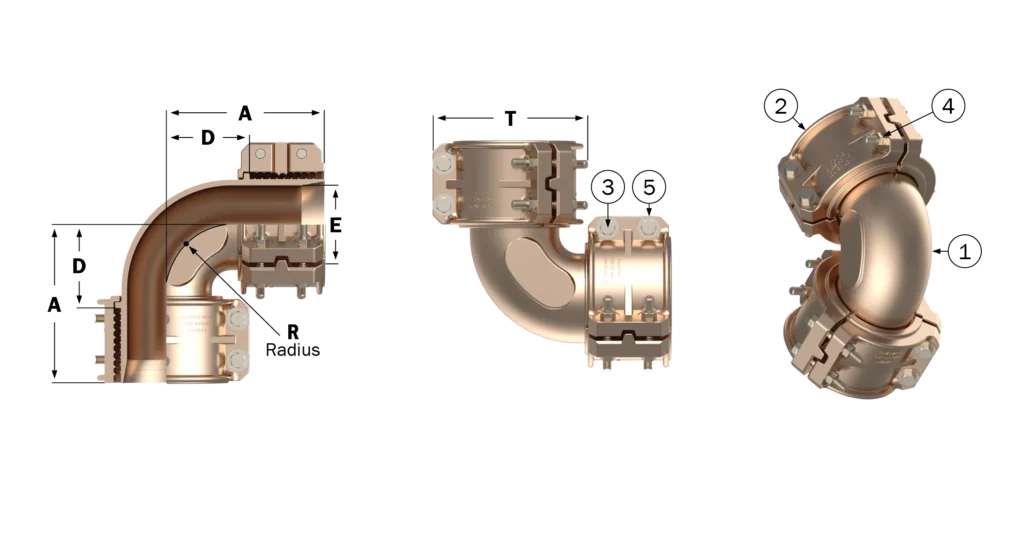

ER512

Equal to Aeroquip P/N FC7754-188

Hose to Hose

Elbow - 90 ° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose: ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
90ELB-5-ER512	D17120	5	8.64	4.51	4.31	3.50	9.25	71.00
90ELB-6-ER512	D17087	6	9.18	5.05	5.40	4.00	10.38	85.00
90ELB-8-ER512	D17121	8	10.58	6.20	7.40	5.00	13.00	115.00
90ELB-10-ER512	D19748	10	12.10	7.75	9.31	6.38	14.50	171.00
90ELB-12-ER512	D19749	12	14.32	9.09	11.40	7.38	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16924	D16925	D16926	D18836	D18837	Aluminum. Bronze
Grip Segment	6	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	12	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	12	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	12	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

ER512 Equivalent

P/N FC7754-188

Hose to Hose

Elbow - 90° Dogleg

MIL-DTL-24787/5,

Type D, Group IX

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	A	D	E	R	T	Est. Wt. (lbs.)
FC7754-8080-188	5	8.64	4.52	4.40	3.50	11.44	69.90
FC7754-9696-188	6	9.14	5.02	5.40	4.00	11.98	86.90
FC7754-0808-188	8	10.34	6.22	7.40	5.00	13.89	122.00
FC7754-1010-188	10	11.89	7.77	9.40	6.38	16.48	171.00
FC7754-1212-188	12	14.24	9.00	11.40	7.38	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2467-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	4	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	8	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	8	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	8	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

Equals to P/N FC7753-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/4

Use with the following hose:ER512 & 2580

Type EL, Group IX

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5FS-ER512	D17117	5	11.95	7.82	5.36	6.81	.68	6.50	9.25	6.63	45.00
90EF-6FS-ER512	D17118	6	12.95	8.79	6.75	7.31	.87	4.00	10.38	7.57	56.00
90EF-8FS-ER512	D17119	8	15.31	10.93	9.00	8.81	1.15	5.00	13.00	9.97	83.00
90EF-10FS-ER512	D17946	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	120.00
90EF-12FS-ER512	D19747	12	14.24	9.00	12.01	10.70	.90	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16933	D16934	D16935	D18840	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminu. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7753-8080-188	5	8.64	4.52	5.64	6.81	.42	3.50	11.44	6.63	45.10
FC7753-9696-188	6	9.14	5.02	6.76	7.31	.47	4.00	11.98	7.57	57.80
FC7753-0808-188	8	10.34	9.22	9.01	8.81	.84	5.00	13.89	9.97	85.90
FC7753-1010-188	10	11.89	7.77	11.01	9.70	.88	6.38	16.48	12.06	120.00
FC7753-1212-188	12	14.24	9.00	12.01	10.70	.90	7.38	17.04	13.38	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2466	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

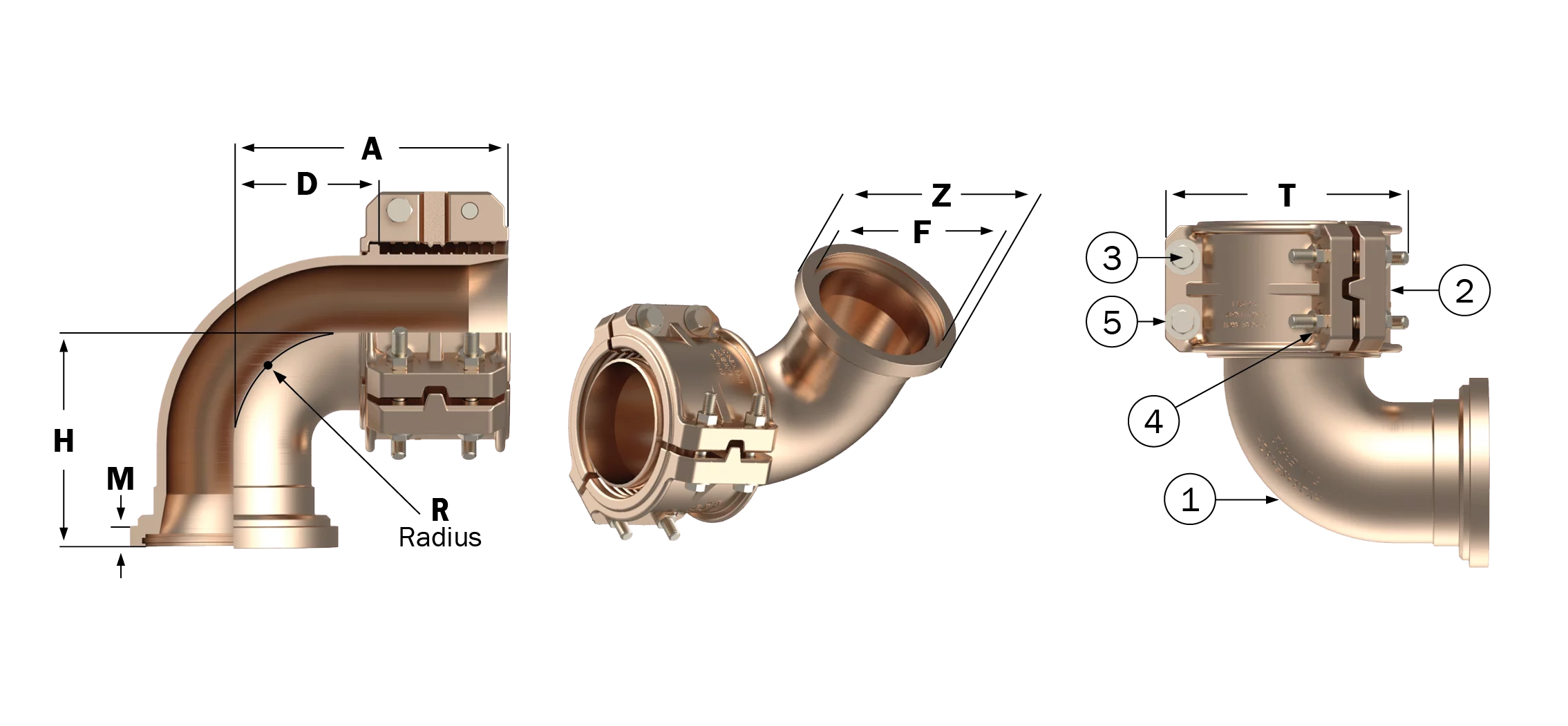

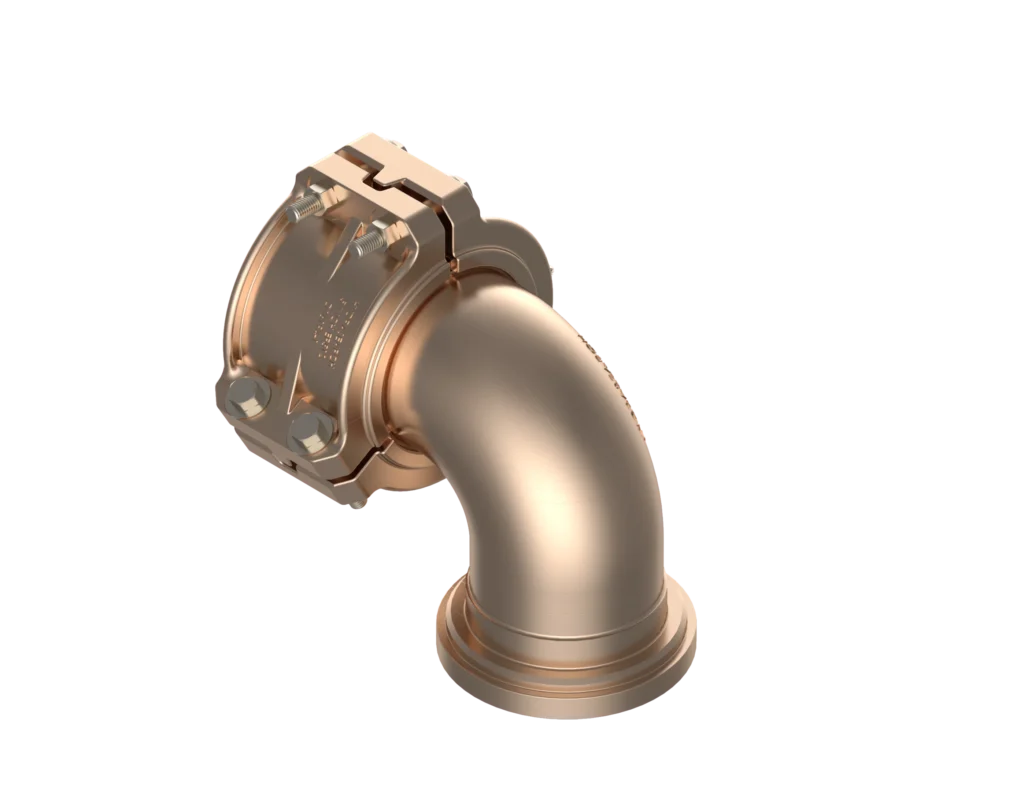

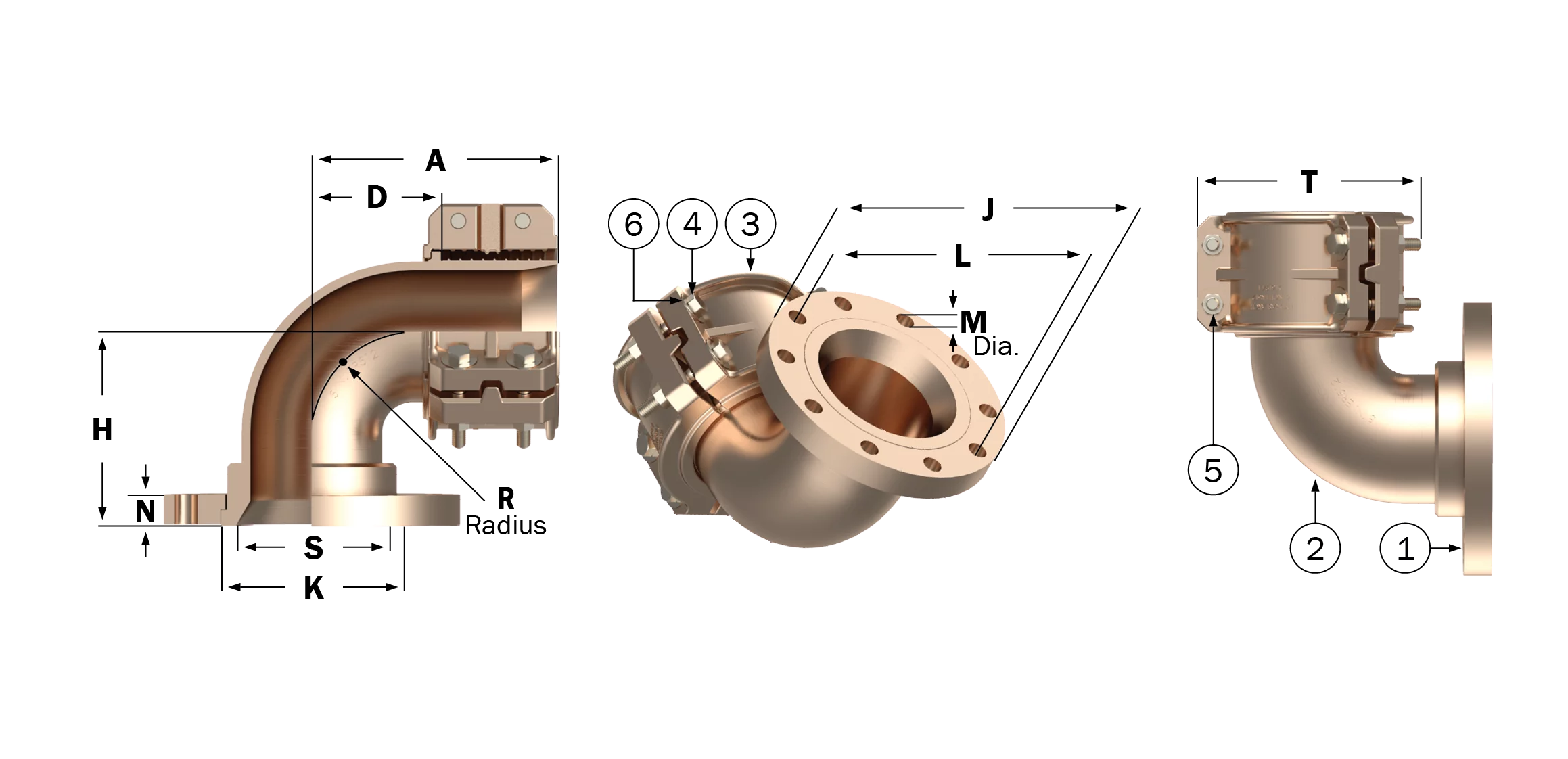

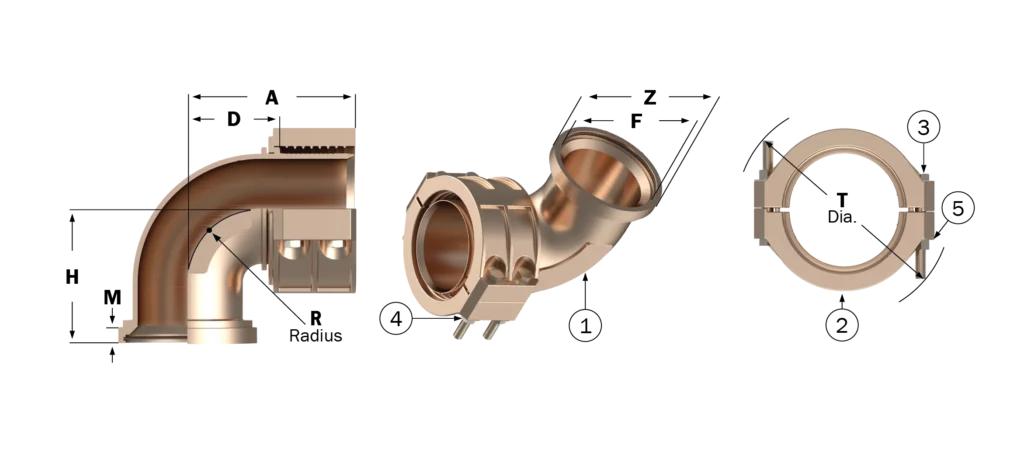

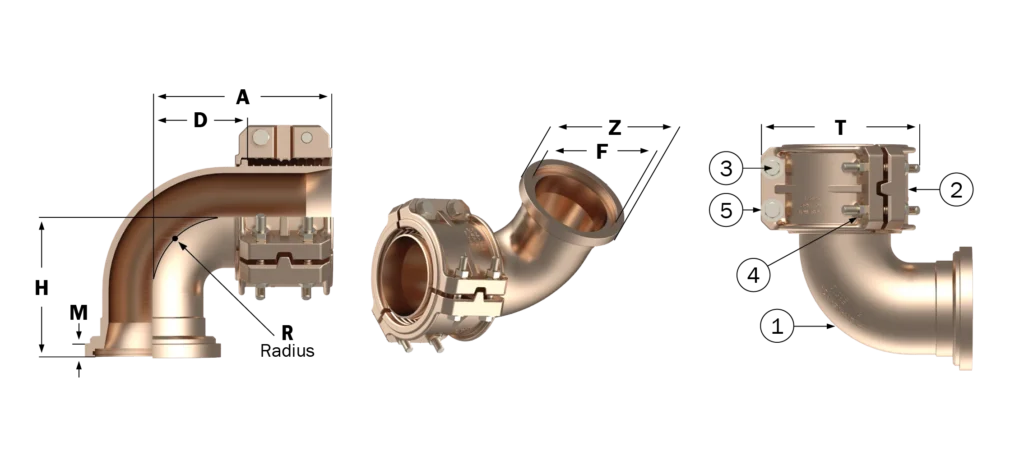

ER512

Equal to Aeroquip P/N FC7753-188

Hose to Split Clamp - Female

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5FS-ER512	D17117	5	11.95	7.82	5.36	6.81	.68	6.50	9.25	6.63	45.00
90EF-6FS-ER512	D17118	6	12.95	8.79	6.75	7.31	.87	4.00	10.38	7.57	56.00
90EF-8FS-ER512	D17119	8	15.31	10.93	9.00	8.81	1.15	5.00	13.00	9.97	83.00
90EF-10FS-ER512	D17946	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	120.00
90EF-12FS-ER512	D19747	12	14.24	9.00	12.01	10.70	.90	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16933	D16934	D16935	D18840	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminu. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

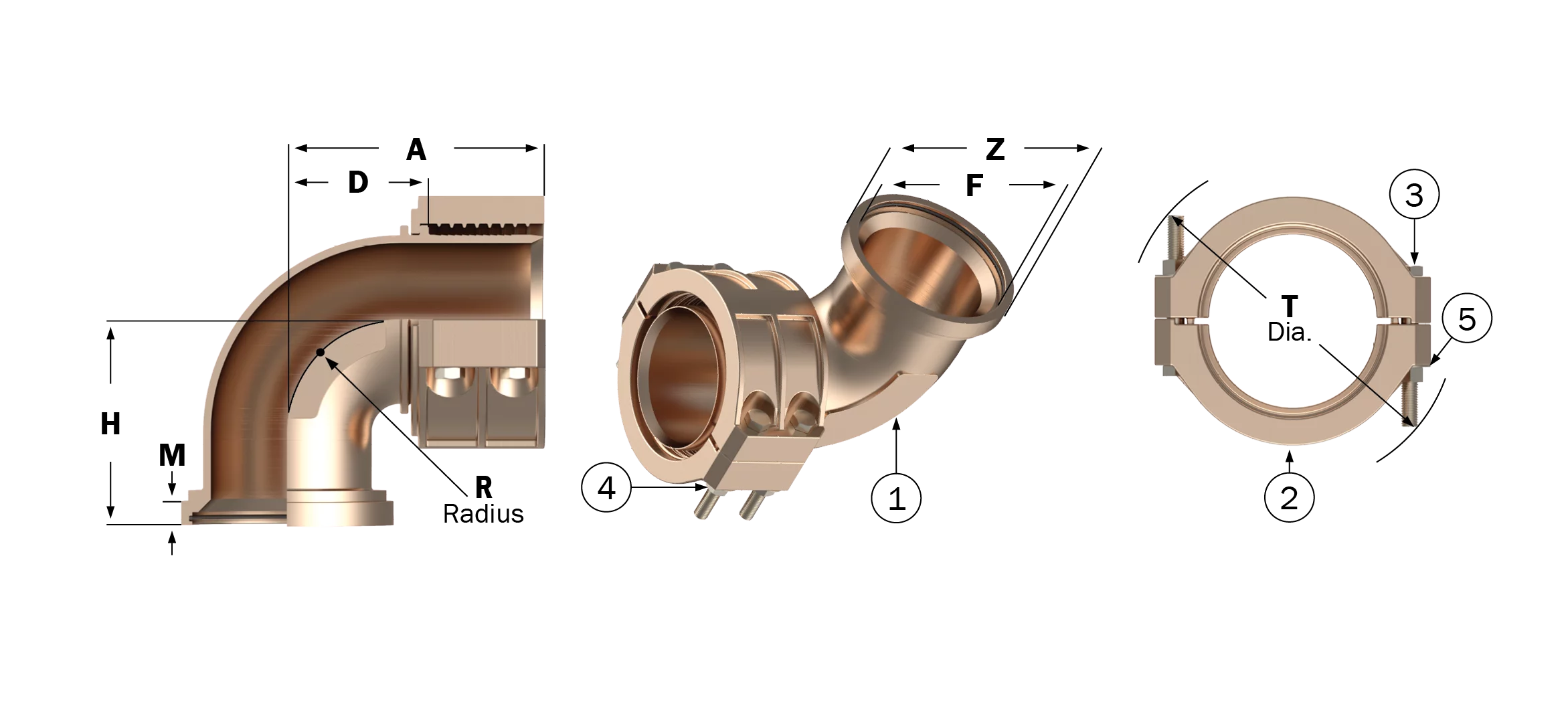

ER512 Equivalent

P/N FC7753-188

Hose to Split Clamp - Female

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose: ER512 & 2580

plug

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7753-8080-188	5	8.64	4.52	5.64	6.81	.42	3.50	11.44	6.63	45.10
FC7753-9696-188	6	9.14	5.02	6.76	7.31	.47	4.00	11.98	7.57	57.80
FC7753-0808-188	8	10.34	9.22	9.01	8.81	.84	5.00	13.89	9.97	85.90
FC7753-1010-188	10	11.89	7.77	11.01	9.70	.88	6.38	16.48	12.06	120.00
FC7753-1212-188	12	14.24	9.00	12.01	10.70	.90	7.38	17.04	13.38	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Elbow	1	FC2466	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

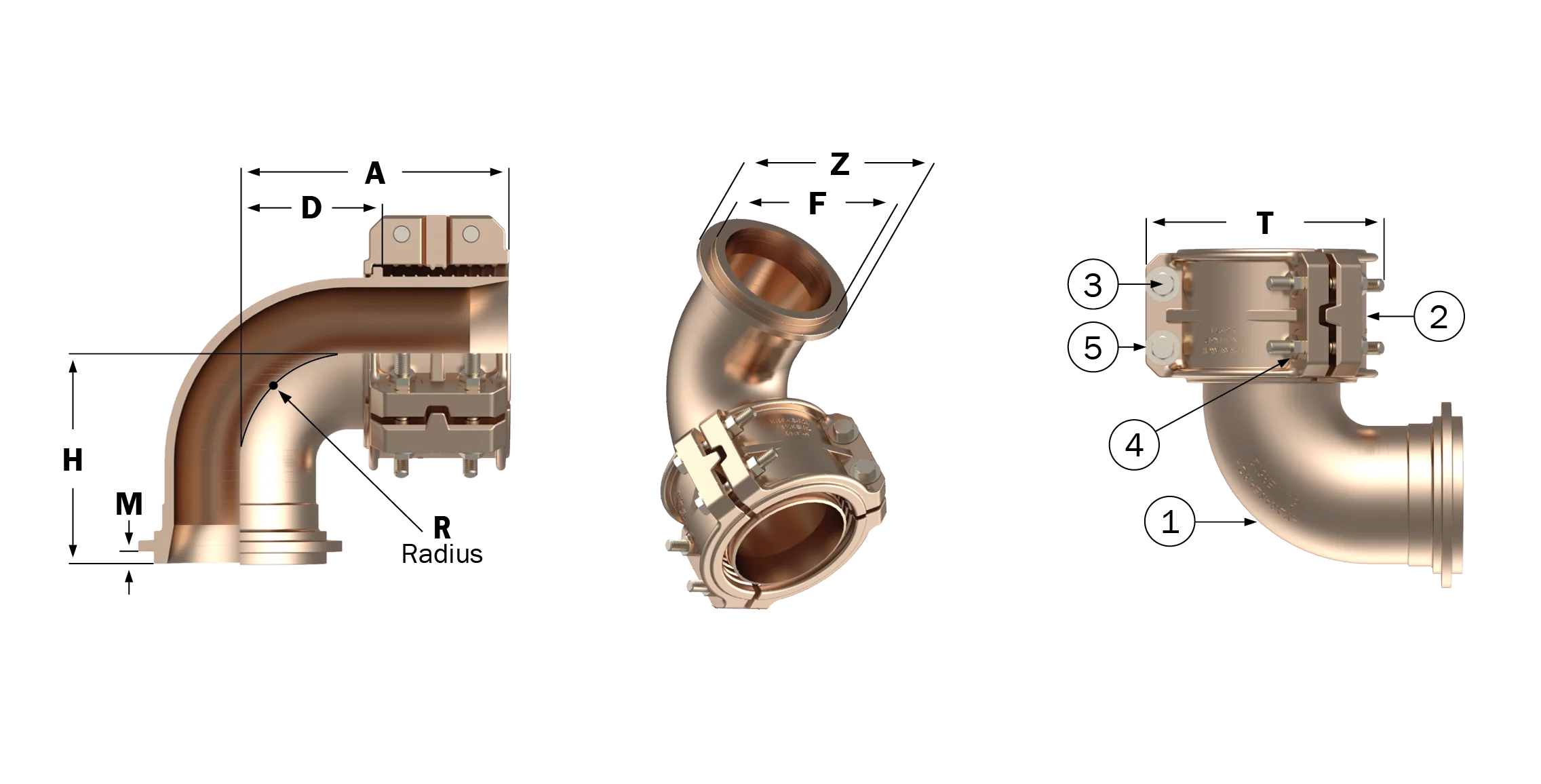

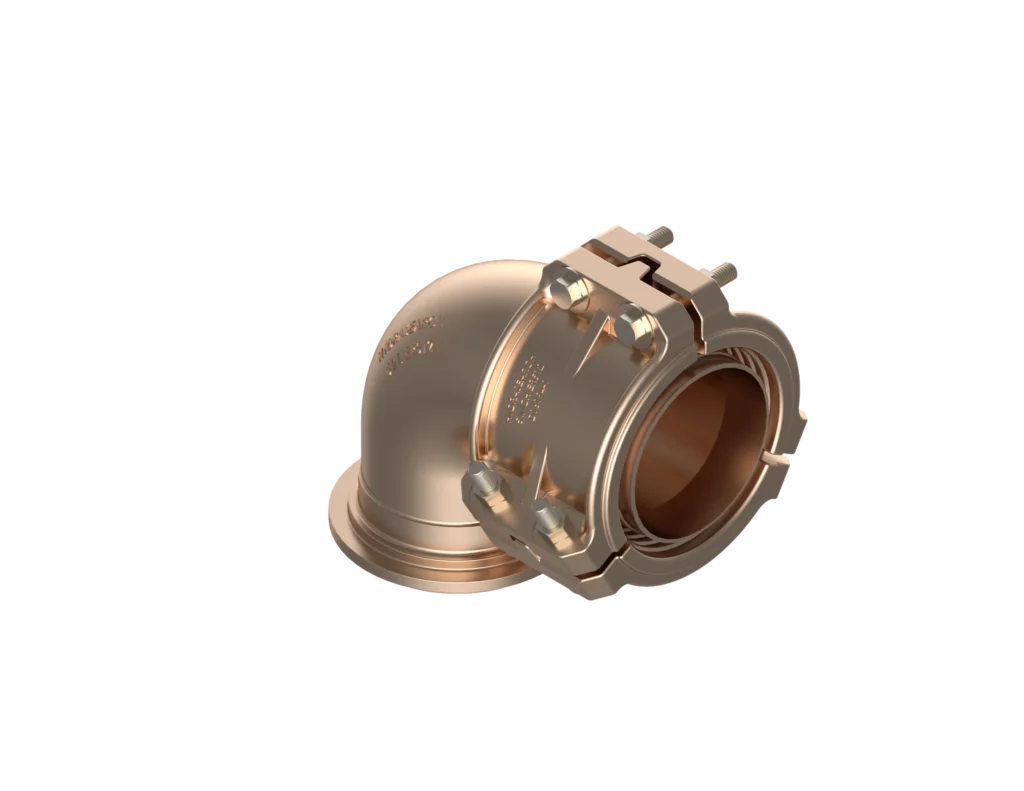

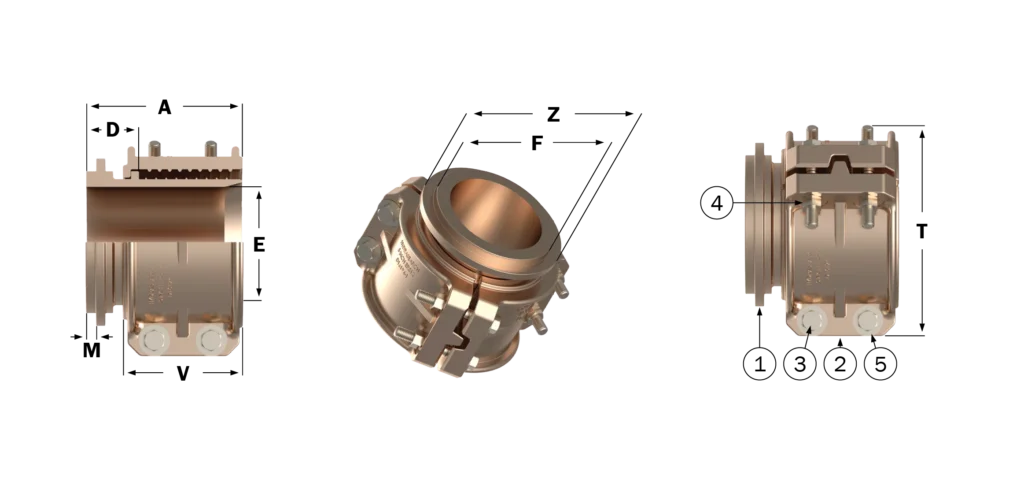

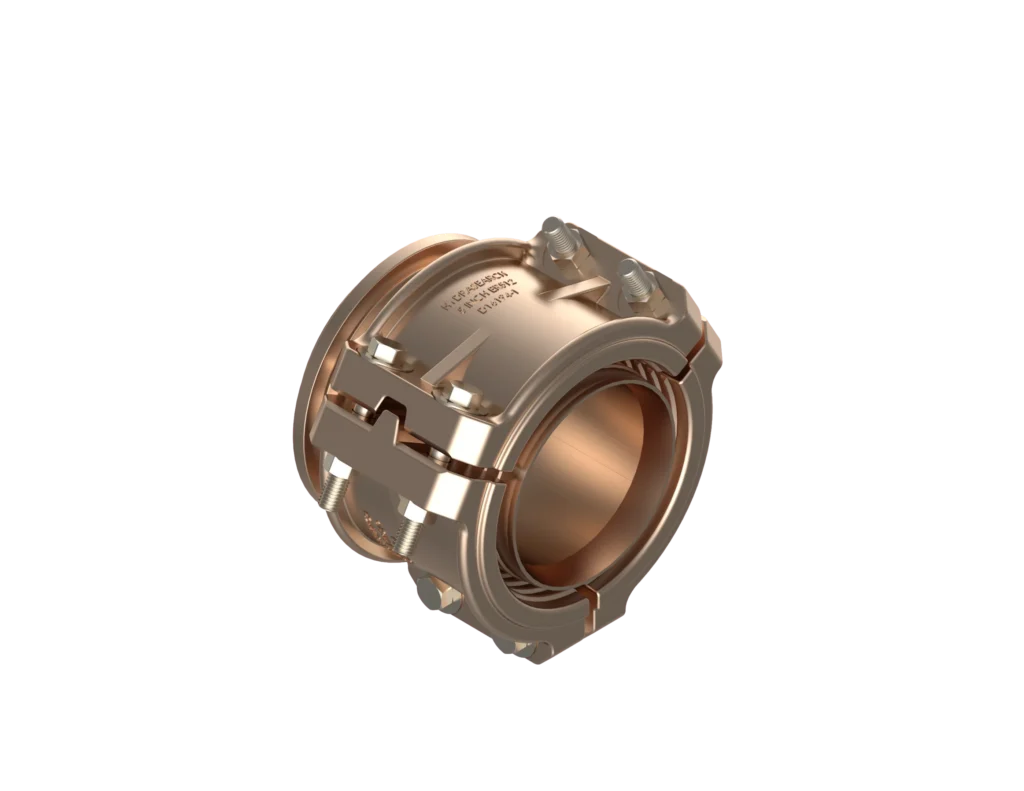

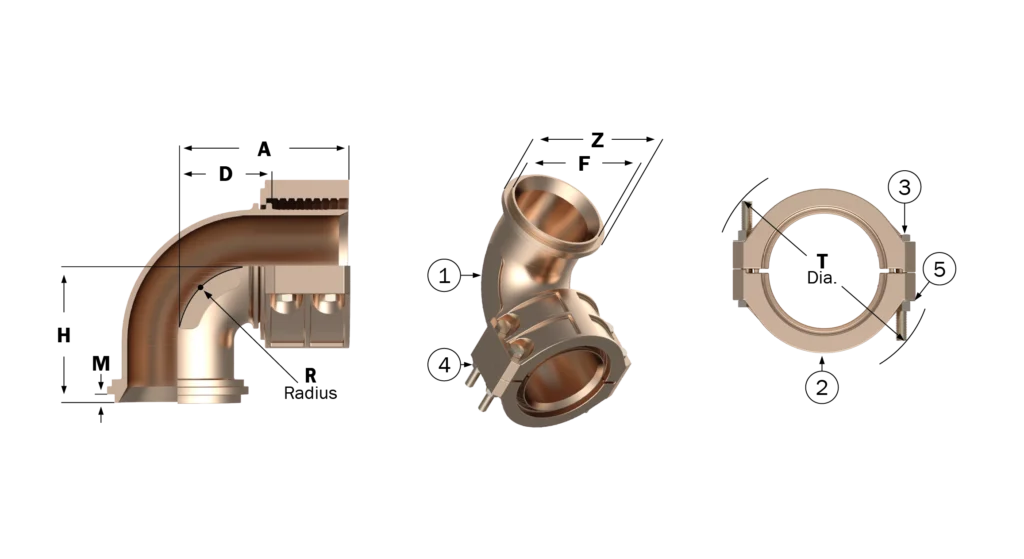

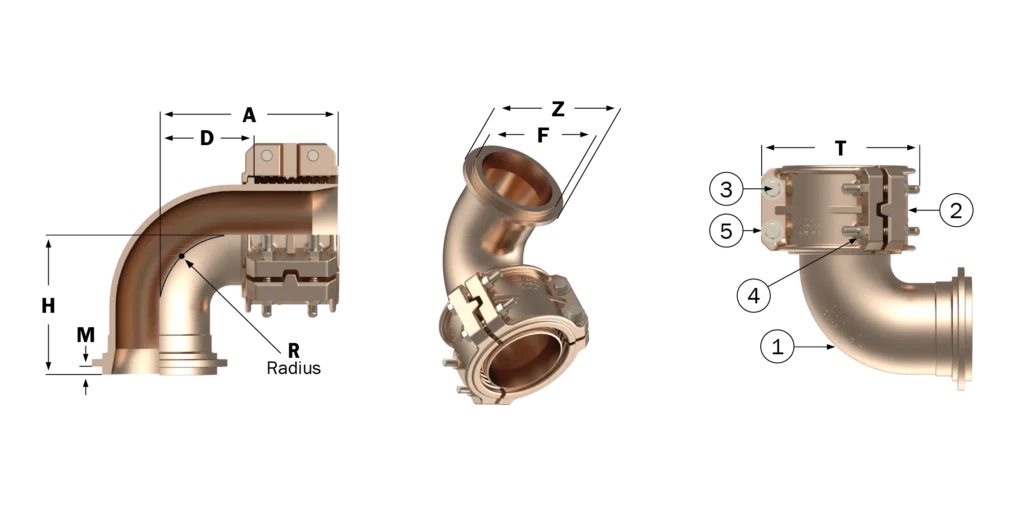

Equals to P/N FC7752-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/4

Use with the following hose: ER512 & 2580

Type EL, Group IX

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5MS-ER512	D17122	5	10.78	6.65	5.62	6.82	.40	3.50	9.25	6.63	46.00
90EF-6MS-ER512	D17123	6	9.25	5.12	6.75	7.31	.45	4.00	10.38	7.57	56.00
90EF-8MS-ER512	D17124	8	15.34	10.96	9.00	8.81	.82	5.00	13.00	9.97	83.00
90EF-10MS-ER512	D19744	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	115.00
90EF-12MS-ER512	D19745	12	14.24	9.00	12.00	10.70	.88	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16930	D16931	D16932	D18838	D18839	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Alumimum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7752-8080-188	5	8.64	4.52	5.62	6.81	.40	3.50	11.44	6.63	46.00
FC7752-9696-188	6	9.14	5.02	6.75	7.31	.45	4.00	11.98	7.57	57.80
FC7752-1010-188	10	11.89	7.77	11.00	9.70	.86	6.38	16.48	12.06	115.00

Description	Req’d per Ass’y	Base No.	8080	9696	1010	Material
Elbow	1	FC2465-	8080-188	9696-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	Monel

ER512

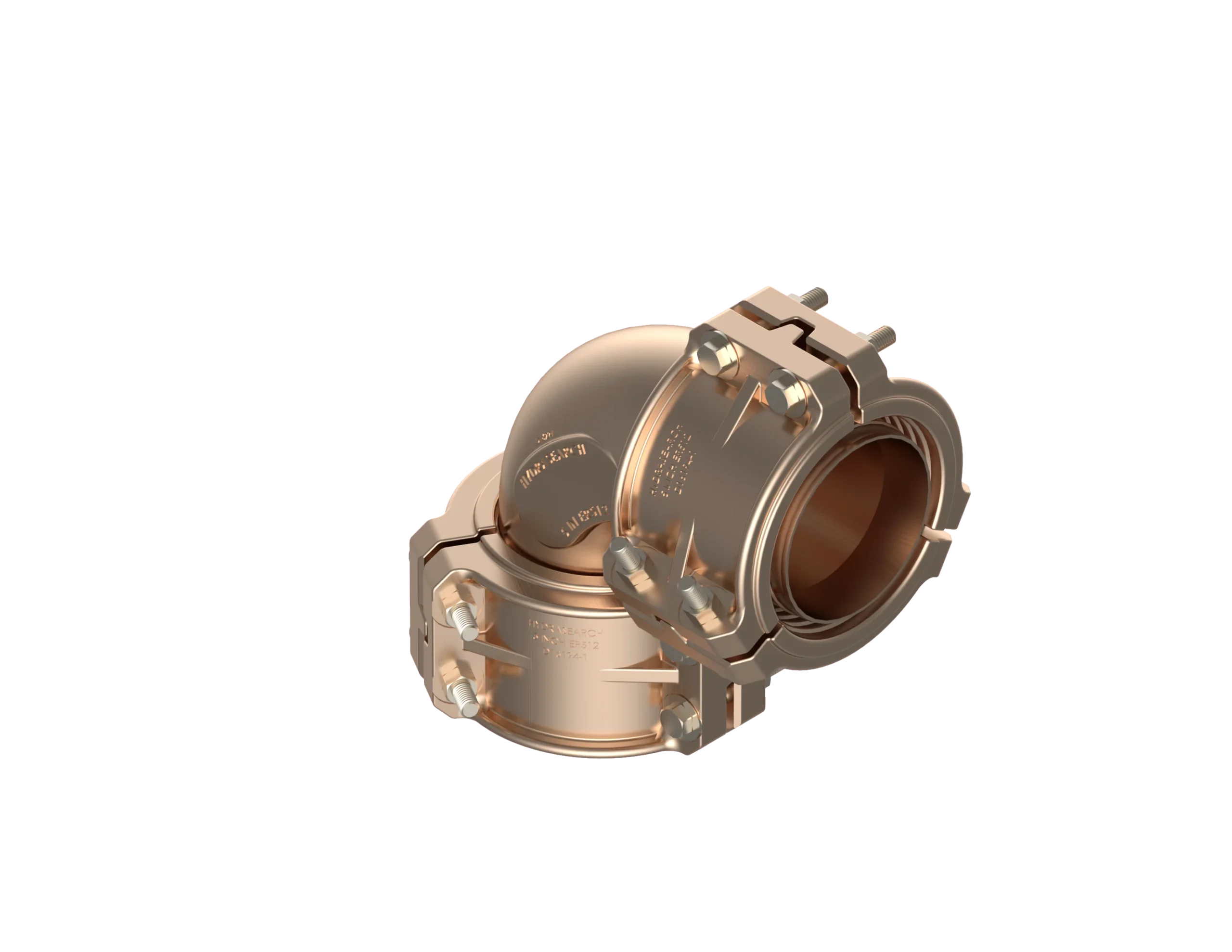

Equal to Aeroquip P/N FC7752-188

Hose to Split Clamp - Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose: ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
90EF-5MS-ER512	D17122	5	10.78	6.65	5.62	6.82	.40	3.50	9.25	6.63	46.00
90EF-6MS-ER512	D17123	6	9.25	5.12	6.75	7.31	.45	4.00	10.38	7.57	56.00
90EF-8MS-ER512	D17124	8	15.34	10.96	9.00	8.81	.82	5.00	13.00	9.97	83.00
90EF-10MS-ER512	D19744	10	12.13	7.78	11.00	9.70	.86	6.38	14.50	12.06	115.00
90EF-12MS-ER512	D19745	12	14.24	9.00	12.00	10.70	.88	7.38	17.10	13.38	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Elbow	1	D16930	D16931	D16932	D18838	D18839	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Alumimum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

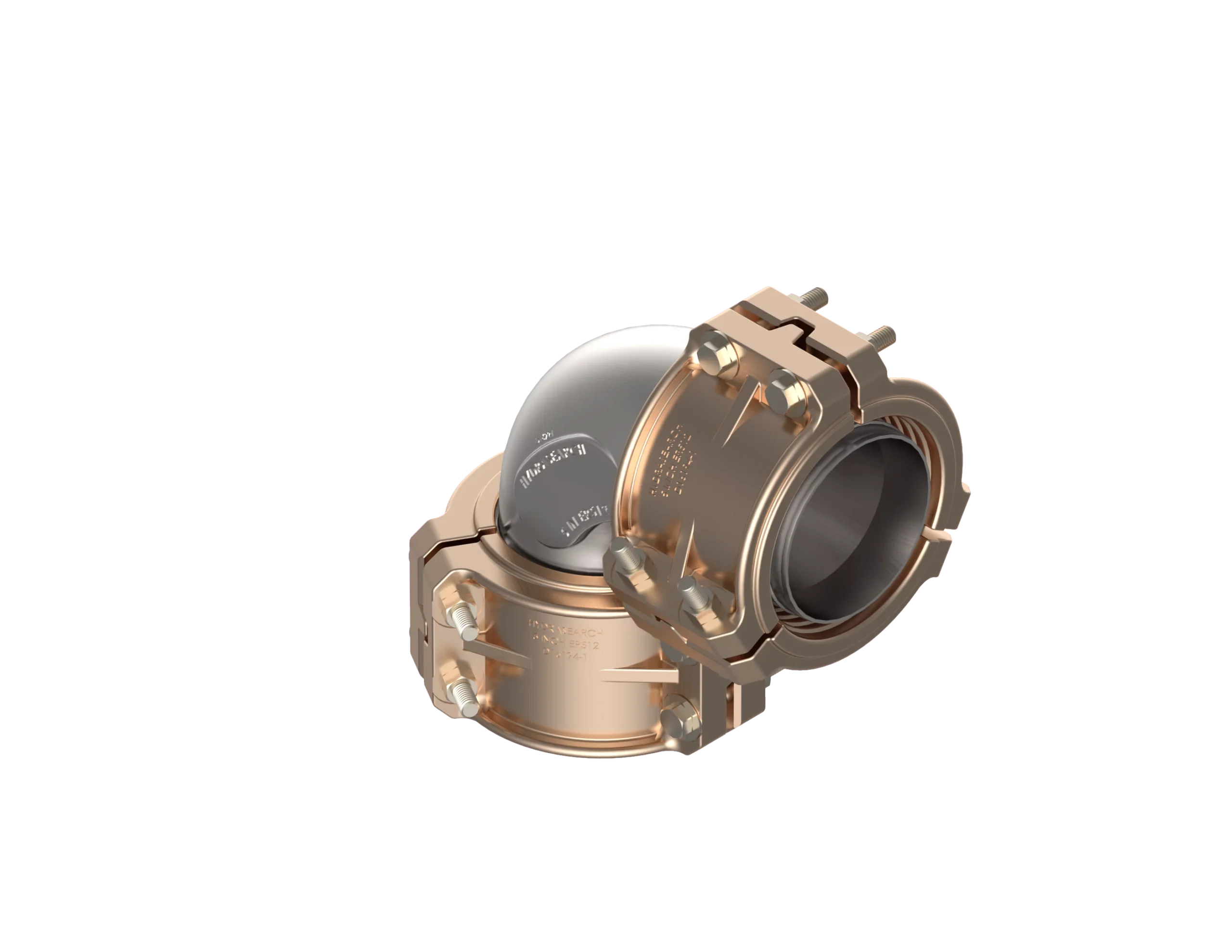

ER512 Equivalent

P/N FC7752-188

Hose to Split Clamp -Male

End Fitting - 90°

MIL-DTL-24787/4,

Type EL, Group IX

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	A	D	F	H	M	R	T	Z	Est. Wt. (lbs.)
FC7752-8080-188	5	8.64	4.52	5.62	6.81	.40	3.50	11.44	6.63	46.00
FC7752-9696-188	6	9.14	5.02	6.75	7.31	.45	4.00	11.98	7.57	57.80
FC7752-1010-188	10	11.89	7.77	11.00	9.70	.86	6.38	16.48	12.06	115.00

Description	Req’d per Ass’y	Base No.	8080	9696	1010	Material
Elbow	1	FC2465-	8080-188	9696-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	Monel

Equals to P/N FC7755-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/4

Use with the following hose:ER512 & 2580

Type E, Group IX

Part Number	Drawing Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
EF-5MS-ER512	D17134	5	6.22	2.09	5.12	5.62	.40	9.25	4.75	6.63	36.00
EF-6MS-ER512	D17135	6	6.58	2.45	6.64	6.75	.45	10.38	4.75	7.57	44.00
EF-8MS-ER512	D17136	8	7.25	2.86	8.67	9.00	.82	13.00	5.00	9.97	60.00
EF-10MS-ER512	D19742	7.09	7.09	2.74	10.67	11.00	.86	14.50	4.97	12.06	77.00
EF-12MS-ER512	D19743	12	8.24	2.96	12.89	12.00	.88	17.10	6.00	13.38	120.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Nipple	1	D16936	D16937	D16938	D18834	D18835	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
FC7755-8080-188	5	6.22	2.10	4.40	5.62	.40	11.44	4.75	6.63	36.70
FC7755-9696-188	6	6.58	2.46	5.40	6.75	.45	11.98	4.75	7.57	45.40
FC7755-0808-188	8	6.80	2.68	7.40	9.00	.82	13.89	4.75	9.97	63.40
FC7755-1010-188	10	6.84	2.72	9.40	11.00	.86	16.48	4.75	12.06	77.00
FC7755-1212-188	12	8.16	2.91	11.40	12.00	.88	17.04	6.00	13.38	119.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Nipple	1	FC2468-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

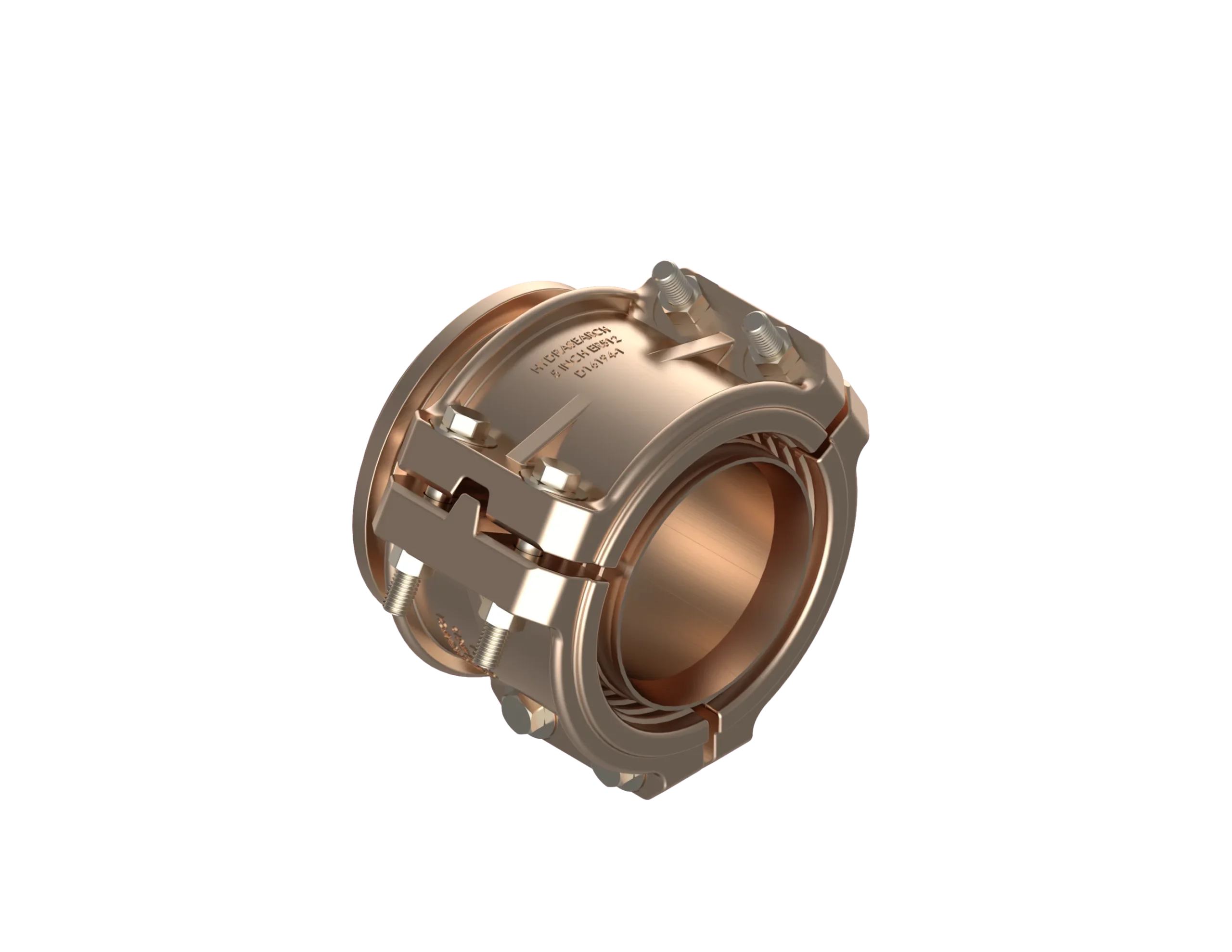

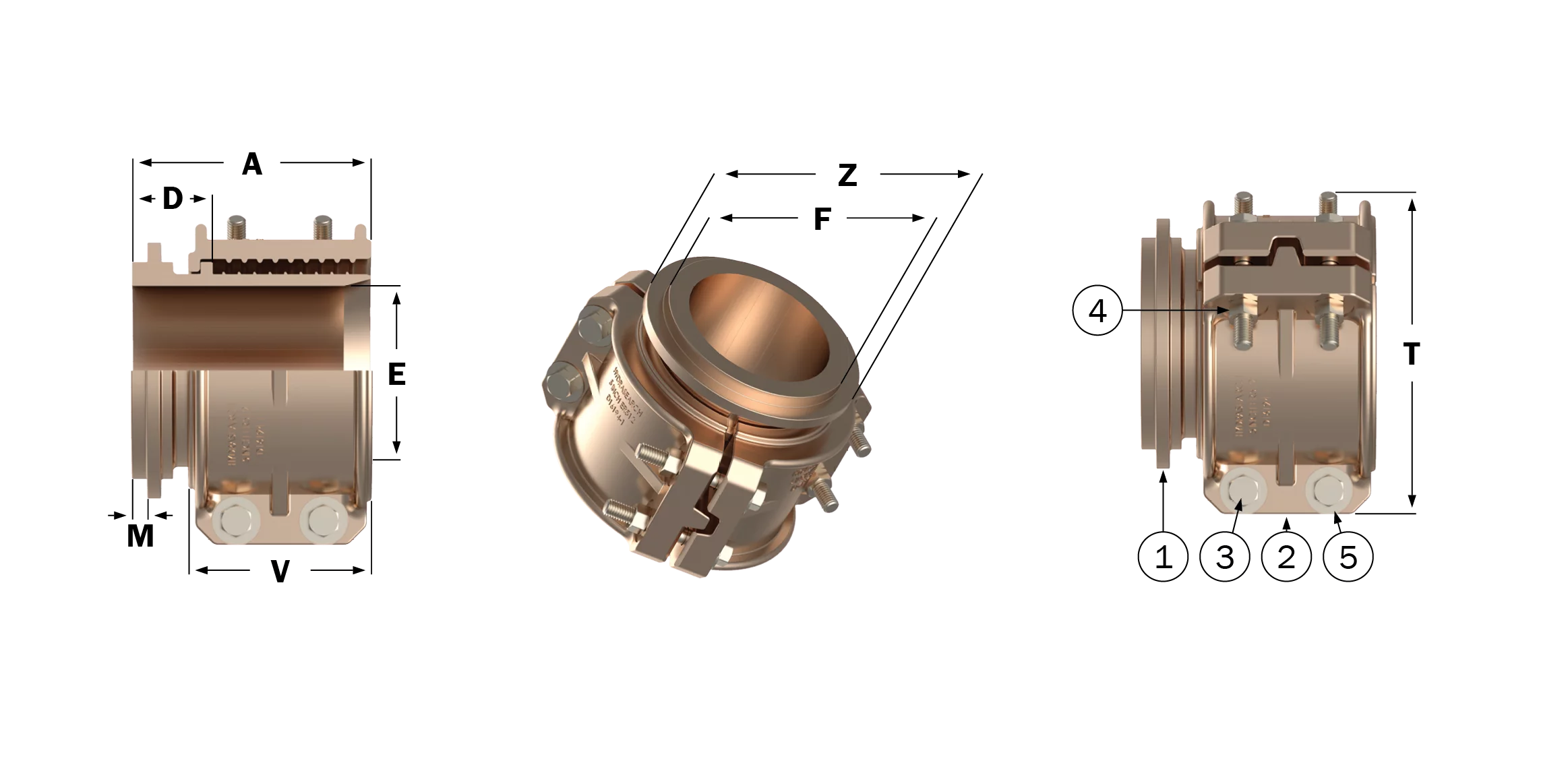

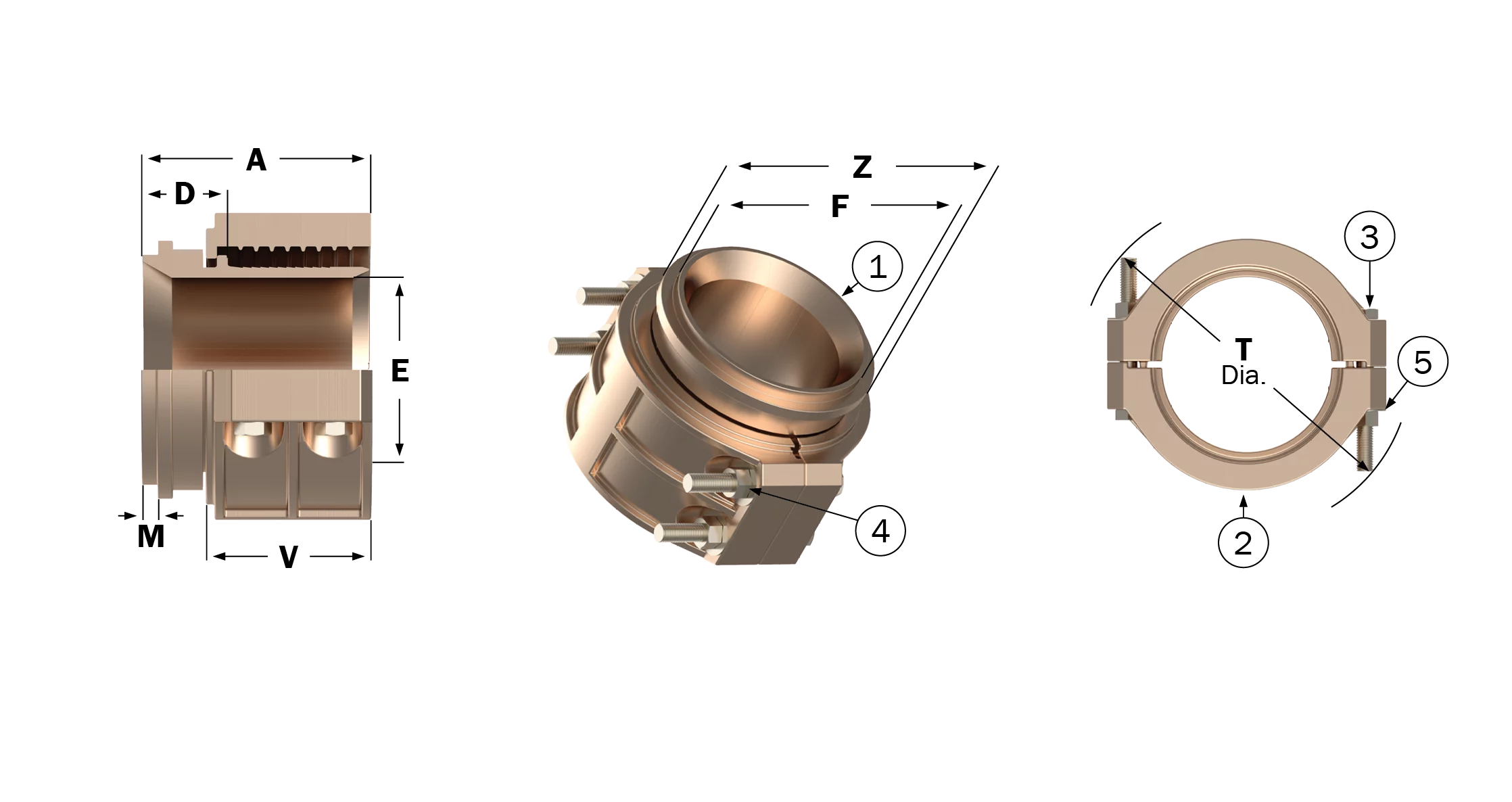

ER512

Equal to Aeroquip P/N FC7755-188

Hose to Split Clamp - Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IX

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
EF-5MS-ER512	D17134	5	6.22	2.09	5.12	5.62	.40	9.25	4.75	6.63	36.00
EF-6MS-ER512	D17135	6	6.58	2.45	6.64	6.75	.45	10.38	4.75	7.57	44.00
EF-8MS-ER512	D17136	8	7.25	2.86	8.67	9.00	.82	13.00	5.00	9.97	60.00
EF-10MS-ER512	D19742	7.09	7.09	2.74	10.67	11.00	.86	14.50	4.97	12.06	77.00
EF-12MS-ER512	D19743	12	8.24	2.96	12.89	12.00	.88	17.10	6.00	13.38	120.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Nipple	1	D16936	D16937	D16938	D18834	D18835	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D13845-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

ER512 Equivalent

P/N FC7755-188

Hose to Split Clamp -Male

End Fitting - Straight

MIL-DTL-24787/4,

Type E, Group IX

For use with the following hose: ER512 & 2580

plug

Part Number	IPS Size	A	D	E	F	M	T	V	Z	Est. Wt. (lbs.)
FC7755-8080-188	5	6.22	2.10	4.40	5.62	.40	11.44	4.75	6.63	36.70
FC7755-9696-188	6	6.58	2.46	5.40	6.75	.45	11.98	4.75	7.57	45.40
FC7755-0808-188	8	6.80	2.68	7.40	9.00	.82	13.89	4.75	9.97	63.40
FC7755-1010-188	10	6.84	2.72	9.40	11.00	.86	16.48	4.75	12.06	77.00
FC7755-1212-188	12	8.16	2.91	11.40	12.00	.88	17.04	6.00	13.38	119.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Nipple	1	FC2468-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

Equals to P/N FC7780-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150F-B16.5	D17104	5	8	.88	8.63	4.50	6.76	10.00	6.38	8.50	1.05	3.50	5.31	9.25	59.00
90EF-6-150F-B16.5	D17105	6	8	.88	9.20	5.07	7.34	11.00	7.38	9.00	1.17	4.00	6.31	10.38	73.00
90EF-8-150F-B16.5	D17106	8	8	.88	10.56	6.18	8.67	13.50	9.83	11.75	1.30	5.00	8.31	13.00	110.00
90EF-10-150F-B16.5	D19089	10	12	1.00	12.10	7.75	9.80	16.00	12.04	14.25	1.42	6.38	10.31	14.50	143.00
90EF-12-150F-B16.5	D19736	12	12	1.00	14.32	9.04	10.70	19.00	14.48	17.00	1.48	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16914-2	C16914-3	C18831	C18832	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7780-8080-188	5	8	.88	8.64	4.52	6.81	10.00	6.37	8.50	1.06	3.50	5.32	11.44	50.40
FC7780-9696-188	6	8	.88	9.14	5.02	7.31	11.00	7.37	9.50	1.19	4.00	6.36	11.98	65.80
FC7780-0808-188	8	8	.88	10.34	6.22	8.81	13.50	9.82	11.75	1.31	5.00	8.32	13.89	93.10
FC7780-1010-188	10	12	1.00	11.89	7.77	9.70	16.00	12.00	14.25	1.44	6.38	10.38	16.48	134.00
FC7780-1212-188	12	12	1.00	14.24	9.00	10.70	17.62	14.50	17.00	1.48	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74021-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

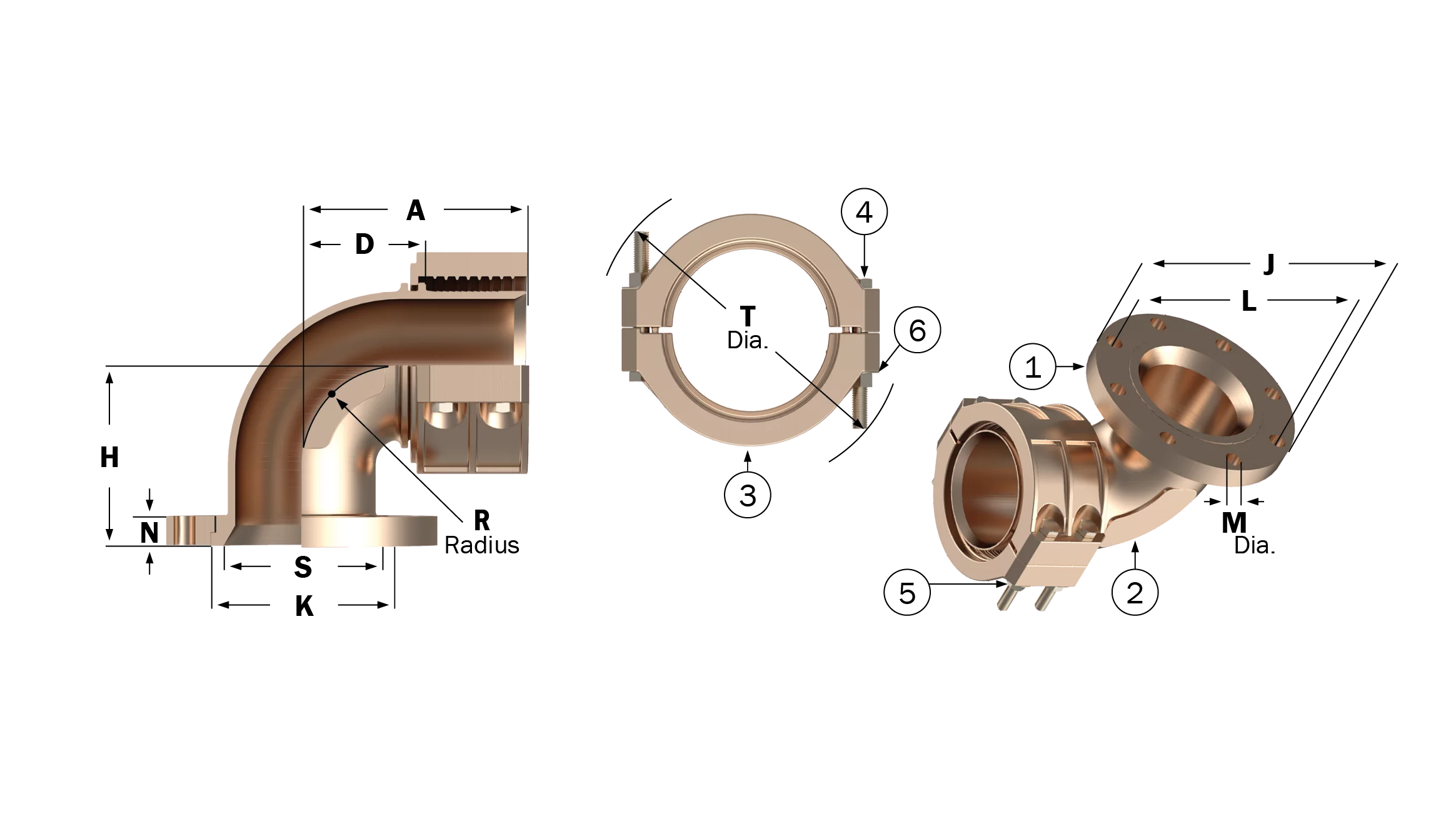

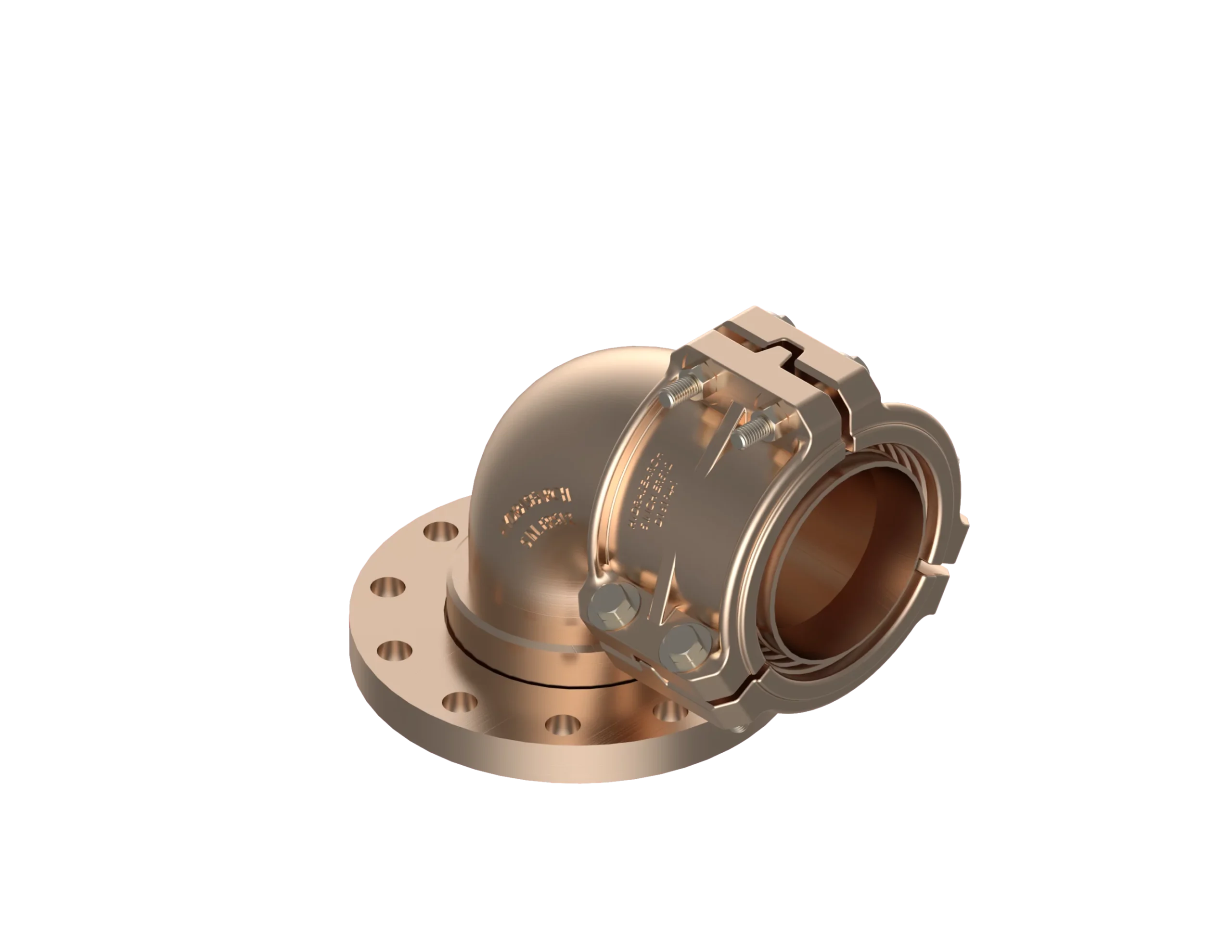

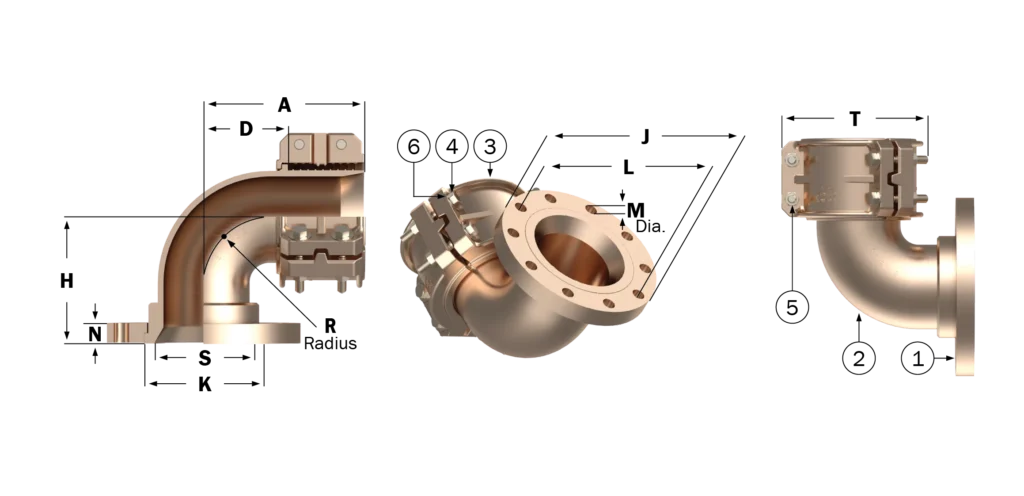

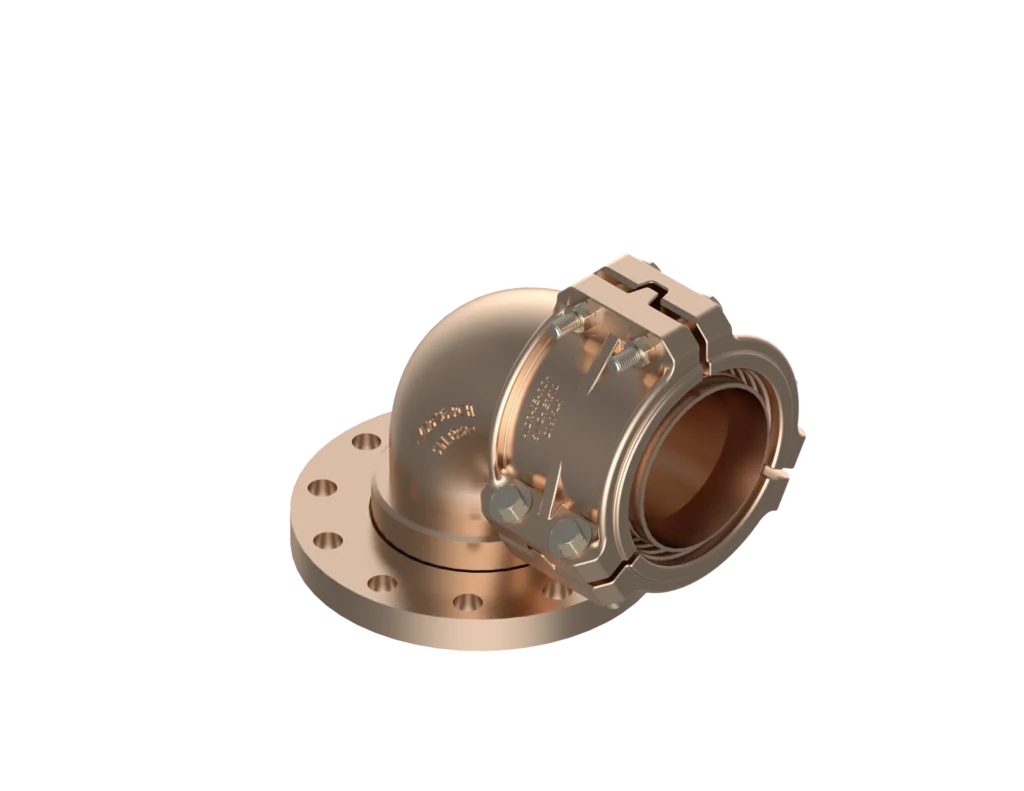

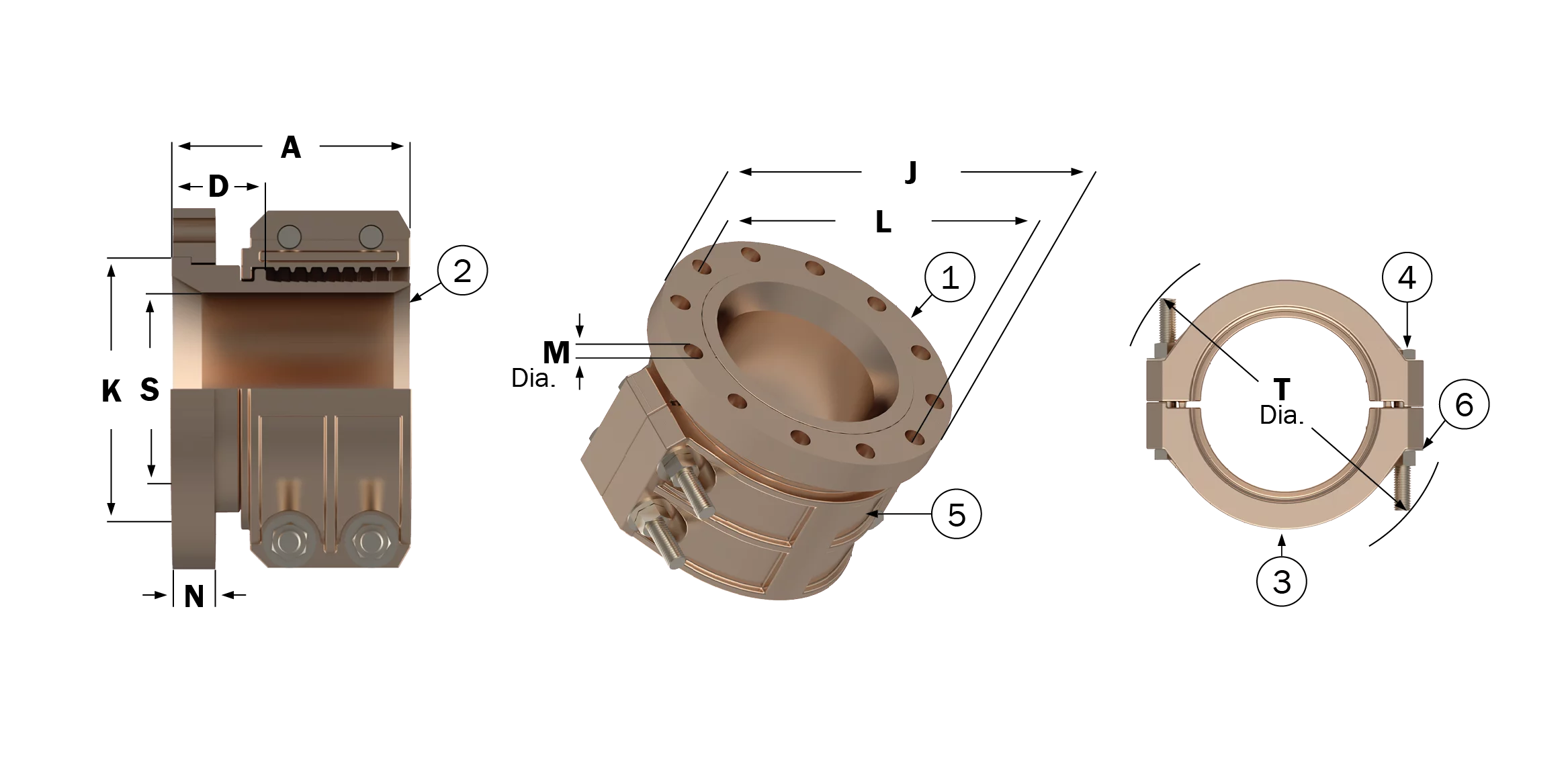

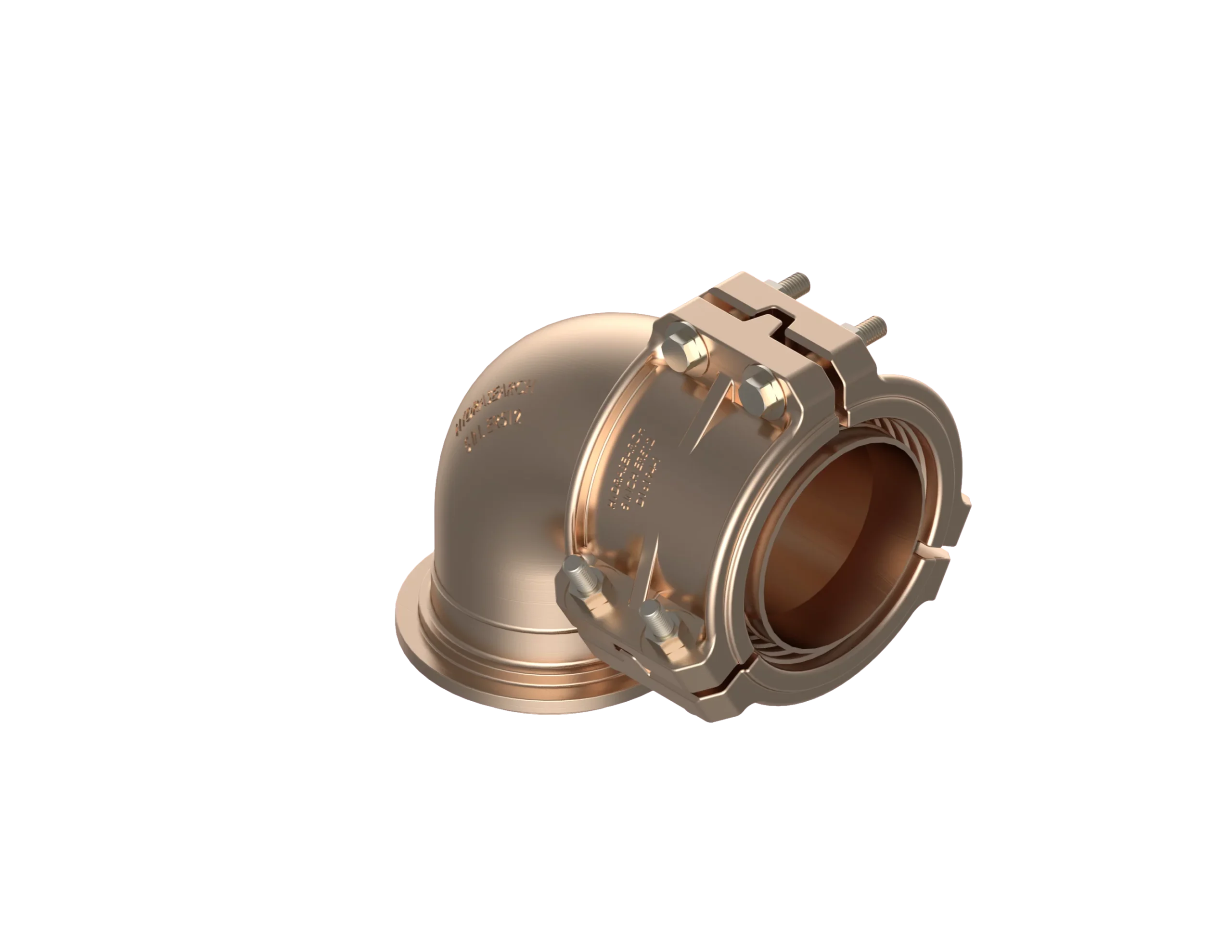

ER512

Equal to Aeroquip P/N FC7780-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150F-B16.5	D17104	5	8	.88	8.63	4.50	6.76	10.00	6.38	8.50	1.05	3.50	5.31	9.25	59.00
90EF-6-150F-B16.5	D17105	6	8	.88	9.20	5.07	7.34	11.00	7.38	9.00	1.17	4.00	6.31	10.38	73.00
90EF-8-150F-B16.5	D17106	8	8	.88	10.56	6.18	8.67	13.50	9.83	11.75	1.30	5.00	8.31	13.00	110.00
90EF-10-150F-B16.5	D19089	10	12	1.00	12.10	7.75	9.80	16.00	12.04	14.25	1.42	6.38	10.31	14.50	143.00
90EF-12-150F-B16.5	D19736	12	12	1.00	14.32	9.04	10.70	19.00	14.48	17.00	1.48	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16914-2	C16914-3	C18831	C18832	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

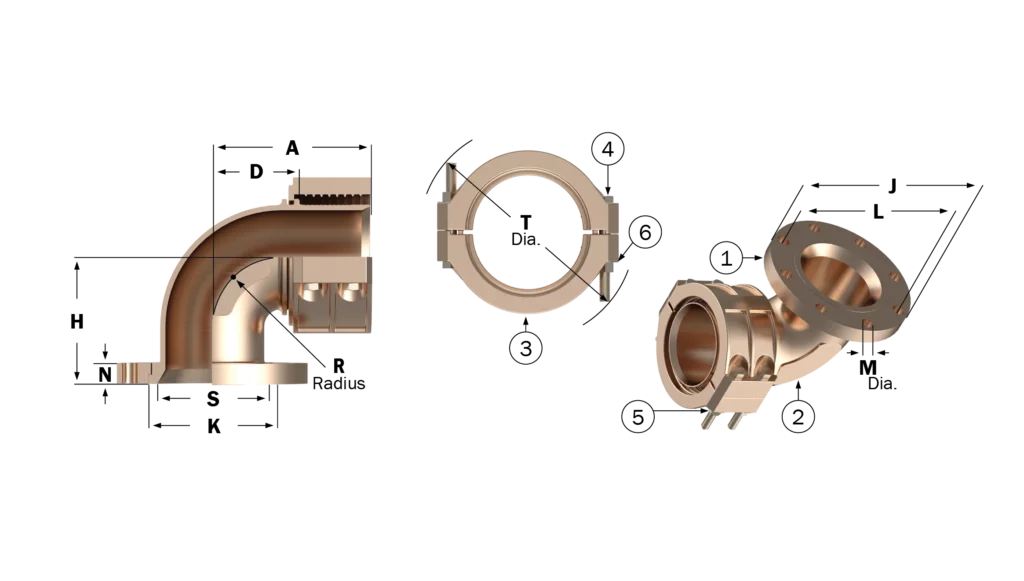

ER512 Equivalent

P/N FC7780-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7780-8080-188	5	8	.88	8.64	4.52	6.81	10.00	6.37	8.50	1.06	3.50	5.32	11.44	50.40
FC7780-9696-188	6	8	.88	9.14	5.02	7.31	11.00	7.37	9.50	1.19	4.00	6.36	11.98	65.80
FC7780-0808-188	8	8	.88	10.34	6.22	8.81	13.50	9.82	11.75	1.31	5.00	8.32	13.89	93.10
FC7780-1010-188	10	12	1.00	11.89	7.77	9.70	16.00	12.00	14.25	1.44	6.38	10.38	16.48	134.00
FC7780-1212-188	12	12	1.00	14.24	9.00	10.70	17.62	14.50	17.00	1.48	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74021-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class III, 250lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-250F	D17111	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-250F	D17112	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	9.31	10.38	68.00
90EF-8-250F	D17113	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-250F	D19091	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00
90EF-12-250F	D19739	12	18	.81	14.32	9.04	10.70	17.63	14.48	16.06	1.50	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

ER512

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-250F	D17111	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-250F	D17112	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	9.31	10.38	68.00
90EF-8-250F	D17113	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-250F	D19091	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00
90EF-12-250F	D19739	12	18	.81	14.32	9.04	10.70	17.63	14.48	16.06	1.50	7.38	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Bronze
Elbow	1	D16920	D16921	D16922	D18826	D18833	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Equals to P/N FC7751-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type FL, Group IX, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150/400F	D17085	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-150/400F	D17086	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	6.31	10.38	68.00
90EF-8-150/400F	D17110	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-150/400F	D19638	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	Bronze
Elbow	1	D16920	D16921	D16922	D18826	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7751-8080-188	5	10	.69	8.64	4.52	6.81	9.06	6.37	7.81	1.08	3.50	5.32	11.44	55.00
FC7751-9696-188	6	12	.69	9.14	5.02	7.31	10.12	7.37	8.88	1.20	4.00	6.36	11.98	71.10
FC7751-0808-188	8	14	.69	10.34	6.22	8.81	12.38	9.82	11.06	1.33	5.00	8.32	13.89	102.60
FC7751-1010-188	10	15	.81	11.89	7.77	9.70	15.00	12.00	13.44	1.45	6.38	10.38	16.48	147.48
FC7751-1212-188	12	18	.81	14.24	9.00	10.70	17.50	14.50	16.06	1.52	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74045-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

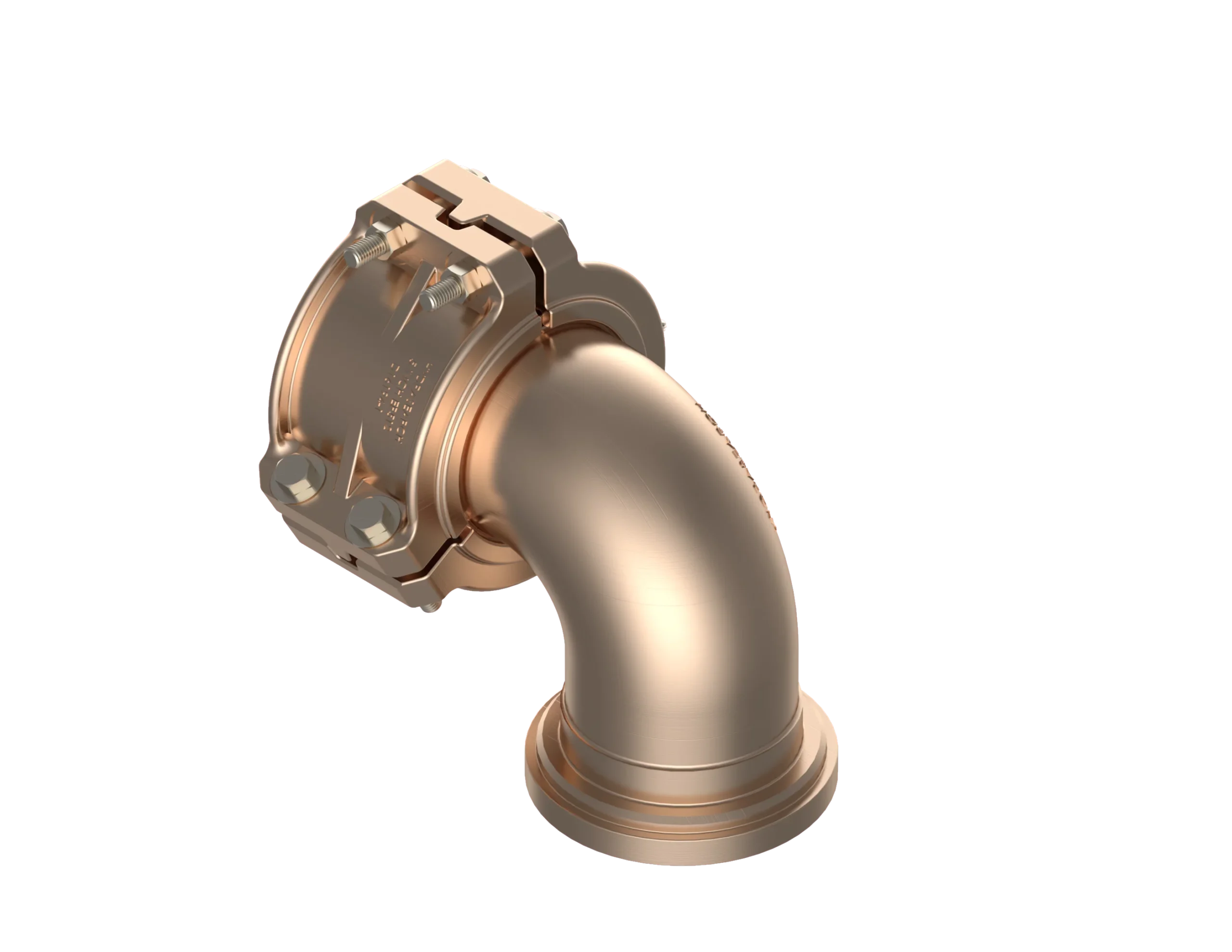

ER512

Equal to Aeroquip P/N FC7751-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
90EF-5-150/400F	D17085	5	10	.69	8.63	4.50	6.76	9.06	6.38	7.81	1.06	3.50	5.31	9.25	59.00
90EF-6-150/400F	D17086	6	12	.69	9.20	5.07	7.34	10.13	7.38	8.88	1.19	4.00	6.31	10.38	68.00
90EF-8-150/400F	D17110	8	14	.69	10.56	6.18	8.67	12.38	9.83	11.06	1.31	5.00	8.31	13.00	101.00
90EF-10-150/400F	D19638	10	15	.81	12.10	7.75	9.80	15.00	12.04	13.44	1.44	6.38	10.31	14.50	147.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	Bronze
Elbow	1	D16920	D16921	D16922	D18826	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	Monel

plug

ER512 Equivalent

P/N FC7751-188

Hose to Flange

End Fitting - 90°

MIL-DTL-24787/1,

Type FL, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose: ER512 & 2580

plug

Part Number	IPS Size	No. of Bolt Holes	M	A	D	H	J	K	L	N	R	S	T	Est. Wt. (lbs.)
FC7751-8080-188	5	10	.69	8.64	4.52	6.81	9.06	6.37	7.81	1.08	3.50	5.32	11.44	55.00
FC7751-9696-188	6	12	.69	9.14	5.02	7.31	10.12	7.37	8.88	1.20	4.00	6.36	11.98	71.10
FC7751-0808-188	8	14	.69	10.34	6.22	8.81	12.38	9.82	11.06	1.33	5.00	8.32	13.89	102.60
FC7751-1010-188	10	15	.81	11.89	7.77	9.70	15.00	12.00	13.44	1.45	6.38	10.38	16.48	147.48
FC7751-1212-188	12	18	.81	14.24	9.00	10.70	17.50	14.50	16.06	1.52	7.38	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	1212	Material
Swivel Flange	1	188-74045-	5-80	6-96	8-8	10-10	12-12	Aluminum. Bronze
Elbow	1	FC2464-	8080-188	9696-188	0808-188	1010-188	1212-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	12-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	12-48	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	12-4	Monel
Washer	4	FF412-	1001-4	1001-4	1201-4	1201-4	1201-4	Monel

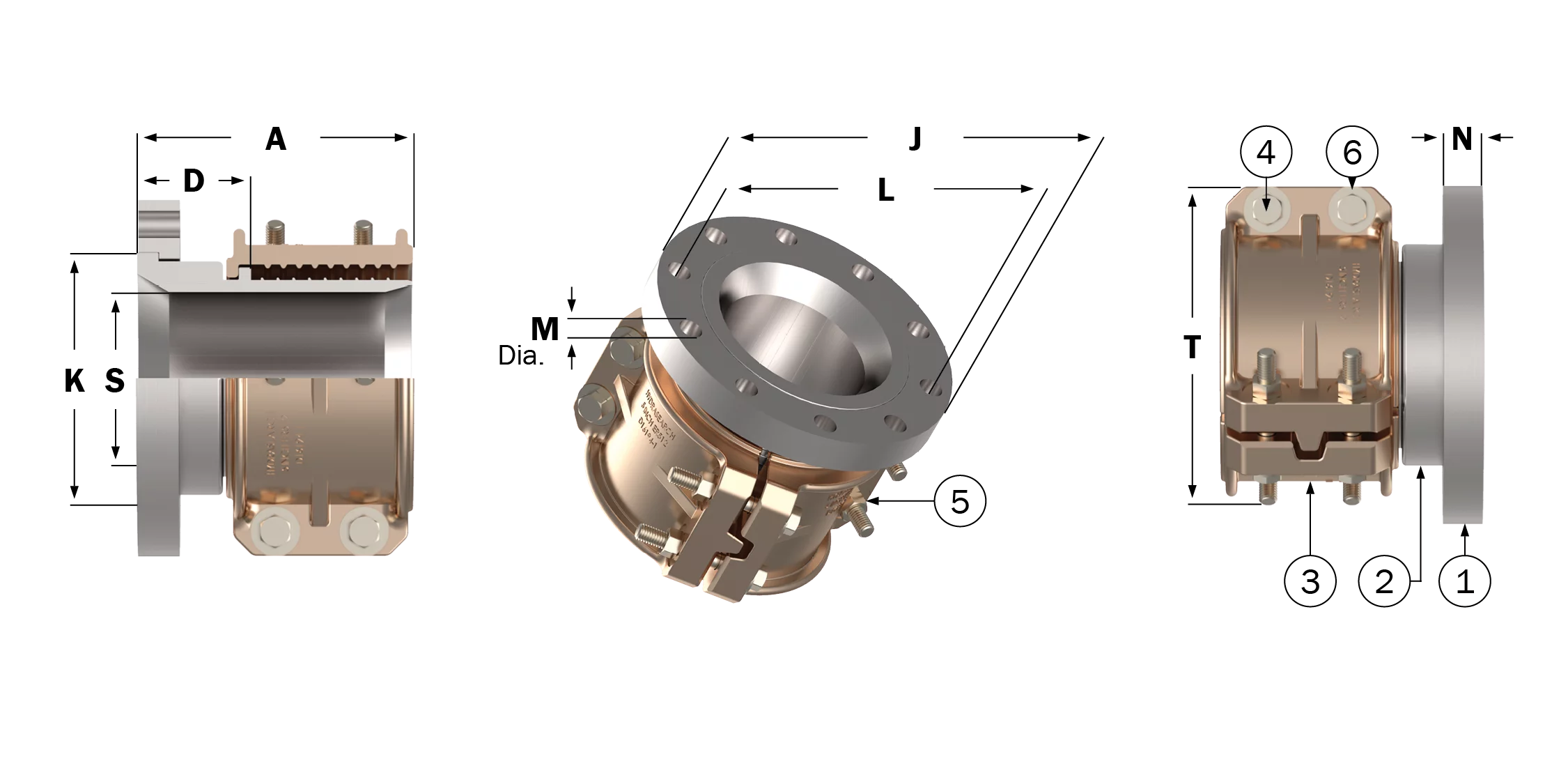

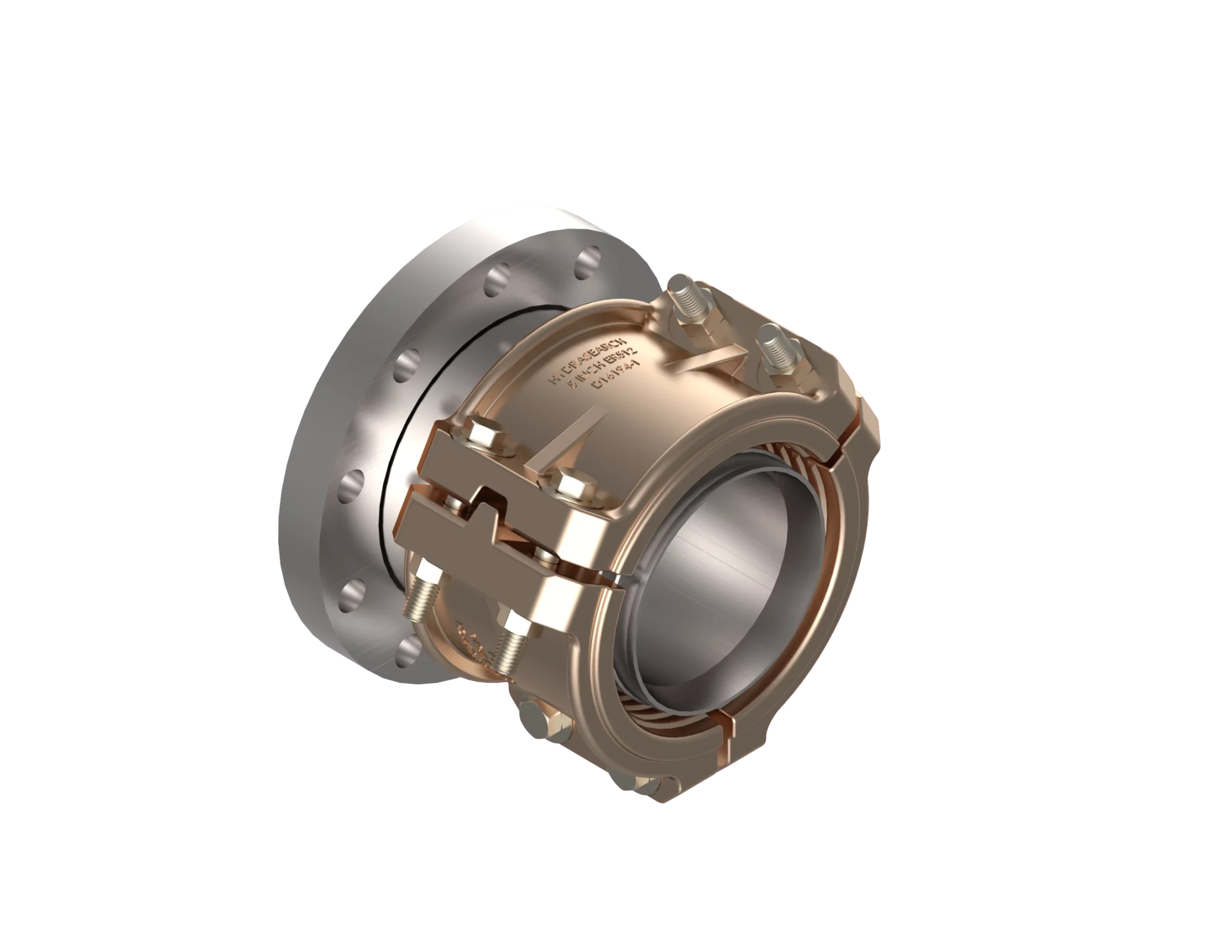

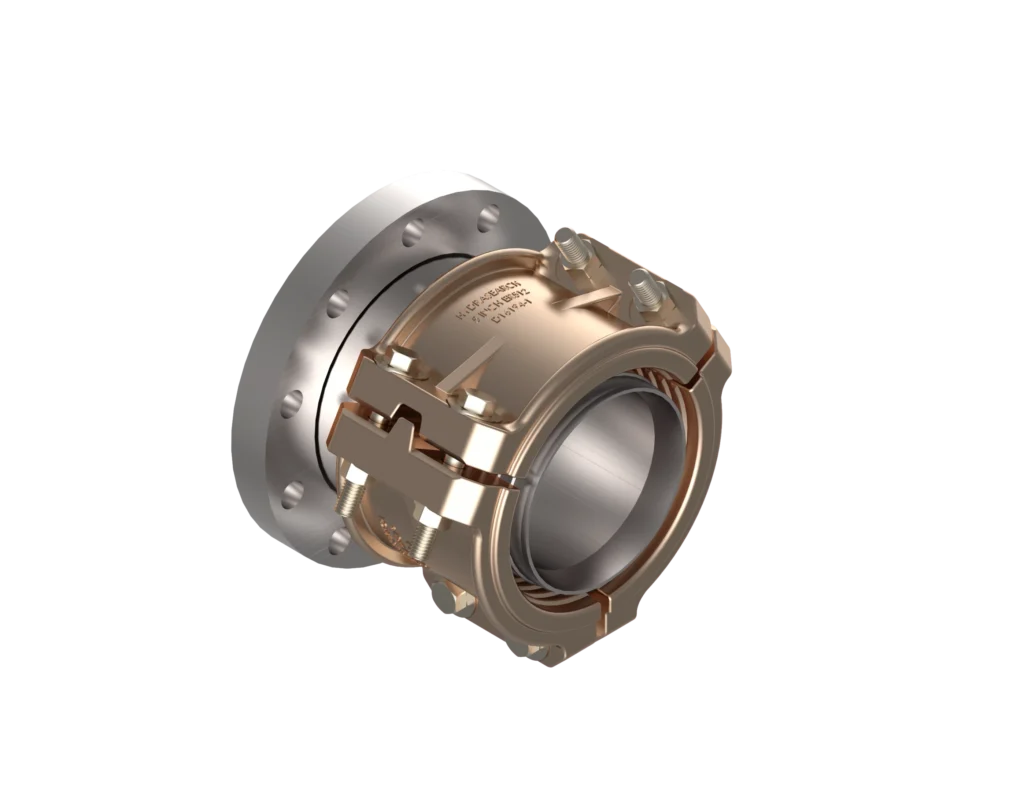

Equals to P/N FC7781-410

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

Use with the following hose:ER512 & 2580

150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5-SS	D18756	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5-SS	D17638	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5-SS	D17742	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5-SS	D18439	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5-SS	-	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	47.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C18361	C17629-1	C17639-2	C18459	-	Stainless Steel
Nipple	1	D18363	D17640	D17744	D18458	-	Stainless Steel
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-9696-410	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-410	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-410	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Swivel Flange	1	407-74021-	6-96	8-8	10-10	Stainless Steel
Nipple	1	FC2463-	9696-188	0808-188	1010-188	Stainless Steel
Grip Segment	2	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1201-4	1201-4	Monel

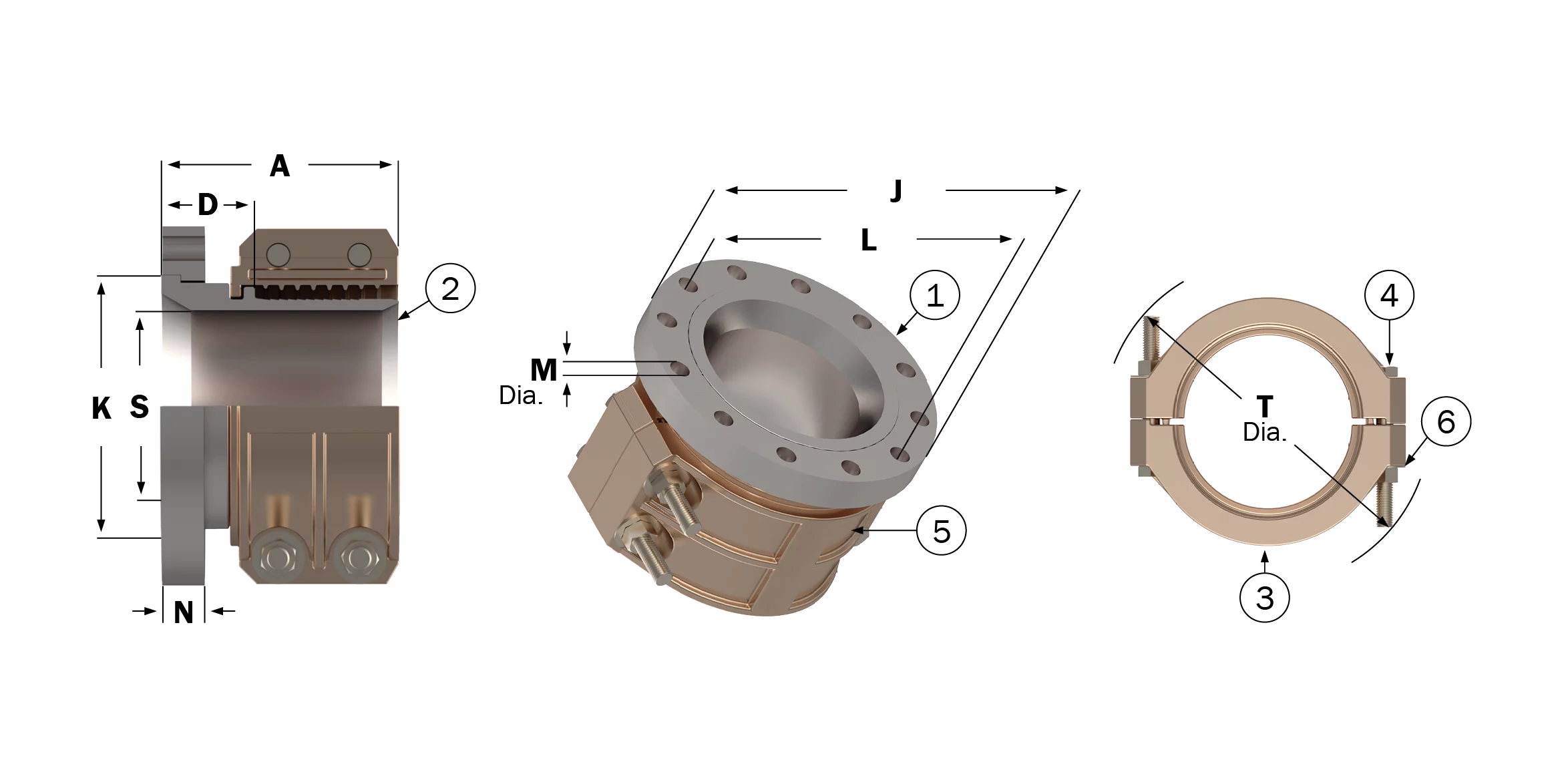

ER512

Equal to Aeroquip P/N FC7781-410

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5-SS	D18756	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5-SS	D17638	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5-SS	D17742	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5-SS	D18439	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5-SS	-	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	47.00

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C18361	C17629-1	C17639-2	C18459	-	Stainless Steel
Nipple	1	D18363	D17640	D17744	D18458	-	Stainless Steel
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

plug

ER512 Equivalent

P/N FC7781-410

Hose to Flange

End Fitting - Straight

150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-9696-410	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-410	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-410	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	9696	0808	1010	Material
Swivel Flange	1	407-74021-	6-96	8-8	10-10	Stainless Steel
Nipple	1	FC2463-	9696-188	0808-188	1010-188	Stainless Steel
Grip Segment	2	FC2457-1-	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1201-4	1201-4	Monel

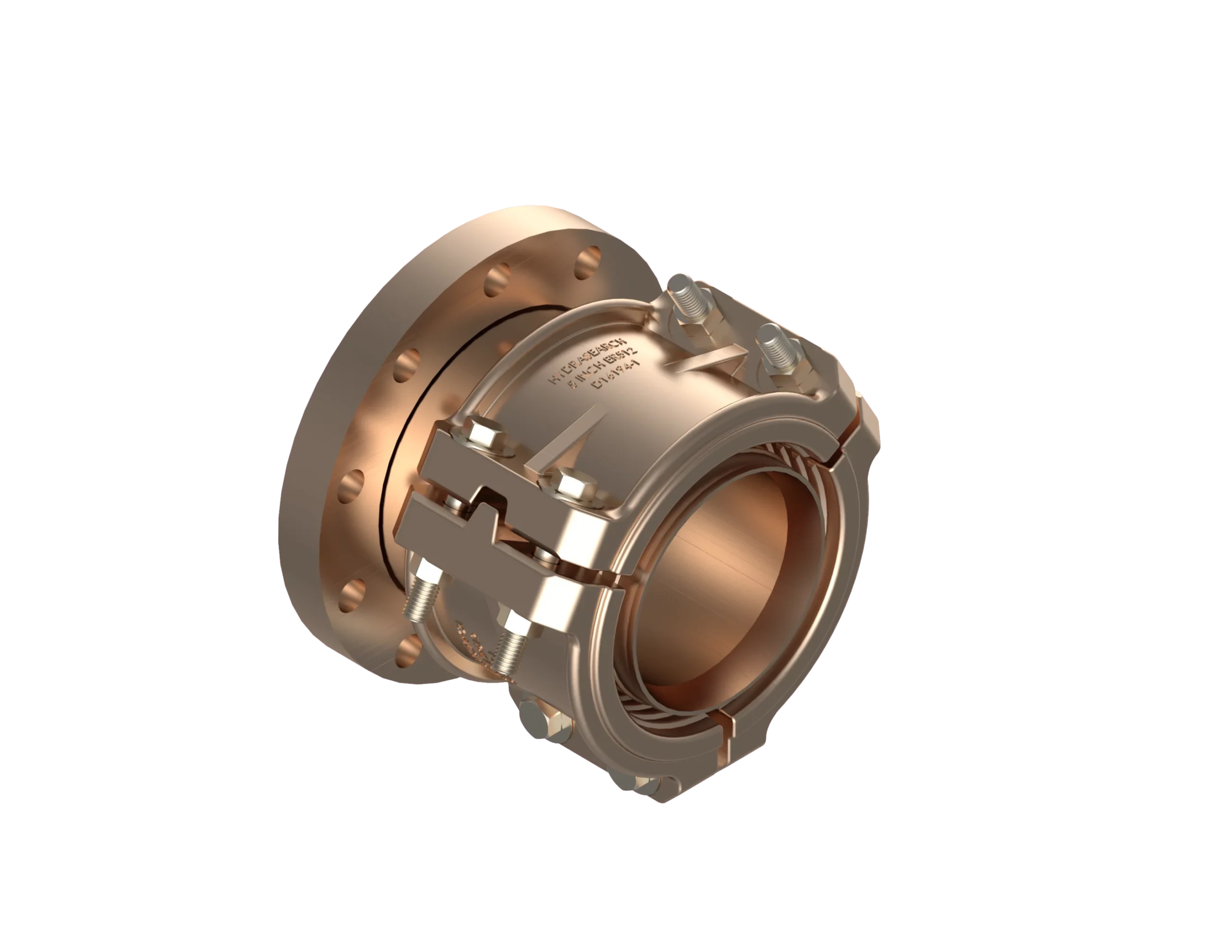

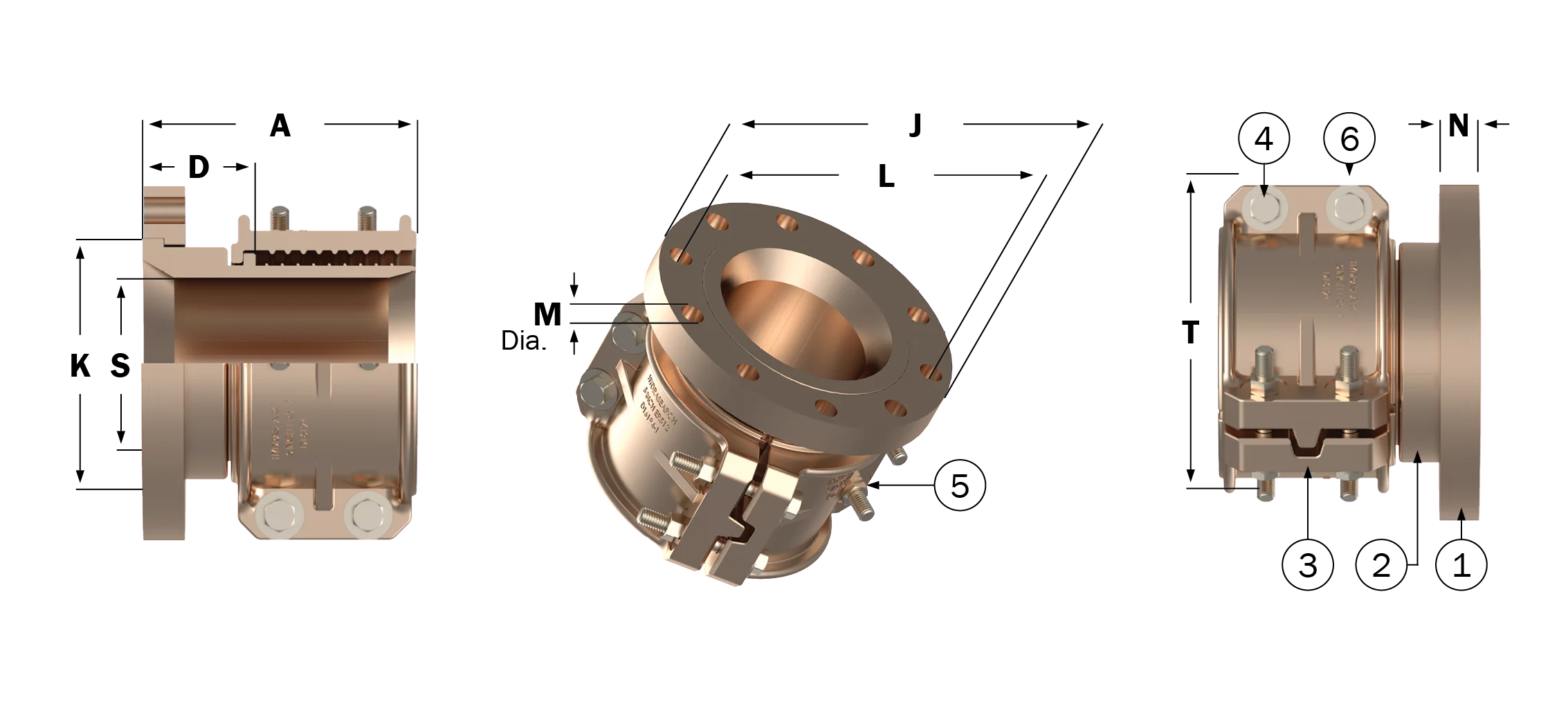

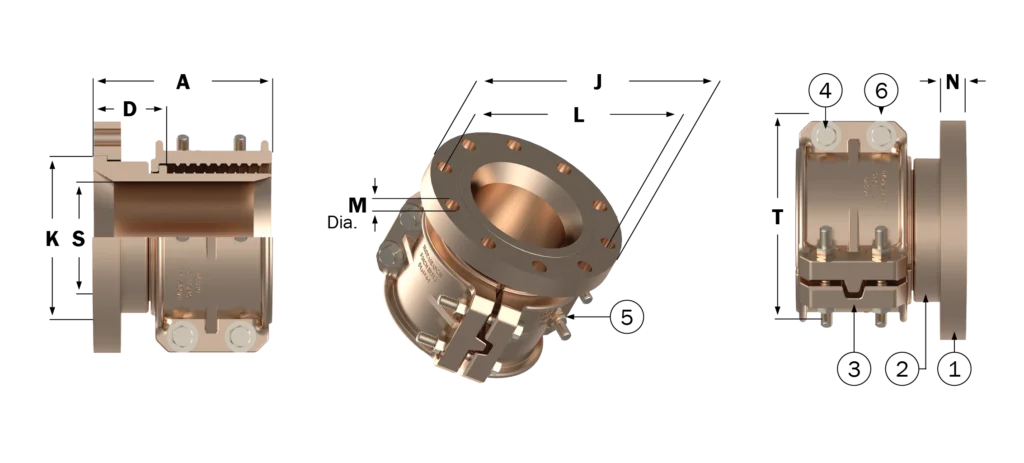

Equals to Hose to Flange

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type F, Group IX, Class V, 150lb Flange per A.N.S.I. B16.5

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5	D17125	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5	D17126	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5	C22207	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5	D19090	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5	D19730	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16114-2	C16914-3	C18831	C18832	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-8080-188	5	8	.88	6.75	2.64	10.00	6.37	8.50	1.06	5.32	11.44	40.40
FC7781-9696-188	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-188	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-188	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874020-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC2463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

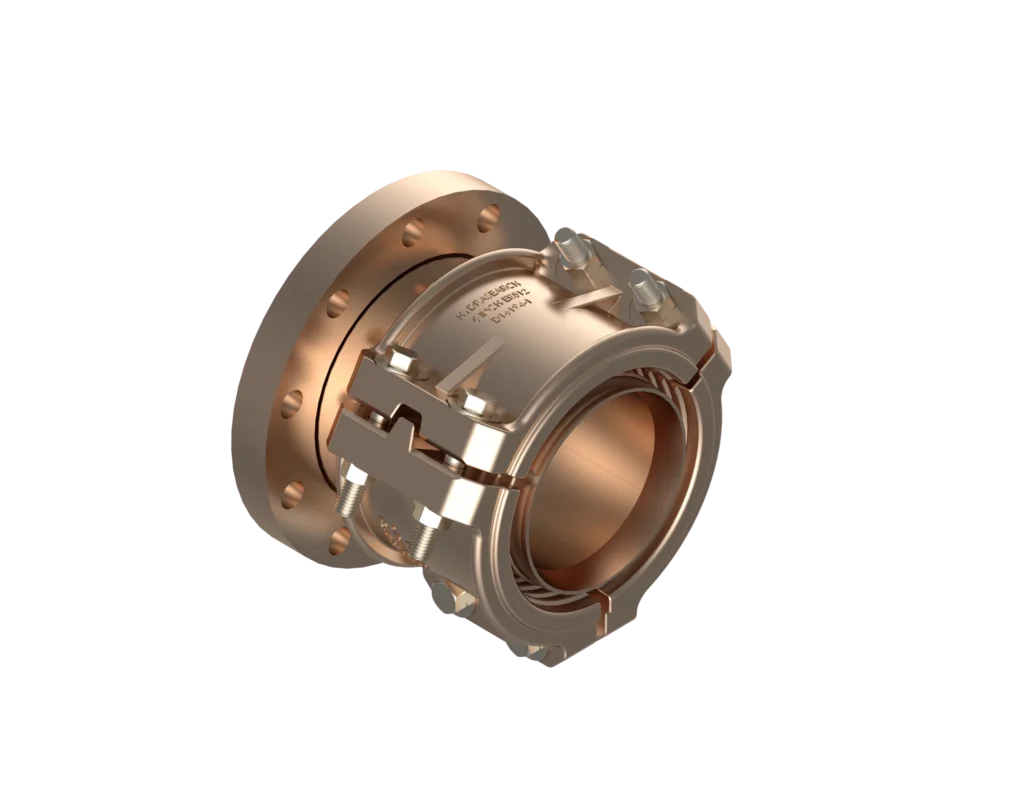

ER512

Equal to Aeroquip Hose to Flange

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150F-B16.5	D17125	5	8	.88	7.03	2.90	10.00	6.38	8.50	1.05	5.31	9.25	47.00
EF-6-150F-B16.5	D17126	6	8	.88	7.03	2.90	11.00	7.38	9.50	1.17	6.31	10.38	59.00
EF-8-150F-B16.5	C22207	8	8	.88	7.28	2.90	13.50	9.83	11.75	1.30	8.31	13.21	82.00
EF-10-150F-B16.5	D19090	10	12	1.00	7.00	2.65	16.00	12.04	14.25	1.42	10.31	14.50	98.00
EF-12-150F-B16.5	D19730	12	12	1.00	8.52	3.24	19.00	14.48	17.00	1.48	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16914-1	C16114-2	C16914-3	C18831	C18832	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	C22160	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	C22173-2	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B18347	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B18348	B16551-2	B18348	Monel

plug

ER512 Equivalent

P/N FC7781-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class V, 150lb

Flange per A.N.S.I. B16.5

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7781-8080-188	5	8	.88	6.75	2.64	10.00	6.37	8.50	1.06	5.32	11.44	40.40
FC7781-9696-188	6	8	.88	6.75	2.64	11.00	7.37	9.50	1.19	6.36	11.98	53.40
FC7781-0808-188	8	8	.88	6.75	2.64	13.50	9.82	11.75	1.31	8.32	13.89	70.50
FC7781-1010-188	10	12	1.00	7.01	2.89	16.00	12.00	14.25	1.44	10.38	16.48	95.00

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874020-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC2463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1-	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

Equals to P/N FC7750-188

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose: ER512 & 2580

Type F, Group IX, Class II, 150/400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150/400F	D17095	5	11	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-150/400F	D17088	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-150/400F	D17096	8	13	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-150/400F	D18457	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-150/400F	D18379	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	C18257	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7750-8080-188	5	10	.69	6.75	2.64	9.06	6.37	7.81	1.08	5.32	11.44	45.00
FC7750-9696-188	6	12	.69	6.75	2.64	10.12	7.37	8.88	1.20	6.36	11.98	58.70
FC7750-0808-188	8	14	.69	6.75	2.64	12.38	9.82	11.06	1.33	8.32	13.89	80.10
FC7750-1010-188	10	15	.81	7.01	2.89	15.00	12.00	13.44	1.45	10.38	16.48	108.50
FC7750-1212-188	12	18	.81	8.49	3.24	17.04	14.50	16.06	1.52	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874021-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC27463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

ER512

Equal to Aeroquip P/N FC7750-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose: ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-150/400F	D17095	5	11	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-150/400F	D17088	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-150/400F	D17096	8	13	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-150/400F	D18457	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-150/400F	D18379	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.33	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18456	C18257	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-5	B16551-2	B16551-2	B18348	Monel

plug

ER512 Equivalent

P/N FC7750-188

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class II, 150/400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

plug

Part Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
FC7750-8080-188	5	10	.69	6.75	2.64	9.06	6.37	7.81	1.08	5.32	11.44	45.00
FC7750-9696-188	6	12	.69	6.75	2.64	10.12	7.37	8.88	1.20	6.36	11.98	58.70
FC7750-0808-188	8	14	.69	6.75	2.64	12.38	9.82	11.06	1.33	8.32	13.89	80.10
FC7750-1010-188	10	15	.81	7.01	2.89	15.00	12.00	13.44	1.45	10.38	16.48	108.50
FC7750-1212-188	12	18	.81	8.49	3.24	17.04	14.50	16.06	1.52	12.32	17.04	-

Description	Req’d per Ass’y	Base No.	8080	9696	0808	1010	Material
Swivel Flange	1	188-74045-18874021-	5-80	6-96	8-8	10-10	Aluminum. Bronze
Nipple	1	FC27463-	8080-188	9696-188	0808-188	1010-188	Aluminum. Bronze
Grip Segment	2	FC2457-1	80-188	96-188	08-188	10-188	Aluminum. Bronze
Bolt	4	FF9411-	10-88	10-88	12-88	12-100	Monel
Nut	4	FF9033-	10-4	10-4	12-4	12-4	Monel
Washer	4	FF9412-	1001-4	1001-4	1201-4	1201-4	Monel

Defense - Marine Hose & Fitting - Marine Hose & Assemblies - ER512 - Large Bore Hoses

MIL-DTL-24787/1

Use with the following hose:ER512 & 2580

Type F, Group IX, Class I, 400lb Flange per MIL-PRF-20042

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-400F	D17131	5	11	.81	7.03	2.90	10.38	6.38	8.81	1.06	5.31	9.25	50.00
EF-6-400F	D17132	6	12	.94	7.03	2.90	11.94	7.38	10.19	1.19	6.31	10.38	63.00
EF-8-400F	D17133	8	13	1.06	7.28	2.90	14.75	9.83	12.75	1.31	8.31	13.00	93.00
EF-10-400F	D19735	10	15	1.06	7.00	2.65	17.00	12.04	15.00	1.06	10.31	14.50	105.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16912-1	C16912-2	C16912-3	-	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	-	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	-	Monel
Nut	6	D16197-6	D16197-6	B16551-3	-	Monel
Washer	6	D16197-5	D16197-5	B16551-2	-	Monel

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-250F	D16193	5	10	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-250F	D16197	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-250F	D16188	8	14	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-250F	D19733	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-250F	D19734	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.12	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-6	B16551-3	B16551-3	B18347	Monel

ER512

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class I, 400lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

plug

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-400F	D17131	5	11	.81	7.03	2.90	10.38	6.38	8.81	1.06	5.31	9.25	50.00
EF-6-400F	D17132	6	12	.94	7.03	2.90	11.94	7.38	10.19	1.19	6.31	10.38	63.00
EF-8-400F	D17133	8	13	1.06	7.28	2.90	14.75	9.83	12.75	1.31	8.31	13.00	93.00
EF-10-400F	D19735	10	15	1.06	7.00	2.65	17.00	12.04	15.00	1.06	10.31	14.50	105.00

Description	Req’d per Ass’y	5"	6"	8"	10"	Material
Swivel Flange	1	C16912-1	C16912-2	C16912-3	-	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	-	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	-	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	-	Monel
Nut	6	D16197-6	D16197-6	B16551-3	-	Monel
Washer	6	D16197-5	D16197-5	B16551-2	-	Monel

plug

ER512 Equivalent

Hose to Flange

End Fitting - Straight

MIL-DTL-24787/1,

Type F, Group IX, Class III, 250lb

Flange per MIL-PRF-20042

For use with the following hose:ER512 & 2580

plug

Part Number	Drawing Number	IPS Size	No. of Bolt Holes	M	A	D	J	K	L	N	S	T	Est. Wt. (lbs.)
EF-5-250F	D16193	5	10	.69	7.03	2.90	9.06	6.38	7.81	1.06	5.31	9.25	46.00
EF-6-250F	D16197	6	12	.69	7.03	2.90	10.13	7.38	8.88	1.19	6.31	10.38	55.00
EF-8-250F	D16188	8	14	.69	7.28	2.90	12.38	9.83	11.06	1.31	8.31	13.00	79.00
EF-10-250F	D19733	10	15	.81	7.00	2.65	15.00	12.04	13.44	1.44	10.31	14.50	95.00
EF-12-250F	D19734	12	18	.81	8.52	3.24	17.63	14.48	16.06	1.50	12.12	17.10	-

Description	Req’d per Ass’y	5"	6"	8"	10"	12"	Material
Swivel Flange	1	C16915-1	C16915-2	C16915-3	C18827	C18828	Aluminum. Bronze
Nipple	1	D16195	D16199	D16185	D18324	D18319	Aluminum. Bronze
Grip Segment	3	D16194-1	D16198-1	D16080-1	D18345-1	D18282-1	Aluminum. Bronze
Bolt	6	D16197-4	D16197-4	B16551-1	B16551-1	B18346	Monel
Nut	6	D16197-6	D16197-6	B16551-3	B16551-3	B18347	Monel
Washer	6	D16197-5	D16197-6	B16551-3	B16551-3	B18347	Monel
