6T51-0-0

6T51-0-0 – Socket Weld Fittings – Threadpiece, Pipe Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 51T
  • Derbyshire Marine Catalog No: MD51

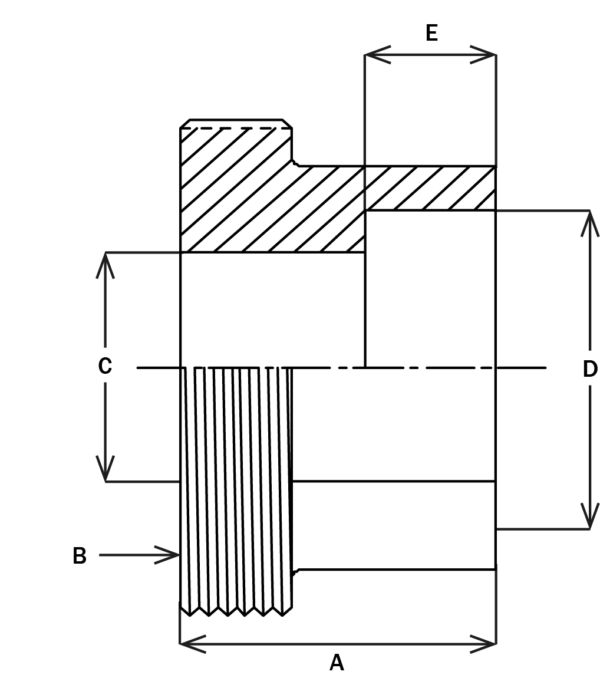

  • C: '7/32
  • D: '0.420
  • E: '0.380
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Thread Size B: 1"-14

Specification Table

CPV-O-Seal 51T
Derbyshire Marine Catalog NoMD51
C'7/32
D '0.420
E'0.380
References Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Thread Size B 1"-14
