EF-SM1602C-1616

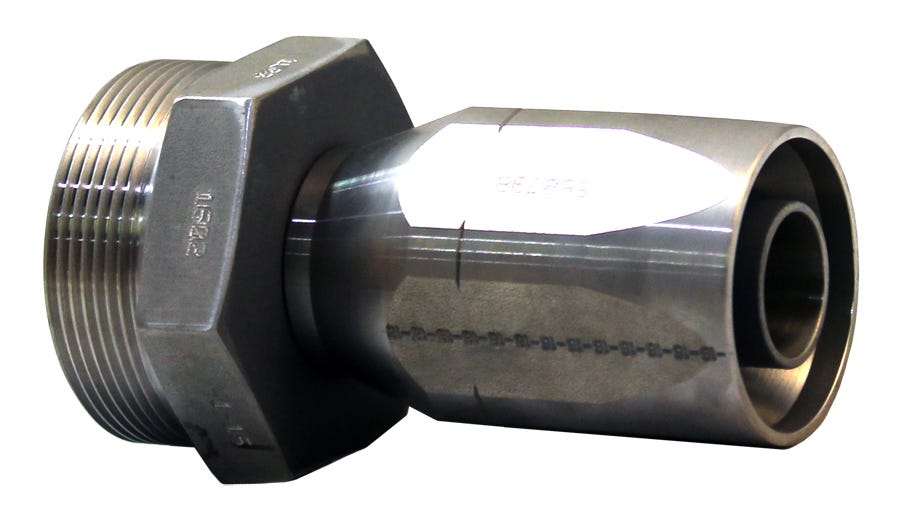

EF-SM1602C-1616 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Nipple C19808-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
  • Dim A Hex: 4.34''
  • Dim D: 2.28''
  • Dim E Hex: 0.82''
  • Equal To Aeroquip No : 41-190885-1-16''
  • Estimated Weight Per Ft Lbs: 2.78''
  • Hydrasearch Drawing Number: C20356
  • IPS Size: 1''
  • Thread Size T Br Thread Cl 3A: 2-5/16"-12''

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Nipple C19808-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
Dim A Hex4.34''
Dim C Id In-
Dim D2.28''
Dim E Hex0.82''
Equal To Aeroquip No 41-190885-1-16''
Estimated Weight Per Ft Lbs2.78''
Hydrasearch Drawing NumberC20356
IPS Size1''
Thread Size T Br Thread Cl 3A2-5/16"-12''
