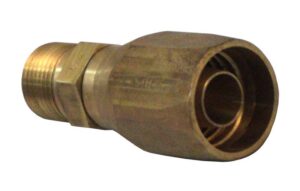

EF-B1488MP-2020 – End Fittings – Straight – Hose to Male NPTF

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple C18028 Material – Brass in accordance with ASTM B16 C36000
  • Component 2: Required per Assembly – 1 Description – Socket C18703-1 Material – Brass in accordance with ASTM B16 C36000
  • M: 1.03''
  • V: 1.75''
  • A: 3.22''
  • B: 0.83''
  • C: 1-3/4''
  • D: 1.86''
  • E: 1.05''
  • G: 1.75''
  • Equal To Aeroquip No : 412-20-20B''
  • Approx Weight Per In Lbs: 1.1''
  • Hose Size: 1-1/4''
  • Hydrasearch Drawing Number: C19149
  • NSN No.: 4730-00-203-3631
  • Thread Size T Br Thread Cl 2B: 1-1/4"-11-1/2''

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple C18028 Material – Brass in accordance with ASTM B16 C36000
Component 2Required per Assembly – 1 Description – Socket C18703-1 Material – Brass in accordance with ASTM B16 C36000
M1.03''
V1.75''
A3.22''
B0.83''
C1-3/4''
D1.86''
E1.05''
G1.75''
Equal To Aeroquip No 412-20-20B''
Approx Weight Per In Lbs1.1''
Hose Size1-1/4''
Hydrasearch Drawing NumberC19149
NSN No.4730-00-203-3631
Thread Size T Br Thread Cl 2B1-1/4"-11-1/2''
