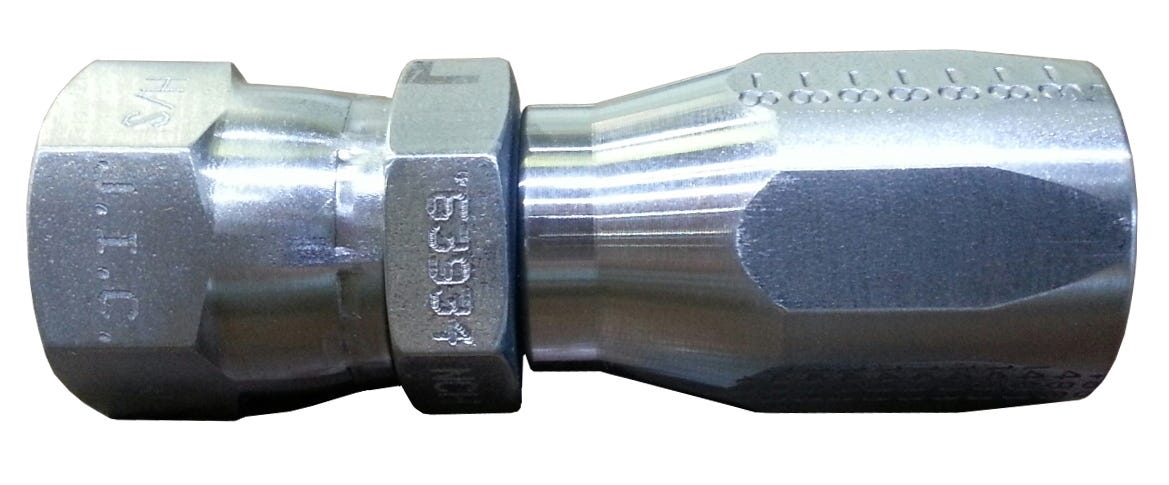

EF-1488ACR-0808 – End Fittings – Straight – S.A.E. 37º Female Flare (J.I.C.) Crimped Nut to Hose

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 4-4411,
Use with the following hose: Synthetic yarn and wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C22615
  • Component 2: Required per Assembly – 1 Description – Socket C18648-2 Material – Monel in accordance with QQ-N-281
  • Component 3: Required per Assembly – 1 Description – Nut Material – Monel in accordance with QQ-N-281 B18915
  • H: .31''
  • M: .44''
  • V: 1.52''
  • A: 2.78''
  • B: 1.340''
  • C: .88''
  • D: 1.84''
  • E: .39''
  • G: 0.940''
  • Hydrasearch Drawing Number: C20684
  • Equal To Aeroquip No : 4-4411-8''
  • Hose Size: 1/2''
  • Thread Size T Br Thread Cl 2B: 3/4"-16''"

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C22615
Component 2Required per Assembly – 1 Description – Socket C18648-2 Material – Monel in accordance with QQ-N-281
Component 3Required per Assembly – 1 Description – Nut Material – Monel in accordance with QQ-N-281 B18915
H.31''
M.44''
V1.52''
A2.78''
B1.340''
C.88''
D1.84''
E.39''
G0.940''
Hydrasearch Drawing NumberC20684
Equal To Aeroquip No 4-4411-8''
Hose Size1/2''
Thread Size T Br Thread Cl 2B3/4"-16''"
