A-FIT/RL-25-FLT

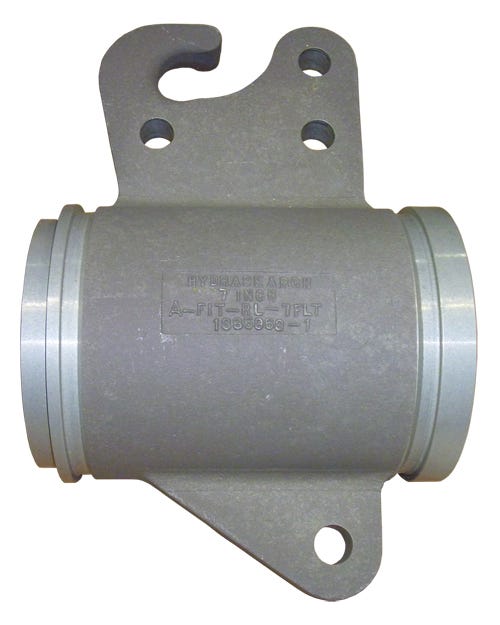

A-FIT/RL-25-FLT – Riding Line Fittings, Flow Through

Print Icon Print Download Icon Download PDF

Specification

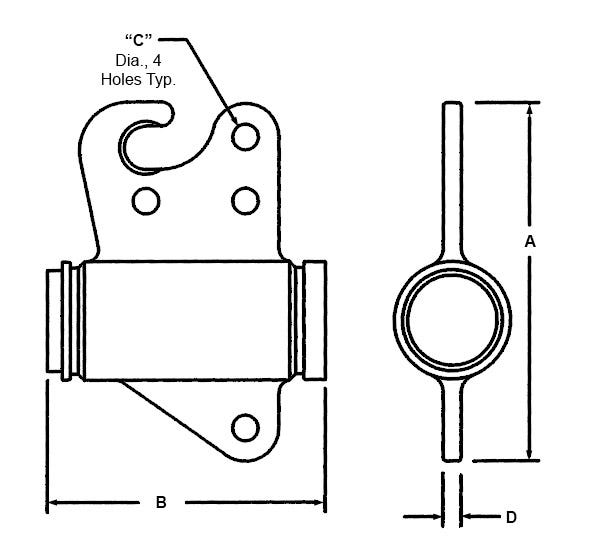

  • C: 0.94''
  • D: 0.75''
  • Equal To Aeroquip No : 72461-2 1/2D
  • Equal To Global No: 72461-2-1/2D
  • Approx Weight Per In Lbs: 9
  • Hydrasearch Drawing Number: D14104
  • Material: Aluminum
  • Navsea Drawing No: 803-2260819
  • Size in: 2-1/2''
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

C0.94''
D0.75''
Equal To Aeroquip No 72461-2 1/2D
Equal To Global No72461-2-1/2D
Approx Weight Per In Lbs9
Hydrasearch Drawing NumberD14104
MaterialAluminum
Navsea Drawing No803-2260819
Size in2-1/2''
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
