90ELB-SM1602D-1616

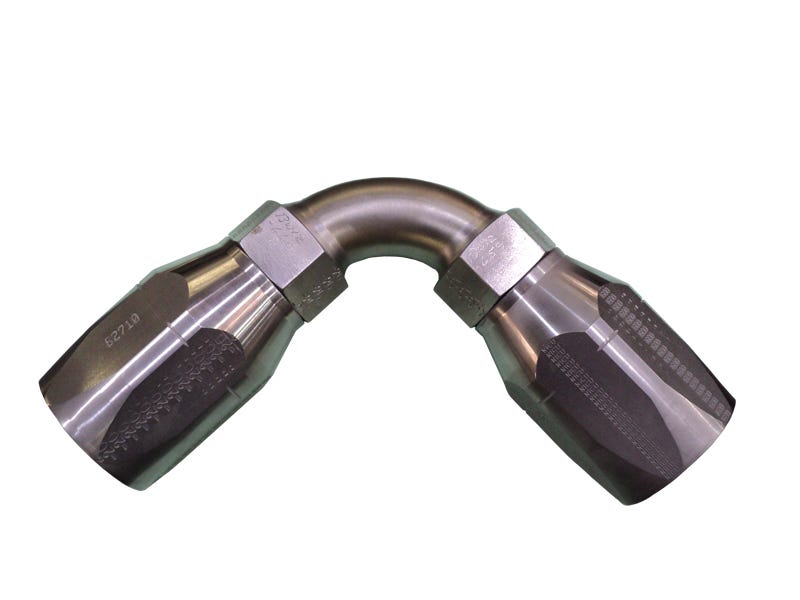

90ELB-SM1602D-1616 – Elbows – 90º Dogleg – Hose to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-191308,
Use with the following hose: Wire reinforced hoses I.A.W.

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Elbow Assembly Material – Monel/Cuni C20244
  • Component 1A: Required per Assembly – 1 Description – Elbow B18874-1 Material – Monel in accordance with MIL-T-16420
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple B19834-2
  • Component 2: Required per Assembly – 2 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
  • N: 0.74''
  • R: 1.50''
  • S: 1.00''
  • V: 2.95''
  • A: 5-1/4''
  • C: 1.38''
  • D: 3.20''
  • E: 0.82''
  • G: 1.81''
  • Equal To Aeroquip No : 41-191308-16''
  • Est. Wt. (lbs.): 3.77''
  • Hydrasearch Drawing Number: C20349
  • IPS Size: 1''
  • NSN No.: 4730-00-072-8409

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Elbow Assembly Material – Monel/Cuni C20244
Component 1ARequired per Assembly – 1 Description – Elbow B18874-1 Material – Monel in accordance with MIL-T-16420
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple B19834-2
Component 2Required per Assembly – 2 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
N0.74''
R1.50''
S1.00''
V2.95''
A5-1/4''
C1.38''
D3.20''
E0.82''
G1.81''
Equal To Aeroquip No 41-191308-16''
Est. Wt. (lbs.)3.77''
Hydrasearch Drawing NumberC20349
IPS Size1''
NSN No.4730-00-072-8409

Specification Image

90ELB-SM1602D
