90EF-6-150F-2P

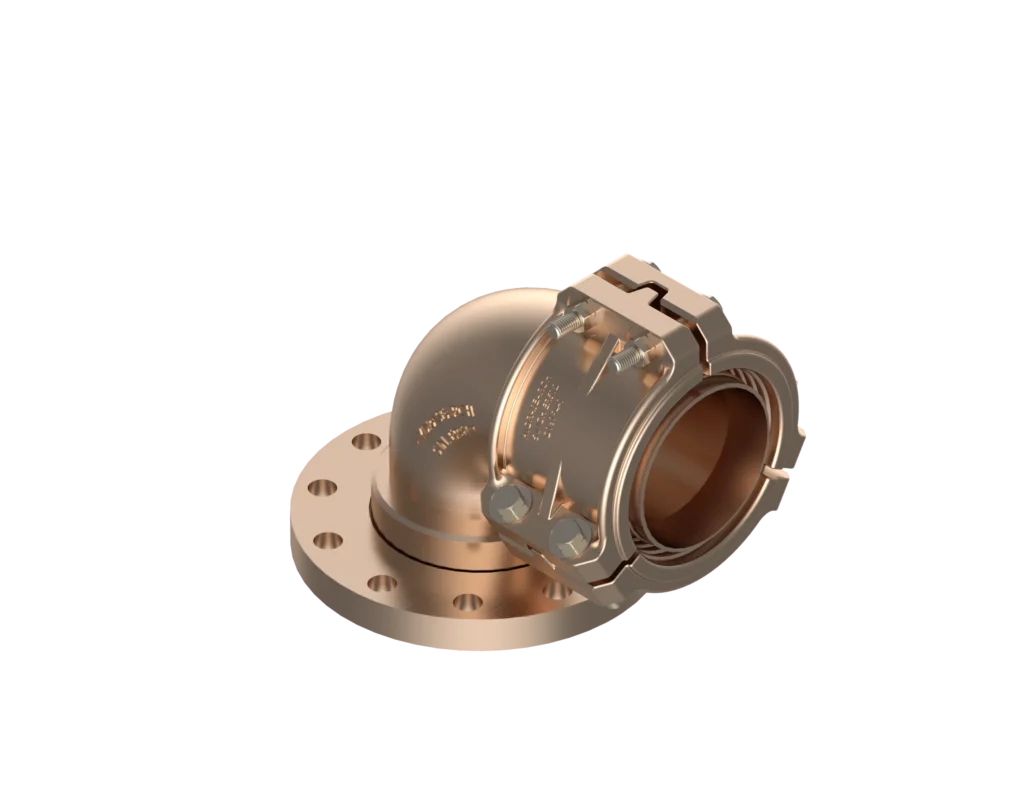

90EF-6-150F-2P – 2-Piece End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group IX, Class IV, 150 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group IX, Class IV, 150 Lb, 2-Piece End Fittings – 90º – Flange to Hose )

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: ER512 2580
  • Hydrasearch Drawing Number: C22200
  • IPS Size: 6''
  • No. of Bolt Holes: 12
  • M: .69
  • A: 9.20
  • D: 5.07
  • H: 7.34
  • J: 10.13
  • K: 7.38
  • L: 8.88
  • N: 0.56''
  • R: 4.00
  • S: 6.31
  • T: 11.32
  • Est. Wt. (lbs.): 68.00
  • Mil Spec: MIL-DTL-24787/1
  • NSN No.: 4730-01-093-3930
  • Component 1: Required per Assembly – 1 Description – Swivel Flange C16913-2 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Required per Assembly – 1 Description – Elbow D16921 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
  • Component 4: Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-1
  • Component 5: Description – Nut Required per Assembly – 4 B16551-3 Material – Monel in accordance with QQ-N-281
  • Component 6: Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4

Specification Table

Applicable HosesER512 2580
Hydrasearch Drawing NumberC22200
IPS Size6''
No. of Bolt Holes12
M.69
A9.20
D5.07
H7.34
J10.13
K7.38
L8.88
N0.56''
R4.00
S6.31
T11.32
Est. Wt. (lbs.)68.00
Mil SpecMIL-DTL-24787/1
NSN No.4730-01-093-3930
Component 1Required per Assembly – 1 Description – Swivel Flange C16913-2 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Required per Assembly – 1 Description – Elbow D16921 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
Component 4Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-1
Component 5Description – Nut Required per Assembly – 4 B16551-3 Material – Monel in accordance with QQ-N-281
Component 6Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
