8639-12-8-SS

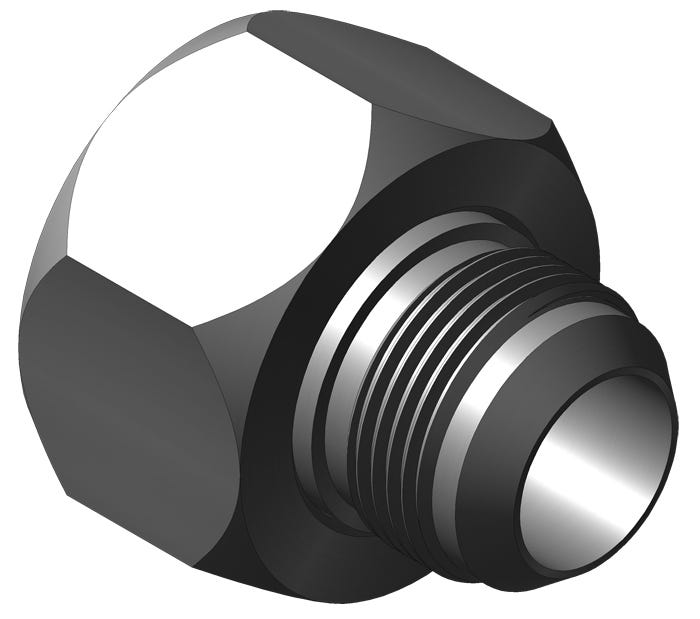

8639-12-8-SS – 8639 Series 37º Female Swivel x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 221501,

Specification

  • A: 1.19''
  • Equal To Aeroquip No : 259-221501-12-8
  • Hydrasearch Drawing Number: 8639-12-8''
  • Material: Stainless Steel
  • Thread Size T Sub 1 Sub: 1-1/16"-12
  • Thread Size T Sub 2 Sub: 3/4"-16
  • Tube O D In: 1/2''

Specification Table

A1.19''
Equal To Aeroquip No 259-221501-12-8
Hydrasearch Drawing Number8639-12-8''
MaterialStainless Steel
Thread Size T Sub 1 Sub1-1/16"-12
Thread Size T Sub 2 Sub3/4"-16
Tube O D In1/2''
