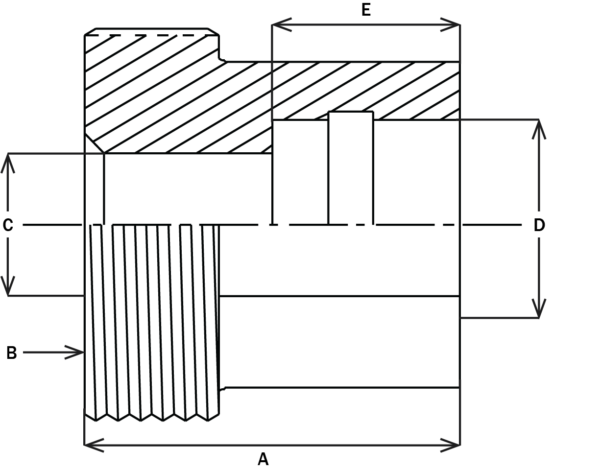

6t49 5 16 wholeiso6t49-5-16-cutside6t49drawing-600x471
6T49-7-4

6T49-7-4 – Sil-Braze Fittings – Threadpiece, Tube Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 48T
  • C: 1/2''
  • D: 0.631''
  • E: 1/2''
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Thread Size B: 2-5/16"-12
  • Tube Size: 1 X 5/8''

Specification Table

CPV-O-Seal48T
C1/2''
D0.631''
E1/2''
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Thread Size B2-5/16"-12
Tube Size1 X 5/8''
