6T49-4-6

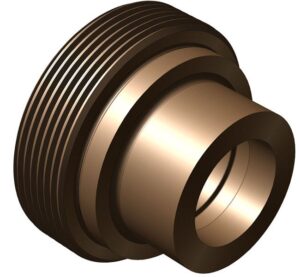

6T49-4-6 – Sil-Braze Fittings – Threadpiece, Tube Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 49T
  • Max Dimension C In: 3/16''
  • Max Dimension D In: 0.253''
  • Dimension E 0 006 In: 1/4''
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Thread Size B: 1-3/8"-12
  • Tube Size: 3/8 X 1/4''

Specification Table

CPV-O-Seal49T
Max Dimension C In3/16''
Max Dimension D In0.253''
Dimension E 0 006 In1/4''
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Thread Size B1-3/8"-12
Tube Size3/8 X 1/4''
