6GN301 – Female Union x Female Union

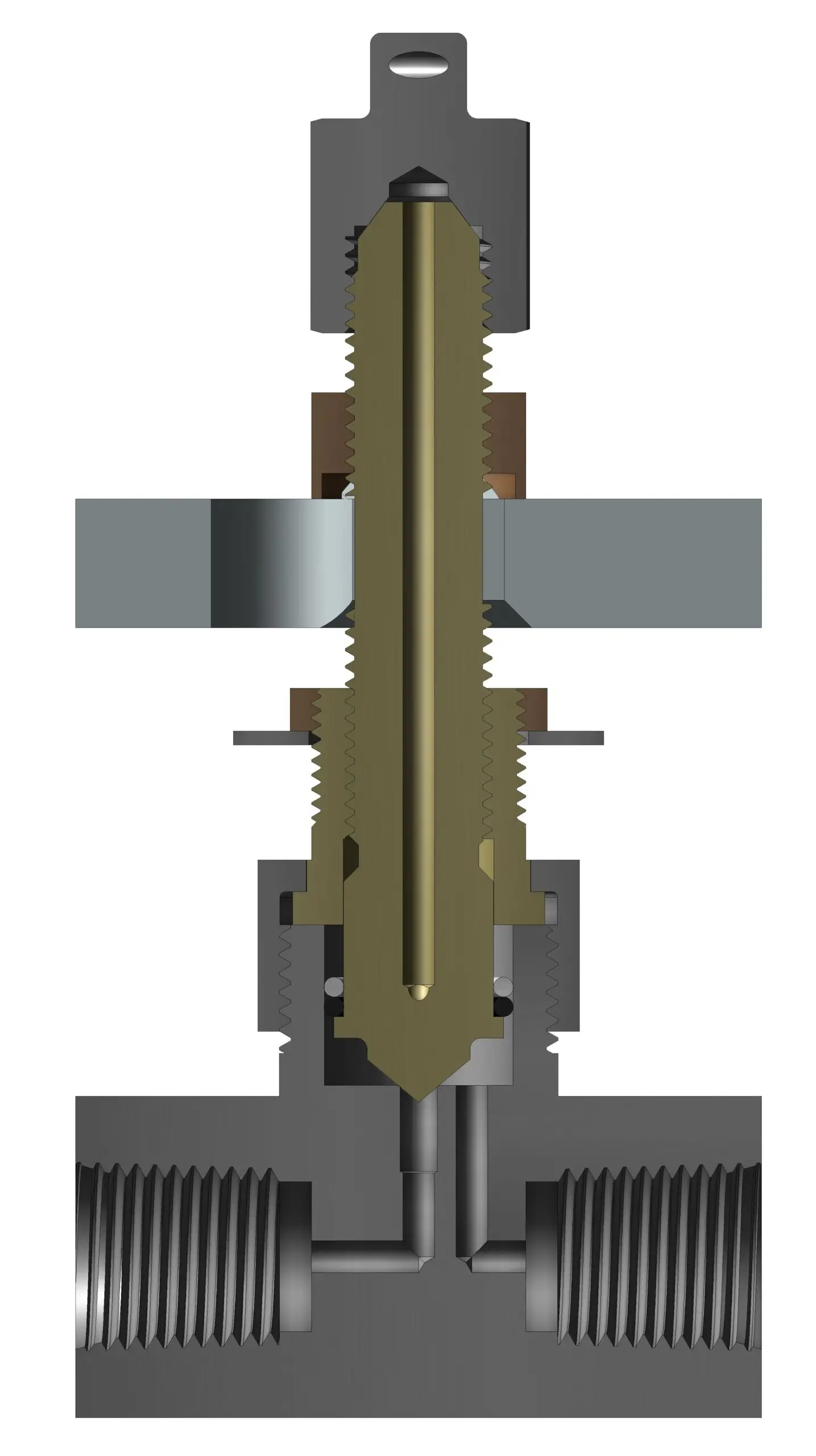

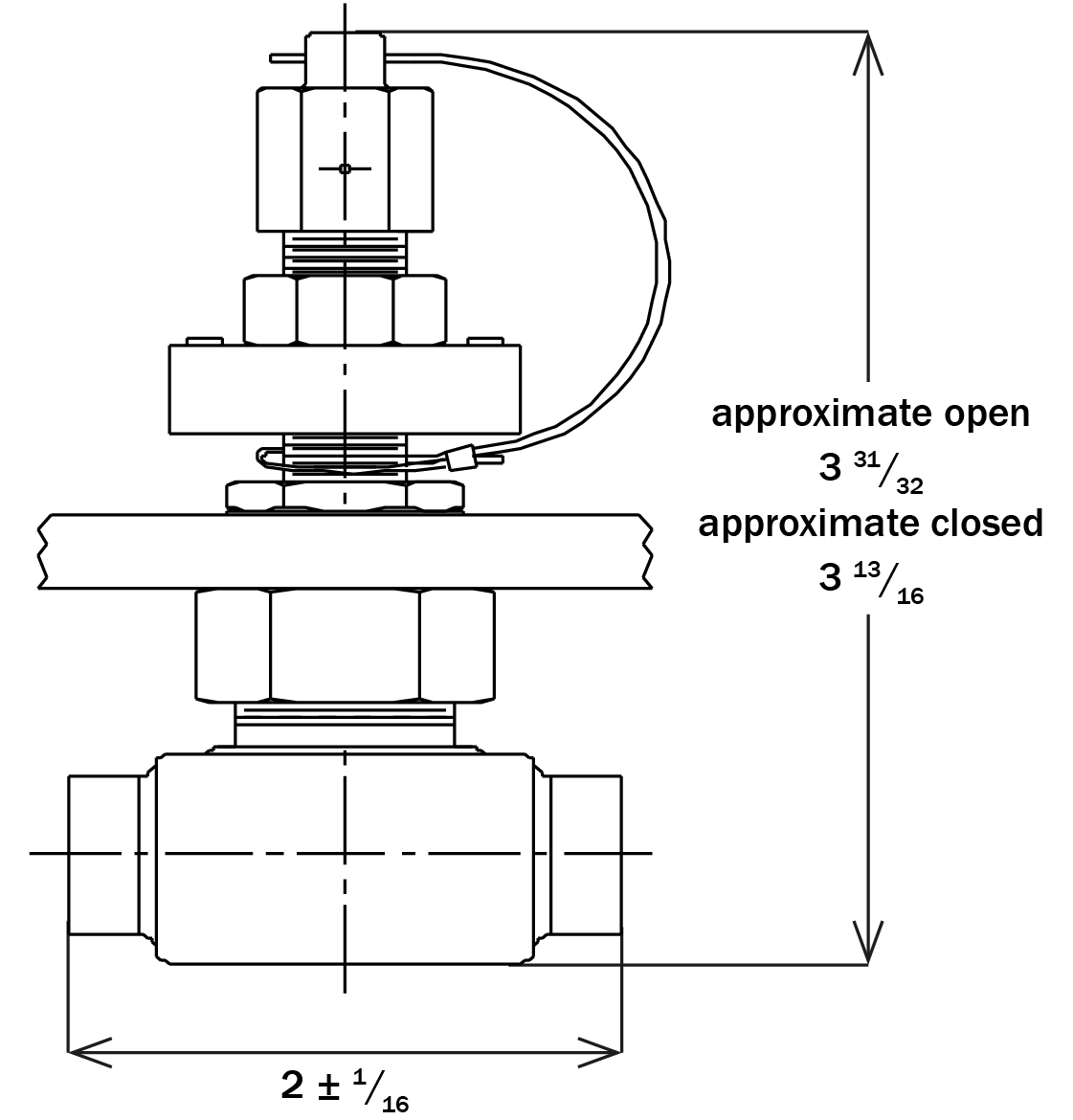

6GN301 – Female Union x Female Union6gn301drawing-16gn301-halfside-scaled
6GN301

6GN301 – Female Union x Female Union

Print Icon Print Download Icon Download PDF

Specification

  • Application: High Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Non-Magnetic (Stainless Steel) – Wog (System Fluid) Standard (Stain
  • Body Type: Inline
  • Inlet Connection: 1/4" Npt Female
  • Outlet Connection: 1/4" Npt Female
  • References: Technical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
  • Stem Condition: Vented
  • Type 1: Needle
  • Working Pressure Psi: 6
  • Notes: Additional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements

Specification Table

ApplicationHigh Corrosion Resistant (Monel) – Hydraulic (System Fluid) High Corrosion Resistant (Monel) – Wog (System Fluid) Non-Magnetic (Stainless Steel) – Wog (System Fluid) Standard (Stain
Body TypeInline
Inlet Connection1/4" Npt Female
Outlet Connection1/4" Npt Female
References Technical Products Valves Instrumentation & Adapters Valve Information (Catalog 1220).Pdf
Stem ConditionVented
Type 1Needle
Working Pressure Psi6
Notes Additional Configurations Are Available For Special Applications Please Contact Our Sales Department With Your Requirements
