6728-4-4-NICU

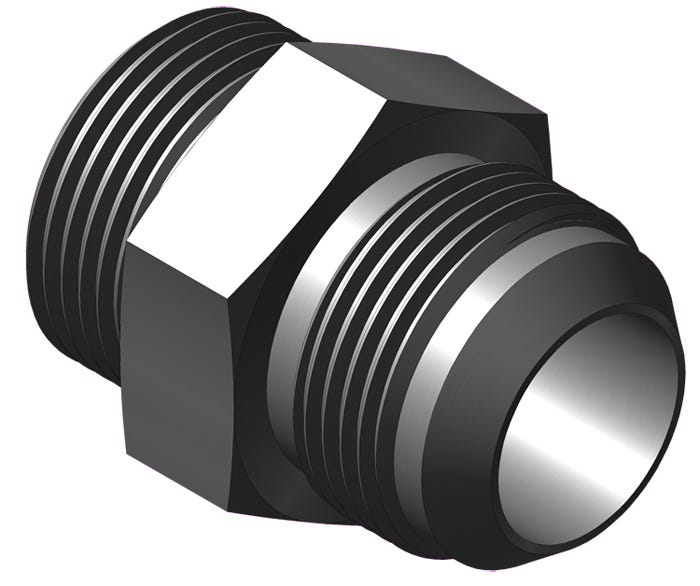

6728-4-4-NICU – 6728 Series S.A.E. Male “O”-Ring Tube to 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202702,

Specification

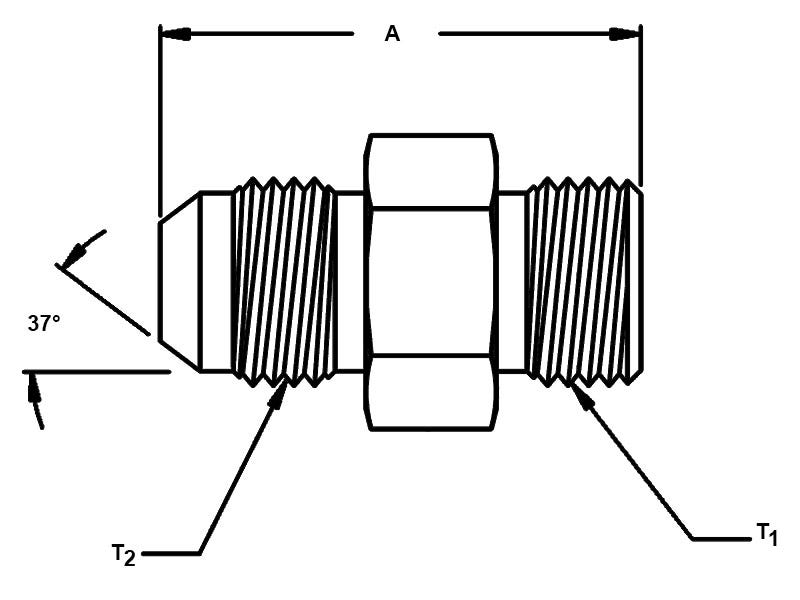

  • A: 1.23''
  • Equal To Aeroquip No : 4-202702-4-4
  • Hose Size In : 1/4''
  • Hydrasearch Drawing Number: Drawing Number
  • Material: Monel
  • Thread Size T Sub 1 Sub: 7/16"-20
  • Thread Size T Sub 2 Sub: 7/16"-20
  • Tube O D In: 1/4''

Specification Table

A1.23''
Equal To Aeroquip No 4-202702-4-4
Hose Size In 1/4''
Hydrasearch Drawing NumberDrawing Number
MaterialMonel
Thread Size T Sub 1 Sub7/16"-20
Thread Size T Sub 2 Sub7/16"-20
Tube O D In1/4''
