4307-8-32-CUNI

4307-8-32-CUNI – 4307 Series Male Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202142,

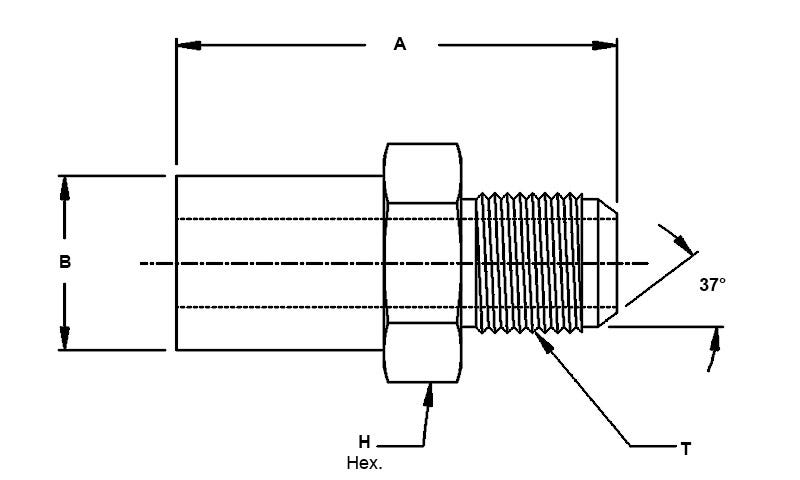

Specification

  • H: 2.56''
  • A: 3.77''
  • B: 2.38''
  • Material: Copper Nickel
  • Thread Size - T: 2-1/2"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

H2.56''
A3.77''
B2.38''
MaterialCopper Nickel
Thread Size - T2-1/2"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
