4307-4-16-SS

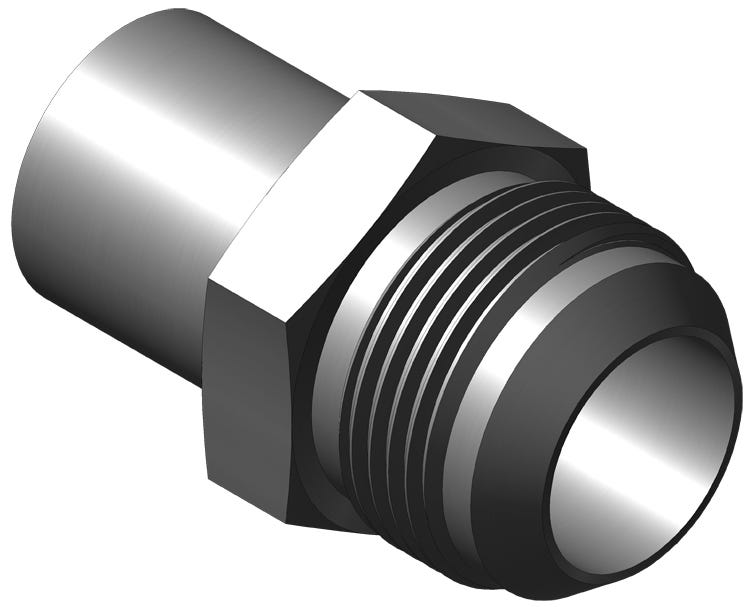

4307-4-16-SS – 4307 Series Male Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202142,

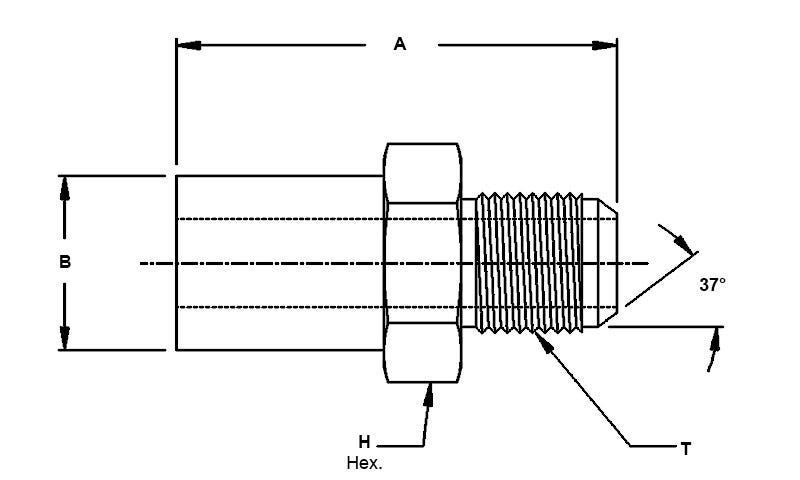

Specification

  • H: 1.38''
  • A: 2.35''
  • B: 1.05''
  • Equal To Aeroquip No : 259-202142-3/4-16
  • Hydrasearch Drawing Number: 4307-4-16''
  • Material: Stainless Steel
  • NSN No.: 4730-00-053-2521 4730-00-466-21494730000532521 4730004662149''
  • Thread Size - T: 1-5/16"-12

Specification Table

H1.38''
A2.35''
B1.05''
Equal To Aeroquip No 259-202142-3/4-16
Hydrasearch Drawing Number4307-4-16''
MaterialStainless Steel
NSN No.4730-00-053-2521 4730-00-466-21494730000532521 4730004662149''
Thread Size - T1-5/16"-12
