4238-6-1-NICU

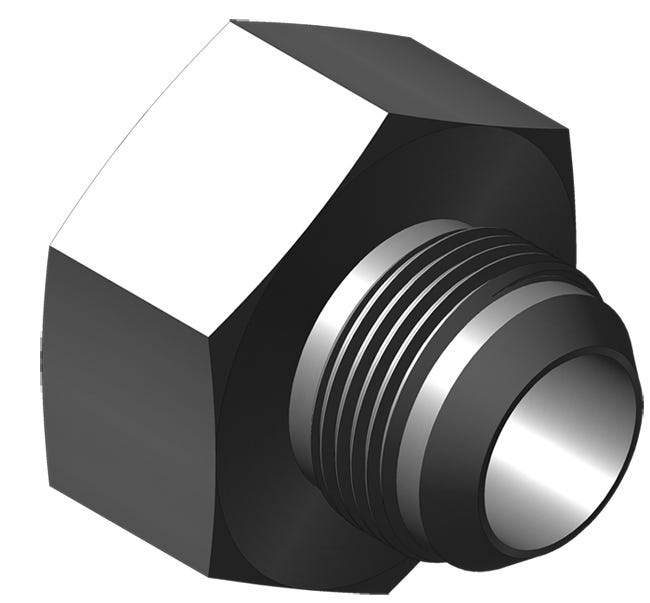

4238-6-1-NICU – 4238 Series Female Socket Weld Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202232,

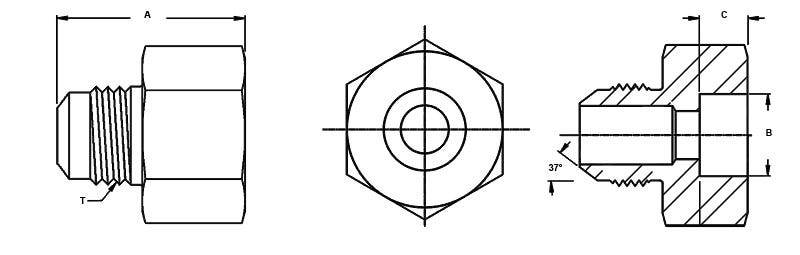

Specification

  • A: 1-1/4''
  • B: 0.56''
  • C: 0.38''
  • Equal To Aeroquip No : 4-202232-1/4-6
  • Hydrasearch Drawing Number: 4238-6-1''
  • Material: Monel
  • Thread Size - T: 9/16"-18

Specification Table

A1-1/4''
B0.56''
C0.38''
Equal To Aeroquip No 4-202232-1/4-6
Hydrasearch Drawing Number4238-6-1''
MaterialMonel
Thread Size - T9/16"-18
