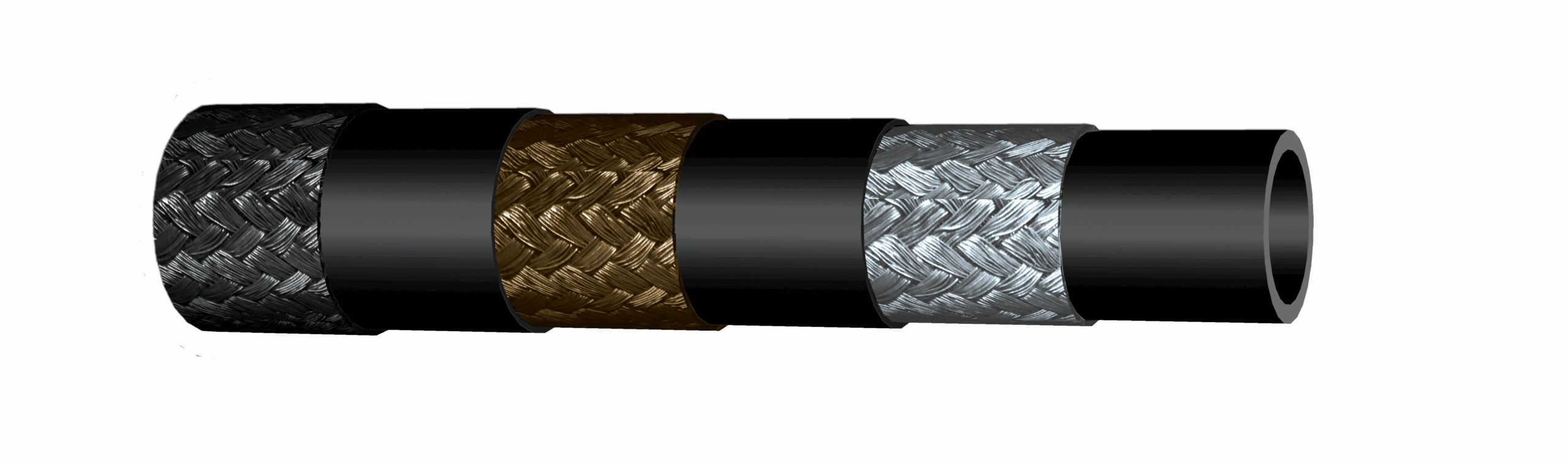

medium pressure hose 3h 8794 031 7 scaled
medium pressure hose 3h 8794 031 7 scaled
3H-8794-12

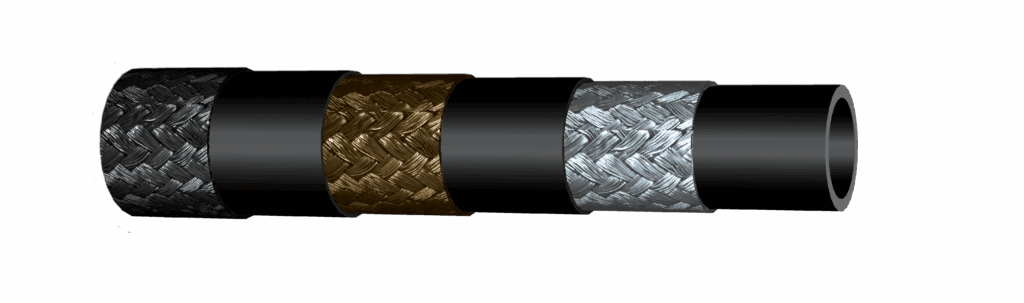

3H-8794-12 – Medium Pressure Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Approx Od In: 1.078
  • Construction: A. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
  • Hose Size: 3/4
  • Identification: Black Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
  • Max Operating Pressure PSI: 1
  • Mil Spec: Mil-Dtl-8794
  • Min Bend Radius : 6.500
  • Min Burst Pressure: 6
  • Min Hose Id: 0.625
  • NSN No.: 4720-00-595-1089
  • Operating Systems: A. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
  • Proof Test Pressure Psi: 3
  • Weight Per Ft Lbs: 0.44

Specification Table

Approx Od In1.078
ConstructionA. Inner Tube: Oil And Fuel Resistant Synthetic Compound. B. Reinforcement: Single Wire Braid And Single Cotton Braid. C. Outer Cover: Oil And Fuel Resistant Synthetic Impregnated Cotton
Hose Size3/4
IdentificationBlack Cover With Yellow Line Running Parallel To Bore Of Hose To Indicate Natural Lay Of Hose After Installing. The Specification Pin
Max Operating Pressure PSI1
Mil SpecMil-Dtl-8794
Min Bend Radius 6.500
Min Burst Pressure6
Min Hose Id0.625
NSN No.4720-00-595-1089
Operating SystemsA. Severe Vibrating And Flexing. B. Resistant To Engine Oil And Cleaning Solvent Externally. C. Internal And External Temperatures From -65°F To +250°F. D. Internal Fluids
Proof Test Pressure Psi3
Weight Per Ft Lbs0.44
