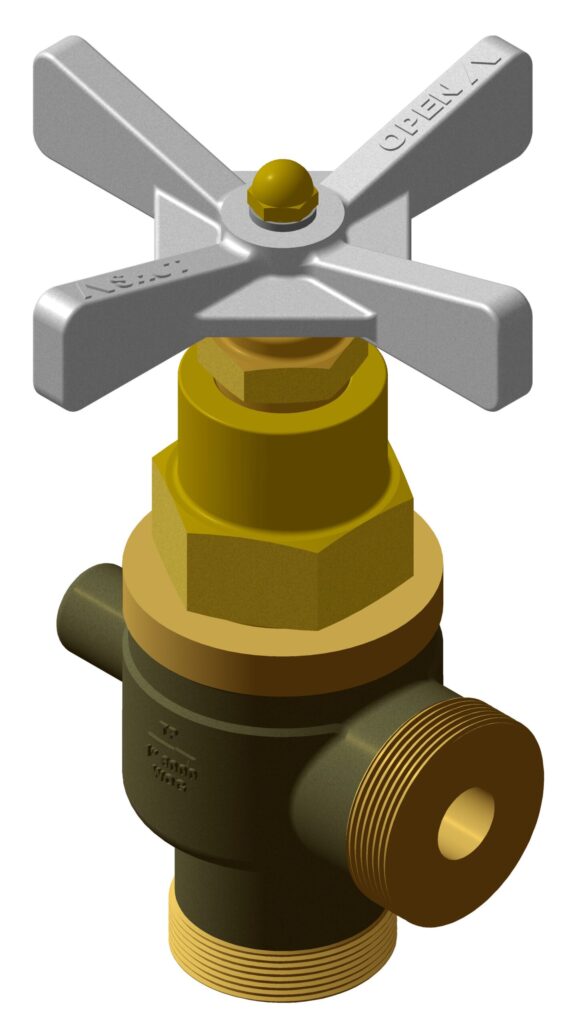

247GS8I-8 – Brass Angle Hose Valve
247GS8I-8

247GS8I-8 – Brass Angle Hose Valve

Print Download PDF

Specification

  • Approx Dimension B Closed In: 9-3/8''
  • Approx Dimension B Open In: 10-3/8''
  • Approx Dimension D In: 14''
  • C: 4-1/2''
  • Material: Bronze Body
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: 3-3/4"-12''

Specification Table

Approx Dimension B Closed In9-3/8''
Approx Dimension B Open In10-3/8''
Approx Dimension D In14''
C4-1/2''
MaterialBronze Body
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E3-3/4"-12''
