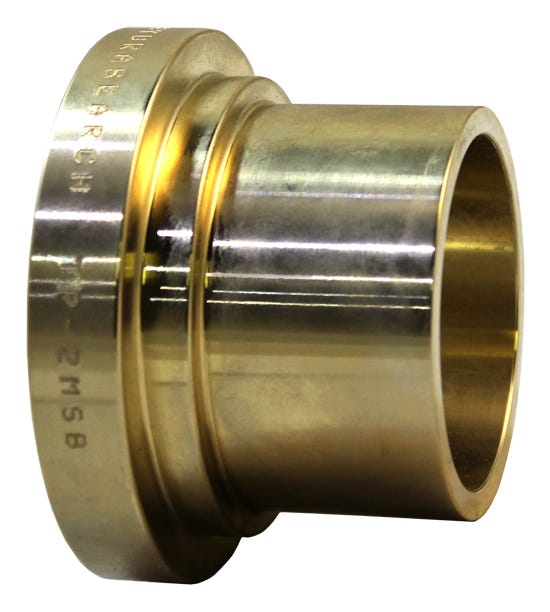

TP-3MSB – Male Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TM, Group IV)

Print Icon Print Download Icon Download PDF

Specification

  • A: 3.45''
  • B: 3.50''
  • C: 3''
  • D: 3.63''
  • E: 4.37''
  • F: 2.50''
  • G: 0.35''
  • Equal To Aeroquip No : 500189-3 188-500189-3
  • Hydrasearch Drawing Number: C18090
  • IPS Size: 3''
  • Material: Material – Aluminum Bronze In Accordance With Mil-B-24480 C95800
  • Mil Spec: MIL-DTL-24787/4
  • Required Per Assembly: 1
  • Size: 48

Specification Table

A3.45''
B3.50''
C3''
D3.63''
E4.37''
F2.50''
G0.35''
Equal To Aeroquip No 500189-3 188-500189-3
Hydrasearch Drawing NumberC18090
IPS Size3''
MaterialMaterial – Aluminum Bronze In Accordance With Mil-B-24480 C95800
Mil SpecMIL-DTL-24787/4
Required Per Assembly1
Size48
