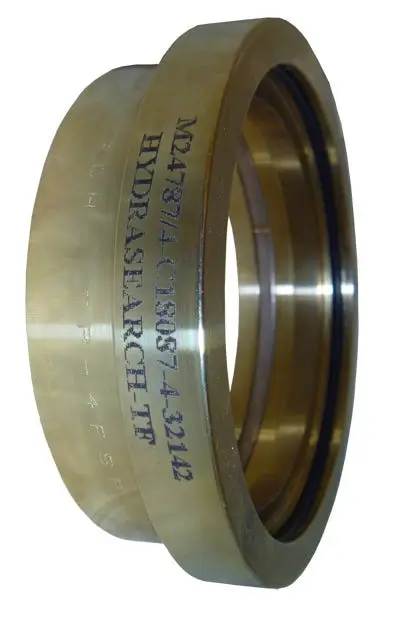

TP-12FSB – Female Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TF, Group IX)
TP-12FSB – Female Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TF, Group IX)split-clamps-5
TP-12FSB

TP-12FSB – Female Sil-Braze Tailpieces (MIL-DTL-24787/4, Type TF, Group IX)

Print Icon Print Download Icon Download PDF

Specification

  • A: 3
  • B: 12.75
  • C: 12.58
  • D: 12.01
  • E: 13.38
  • F: 3.10
  • G: 0.90
  • IPS Size: 12
  • Mil Spec: MIL-DTL-24787/4
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A3
B12.75
C12.58
D12.01
E13.38
F3.10
G0.90
IPS Size12
Mil SpecMIL-DTL-24787/4
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
