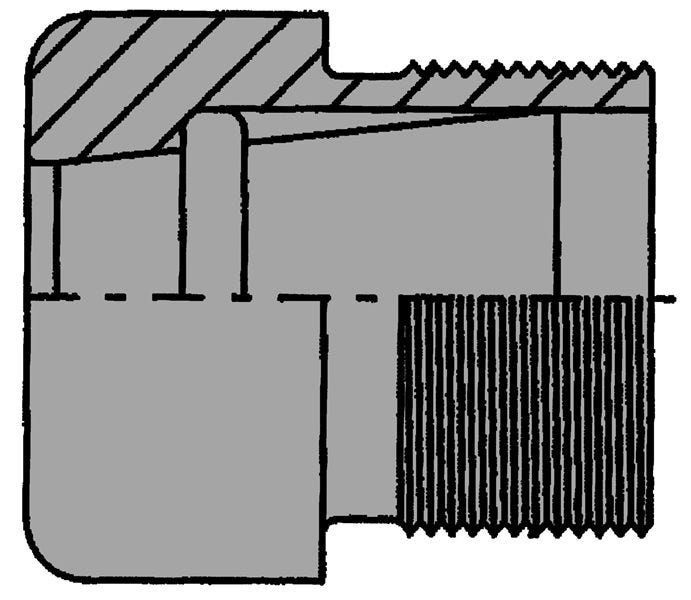

S-EF/HL-1 – Highline End Fittings – Poured Socket

Print Icon Print Download Icon Download PDF

Specification

  • A: 1.06''
  • Approx Weight Per In Lbs: 1.5
  • Hydrasearch Drawing Number: C16410-1
  • Material: Steel
  • Navsea Drawing No: 803-5184180
  • Wire Rope Size In: 1''
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A1.06''
Approx Weight Per In Lbs1.5
Hydrasearch Drawing NumberC16410-1
MaterialSteel
Navsea Drawing No803-5184180
Wire Rope Size In1''
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
