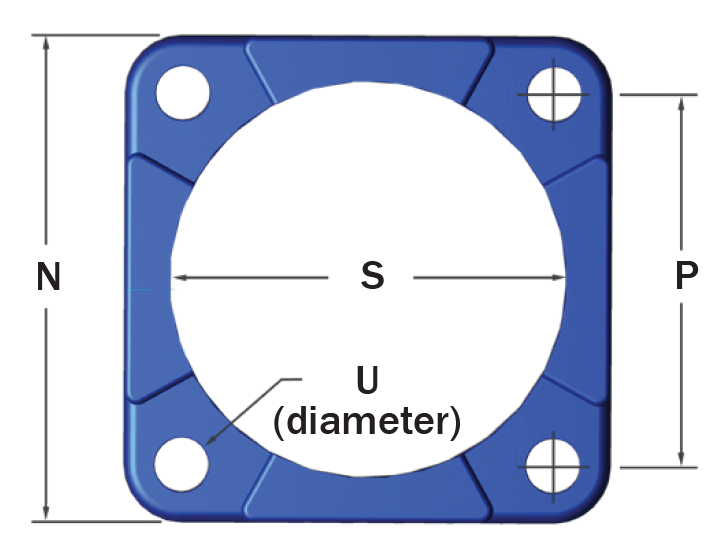

mediumpressurehosefitting flange dimensions

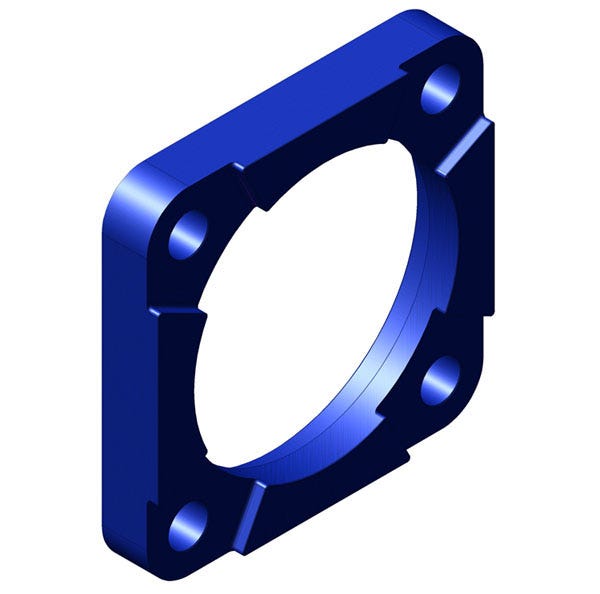

mediumpressurehosefitting flange dimensionsmediumpressurehosefitting-flangems20756-d16-cut-side
MS20756-D16 (Lightweight Medium Pressure)

MS20756-D16 (Lightweight Medium Pressure) – Medium Pressure Rubber Flanged Hose Fittings – Flange

Print Icon Print Download Icon Download PDF

Specification

  • N: 1.750''
  • Dimension P In : 1.312''
  • S: 1.375''
  • Dimension U In : 0.210''
  • NSN No.: 4730-00-289-6015''

Specification Table

N1.750''
Dimension P In 1.312''
S1.375''
Dimension U In 0.210''
NSN No.4730-00-289-6015''
