HSSA-24

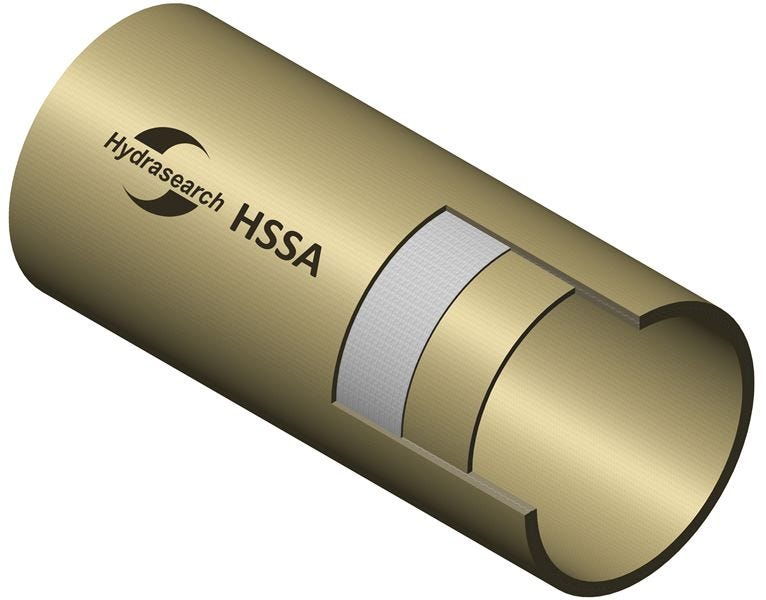

HSSA-24 – HSSA Series – Super Aquaduct Layflat Hoses

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Fittings: Lfs Elbows And End Fittings
  • Application: Salt And Fresh Water Conveying Systems
  • Burst Pressure Psi: 600
  • Construction Reinforcement: Polyester
  • Hose Id: 1-1/2''
  • Hose Size Dash No: -24''
  • Hydrasearch Drawing Number: 18283''
  • Layers Reinforcement: 1''
  • Material: Polyurethane Elastomer Tube And Cover Reinforced With High Tenacity Polyester
  • Max Dimension A In: 1.59''
  • Max Dimension B In: 1.73''
  • Min Dimension A In: 1-1/2''
  • Min Dimension B In: 1.64''
  • Weight Per Ft Lbs: 0.144''
  • Working Pressure Psi: 300''

Specification Table

Applicable FittingsLfs Elbows And End Fittings
ApplicationSalt And Fresh Water Conveying Systems
Burst Pressure Psi600
Construction ReinforcementPolyester
Hose Id1-1/2''
Hose Size Dash No-24''
Hydrasearch Drawing Number18283''
Layers Reinforcement1''
MaterialPolyurethane Elastomer Tube And Cover Reinforced With High Tenacity Polyester
Max Dimension A In1.59''
Max Dimension B In1.73''
Min Dimension A In1-1/2''
Min Dimension B In1.64''
Weight Per Ft Lbs0.144''
Working Pressure Psi300''
