HS133-20

HS133-20 – HS133 Series – High Pressure Hoses

Print Icon Print Download Icon Download PDF
( DTL-24136/2 )

Description:

Equal to Aeroquip FC133,

Specification

  • Applicable Fittings: Hs1489
  • Application: Fresh And Salt Water Systems
  • Burst Pressure Psi: 4
  • Construction Reinforcement: Braided
  • Equal To Aeroquip No : Fc133-20
  • Hose Id: 1-1/4''
  • Hose Size Dash No: -20''
  • Hydrasearch Drawing Number: C18443-5
  • Layers Reinforcement: 3''
  • Material: Synthetic Rubber Tube And Cover Reinforced With Synthetic Fiber

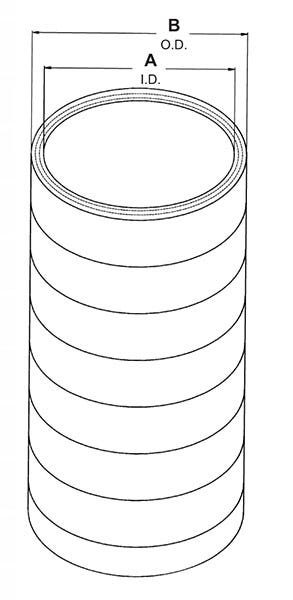

  • Max Dimension A In: 1.289''
  • Max Dimension B In: 2.069''
  • Mil Spec: Mil-Dtl-24136/2
  • Min Bend Radius : 16.00''
  • Min Dimension A In: 1.211''
  • Min Dimension B In: 1.975''
  • NSN No.: 4720-00-167-4726
  • Weight Per Ft Lbs: 1.26''
  • Working Pressure Psi: 1''

Specification Table

Applicable FittingsHs1489
ApplicationFresh And Salt Water Systems
Burst Pressure Psi4
Construction ReinforcementBraided
Equal To Aeroquip No Fc133-20
Hose Id1-1/4''
Hose Size Dash No-20''
Hydrasearch Drawing NumberC18443-5
Layers Reinforcement3''
MaterialSynthetic Rubber Tube And Cover Reinforced With Synthetic Fiber
Max Dimension A In1.289''
Max Dimension B In2.069''
Mil SpecMil-Dtl-24136/2
Min Bend Radius 16.00''
Min Dimension A In1.211''
Min Dimension B In1.975''
NSN No.4720-00-167-4726
Weight Per Ft Lbs1.26''
Working Pressure Psi1''
