HOS-ER512-10 – ER512 Series – Large Bore Hoses

Print Icon Print Download Icon Download PDF
( MIL-DTL-24136/1, ER512 Series – Large Bore Hoses )

Description:

Equal to Aeroquip P/N 2580,

Specification

  • Applicable Fittings: ER512
  • Application: Oil
  • Burst Pressure Psi: 800
  • Construction Reinforcement: Spiral
  • Equal To Aeroquip No : 2580-160
  • Hose Id: 10''
  • Hose Size Dash No: -160
  • Hydrasearch Drawing Number: C17202-4
  • Layers Reinforcement: 8''
  • Material: Synthetic Rubber Tube And Cover Reinforced With Synthetic Fiber

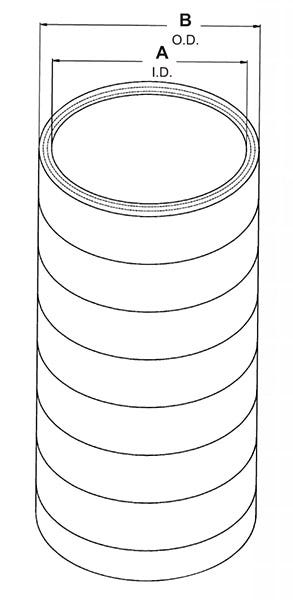

  • Max Dimension A In: 10.140''
  • Max Dimension B In: 10.969''
  • Mil Spec: MIL-DTL-24136/1
  • Min Bend Radius : 66''
  • Min Dimension A In: 10.064''
  • Min Dimension B In: 10.781''
  • NSN No.: 4720-01-092-1692
  • Weight Per Ft Lbs: 8.5''
  • Working Pressure Psi: 200''

Specification Table

Applicable FittingsER512
ApplicationOil
Burst Pressure Psi800
Construction ReinforcementSpiral
Equal To Aeroquip No 2580-160
Hose Id10''
Hose Size Dash No-160
Hydrasearch Drawing NumberC17202-4
Layers Reinforcement8''
MaterialSynthetic Rubber Tube And Cover Reinforced With Synthetic Fiber
Max Dimension A In10.140''
Max Dimension B In10.969''
Mil SpecMIL-DTL-24136/1
Min Bend Radius 66''
Min Dimension A In10.064''
Min Dimension B In10.781''
NSN No.4720-01-092-1692
Weight Per Ft Lbs8.5''
Working Pressure Psi200''
