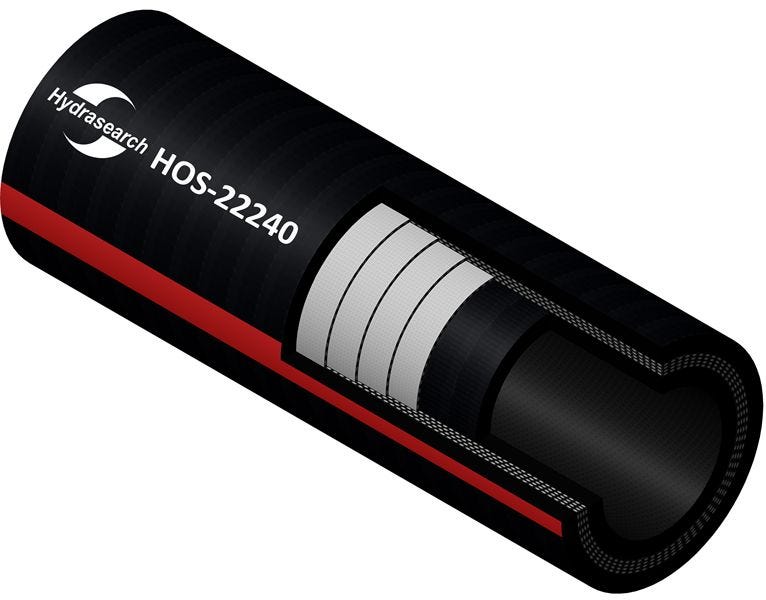

22240 series fueling at sea hoses hos 22240 1 6

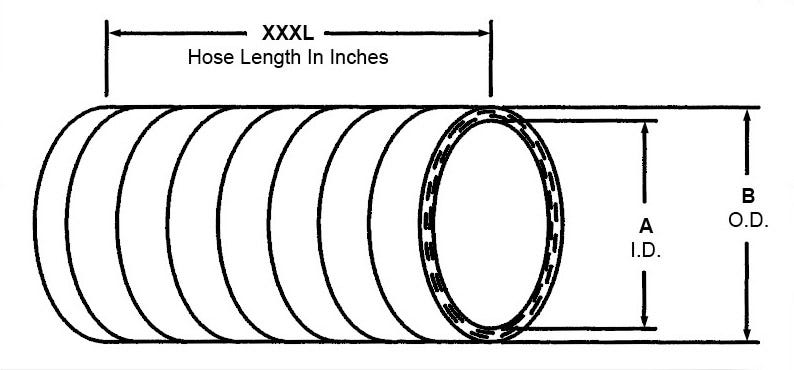

22240 series fueling at sea hoses hos 22240 1 6hoses-alongsideandasternfuelingatsea-2a1793-4
HOS-22240-7A-XXXL

HOS-22240-7A-XXXL – Hoses – Alongside and Astern Fueling at Sea

Print Icon Print Download Icon Download PDF
( MIL-H-22240 )

Specification

  • Equal To Global No: 2560-7''
  • Est. Wt. (lbs.): 5.00''
  • Id In: 7''
  • Material: Rubber
  • Mil Spec: MIL-H-22240
  • Min Burst Pressure Psi: 600
  • Min Tensile Lbs: 12''
  • Proof Pressure Psi: 300''
  • Type 1: Alongside Fueling
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Equal To Global No2560-7''
Est. Wt. (lbs.)5.00''
Id In7''
MaterialRubber
Mil SpecMIL-H-22240
Min Burst Pressure Psi600
Min Tensile Lbs12''
Proof Pressure Psi300''
Type 1Alongside Fueling
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
