H/A-FC91-7A-XXXL

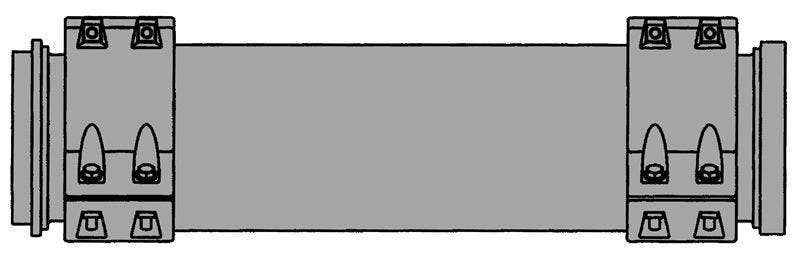

H/A-FC91-7A-XXXL – Hose Assemblies – Alongside and Astern Fueling at Sea

Print Icon Print Download Icon Download PDF

Specification

  • Coupling Mil Spec: MIL-C-24356
  • Coupling Type: FC91'
  • Hose Mil Spec: MIL-H-22240
  • Id In: 7''
  • Navsea Drawing No: 805-4316751
  • D: 805-4316751
  • Type 1: Alongside Fueling
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Coupling Mil SpecMIL-C-24356
Coupling TypeFC91'
Hose Mil SpecMIL-H-22240
Id In7''
Navsea Drawing No805-4316751
D805-4316751
Type 1Alongside Fueling
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
