H/A-22240-7A-XXXL

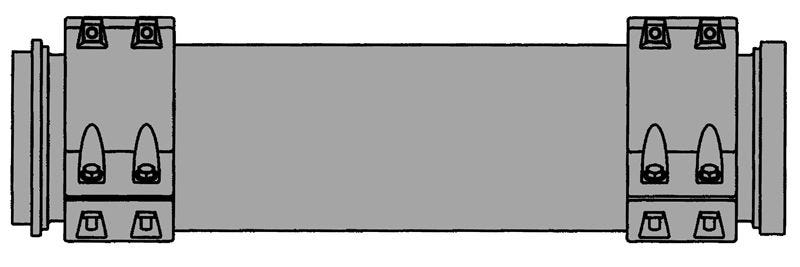

H/A-22240-7A-XXXL – Hose Assemblies – Alongside and Astern Fueling at Sea

Print Icon Print Download Icon Download PDF

Specification

  • Coupling Mil Spec: MIL-C-24356
  • Coupling Type: SEG 81'
  • Hose Mil Spec: MIL-H-22240
  • Hydrasearch Drawing Number: C16422-3
  • Id In: 7''
  • Navsea Drawing No: 805-4316751
  • D: 1 Split Clamp with Assembly2 Split Clamps
  • Type 1: Alongside Fueling

Specification Table

Coupling Mil SpecMIL-C-24356
Coupling TypeSEG 81'
Hose Mil SpecMIL-H-22240
Hydrasearch Drawing NumberC16422-3
Id In7''
Navsea Drawing No805-4316751
D1 Split Clamp with Assembly2 Split Clamps
Type 1Alongside Fueling
