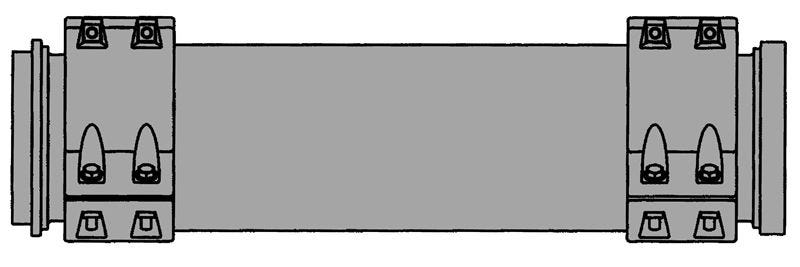

H/A-22240-6B-XXXL – Hose Assemblies – Alongside and Astern Fueling at Sea

Print Icon Print Download Icon Download PDF

Specification

  • Coupling Mil Spec: MIL-C-24356
  • Coupling Type: SEG 81'
  • Hose Mil Spec: MIL-H-22240
  • Id In: 6''
  • Navsea Drawing No: 803-2257594
  • D: 1 Split Clamp with Assembly2 Split Clamps
  • Type 1: Astern Fueling
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Coupling Mil SpecMIL-C-24356
Coupling TypeSEG 81'
Hose Mil SpecMIL-H-22240
Id In6''
Navsea Drawing No803-2257594
D1 Split Clamp with Assembly2 Split Clamps
Type 1Astern Fueling
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
