H/A-17505-4-120L

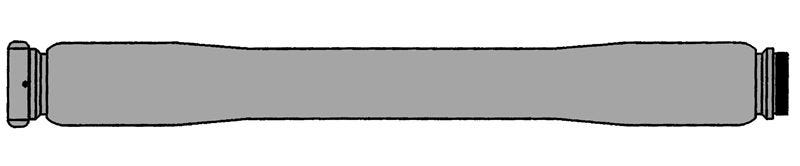

H/A-17505-4-120L – Hose Assemblies – Pigtail, 4″

Print Icon Print Download Icon Download PDF
( MIL-H-17505 )

Specification

  • Coupling Material: Bronze
  • Equal To Aeroquip No : 282002-4-120
  • Equal To Global No: 282002-4-120
  • Est. Wt. (lbs.): 100
  • Hose Material: Rubber
  • Hydrasearch Drawing Number: C15343-1
  • Length FT: 10
  • Mil Spec: MIL-H-17505
  • Nom id: 4''
  • NSN No.: 4720-00-230-6515''

Specification Table

Coupling MaterialBronze
Equal To Aeroquip No 282002-4-120
Equal To Global No282002-4-120
Est. Wt. (lbs.)100
Hose MaterialRubber
Hydrasearch Drawing NumberC15343-1
Length FT10
Mil SpecMIL-H-17505
Nom id4''
NSN No.4720-00-230-6515''
