FC9637-6464-188

FC9637-6464-188

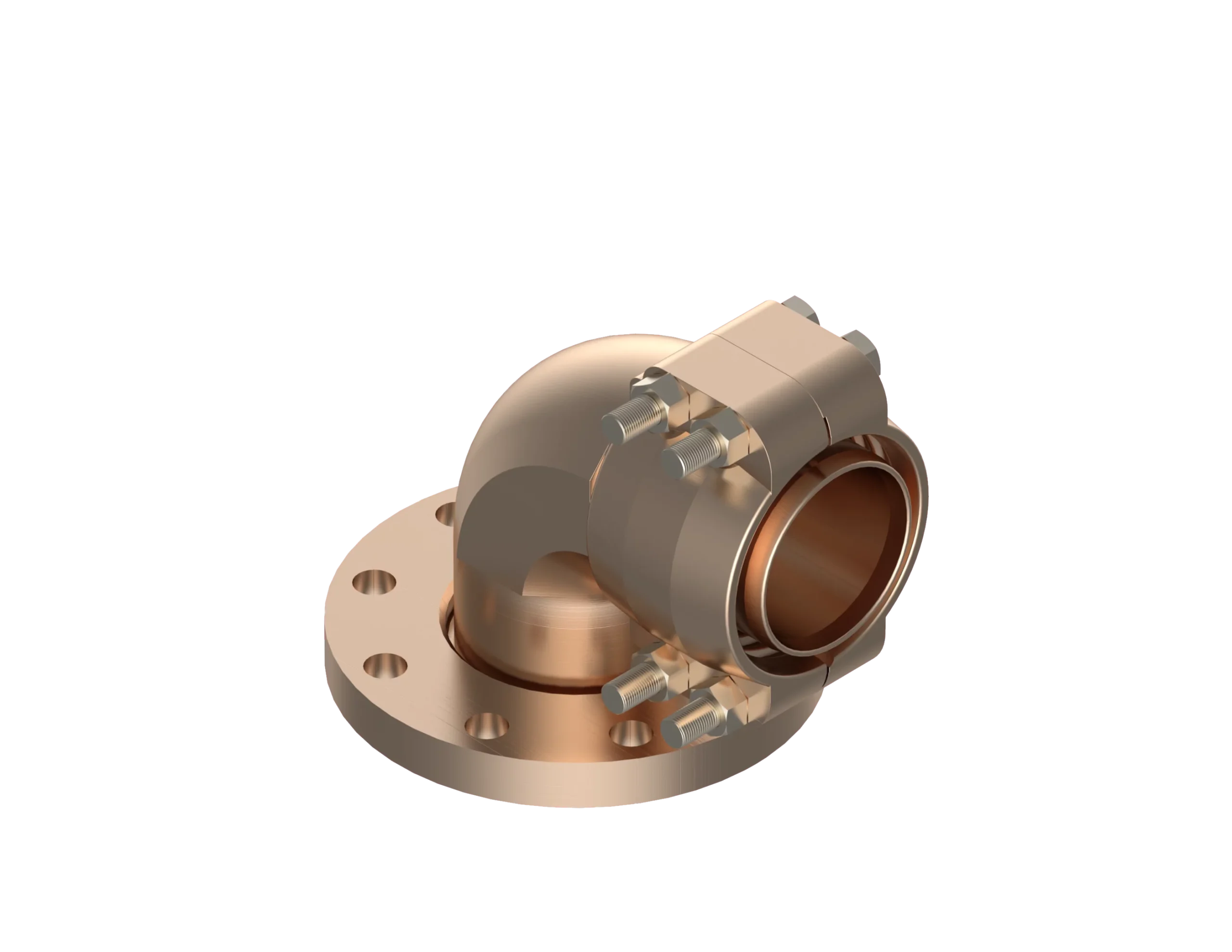

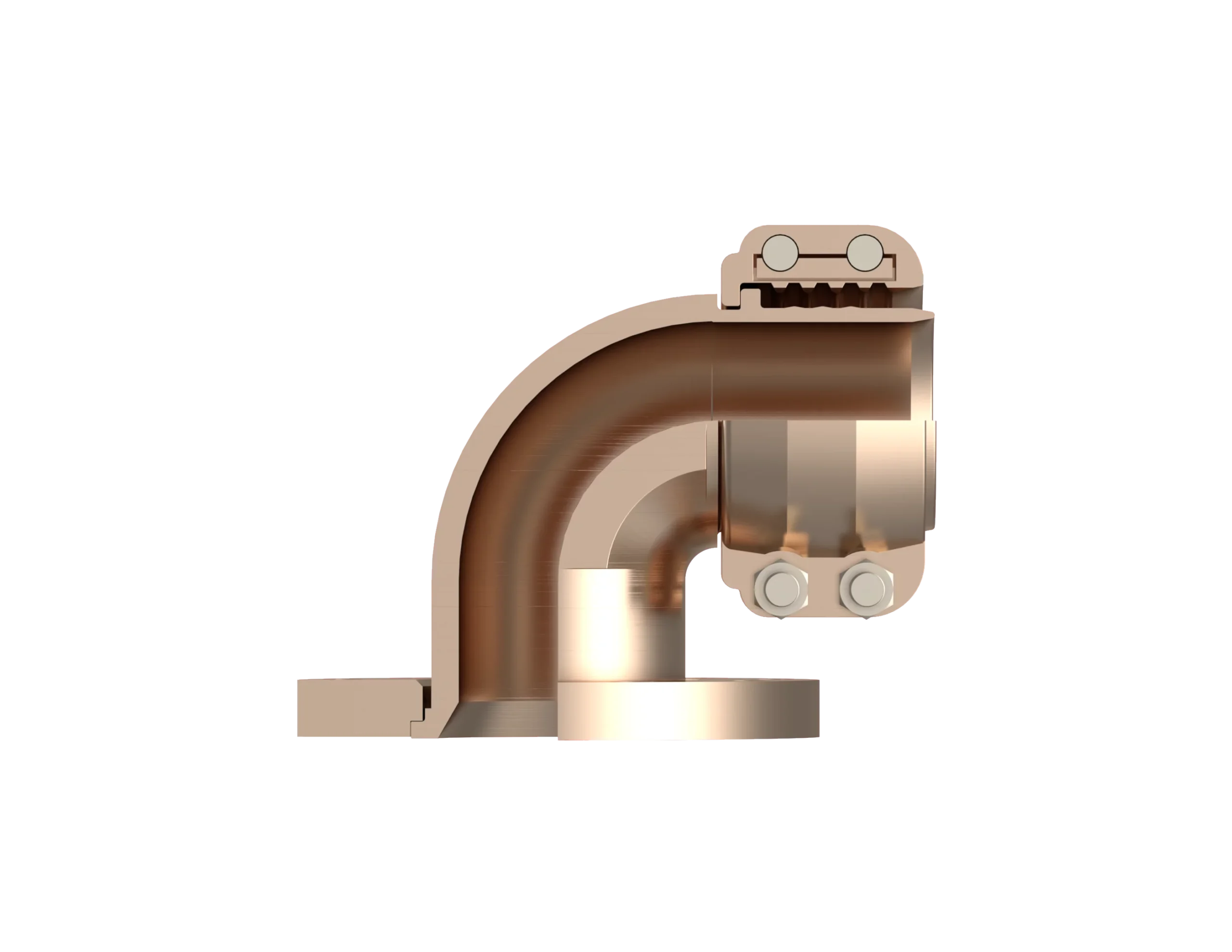

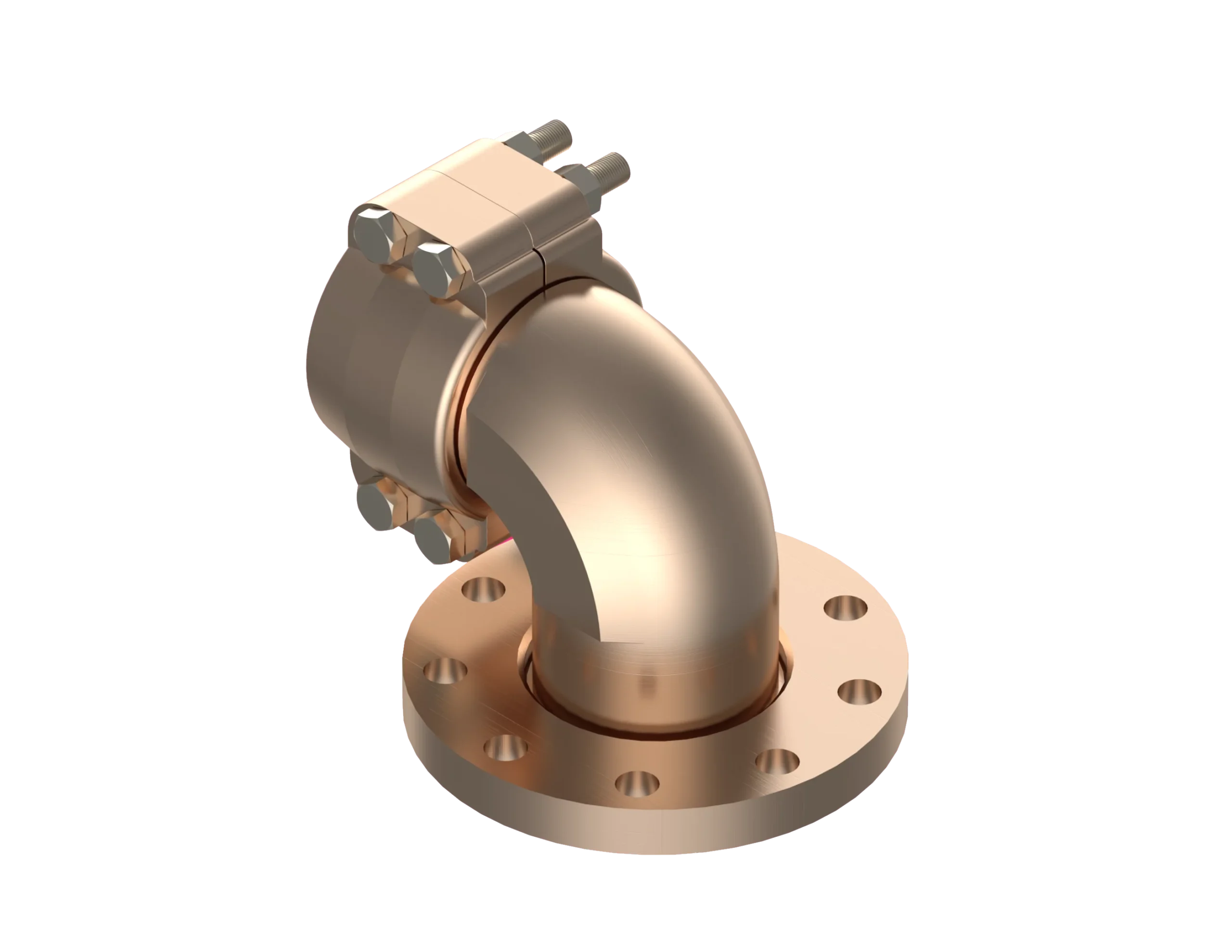

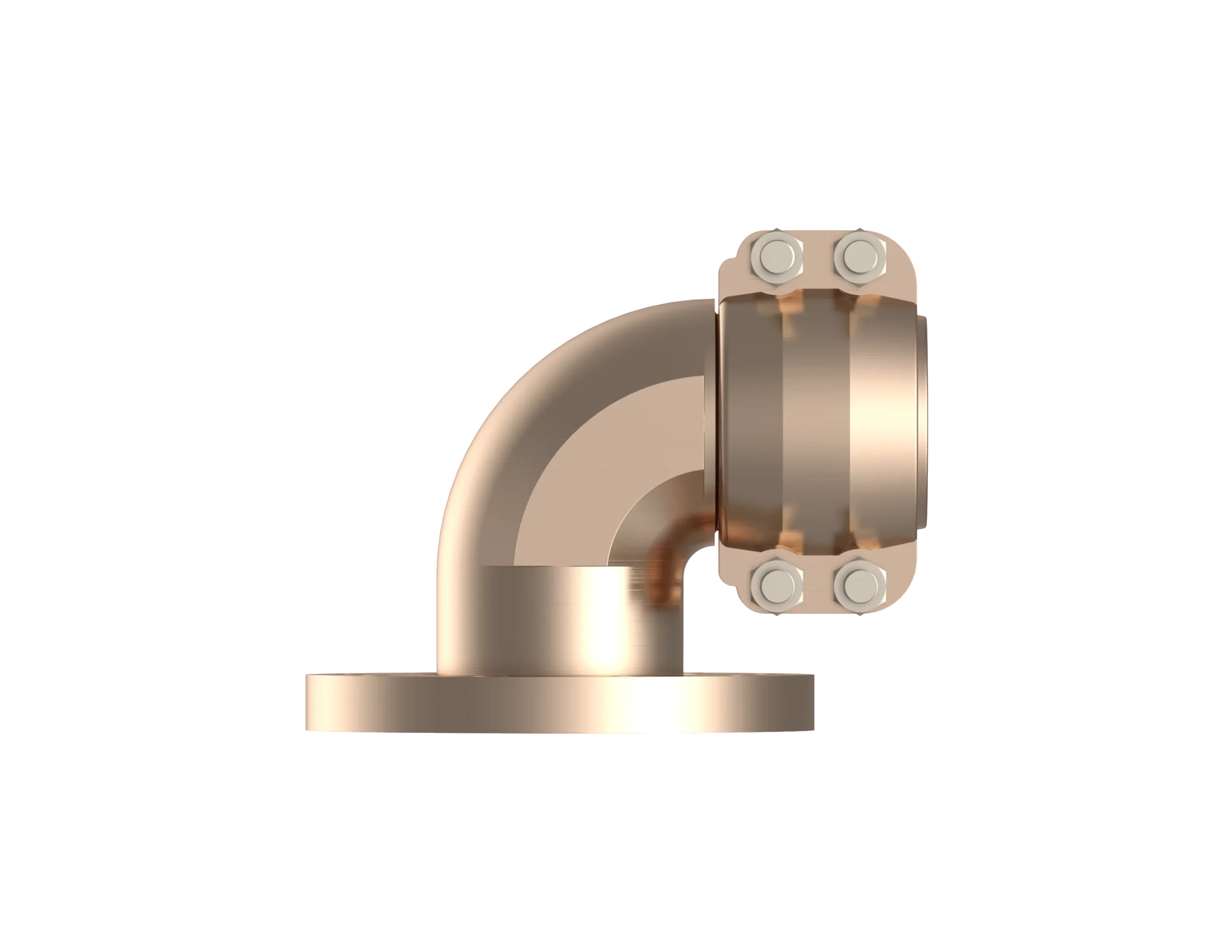

( MIL-DTL-24787/1, Type FL, Group X, Class II, 150/400lb, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC9637-188,
Use with the following hose: HS4182 & FC132

Specification Table

Part Number	FC9637-6464-188
IPS Size	4
No. of Bolt Holes	8
A	6.48
D	3.57
H	5.62
J	7.69
K	5.22
L	6.56
M	.56
N	1.02
R	2.81
S	4.28
T	8.91
Est. Wt. (lbs.)	33.40

Components Table

Description	Req’d per Ass’y	Base No.	3240	4040	4048	4848	5664	6464	Material
Swivel Flange	1	188-74045-	32-40	40-40	40-48	48-48	56-64	64-64	Aluminum. Bronze
Elbow	1	FC3558-	3240-188	4040-188	4048-188	4848-188	5664-188	6464-188	Aluminum. Bronze
Grip Segment	2	FC3476-	40-188	40-188	48-188	48-188	64-188	64-188	Aluminum. Bronze
Bolt	4	FF9142-	0856-4	0856-4	0964-4	0964-4	1072-4	1072-4	Monel
Nut	4	4-222048	8	8	9	9	10	10	Monel
