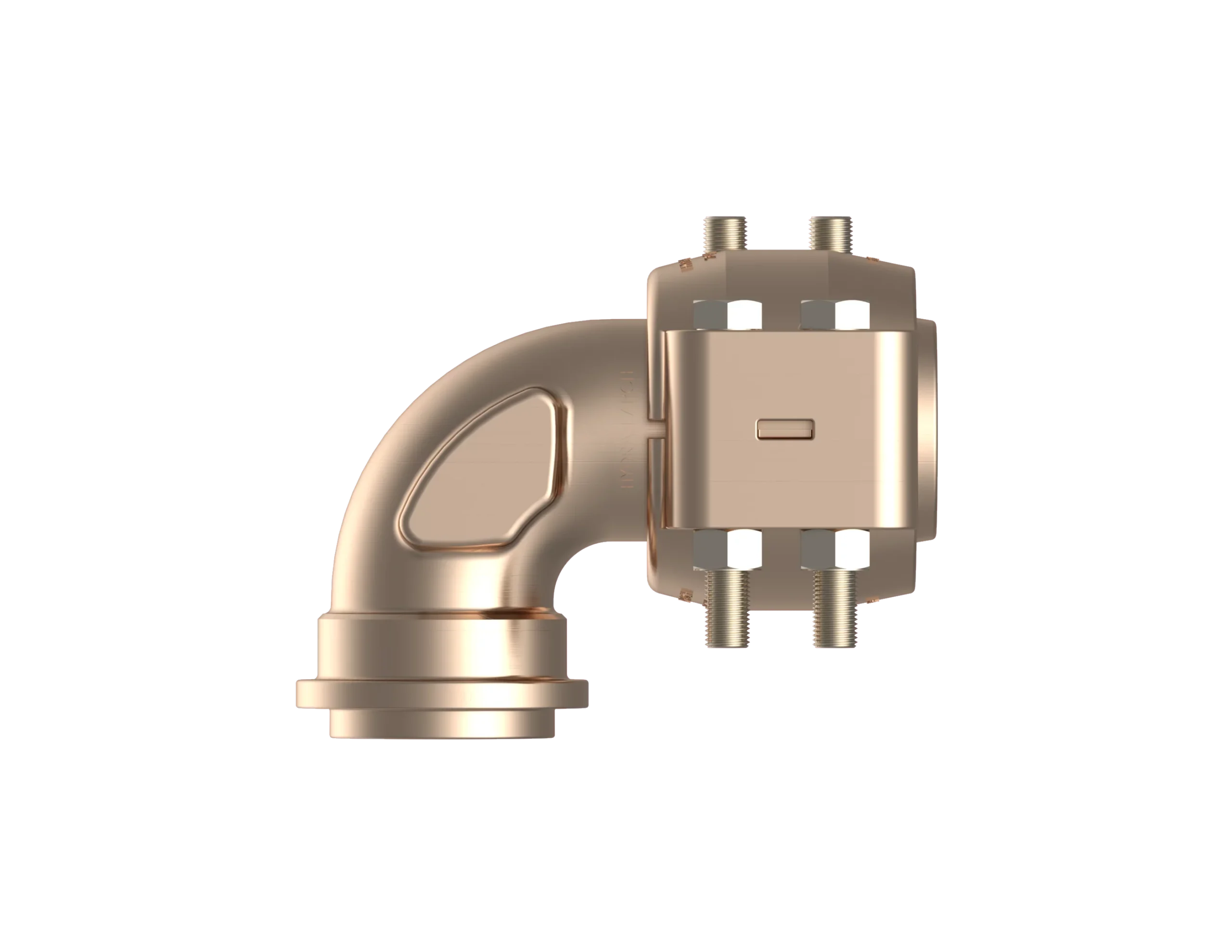

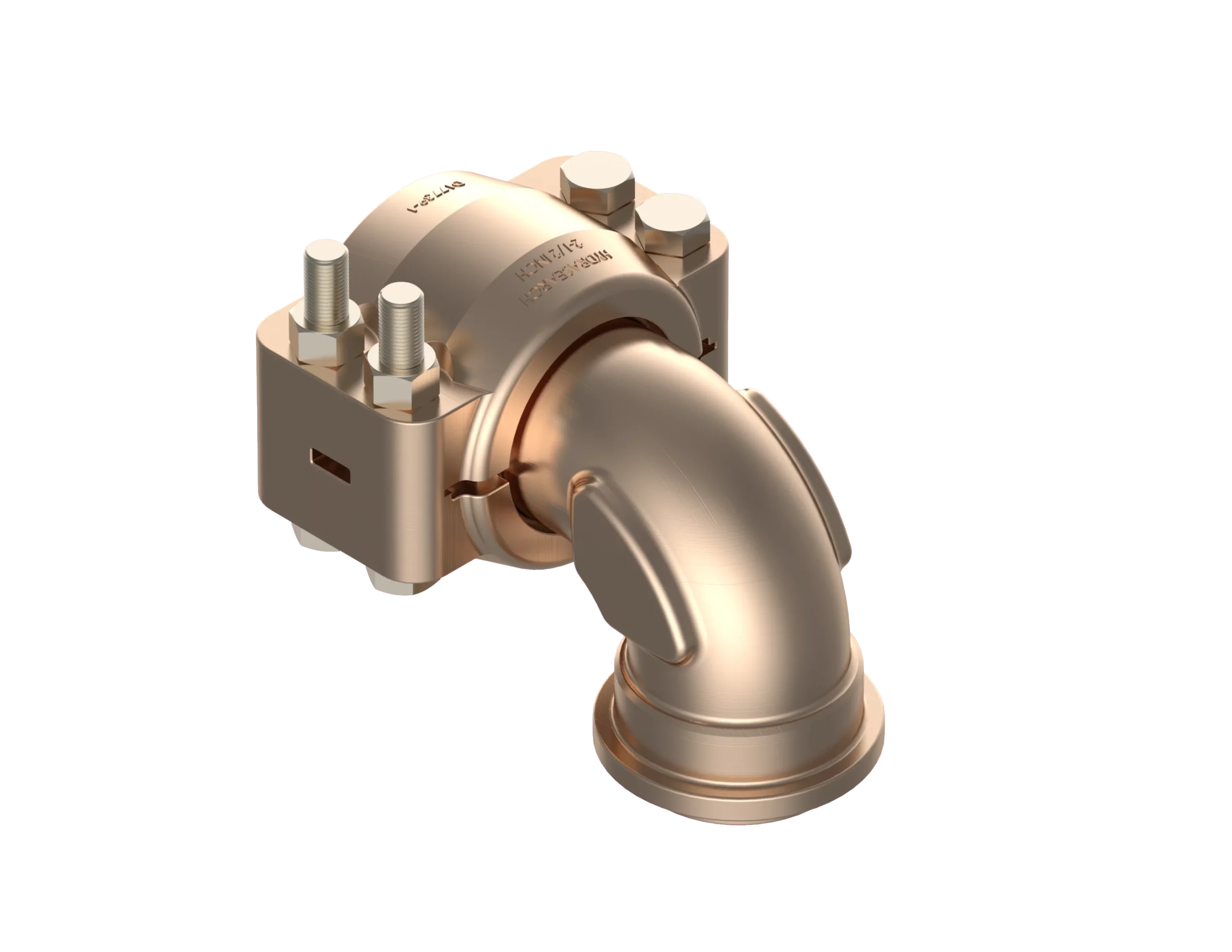

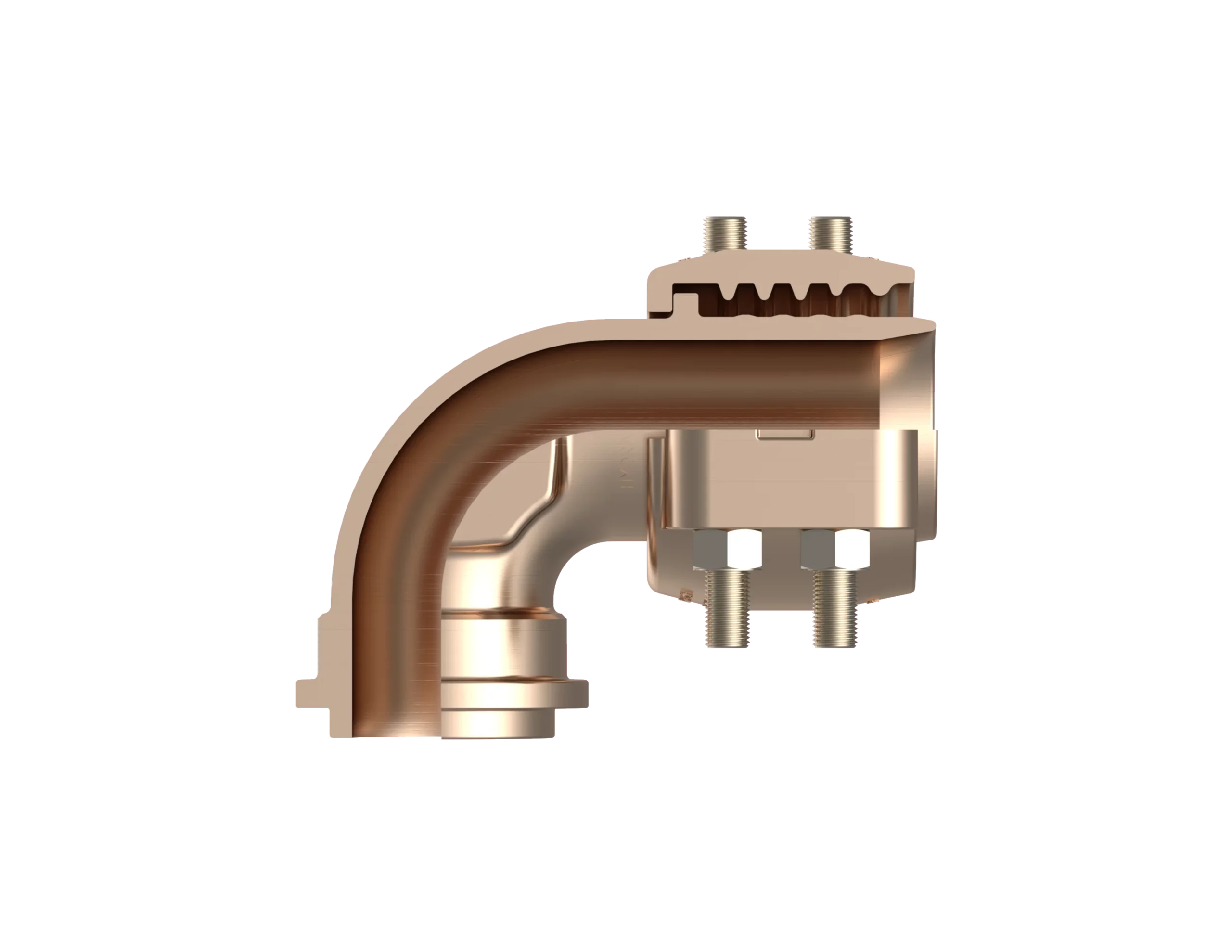

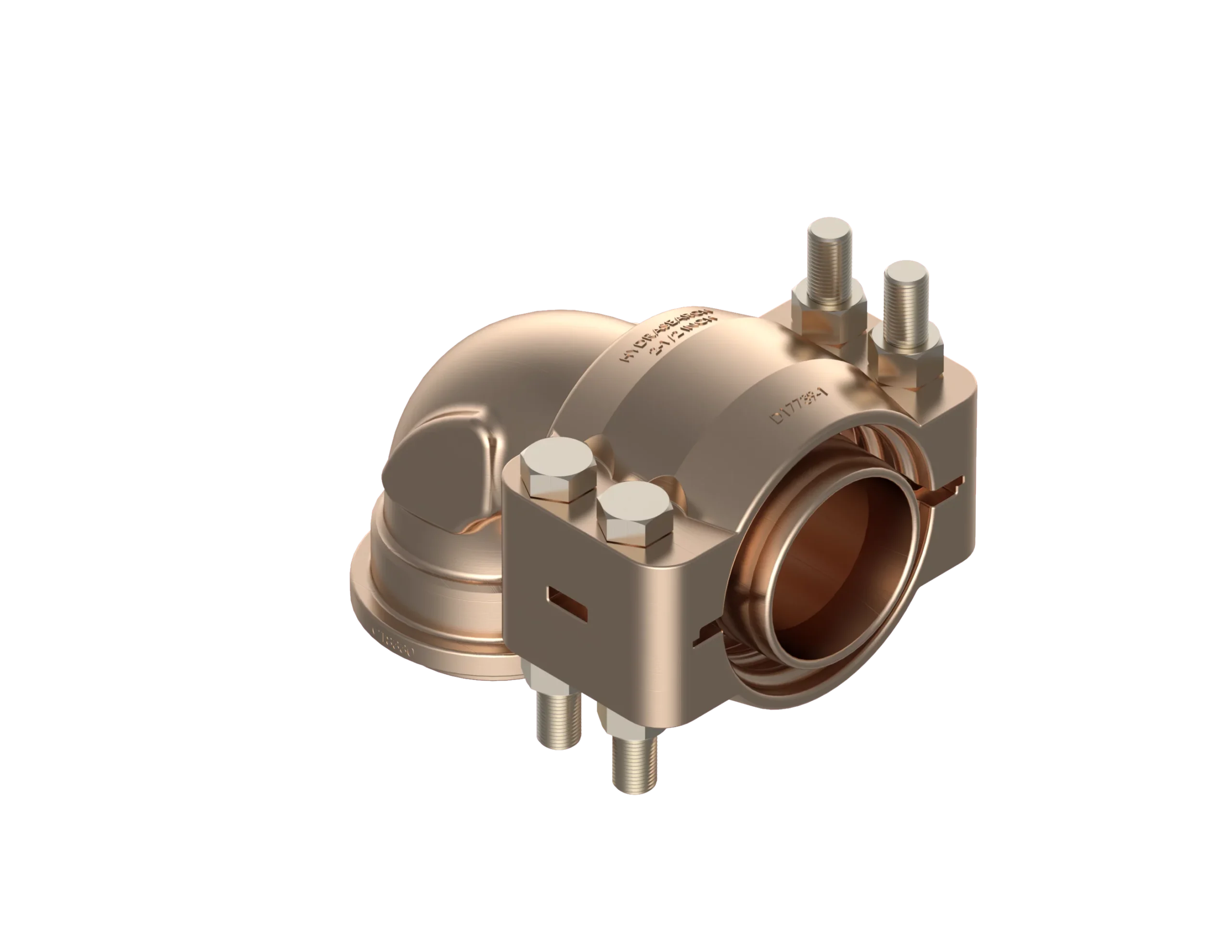

( MIL-DTL-24787/4, Type EL, Group X, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC9636-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC9636-4048-188
  • IPS Size: 2.5
  • A: 2.51
  • B: 7.65
  • C: 5.75
  • D: 2.85
  • E: 3.74
  • F: 3.00
  • G: .33
  • H: .317
  • K: 3.17
  • R: 2.09
  • Est. Wt. (lbs.): 12.60

Specification Table

Part NumberFC9636-4048-188
IPS Size2.5
A2.51
B7.65
C5.75
D2.85
E3.74
F3.00
G.33
H.317
K3.17
R2.09
Est. Wt. (lbs.)12.60

Components Table

DescriptionReq’d per Ass’yBase No.32404048484856646464Material
Elbow1FC3555-3240-1884048-1884848-1885664-1886464-188Aluminum. Bronze
Grip Segment2FC3476-40-18848-18848-18864-18864-188Aluminum. Bronze
Bolt4FF9142-0856-40964-40964-41072-41072-4Monel
Nut44-222048-8991010Monel
