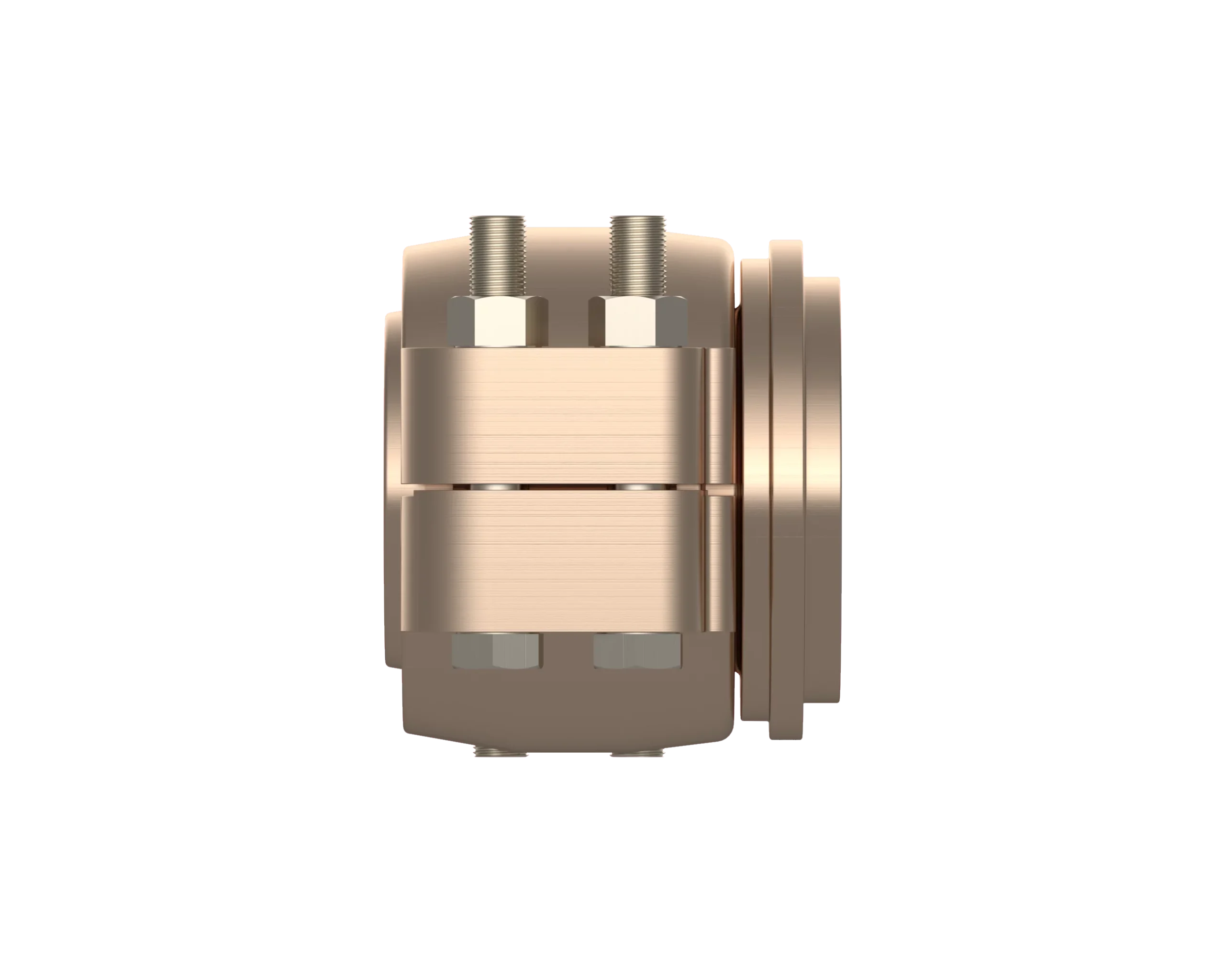

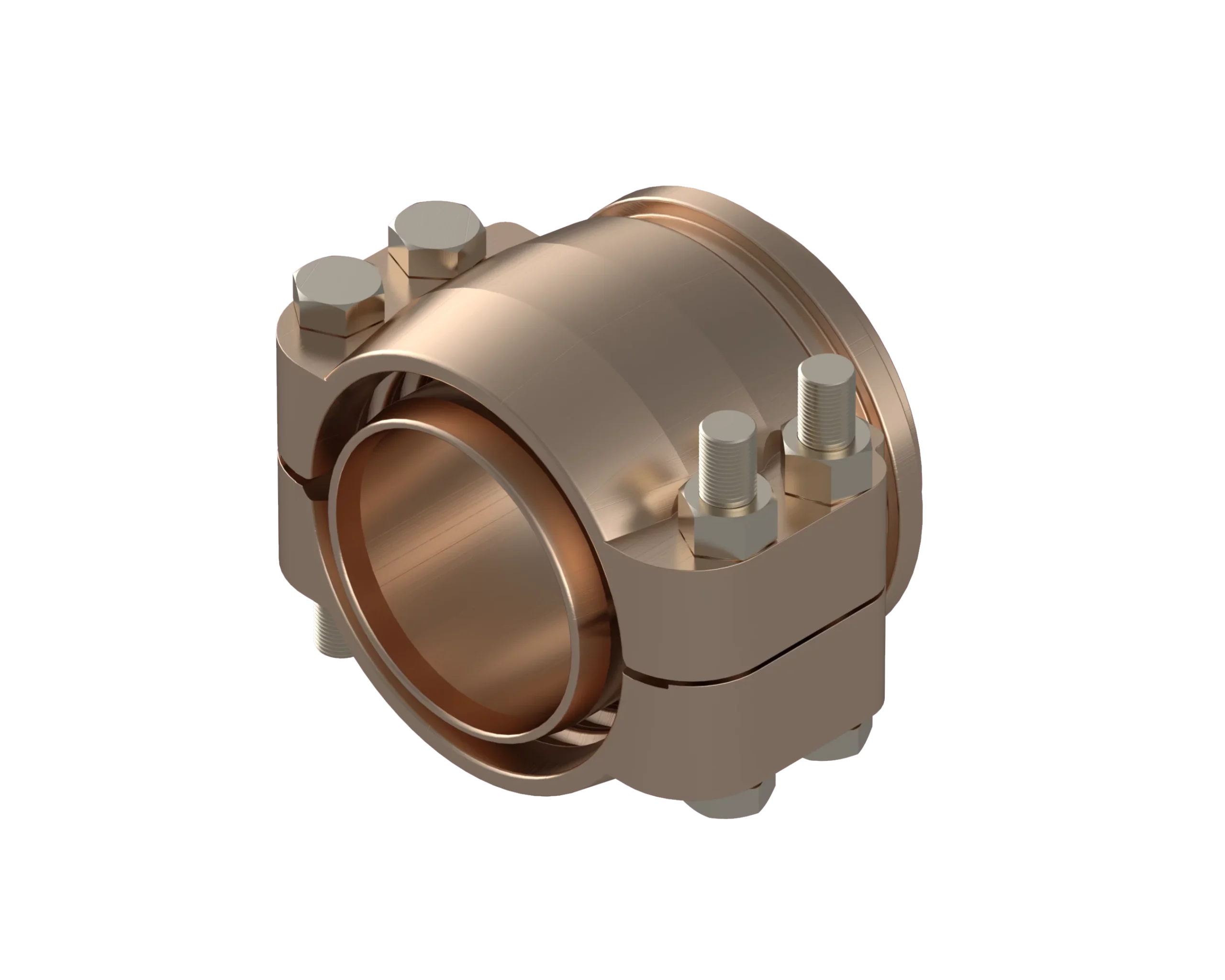

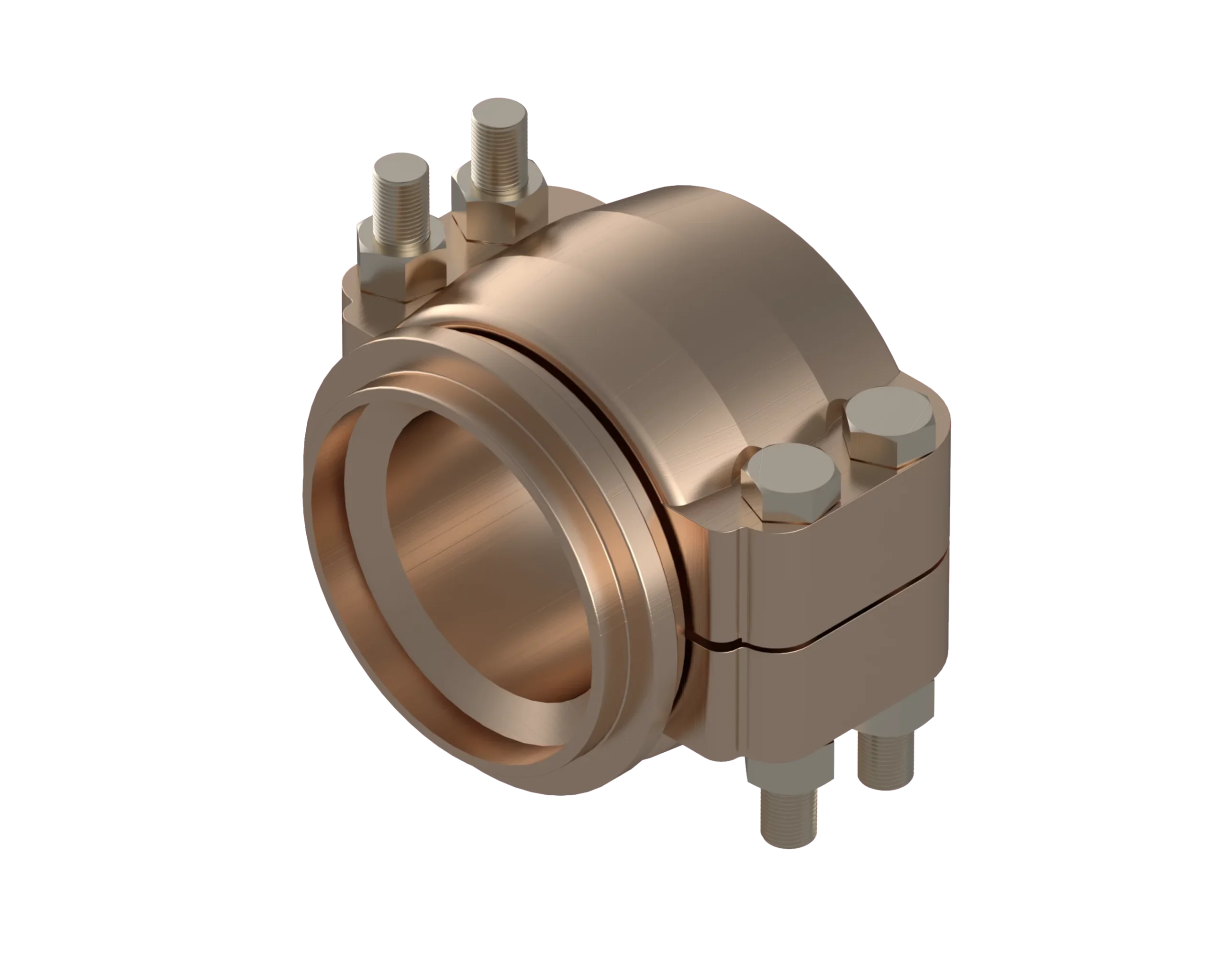

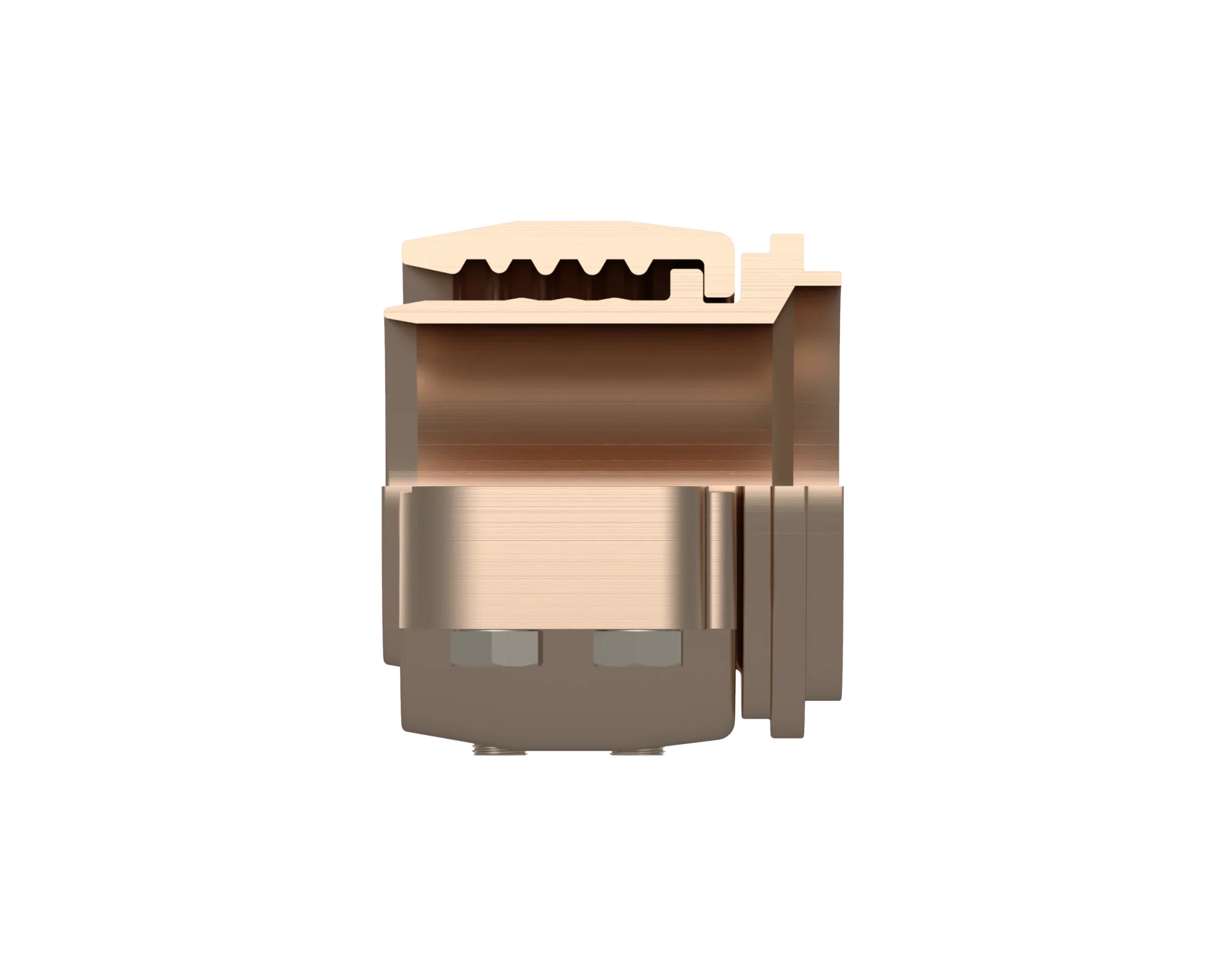

( MIL-DTL-24787/4, Type E, Group X, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC9635-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC9635-4048-188
  • IPS Size: 2.5
  • A: 2.51
  • B: 4.59
  • C: 7.65
  • D: 3.50
  • E: 3.74
  • F: 3.00
  • G: .33
  • H: .317
  • Est. Wt. (lbs.): 12.50

Specification Table

Part NumberFC9635-4048-188
IPS Size2.5
A2.51
B4.59
C7.65
D3.50
E3.74
F3.00
G.33
H.317
Est. Wt. (lbs.)12.50

Components Table

DescriptionReq’d per Ass’yBase No.32404048484856646464Material
Nipple1FC3555-3240-1884048-1884848-1885664-1886464-188Aluminum. Bronze
Grip Segment2FC3476-40-18848-18848-18864-18864-188Aluminum. Bronze
Bolt4FF9142-0856-40964-40964-41072-41072-4Monel
Nut44-222048-8991010Monel
