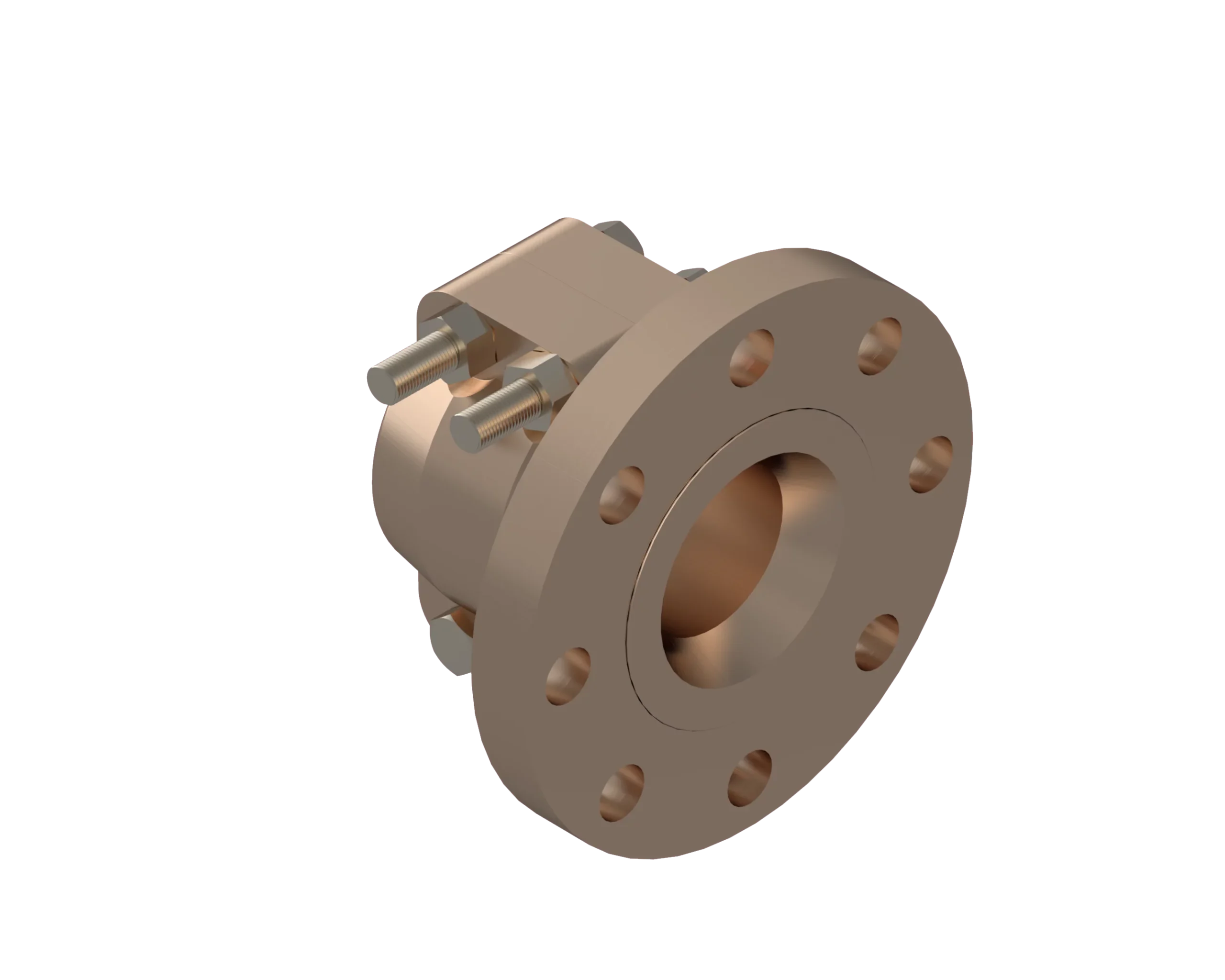

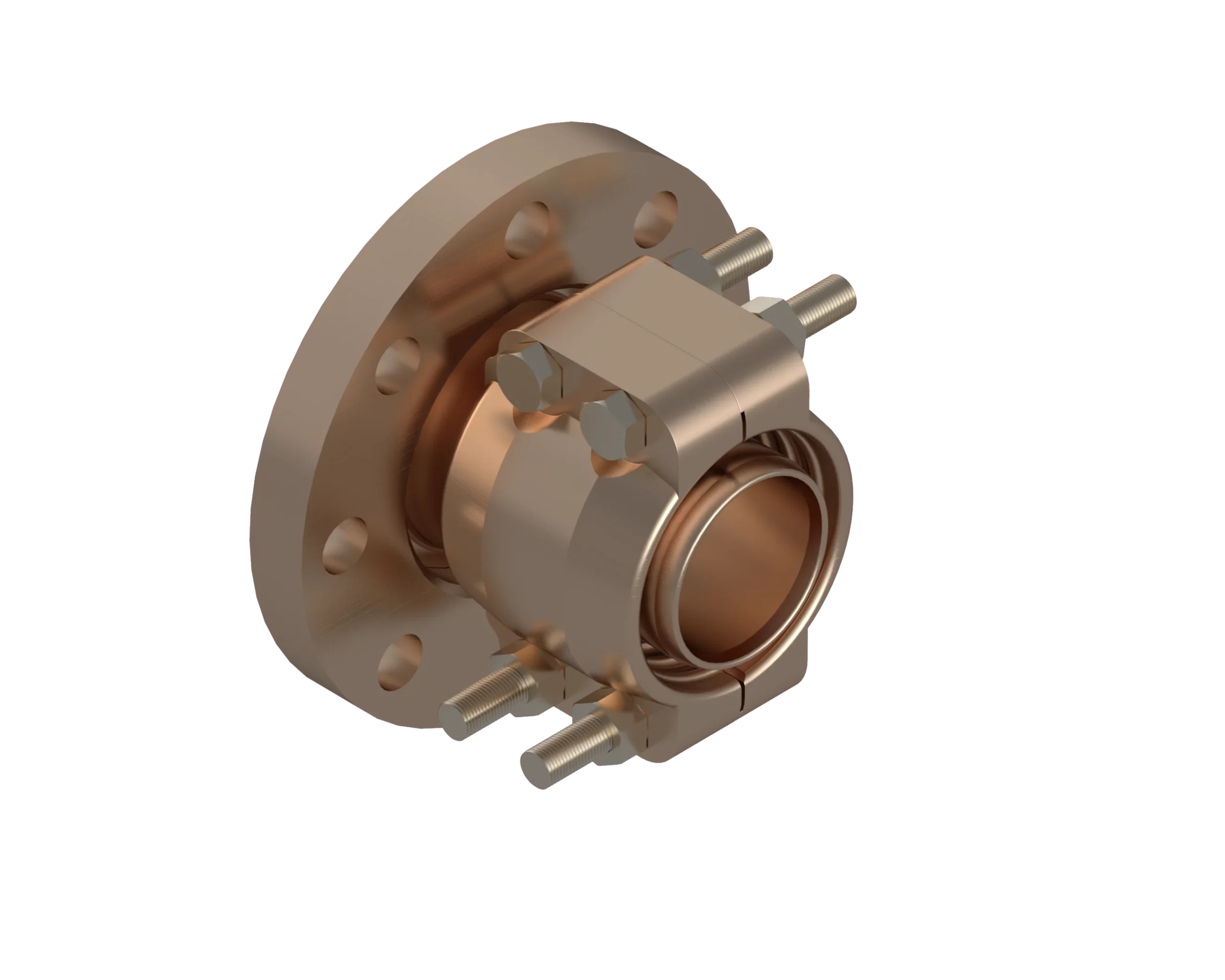

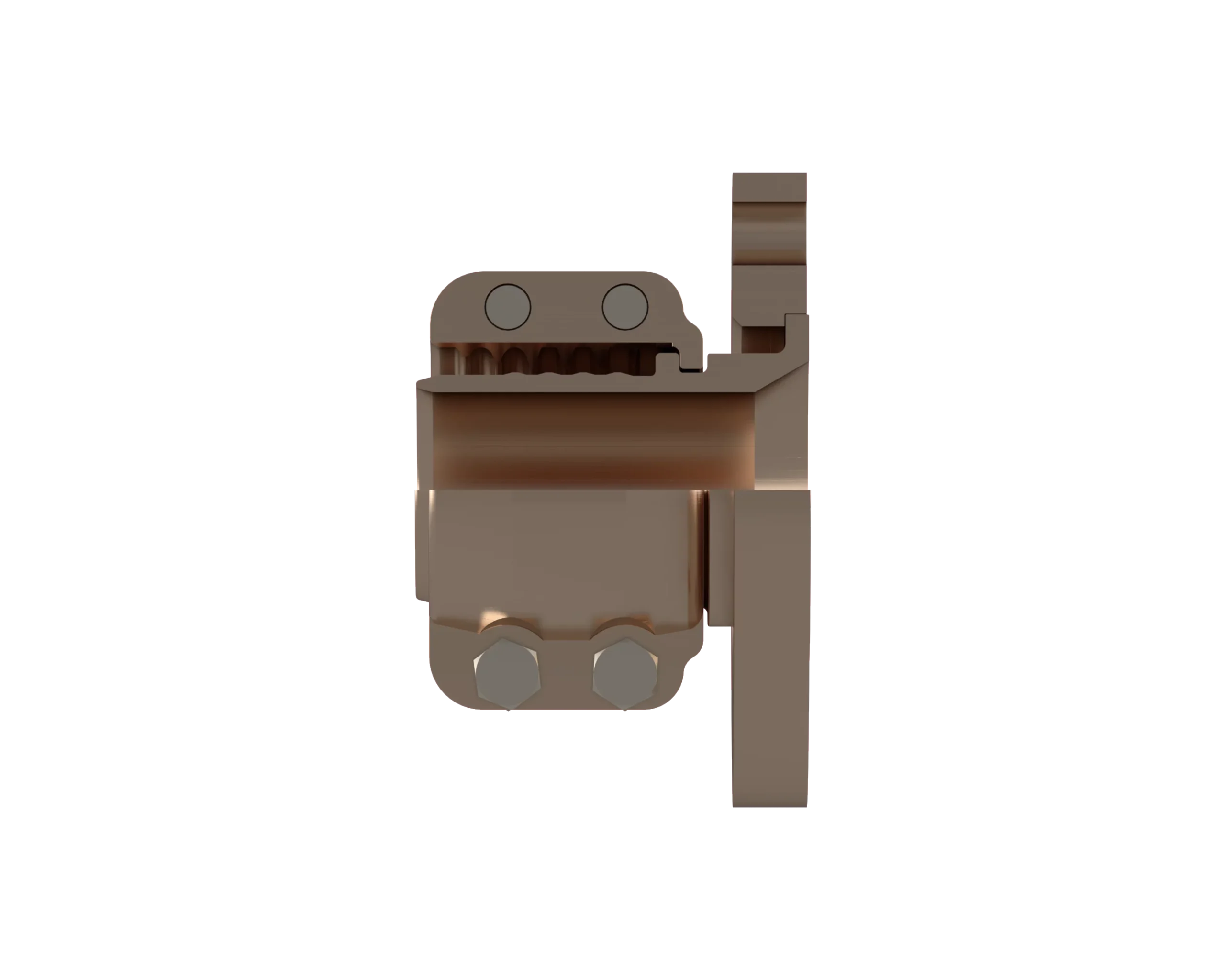

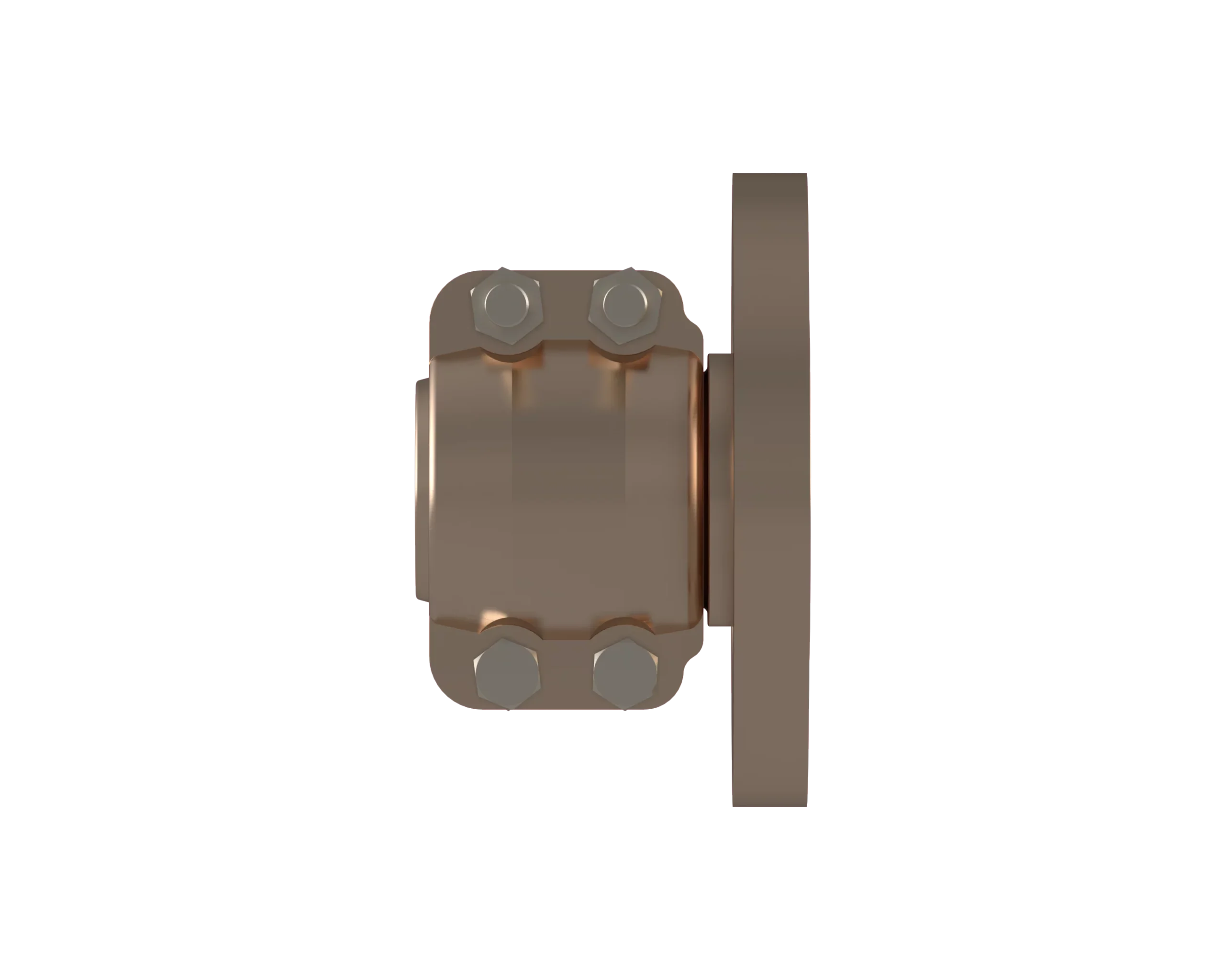

( MIL-DTL-24787/1, Type F, Group X, Class I, 400lb, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC9568-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC9568-4848-188
  • IPS Size: 3
  • No. of Bolt Holes: 8
  • M: .81
  • A: 4.86
  • D: 1.96
  • J: 8.12
  • K: 4.50
  • L: 6.56
  • N: .94
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 23.20

Specification Table

Part NumberFC9568-4848-188
IPS Size3
No. of Bolt Holes8
M.81
A4.86
D1.96
J8.12
K4.50
L6.56
N.94
S3.31
T7.65
Est. Wt. (lbs.)23.20

Components Table

DescriptionReq’d per Ass’yBase No.32404048484856646464Material
Swivel Flange1188-74048-32-4040-4848-4856-6464-64Aluminum. Bronze
Nipple1FC3478-3240-1884048-1884848-1885664-1886464-188Aluminum. Bronze
Grip Segment2FC3476-40-18848-18848-18864-18864-188Aluminum. Bronze
Bolt4FF91420856-40964-40964-41072-41072-4Monel
Nut44-222048-8991010Monel
