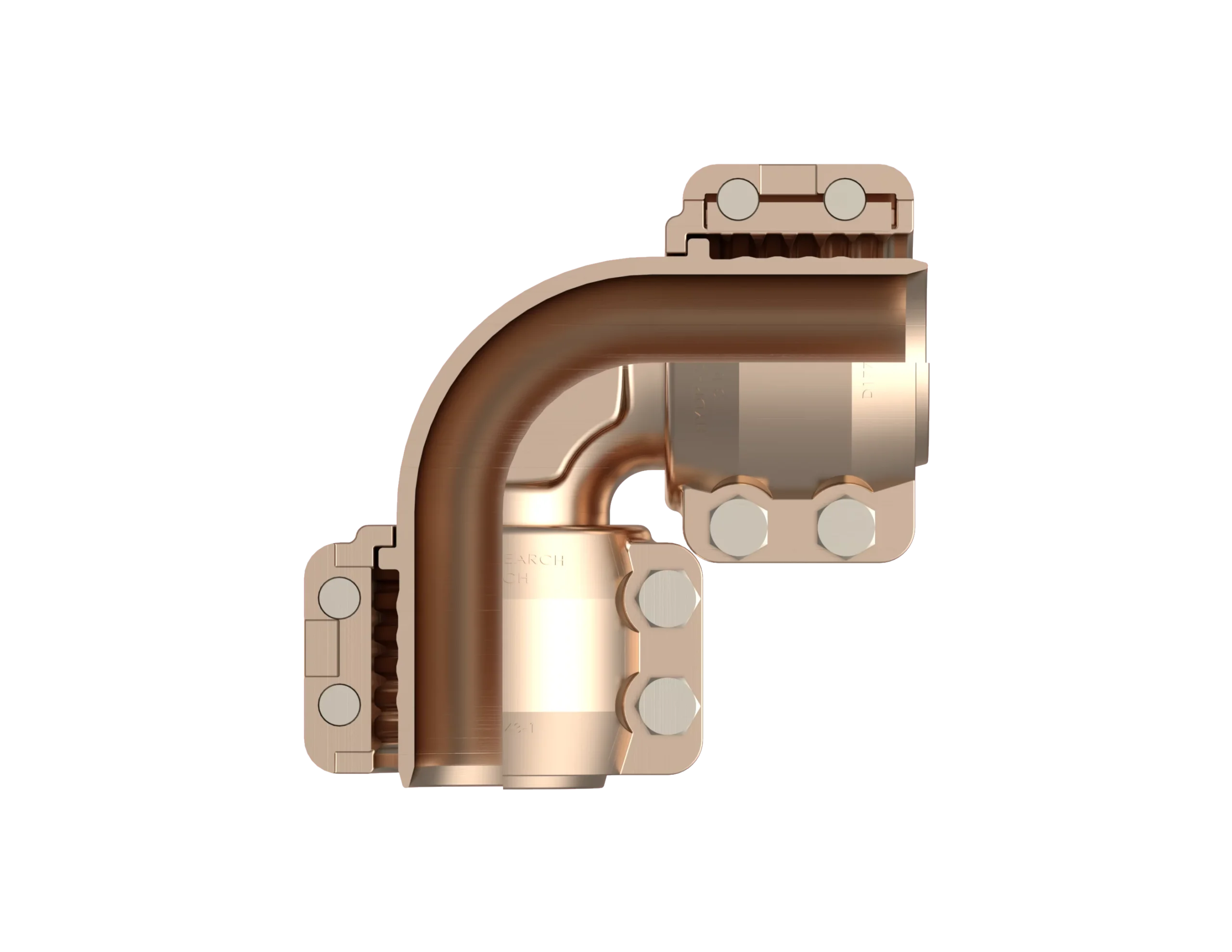

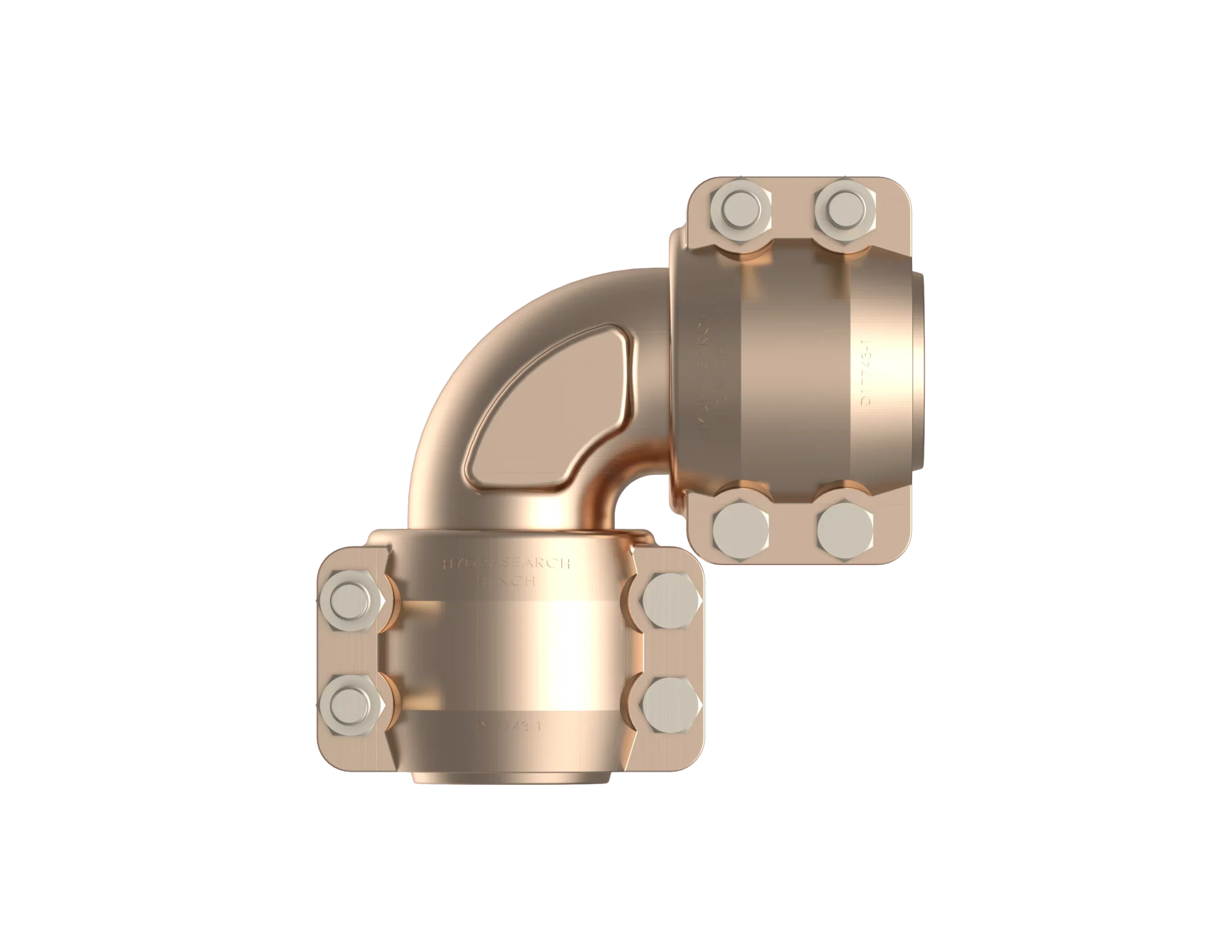

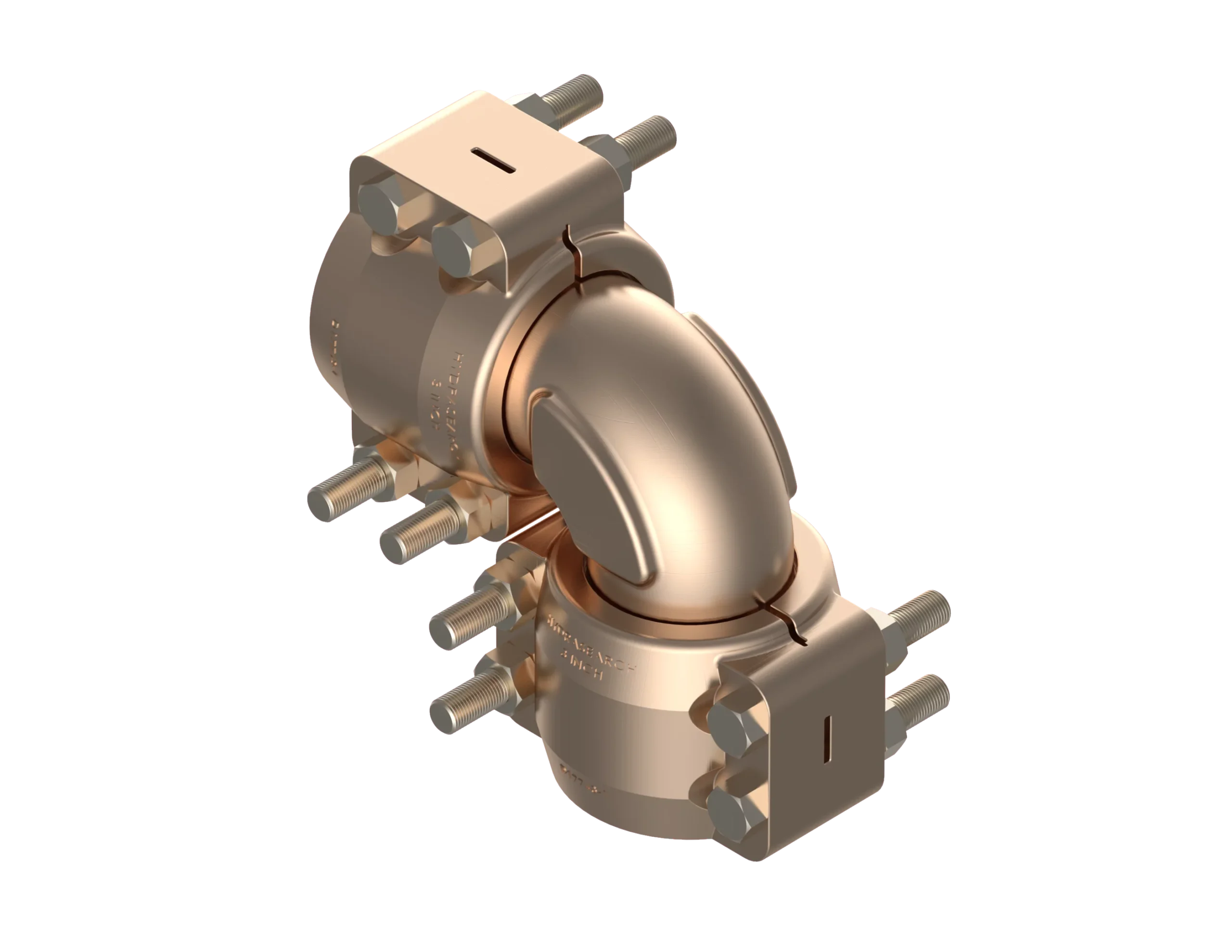

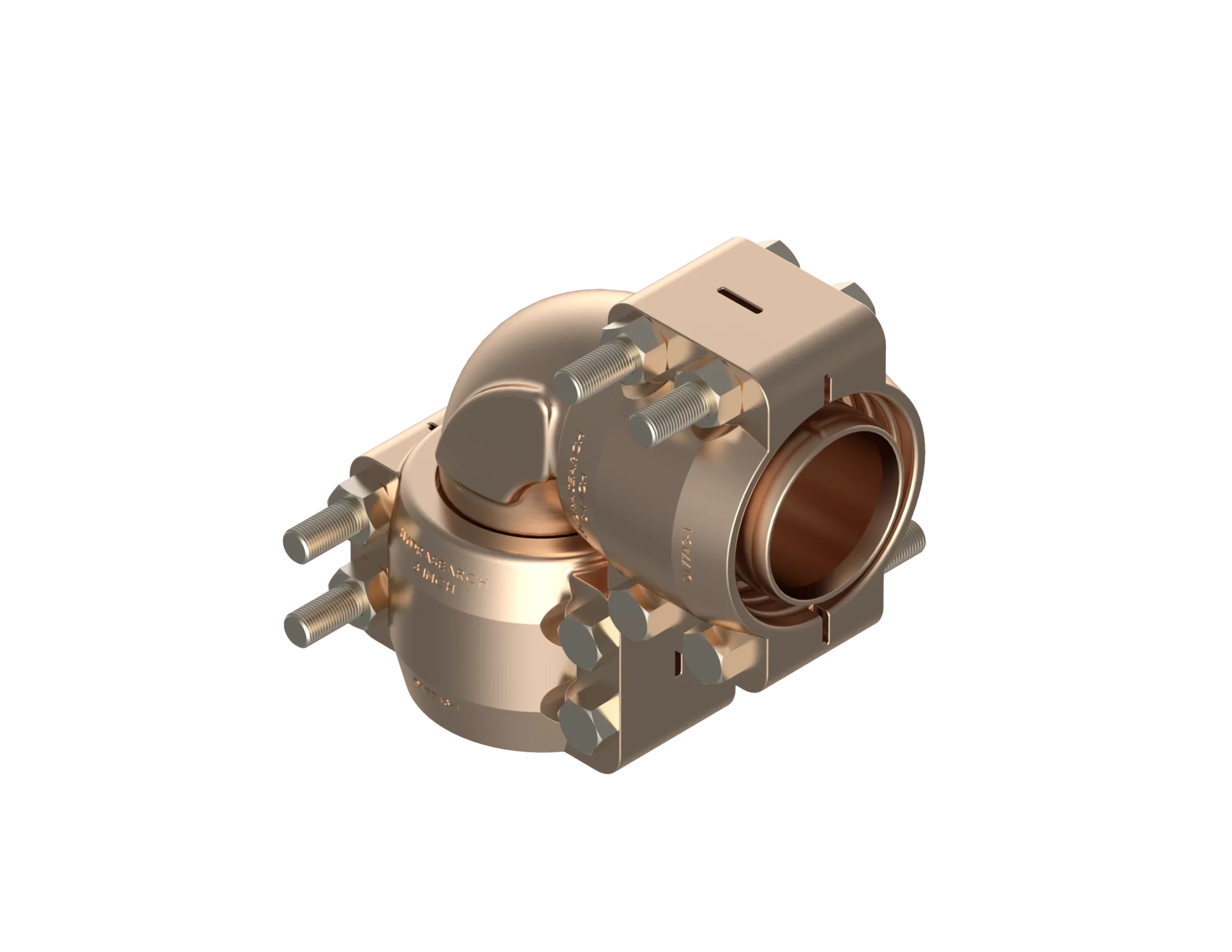

( MIL-DTL-24787/5, Type D, Group X, Elbow - 90° Dogleg )

Description:

Equal to Hydrasearch P/N FC9528-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC9528-4040-188
  • IPS Size: 2.5
  • A: 4.92
  • B: 6.70
  • D: 2.50
  • R: 1.88
  • Est. Wt. (lbs.): 15.80

Specification Table

Part NumberFC9528-4040-188
IPS Size2.5
A4.92
B6.70
D2.50
R1.88
Est. Wt. (lbs.)15.80

Components Table

DescriptionReq’d per Ass’yBase No.404048486464Material
Elbow1FC3479-4040-1884848-1886464-188Alum. Bronze
Grip Segment4FC3477-40-18848-18864-188Alum. Bronze
Bolt8FF9142-0856-40964-41072-4Monel
Nut84-222048-8910Monel
