FC9423-2032-375
FC9423-2032-375
Print
Download PDF

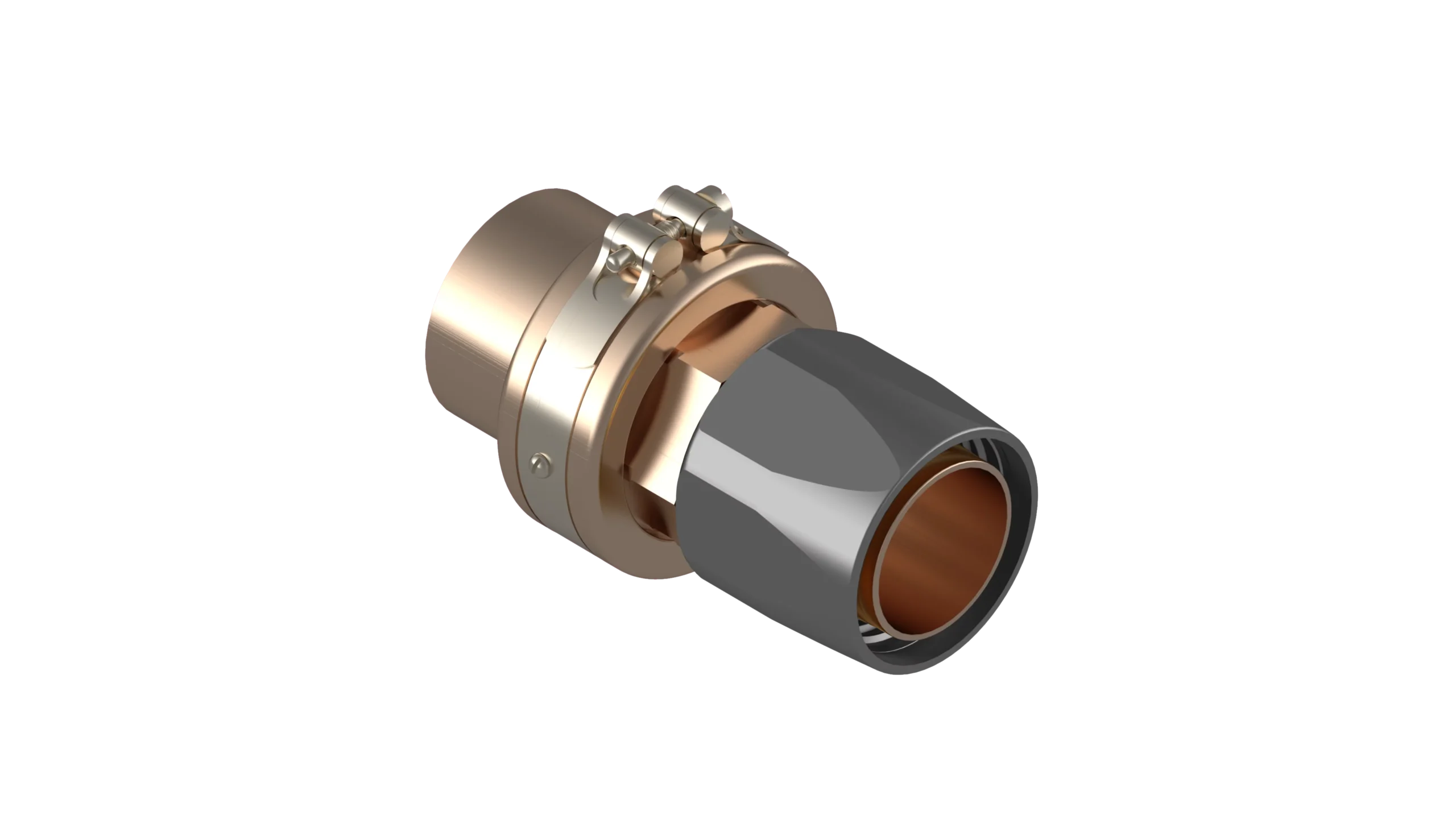

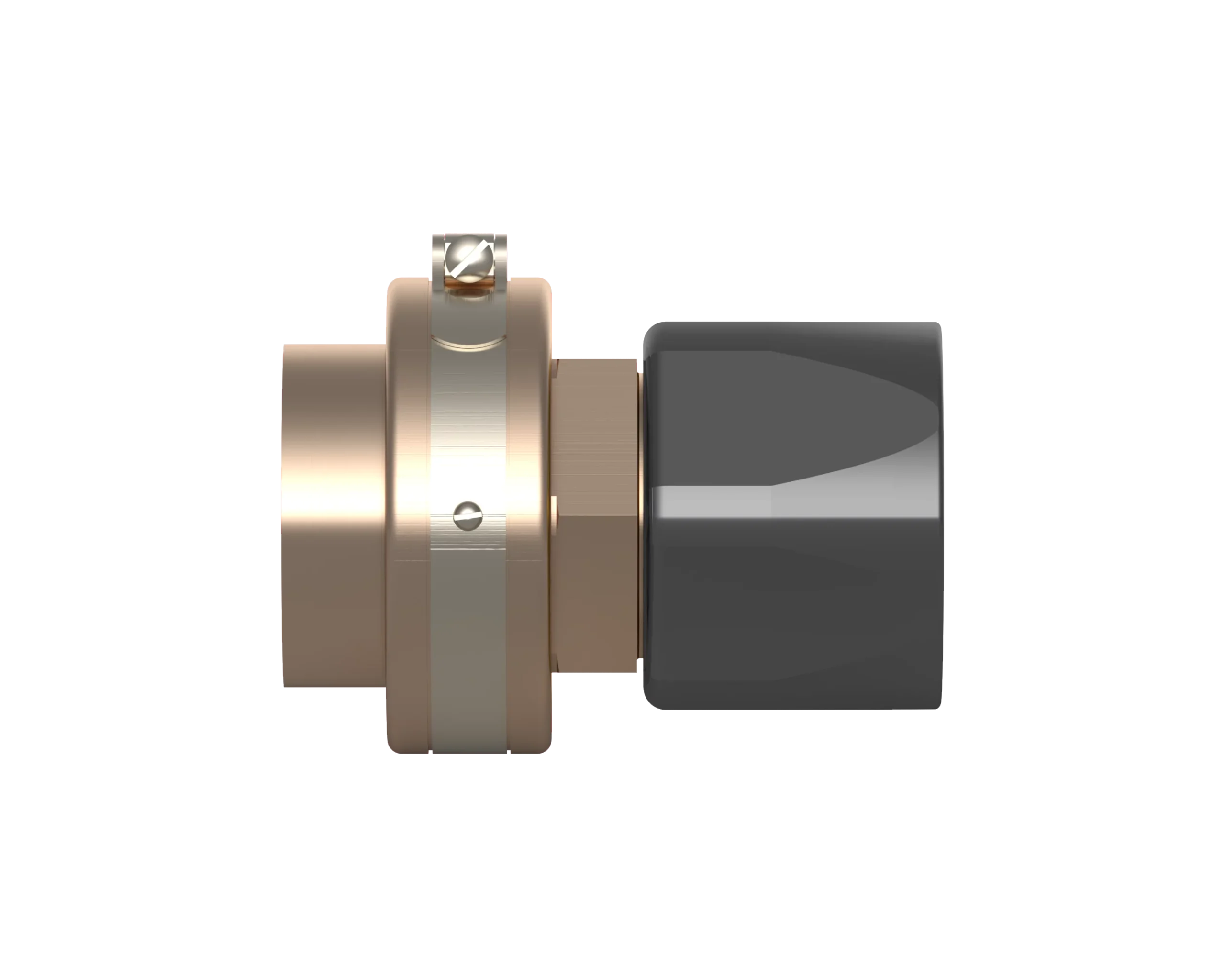

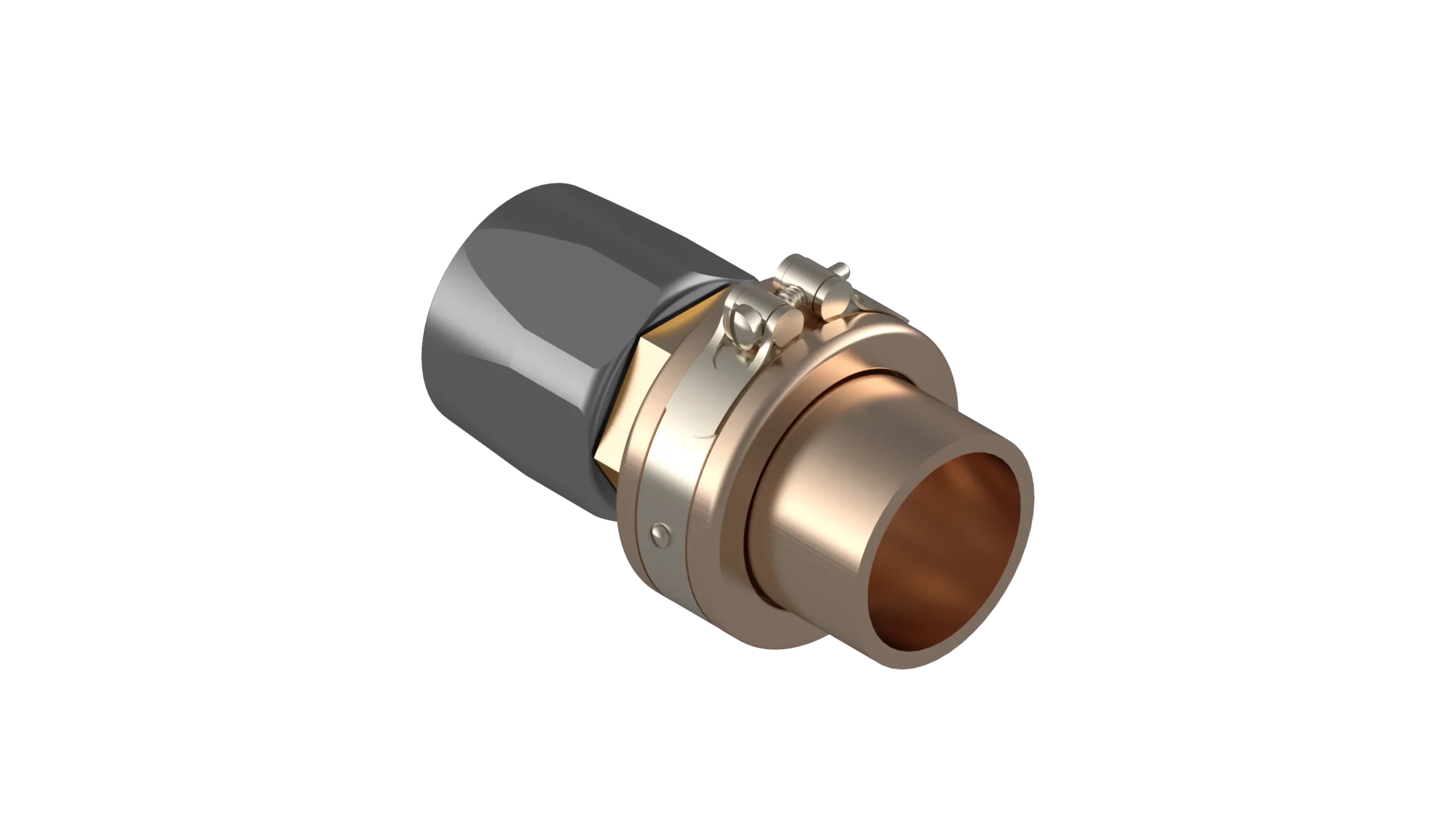

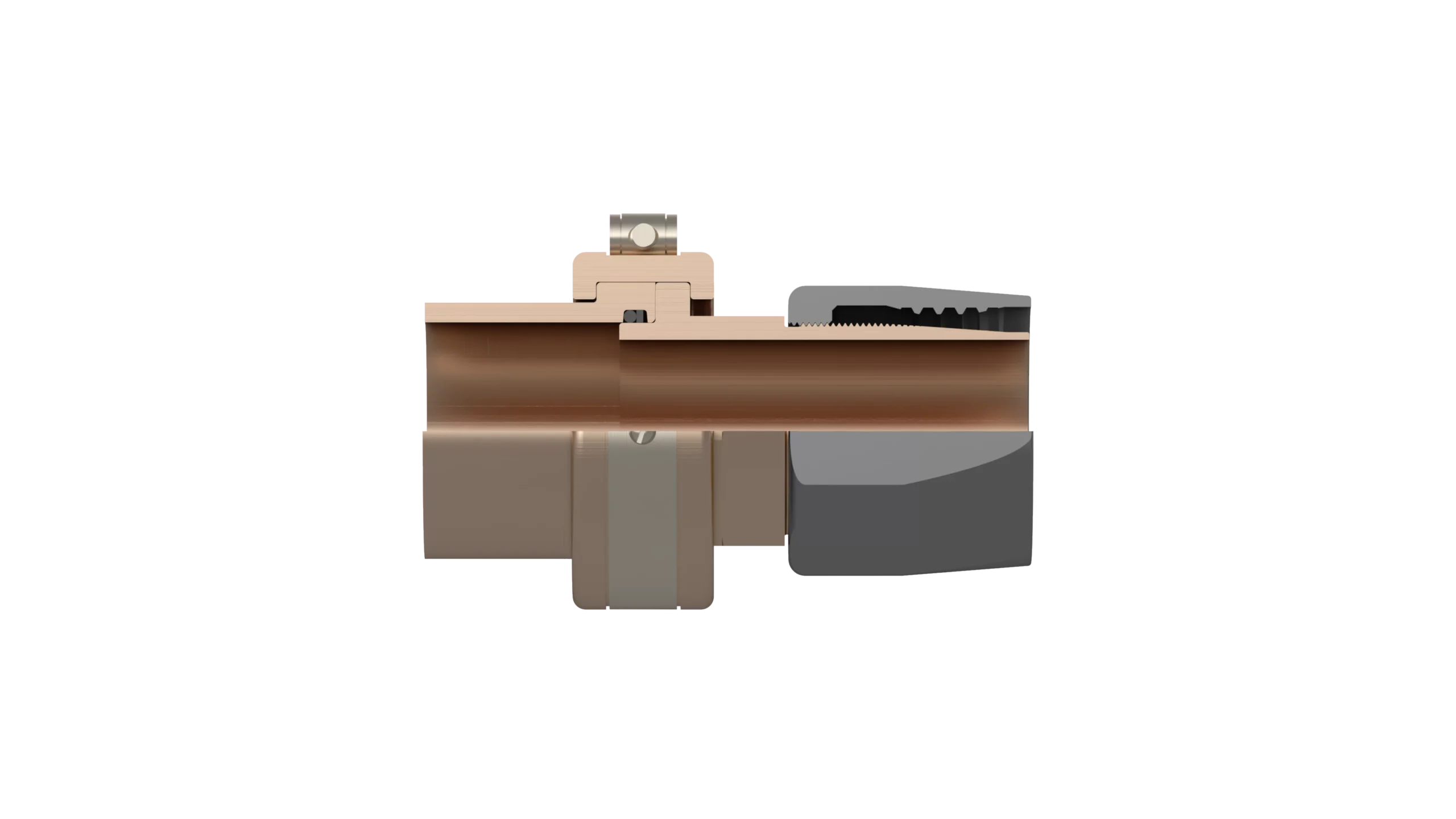

( MIL-DTL-24787/4, Type E, Group VIII, End Fitting - Straight )
Description:
Equal to Hydrasearch P/N FC9423-375,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | FC9423-2032-375 |
|---|---|
| IPS Size | 1.25 |
| A | 5.44 |
| C | 2.12 |
| D | 3.60 |
| E | 1.53 |
| F | 1.66 |
| G | 2.44 |
| M | 1.12 |
| V | 2.25 |
| Y | .39 |
| Z | 3.00 |
| Est. Wt. (lbs.) | - |
Components Table
| Description | Req’d per Ass’y | Base No. | 2032 | 2432 | 3240 | 4048 | Material |
| Nipple | 1 | 188-1237- | 1.25-32 | 1.5-32 | 2-40 | 2.5-48 | Aluminum. Bronze |
| Socket | 1 | 4-1212- | 32 | 32 | 40 | 48 | Monel |
| Tailpiece | 1 | FF5002-188 | 20 | 24 | 32 | 40 | Aluminum. Bronze |
| Split Clamp | 1 | 900758- | 1.25 | 1.5 | 2 | 2.5 | Aluminum. Bronze |
