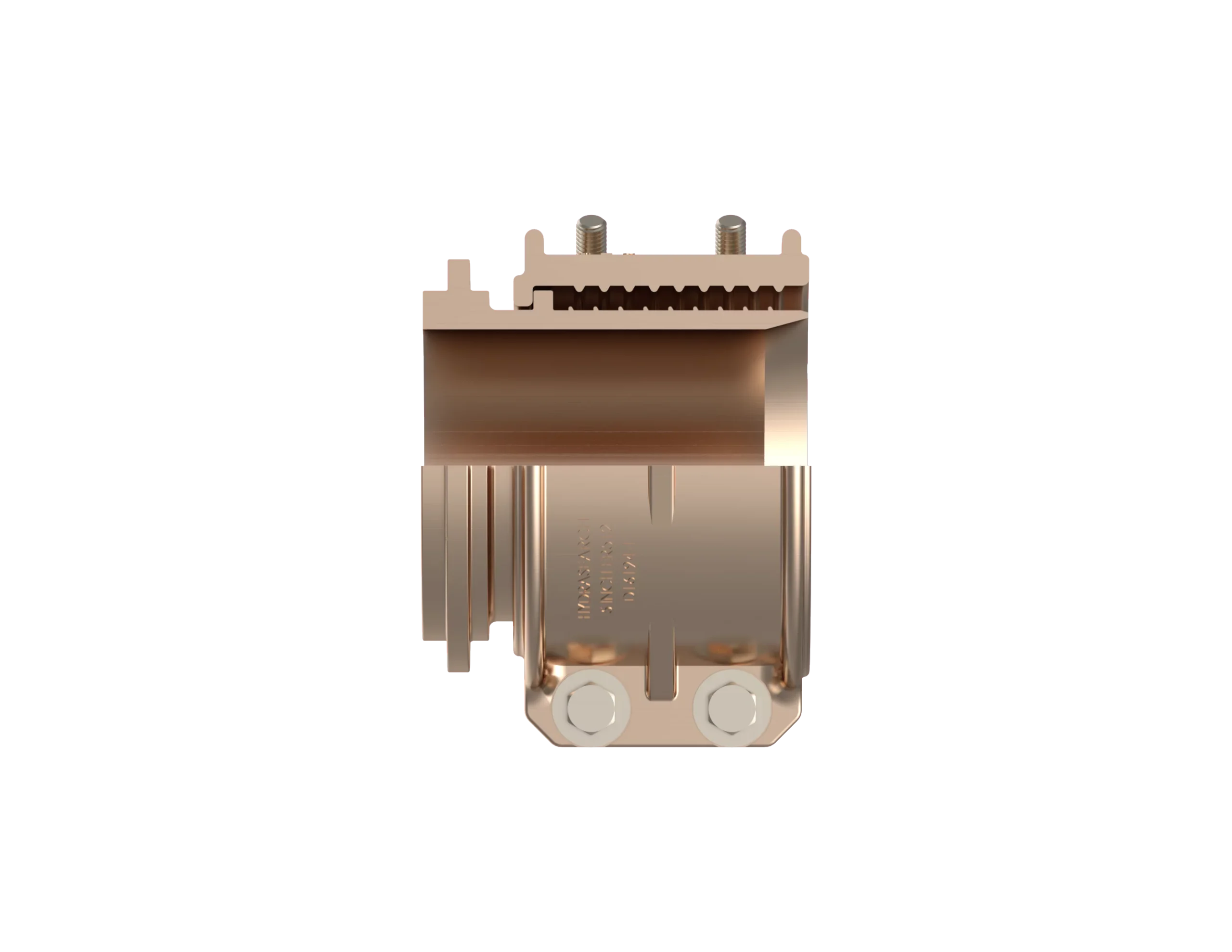

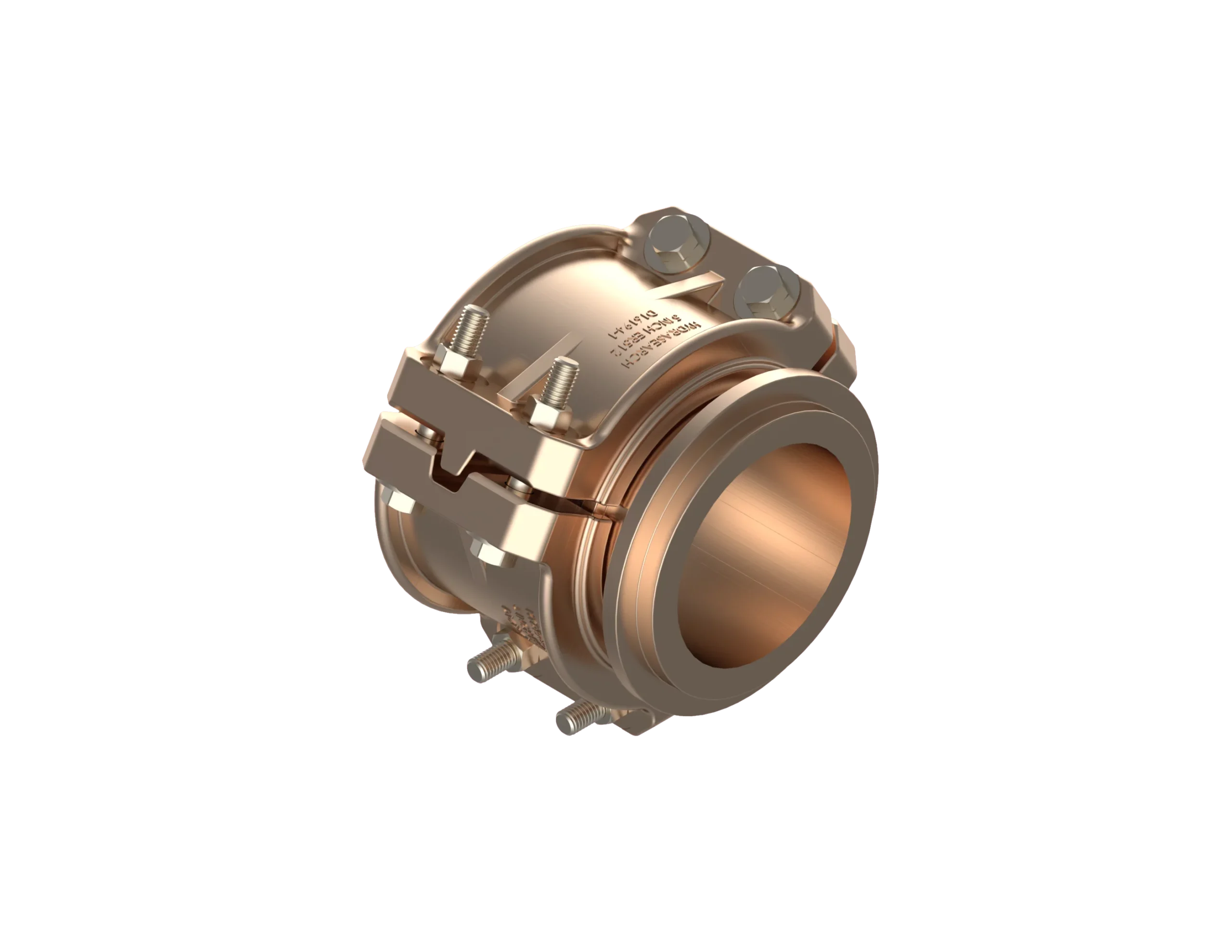

( MIL-DTL-24787/4, Type E, Group IX, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7755-188,
Use with the following hose: ER512 & 2580

Specification

  • Part Number: FC7755-8080-188
  • IPS Size: 5
  • A: 6.22
  • D: 2.10
  • E: 4.40
  • F: 5.62
  • M: .40
  • T: 11.44
  • V: 4.75
  • Z: 6.63
  • Est. Wt. (lbs.): 36.70

Specification Table

Part NumberFC7755-8080-188
IPS Size5
A6.22
D2.10
E4.40
F5.62
M.40
T11.44
V4.75
Z6.63
Est. Wt. (lbs.)36.70

Components Table

DescriptionReq’d per Ass’yBase No.80809696080810101212Material
Nipple1FC2468-8080-1889696-1880808-1881010-1881212-188Aluminum. Bronze
Grip Segment2FC2457-1-80-18896-18808-18810-18812-188Aluminum. Bronze
Bolt4FF9411-10-8810-8812-8812-10012-48Monel
Nut4FF9033-10-410-412-412-412-4Monel
Washer6FF9412-1001-41001-41201-41201-41201-4Monel
