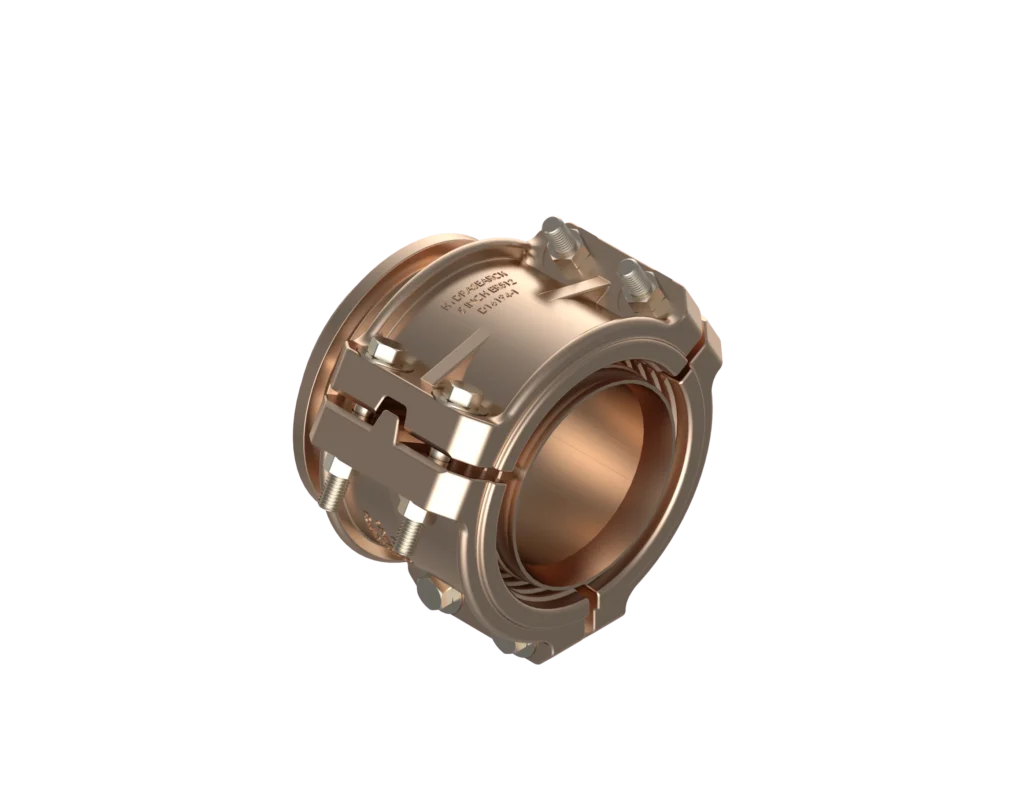

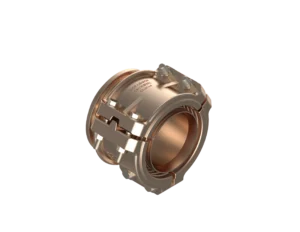

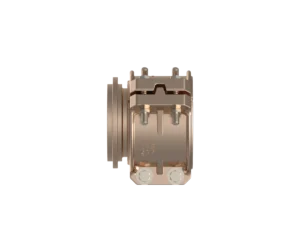

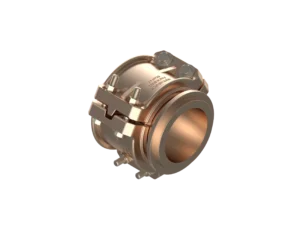

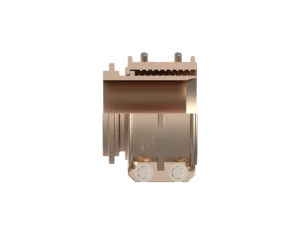

( MIL-DTL-24787/4, Type E, Group IX, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7755-188,
Use with the following hose: ER512 & 2580

Specification

  • Part Number: FC7755-1212-188
  • IPS Size: 12
  • A: 8.16
  • D: 2.91
  • E: 11.40
  • F: 12.00
  • M: .88
  • T: 17.04
  • V: 6.00
  • Z: 13.38
  • Est. Wt. (lbs.): 119.00

Specification Table

Part NumberFC7755-1212-188
IPS Size12
A8.16
D2.91
E11.40
F12.00
M.88
T17.04
V6.00
Z13.38
Est. Wt. (lbs.)119.00

Components Table

DescriptionReq’d per Ass’yBase No.80809696080810101212Material
Nipple1FC2468-8080-1889696-1880808-1881010-1881212-188Aluminum. Bronze
Grip Segment2FC2457-1-80-18896-18808-18810-18812-188Aluminum. Bronze
Bolt4FF9411-10-8810-8812-8812-10012-48Monel
Nut4FF9033-10-410-412-412-412-4Monel
Washer6FF9412-1001-41001-41201-41201-41201-4Monel
