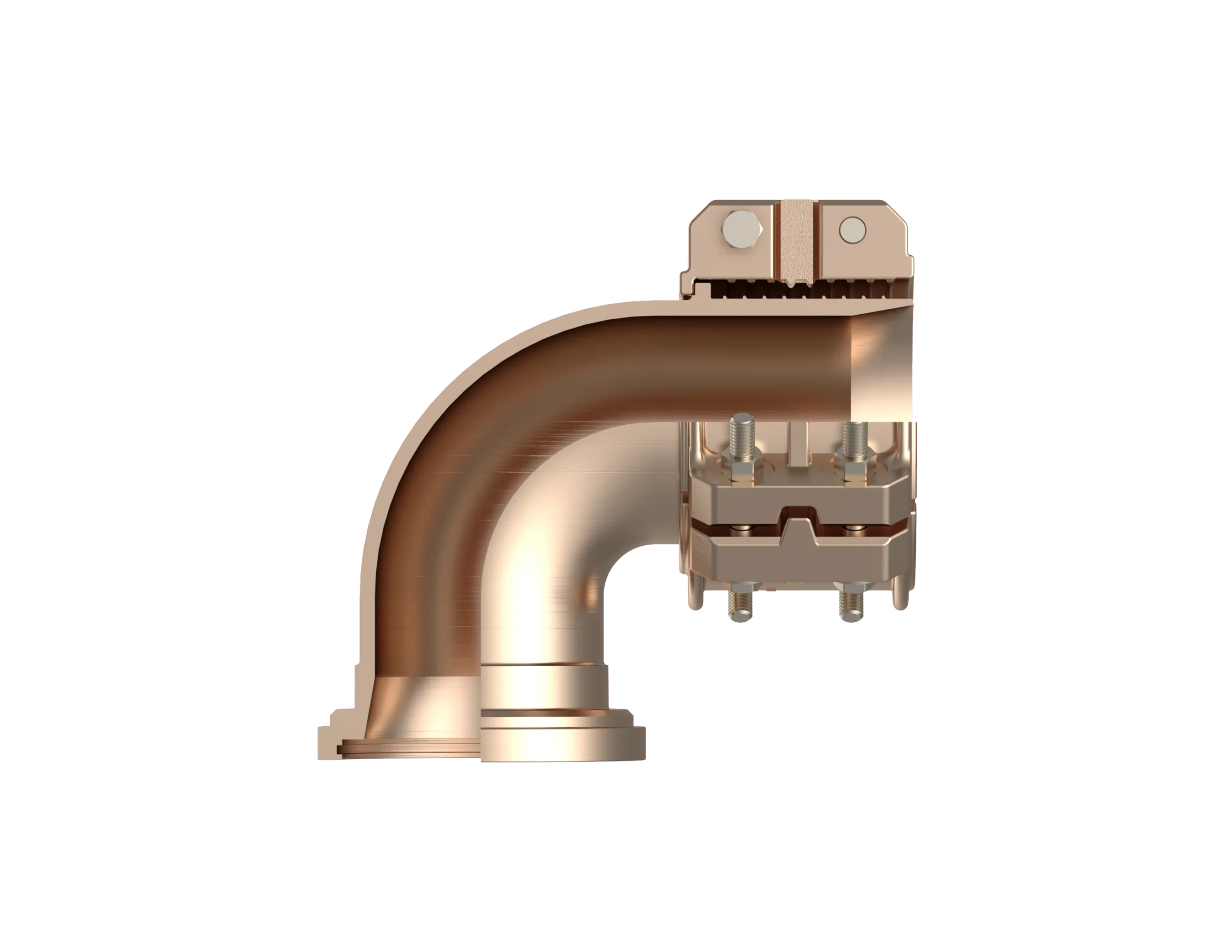

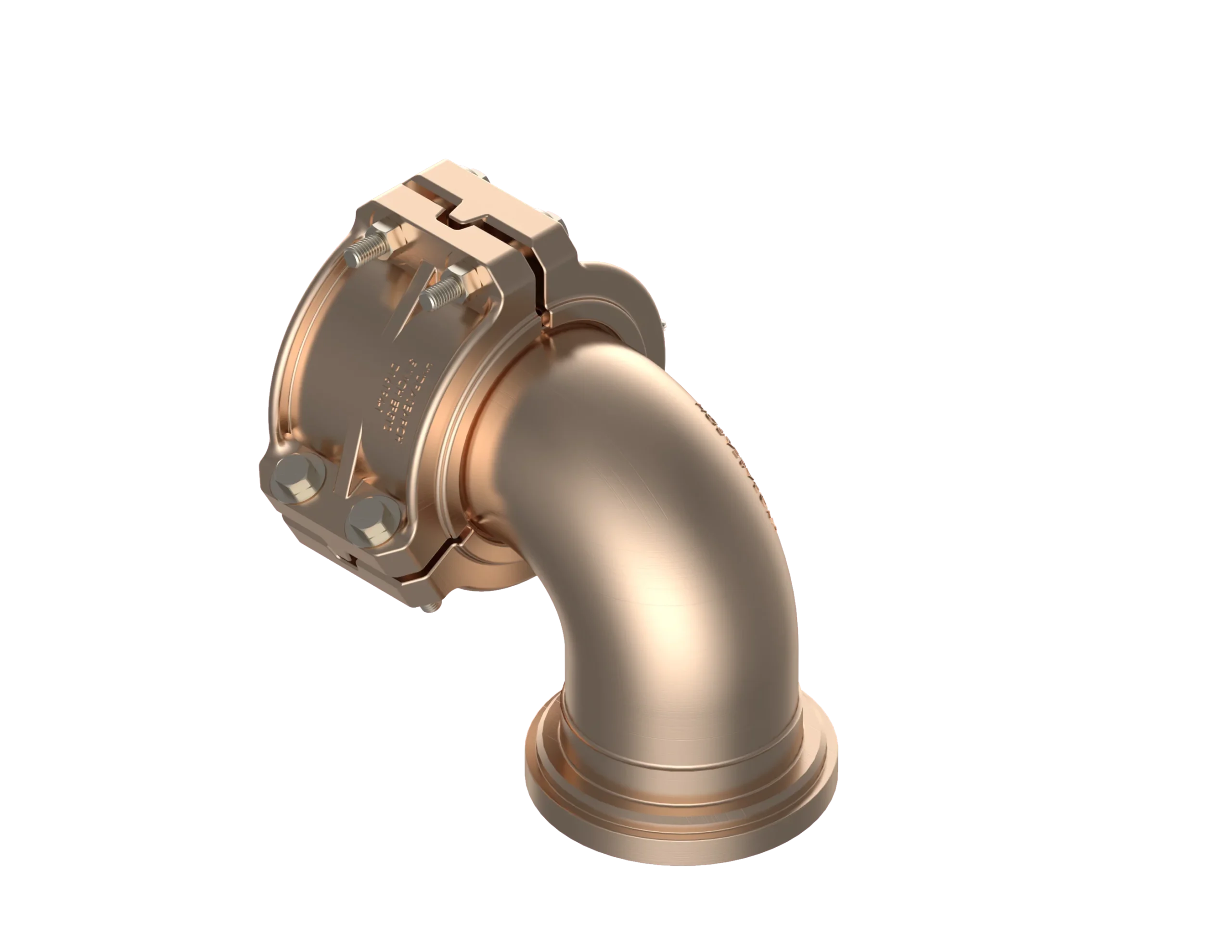

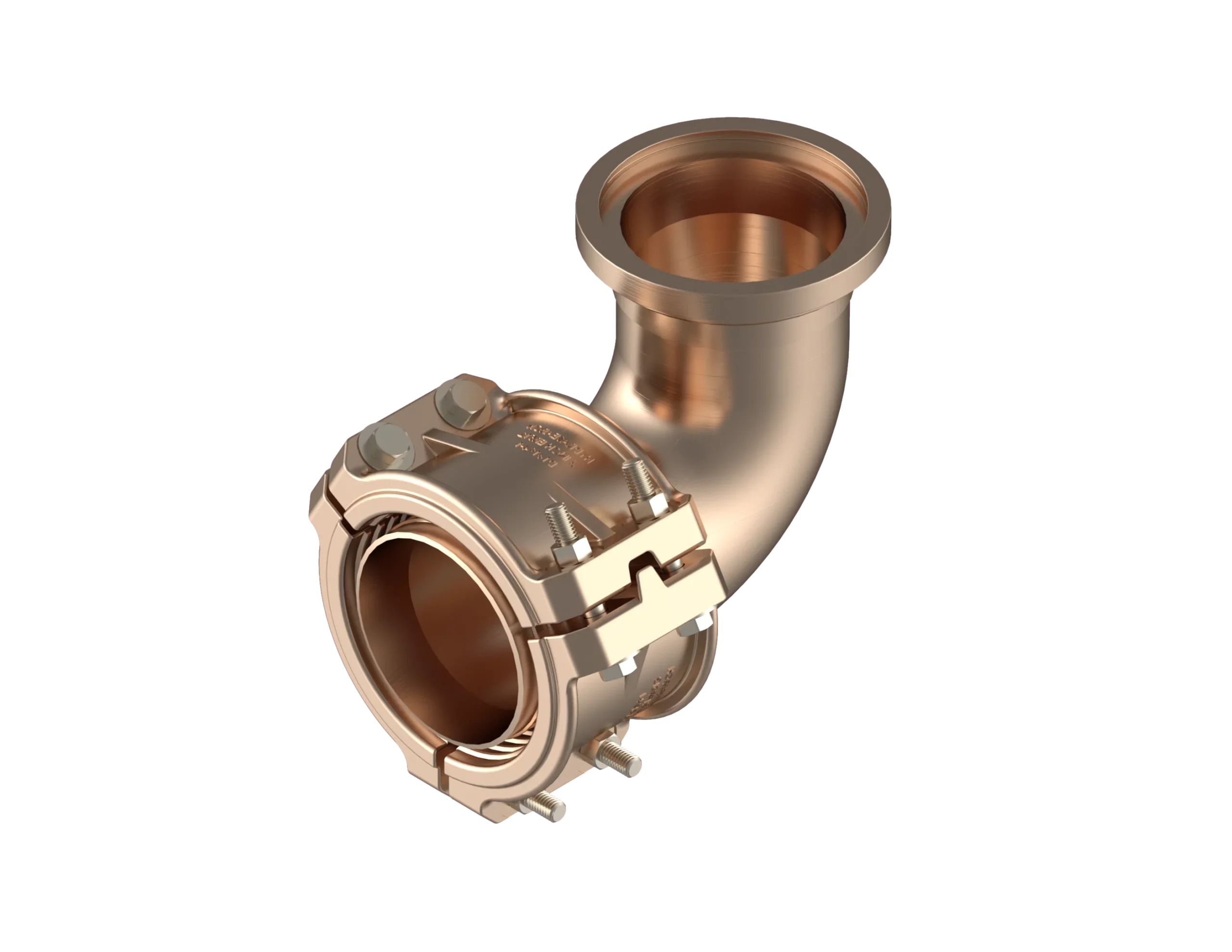

( MIL-DTL-24787/4, Type EL, Group IX, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7753-188,
Use with the following hose: ER512 & 2580

Specification

  • Part Number: FC7753-1010-188
  • IPS Size: 10
  • A: 11.89
  • D: 7.77
  • F: 11.01
  • H: 9.70
  • M: .88
  • R: 6.38
  • T: 16.48
  • Z: 12.06
  • Est. Wt. (lbs.): 120.00

Specification Table

Part NumberFC7753-1010-188
IPS Size10
A11.89
D7.77
F11.01
H9.70
M.88
R6.38
T16.48
Z12.06
Est. Wt. (lbs.)120.00

Components Table

DescriptionReq’d per Ass’yBase No.80809696080810101212Material
Elbow1FC2457-18080-1889696-1880808-1881010-1881212-188Aluminum. Bronze
Grip Segment2FC2457-1-80-18896-18808-18810-18812-188Aluminum. Bronze
Bolt4FF9411-10-8810-8812-8812-10012-48Monel
Nut4FF9033-10-410-412-412-412-4Monel
Washer4FF9412-1001-41001-41201-41201-41201-4Monel
