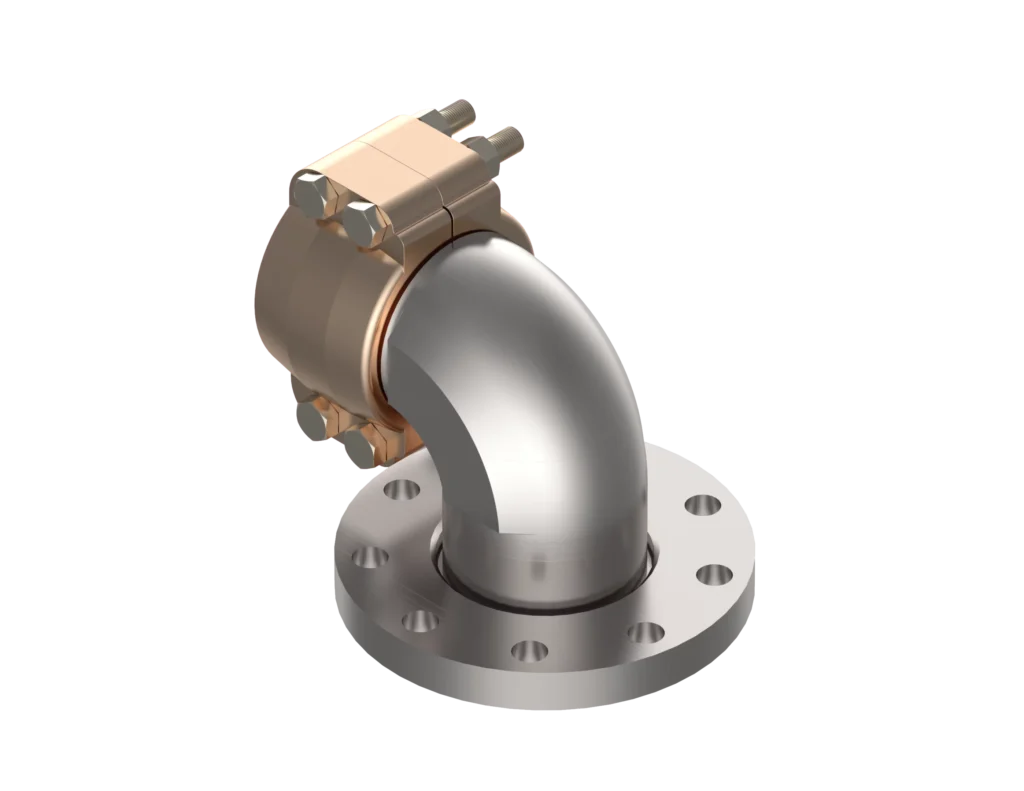

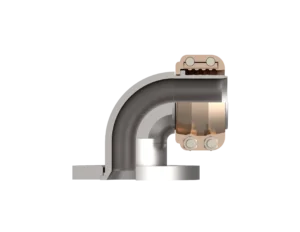

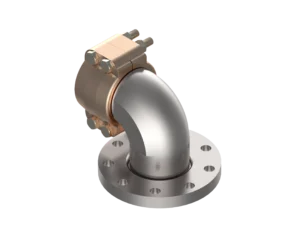

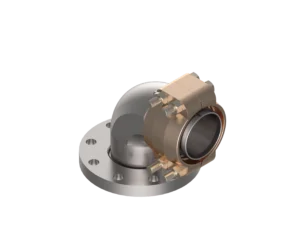

( 150lb, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7554-410,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC7554-6464-410
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • A: 6.48
  • D: 3.57
  • H: 5.62
  • J: 9.00
  • K: 5.22
  • L: 7.50
  • M: .75
  • N: .50
  • R: 2.81
  • S: 4.28
  • T: 8.91
  • Est. Wt. (lbs.): 30.00

Specification Table

Part NumberFC7554-6464-410
IPS Size4
No. of Bolt Holes8
A6.48
D3.57
H5.62
J9.00
K5.22
L7.50
M.75
N.50
R2.81
S4.28
T8.91
Est. Wt. (lbs.)30.00

Components Table

DescriptionReq’d per Ass’yBase No.48486464Material
Swivel Flange1407-74021-48-4864-64Stainless Steel
Elbow1FC3558-4848-4076464-407Stainless Steel
Grip Segment2FC3476-48-18864-188Aluminum. Bronze
Bolt4FF9142-0964-41072-4Monel
Nut44-222048-910Monel
