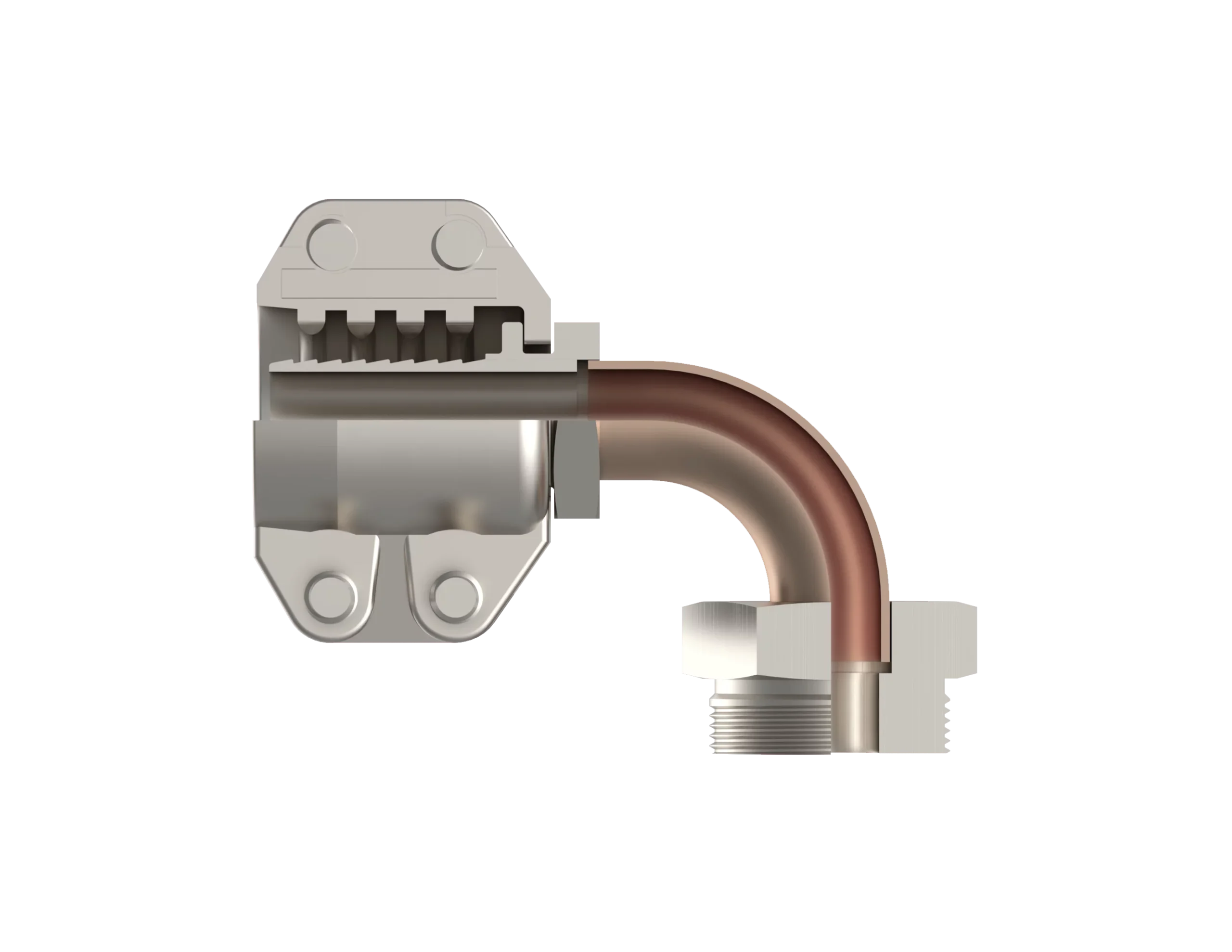

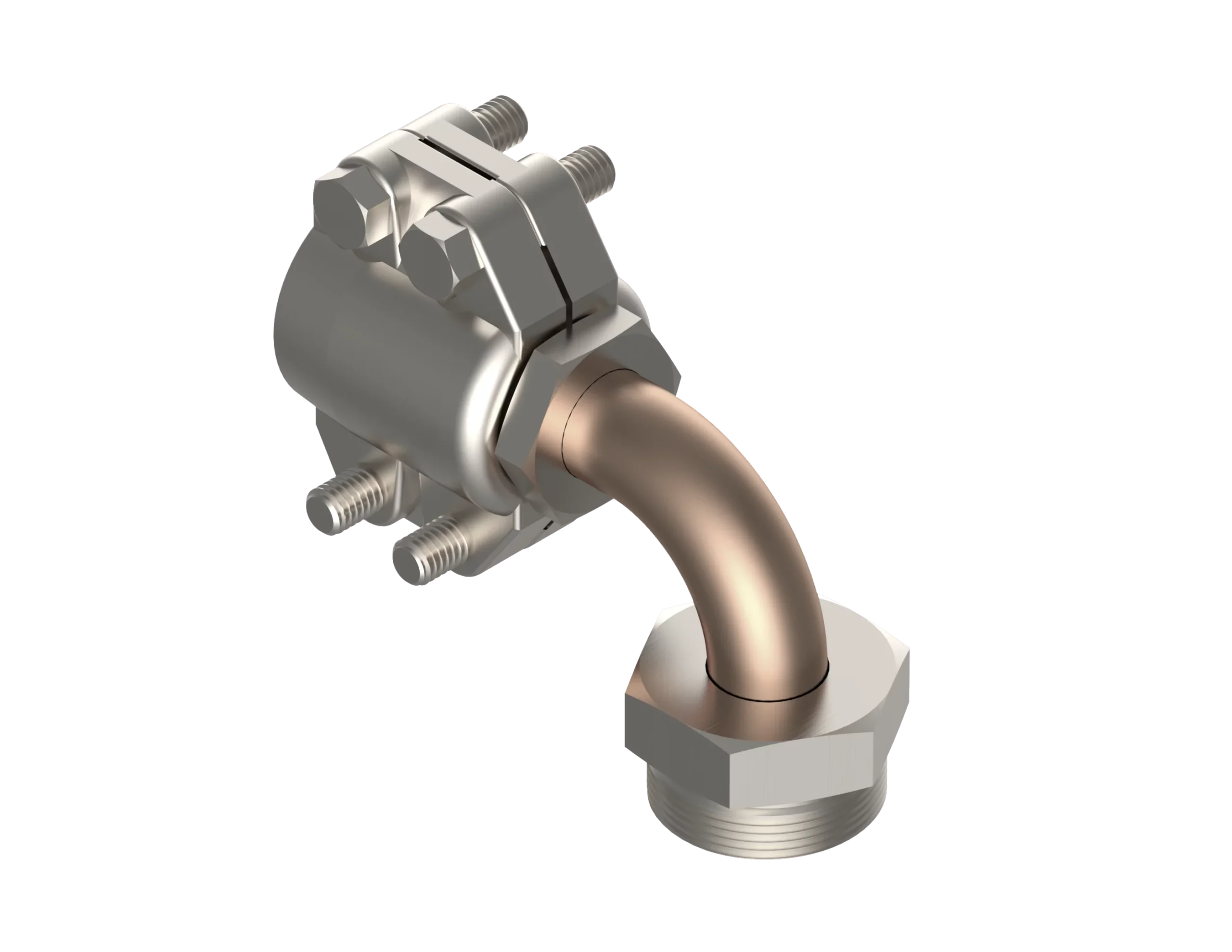

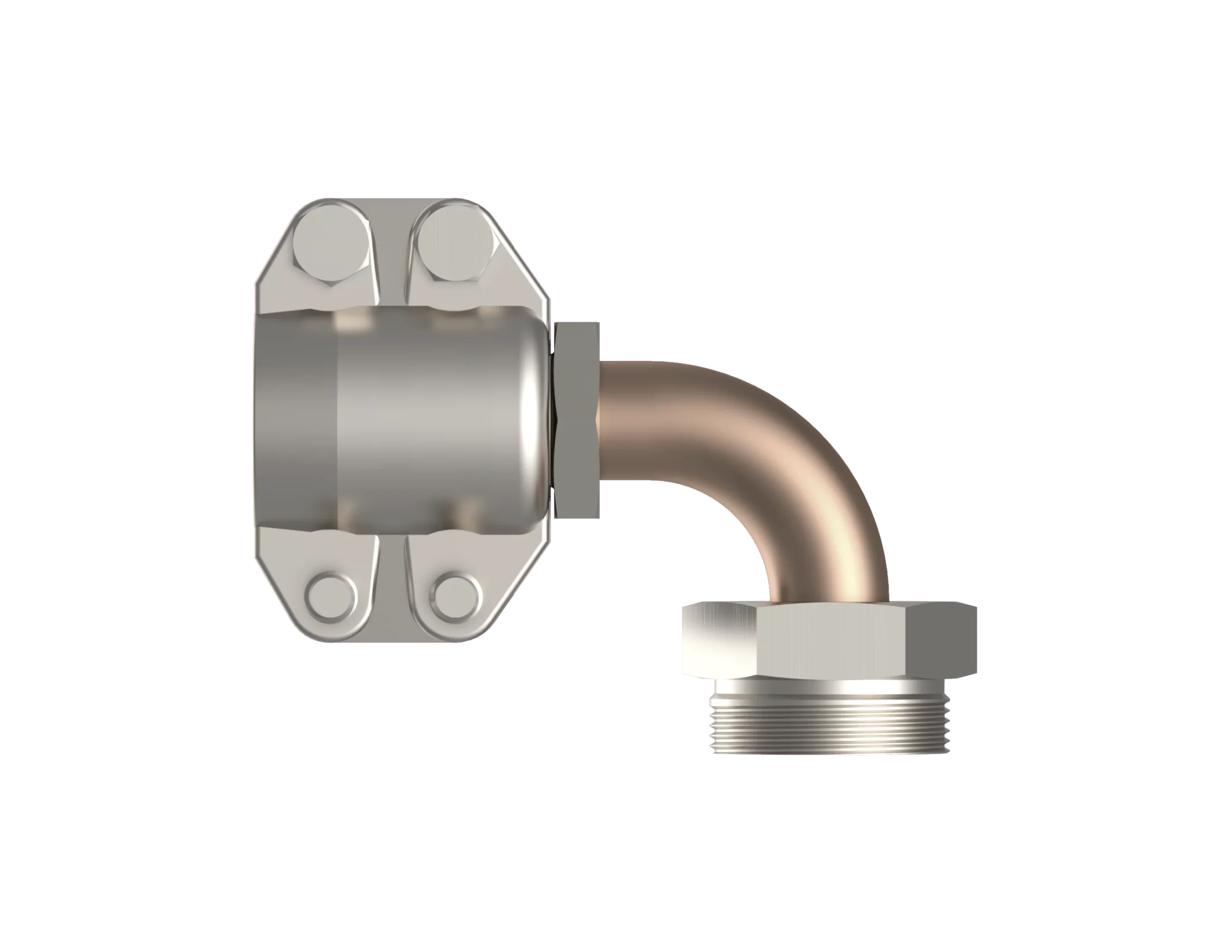

( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7182-3232-4
  • IPS Size: 2
  • Thread CL-3A: 3-3/4”-12
  • A: 7.60
  • C: 3.88
  • D: 4.52
  • E: 1.75
  • H: 4.05
  • M: .88
  • R: 2.50
  • V: 3.88
  • W: 2.75
  • X: 5.65
  • Est. Wt. (lbs.): 15.00

Specification Table

Part NumberFC7182-3232-4
IPS Size2
Thread CL-3A3-3/4”-12
A7.60
C3.88
D4.52
E1.75
H4.05
M.88
R2.50
V3.88
W2.75
X5.65
Est. Wt. (lbs.)15.00

Components Table

DescriptionReq’d per Ass’yBase No.161616202020242424323232Mat’l
Elbow1FC6182-1616-41620-42020-42424-42432-43232-4Monel
Segment2FC2057-1-16-41-20-41-20-41-24-41-32-41-32-4Monel
Bolt2FF9032-07-28-407-28-407-28-408-28-407-36-409-36-4Monel
