FC7182-0812-4

FC7182-0812-4

Print Icon Print Download Icon Download PDF

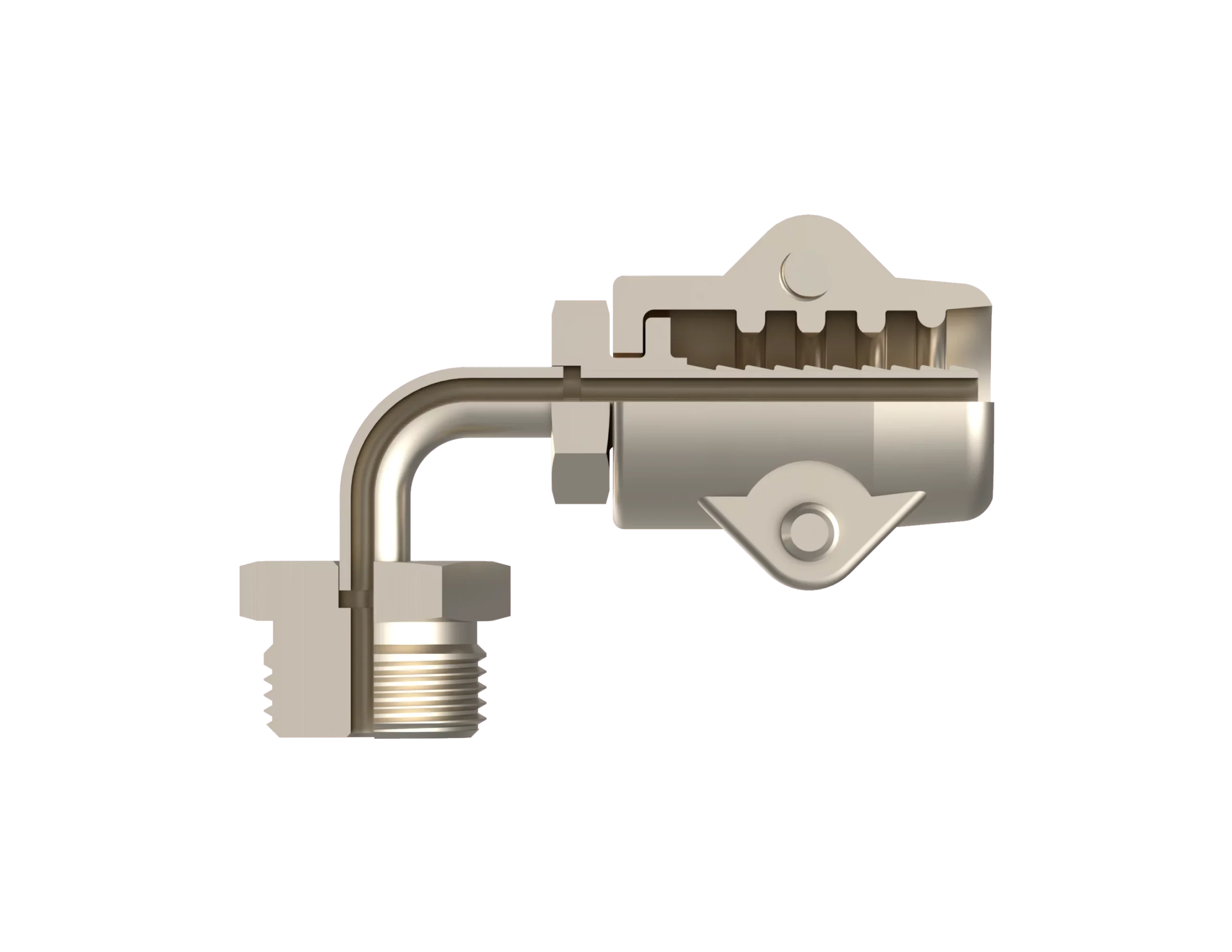

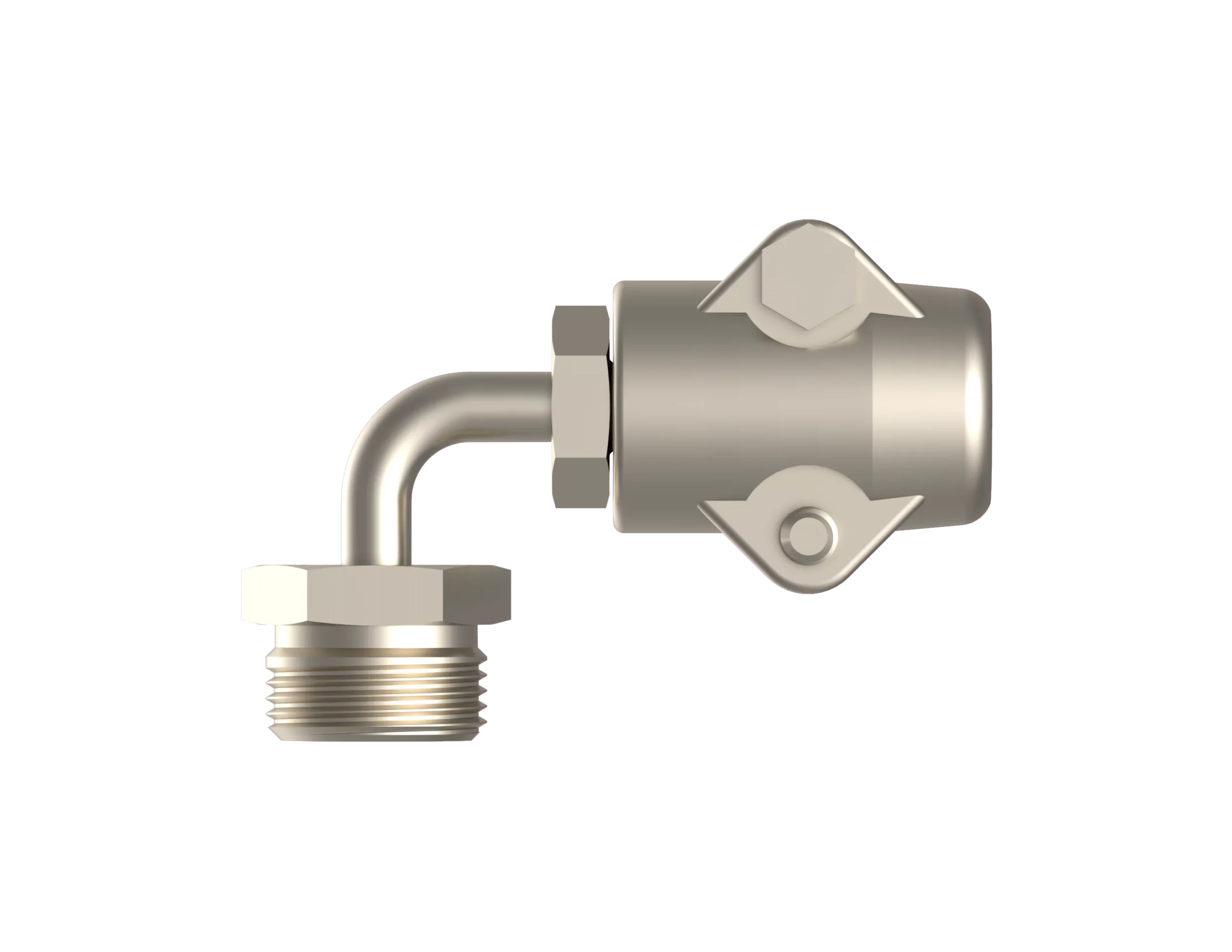

( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7182-0812-4
  • IPS Size: 1/2
  • Thread CL-3A: 1-3/4”-12
  • A: 4.51
  • C: 1.31
  • D: 2.61
  • E: .56
  • H: 2.31
  • M: .62
  • R: 1.25
  • V: 2.42
  • W: 1.81
  • X: 3.27
  • Est. Wt. (lbs.): 2.60

Specification Table

Part NumberFC7182-0812-4
IPS Size1/2
Thread CL-3A1-3/4”-12
A4.51
C1.31
D2.61
E.56
H2.31
M.62
R1.25
V2.42
W1.81
X3.27
Est. Wt. (lbs.)2.60

Components Table

DescriptionReq’d per Ass’yBase No.04060812Mat’l
Ebow1FC6182-0406-40812-4Monel
Segment2FC2057-1-06-41-12-4Monel
Bolt2FF903205-18-407-24-4Monel
