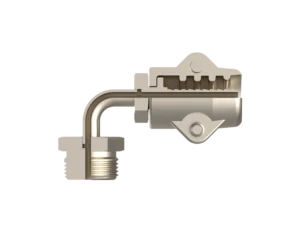

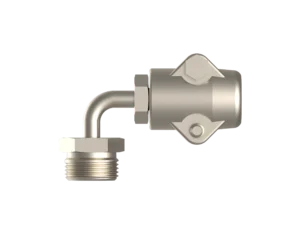

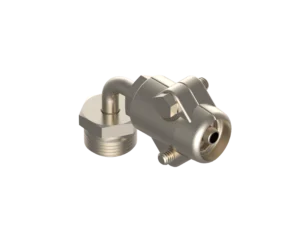

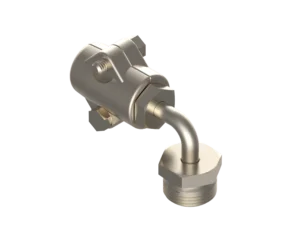

( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

Description:

Equal to Hydrasearch P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7182-0406-4
  • IPS Size: 1/4
  • Thread CL-3A: 1-3/16”-12
  • A: 3.20
  • C: .94
  • D: 1.58
  • E: .24
  • H: 1.43
  • M: .62
  • R: .50
  • V: 2.00
  • W: 1.25
  • X: 2.34
  • Est. Wt. (lbs.): 1.50

Specification Table

Part NumberFC7182-0406-4
IPS Size1/4
Thread CL-3A1-3/16”-12
A3.20
C.94
D1.58
E.24
H1.43
M.62
R.50
V2.00
W1.25
X2.34
Est. Wt. (lbs.)1.50

Components Table

DescriptionReq’d per Ass’yBase No.04060812Mat’l
Ebow1FC6182-0406-40812-4Monel
Segment2FC2057-1-06-41-12-4Monel
Bolt2FF903205-18-407-24-4Monel
