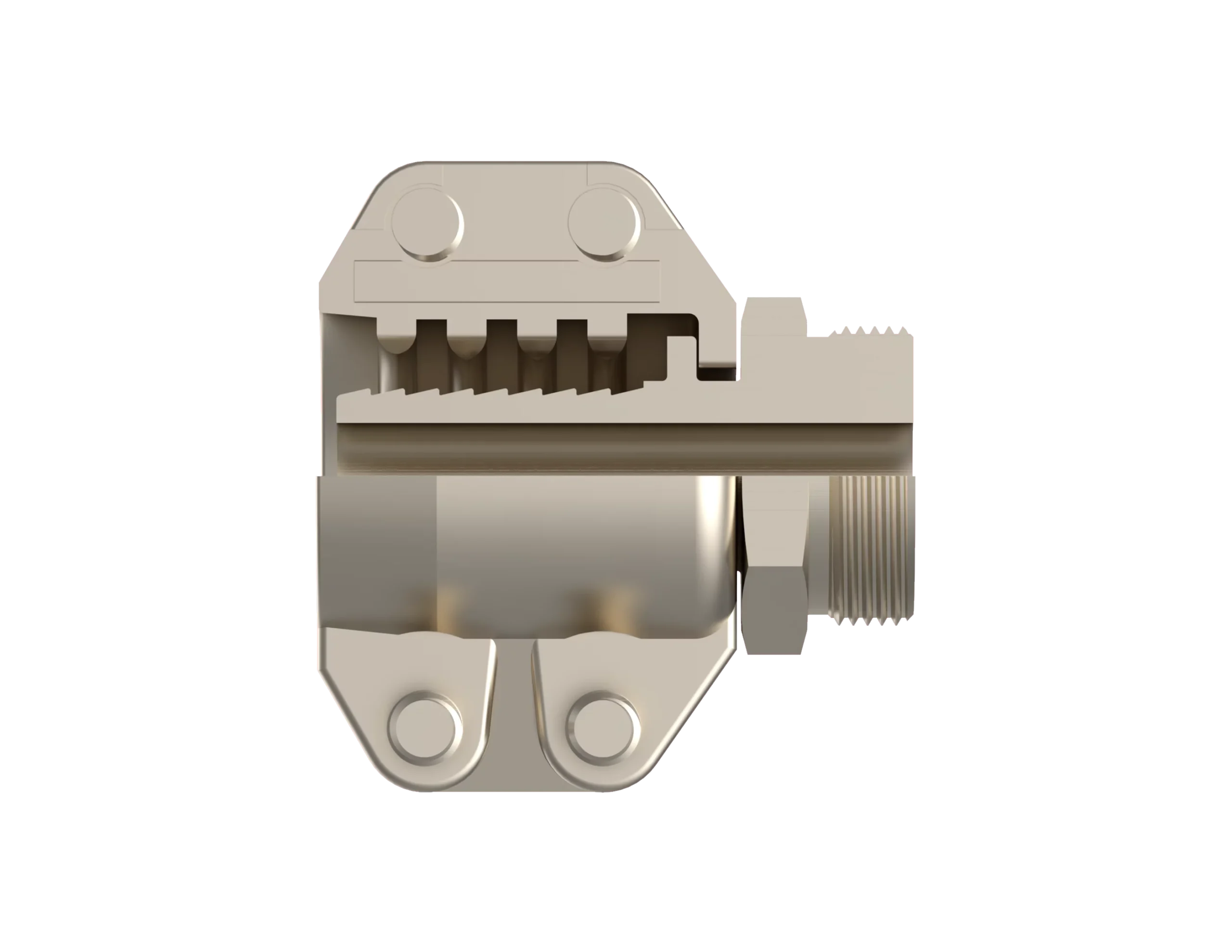

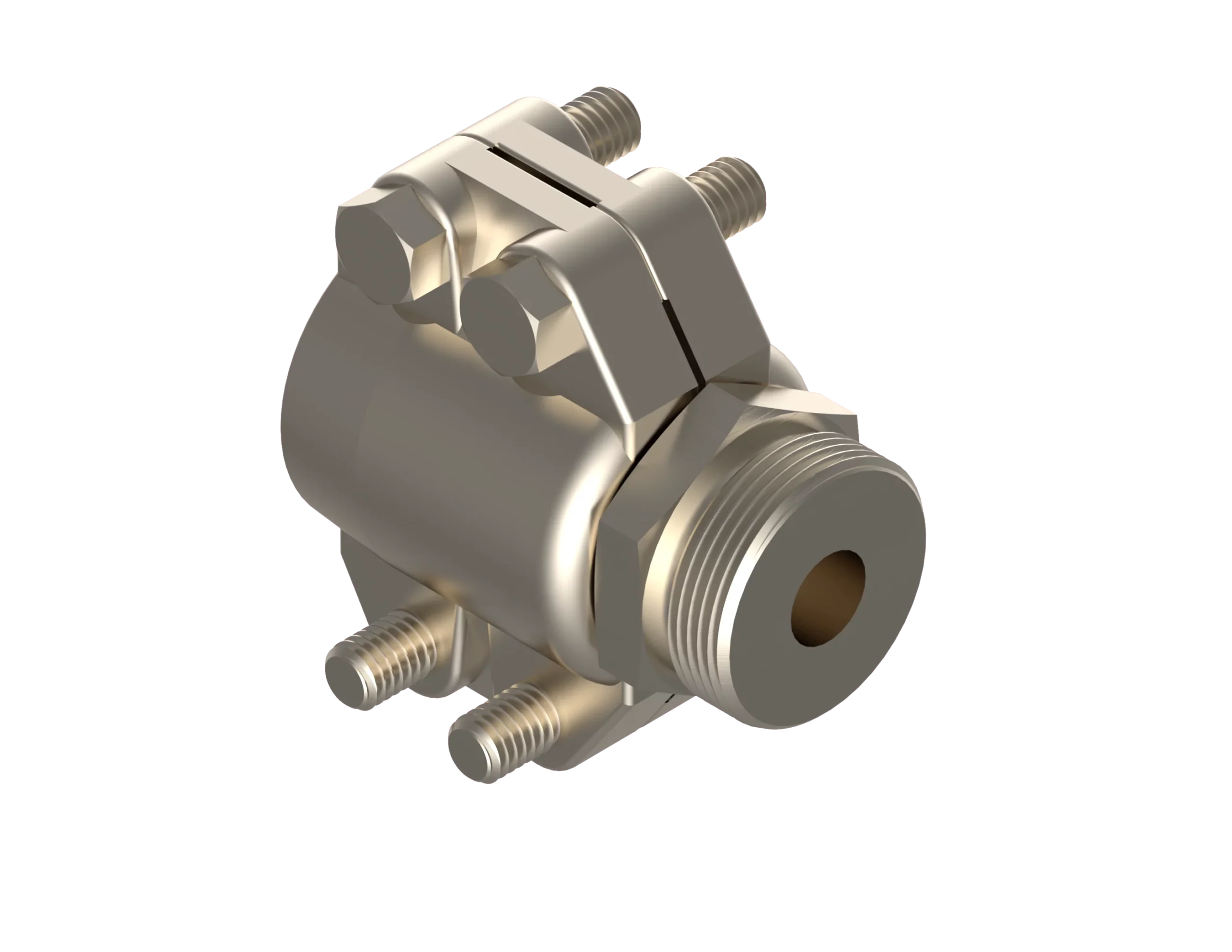

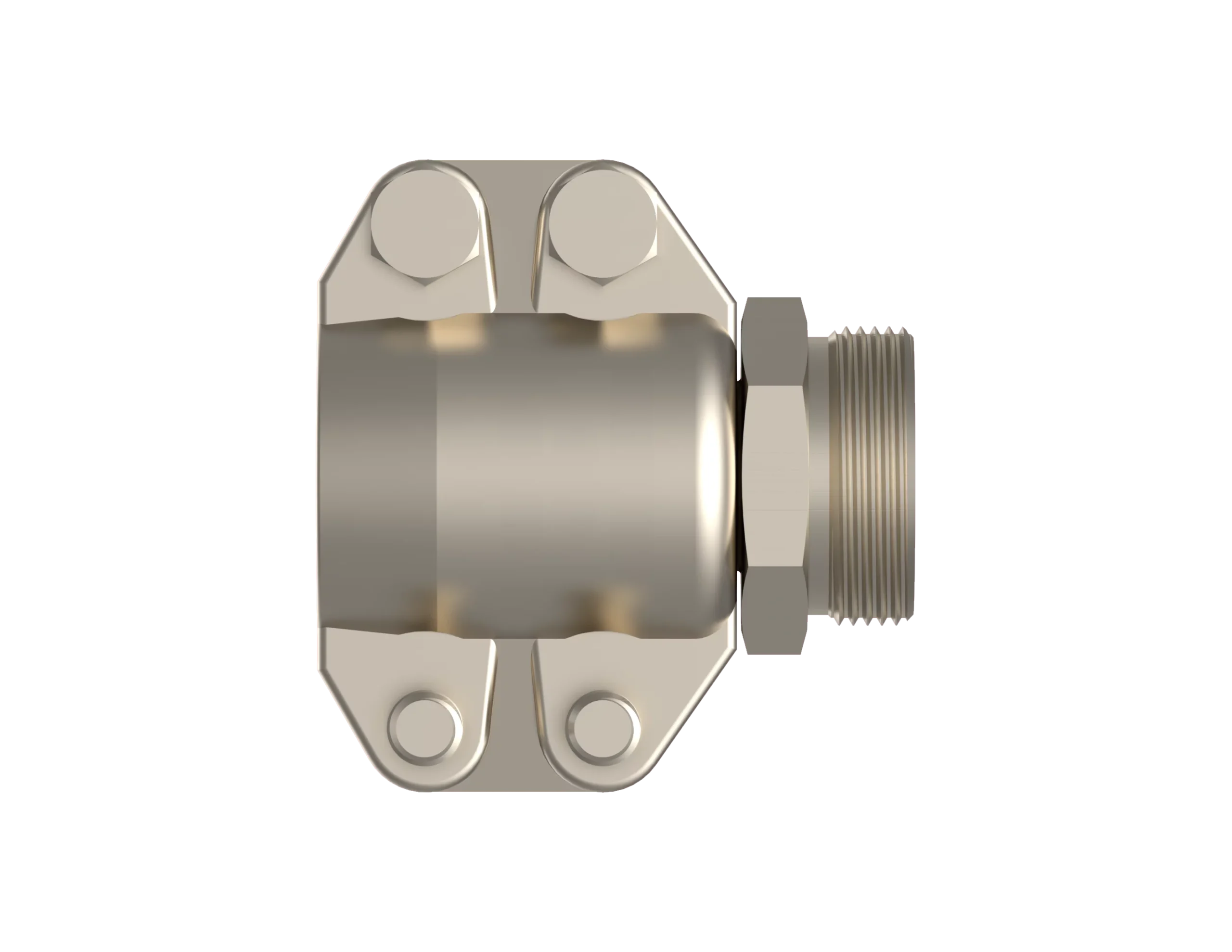

( MIL-DTL-24787/3, Type C, Group XI, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7180-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7180-1216-4
  • IPS Size: 3/4
  • Thread CL-3A: 2”-12
  • A: 3.60
  • C: 2.12
  • D: 1.69
  • E: .62
  • M: .62
  • V: 2.42
  • X: 4.02
  • Est. Wt. (lbs.): 3.80

Specification Table

Part NumberFC7180-1216-4
IPS Size3/4
Thread CL-3A2”-12
A3.60
C2.12
D1.69
E.62
M.62
V2.42
X4.02
Est. Wt. (lbs.)3.80

Components Table

DescriptionReq’d per Ass’yBase No.12161616162020202024242424323232Mat’l
Nipple1FC2074-1216-41616-41620-42020-42024-42424-42432-43232-4Monel
Segment2FC2057-1-16-41-16-41-20-41-20-41-24-41-24-41-32-41-32-4Monel
Bolt4FF9032-07-28-407-28-407-28-407-28-408-28-408-24-409-36-409-36-4Monel
