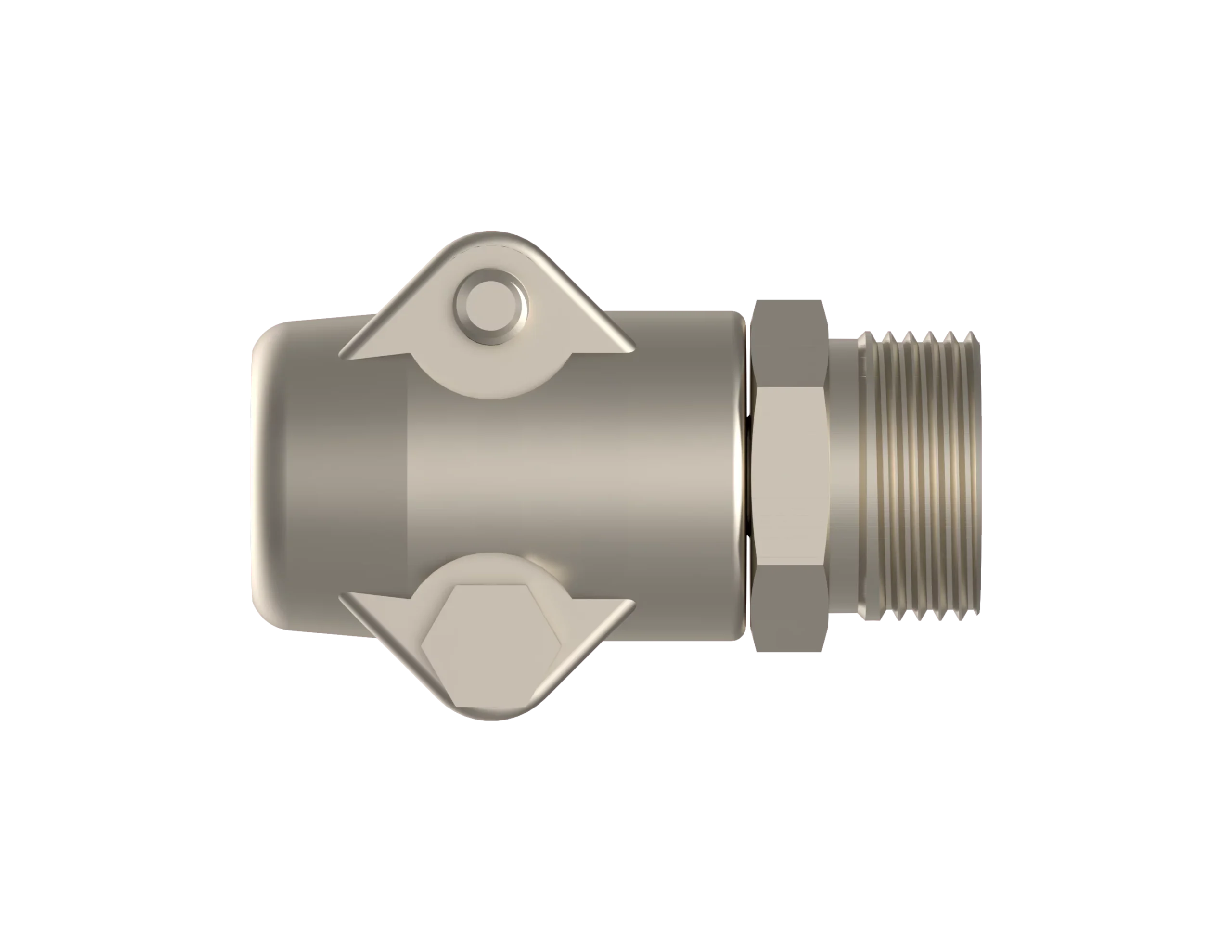

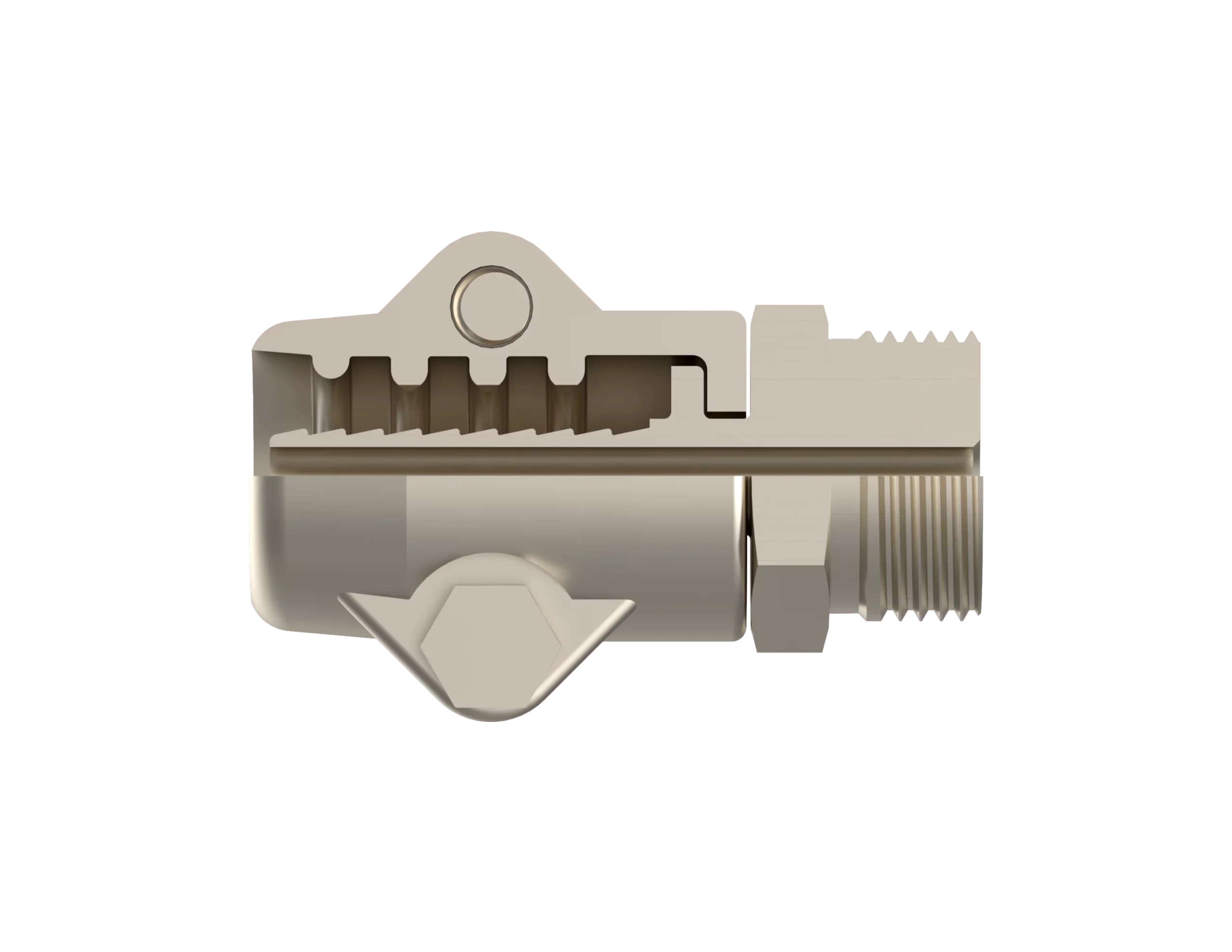

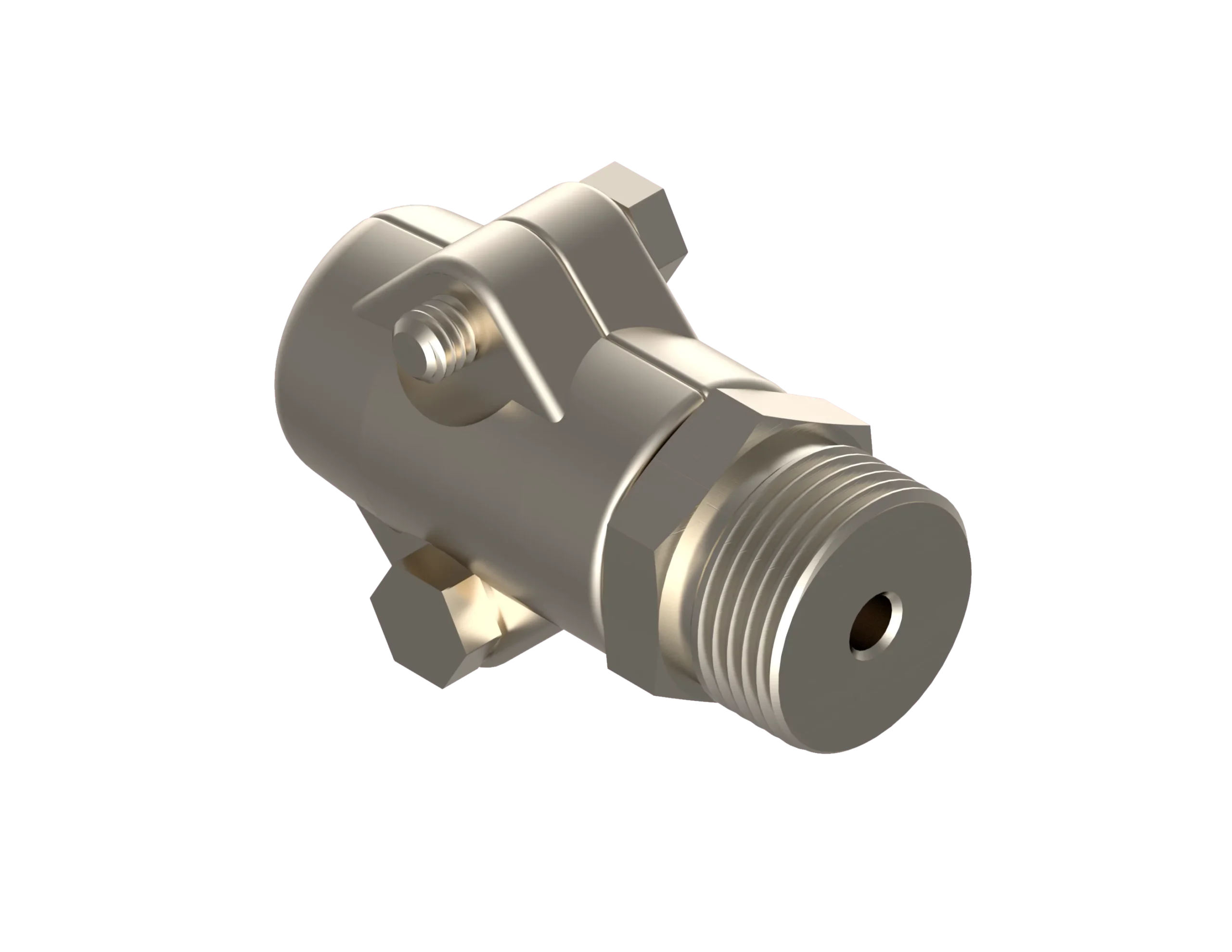

( MIL-DTL-24787/3, Type C, Group XI, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7180-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7180-0408-4
  • IPS Size: 1/4
  • Thread CL-3A: 1-3/16”-12
  • A: 3.02
  • C: 1.25
  • D: 1.30
  • E: .31
  • M: .62
  • V: 2.10
  • X: 2.66
  • Est. Wt. (lbs.): 1.30

Specification Table

Part NumberFC7180-0408-4
IPS Size1/4
Thread CL-3A1-3/16”-12
A3.02
C1.25
D1.30
E.31
M.62
V2.10
X2.66
Est. Wt. (lbs.)1.30

Components Table

DescriptionReq’d per Ass’yBase No.04060408060808080812Mat’l
Nipple1FC2074-0406-40408-40608-40808-40812-4Monel
Segment2FC2057-1-06-41-08-41-08-41-08-41-12-4Monel
Bolt2FF9032-05-18-406-20-406-20-406-20-407-24-4Monel
