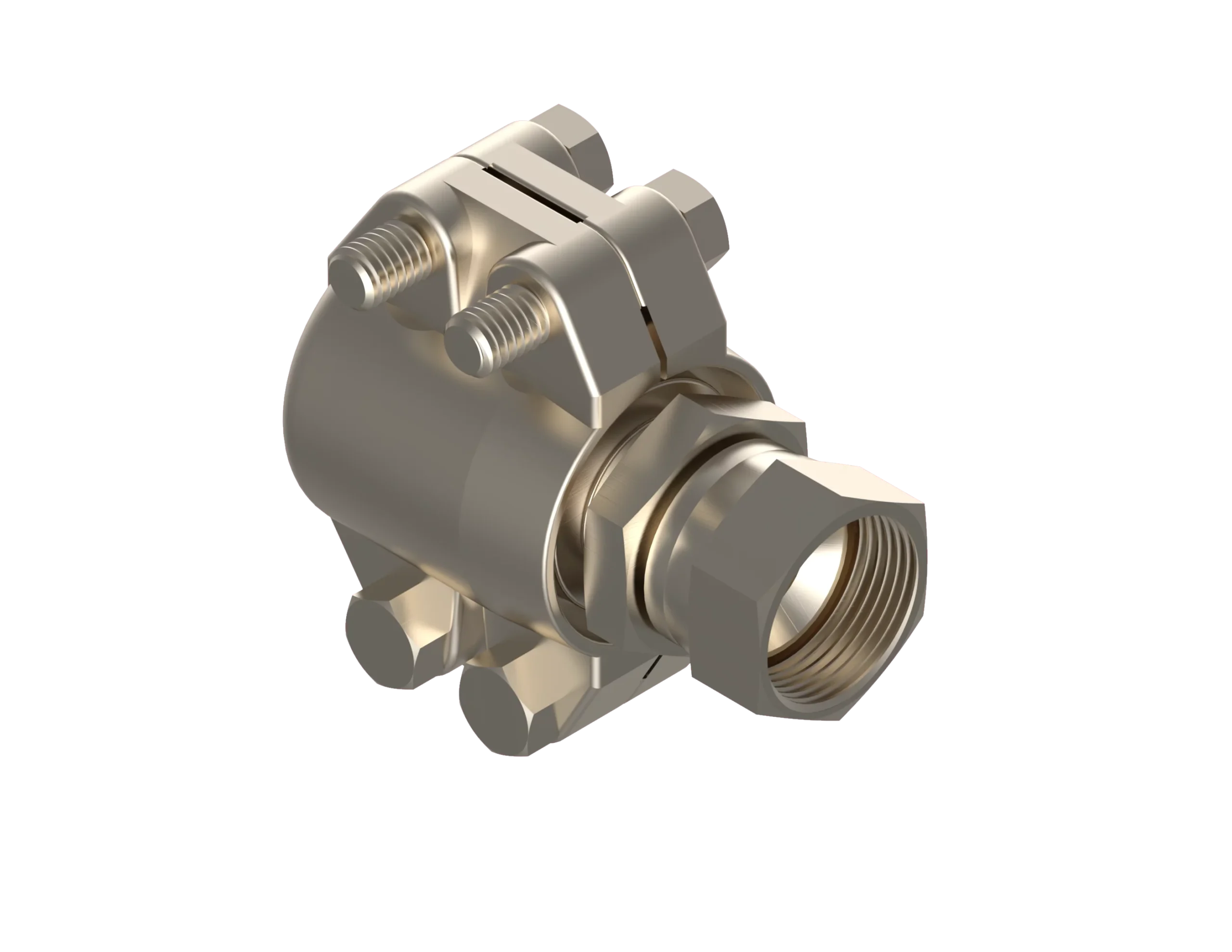

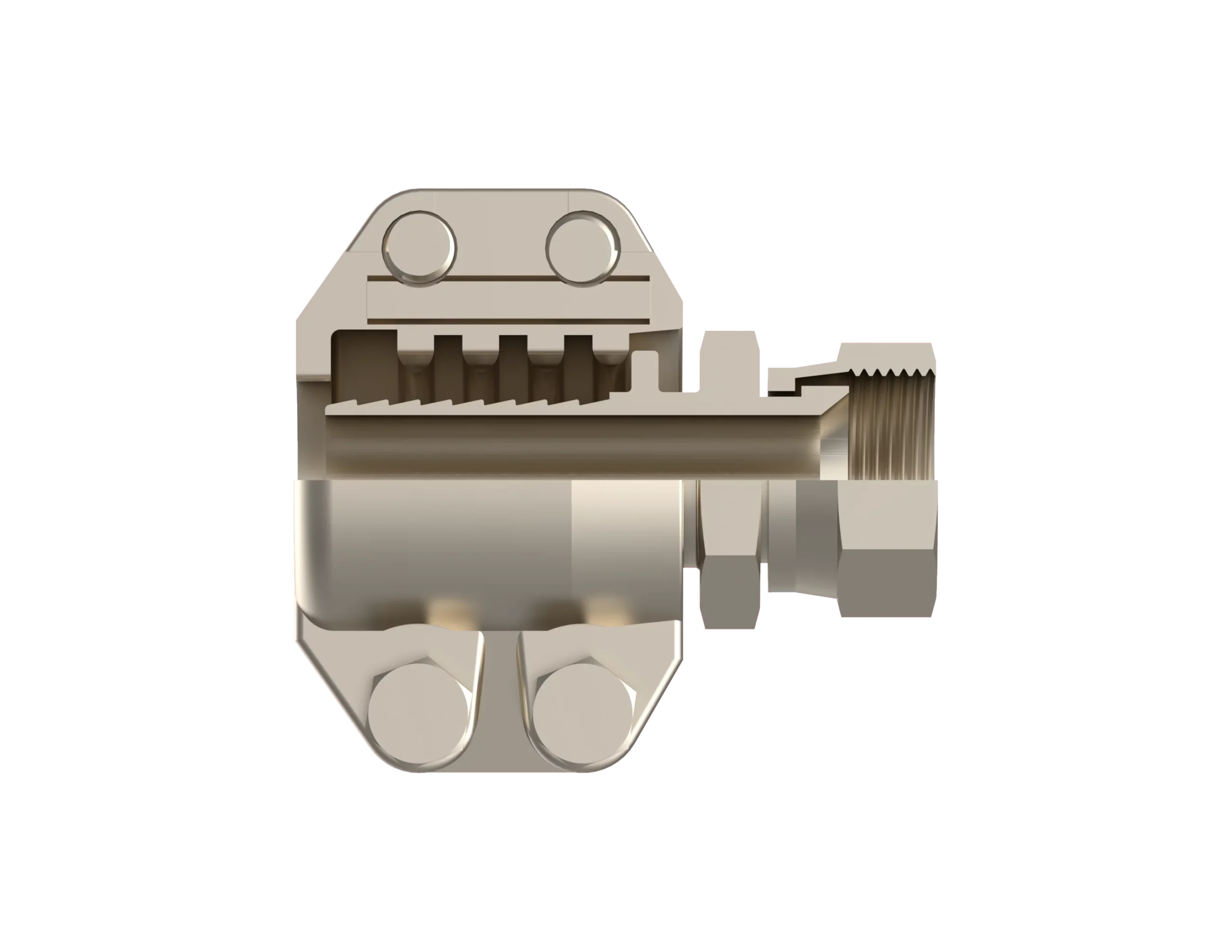

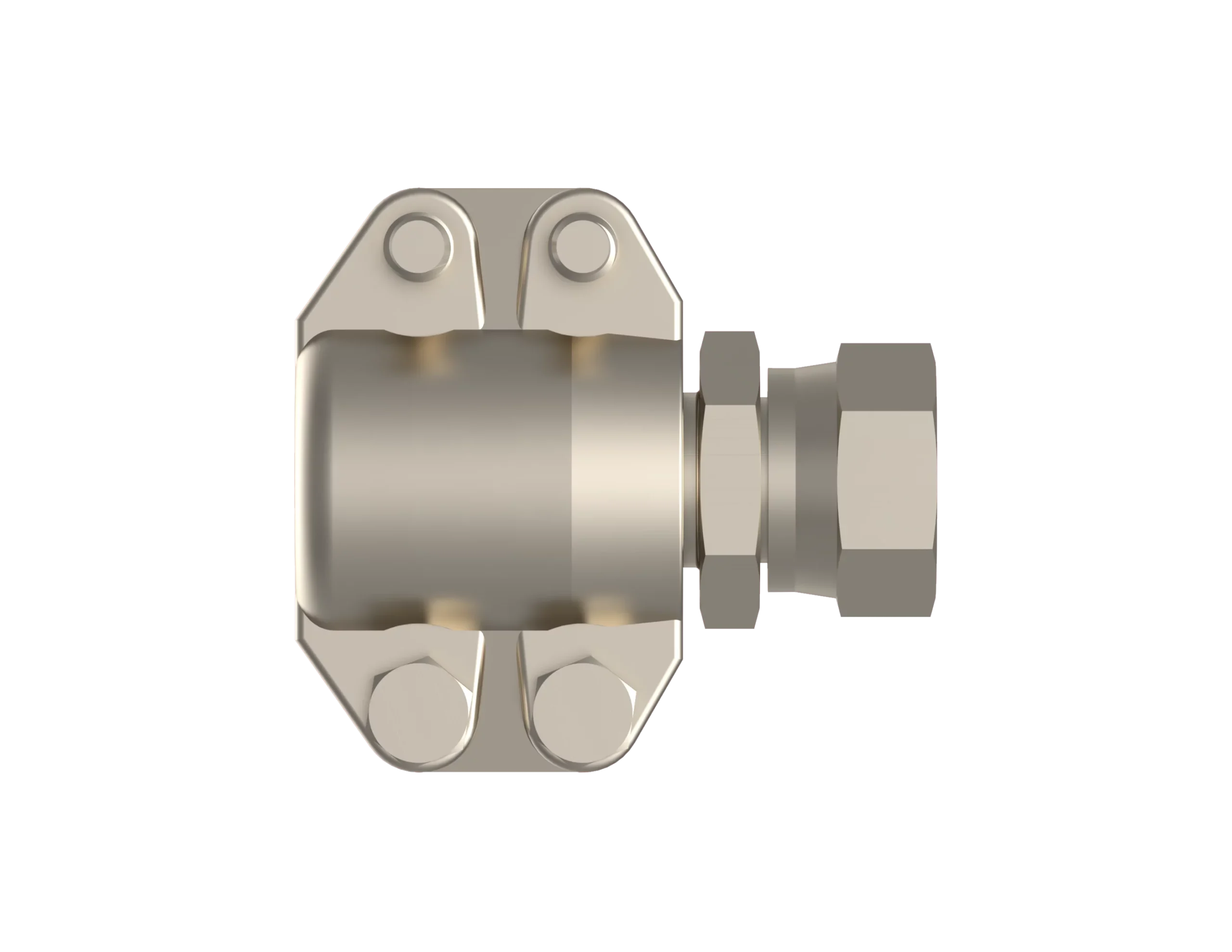

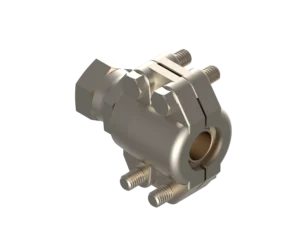

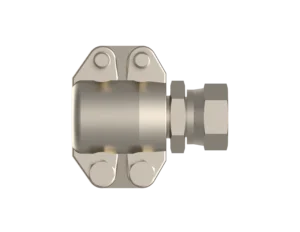

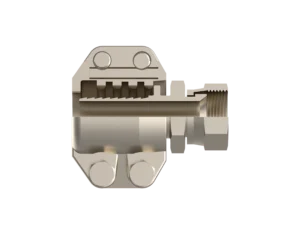

( MIL-DTL-24787/2, Type A, Group XI, J.I.C. End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7100-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7100-3232-4
  • IPS Size: 2
  • Thread CL-2B: 2-1/2”-12
  • A: 6.37
  • C: 2.88
  • D: 3.29
  • E: 1.75
  • M: .93
  • V: 3.88
  • W: 2.88
  • X: 5.65
  • Est. Wt. (lbs.): 6.30

Specification Table

Part NumberFC7100-3232-4
IPS Size2
Thread CL-2B2-1/2”-12
A6.37
C2.88
D3.29
E1.75
M.93
V3.88
W2.88
X5.65
Est. Wt. (lbs.)6.30

Components Table

DescriptionReq’d per Ass’yBase No.16162020242024243232Mat’l
Nipple Ass'y1FC6100-1616-42020-42420-42424-43232-4Monel
Segment2FC2057-1-16-41-20-41-20-41-24-41-32-4Monel
Bolt4FC9032-07-28-407-28-407-28-408-28-409-36-4Monel
